◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-39A - POWER ASSISTOR ▶
2-39A — POWER ASSISTOR (#9258) — 69 parça

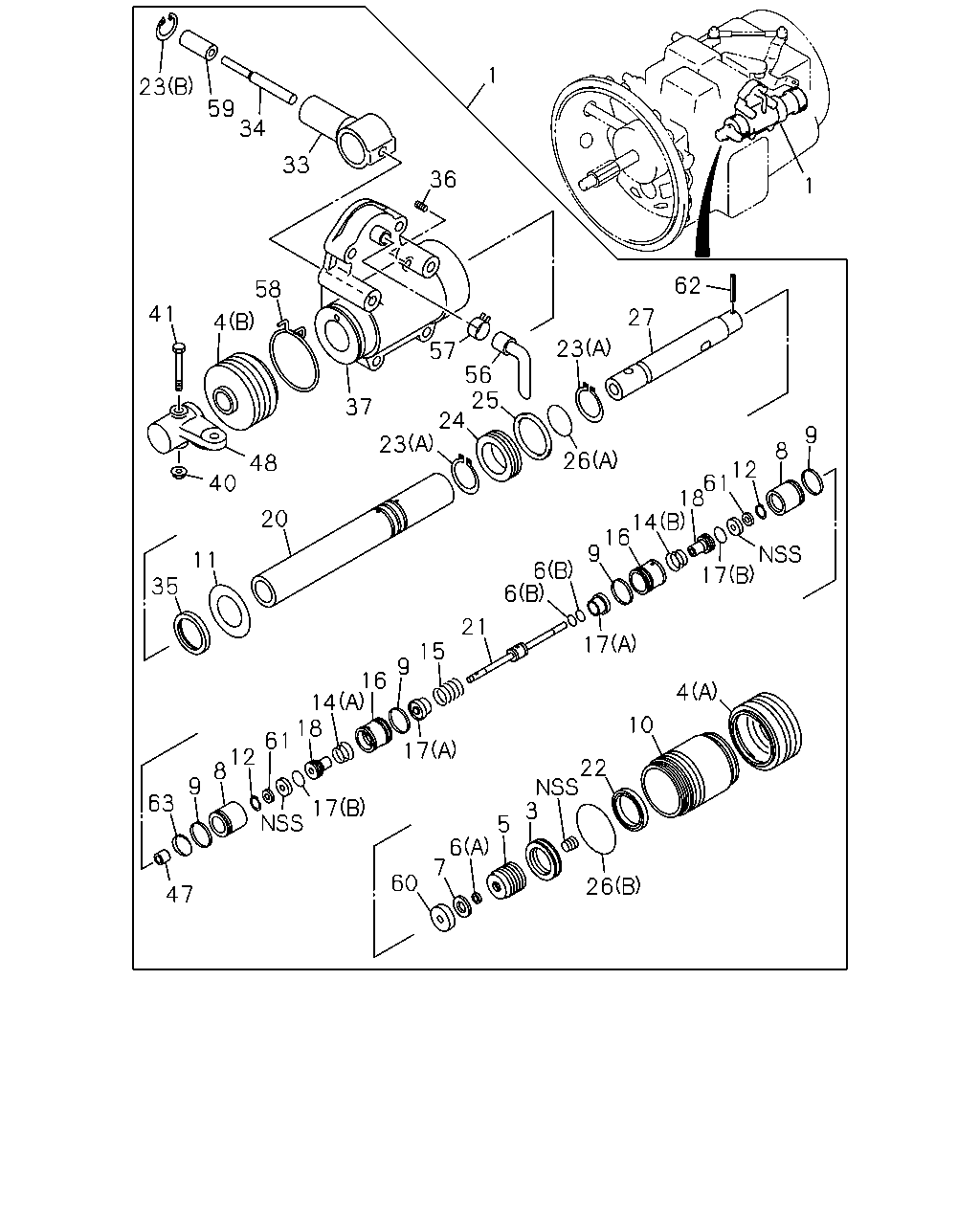

çizim 7918
1 23 59 34 33 36 1 62 58 41 27 4 57 56 25 24 23 37 9 23 8 26 48 12 61 18 14 16 9 40 20 11 6 6 17 35 21 17 15 9 16 4 14 18 10 61 17 12 8 22 3 9 63 17 5 6 7 60 26 47
BalonParca AdiParca NoAdetTipApplied Date
1 ASSISTOR ASM; POWER,SHIFT 1-33730-127-2 01 1 0005-0210
3 NUT; LK,ROD 1-33739-025-0 01 1 0005-0210
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 0005-0210
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 0005-0108
4 BOOT; POWER SHIFTER
(B) 		1-33738-101-0 01 1 0109-0210
5 CONNECTOR; CYL 1-33739-017-0 01 1 0005-0210
6 GASKET
(A) 		1-33739-013-0 01 1 0005-0210
6 GASKET
(B) 		1-33739-583-0 02 1 0005-0210
7 FILTER; AIR 1-33739-033-0 01 1 0005-0210
8 TUBE 1-33739-560-0 02 1 0005-0210
9 RING; SQUARE 1-33739-086-0 04 1 0005-0210
10 CYLINDER; POWER SHIFTER 1-33739-572-0 01 1 0005-0210
11 PLATE; CYL 1-33739-576-0 01 1 0005-0210
12 RING; RET 1-33739-016-0 02 1 0005-0210
14 SPRING; VALVE LIFTER
(A) 		1-33739-066-0 01 1 0005-0210
14 SPRING; VALVE LIFTER
(B) 		1-33739-568-0 01 1 0005-0210
15 SPRING; VALVE SEAL 1-33739-582-0 01 1 0005-0210
16 SEAT; VALVE 1-33739-585-0 02 1 0005-0210
17 SEAL ASM; VALVE
(A) 		9-83335-055-0 02 1 0005-0210
17 SEAL ASM; VALVE
(B) 		1-33739-584-0 02 1 0005-0210
18 LIFTER; VALVE 1-33739-586-0 02 1 0005-0210
20 ROD ASM; W/CAP 1-33739-765-0 01 1 0005-0210
21 PIPE; AIR,POWER SHIFTER 1-33739-587-0 01 1 0005-0210
22 SEAL; OIL 1-33739-353-0 01 1 0005-0210
23 RING; RET
(A) 		1-33739-022-0 02 1 0005-0210
23 RING; RET
(B) 		1-33739-564-0 01 1 0005-0210
24 PISTON 1-33739-578-0 01 1 0005-0210
25 RING; "X",PISTON 1-33739-420-0 01 1 0005-0210
26 GASKET
(A) 		1-33739-496-0 01 1 0005-0210
26 GASKET
(B) 		1-33739-573-0 01 1 0005-0210
27 ROD; POWER SHIFTER 1-33739-580-0 01 1 0005-0210
33 STRIKER; POWER SHIFTER 1-33739-577-0 01 1 0005-0210
34 PIN; STRAIGHT,POWER SHIFTER 1-33739-575-0 01 1 0005-0210
35 GASKET; CUP 1-33739-073-0 01 1 0005-0210
36 SCREW; SET 1-33739-040-0 01 1 0005-0210
37 HOUSING; POWER SHIFTER 1-33739-574-0 01 1 0005-0210
40 NUT; LEVER 1-33739-940-0 01 1 0005-0210
41 BOLT; SET,LEVER 1-33739-939-0 01 1 0005-0210
47 BUSHING; CYL 1-33739-567-0 01 1 0005-0210
48 LEVER; CONT,CABLE 1-33739-559-0 01 1 0005-0210
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 0005-0210
57 CLAMP; HOSE 1-33739-569-0 01 1 0005-0210
58 CLAMP; BOOT 1-33739-562-0 01 1 0005-0108
59 SHIM; POWER SHIFTER 1-33739-563-0 01 1 0005-0108
59 SHIM; POWER SHIFTER 1-33738-102-0 01 1 0109-0210
60 COLLAR; CYL 1-33739-561-0 01 1 0005-0210
61 PLATE; VLV LIFTER 1-33739-581-0 02 1 0005-0210
62 PIN; PIPE 1-33739-566-0 01 1 0005-0210
63 CLAMP; CYL 1-33739-565-0 01 1 0005-0210

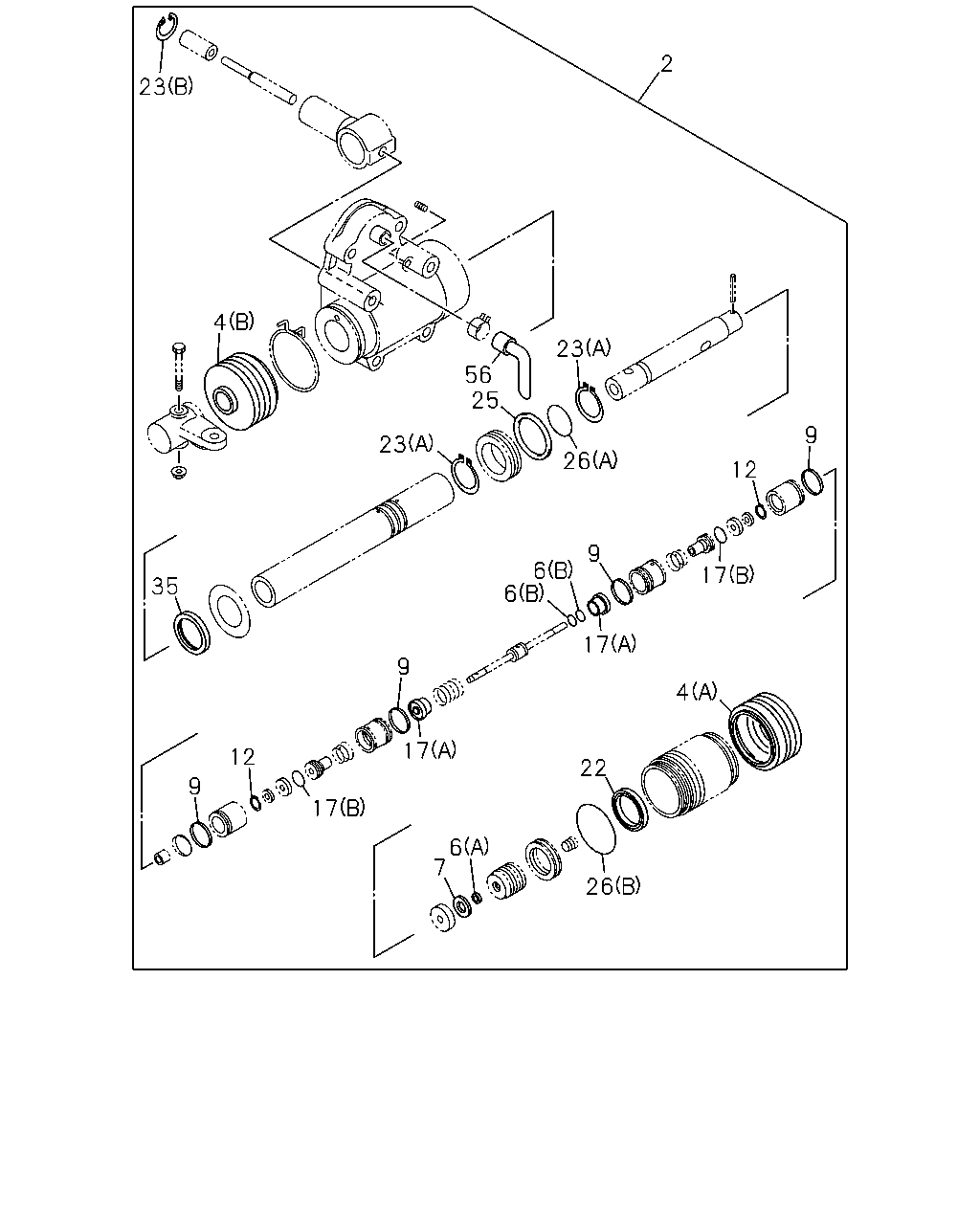

çizim 45686
2 23 4 23 56 25 9 23 26 12 9 6 6 17 35 17 9 4 17 12 22 9 17 6 7 26
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; POWER SHIFTER 1-33739-593-0 01 1 0005-0108
2 REPAIR KIT; POWER SHIFTER 1-33738-103-0 01 1 0109-0210
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 0005-0210
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 0005-0108
4 BOOT; POWER SHIFTER
(B) 		1-33738-101-0 01 1 0109-0210
6 GASKET
(A) 		1-33739-013-0 01 1 0005-0210
6 GASKET
(B) 		1-33739-583-0 02 1 0005-0210
7 FILTER; AIR 1-33739-033-0 01 1 0005-0210
9 RING; SQUARE 1-33739-086-0 04 1 0005-0210
12 RING; RET 1-33739-016-0 02 1 0005-0210
17 SEAL ASM; VALVE
(A) 		9-83335-055-0 02 1 0005-0210
17 SEAL ASM; VALVE
(B) 		1-33739-584-0 02 1 0005-0210
22 SEAL; OIL 1-33739-353-0 01 1 0005-0210
23 RING; RET
(A) 		1-33739-022-0 02 1 0005-0210
23 RING; RET
(B) 		1-33739-564-0 01 1 0005-0210
25 RING; "X",PISTON 1-33739-420-0 01 1 0005-0210
26 GASKET
(A) 		1-33739-496-0 01 1 0005-0210
26 GASKET
(B) 		1-33739-573-0 01 1 0005-0210
35 GASKET; CUP 1-33739-073-0 01 1 0005-0210
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 0005-0210
