2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#9254) — 466 parça

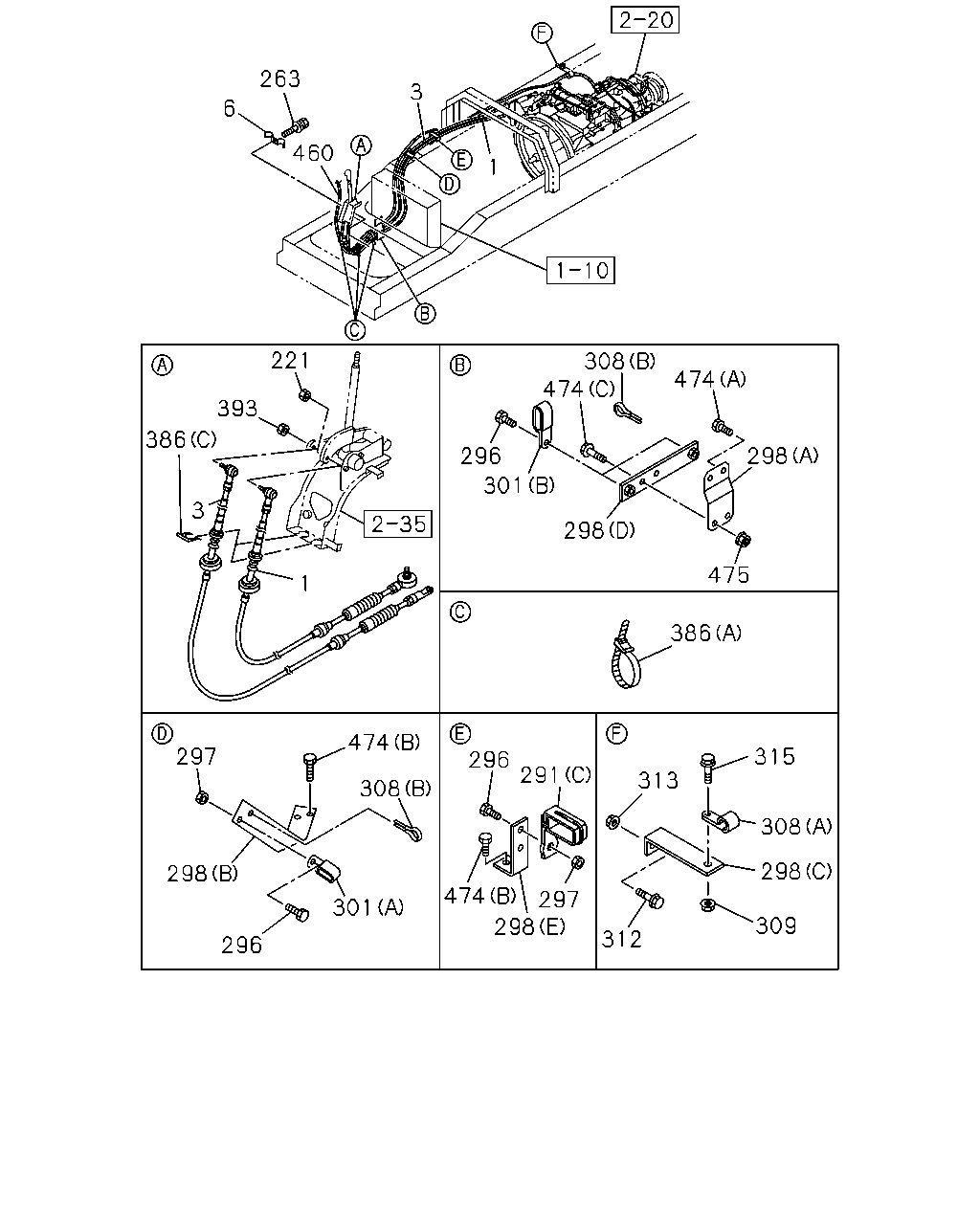

çizim 7558
263 3 6 460 1 221 308 474 474 393 386 298 296 301 3 298 475 1 386 297 296 474 315 291 313 308 308 298 298 474 297 298 301 309 312 296
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CABLE; SHIFT,TRANS CONT
FRONT SPRING HEAVY DUTY VAR1(F60) L=3700 		8-97383-461-1 01 1 0406- ●
1 CABLE; SHIFT,TRANS CONT
FRONT SPRING HEAVY DUTY VAR1(F60) L=3755 		8-97383-462-0 01 1 0406- ●
1 CABLE; SHIFT,TRANS CONT
L=3640 		1-33671-693-0 01 1 0005-0210 ●
1 CABLE; SHIFT,TRANS CONT
L=3640 		1-33671-693-0 01 1 0211-0405 ●
1 CABLE; SHIFT,TRANS CONT
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) L=3640 		1-33671-693-0 01 1 0406- ●
1 CABLE; SHIFT,TRANS CONT
L=3695 		1-33671-694-0 01 1 0005-0405 ●
1 CABLE; SHIFT,TRANS CONT
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) L=3695 		1-33671-694-0 01 1 0406- ●
1 CABLE; SHIFT,TRANS CONT
L=3695 		1-33671-879-0 01 1 0303- ●
3 CABLE; SELECT,TRANS CONT
FRONT SPRING HEAVY DUTY VAR1(F60) L=3565 		8-97383-468-1 01 1 0406- ●
3 CABLE; SELECT,TRANS CONT
FRONT SPRING HEAVY DUTY VAR1(F60) L=3665 		8-97383-469-0 01 1 0406- ●
3 CABLE; SELECT,TRANS CONT
L=3520 		1-33671-697-0 01 1 0005-0210 ●
3 CABLE; SELECT,TRANS CONT
L=3520 		1-33671-697-0 01 1 0211-0405 ●
3 CABLE; SELECT,TRANS CONT
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) L=3520 		1-33671-697-0 01 1 0406- ●
3 CABLE; SELECT,TRANS CONT
L=3615 		1-33671-698-0 01 1 0005-0405 ●
3 CABLE; SELECT,TRANS CONT
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) L=3615 		1-33671-698-0 01 1 0406- ●
3 CABLE; SELECT,TRANS CONT
L=3890 		1-33671-881-0 01 1 0303- ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0005-0210 ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0211- ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0005-0210 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0211-1011 ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0005-0210 ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0211- ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1 TCS ENG(80L) (D) ID=13 & 13 L=32 		8-97389-264-0 01 1 0710- ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) 		1-09701-307-2 01 1 0407- ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 0005-0210 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 0211-0302 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 0303-0406 ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 0407- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(D) ID=13X2 L=32 		1-09701-245-0 02 1 0303-0506 ●
291 CLIP; SHIFT TO SELECT,FRAME
(D) ID=13X2 L=32 		1-09701-312-0 02 1 0507-0709 ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1 TCS ENG(80L) (D) ID=13X2 L=32 		1-09701-312-0 01 1 0710- ●
291 CLIP; SHIFT TO SELECT,FRAME
(D) ID=13X2 L=32 		1-09701-312-0 01 1 0710- ●
291 CLIP; SHIFT TO SELECT,FRAME
(D) ID=13X2 L=32 		1-09701-312-0 01 1 0710- ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 04 1 0005-0210 ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 04 1 0211-0512 ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28050-816-0 04 1 0601- ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28680-830-0 02 1 0303-0512 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
298 BRACKET
FRONT SPRING HEAVY DUTY VAR1(F60) (A) 		1-47471-093-0 01 1 0406- ● ●
298 BRACKET
(E) 		1-47478-451-0 01 1 0211- ● ●
298 BRACKET
(B) 		1-47477-520-0 01 1 0005-0210 ● ●
298 BRACKET
(B) 		1-47477-520-0 01 1 0211- ● ●
298 BRACKET
(A) 		1-47478-997-0 01 1 0005-0210 ● ●
298 BRACKET
(A) 		1-47478-997-0 01 1 0211-0405 ● ●
298 BRACKET
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) (A) 		1-47478-997-0 01 1 0406- ● ●
298 BRACKET
(D) 		1-47478-998-0 01 1 0005-0010 ● ●
298 BRACKET
(D) 		1-47479-121-0 01 1 0011-0210 ● ●
298 BRACKET
(D) 		1-47479-121-0 01 1 0211- ● ●
298 BRACKET
(C) L=95 		1-82699-085-0 01 1 0005-0210 ● ●
298 BRACKET
(C) L=95 		1-82699-085-0 01 1 0211-0703 ● ●
298 BRACKET
(C) L=95 		1-82699-085-0 01 1 0704- ●
298 BRACKET
6SD1 TCN ENG(31L) (C) L=95 		1-82699-085-0 01 1 0704- ●
298 BRACKET
(F) 		1-47479-625-1 01 1 0303- ●
301 CLIP; WIRE
(A),(B) ID=11X2 L=16 		9-09535-026-0 03 1 0005-0010 ● ●
301 CLIP; WIRE
(A) ID=11X2 L=16 		9-09535-026-0 01 1 0011-0210 ● ●
301 CLIP; WIRE
(A) ID=11X2 L=16 		9-09535-026-0 01 1 0211-0606 ● ●
301 CLIP; WIRE
(A) ID=11X2 L=16 		0-95325-026-0 01 1 0607- ● ●
301 CLIP; WIRE
(B) ID=11X2 L=32 		9-09535-066-0 02 1 0011-0210 ● ●
301 CLIP; WIRE
(B) ID=11X2 L=32 		9-09535-066-0 02 1 0211-0606 ● ●
301 CLIP; WIRE
(B) ID=11X2 L=32 		0-95325-066-0 02 1 0607- ● ●
302 CLIP; BAND
6HK1 TCS ENG(80L) L=300 		1-09707-001-1 01 1 0704- ●
308 CLIP; PIPE
6HK1 TCS ENG(80L) (B) ID=11 H=23.3 L=70.5 		8-94318-800-1 01 1 0705- ●
308 CLIP; PIPE
6HK1 TCS ENG(80L) (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0704-0704 ●
308 CLIP; PIPE
6HK1 TCS ENG(80L) (B) ID=15 H=24 L=20 		1-09700-606-0 01 1 0705- ●
308 CLIP; PIPE
GVD(GV****) (B) ID=14 L=44 		9-09917-427-0 05 1 0005-0210 ●
308 CLIP; PIPE
GVD(GV****) (B) ID=14 L=44 		9-09917-427-0 03 1 0211-0703 ●
308 CLIP; PIPE
GVD(GV****) (B) ID=14 L=44 		9-09917-427-0 03 1 0704- ●
308 CLIP; PIPE
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) (B) ID=14 L=44 		9-09917-427-0 04 1 0005-0210 ●
308 CLIP; PIPE
(B) ID=14 L=44 		9-09917-427-0 04 1 0005-0210 ●
308 CLIP; PIPE
(B) ID=14 L=44 		9-09917-427-0 02 1 0211-0703 ●
308 CLIP; PIPE
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) (B) ID=14 L=44 		9-09917-427-0 02 1 0211-0703 ●
308 CLIP; PIPE
(B) ID=14 L=44 		9-09917-427-0 02 1 0704- ●
308 CLIP; PIPE
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) 6SD1 TCN ENG(31L) (B) ID=14 L=44 		9-09917-427-0 02 1 0704- ●
308 CLIP; PIPE
(A) ID=16 L=28 		9-09525-556-0 01 1 0005-0210 ● ●
308 CLIP; PIPE
(A) ID=16 L=28 		9-09525-556-0 01 1 0211-0606 ● ●
308 CLIP; PIPE
(A) ID=16 L=28 		0-95235-556-0 01 1 0607-0703 ● ●
308 CLIP; PIPE
(A) ID=16 L=28 		0-95235-556-0 01 1 0704- ●
308 CLIP; PIPE
6SD1 TCN ENG(31L) (A) ID=16 L=28 		0-95235-556-0 01 1 0704- ●
308 CLIP; PIPE
(A) ID=16 L=40 		9-09525-576-0 01 1 0005-0210 ● ●
309 NUT; PIPE CLIP
6HK1 TCS ENG(80L) M10 FLANGE 		0-91180-110-0 01 1 0704- ●
309 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ● ●
309 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ●
309 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-0703 ● ●
309 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0704- ●
309 NUT; PIPE CLIP
6SD1 TCN ENG(31L) M8 FLANGE 		0-91180-108-0 01 1 0704- ●
312 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0005-0210 ● ●
312 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0211-0512 ● ●
312 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-0703 ● ●
312 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0704- ●
312 BOLT; CLIP BRKT
6SD1 TCN ENG(31L) M8X30 FLANGE 		0-28650-830-0 01 1 0704- ●
313 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ● ●
313 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ●
313 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-0703 ● ●
313 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0704- ●
313 NUT; CLIP BRKT
6SD1 TCN ENG(31L) M8 FLANGE 		0-91180-108-0 01 1 0704- ●
315 BOLT; PIPE CLIP
6HK1 TCS ENG(80L) M8X20 FLANGE 		0-28050-820-0 01 1 0704- ●
315 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ● ●
315 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0211-0512 ● ●
315 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0601-0703 ● ●
315 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0704- ●
315 BOLT; PIPE CLIP
6SD1 TCN ENG(31L) M8X16 FLANGE 		0-28050-816-0 02 1 0704- ●
386 CLIP; CONT CABLE & TUBE
6HK1 TCS ENG(80L) (A) L=140 		5-09707-031-1 11 1 0704- ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 0005-0210 ● ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 0211- ● ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 08 1 0005-0210 ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 0211- ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 0005-0011 ● ●
386 CLIP; CONT CABLE & TUBE
FVL(FVL***) (A) L=140 		5-09707-031-1 09 1 0012-0210 ●
386 CLIP; CONT CABLE & TUBE
(B) ID=7-10 		8-94472-578-0 01 1 0005-0210 ● ●
386 CLIP; CONT CABLE & TUBE
(B) ID=7-10 		8-94472-578-0 01 1 0211-0308 ● ● ●
386 CLIP; CONT CABLE & TUBE
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0309- ● ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 0012-0210 ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 10 1 0211- ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 12 1 0005- ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 0005-0210 ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 0211-1011 ● ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ● ●
460 TUBE; CORRUGATE
6HK1 TCS ENG(80L) SERVICED BY L=6000 		1-83129-337-0 01 1 0704-0707 ●
460 TUBE; CORRUGATE
6HK1 TCS ENG(80L) SERVICED BY L=6000 		1-83129-337-0 01 1 0708- ●
460 TUBE; CORRUGATE
L=4580 SERVICED BY L=6000 		1-83129-337-0 01 1 0005-0012 ●
460 TUBE; CORRUGATE
GVD(GV****) L=4580 SERVICED BY L=6000 		1-83129-337-0 01 1 0101-0210 ●
460 TUBE; CORRUGATE
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) L=4380 SERVICED BY L=6000 ID=10 		1-87411-021-0 01 1 0211- ●
460 TUBE; CORRUGATE
FVD(FVD***) L=4380 SERVICED BY L=6000 ID=10 		1-87410-090-0 01 1 0101-0210 ●
460 TUBE; CORRUGATE
L=400 SERVICED BY L=800 ID=7 L=400 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0211- ●
460 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0005- ●
460 TUBE; CORRUGATE
L=4110 SERVICED BY L=6000 		1-83129-337-0 01 1 0005- ●
460 TUBE; CORRUGATE
L=370 SERVICED BY L=6000 		1-83129-337-0 01 1 0005- ●
460 TUBE; CORRUGATE
GVD(GV****) L=4530 SERVICED BY L=6000 ID=10 		1-87411-021-0 01 1 0211- ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0005-0210 ● ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0211-0302 ● ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0303- ● ● ●
474 BOLT; BRKT
(C) M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ● ●
474 BOLT; BRKT
(C) M8X16 FLANGE 		0-28080-816-0 02 1 0211-0512 ● ●
474 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28080-825-0 02 1 0005-0210 ● ●
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28080-825-0 03 1 0211-0512 ● ●
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28050-825-0 03 1 0601- ● ●
475 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ●
475 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ●
475 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
çizim 45543
385 385 460 387 386 386
BalonParca AdiParca NoAdetTipApplied Date A B C D
302 CLIP; BAND
6HK1 TCS ENG(80L) L=300 		1-09707-001-1 01 1 0704- ●
385 TUBE; NYLON
6HK1 TCS ENG(80L) SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0704- ●
385 TUBE; NYLON
6HK1 TCS ENG(80L) SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0704- ●
385 TUBE; NYLON
BLACK 		1-33619-543-0 01 1 0005-0012 ●
385 TUBE; NYLON
GVD(GV****) BLACK 		1-33619-543-0 01 1 0101-0210 ●
385 TUBE; NYLON
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) BLACK 		1-33619-371-0 01 1 0211- ●
385 TUBE; NYLON
RED 		1-33619-544-0 01 1 0005-0012 ●
385 TUBE; NYLON
GVD(GV****) RED 		1-33619-544-0 01 1 0101-0210 ●
385 TUBE; NYLON
GVD(GV****) RED 		1-33619-362-0 01 1 0211- ●
385 TUBE; NYLON
FVD(FVD***) BLACK 		1-33619-371-0 01 1 0101-0210 ●
385 TUBE; NYLON
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) RED 		1-33619-362-0 01 1 0211- ●
385 TUBE; NYLON
FVD(FVD***) RED 		1-33619-362-0 01 1 0101-0210 ●
385 TUBE; NYLON
GVD(GV****) BLACK 		1-33619-371-0 01 1 0211- ●
385 TUBE; NYLON
RED 		1-33619-545-0 01 1 0005- ●
385 TUBE; NYLON
BLUE 		1-33619-546-0 01 1 0005- ●
385 TUBE; NYLON
BLACK 		1-33619-547-0 01 1 0005- ●
385 TUBE; NYLON
GREEN 		1-33619-548-0 01 1 0005- ●
386 CLIP; CONT CABLE & TUBE
6HK1 TCS ENG(80L) (A) L=140 		5-09707-031-1 11 1 0704- ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 0005-0210 ● ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 0211- ● ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 08 1 0005-0210 ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 0211- ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 0005-0011 ● ●
386 CLIP; CONT CABLE & TUBE
FVL(FVL***) (A) L=140 		5-09707-031-1 09 1 0012-0210 ●
386 CLIP; CONT CABLE & TUBE
(B) ID=7-10 		8-94472-578-0 01 1 0005-0210 ● ●
386 CLIP; CONT CABLE & TUBE
(B) ID=7-10 		8-94472-578-0 01 1 0211-0308 ● ● ●
386 CLIP; CONT CABLE & TUBE
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0309- ● ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 0012-0210 ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 10 1 0211- ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 12 1 0005- ●
387 GROMMET; CONT TUBE,FULLER 1-09333-126-0 01 1 0005-0210 ● ●
387 GROMMET; CONT TUBE,FULLER 1-09333-126-0 01 1 1001- ● ●
387 GROMMET; CONT TUBE,FULLER 1-09333-126-0 01 1 0211- ● ●
460 TUBE; CORRUGATE
6HK1 TCS ENG(80L) SERVICED BY L=6000 		1-83129-337-0 01 1 0704-0707 ●
460 TUBE; CORRUGATE
6HK1 TCS ENG(80L) SERVICED BY L=6000 		1-83129-337-0 01 1 0708- ●
460 TUBE; CORRUGATE
L=4580 SERVICED BY L=6000 		1-83129-337-0 01 1 0005-0012 ●
460 TUBE; CORRUGATE
GVD(GV****) L=4580 SERVICED BY L=6000 		1-83129-337-0 01 1 0101-0210 ●
460 TUBE; CORRUGATE
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) L=4380 SERVICED BY L=6000 ID=10 		1-87411-021-0 01 1 0211- ●
460 TUBE; CORRUGATE
FVD(FVD***) L=4380 SERVICED BY L=6000 ID=10 		1-87410-090-0 01 1 0101-0210 ●
460 TUBE; CORRUGATE
L=400 SERVICED BY L=800 ID=7 L=400 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0211- ●
460 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0005- ●
460 TUBE; CORRUGATE
L=4110 SERVICED BY L=6000 		1-83129-337-0 01 1 0005- ●
460 TUBE; CORRUGATE
L=370 SERVICED BY L=6000 		1-83129-337-0 01 1 0005- ●
460 TUBE; CORRUGATE
GVD(GV****) L=4530 SERVICED BY L=6000 ID=10 		1-87411-021-0 01 1 0211- ●

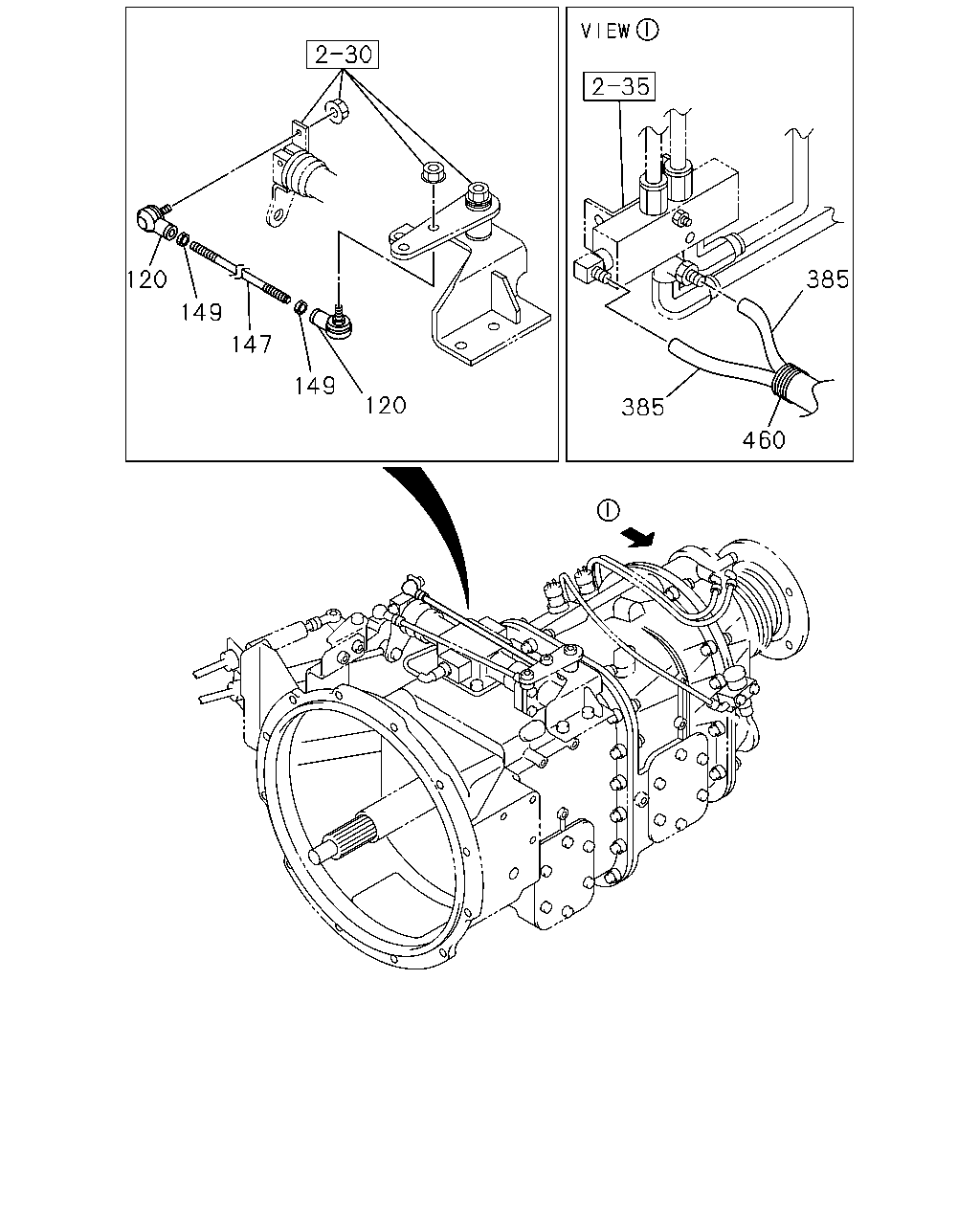

çizim 47147
385 120 149 147 149 120 385 460
BalonParca AdiParca NoAdetTipApplied Date A B C D
120 JOINT ASM; BALL,CONT ROD 1-09760-078-0 02 1 0005-0210 ●
120 JOINT ASM; BALL,CONT ROD
6SD1 TCN ENG(31L) 		1-09760-078-0 02 1 0211- ●
120 JOINT ASM; BALL,CONT ROD
L=48 		1-09760-038-1 02 1 0303-0309 ●
120 JOINT ASM; BALL,CONT ROD
L=45.5 		1-09760-118-1 02 1 0310-0609 ●
120 JOINT ASM; BALL,CONT ROD
6HK1 TCS ENG(80L) L=45.5 		1-09760-118-1 02 1 0610- ●
120 JOINT ASM; BALL,CONT ROD
L=45.5 		1-09760-118-1 02 1 0610- ●
147 ROD; LINK 1-09765-227-0 01 1 0005-0210 ●
147 ROD; LINK
6SD1 TCN ENG(31L) 		1-09765-227-0 01 1 0211- ●
147 ROD; LINK 1-33652-460-0 01 1 0303-0609 ●
147 ROD; LINK
6HK1 TCS ENG(80L) 		1-33652-460-0 01 1 0610- ●
147 ROD; LINK 1-33652-460-0 01 1 0610- ●
149 NUT; SLEEVE TO CONT ROD
M10 		9-09111-410-0 02 1 0005-0210 ●
149 NUT; SLEEVE TO CONT ROD
M10 		9-09111-410-0 02 1 0211-0512 ●
149 NUT; SLEEVE TO CONT ROD
6SD1 TCN ENG(31L) M10 		0-91111-510-0 02 1 0601- ●
149 NUT; SLEEVE TO CONT ROD
M8 		9-09111-408-0 02 1 0303-0512 ●
149 NUT; SLEEVE TO CONT ROD
M8 		0-91111-508-0 02 1 0601-0609 ●
149 NUT; SLEEVE TO CONT ROD
6HK1 TCS ENG(80L) M8 		0-91111-508-0 02 1 0610- ●
149 NUT; SLEEVE TO CONT ROD
M8 		0-91111-508-0 02 1 0610- ●
302 CLIP; BAND
6HK1 TCS ENG(80L) L=300 		1-09707-001-1 01 1 0704- ●
385 TUBE; NYLON
6HK1 TCS ENG(80L) SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0704- ●
385 TUBE; NYLON
6HK1 TCS ENG(80L) SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0704- ●
385 TUBE; NYLON
BLACK 		1-33619-543-0 01 1 0005-0012 ●
385 TUBE; NYLON
GVD(GV****) BLACK 		1-33619-543-0 01 1 0101-0210 ●
385 TUBE; NYLON
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) BLACK 		1-33619-371-0 01 1 0211- ●
385 TUBE; NYLON
RED 		1-33619-544-0 01 1 0005-0012 ●
385 TUBE; NYLON
GVD(GV****) RED 		1-33619-544-0 01 1 0101-0210 ●
385 TUBE; NYLON
GVD(GV****) RED 		1-33619-362-0 01 1 0211- ●
385 TUBE; NYLON
FVD(FVD***) BLACK 		1-33619-371-0 01 1 0101-0210 ●
385 TUBE; NYLON
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) RED 		1-33619-362-0 01 1 0211- ●
385 TUBE; NYLON
FVD(FVD***) RED 		1-33619-362-0 01 1 0101-0210 ●
385 TUBE; NYLON
GVD(GV****) BLACK 		1-33619-371-0 01 1 0211- ●
385 TUBE; NYLON
RED 		1-33619-545-0 01 1 0005- ●
385 TUBE; NYLON
BLUE 		1-33619-546-0 01 1 0005- ●
385 TUBE; NYLON
BLACK 		1-33619-547-0 01 1 0005- ●
385 TUBE; NYLON
GREEN 		1-33619-548-0 01 1 0005- ●
460 TUBE; CORRUGATE
6HK1 TCS ENG(80L) SERVICED BY L=6000 		1-83129-337-0 01 1 0704-0707 ●
460 TUBE; CORRUGATE
6HK1 TCS ENG(80L) SERVICED BY L=6000 		1-83129-337-0 01 1 0708- ●
460 TUBE; CORRUGATE
L=4580 SERVICED BY L=6000 		1-83129-337-0 01 1 0005-0012 ●
460 TUBE; CORRUGATE
GVD(GV****) L=4580 SERVICED BY L=6000 		1-83129-337-0 01 1 0101-0210 ●
460 TUBE; CORRUGATE
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) L=4380 SERVICED BY L=6000 ID=10 		1-87411-021-0 01 1 0211- ●
460 TUBE; CORRUGATE
FVD(FVD***) L=4380 SERVICED BY L=6000 ID=10 		1-87410-090-0 01 1 0101-0210 ●
460 TUBE; CORRUGATE
L=400 SERVICED BY L=800 ID=7 L=400 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0211- ●
460 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0005- ●
460 TUBE; CORRUGATE
L=4110 SERVICED BY L=6000 		1-83129-337-0 01 1 0005- ●
460 TUBE; CORRUGATE
L=370 SERVICED BY L=6000 		1-83129-337-0 01 1 0005- ●
460 TUBE; CORRUGATE
GVD(GV****) L=4530 SERVICED BY L=6000 ID=10 		1-87411-021-0 01 1 0211- ●

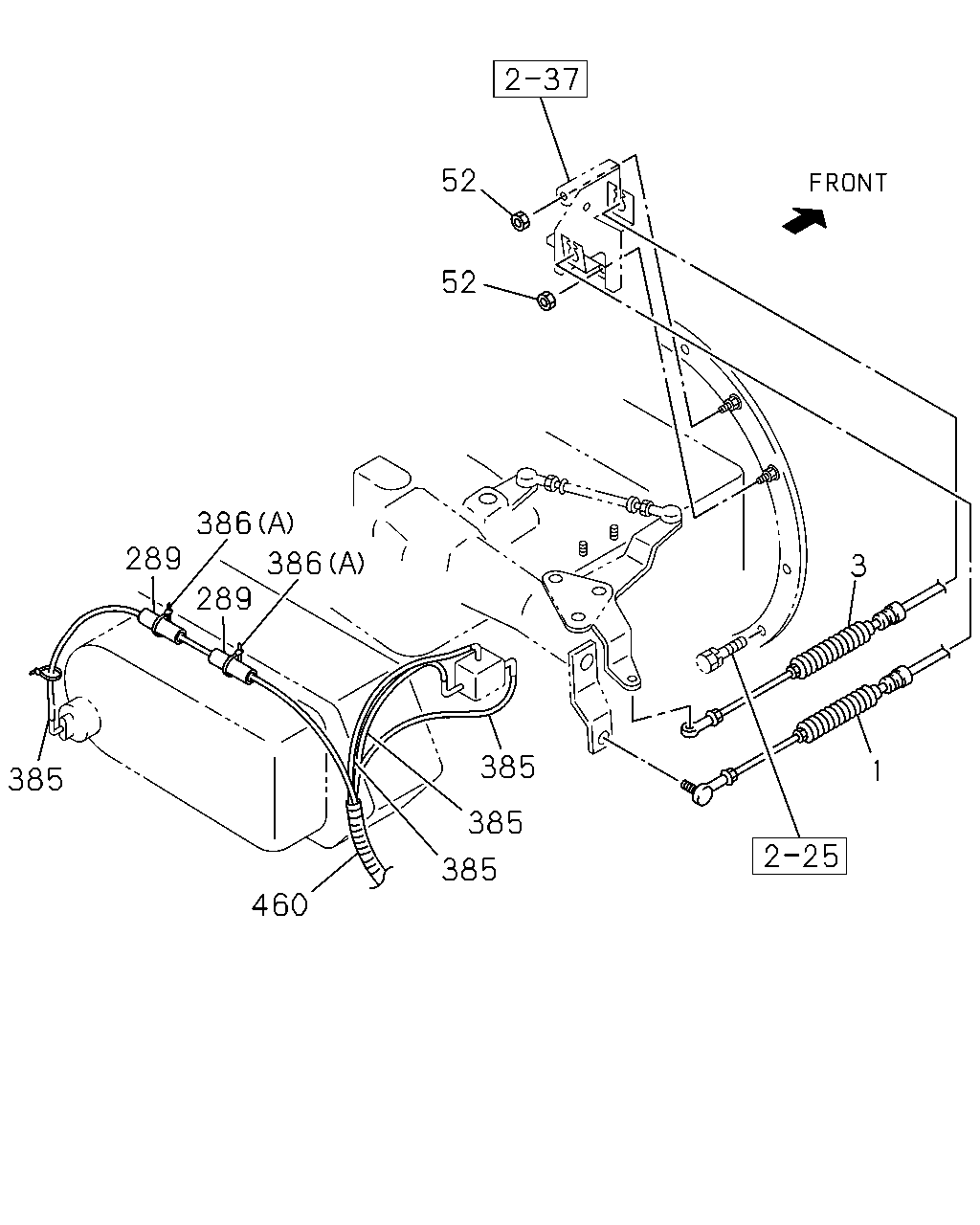

çizim 47182
52 52 386 289 386 3 289 385 1 385 385 385 460
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CABLE; SHIFT,TRANS CONT
FRONT SPRING HEAVY DUTY VAR1(F60) L=3700 		8-97383-461-1 01 1 0406- ●
1 CABLE; SHIFT,TRANS CONT
FRONT SPRING HEAVY DUTY VAR1(F60) L=3755 		8-97383-462-0 01 1 0406- ●
1 CABLE; SHIFT,TRANS CONT
L=3640 		1-33671-693-0 01 1 0005-0210 ●
1 CABLE; SHIFT,TRANS CONT
L=3640 		1-33671-693-0 01 1 0211-0405 ●
1 CABLE; SHIFT,TRANS CONT
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) L=3640 		1-33671-693-0 01 1 0406- ●
1 CABLE; SHIFT,TRANS CONT
L=3695 		1-33671-694-0 01 1 0005-0405 ●
1 CABLE; SHIFT,TRANS CONT
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) L=3695 		1-33671-694-0 01 1 0406- ●
1 CABLE; SHIFT,TRANS CONT
L=3695 		1-33671-879-0 01 1 0303- ●
3 CABLE; SELECT,TRANS CONT
FRONT SPRING HEAVY DUTY VAR1(F60) L=3565 		8-97383-468-1 01 1 0406- ●
3 CABLE; SELECT,TRANS CONT
FRONT SPRING HEAVY DUTY VAR1(F60) L=3665 		8-97383-469-0 01 1 0406- ●
3 CABLE; SELECT,TRANS CONT
L=3520 		1-33671-697-0 01 1 0005-0210 ●
3 CABLE; SELECT,TRANS CONT
L=3520 		1-33671-697-0 01 1 0211-0405 ●
3 CABLE; SELECT,TRANS CONT
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) L=3520 		1-33671-697-0 01 1 0406- ●
3 CABLE; SELECT,TRANS CONT
L=3615 		1-33671-698-0 01 1 0005-0405 ●
3 CABLE; SELECT,TRANS CONT
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) L=3615 		1-33671-698-0 01 1 0406- ●
3 CABLE; SELECT,TRANS CONT
L=3890 		1-33671-881-0 01 1 0303- ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0005-0210 ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
289 SLEEVE; RUBBER
L=1300 		1-09360-677-1 02 1 0005-0210 ●
289 SLEEVE; RUBBER
ID=32 OD=36 L=50 		1-09337-023-0 02 1 0211-0502 ●
289 SLEEVE; RUBBER
ID=23 OD=27 L=40 		1-09337-015-0 02 1 0503- ●
289 SLEEVE; RUBBER
ID=32 OD=36 L=50 		1-09337-023-0 01 1 0211-0502 ●
289 SLEEVE; RUBBER
ID=23 OD=27 L=40 		1-09337-015-0 01 1 0503- ●
302 CLIP; BAND
6HK1 TCS ENG(80L) L=300 		1-09707-001-1 01 1 0704- ●
385 TUBE; NYLON
6HK1 TCS ENG(80L) SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0704- ●
385 TUBE; NYLON
6HK1 TCS ENG(80L) SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0704- ●
385 TUBE; NYLON
BLACK 		1-33619-543-0 01 1 0005-0012 ●
385 TUBE; NYLON
GVD(GV****) BLACK 		1-33619-543-0 01 1 0101-0210 ●
385 TUBE; NYLON
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) BLACK 		1-33619-371-0 01 1 0211- ●
385 TUBE; NYLON
RED 		1-33619-544-0 01 1 0005-0012 ●
385 TUBE; NYLON
GVD(GV****) RED 		1-33619-544-0 01 1 0101-0210 ●
385 TUBE; NYLON
GVD(GV****) RED 		1-33619-362-0 01 1 0211- ●
385 TUBE; NYLON
FVD(FVD***) BLACK 		1-33619-371-0 01 1 0101-0210 ●
385 TUBE; NYLON
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) RED 		1-33619-362-0 01 1 0211- ●
385 TUBE; NYLON
FVD(FVD***) RED 		1-33619-362-0 01 1 0101-0210 ●
385 TUBE; NYLON
GVD(GV****) BLACK 		1-33619-371-0 01 1 0211- ●
385 TUBE; NYLON
RED 		1-33619-545-0 01 1 0005- ●
385 TUBE; NYLON
BLUE 		1-33619-546-0 01 1 0005- ●
385 TUBE; NYLON
BLACK 		1-33619-547-0 01 1 0005- ●
385 TUBE; NYLON
GREEN 		1-33619-548-0 01 1 0005- ●
386 CLIP; CONT CABLE & TUBE
6HK1 TCS ENG(80L) (A) L=140 		5-09707-031-1 11 1 0704- ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 0005-0210 ● ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 0211- ● ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 08 1 0005-0210 ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 0211- ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 0005-0011 ● ●
386 CLIP; CONT CABLE & TUBE
FVL(FVL***) (A) L=140 		5-09707-031-1 09 1 0012-0210 ●
386 CLIP; CONT CABLE & TUBE
(B) ID=7-10 		8-94472-578-0 01 1 0005-0210 ● ●
386 CLIP; CONT CABLE & TUBE
(B) ID=7-10 		8-94472-578-0 01 1 0211-0308 ● ● ●
386 CLIP; CONT CABLE & TUBE
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0309- ● ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 0012-0210 ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 10 1 0211- ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 12 1 0005- ●
460 TUBE; CORRUGATE
6HK1 TCS ENG(80L) SERVICED BY L=6000 		1-83129-337-0 01 1 0704-0707 ●
460 TUBE; CORRUGATE
6HK1 TCS ENG(80L) SERVICED BY L=6000 		1-83129-337-0 01 1 0708- ●
460 TUBE; CORRUGATE
L=4580 SERVICED BY L=6000 		1-83129-337-0 01 1 0005-0012 ●
460 TUBE; CORRUGATE
GVD(GV****) L=4580 SERVICED BY L=6000 		1-83129-337-0 01 1 0101-0210 ●
460 TUBE; CORRUGATE
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) L=4380 SERVICED BY L=6000 ID=10 		1-87411-021-0 01 1 0211- ●
460 TUBE; CORRUGATE
FVD(FVD***) L=4380 SERVICED BY L=6000 ID=10 		1-87410-090-0 01 1 0101-0210 ●
460 TUBE; CORRUGATE
L=400 SERVICED BY L=800 ID=7 L=400 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0211- ●
460 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0005- ●
460 TUBE; CORRUGATE
L=4110 SERVICED BY L=6000 		1-83129-337-0 01 1 0005- ●
460 TUBE; CORRUGATE
L=370 SERVICED BY L=6000 		1-83129-337-0 01 1 0005- ●
460 TUBE; CORRUGATE
GVD(GV****) L=4530 SERVICED BY L=6000 ID=10 		1-87411-021-0 01 1 0211- ●

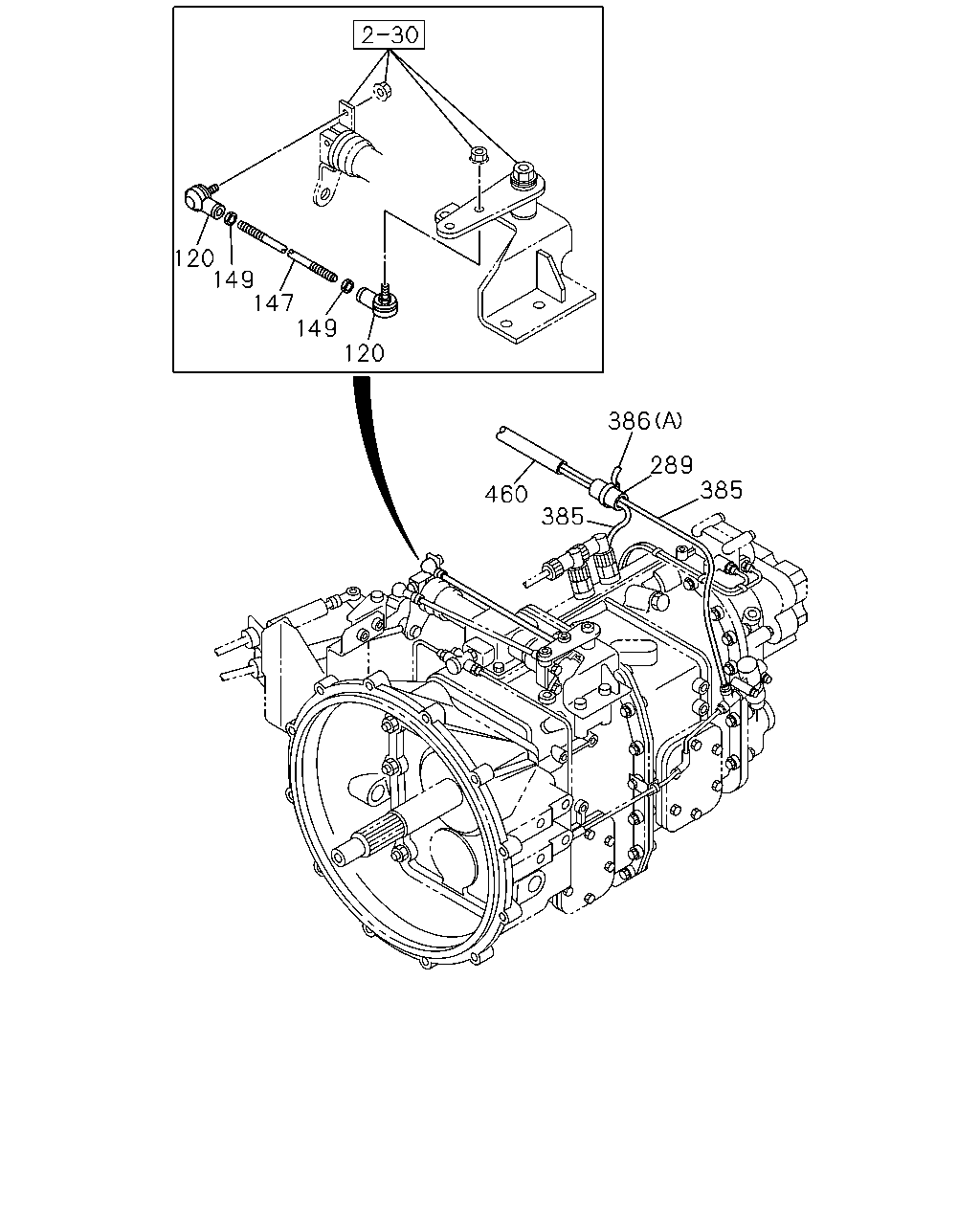

çizim 47456
120 149 147 149 120 386 289 385 460 385
BalonParca AdiParca NoAdetTipApplied Date A B C D
120 JOINT ASM; BALL,CONT ROD 1-09760-078-0 02 1 0005-0210 ●
120 JOINT ASM; BALL,CONT ROD
6SD1 TCN ENG(31L) 		1-09760-078-0 02 1 0211- ●
120 JOINT ASM; BALL,CONT ROD
L=48 		1-09760-038-1 02 1 0303-0309 ●
120 JOINT ASM; BALL,CONT ROD
L=45.5 		1-09760-118-1 02 1 0310-0609 ●
120 JOINT ASM; BALL,CONT ROD
6HK1 TCS ENG(80L) L=45.5 		1-09760-118-1 02 1 0610- ●
120 JOINT ASM; BALL,CONT ROD
L=45.5 		1-09760-118-1 02 1 0610- ●
147 ROD; LINK 1-09765-227-0 01 1 0005-0210 ●
147 ROD; LINK
6SD1 TCN ENG(31L) 		1-09765-227-0 01 1 0211- ●
147 ROD; LINK 1-33652-460-0 01 1 0303-0609 ●
147 ROD; LINK
6HK1 TCS ENG(80L) 		1-33652-460-0 01 1 0610- ●
147 ROD; LINK 1-33652-460-0 01 1 0610- ●
149 NUT; SLEEVE TO CONT ROD
M10 		9-09111-410-0 02 1 0005-0210 ●
149 NUT; SLEEVE TO CONT ROD
M10 		9-09111-410-0 02 1 0211-0512 ●
149 NUT; SLEEVE TO CONT ROD
6SD1 TCN ENG(31L) M10 		0-91111-510-0 02 1 0601- ●
149 NUT; SLEEVE TO CONT ROD
M8 		9-09111-408-0 02 1 0303-0512 ●
149 NUT; SLEEVE TO CONT ROD
M8 		0-91111-508-0 02 1 0601-0609 ●
149 NUT; SLEEVE TO CONT ROD
6HK1 TCS ENG(80L) M8 		0-91111-508-0 02 1 0610- ●
149 NUT; SLEEVE TO CONT ROD
M8 		0-91111-508-0 02 1 0610- ●
289 SLEEVE; RUBBER
L=1300 		1-09360-677-1 02 1 0005-0210 ●
289 SLEEVE; RUBBER
ID=32 OD=36 L=50 		1-09337-023-0 02 1 0211-0502 ●
289 SLEEVE; RUBBER
ID=23 OD=27 L=40 		1-09337-015-0 02 1 0503- ●
289 SLEEVE; RUBBER
ID=32 OD=36 L=50 		1-09337-023-0 01 1 0211-0502 ●
289 SLEEVE; RUBBER
ID=23 OD=27 L=40 		1-09337-015-0 01 1 0503- ●
302 CLIP; BAND
6HK1 TCS ENG(80L) L=300 		1-09707-001-1 01 1 0704- ●
385 TUBE; NYLON
6HK1 TCS ENG(80L) SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0704- ●
385 TUBE; NYLON
6HK1 TCS ENG(80L) SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0704- ●
385 TUBE; NYLON
BLACK 		1-33619-543-0 01 1 0005-0012 ●
385 TUBE; NYLON
GVD(GV****) BLACK 		1-33619-543-0 01 1 0101-0210 ●
385 TUBE; NYLON
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) BLACK 		1-33619-371-0 01 1 0211- ●
385 TUBE; NYLON
RED 		1-33619-544-0 01 1 0005-0012 ●
385 TUBE; NYLON
GVD(GV****) RED 		1-33619-544-0 01 1 0101-0210 ●
385 TUBE; NYLON
GVD(GV****) RED 		1-33619-362-0 01 1 0211- ●
385 TUBE; NYLON
FVD(FVD***) BLACK 		1-33619-371-0 01 1 0101-0210 ●
385 TUBE; NYLON
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) RED 		1-33619-362-0 01 1 0211- ●
385 TUBE; NYLON
FVD(FVD***) RED 		1-33619-362-0 01 1 0101-0210 ●
385 TUBE; NYLON
GVD(GV****) BLACK 		1-33619-371-0 01 1 0211- ●
385 TUBE; NYLON
RED 		1-33619-545-0 01 1 0005- ●
385 TUBE; NYLON
BLUE 		1-33619-546-0 01 1 0005- ●
385 TUBE; NYLON
BLACK 		1-33619-547-0 01 1 0005- ●
385 TUBE; NYLON
GREEN 		1-33619-548-0 01 1 0005- ●
386 CLIP; CONT CABLE & TUBE
6HK1 TCS ENG(80L) (A) L=140 		5-09707-031-1 11 1 0704- ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 0005-0210 ● ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 0211- ● ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 08 1 0005-0210 ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 0211- ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 0005-0011 ● ●
386 CLIP; CONT CABLE & TUBE
FVL(FVL***) (A) L=140 		5-09707-031-1 09 1 0012-0210 ●
386 CLIP; CONT CABLE & TUBE
(B) ID=7-10 		8-94472-578-0 01 1 0005-0210 ● ●
386 CLIP; CONT CABLE & TUBE
(B) ID=7-10 		8-94472-578-0 01 1 0211-0308 ● ● ●
386 CLIP; CONT CABLE & TUBE
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0309- ● ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 0012-0210 ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 10 1 0211- ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 12 1 0005- ●
460 TUBE; CORRUGATE
6HK1 TCS ENG(80L) SERVICED BY L=6000 		1-83129-337-0 01 1 0704-0707 ●
460 TUBE; CORRUGATE
6HK1 TCS ENG(80L) SERVICED BY L=6000 		1-83129-337-0 01 1 0708- ●
460 TUBE; CORRUGATE
L=4580 SERVICED BY L=6000 		1-83129-337-0 01 1 0005-0012 ●
460 TUBE; CORRUGATE
GVD(GV****) L=4580 SERVICED BY L=6000 		1-83129-337-0 01 1 0101-0210 ●
460 TUBE; CORRUGATE
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) L=4380 SERVICED BY L=6000 ID=10 		1-87411-021-0 01 1 0211- ●
460 TUBE; CORRUGATE
FVD(FVD***) L=4380 SERVICED BY L=6000 ID=10 		1-87410-090-0 01 1 0101-0210 ●
460 TUBE; CORRUGATE
L=400 SERVICED BY L=800 ID=7 L=400 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0211- ●
460 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0005- ●
460 TUBE; CORRUGATE
L=4110 SERVICED BY L=6000 		1-83129-337-0 01 1 0005- ●
460 TUBE; CORRUGATE
L=370 SERVICED BY L=6000 		1-83129-337-0 01 1 0005- ●
460 TUBE; CORRUGATE
GVD(GV****) L=4530 SERVICED BY L=6000 ID=10 		1-87411-021-0 01 1 0211- ●

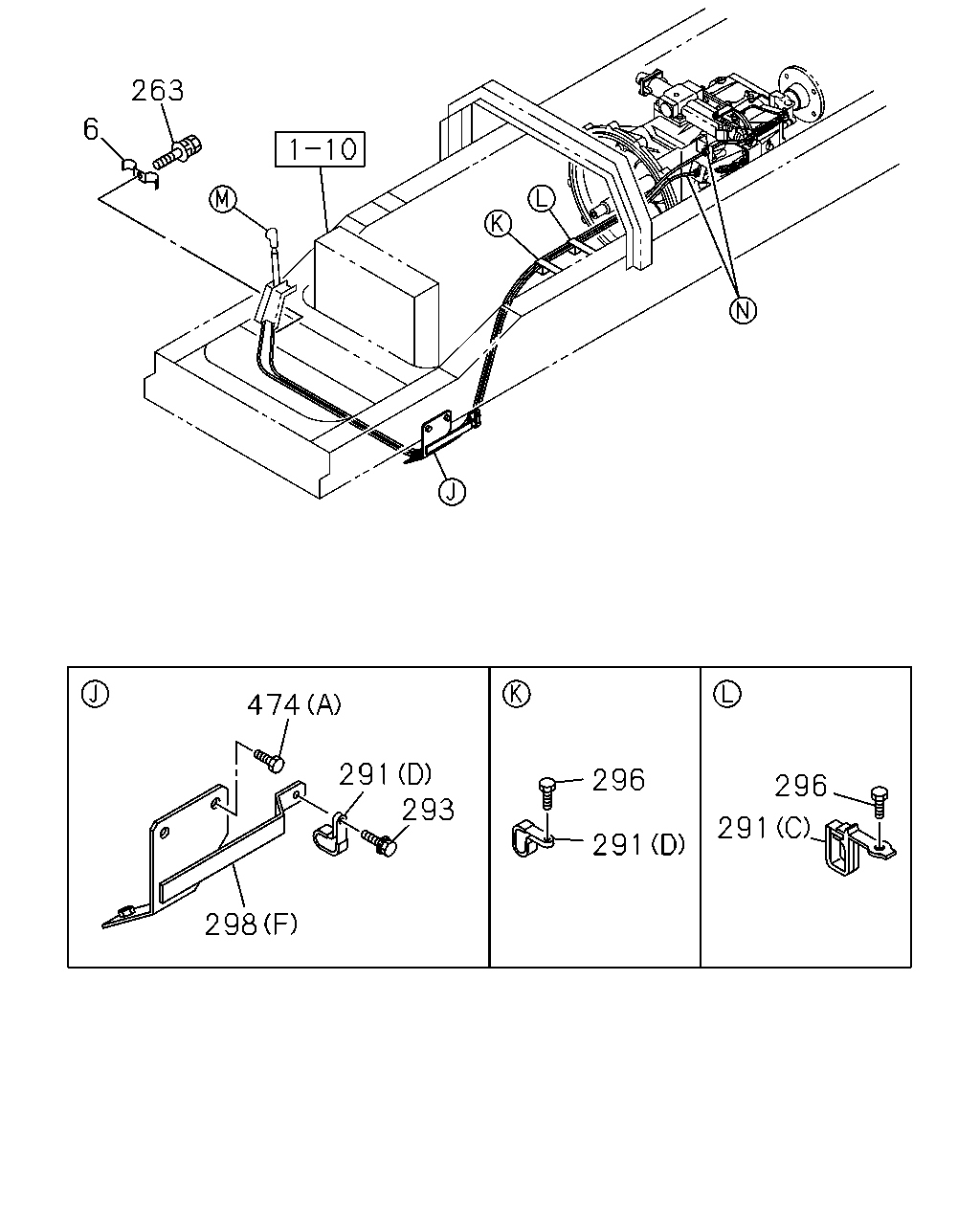

çizim 48331
263 6 474 291 293 296 296 291 291 298
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0005-0210 ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0211- ● ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0005-0210 ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0211- ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1 TCS ENG(80L) (D) ID=13 & 13 L=32 		8-97389-264-0 01 1 0710- ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) 		1-09701-307-2 01 1 0407- ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 0005-0210 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 0211-0302 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 0303-0406 ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 0407- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(D) ID=13X2 L=32 		1-09701-245-0 02 1 0303-0506 ●
291 CLIP; SHIFT TO SELECT,FRAME
(D) ID=13X2 L=32 		1-09701-312-0 02 1 0507-0709 ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1 TCS ENG(80L) (D) ID=13X2 L=32 		1-09701-312-0 01 1 0710- ●
291 CLIP; SHIFT TO SELECT,FRAME
(D) ID=13X2 L=32 		1-09701-312-0 01 1 0710- ●
291 CLIP; SHIFT TO SELECT,FRAME
(D) ID=13X2 L=32 		1-09701-312-0 01 1 0710- ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 0303-0512 ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 04 1 0005-0210 ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 04 1 0211-0512 ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28050-816-0 04 1 0601- ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28680-830-0 02 1 0303-0512 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
298 BRACKET
FRONT SPRING HEAVY DUTY VAR1(F60) (A) 		1-47471-093-0 01 1 0406- ● ●
298 BRACKET
(E) 		1-47478-451-0 01 1 0211- ● ●
298 BRACKET
(B) 		1-47477-520-0 01 1 0005-0210 ● ●
298 BRACKET
(B) 		1-47477-520-0 01 1 0211- ● ●
298 BRACKET
(A) 		1-47478-997-0 01 1 0005-0210 ● ●
298 BRACKET
(A) 		1-47478-997-0 01 1 0211-0405 ● ●
298 BRACKET
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) (A) 		1-47478-997-0 01 1 0406- ● ●
298 BRACKET
(D) 		1-47478-998-0 01 1 0005-0010 ● ●
298 BRACKET
(D) 		1-47479-121-0 01 1 0011-0210 ● ●
298 BRACKET
(D) 		1-47479-121-0 01 1 0211- ● ●
298 BRACKET
(C) L=95 		1-82699-085-0 01 1 0005-0210 ● ●
298 BRACKET
(C) L=95 		1-82699-085-0 01 1 0211-0703 ● ●
298 BRACKET
(C) L=95 		1-82699-085-0 01 1 0704- ●
298 BRACKET
6SD1 TCN ENG(31L) (C) L=95 		1-82699-085-0 01 1 0704- ●
298 BRACKET
(F) 		1-47479-625-1 01 1 0303- ●
302 CLIP; BAND
6HK1 TCS ENG(80L) L=300 		1-09707-001-1 01 1 0704- ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0005-0210 ● ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0211-0302 ● ●
474 BOLT; BRKT
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0303- ● ● ●
474 BOLT; BRKT
(C) M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ● ●
474 BOLT; BRKT
(C) M8X16 FLANGE 		0-28080-816-0 02 1 0211-0512 ● ●
474 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28080-825-0 02 1 0005-0210 ● ●
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28080-825-0 03 1 0211-0512 ● ●
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28050-825-0 03 1 0601- ● ●

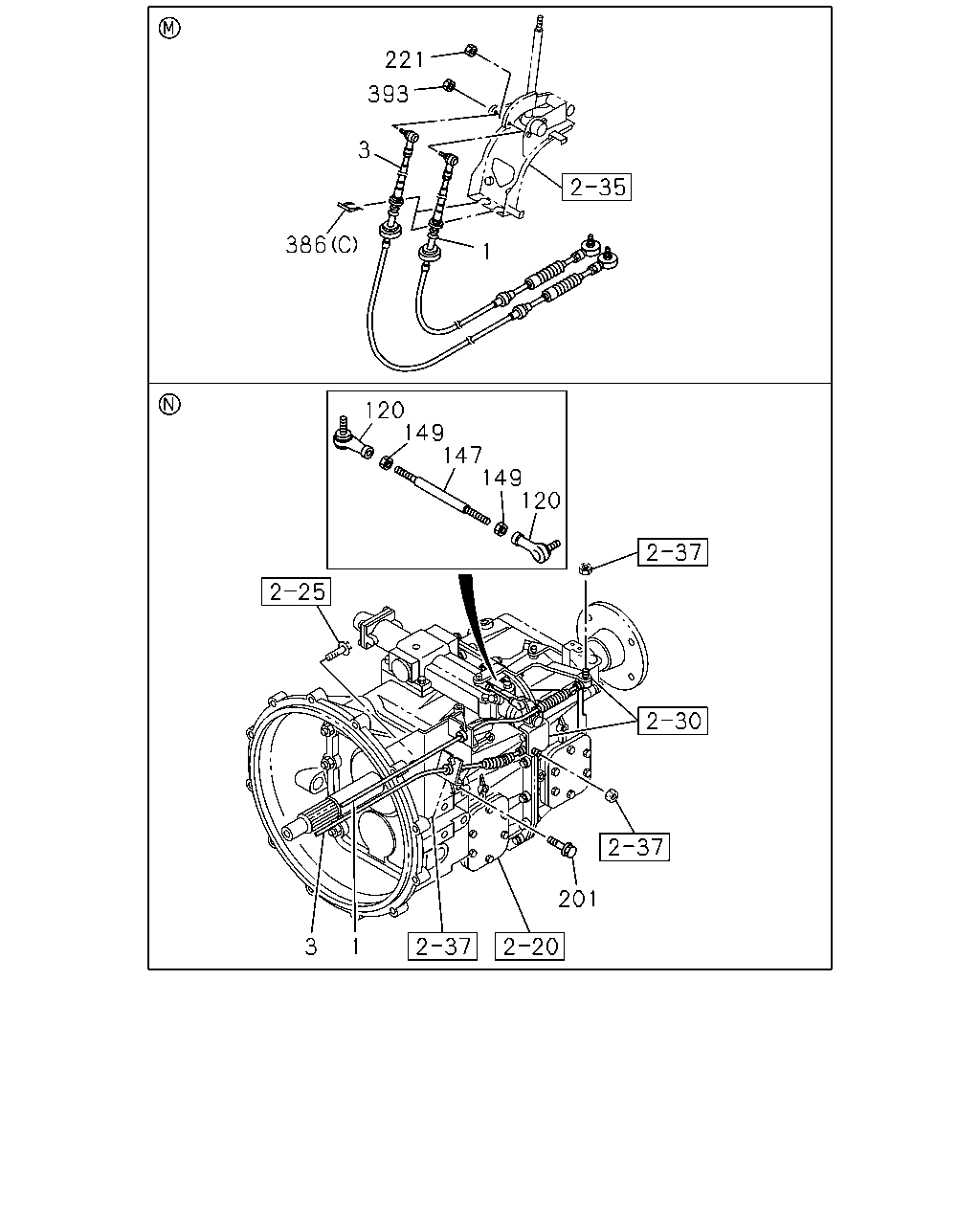

çizim 48963
221 393 3 386 1 120 149 147 149 120 201 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CABLE; SHIFT,TRANS CONT
FRONT SPRING HEAVY DUTY VAR1(F60) L=3700 		8-97383-461-1 01 1 0406- ●
1 CABLE; SHIFT,TRANS CONT
FRONT SPRING HEAVY DUTY VAR1(F60) L=3755 		8-97383-462-0 01 1 0406- ●
1 CABLE; SHIFT,TRANS CONT
L=3640 		1-33671-693-0 01 1 0005-0210 ●
1 CABLE; SHIFT,TRANS CONT
L=3640 		1-33671-693-0 01 1 0211-0405 ●
1 CABLE; SHIFT,TRANS CONT
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) L=3640 		1-33671-693-0 01 1 0406- ●
1 CABLE; SHIFT,TRANS CONT
L=3695 		1-33671-694-0 01 1 0005-0405 ●
1 CABLE; SHIFT,TRANS CONT
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) L=3695 		1-33671-694-0 01 1 0406- ●
1 CABLE; SHIFT,TRANS CONT
L=3695 		1-33671-879-0 01 1 0303- ●
3 CABLE; SELECT,TRANS CONT
FRONT SPRING HEAVY DUTY VAR1(F60) L=3565 		8-97383-468-1 01 1 0406- ●
3 CABLE; SELECT,TRANS CONT
FRONT SPRING HEAVY DUTY VAR1(F60) L=3665 		8-97383-469-0 01 1 0406- ●
3 CABLE; SELECT,TRANS CONT
L=3520 		1-33671-697-0 01 1 0005-0210 ●
3 CABLE; SELECT,TRANS CONT
L=3520 		1-33671-697-0 01 1 0211-0405 ●
3 CABLE; SELECT,TRANS CONT
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) L=3520 		1-33671-697-0 01 1 0406- ●
3 CABLE; SELECT,TRANS CONT
L=3615 		1-33671-698-0 01 1 0005-0405 ●
3 CABLE; SELECT,TRANS CONT
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) L=3615 		1-33671-698-0 01 1 0406- ●
3 CABLE; SELECT,TRANS CONT
L=3890 		1-33671-881-0 01 1 0303- ●
120 JOINT ASM; BALL,CONT ROD 1-09760-078-0 02 1 0005-0210 ●
120 JOINT ASM; BALL,CONT ROD
6SD1 TCN ENG(31L) 		1-09760-078-0 02 1 0211- ●
120 JOINT ASM; BALL,CONT ROD
L=48 		1-09760-038-1 02 1 0303-0309 ●
120 JOINT ASM; BALL,CONT ROD
L=45.5 		1-09760-118-1 02 1 0310-0609 ●
120 JOINT ASM; BALL,CONT ROD
6HK1 TCS ENG(80L) L=45.5 		1-09760-118-1 02 1 0610- ●
120 JOINT ASM; BALL,CONT ROD
L=45.5 		1-09760-118-1 02 1 0610- ●
147 ROD; LINK 1-09765-227-0 01 1 0005-0210 ●
147 ROD; LINK
6SD1 TCN ENG(31L) 		1-09765-227-0 01 1 0211- ●
147 ROD; LINK 1-33652-460-0 01 1 0303-0609 ●
147 ROD; LINK
6HK1 TCS ENG(80L) 		1-33652-460-0 01 1 0610- ●
147 ROD; LINK 1-33652-460-0 01 1 0610- ●
149 NUT; SLEEVE TO CONT ROD
M10 		9-09111-410-0 02 1 0005-0210 ●
149 NUT; SLEEVE TO CONT ROD
M10 		9-09111-410-0 02 1 0211-0512 ●
149 NUT; SLEEVE TO CONT ROD
6SD1 TCN ENG(31L) M10 		0-91111-510-0 02 1 0601- ●
149 NUT; SLEEVE TO CONT ROD
M8 		9-09111-408-0 02 1 0303-0512 ●
149 NUT; SLEEVE TO CONT ROD
M8 		0-91111-508-0 02 1 0601-0609 ●
149 NUT; SLEEVE TO CONT ROD
6HK1 TCS ENG(80L) M8 		0-91111-508-0 02 1 0610- ●
149 NUT; SLEEVE TO CONT ROD
M8 		0-91111-508-0 02 1 0610- ●
201 BOLT; BRKT
M12X25 		0-28781-225-0 01 1 0303-0512 ●
201 BOLT; BRKT
M12X25 FLANGE 		0-28751-225-0 01 1 0601- ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0005-0210 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0211-1011 ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ● ●
302 CLIP; BAND
6HK1 TCS ENG(80L) L=300 		1-09707-001-1 01 1 0704- ●
386 CLIP; CONT CABLE & TUBE
6HK1 TCS ENG(80L) (A) L=140 		5-09707-031-1 11 1 0704- ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 0005-0210 ● ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 0211- ● ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 08 1 0005-0210 ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 0211- ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 0005-0011 ● ●
386 CLIP; CONT CABLE & TUBE
FVL(FVL***) (A) L=140 		5-09707-031-1 09 1 0012-0210 ●
386 CLIP; CONT CABLE & TUBE
(B) ID=7-10 		8-94472-578-0 01 1 0005-0210 ● ●
386 CLIP; CONT CABLE & TUBE
(B) ID=7-10 		8-94472-578-0 01 1 0211-0308 ● ● ●
386 CLIP; CONT CABLE & TUBE
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0309- ● ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 0012-0210 ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 10 1 0211- ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 12 1 0005- ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 0005-0210 ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 0211-1011 ● ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
