2-35B — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#9251) — 206 parça

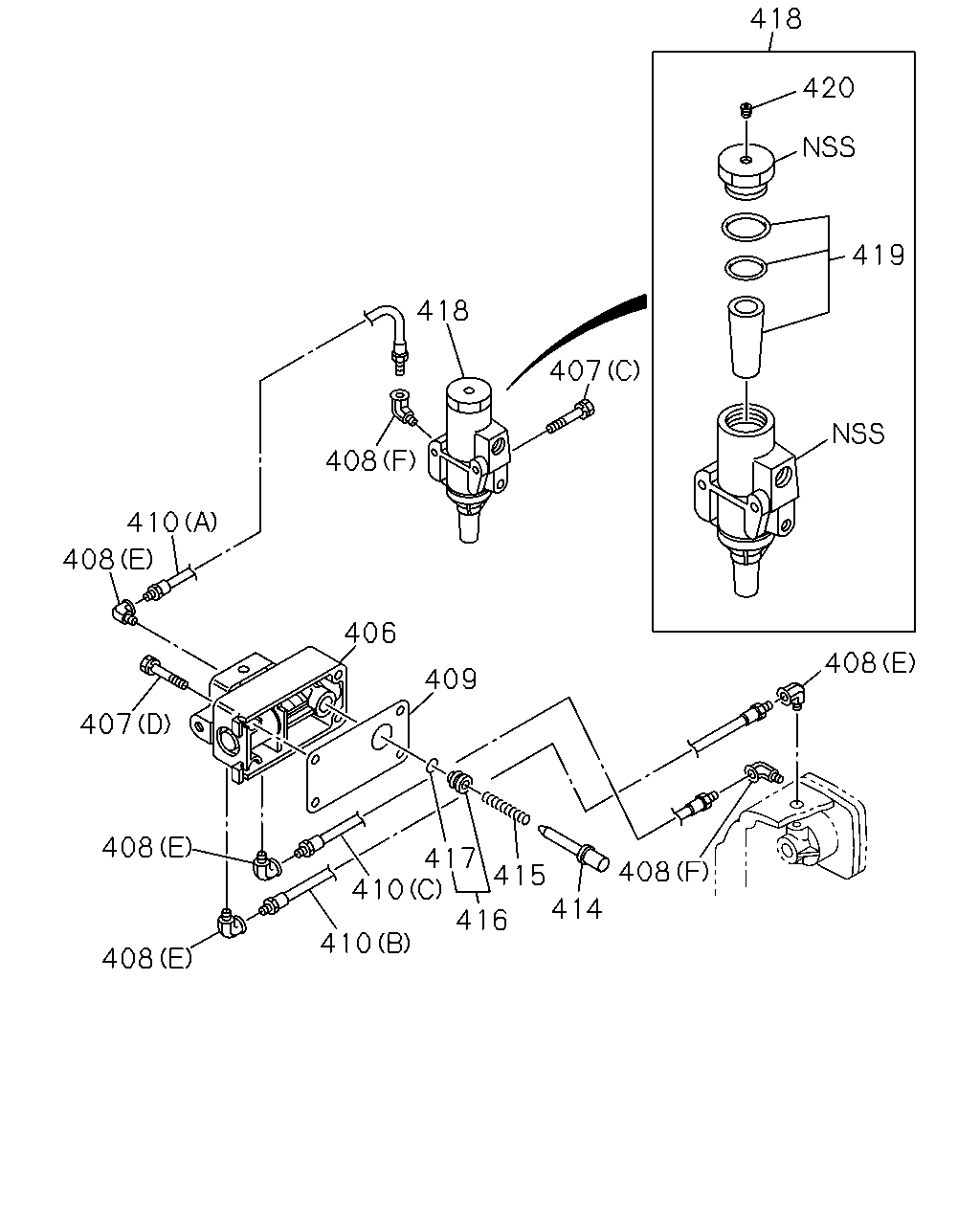

çizim 43237
418 420 419 418 407 408 410 408 406 408 409 407 408 417 410 408 415 414 416 410 408
BalonParca AdiParca NoAdetTipApplied Date A B C D
406 VALVE ASM; SLAVE 1-33549-242-0 01 1 0005-0210 ●
406 VALVE ASM; SLAVE 1-87061-508-0 01 1 0005- ●
407 BOLT; VALVE
BRAKE SYSTEM RETARDER<RE2> (A) 		1-33549-357-0 02 1 0005-0210 ●
407 BOLT; VALVE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (E) 		1-34119-123-0 04 1 0211-0609 ●
407 BOLT; VALVE
(E) 		1-34119-123-0 04 1 0610- ●
407 BOLT; VALVE
BRAKE SYSTEM RETARDER<RE2> (B) 		1-34119-085-0 02 1 0005-0210 ●
407 BOLT; VALVE
EXC. BRAKE SYSTEM RETARDER<RE2> (A) M4X40 		1-33549-246-0 02 1 0005-0210 ●
407 BOLT; VALVE
EXC. BRAKE SYSTEM RETARDER<RE2> (B) M6X55 		1-34119-015-0 02 1 0005-0210 ●
407 BOLT; VALVE
(C) 		1-87061-096-0 02 1 0005- ●
407 BOLT; VALVE
(D) 		1-87061-539-0 04 1 0005- ●
408 CONNECTOR; AIR HOSE
(G) 		1-33619-533-0 04 1 0604- ●
408 CONNECTOR; AIR HOSE
(A) 		1-33549-243-0 02 1 0005-0210 ●
408 CONNECTOR; AIR HOSE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (G) 		1-33119-461-0 04 1 0211- ●
408 CONNECTOR; AIR HOSE
(B) 		1-33549-244-0 02 1 0005-0210 ●
408 CONNECTOR; AIR HOSE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (H) 		1-33549-381-0 01 1 0211-0609 ●
408 CONNECTOR; AIR HOSE
(H) 		1-33549-381-0 01 1 0610- ●
408 CONNECTOR; AIR HOSE
(C) 		1-33619-532-0 01 1 0005-0210 ●
408 CONNECTOR; AIR HOSE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (I) 		1-33549-382-0 01 1 0211-0609 ●
408 CONNECTOR; AIR HOSE
(I) 		1-33549-382-0 01 1 0610- ●
408 CONNECTOR; AIR HOSE
(D) 		1-33619-533-0 01 1 0005-0210 ●
408 CONNECTOR; AIR HOSE
(E) 		1-87061-113-0 05 1 0005- ●
408 CONNECTOR; AIR HOSE
(F) 		1-87061-114-0 02 1 0005- ●
409 GASKET; SLAVE VALVE 1-87061-170-0 01 1 0005- ●
410 HOSE; AIR
(C) 		1-87061-496-0 01 1 0005- ●
410 HOSE; AIR
(B) 		1-87061-497-0 02 1 0005- ●
410 HOSE; AIR
(A) 		1-87061-498-0 01 1 0005- ●
414 PIN; SLAVE VALVE 1-87061-466-0 01 1 0005- ●
415 SPRING; SLAVE VALVE 1-87061-187-0 01 1 0005- ●
416 SLEEVE; SLAVE VALVE 1-87061-514-0 01 1 0005- ●
417 GASKET; SLEEVE 1-87060-995-0 01 1 0005- ●
418 VALVE ASM; AIR FILTER REG 1-33549-238-0 01 1 0005-0210 ●
418 VALVE ASM; AIR FILTER REG
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-379-0 01 1 0211-0609 ●
418 VALVE ASM; AIR FILTER REG 1-33549-379-0 01 1 0610- ●
418 VALVE ASM; AIR FILTER REG 1-87061-240-0 01 1 0005- ●
419 ELEMENT KIT; REG VLV 1-87061-100-0 01 1 0005-0210 ● ●
419 ELEMENT KIT; REG VLV 1-87061-100-0 01 1 0211- ●
420 PLUG; VALVE
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33549-484-0 01 1 0406- ●
420 PLUG; VALVE
BRAKE SYSTEM RETARDER<RE2> 		1-33549-239-0 02 1 0005-0011 ●
420 PLUG; VALVE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-239-0 03 1 0005-0011 ●
420 PLUG; VALVE
BRAKE SYSTEM RETARDER<RE2> 		1-33549-239-0 02 1 0012-0210 ●
420 PLUG; VALVE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-380-0 01 1 0211- ●
420 PLUG; VALVE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-239-0 03 1 0012-0210 ●
420 PLUG; VALVE 1-87061-090-0 01 1 0005- ●

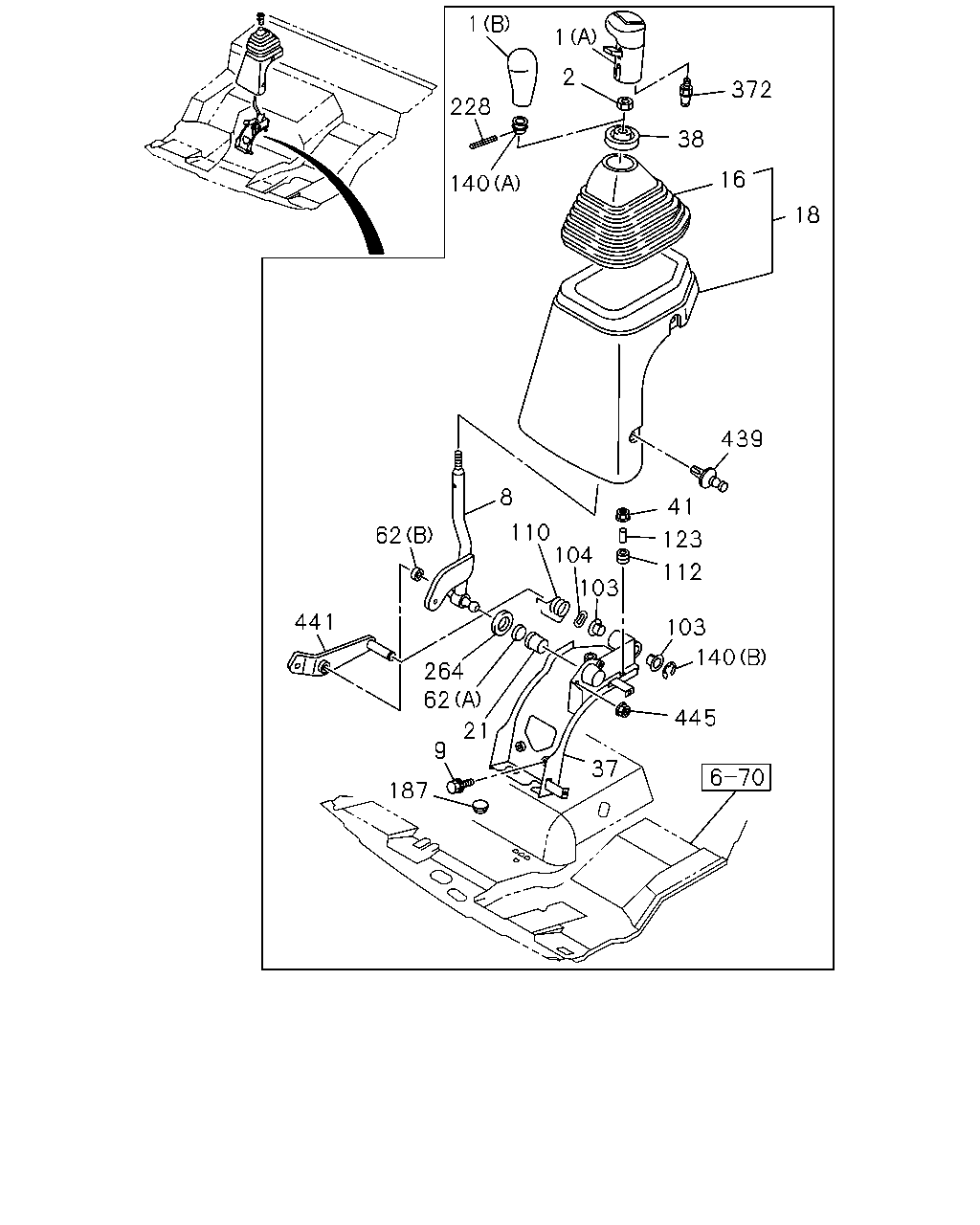

çizim 47043
1 1 2 372 228 38 16 140 18 439 8 41 110 104 62 123 112 103 441 103 140 264 62 445 21 9 37 187
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 KNOB; CHANGE LEVER
(A) 		1-33611-106-0 01 1 0005-0210 ●
1 KNOB; CHANGE LEVER
(A) 		1-33611-106-0 01 1 0211-1401 ●
1 KNOB; CHANGE LEVER
(A) 		8-98224-288-0 01 1 1402- ●
1 KNOB; CHANGE LEVER
(A) 		1-33611-110-0 01 1 0005-1401 ●
1 KNOB; CHANGE LEVER
(A) 		8-98224-292-0 01 1 1402- ●
1 KNOB; CHANGE LEVER
(B) 		1-33611-070-1 01 1 0303- ●
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 0005-0210 ● ●
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 0211- ● ●
8 LEVER; CHANGE 1-33619-503-0 01 1 0005-0210 ● ●
8 LEVER; CHANGE 1-33619-503-0 01 1 0211- ● ●
8 LEVER; CHANGE 1-33619-553-0 01 1 0303- ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0005-0210 ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0211- ● ● ●
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 0512- ● ● ●
16 BOOT; CHANGE LEVER 1-79998-751-3 01 1 0005-0210 ● ●
16 BOOT; CHANGE LEVER 1-79998-751-3 01 1 0211- ● ● ●
18 BOOT; CHANGE LEVER 1-79996-394-1 01 1 0005-0210 ● ●
18 BOOT; CHANGE LEVER 1-79996-394-1 01 1 0211-0511 ● ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0005-0210 ● ●
21 SEAT; CHANGE LEVER
6SD1 TCN ENG(31L) 		1-33619-429-0 01 1 0211-0302 ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0303- ● ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-552-0 01 1 0005-0210 ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-552-0 01 1 0211- ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-444-2 01 1 0303- ●
38 HOLDER; BOOT CHANGE LEVER 1-79996-383-0 01 1 0005-0210 ● ●
38 HOLDER; BOOT CHANGE LEVER 1-79996-383-0 01 1 0211- ● ● ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 0005-0107 ● ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0108-0210 ● ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0211-0805 ● ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0806- ● ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0005-0210 ● ●
62 SEAT; BALL,CHANGE LEVER
6SD1 TCN ENG(31L) (A) 		1-33619-427-0 01 1 0211-0302 ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0303- ● ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0005-0210 ● ●
62 SEAT; BALL,CHANGE LEVER
6SD1 TCN ENG(31L) (B) 		8-97011-900-0 01 1 0211-0302 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0303- ● ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0005-0210 ● ●
103 BUSHING; RELAY LEVER
6SD1 TCN ENG(31L) ID=14 OD=16 		8-94252-671-0 02 1 0211-0302 ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0303- ● ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 0005-0210 ● ●
104 WASHER; WAVED
6SD1 TCN ENG(31L) 		1-09550-009-0 01 1 0211-0302 ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 0303- ● ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 0005-0210 ● ●
110 SPRING; RETURN,CHANGE LEVER
6SD1 TCN ENG(31L) 		1-33619-435-0 01 1 0211-0302 ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 0303- ● ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0005-0210 ● ●
112 RUBBER; CUSHION
6SD1 TCN ENG(31L) 		1-33619-442-0 04 1 0211-0302 ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0303- ● ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0005-0210 ● ●
123 COLLAR; DIST,CHANGE LEVER
6SD1 TCN ENG(31L) 		1-33619-443-0 04 1 0211-0302 ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0303- ● ● ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 0005-0210 ● ●
140 RING; SNAP
6SD1 TCN ENG(31L) (B) ID=10 		9-09185-410-0 01 1 0211-0302 ● ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 0303-0604 ● ● ●
140 RING; SNAP
(B) ID=10 		0-91805-510-0 01 1 0605- ● ● ●
140 RING; SNAP
(A) 		1-33619-504-0 01 1 0303- ●
187 GROMMET; HOLE,CHANGE LEVER 1-09983-098-0 01 1 1001- ●
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 0303- ●
264 PLATE; COVER 1-33619-430-0 01 1 0005-0210 ● ●
264 PLATE; COVER
6SD1 TCN ENG(31L) 		1-33619-430-0 01 1 0211-0302 ● ●
264 PLATE; COVER 1-33619-430-0 01 1 0303- ● ● ●
372 CONNECTOR; CHANGE LEVER 8-97500-148-0 02 1 0005-0210 ●
372 CONNECTOR; CHANGE LEVER 8-97500-148-0 02 1 0211-0804 ●
372 CONNECTOR; CHANGE LEVER 8-98114-396-0 02 1 0805- ●
372 CONNECTOR; CHANGE LEVER 8-97500-148-0 04 1 0005-0804 ●
372 CONNECTOR; CHANGE LEVER 8-98114-396-0 04 1 0805- ●
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0005-0210 ● ●
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0211- ● ● ●
441 LEVER; SELECT 1-33619-437-2 01 1 0005-0210 ● ●
441 LEVER; SELECT
6SD1 TCN ENG(31L) 		1-33619-437-2 01 1 0211-0302 ● ●
441 LEVER; SELECT 1-33619-437-2 01 1 0303- ● ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 0005-0210 ● ●
445 NUT; PLATE
6SD1 TCN ENG(31L) M6 FLANGE 		0-91150-106-0 02 1 0211-0302 ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 0303-0602 ● ● ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ●

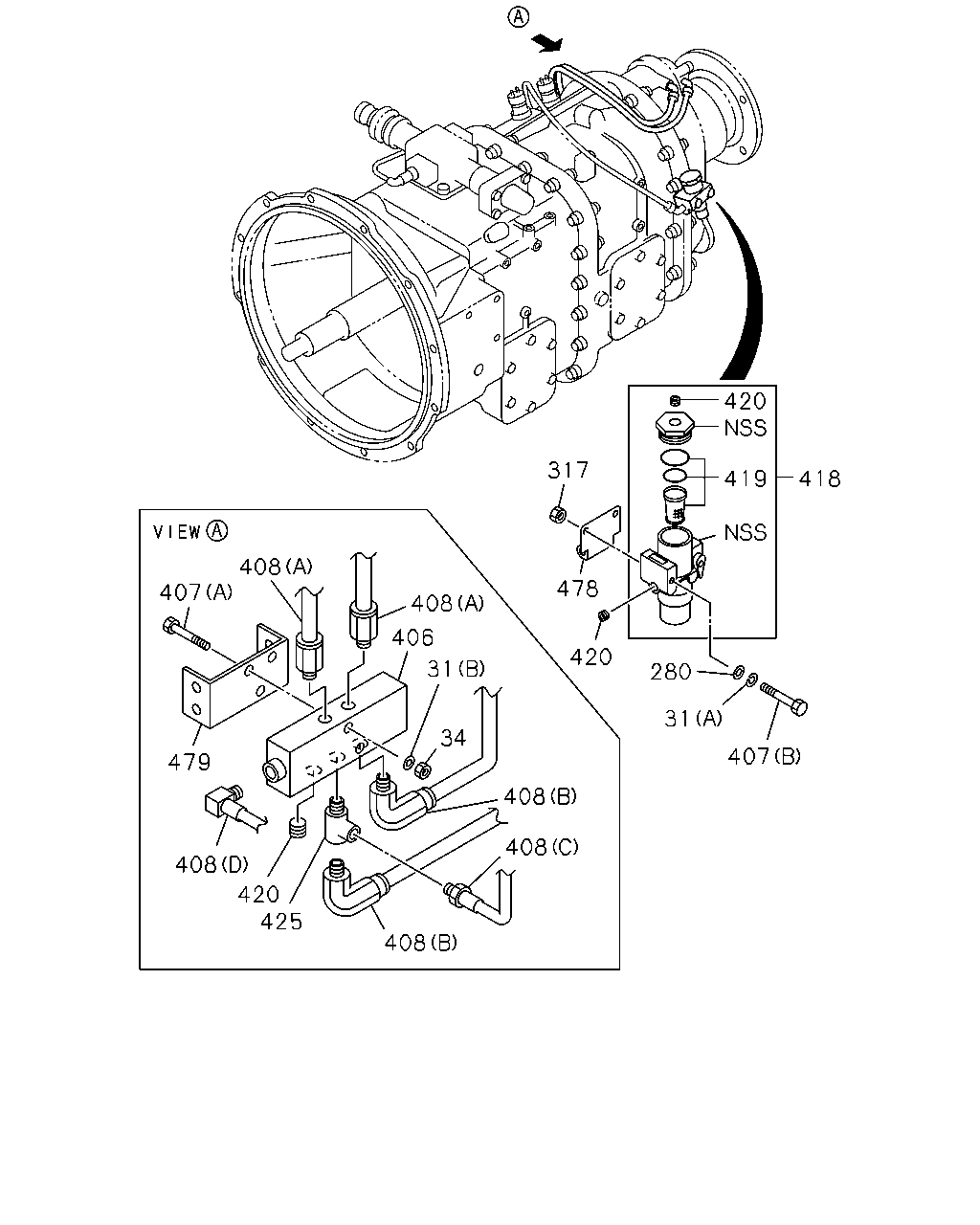

çizim 48328
420 317 419 418 408 478 407 408 406 420 31 280 31 34 407 479 408 408 408 420 425 408
BalonParca AdiParca NoAdetTipApplied Date A B C D
31 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> (A) 		1-33549-356-0 02 1 0005-0210 ●
31 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> (B) 		1-33549-358-0 02 1 0005-0210 ●
31 WASHER; LK
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-33549-241-0 02 1 0005-0210 ●
31 WASHER; LK
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-33549-247-0 02 1 0005-0210 ●
34 NUT
BRAKE SYSTEM RETARDER<RE2> 		1-33549-359-0 02 1 0005-0210 ●
34 NUT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-248-0 02 1 0005-0210 ●
280 WASHER; PL
BRAKE SYSTEM RETARDER<RE2> 		1-33119-434-0 02 1 0005-0210 ●
280 WASHER; PL
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-240-0 02 1 0005-0210 ●
317 NUT; BRKT
BRAKE SYSTEM RETARDER<RE2> 		1-34119-086-0 02 1 0005-0210 ●
317 NUT; BRKT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-34119-016-0 02 1 0005-0210 ●
406 VALVE ASM; SLAVE 1-33549-242-0 01 1 0005-0210 ●
406 VALVE ASM; SLAVE 1-87061-508-0 01 1 0005- ●
407 BOLT; VALVE
BRAKE SYSTEM RETARDER<RE2> (A) 		1-33549-357-0 02 1 0005-0210 ●
407 BOLT; VALVE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (E) 		1-34119-123-0 04 1 0211-0609 ●
407 BOLT; VALVE
(E) 		1-34119-123-0 04 1 0610- ●
407 BOLT; VALVE
BRAKE SYSTEM RETARDER<RE2> (B) 		1-34119-085-0 02 1 0005-0210 ●
407 BOLT; VALVE
EXC. BRAKE SYSTEM RETARDER<RE2> (A) M4X40 		1-33549-246-0 02 1 0005-0210 ●
407 BOLT; VALVE
EXC. BRAKE SYSTEM RETARDER<RE2> (B) M6X55 		1-34119-015-0 02 1 0005-0210 ●
407 BOLT; VALVE
(C) 		1-87061-096-0 02 1 0005- ●
407 BOLT; VALVE
(D) 		1-87061-539-0 04 1 0005- ●
408 CONNECTOR; AIR HOSE
(G) 		1-33619-533-0 04 1 0604- ●
408 CONNECTOR; AIR HOSE
(A) 		1-33549-243-0 02 1 0005-0210 ●
408 CONNECTOR; AIR HOSE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (G) 		1-33119-461-0 04 1 0211- ●
408 CONNECTOR; AIR HOSE
(B) 		1-33549-244-0 02 1 0005-0210 ●
408 CONNECTOR; AIR HOSE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (H) 		1-33549-381-0 01 1 0211-0609 ●
408 CONNECTOR; AIR HOSE
(H) 		1-33549-381-0 01 1 0610- ●
408 CONNECTOR; AIR HOSE
(C) 		1-33619-532-0 01 1 0005-0210 ●
408 CONNECTOR; AIR HOSE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (I) 		1-33549-382-0 01 1 0211-0609 ●
408 CONNECTOR; AIR HOSE
(I) 		1-33549-382-0 01 1 0610- ●
408 CONNECTOR; AIR HOSE
(D) 		1-33619-533-0 01 1 0005-0210 ●
408 CONNECTOR; AIR HOSE
(E) 		1-87061-113-0 05 1 0005- ●
408 CONNECTOR; AIR HOSE
(F) 		1-87061-114-0 02 1 0005- ●
418 VALVE ASM; AIR FILTER REG 1-33549-238-0 01 1 0005-0210 ●
418 VALVE ASM; AIR FILTER REG
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-379-0 01 1 0211-0609 ●
418 VALVE ASM; AIR FILTER REG 1-33549-379-0 01 1 0610- ●
418 VALVE ASM; AIR FILTER REG 1-87061-240-0 01 1 0005- ●
419 ELEMENT KIT; REG VLV 1-87061-100-0 01 1 0005-0210 ● ●
419 ELEMENT KIT; REG VLV 1-87061-100-0 01 1 0211- ●
420 PLUG; VALVE
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33549-484-0 01 1 0406- ●
420 PLUG; VALVE
BRAKE SYSTEM RETARDER<RE2> 		1-33549-239-0 02 1 0005-0011 ●
420 PLUG; VALVE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-239-0 03 1 0005-0011 ●
420 PLUG; VALVE
BRAKE SYSTEM RETARDER<RE2> 		1-33549-239-0 02 1 0012-0210 ●
420 PLUG; VALVE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-380-0 01 1 0211- ●
420 PLUG; VALVE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-239-0 03 1 0012-0210 ●
420 PLUG; VALVE 1-87061-090-0 01 1 0005- ●
425 ADAPTER; CONNECTER 1-33549-245-0 01 1 0005-0210 ●
478 BRACKET; AIR FILTER REG
BRAKE SYSTEM RETARDER<RE2> 		1-34119-084-0 01 1 0005-0210 ●
478 BRACKET; AIR FILTER REG
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-34119-121-0 02 1 0211-0609 ●
478 BRACKET; AIR FILTER REG 1-34119-121-0 02 1 0610- ●
478 BRACKET; AIR FILTER REG
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-34119-014-0 01 1 0005-0210 ●
479 BRACKET; SLAVE VALVE 1-34119-014-0 01 1 0005-0210 ●

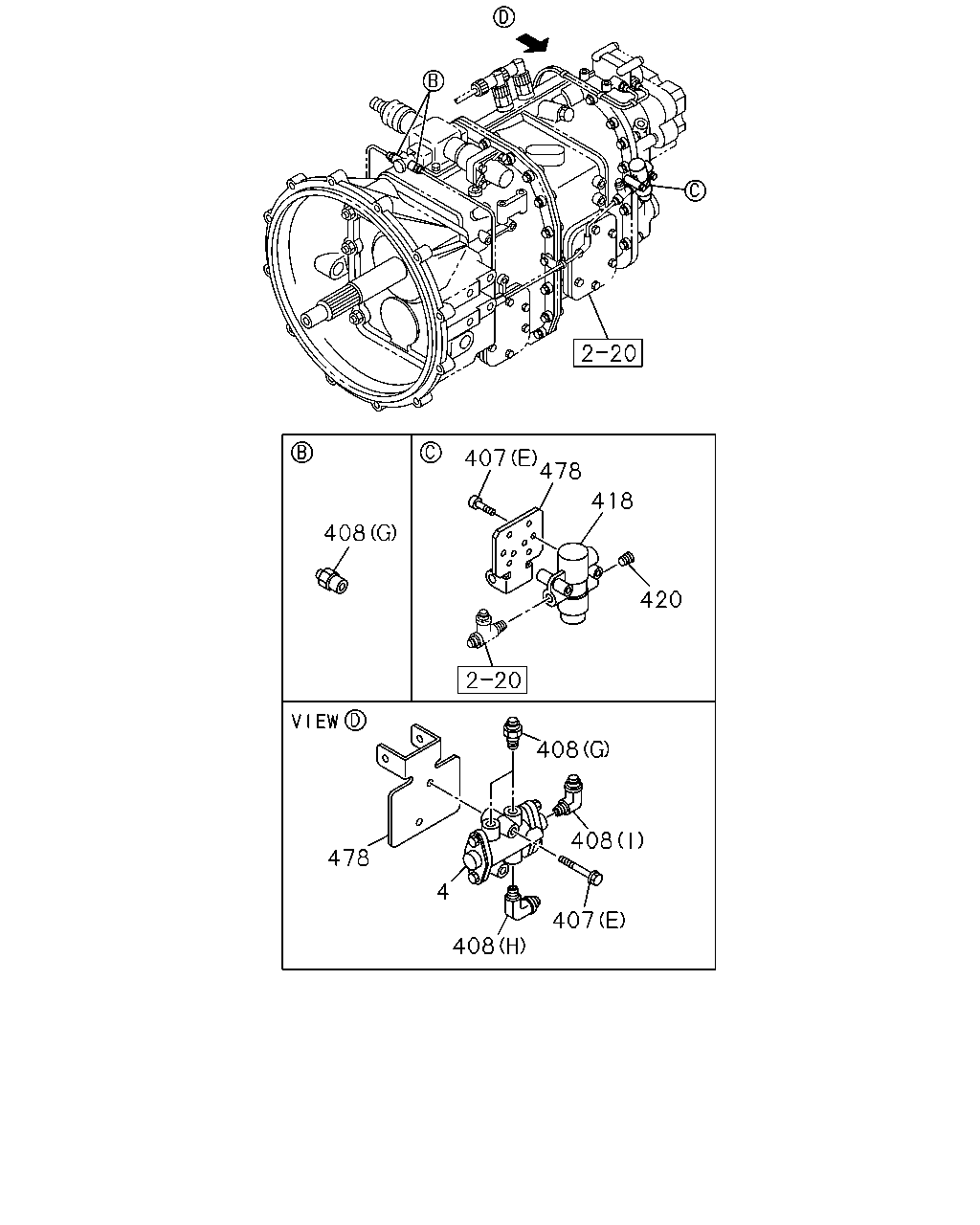

çizim 48968
407 478 418 408 420 408 408 478 4 407 408
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 VALVE; ACTUATOR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-34119-124-0 01 1 0211-0609 ●
4 VALVE; ACTUATOR 1-34119-124-0 01 1 0610- ●
407 BOLT; VALVE
BRAKE SYSTEM RETARDER<RE2> (A) 		1-33549-357-0 02 1 0005-0210 ●
407 BOLT; VALVE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (E) 		1-34119-123-0 04 1 0211-0609 ●
407 BOLT; VALVE
(E) 		1-34119-123-0 04 1 0610- ●
407 BOLT; VALVE
BRAKE SYSTEM RETARDER<RE2> (B) 		1-34119-085-0 02 1 0005-0210 ●
407 BOLT; VALVE
EXC. BRAKE SYSTEM RETARDER<RE2> (A) M4X40 		1-33549-246-0 02 1 0005-0210 ●
407 BOLT; VALVE
EXC. BRAKE SYSTEM RETARDER<RE2> (B) M6X55 		1-34119-015-0 02 1 0005-0210 ●
407 BOLT; VALVE
(C) 		1-87061-096-0 02 1 0005- ●
407 BOLT; VALVE
(D) 		1-87061-539-0 04 1 0005- ●
408 CONNECTOR; AIR HOSE
(G) 		1-33619-533-0 04 1 0604- ●
408 CONNECTOR; AIR HOSE
(A) 		1-33549-243-0 02 1 0005-0210 ●
408 CONNECTOR; AIR HOSE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (G) 		1-33119-461-0 04 1 0211- ●
408 CONNECTOR; AIR HOSE
(B) 		1-33549-244-0 02 1 0005-0210 ●
408 CONNECTOR; AIR HOSE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (H) 		1-33549-381-0 01 1 0211-0609 ●
408 CONNECTOR; AIR HOSE
(H) 		1-33549-381-0 01 1 0610- ●
408 CONNECTOR; AIR HOSE
(C) 		1-33619-532-0 01 1 0005-0210 ●
408 CONNECTOR; AIR HOSE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (I) 		1-33549-382-0 01 1 0211-0609 ●
408 CONNECTOR; AIR HOSE
(I) 		1-33549-382-0 01 1 0610- ●
408 CONNECTOR; AIR HOSE
(D) 		1-33619-533-0 01 1 0005-0210 ●
408 CONNECTOR; AIR HOSE
(E) 		1-87061-113-0 05 1 0005- ●
408 CONNECTOR; AIR HOSE
(F) 		1-87061-114-0 02 1 0005- ●
418 VALVE ASM; AIR FILTER REG 1-33549-238-0 01 1 0005-0210 ●
418 VALVE ASM; AIR FILTER REG
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-379-0 01 1 0211-0609 ●
418 VALVE ASM; AIR FILTER REG 1-33549-379-0 01 1 0610- ●
418 VALVE ASM; AIR FILTER REG 1-87061-240-0 01 1 0005- ●
420 PLUG; VALVE
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33549-484-0 01 1 0406- ●
420 PLUG; VALVE
BRAKE SYSTEM RETARDER<RE2> 		1-33549-239-0 02 1 0005-0011 ●
420 PLUG; VALVE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-239-0 03 1 0005-0011 ●
420 PLUG; VALVE
BRAKE SYSTEM RETARDER<RE2> 		1-33549-239-0 02 1 0012-0210 ●
420 PLUG; VALVE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-380-0 01 1 0211- ●
420 PLUG; VALVE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-239-0 03 1 0012-0210 ●
420 PLUG; VALVE 1-87061-090-0 01 1 0005- ●
478 BRACKET; AIR FILTER REG
BRAKE SYSTEM RETARDER<RE2> 		1-34119-084-0 01 1 0005-0210 ●
478 BRACKET; AIR FILTER REG
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-34119-121-0 02 1 0211-0609 ●
478 BRACKET; AIR FILTER REG 1-34119-121-0 02 1 0610- ●
478 BRACKET; AIR FILTER REG
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-34119-014-0 01 1 0005-0210 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
