Isuzu WW
▶
TRUCKS
▶
FV
▶
10829 - FV/GV(AUSTRAL)A.SUS
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35A - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

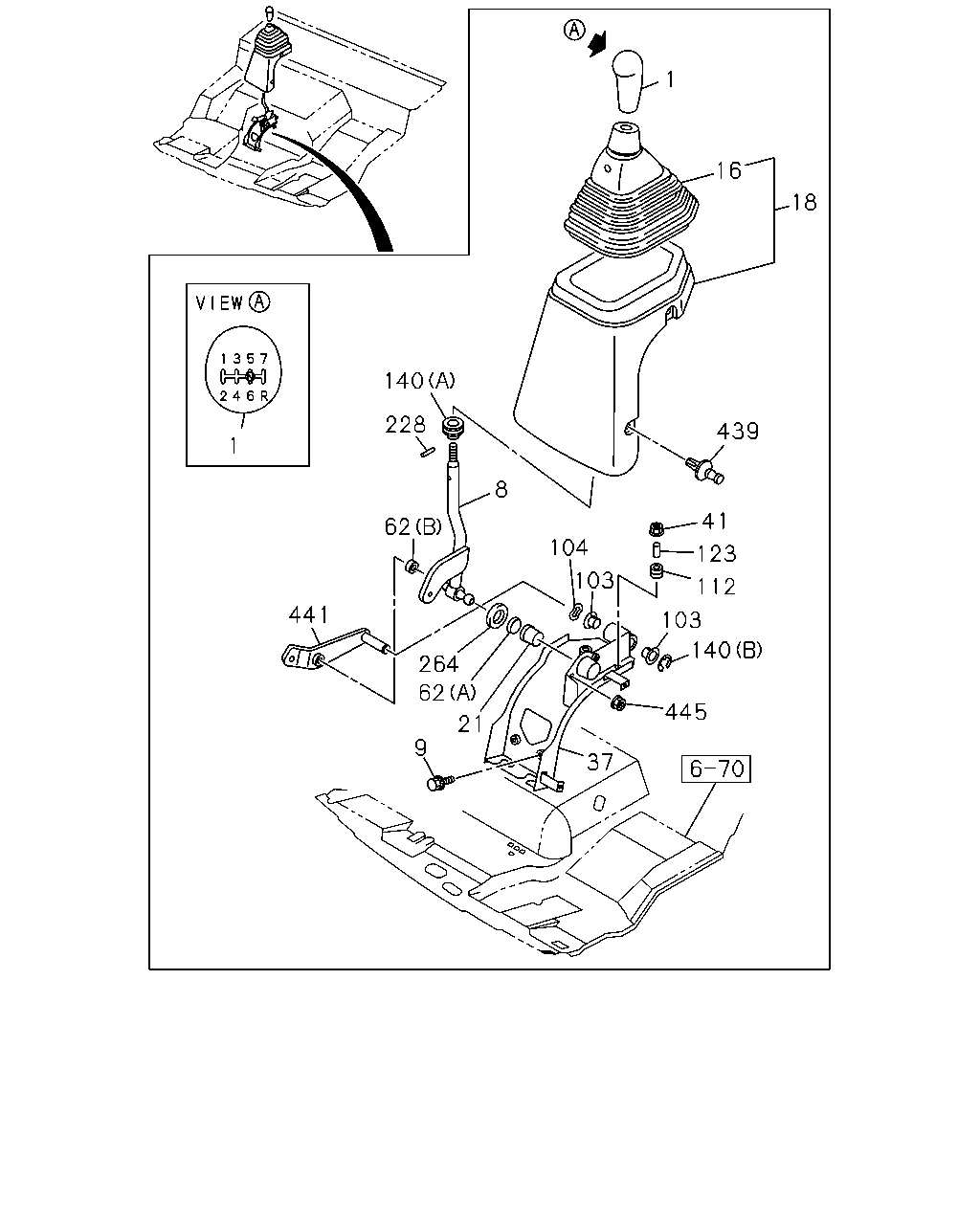

2-35A — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#9250) — 22 parça
1
16
18
140
228
439
1
8
41
62
104
123
103
112
441
103
140
264
62
445
21
37
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
KNOB; CHANGE LEVER
1-33611-092-0
01
1
0005-0210
8
LEVER; CHANGE
1-33619-553-0
01
1
0005-0210
9
BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER
8-94412-342-0
02
1
0005-0210
16
BOOT; CHANGE LEVER
1-79998-751-3
01
1
0005-0210
18
BOOT; CHANGE LEVER
1-79996-394-1
01
1
0005-0210
21
SEAT; CHANGE LEVER
1-33619-429-0
01
1
0005-0210
37
BRACKET; CHANGE LEVER SUPPORT
1-33619-444-2
01
1
0005-0210
41
NUT; CHANGE LEVER
M8 W/LK WASHER
8-97065-435-0
02
1
0005-0107
41
NUT; CHANGE LEVER
M8 FLANGE
8-97046-127-0
02
1
0108-0210
62
SEAT; BALL,CHANGE LEVER
(A)
1-33619-427-0
01
1
0005-0210
62
SEAT; BALL,CHANGE LEVER
(B)
8-97011-900-0
01
1
0005-0210
103
BUSHING; RELAY LEVER
ID=14 OD=16
8-94252-671-0
02
1
0005-0210
104
WASHER; WAVED
1-09550-009-0
01
1
0005-0210
112
RUBBER; CUSHION
1-33619-442-0
04
1
0005-0210
123
COLLAR; DIST,CHANGE LEVER
1-33619-443-0
04
1
0005-0210
140
RING; SNAP
(A)
1-33619-504-0
01
1
0005-0210
140
RING; SNAP
(B) ID=10
9-09185-410-0
01
1
0005-0210
228
PIN; SPR,CHANGE LEVER
1-33619-505-0
01
1
0005-0210
264
PLATE; COVER
1-33619-430-0
01
1
0005-0210
439
FASTENER; COVER
D8X13.5
1-09987-270-0
04
1
0005-0210
441
LEVER; SELECT
1-33619-437-2
01
1
0005-0210
445
NUT; PLATE
M6 FLANGE
0-91150-106-0
02
1
0005-0210
