◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10627 - FTR-LHD ▶ 3 - Brakes, Brake System ▶ 3-34 - BRAKE VALVE; AIR ▶
3-34 — BRAKE VALVE; AIR (#925) — 56 parça

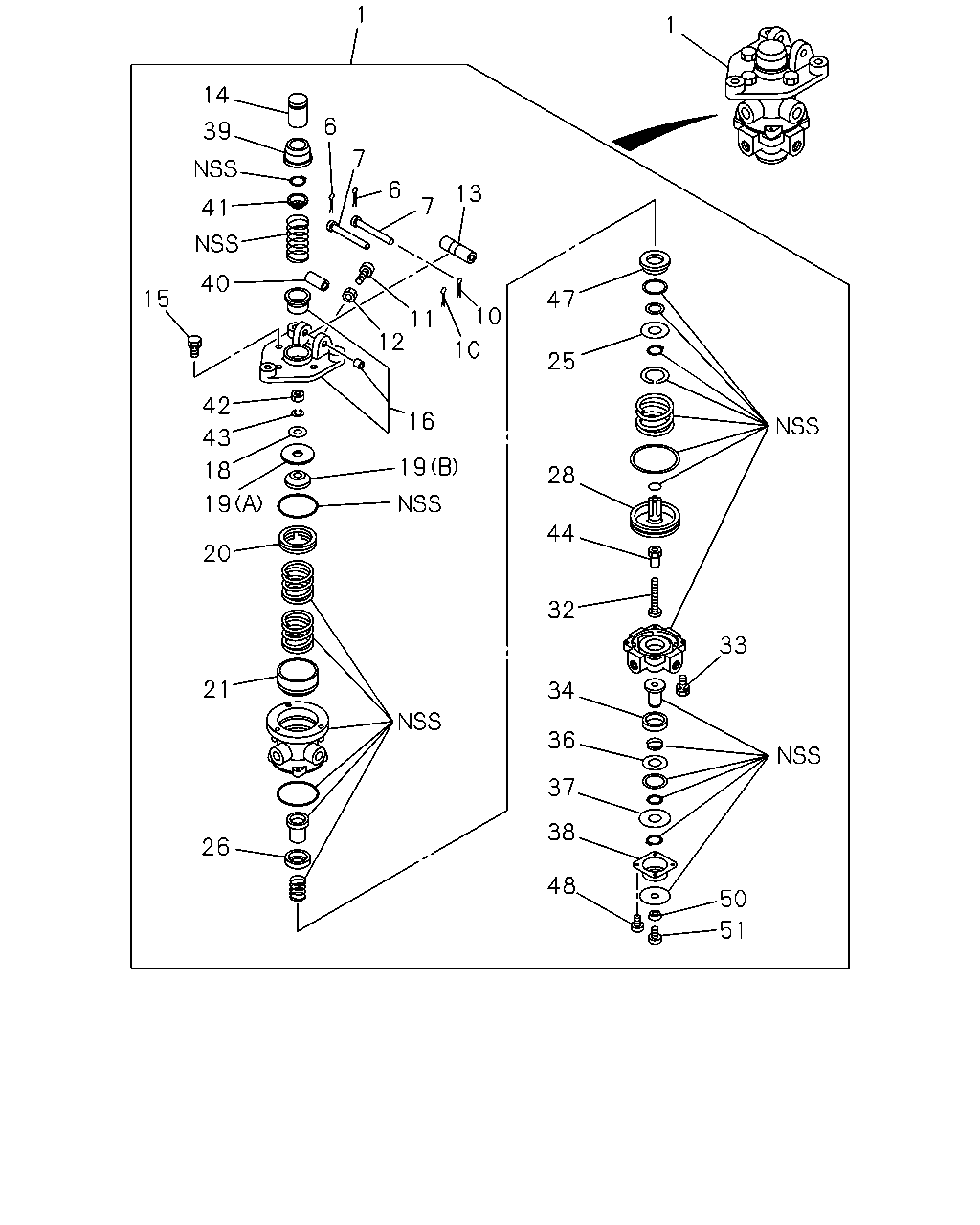

çizim 27184
1 1 14 6 39 7 6 13 7 41 40 15 47 10 11 12 10 25 42 16 43 19 18 28 19 44 20 32 33 21 34 36 37 38 26 48 50 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; BRK 1-48100-625-1 01 1 9202-9207 ● ●
1 VALVE; BRK
EXC. TAIWAN EQUIPMENT(WW5) 		1-48100-625-2 01 1 9208- ● ●
1 VALVE; BRK
TAIWAN EQUIPMENT(WW5) 		1-48100-708-0 01 1 9208- ● ●
6 PIN; PEDAL,SIDE,BRK VLV 1-48119-083-0 02 1 9202- ● ●
7 PIN; PEDAL,BRK VLV 1-48119-082-0 02 1 9202- ● ●
10 PIN; SPLIT,BRK VLV 1-48119-087-0 02 1 9202- ● ●
11 SCREW; SET,BRK VLV 1-48119-088-0 01 1 9202-9207 ● ●
11 SCREW; SET,BRK VLV
EXC. TAIWAN EQUIPMENT(WW5) 		1-48119-088-0 01 1 9208- ● ●
11 SCREW; SET,BRK VLV
TAIWAN EQUIPMENT(WW5) 		1-48119-309-0 01 1 9208- ● ●
12 NUT; SCREW,PEDAL,BRK VLV 1-48119-089-0 01 1 9202- ● ●
13 ROLLER; PEDAL,BRK VLV 1-48119-257-0 01 1 9202- ● ●
14 PLUNGER; BRK VLV 1-48119-220-0 01 1 9202-9207 ● ●
14 PLUNGER; BRK VLV
EXC. TAIWAN EQUIPMENT(WW5) 		1-48119-316-0 01 1 9208- ● ●
14 PLUNGER; BRK VLV
TAIWAN EQUIPMENT(WW5) 		1-48119-326-0 01 1 9208- ● ●
15 BOLT; PLATE,BRK VLV 1-48119-232-0 03 1 9202- ● ●
16 PLATE; MTG,BRKT VLV 1-48119-261-2 01 1 9202-9207 ● ●
16 PLATE; MTG,BRKT VLV
EXC. TAIWAN EQUIPMENT(WW5) 		1-48119-261-2 01 1 9208- ● ●
16 PLATE; MTG,BRKT VLV
TAIWAN EQUIPMENT(WW5) 		1-48119-325-0 01 1 9208- ● ●
18 WASHER; LK,SEAT,BRK VLV 1-48129-156-0 01 1 9202- ● ●
19 SEAT; SPRING,BRK VLV
(A) 		1-48129-172-0 01 1 9202-9207 ● ●
19 SEAT; SPRING,BRK VLV
EXC. TAIWAN EQUIPMENT(WW5) (A) 		1-48129-172-0 01 1 9208- ● ●
19 SEAT; SPRING,BRK VLV
TAIWAN EQUIPMENT(WW5) (A) 		1-48119-320-0 01 1 9208- ● ●
19 SEAT; SPRING,BRK VLV
TAIWAN EQUIPMENT(WW5) (B) 		1-48119-321-0 01 1 9208- ● ●
20 PISTON; UPR,BRK VLV 1-48119-263-0 01 1 9202-9207 ● ●
20 PISTON; UPR,BRK VLV
EXC. TAIWAN EQUIPMENT(WW5) 		1-48119-263-0 01 1 9208- ● ●
20 PISTON; UPR,BRK VLV
TAIWAN EQUIPMENT(WW5) 		1-48119-318-0 01 1 9208- ● ●
21 BUSHING; UPR BODY
TAIWAN EQUIPMENT(WW5) 		1-48119-317-0 01 1 9208- ● ●
25 WASHER; PISTON,BRK VLV 1-48129-149-0 01 1 9202- ● ●
26 RETAINER; VLV,BRK VLV 1-48122-003-0 01 1 9202- ● ●
28 PISTON; LWR,BRK VLV 1-48123-050-0 01 1 9202- ● ●
32 SCREW; BRK VLV 1-48121-039-0 01 1 9202-9207 ● ●
32 SCREW; BRK VLV
EXC. TAIWAN EQUIPMENT(WW5) 		1-48121-039-0 01 1 9208- ● ●
32 SCREW; BRK VLV
TAIWAN EQUIPMENT(WW5) 		1-48119-323-0 01 1 9208- ● ●
33 BOLT; BODY,BRK VLV 1-48129-068-0 04 1 9202- ● ●
34 RETAINER; VLV,BRK VLV 1-48122-010-0 01 1 9202- ● ●
36 RETAINER; GASKET,BRK VLV 1-48129-169-0 01 1 9202- ● ●
37 WASHER; VLV LWR,BRK VLV 1-48129-166-0 01 1 9202- ● ●
38 COVER; EXH,BRK VLV 1-48119-217-0 01 1 9202- ● ●
39 BOOT; PLUNGER,BRK VLV 1-48119-079-0 01 1 9202- ● ●
40 PIPE; PLATE,BRK VLV 1-48119-086-0 01 1 9202- ● ●
41 PLATE; STEM,BRK VLV 1-48129-167-0 01 1 9202- ● ●
42 NUT; SPR SEAT,BRK VLV 1-48129-157-0 01 1 9202- ● ●
43 WASHER; SPR SEAT,BRK VLV 1-48129-170-0 01 1 9202- ● ●
44 SLEEVE; PISTON,BRK VLV 1-48129-171-0 01 1 9202-9207 ● ●
44 SLEEVE; PISTON,BRK VLV
EXC. TAIWAN EQUIPMENT(WW5) 		1-48129-171-0 01 1 9208- ● ●
44 SLEEVE; PISTON,BRK VLV
TAIWAN EQUIPMENT(WW5) 		1-48119-322-0 01 1 9208- ● ●
47 RETAINER; GASKET,BRK VLV 1-48129-147-0 01 1 9202- ● ●
48 BOLT; COVER,BRK VLV 1-48119-216-0 04 1 9202- ● ●
50 WASHER; RET,BRK VLV 1-48129-112-0 01 1 9202- ● ●
51 SCREW; FORMING,BRK VLV 1-48129-111-0 01 1 9202- ● ●

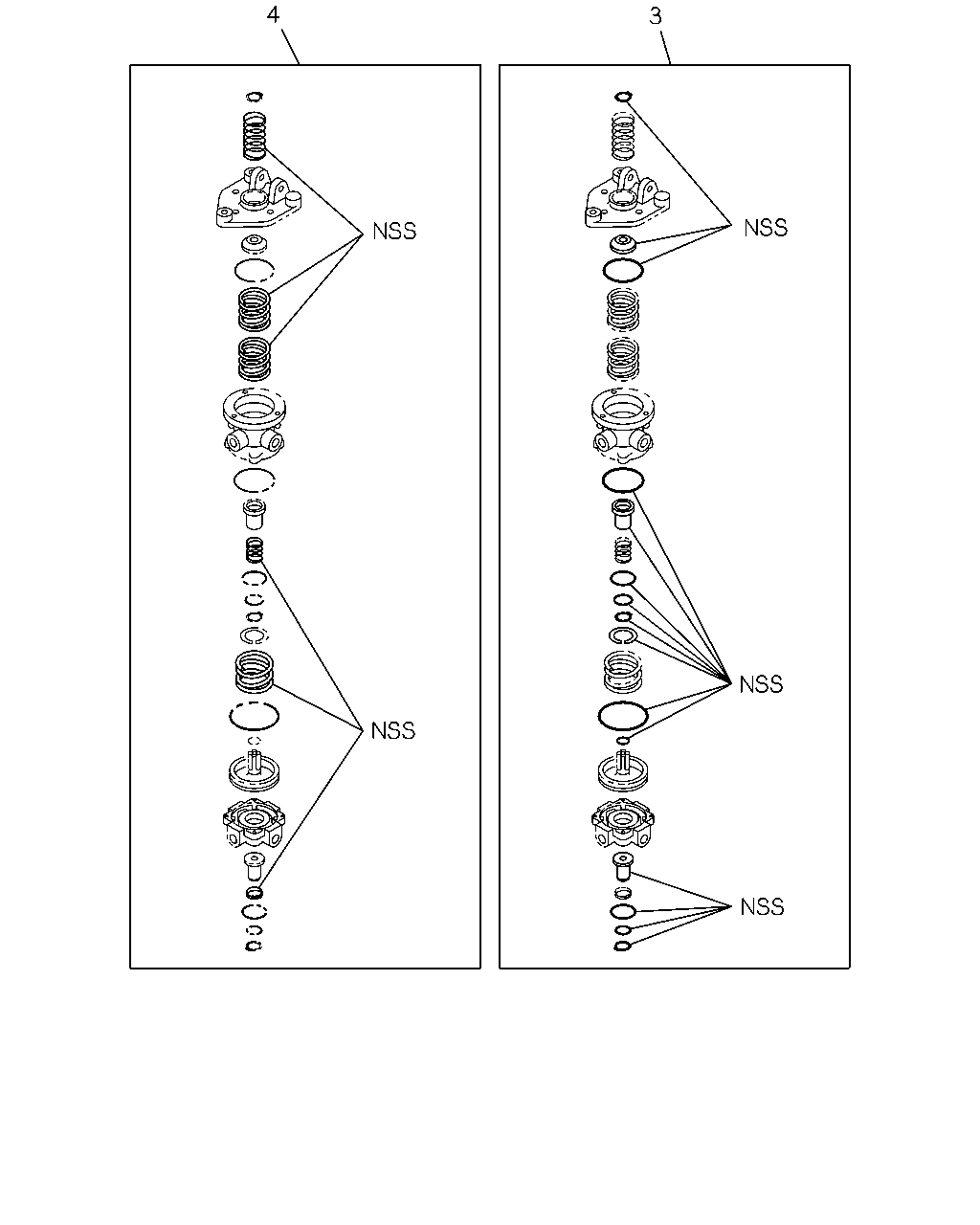

çizim 29086
4 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 REPAIR KIT; RUBBER,BRK VLV 1-85576-049-0 01 1 9202-9207 ● ●
3 REPAIR KIT; RUBBER,BRK VLV
EXC. TAIWAN EQUIPMENT(WW5) 		1-85576-049-0 01 1 9208- ● ●
3 REPAIR KIT; RUBBER,BRK VLV
TAIWAN EQUIPMENT(WW5) 		1-85576-143-0 01 1 9208- ● ●
4 REPAIR KIT; SPRING,BRK VLV 1-85576-050-0 01 1 9202-9207 ● ●
4 REPAIR KIT; SPRING,BRK VLV
EXC. TAIWAN EQUIPMENT(WW5) 		1-85576-050-0 01 1 9208- ● ●
4 REPAIR KIT; SPRING,BRK VLV
TAIWAN EQUIPMENT(WW5) 		1-85576-144-0 01 1 9208- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
