◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30B - GEAR SHIFTER AND QUADRANT BOX ▶

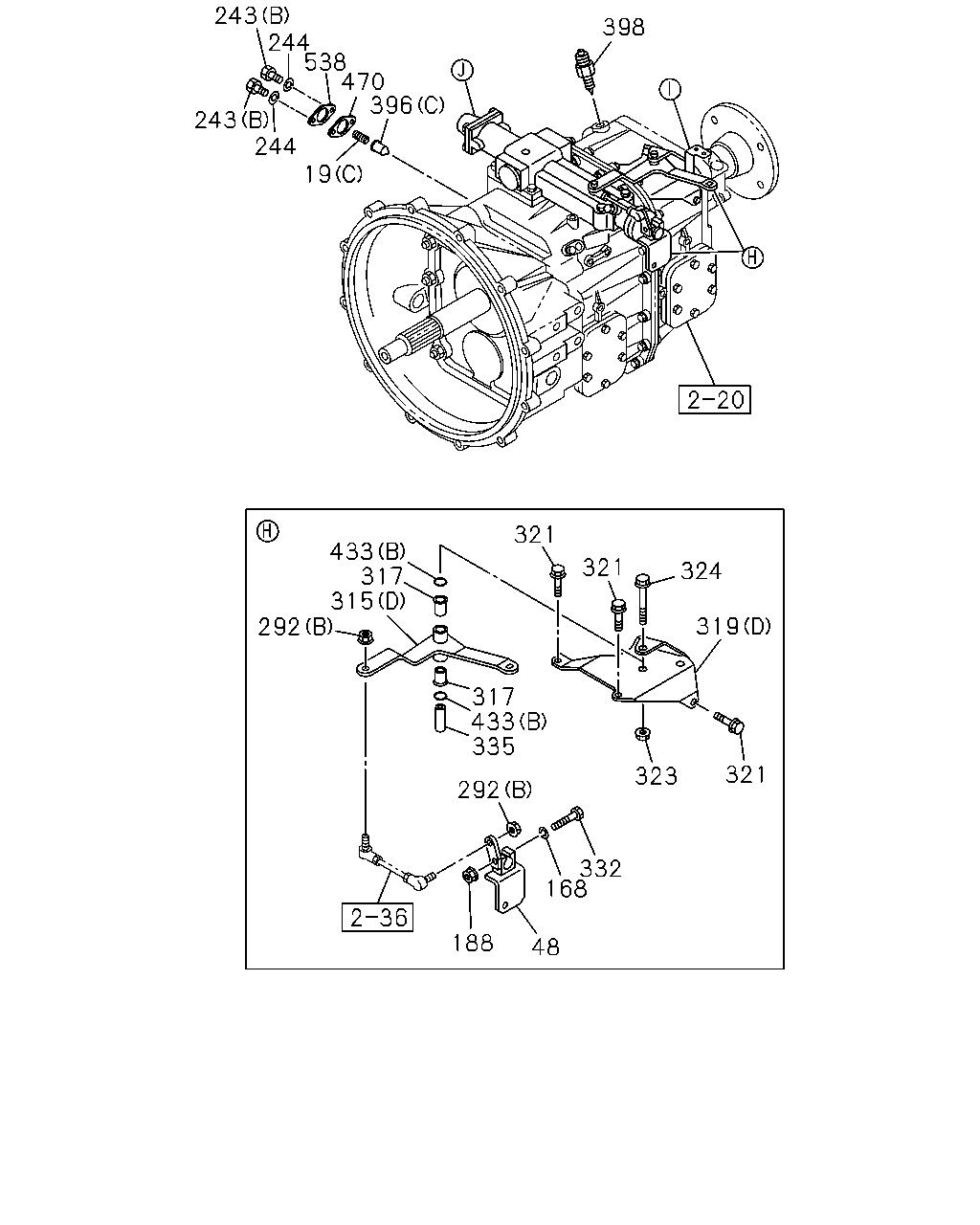

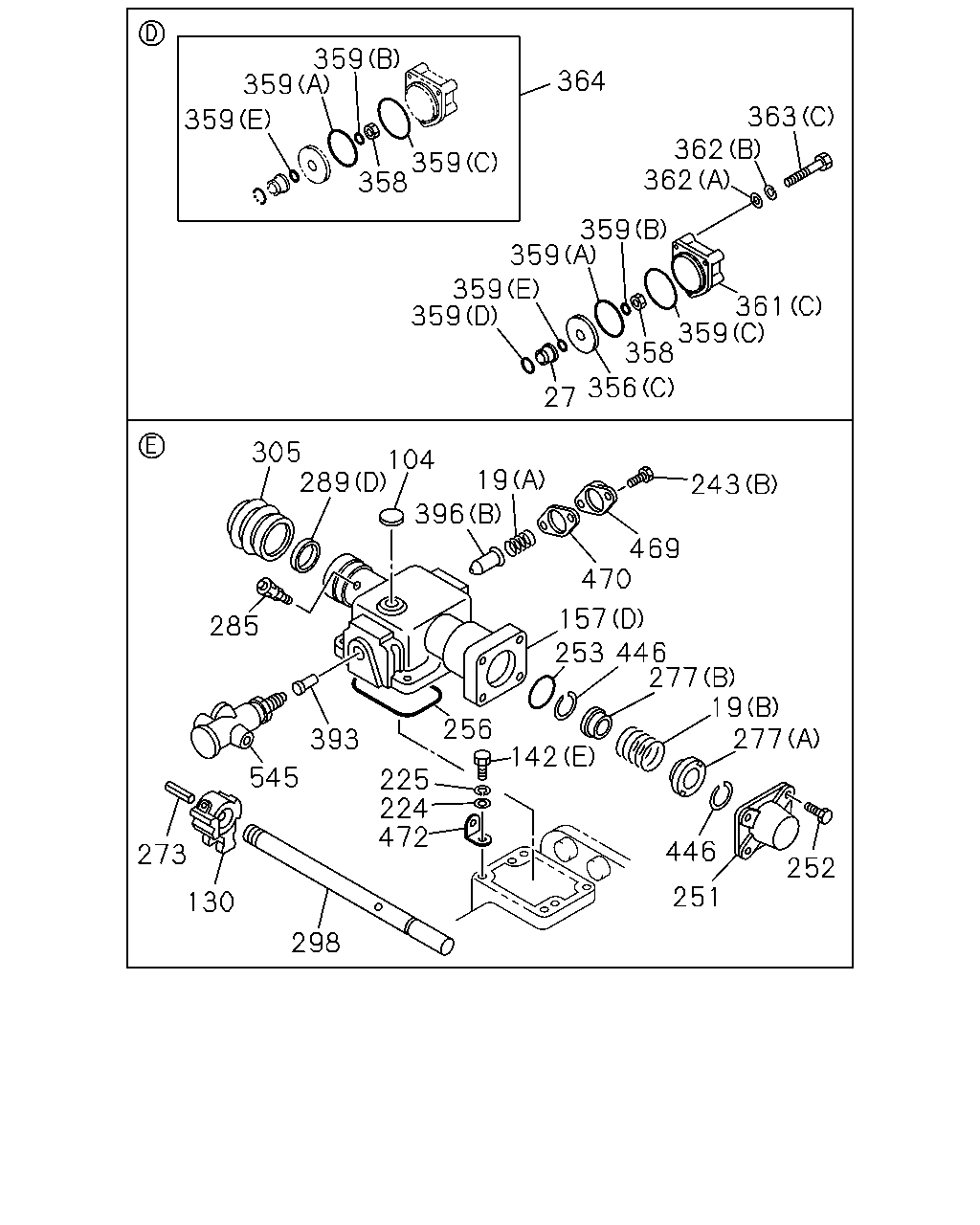

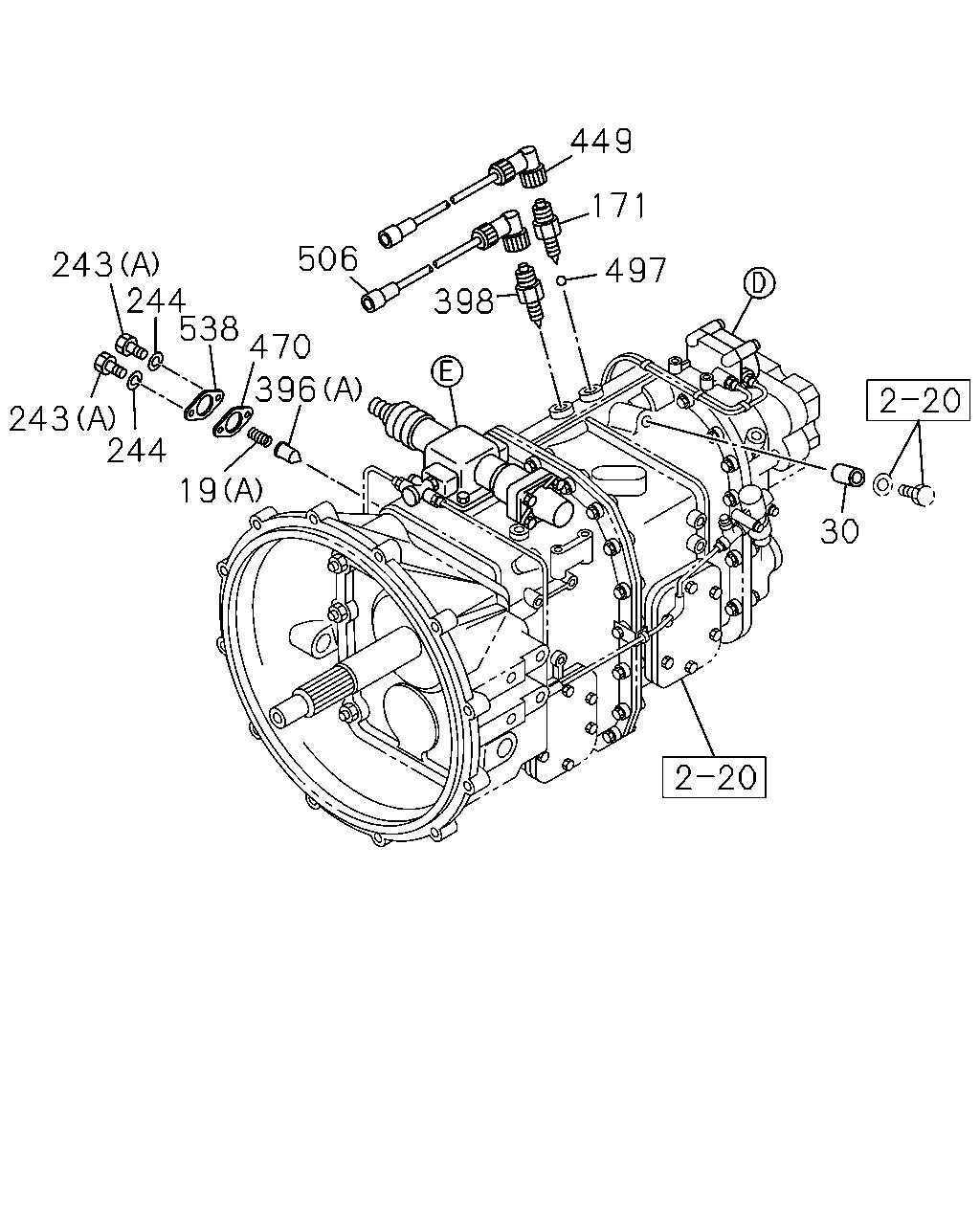

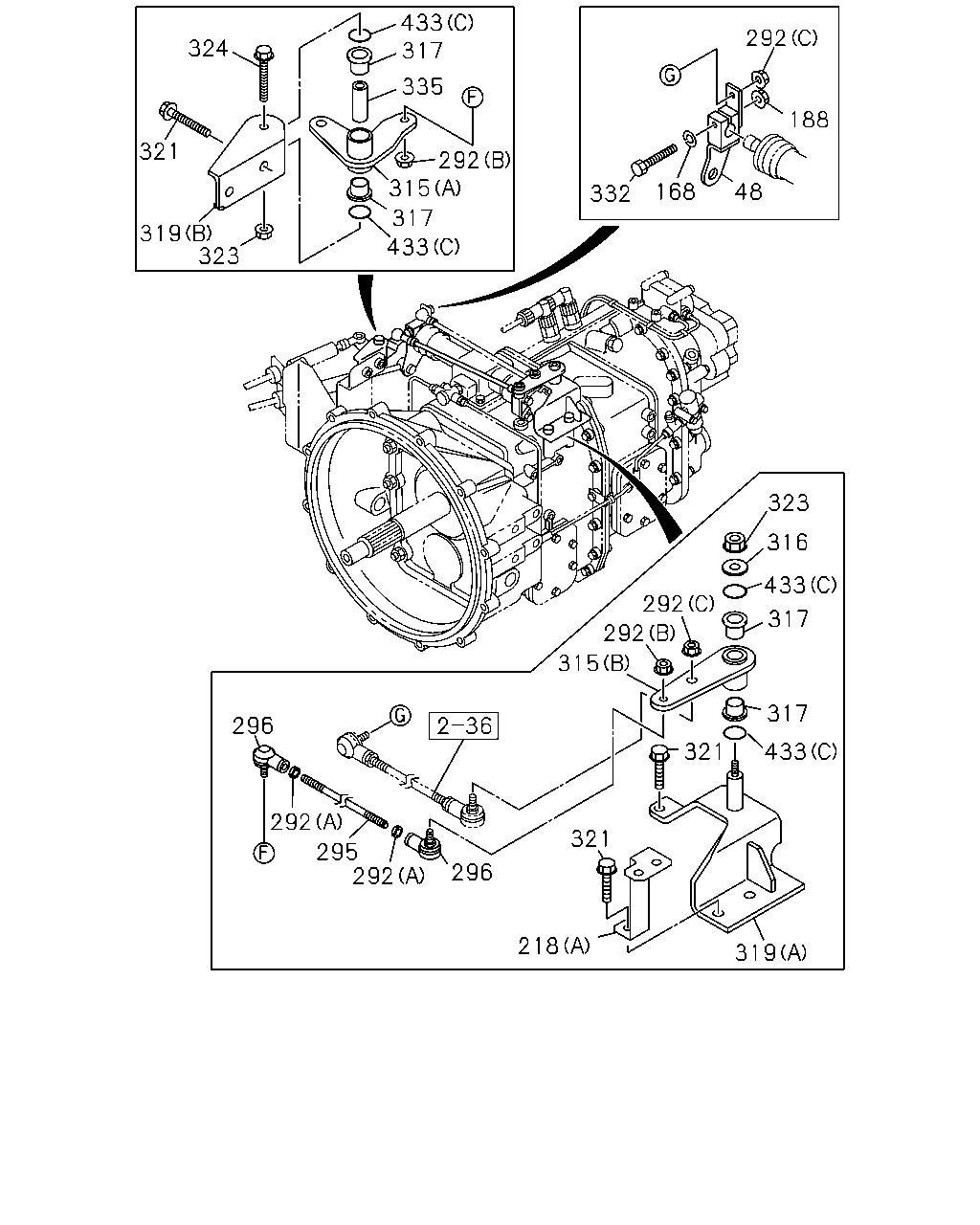

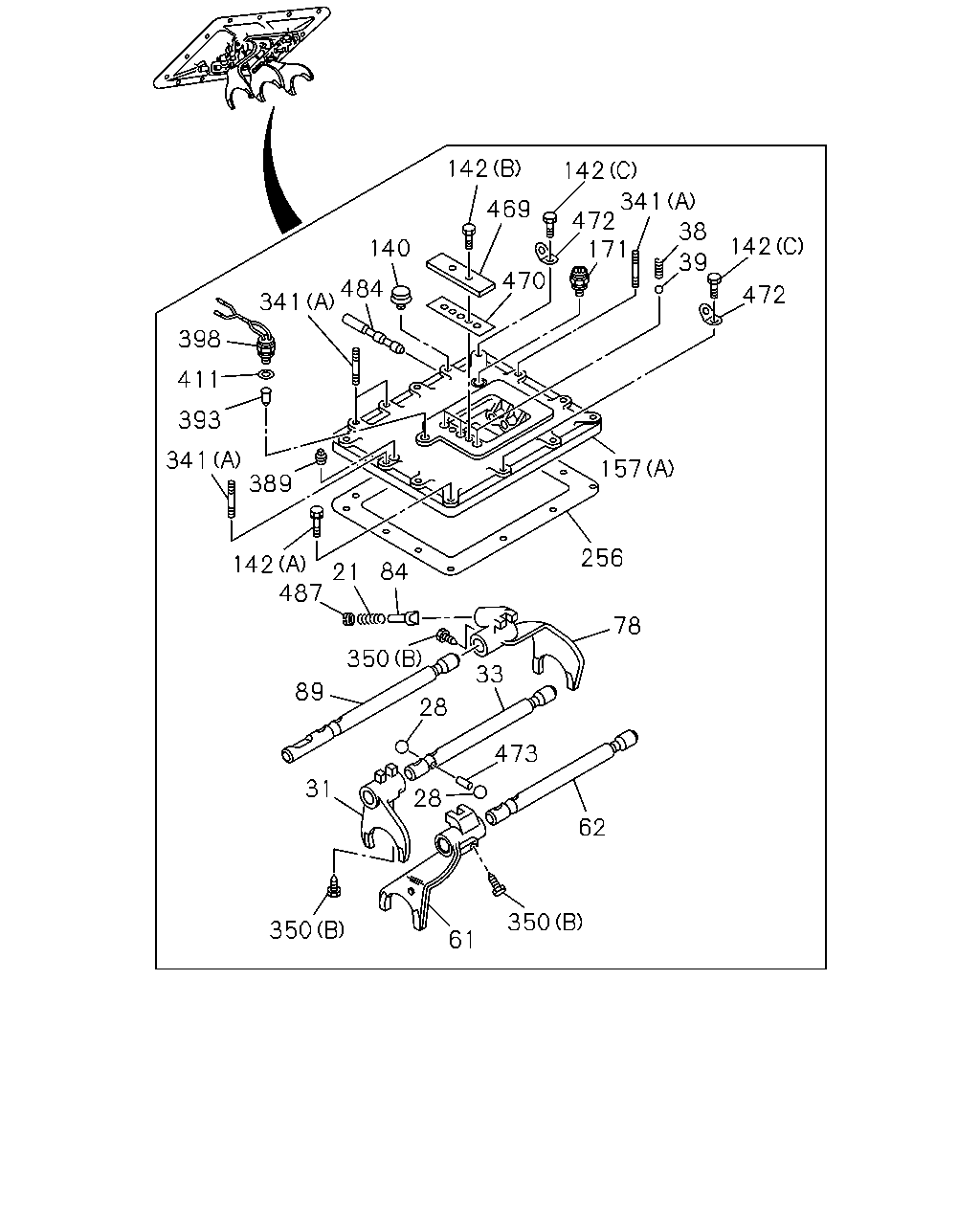

2-30B — GEAR SHIFTER AND QUADRANT BOX (#9249) — 1581 parça

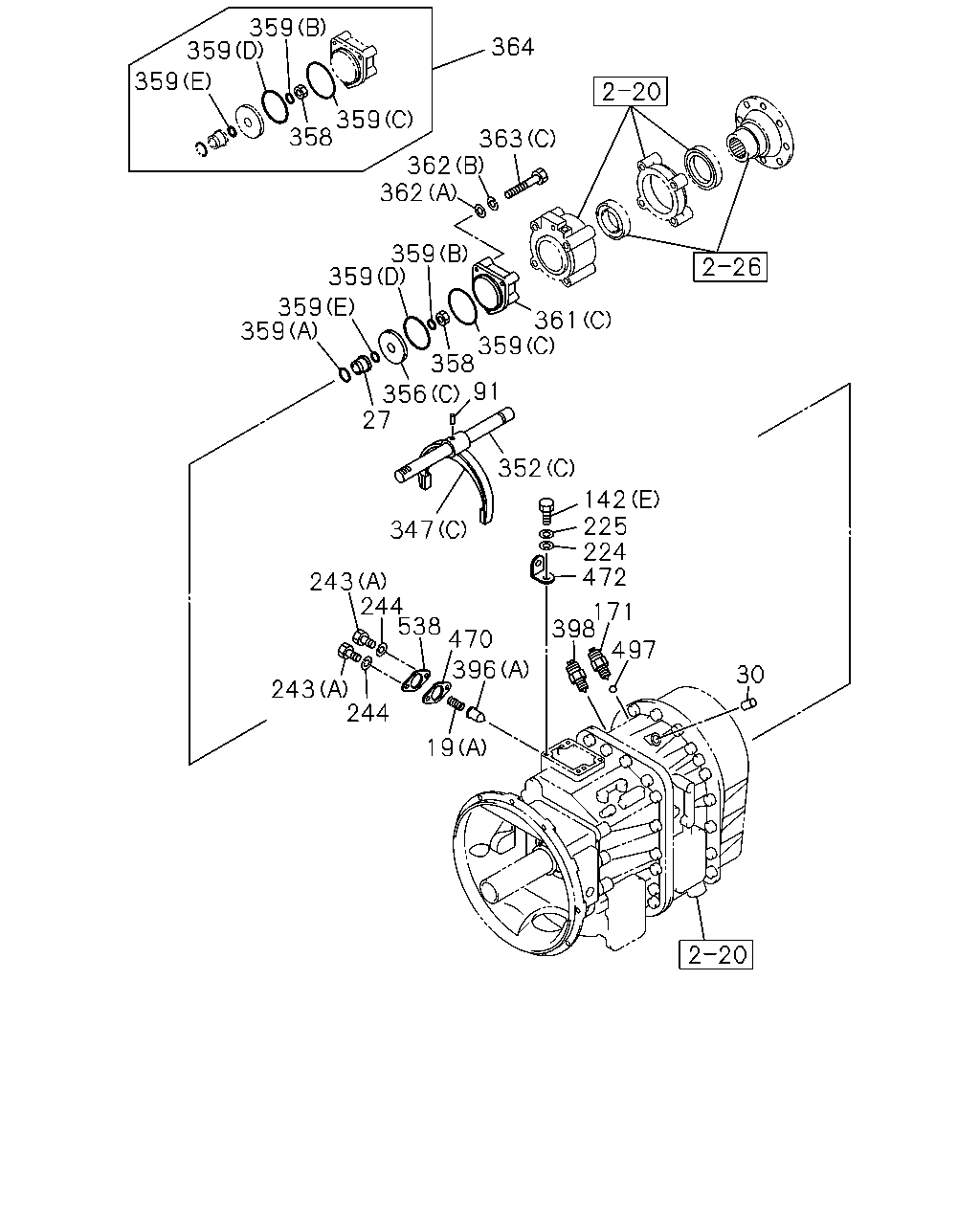

çizim 9321
359 359 364 359 359 358 363 362 362 359 359 359 359 361 359 358 91 356 27 352 142 225 224 472 347 243 244 538 470 171 39 497 396 30 243 244 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 SPRING; COIL COMP
(C) 		1-33539-085-0 01 1 0303- ●
19 SPRING; COIL COMP
(D) 		1-33549-392-0 01 1 0303- ●
19 SPRING; COIL COMP
(E) 		1-33549-393-0 01 1 0303- ●
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 0005-0210 ●
19 SPRING; COIL COMP
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33539-052-0 02 1 0211-0609 ●
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 0610- ●
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 0005-0210 ●
19 SPRING; COIL COMP
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-226-0 01 1 0211- ●
27 BUSHING; SHIFT ROD 1-33569-042-0 01 1 0005-0210 ●
27 BUSHING; SHIFT ROD
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33569-042-0 01 1 0211-0609 ●
27 BUSHING; SHIFT ROD 1-33569-042-0 01 1 0610- ●
30 PIN; INTER LK 1-33119-309-0 01 1 0005-0210 ●
30 PIN; INTER LK
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-309-0 01 1 0211-0609 ●
30 PIN; INTER LK 1-33119-309-0 01 1 0610- ●
39 BALL; DETENT 1-87060-789-0 03 1 0005- ●
91 PIN; SPR,SHIFT ARM 1-33519-100-0 01 1 0005-0210 ●
91 PIN; SPR,SHIFT ARM
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33519-100-0 01 1 0211-0609 ●
91 PIN; SPR,SHIFT ARM 1-33519-100-0 01 1 0610- ●
142 BOLT; QUAD BOX
(E) 		1-33119-569-0 04 1 0303- ●
142 BOLT; QUAD BOX
(F) 		1-33119-585-0 02 1 0303- ●
142 BOLT; QUAD BOX
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (E) 		1-33549-479-0 04 1 0406- ●
142 BOLT; QUAD BOX
6HK1 TCS ENG(80L) (E) 		1-33119-543-0 02 1 0610- ●
142 BOLT; QUAD BOX
BRAKE SYSTEM RETARDER<RE2> (E) M10X35 		1-33549-350-0 04 1 0005-0210 ●
142 BOLT; QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (E) M10X35 		1-33549-350-0 04 1 0211- ●
142 BOLT; QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> (E) 		1-33549-222-0 04 1 0005-0210 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 0005-0906 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50641-028-0 04 1 0907- ●
142 BOLT; QUAD BOX
(A) 		1-87060-778-0 11 1 0005- ●
142 BOLT; QUAD BOX
(B) 		1-87060-786-0 02 1 0005- ●
142 BOLT; QUAD BOX
(C) 		1-87061-229-0 02 1 0005- ●
171 SWITCH; NEUTRAL 1-82440-123-0 01 1 0303- ●
171 SWITCH; NEUTRAL 1-82440-104-0 01 1 0005-0210 ●
171 SWITCH; NEUTRAL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-82440-120-0 01 1 0211-0609 ●
171 SWITCH; NEUTRAL 1-82440-120-0 01 1 0610- ●
171 SWITCH; NEUTRAL 1-87061-488-0 01 1 0005- ●
224 WASHER; PL,QUAD BOX 1-33119-567-0 07 1 0303-1104 ●
224 WASHER; PL,QUAD BOX 1-33119-567-0 05 1 1105- ●
224 WASHER; PL,QUAD BOX
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33119-524-0 03 1 0406- ●
224 WASHER; PL,QUAD BOX
6HK1 TCS ENG(80L) 		1-33119-524-0 01 1 0610- ●
224 WASHER; PL,QUAD BOX
BRAKE SYSTEM RETARDER<RE2> 		1-33119-424-0 03 1 0005-0210 ●
224 WASHER; PL,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-424-0 03 1 0211- ●
224 WASHER; PL,QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33119-318-0 03 1 0005-0210 ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 0005-0605 ●
224 WASHER; PL,QUAD BOX
ID=10.5 		0-91610-510-0 02 1 0606- ●
225 WASHER; LK,QUAD BOX 1-33119-568-0 06 1 0303- ●
225 WASHER; LK,QUAD BOX
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-34159-121-0 04 1 0406- ●
225 WASHER; LK,QUAD BOX
6HK1 TCS ENG(80L) 		1-34159-121-0 06 1 0610- ●
225 WASHER; LK,QUAD BOX
BRAKE SYSTEM RETARDER<RE2> 		1-34519-096-0 04 1 0005-0210 ●
225 WASHER; LK,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-34159-096-0 04 1 0211- ●
225 WASHER; LK,QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-34159-066-0 04 1 0005-0210 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 0005-0603 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		0-91510-510-0 02 1 0604- ●
243 BOLT; COVER
(A) 		1-33119-575-0 02 1 0303- ●
243 BOLT; COVER
(B) 		1-33549-551-0 02 1 0303- ●
243 BOLT; COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33549-480-0 02 1 0406- ●
243 BOLT; COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (B) 		1-33549-482-0 02 1 0406- ●
243 BOLT; COVER
BRAKE SYSTEM RETARDER<RE2> (A) 		1-33119-426-0 02 1 0005-0210 ●
243 BOLT; COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33549-376-0 02 1 0211- ●
243 BOLT; COVER
BRAKE SYSTEM RETARDER<RE2> (B) 		1-33549-352-0 02 1 0005-0210 ●
243 BOLT; COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-352-0 02 1 0211- ●
243 BOLT; COVER
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-33119-322-0 02 1 0005-0210 ●
243 BOLT; COVER
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-33549-230-0 02 1 0005-0210 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28080-610-0 01 1 0005-0512 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28050-610-0 01 1 0601- ●
244 WASHER; LK,COVER 1-33119-564-0 02 1 0303- ●
244 WASHER; LK,COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33119-530-0 02 1 0406- ●
244 WASHER; LK,COVER
BRAKE SYSTEM RETARDER<RE2> 		1-33119-427-0 06 1 0005-0210 ●
244 WASHER; LK,COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-427-0 02 1 0211- ●
244 WASHER; LK,COVER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33119-323-0 06 1 0005-0210 ●
347 ARM; SHIFT,RANGE CHANGE
(C) 		1-33511-533-0 01 1 0005-0210 ●
347 ARM; SHIFT,RANGE CHANGE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33511-533-0 01 1 0211-0609 ●
347 ARM; SHIFT,RANGE CHANGE
(C) 		1-33511-533-0 01 1 0610- ●
347 ARM; SHIFT,RANGE CHANGE
(A) 		1-87061-260-0 01 1 0005- ●
347 ARM; SHIFT,RANGE CHANGE
(B) 		1-87061-432-0 01 1 0005- ●
352 ROD; SHIFT,RANGE CHANGE
(A) 		1-33539-082-0 01 1 0303- ●
352 ROD; SHIFT,RANGE CHANGE
(B) 		1-33539-083-0 01 1 0303- ●
352 ROD; SHIFT,RANGE CHANGE
(C) 		1-33531-435-0 01 1 0005-0210 ●
352 ROD; SHIFT,RANGE CHANGE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33531-435-0 01 1 0211-0609 ●
352 ROD; SHIFT,RANGE CHANGE
(C) 		1-33531-435-0 01 1 0610- ●
352 ROD; SHIFT,RANGE CHANGE
(D) 		1-87061-261-0 01 1 0005- ●
356 PISTON; AIR CYL
(C) 		1-33551-015-0 01 1 0005-0210 ●
356 PISTON; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33551-015-0 01 1 0211-0609 ●
356 PISTON; AIR CYL
(C) 		1-33551-015-0 01 1 0610- ●
356 PISTON; AIR CYL
(A) 		1-87061-121-0 01 1 0005- ●
356 PISTON; AIR CYL
(B) 		1-87061-477-0 01 1 0005- ●
358 NUT; SHIFT ROD
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33539-091-0 01 1 0406- ●
358 NUT; SHIFT ROD 1-33539-053-0 01 1 0005-0210 ●
358 NUT; SHIFT ROD
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33539-053-0 01 1 0211- ●
358 NUT; SHIFT ROD 1-87061-222-0 01 1 0005- ●
359 GASKET; AIR CYL
(B) 		1-33552-007-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33552-007-0 01 1 0211-0609 ●
359 GASKET; AIR CYL
(B) 		1-33552-007-0 01 1 0610- ●
359 GASKET; AIR CYL
(C) 		1-33563-008-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33563-008-0 01 1 0211-0609 ●
359 GASKET; AIR CYL
(C) 		1-33563-008-0 01 1 0610- ●
359 GASKET; AIR CYL
(A) 		1-33569-043-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33569-043-0 01 1 0211-0609 ●
359 GASKET; AIR CYL
(A) 		1-33569-043-0 01 1 0610- ●
359 GASKET; AIR CYL
(E) 		1-33569-044-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (E) 		1-33569-044-0 01 1 0211-0609 ●
359 GASKET; AIR CYL
(E) 		1-33569-044-0 01 1 0610- ●
359 GASKET; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (D) 		1-33552-006-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (D) 		1-33552-006-0 01 1 0211-0609 ●
359 GASKET; AIR CYL
(D) 		1-33552-006-0 01 1 0610- ●
359 GASKET; AIR CYL
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-87061-122-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
(D) 		1-87061-122-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
(D) 		1-87061-122-0 01 1 0211- ●
359 GASKET; AIR CYL
(F) 		1-87060-994-0 03 1 0005- ●
359 GASKET; AIR CYL
(G) 		1-87061-123-0 01 1 0005- ●
359 GASKET; AIR CYL
(H) 		1-87061-136-0 01 1 0005- ●
359 GASKET; AIR CYL
(I) 		1-87061-256-0 01 1 0005- ●
359 GASKET; AIR CYL
(J) 		1-87061-258-0 01 1 0005- ●
359 GASKET; AIR CYL
(K) 		1-87061-264-0 01 1 0005- ●
359 GASKET; AIR CYL
(L) 		1-87061-268-0 01 1 0005- ●
359 GASKET; AIR CYL
(M) 		1-87061-474-0 01 1 0005- ●
359 GASKET; AIR CYL
(N) 		1-87061-475-0 01 1 0005- ●
361 CYLINDER; AIR,SHIFT
(C) 		1-33569-045-0 01 1 0005-0210 ●
361 CYLINDER; AIR,SHIFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33569-045-0 01 1 0211-0609 ●
361 CYLINDER; AIR,SHIFT
(C) 		1-33569-045-0 01 1 0610- ●
361 CYLINDER; AIR,SHIFT
(A) 		1-87061-262-0 01 1 0005- ●
361 CYLINDER; AIR,SHIFT
(B) 		1-87061-476-0 01 1 0005- ●
362 WASHER; AIR CYL
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33119-524-0 03 1 0406- ●
362 WASHER; AIR CYL
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (B) 		1-34159-121-0 03 1 0406- ●
362 WASHER; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (A) 		1-33119-424-0 03 1 0005-0210 ●
362 WASHER; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33119-424-0 03 1 0211- ●
362 WASHER; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (B) 		1-34519-096-0 03 1 0005-0210 ●
362 WASHER; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-34159-096-0 03 1 0211- ●
362 WASHER; AIR CYL
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-33119-318-0 03 1 0005-0210 ●
362 WASHER; AIR CYL
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-34159-066-0 03 1 0005-0210 ●
363 BOLT; AIR CYL
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (C) 		1-33119-538-0 03 1 0406- ●
363 BOLT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (C) 		1-33119-433-0 03 1 0005-0210 ●
363 BOLT; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33119-433-0 03 1 0211- ●
363 BOLT; AIR CYL
EXC. BRAKE SYSTEM RETARDER<RE2> (C) M10X60 		1-33119-326-0 03 1 0005-0210 ●
363 BOLT; AIR CYL
(A) 		1-87060-778-0 08 1 0005- ●
363 BOLT; AIR CYL
(B) 		1-87061-270-0 04 1 0005- ●
364 SEAL KIT; AIR CYL 1-85572-108-0 01 1 0005-0210 ●
364 SEAL KIT; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-85572-108-0 01 1 0211-0609 ●
364 SEAL KIT; AIR CYL 1-85572-108-0 01 1 0610- ●
396 PLUNGER; SHIFT ROD
(C) 		1-33539-084-0 01 1 0303- ●
396 PLUNGER; SHIFT ROD
(D) 		1-33549-390-0 01 1 0303- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 0005-0210 ●
396 PLUNGER; SHIFT ROD
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33539-051-0 01 1 0211-0609 ●
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 0610- ●
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 0005-0210 ●
396 PLUNGER; SHIFT ROD
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-229-0 01 1 0211-0609 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 0610- ●
470 GASKET; SPRING COVER 1-33119-489-0 02 1 0303- ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 0005-0210 ●
470 GASKET; SPRING COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-321-0 02 1 0211-0609 ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 0610- ●
470 GASKET; SPRING COVER 1-87061-420-0 01 1 0005- ●
472 EYE; LIFTING
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33119-528-0 01 1 0406- ●
472 EYE; LIFTING
BRAKE SYSTEM RETARDER<RE2> 		1-33119-430-0 01 1 0005-0210 ●
472 EYE; LIFTING
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-430-0 01 1 0211- ●
472 EYE; LIFTING
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-87060-783-0 01 1 0005-0210 ●
472 EYE; LIFTING 1-87060-783-0 02 1 0005- ●
497 BALL; SWITCH 1-33119-308-0 01 1 0005-0210 ●
497 BALL; SWITCH
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-308-0 01 1 0211-0609 ●
497 BALL; SWITCH 1-33119-308-0 01 1 0610- ●
538 COVER; DETENT 1-33119-574-0 01 1 0303- ●
538 COVER; DETENT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33119-529-0 01 1 0406- ●
538 COVER; DETENT
BRAKE SYSTEM RETARDER<RE2> 		1-33119-425-0 01 1 0005-0210 ●
538 COVER; DETENT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-425-0 01 1 0211- ●
538 COVER; DETENT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33119-320-0 01 1 0005-0210 ●

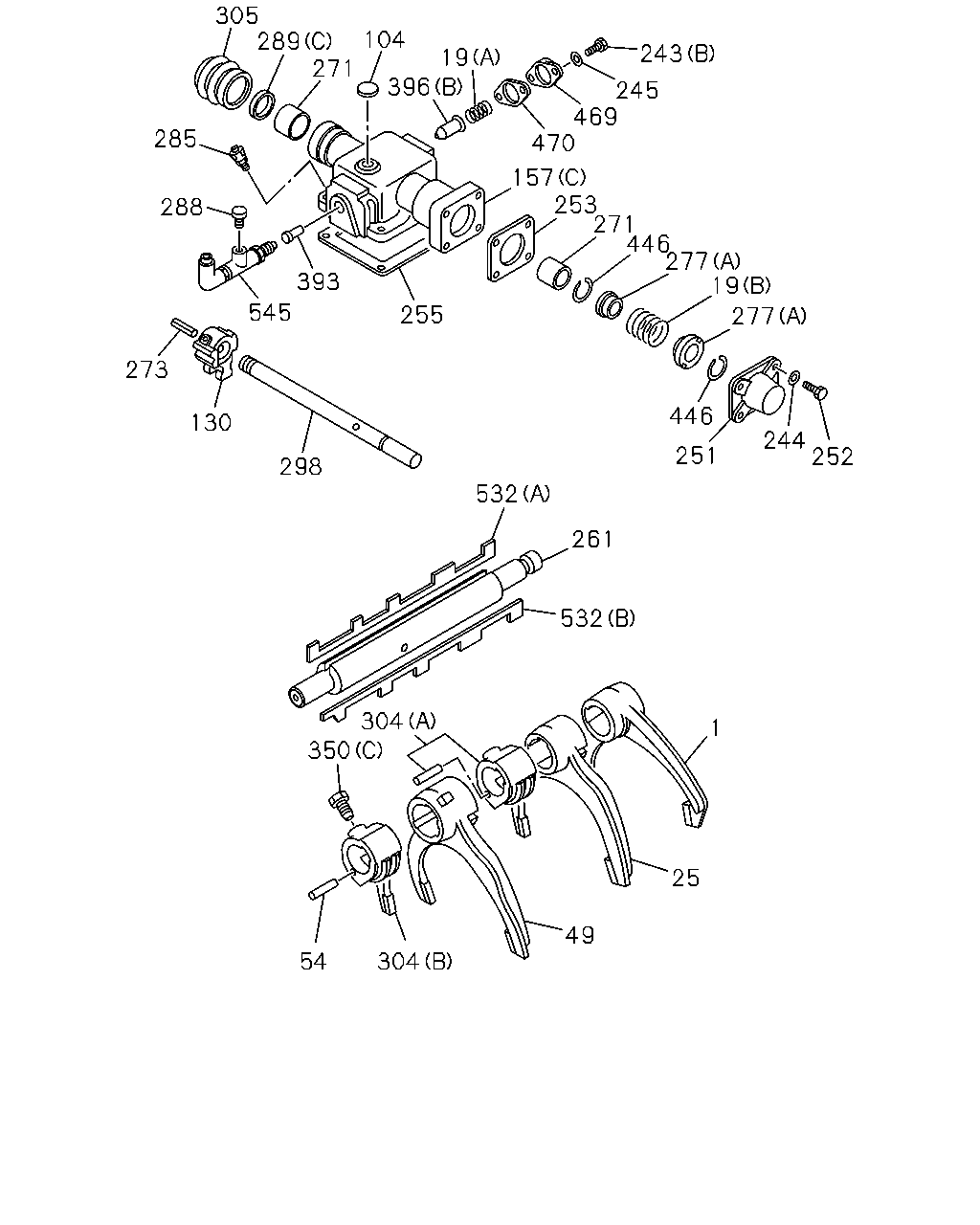

çizim 9322
305 289 271 104 243 19 396 245 469 470 285 157 253 271 446 277 19 288 393 545 255 277 273 446 130 244 252 251 298 532 261 532 304 350 1 25 49 54 304
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 ARM; SHIFT,1ST & REV
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33511-629-0 01 1 0406- ●
1 ARM; SHIFT,1ST & REV 1-33511-535-0 01 1 0005-0210 ●
1 ARM; SHIFT,1ST & REV
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33511-535-0 01 1 0211- ●
19 SPRING; COIL COMP
(C) 		1-33539-085-0 01 1 0303- ●
19 SPRING; COIL COMP
(D) 		1-33549-392-0 01 1 0303- ●
19 SPRING; COIL COMP
(E) 		1-33549-393-0 01 1 0303- ●
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 0005-0210 ●
19 SPRING; COIL COMP
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33539-052-0 02 1 0211-0609 ●
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 0610- ●
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 0005-0210 ●
19 SPRING; COIL COMP
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-226-0 01 1 0211- ●
25 ARM; SHIFT,2ND & 3RD
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33511-630-0 01 1 0406- ●
25 ARM; SHIFT,2ND & 3RD
BRAKE SYSTEM RETARDER<RE2> 		1-33511-614-0 01 1 0005-0210 ●
25 ARM; SHIFT,2ND & 3RD
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33511-614-0 01 1 0211- ●
25 ARM; SHIFT,2ND & 3RD
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33511-536-0 01 1 0005-0210 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-537-0 01 1 0005-0210 ●
49 ARM; SHIFT,4TH & 5TH
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33511-537-0 01 1 0211-0609 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-537-0 01 1 0610- ●
54 PIN; SPR,SHIFT BLOCK
BRAKE SYSTEM RETARDER<RE2> 		1-33519-101-0 01 1 0005-0210 ●
54 PIN; SPR,SHIFT BLOCK
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33519-101-0 01 1 0211-0302 ●
54 PIN; SPR,SHIFT BLOCK
6SD1 TCN ENG(31L) 		1-33519-101-0 01 1 0303-0609 ●
54 PIN; SPR,SHIFT BLOCK
6HK1 TCS ENG(80L) 		1-33519-101-0 01 1 0303-0609 ●
54 PIN; SPR,SHIFT BLOCK 1-33519-101-0 01 1 0610- ● ●
104 PLUG; PLATE 1-33549-550-0 01 1 0303- ●
104 PLUG; PLATE
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33549-481-0 01 1 0406- ●
104 PLUG; PLATE
BRAKE SYSTEM RETARDER<RE2> 		1-33549-353-0 01 1 0005-0210 ●
104 PLUG; PLATE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-353-0 01 1 0211- ●
104 PLUG; PLATE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-231-0 01 1 0005-0210 ●
130 LEVER; SHIFT,INTERNAL 1-33521-186-0 01 1 0303- ●
130 LEVER; SHIFT,INTERNAL
BRAKE SYSTEM RETARDER<RE2> 		1-33521-181-0 01 1 0005-0210 ●
130 LEVER; SHIFT,INTERNAL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33521-181-0 01 1 0211-0609 ●
130 LEVER; SHIFT,INTERNAL 1-33521-181-0 01 1 0610- ●
130 LEVER; SHIFT,INTERNAL
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33521-161-0 01 1 0005-0210 ●
130 LEVER; SHIFT,INTERNAL 1-33521-109-0 01 1 0005- ●
157 BOX; QUAD,TRANS
(E) 		1-33541-537-0 01 1 0303-0609 ●
157 BOX; QUAD,TRANS
6HK1 TCS ENG(80L) (E) 		1-33541-537-0 01 1 0610- ●
157 BOX; QUAD,TRANS
(E) 		1-33541-537-0 01 1 0610- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-486-0 01 1 0005-0210 ●
157 BOX; QUAD,TRANS
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (D) 		1-33541-535-0 01 1 0211- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 0005- ●
157 BOX; QUAD,TRANS
(A) 		1-87061-518-0 01 1 0005- ●
243 BOLT; COVER
(A) 		1-33119-575-0 02 1 0303- ●
243 BOLT; COVER
(B) 		1-33549-551-0 02 1 0303- ●
243 BOLT; COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33549-480-0 02 1 0406- ●
243 BOLT; COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (B) 		1-33549-482-0 02 1 0406- ●
243 BOLT; COVER
BRAKE SYSTEM RETARDER<RE2> (A) 		1-33119-426-0 02 1 0005-0210 ●
243 BOLT; COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33549-376-0 02 1 0211- ●
243 BOLT; COVER
BRAKE SYSTEM RETARDER<RE2> (B) 		1-33549-352-0 02 1 0005-0210 ●
243 BOLT; COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-352-0 02 1 0211- ●
243 BOLT; COVER
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-33119-322-0 02 1 0005-0210 ●
243 BOLT; COVER
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-33549-230-0 02 1 0005-0210 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28080-610-0 01 1 0005-0512 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28050-610-0 01 1 0601- ●
244 WASHER; LK,COVER 1-33119-564-0 02 1 0303- ●
244 WASHER; LK,COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33119-530-0 02 1 0406- ●
244 WASHER; LK,COVER
BRAKE SYSTEM RETARDER<RE2> 		1-33119-427-0 06 1 0005-0210 ●
244 WASHER; LK,COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-427-0 02 1 0211- ●
244 WASHER; LK,COVER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33119-323-0 06 1 0005-0210 ●
245 WASHER; PL,COVER
BRAKE SYSTEM RETARDER<RE2> 		1-33119-427-0 02 1 0005-0210 ●
245 WASHER; PL,COVER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33119-323-0 02 1 0005-0210 ●
251 COVER; SIDE 1-33545-013-0 01 1 0303- ●
251 COVER; SIDE 1-33545-009-0 01 1 0005-0210 ●
251 COVER; SIDE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33545-012-0 01 1 0211-0609 ●
251 COVER; SIDE 1-33545-012-0 01 1 0610- ●
252 BOLT; SIDE COVER 1-33549-552-0 04 1 0303- ●
252 BOLT; SIDE COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33549-483-0 04 1 0406- ●
252 BOLT; SIDE COVER
BRAKE SYSTEM RETARDER<RE2> 		1-33549-351-0 04 1 0005-0210 ●
252 BOLT; SIDE COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-374-0 04 1 0211- ●
252 BOLT; SIDE COVER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-228-0 04 1 0005-0210 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-051-0 01 1 0005-0210 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33544-055-0 01 1 0211-0302 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) 		1-33544-055-0 01 1 0303-0609 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 6HK1 TCS ENG(80L) 		1-33544-055-0 01 1 0303-0609 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-055-0 01 1 0610- ● ●
255 PLATE; DIST,QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-235-0 01 1 0005-0210 ●
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 0005- ●
261 ROD; GEAR CONT 1-33531-480-0 01 1 0303- ●
261 ROD; GEAR CONT 1-33531-436-0 01 1 0005-0210 ●
261 ROD; GEAR CONT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33531-436-0 01 1 0211-0609 ●
261 ROD; GEAR CONT 1-33531-436-0 01 1 0610- ●
271 BUSHING; QUAD BOX 1-33119-303-0 02 1 0005-0210 ●
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 0005-0210 ●
273 PIN; SPR,STOPPER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33529-095-0 01 1 0211-0302 ●
273 PIN; SPR,STOPPER
6SD1 TCN ENG(31L) 		1-33529-095-0 01 1 0303-0609 ●
273 PIN; SPR,STOPPER
6HK1 TCS ENG(80L) 		1-33529-095-0 01 1 0303-0609 ●
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 0610- ● ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 0005- ●
277 PLATE; SPRING SEAT
(C) 		1-33549-388-0 01 1 0303- ●
277 PLATE; SPRING SEAT
(D) 		1-33549-389-0 01 1 0303- ●
277 PLATE; SPRING SEAT
(E) 		1-33549-395-0 01 1 0303- ●
277 PLATE; SPRING SEAT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-372-0 01 1 0211-0609 ●
277 PLATE; SPRING SEAT
(B) 		1-33549-372-0 01 1 0610- ●
277 PLATE; SPRING SEAT
(A) 		1-33549-224-0 02 1 0005-0210 ●
277 PLATE; SPRING SEAT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33549-224-0 01 1 0211-0609 ●
277 PLATE; SPRING SEAT
(A) 		1-33549-224-0 01 1 0610- ●
285 BREATHER; AIR,QUAD BOX
BRAKE SYSTEM RETARDER<RE2> 		1-33549-354-0 01 1 0005-0210 ●
285 BREATHER; AIR,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-354-0 01 1 0211-0302 ●
285 BREATHER; AIR,QUAD BOX
6SD1 TCN ENG(31L) 		1-33549-354-0 01 1 0303-0609 ●
285 BREATHER; AIR,QUAD BOX
6HK1 TCS ENG(80L) 		1-33549-354-0 01 1 0303-0609 ●
285 BREATHER; AIR,QUAD BOX 1-33549-354-0 01 1 0610- ● ●
285 BREATHER; AIR,QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-232-0 01 1 0005-0210 ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0005- ●
288 PLUG; AIR BREATHER
BRAKE SYSTEM RETARDER<RE2> 		1-33549-355-0 01 1 0005-0210 ●
288 PLUG; AIR BREATHER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-237-0 01 1 0005-0210 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0005-0210 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0211-0307 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0005-0210 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0211- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33542-059-0 01 1 0005-0210 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (D) 		1-33542-061-0 01 1 0211-0302 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) (D) 		1-33542-061-0 01 1 0303-0609 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 6HK1 TCS ENG(80L) (D) 		1-33542-061-0 01 1 0303-0609 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (D) 		1-33542-061-0 01 1 0610- ● ●
298 SHAFT; SHIFT LEVER 1-33522-209-0 01 1 0303- ●
298 SHAFT; SHIFT LEVER
6HK1 TCS ENG(80L) 		1-33522-181-0 01 1 0610- ●
298 SHAFT; SHIFT LEVER 1-33522-158-0 01 1 0005-0210 ●
298 SHAFT; SHIFT LEVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33522-158-0 01 1 0211- ●
298 SHAFT; SHIFT LEVER 1-33522-148-0 01 1 0005- ●
304 BLOCK; SHIFT SHAFT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-33511-534-0 01 1 0005-0210 ●
304 BLOCK; SHIFT SHAFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33511-534-0 01 1 0211-0302 ●
304 BLOCK; SHIFT SHAFT
6SD1 TCN ENG(31L) (B) 		1-33511-534-0 01 1 0303-0609 ●
304 BLOCK; SHIFT SHAFT
6HK1 TCS ENG(80L) (B) 		1-33511-534-0 01 1 0303-0609 ●
304 BLOCK; SHIFT SHAFT
(B) 		1-33511-534-0 01 1 0610- ● ●
304 BLOCK; SHIFT SHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-33511-575-0 01 1 0005-0210 ●
305 BOOT; LEVER SHAFT 1-33549-233-0 01 1 0005-0210 ●
305 BOOT; LEVER SHAFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-233-0 01 1 0211-0302 ●
305 BOOT; LEVER SHAFT
6SD1 TCN ENG(31L) 		1-33549-233-0 01 1 0303-0609 ●
305 BOOT; LEVER SHAFT
6HK1 TCS ENG(80L) 		1-33549-233-0 01 1 0303-0609 ●
305 BOOT; LEVER SHAFT 1-33549-233-0 01 1 0610- ● ●
350 SCREW; SHIFT ARM
(D) 		1-33519-163-0 01 1 0303- ●
350 SCREW; SHIFT ARM
(C) 		1-33519-102-0 01 1 0005-0210 ●
350 SCREW; SHIFT ARM
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33519-102-0 01 1 0211-0609 ●
350 SCREW; SHIFT ARM
(C) 		1-33519-102-0 01 1 0610- ●
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 04 1 0005- ●
350 SCREW; SHIFT ARM
(A) 		1-87061-257-0 02 1 0005- ●
393 PIN; SW 1-33549-394-0 01 1 0303- ●
393 PIN; SW 1-33549-234-0 01 1 0005-0210 ●
393 PIN; SW
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-234-0 01 1 0211-0609 ●
393 PIN; SW 1-33549-234-0 01 1 0610- ●
393 PIN; SW 1-87061-139-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(C) 		1-33539-084-0 01 1 0303- ●
396 PLUNGER; SHIFT ROD
(D) 		1-33549-390-0 01 1 0303- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 0005-0210 ●
396 PLUNGER; SHIFT ROD
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33539-051-0 01 1 0211-0609 ●
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 0610- ●
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 0005-0210 ●
396 PLUNGER; SHIFT ROD
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-229-0 01 1 0211-0609 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 0610- ●
446 RING; SNAP,SPR SEAT 1-33549-223-0 02 1 0005-0210 ●
446 RING; SNAP,SPR SEAT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-223-0 02 1 0211-0302 ●
446 RING; SNAP,SPR SEAT
6SD1 TCN ENG(31L) 		1-33549-223-0 02 1 0303-0609 ●
446 RING; SNAP,SPR SEAT
6HK1 TCS ENG(80L) 		1-33549-223-0 02 1 0303-0609 ●
446 RING; SNAP,SPR SEAT 1-33549-223-0 02 1 0610- ● ●
469 COVER; SPRING,QUAD BOX 1-33119-574-0 01 1 0303- ●
469 COVER; SPRING,QUAD BOX
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33119-529-0 01 1 0406- ●
469 COVER; SPRING,QUAD BOX
BRAKE SYSTEM RETARDER<RE2> 		1-33119-425-0 01 1 0005-0210 ●
469 COVER; SPRING,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-425-0 01 1 0211- ●
469 COVER; SPRING,QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33119-320-0 01 1 0005-0210 ●
469 COVER; SPRING,QUAD BOX 1-87061-419-0 01 1 0005- ●
470 GASKET; SPRING COVER 1-33119-489-0 02 1 0303- ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 0005-0210 ●
470 GASKET; SPRING COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-321-0 02 1 0211-0609 ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 0610- ●
470 GASKET; SPRING COVER 1-87061-420-0 01 1 0005- ●
532 PLATE; SHIFT FORK
(A) 		1-33539-054-0 01 1 0005-0210 ●
532 PLATE; SHIFT FORK
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33539-054-0 01 1 0211-0609 ●
532 PLATE; SHIFT FORK
(A) 		1-33539-054-0 01 1 0610- ●
532 PLATE; SHIFT FORK
(B) 		1-33539-055-0 01 1 0005-0210 ●
532 PLATE; SHIFT FORK
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33539-055-0 01 1 0211-0609 ●
532 PLATE; SHIFT FORK
(B) 		1-33539-055-0 01 1 0610- ●
545 VALVE; POPPET 1-33549-236-0 01 1 0005-0210 ●
545 VALVE; POPPET
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-383-0 01 1 0211-0609 ●
545 VALVE; POPPET 1-33549-383-0 01 1 0610- ●

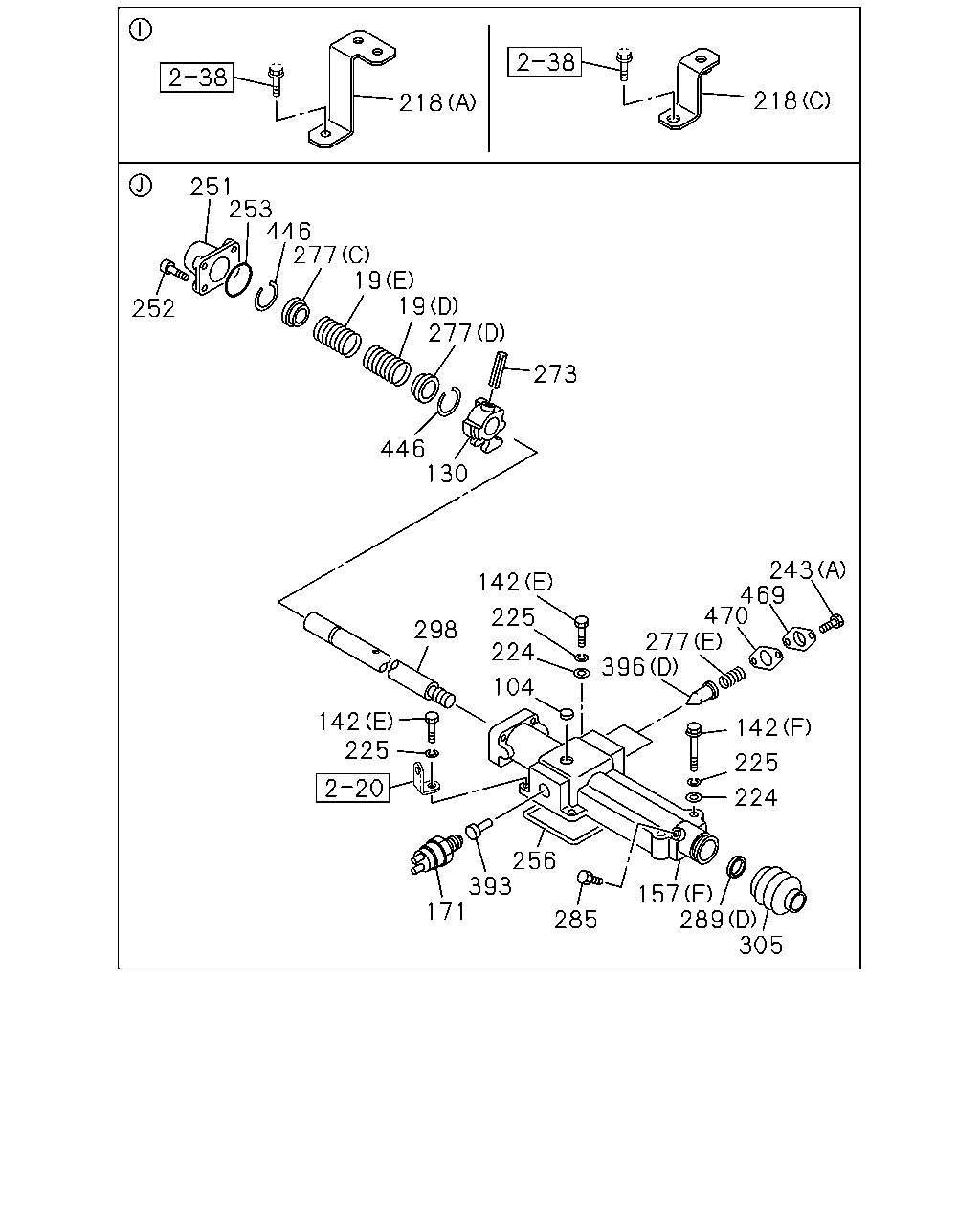

çizim 10017
218 218 251 253 446 277 19 19 277 252 273 446 130 243 469 470 277 396 142 225 298 224 104 142 225 142 225 224 256 393 171 157 289 305 285
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 SPRING; COIL COMP
(C) 		1-33539-085-0 01 1 0303- ●
19 SPRING; COIL COMP
(D) 		1-33549-392-0 01 1 0303- ●
19 SPRING; COIL COMP
(E) 		1-33549-393-0 01 1 0303- ●
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 0005-0210 ●
19 SPRING; COIL COMP
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33539-052-0 02 1 0211-0609 ●
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 0610- ●
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 0005-0210 ●
19 SPRING; COIL COMP
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-226-0 01 1 0211- ●
104 PLUG; PLATE 1-33549-550-0 01 1 0303- ●
104 PLUG; PLATE
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33549-481-0 01 1 0406- ●
104 PLUG; PLATE
BRAKE SYSTEM RETARDER<RE2> 		1-33549-353-0 01 1 0005-0210 ●
104 PLUG; PLATE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-353-0 01 1 0211- ●
104 PLUG; PLATE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-231-0 01 1 0005-0210 ●
130 LEVER; SHIFT,INTERNAL 1-33521-186-0 01 1 0303- ●
130 LEVER; SHIFT,INTERNAL
BRAKE SYSTEM RETARDER<RE2> 		1-33521-181-0 01 1 0005-0210 ●
130 LEVER; SHIFT,INTERNAL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33521-181-0 01 1 0211-0609 ●
130 LEVER; SHIFT,INTERNAL 1-33521-181-0 01 1 0610- ●
130 LEVER; SHIFT,INTERNAL
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33521-161-0 01 1 0005-0210 ●
130 LEVER; SHIFT,INTERNAL 1-33521-109-0 01 1 0005- ●
142 BOLT; QUAD BOX
(E) 		1-33119-569-0 04 1 0303- ●
142 BOLT; QUAD BOX
(F) 		1-33119-585-0 02 1 0303- ●
142 BOLT; QUAD BOX
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (E) 		1-33549-479-0 04 1 0406- ●
142 BOLT; QUAD BOX
6HK1 TCS ENG(80L) (E) 		1-33119-543-0 02 1 0610- ●
142 BOLT; QUAD BOX
BRAKE SYSTEM RETARDER<RE2> (E) M10X35 		1-33549-350-0 04 1 0005-0210 ●
142 BOLT; QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (E) M10X35 		1-33549-350-0 04 1 0211- ●
142 BOLT; QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> (E) 		1-33549-222-0 04 1 0005-0210 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 0005-0906 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50641-028-0 04 1 0907- ●
142 BOLT; QUAD BOX
(A) 		1-87060-778-0 11 1 0005- ●
142 BOLT; QUAD BOX
(B) 		1-87060-786-0 02 1 0005- ●
142 BOLT; QUAD BOX
(C) 		1-87061-229-0 02 1 0005- ●
157 BOX; QUAD,TRANS
(E) 		1-33541-537-0 01 1 0303-0609 ●
157 BOX; QUAD,TRANS
6HK1 TCS ENG(80L) (E) 		1-33541-537-0 01 1 0610- ●
157 BOX; QUAD,TRANS
(E) 		1-33541-537-0 01 1 0610- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-486-0 01 1 0005-0210 ●
157 BOX; QUAD,TRANS
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (D) 		1-33541-535-0 01 1 0211- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 0005- ●
157 BOX; QUAD,TRANS
(A) 		1-87061-518-0 01 1 0005- ●
171 SWITCH; NEUTRAL 1-82440-123-0 01 1 0303- ●
171 SWITCH; NEUTRAL 1-82440-104-0 01 1 0005-0210 ●
171 SWITCH; NEUTRAL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-82440-120-0 01 1 0211-0609 ●
171 SWITCH; NEUTRAL 1-82440-120-0 01 1 0610- ●
171 SWITCH; NEUTRAL 1-87061-488-0 01 1 0005- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-47475-868-0 01 1 0310- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0005-0210 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-82699-639-1 01 1 0211-0302 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0303-0309 ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0310- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) L=59 		1-82699-228-0 01 1 0005- ●
224 WASHER; PL,QUAD BOX 1-33119-567-0 07 1 0303-1104 ●
224 WASHER; PL,QUAD BOX 1-33119-567-0 05 1 1105- ●
224 WASHER; PL,QUAD BOX
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33119-524-0 03 1 0406- ●
224 WASHER; PL,QUAD BOX
6HK1 TCS ENG(80L) 		1-33119-524-0 01 1 0610- ●
224 WASHER; PL,QUAD BOX
BRAKE SYSTEM RETARDER<RE2> 		1-33119-424-0 03 1 0005-0210 ●
224 WASHER; PL,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-424-0 03 1 0211- ●
224 WASHER; PL,QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33119-318-0 03 1 0005-0210 ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 0005-0605 ●
224 WASHER; PL,QUAD BOX
ID=10.5 		0-91610-510-0 02 1 0606- ●
225 WASHER; LK,QUAD BOX 1-33119-568-0 06 1 0303- ●
225 WASHER; LK,QUAD BOX
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-34159-121-0 04 1 0406- ●
225 WASHER; LK,QUAD BOX
6HK1 TCS ENG(80L) 		1-34159-121-0 06 1 0610- ●
225 WASHER; LK,QUAD BOX
BRAKE SYSTEM RETARDER<RE2> 		1-34519-096-0 04 1 0005-0210 ●
225 WASHER; LK,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-34159-096-0 04 1 0211- ●
225 WASHER; LK,QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-34159-066-0 04 1 0005-0210 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 0005-0603 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		0-91510-510-0 02 1 0604- ●
243 BOLT; COVER
(A) 		1-33119-575-0 02 1 0303- ●
243 BOLT; COVER
(B) 		1-33549-551-0 02 1 0303- ●
243 BOLT; COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33549-480-0 02 1 0406- ●
243 BOLT; COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (B) 		1-33549-482-0 02 1 0406- ●
243 BOLT; COVER
BRAKE SYSTEM RETARDER<RE2> (A) 		1-33119-426-0 02 1 0005-0210 ●
243 BOLT; COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33549-376-0 02 1 0211- ●
243 BOLT; COVER
BRAKE SYSTEM RETARDER<RE2> (B) 		1-33549-352-0 02 1 0005-0210 ●
243 BOLT; COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-352-0 02 1 0211- ●
243 BOLT; COVER
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-33119-322-0 02 1 0005-0210 ●
243 BOLT; COVER
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-33549-230-0 02 1 0005-0210 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28080-610-0 01 1 0005-0512 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28050-610-0 01 1 0601- ●
251 COVER; SIDE 1-33545-013-0 01 1 0303- ●
251 COVER; SIDE 1-33545-009-0 01 1 0005-0210 ●
251 COVER; SIDE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33545-012-0 01 1 0211-0609 ●
251 COVER; SIDE 1-33545-012-0 01 1 0610- ●
252 BOLT; SIDE COVER 1-33549-552-0 04 1 0303- ●
252 BOLT; SIDE COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33549-483-0 04 1 0406- ●
252 BOLT; SIDE COVER
BRAKE SYSTEM RETARDER<RE2> 		1-33549-351-0 04 1 0005-0210 ●
252 BOLT; SIDE COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-374-0 04 1 0211- ●
252 BOLT; SIDE COVER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-228-0 04 1 0005-0210 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-051-0 01 1 0005-0210 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33544-055-0 01 1 0211-0302 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) 		1-33544-055-0 01 1 0303-0609 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 6HK1 TCS ENG(80L) 		1-33544-055-0 01 1 0303-0609 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-055-0 01 1 0610- ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-391-0 01 1 0303- ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-87061-421-0 01 1 0005- ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-377-0 01 1 0211-0609 ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-377-0 01 1 0610- ●
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 0005-0210 ●
273 PIN; SPR,STOPPER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33529-095-0 01 1 0211-0302 ●
273 PIN; SPR,STOPPER
6SD1 TCN ENG(31L) 		1-33529-095-0 01 1 0303-0609 ●
273 PIN; SPR,STOPPER
6HK1 TCS ENG(80L) 		1-33529-095-0 01 1 0303-0609 ●
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 0610- ● ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 0005- ●
277 PLATE; SPRING SEAT
(C) 		1-33549-388-0 01 1 0303- ●
277 PLATE; SPRING SEAT
(D) 		1-33549-389-0 01 1 0303- ●
277 PLATE; SPRING SEAT
(E) 		1-33549-395-0 01 1 0303- ●
277 PLATE; SPRING SEAT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-372-0 01 1 0211-0609 ●
277 PLATE; SPRING SEAT
(B) 		1-33549-372-0 01 1 0610- ●
277 PLATE; SPRING SEAT
(A) 		1-33549-224-0 02 1 0005-0210 ●
277 PLATE; SPRING SEAT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33549-224-0 01 1 0211-0609 ●
277 PLATE; SPRING SEAT
(A) 		1-33549-224-0 01 1 0610- ●
285 BREATHER; AIR,QUAD BOX
BRAKE SYSTEM RETARDER<RE2> 		1-33549-354-0 01 1 0005-0210 ●
285 BREATHER; AIR,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-354-0 01 1 0211-0302 ●
285 BREATHER; AIR,QUAD BOX
6SD1 TCN ENG(31L) 		1-33549-354-0 01 1 0303-0609 ●
285 BREATHER; AIR,QUAD BOX
6HK1 TCS ENG(80L) 		1-33549-354-0 01 1 0303-0609 ●
285 BREATHER; AIR,QUAD BOX 1-33549-354-0 01 1 0610- ● ●
285 BREATHER; AIR,QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-232-0 01 1 0005-0210 ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0005- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0005-0210 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0211-0307 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0005-0210 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0211- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33542-059-0 01 1 0005-0210 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (D) 		1-33542-061-0 01 1 0211-0302 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) (D) 		1-33542-061-0 01 1 0303-0609 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 6HK1 TCS ENG(80L) (D) 		1-33542-061-0 01 1 0303-0609 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (D) 		1-33542-061-0 01 1 0610- ● ●
298 SHAFT; SHIFT LEVER 1-33522-209-0 01 1 0303- ●
298 SHAFT; SHIFT LEVER
6HK1 TCS ENG(80L) 		1-33522-181-0 01 1 0610- ●
298 SHAFT; SHIFT LEVER 1-33522-158-0 01 1 0005-0210 ●
298 SHAFT; SHIFT LEVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33522-158-0 01 1 0211- ●
298 SHAFT; SHIFT LEVER 1-33522-148-0 01 1 0005- ●
305 BOOT; LEVER SHAFT 1-33549-233-0 01 1 0005-0210 ●
305 BOOT; LEVER SHAFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-233-0 01 1 0211-0302 ●
305 BOOT; LEVER SHAFT
6SD1 TCN ENG(31L) 		1-33549-233-0 01 1 0303-0609 ●
305 BOOT; LEVER SHAFT
6HK1 TCS ENG(80L) 		1-33549-233-0 01 1 0303-0609 ●
305 BOOT; LEVER SHAFT 1-33549-233-0 01 1 0610- ● ●
393 PIN; SW 1-33549-394-0 01 1 0303- ●
393 PIN; SW 1-33549-234-0 01 1 0005-0210 ●
393 PIN; SW
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-234-0 01 1 0211-0609 ●
393 PIN; SW 1-33549-234-0 01 1 0610- ●
393 PIN; SW 1-87061-139-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(C) 		1-33539-084-0 01 1 0303- ●
396 PLUNGER; SHIFT ROD
(D) 		1-33549-390-0 01 1 0303- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 0005-0210 ●
396 PLUNGER; SHIFT ROD
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33539-051-0 01 1 0211-0609 ●
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 0610- ●
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 0005-0210 ●
396 PLUNGER; SHIFT ROD
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-229-0 01 1 0211-0609 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 0610- ●
446 RING; SNAP,SPR SEAT 1-33549-223-0 02 1 0005-0210 ●
446 RING; SNAP,SPR SEAT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-223-0 02 1 0211-0302 ●
446 RING; SNAP,SPR SEAT
6SD1 TCN ENG(31L) 		1-33549-223-0 02 1 0303-0609 ●
446 RING; SNAP,SPR SEAT
6HK1 TCS ENG(80L) 		1-33549-223-0 02 1 0303-0609 ●
446 RING; SNAP,SPR SEAT 1-33549-223-0 02 1 0610- ● ●
469 COVER; SPRING,QUAD BOX 1-33119-574-0 01 1 0303- ●
469 COVER; SPRING,QUAD BOX
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33119-529-0 01 1 0406- ●
469 COVER; SPRING,QUAD BOX
BRAKE SYSTEM RETARDER<RE2> 		1-33119-425-0 01 1 0005-0210 ●
469 COVER; SPRING,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-425-0 01 1 0211- ●
469 COVER; SPRING,QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33119-320-0 01 1 0005-0210 ●
469 COVER; SPRING,QUAD BOX 1-87061-419-0 01 1 0005- ●
470 GASKET; SPRING COVER 1-33119-489-0 02 1 0303- ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 0005-0210 ●
470 GASKET; SPRING COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-321-0 02 1 0211-0609 ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 0610- ●
470 GASKET; SPRING COVER 1-87061-420-0 01 1 0005- ●

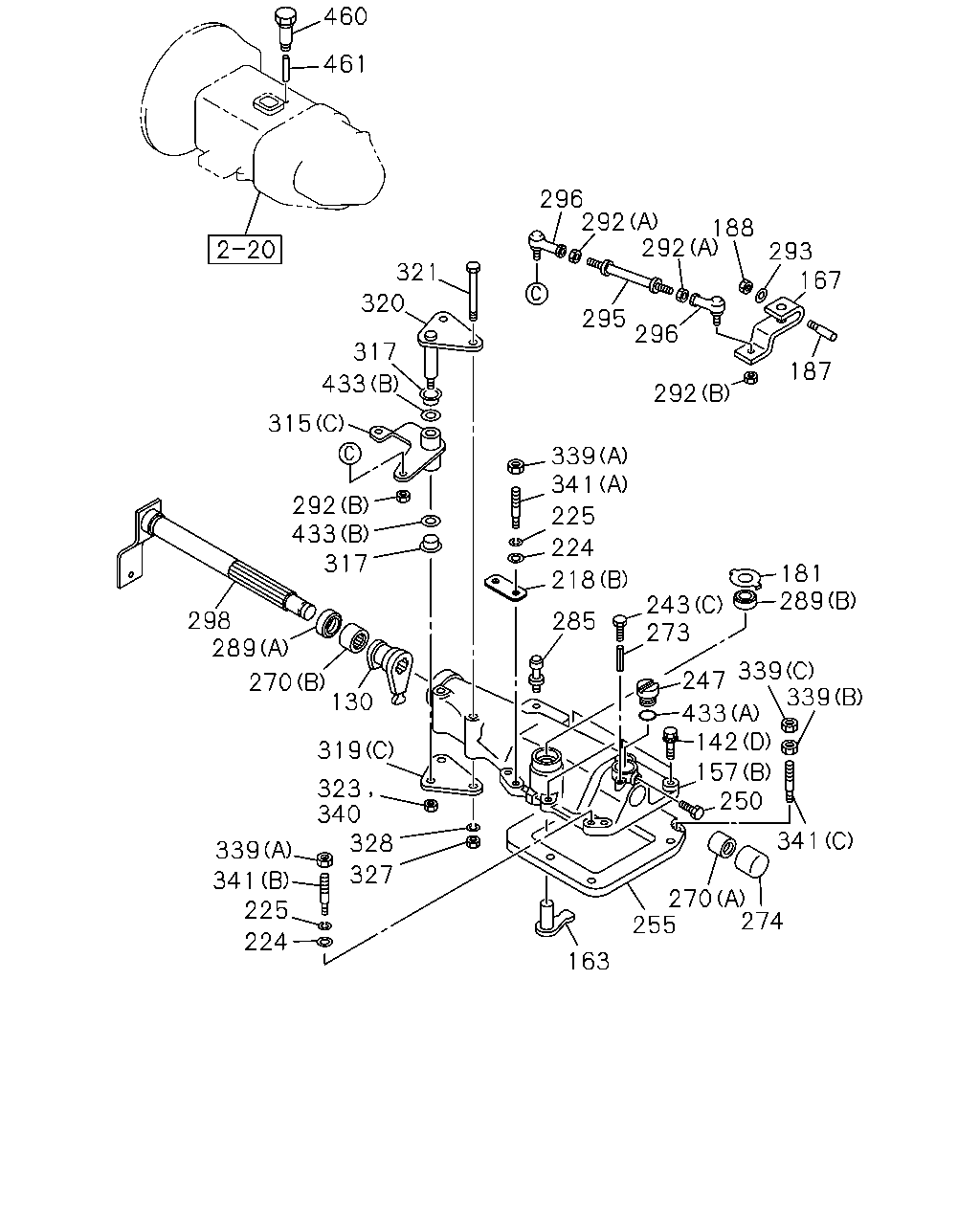

çizim 10219
460 461 296 292 292 188 293 167 321 320 295 296 317 187 433 292 315 339 341 292 433 317 225 224 181 289 218 243 273 298 289 285 339 339 247 270 130 433 142 319 157 250 323 340 328 341 339 327 341 225 270 255 274 224 163
BalonParca AdiParca NoAdetTipApplied Date A B C D
130 LEVER; SHIFT,INTERNAL 1-33521-186-0 01 1 0303- ●
130 LEVER; SHIFT,INTERNAL
BRAKE SYSTEM RETARDER<RE2> 		1-33521-181-0 01 1 0005-0210 ●
130 LEVER; SHIFT,INTERNAL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33521-181-0 01 1 0211-0609 ●
130 LEVER; SHIFT,INTERNAL 1-33521-181-0 01 1 0610- ●
130 LEVER; SHIFT,INTERNAL
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33521-161-0 01 1 0005-0210 ●
130 LEVER; SHIFT,INTERNAL 1-33521-109-0 01 1 0005- ●
142 BOLT; QUAD BOX
(E) 		1-33119-569-0 04 1 0303- ●
142 BOLT; QUAD BOX
(F) 		1-33119-585-0 02 1 0303- ●
142 BOLT; QUAD BOX
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (E) 		1-33549-479-0 04 1 0406- ●
142 BOLT; QUAD BOX
6HK1 TCS ENG(80L) (E) 		1-33119-543-0 02 1 0610- ●
142 BOLT; QUAD BOX
BRAKE SYSTEM RETARDER<RE2> (E) M10X35 		1-33549-350-0 04 1 0005-0210 ●
142 BOLT; QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (E) M10X35 		1-33549-350-0 04 1 0211- ●
142 BOLT; QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> (E) 		1-33549-222-0 04 1 0005-0210 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 0005-0906 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50641-028-0 04 1 0907- ●
142 BOLT; QUAD BOX
(A) 		1-87060-778-0 11 1 0005- ●
142 BOLT; QUAD BOX
(B) 		1-87060-786-0 02 1 0005- ●
142 BOLT; QUAD BOX
(C) 		1-87061-229-0 02 1 0005- ●
157 BOX; QUAD,TRANS
(E) 		1-33541-537-0 01 1 0303-0609 ●
157 BOX; QUAD,TRANS
6HK1 TCS ENG(80L) (E) 		1-33541-537-0 01 1 0610- ●
157 BOX; QUAD,TRANS
(E) 		1-33541-537-0 01 1 0610- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-486-0 01 1 0005-0210 ●
157 BOX; QUAD,TRANS
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (D) 		1-33541-535-0 01 1 0211- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 0005- ●
157 BOX; QUAD,TRANS
(A) 		1-87061-518-0 01 1 0005- ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0005-0210 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0211- ●
167 LEVER; SELECT,EXTERNAL 1-33521-070-0 01 1 0005- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0005-0210 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0211- ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0005-0210 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0211- ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0005-0210 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0211- ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005-0210 ●
188 NUT; SELECT LEVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> M10 FLANGE 		0-91150-110-0 01 1 0211-0302 ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0303-0602 ● ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-47475-868-0 01 1 0310- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0005-0210 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-82699-639-1 01 1 0211-0302 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0303-0309 ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0310- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) L=59 		1-82699-228-0 01 1 0005- ●
224 WASHER; PL,QUAD BOX 1-33119-567-0 07 1 0303-1104 ●
224 WASHER; PL,QUAD BOX 1-33119-567-0 05 1 1105- ●
224 WASHER; PL,QUAD BOX
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33119-524-0 03 1 0406- ●
224 WASHER; PL,QUAD BOX
6HK1 TCS ENG(80L) 		1-33119-524-0 01 1 0610- ●
224 WASHER; PL,QUAD BOX
BRAKE SYSTEM RETARDER<RE2> 		1-33119-424-0 03 1 0005-0210 ●
224 WASHER; PL,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-424-0 03 1 0211- ●
224 WASHER; PL,QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33119-318-0 03 1 0005-0210 ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 0005-0605 ●
224 WASHER; PL,QUAD BOX
ID=10.5 		0-91610-510-0 02 1 0606- ●
225 WASHER; LK,QUAD BOX 1-33119-568-0 06 1 0303- ●
225 WASHER; LK,QUAD BOX
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-34159-121-0 04 1 0406- ●
225 WASHER; LK,QUAD BOX
6HK1 TCS ENG(80L) 		1-34159-121-0 06 1 0610- ●
225 WASHER; LK,QUAD BOX
BRAKE SYSTEM RETARDER<RE2> 		1-34519-096-0 04 1 0005-0210 ●
225 WASHER; LK,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-34159-096-0 04 1 0211- ●
225 WASHER; LK,QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-34159-066-0 04 1 0005-0210 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 0005-0603 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		0-91510-510-0 02 1 0604- ●
243 BOLT; COVER
(A) 		1-33119-575-0 02 1 0303- ●
243 BOLT; COVER
(B) 		1-33549-551-0 02 1 0303- ●
243 BOLT; COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33549-480-0 02 1 0406- ●
243 BOLT; COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (B) 		1-33549-482-0 02 1 0406- ●
243 BOLT; COVER
BRAKE SYSTEM RETARDER<RE2> (A) 		1-33119-426-0 02 1 0005-0210 ●
243 BOLT; COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33549-376-0 02 1 0211- ●
243 BOLT; COVER
BRAKE SYSTEM RETARDER<RE2> (B) 		1-33549-352-0 02 1 0005-0210 ●
243 BOLT; COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-352-0 02 1 0211- ●
243 BOLT; COVER
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-33119-322-0 02 1 0005-0210 ●
243 BOLT; COVER
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-33549-230-0 02 1 0005-0210 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28080-610-0 01 1 0005-0512 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28050-610-0 01 1 0601- ●
247 BUSHING ASM; DETENT 1-33529-019-0 01 1 0005- ●
250 SCREW; BUSHING 9-06130-618-0 01 1 0005- ●
255 PLATE; DIST,QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-235-0 01 1 0005-0210 ●
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 0005- ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 0005- ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 0005- ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 0005- ●
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 0005-0210 ●
273 PIN; SPR,STOPPER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33529-095-0 01 1 0211-0302 ●
273 PIN; SPR,STOPPER
6SD1 TCN ENG(31L) 		1-33529-095-0 01 1 0303-0609 ●
273 PIN; SPR,STOPPER
6HK1 TCS ENG(80L) 		1-33529-095-0 01 1 0303-0609 ●
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 0610- ● ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 0005- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0005-0210 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0211- ●
285 BREATHER; AIR,QUAD BOX
BRAKE SYSTEM RETARDER<RE2> 		1-33549-354-0 01 1 0005-0210 ●
285 BREATHER; AIR,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-354-0 01 1 0211-0302 ●
285 BREATHER; AIR,QUAD BOX
6SD1 TCN ENG(31L) 		1-33549-354-0 01 1 0303-0609 ●
285 BREATHER; AIR,QUAD BOX
6HK1 TCS ENG(80L) 		1-33549-354-0 01 1 0303-0609 ●
285 BREATHER; AIR,QUAD BOX 1-33549-354-0 01 1 0610- ● ●
285 BREATHER; AIR,QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-232-0 01 1 0005-0210 ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0005- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0005-0210 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0211-0307 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0005-0210 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0211- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33542-059-0 01 1 0005-0210 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (D) 		1-33542-061-0 01 1 0211-0302 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) (D) 		1-33542-061-0 01 1 0303-0609 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 6HK1 TCS ENG(80L) (D) 		1-33542-061-0 01 1 0303-0609 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (D) 		1-33542-061-0 01 1 0610- ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0005-0210 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0211-0302 ●
292 NUT; LINK ROD
6SD1 TCN ENG(31L) (B) M8 FLANGE 		1-09440-062-1 02 1 0211-0302 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0303- ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0005-0210 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0211-0512 ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601- ● ●
292 NUT; LINK ROD
(C) M10 FLANGE 		1-09440-056-0 02 1 0005-0210 ●
292 NUT; LINK ROD
6SD1 TCN ENG(31L) (C) M10 FLANGE 		1-09440-056-0 02 1 0211- ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0005-0210 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0211-0605 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606- ●
295 ROD; LINK,RELAY LEVER 9-08400-824-0 01 1 0005-0210 ●
295 ROD; LINK,RELAY LEVER
6SD1 TCN ENG(31L) 		9-08400-824-0 01 1 0211- ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0005- ●
296 ROD END
L=48 		1-09760-038-1 02 1 0005-0210 ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 0211-0309 ● ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310- ● ●
298 SHAFT; SHIFT LEVER 1-33522-209-0 01 1 0303- ●
298 SHAFT; SHIFT LEVER
6HK1 TCS ENG(80L) 		1-33522-181-0 01 1 0610- ●
298 SHAFT; SHIFT LEVER 1-33522-158-0 01 1 0005-0210 ●
298 SHAFT; SHIFT LEVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33522-158-0 01 1 0211- ●
298 SHAFT; SHIFT LEVER 1-33522-148-0 01 1 0005- ●
315 LEVER; SELECT
(A) 		1-33651-682-0 01 1 0005-0210 ●
315 LEVER; SELECT
6SD1 TCN ENG(31L) (A) 		1-33651-682-0 01 1 0211- ●
315 LEVER; SELECT
(B) 		1-33651-683-0 01 1 0005-0210 ●
315 LEVER; SELECT
6SD1 TCN ENG(31L) (B) 		1-33651-683-0 01 1 0211- ●
315 LEVER; SELECT
(C) 		1-33651-670-0 01 1 0005- ●
315 LEVER; SELECT
(D) 		1-33651-715-0 01 1 0303-0609 ●
315 LEVER; SELECT
6HK1 TCS ENG(80L) (D) 		1-33651-715-0 01 1 0610- ●
315 LEVER; SELECT
(D) 		1-33651-715-0 01 1 0610- ●
317 BUSHING; LEVER 1-09330-119-0 04 1 0005-0210 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0005-0210 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0211-0302 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0303-0609 ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0610- ● ●
317 BUSHING; LEVER
6HK1 TCS ENG(80L) 		1-09330-119-0 02 1 0610- ●
317 BUSHING; LEVER
6SD1 TCN ENG(31L) 		1-09330-119-0 04 1 0211- ●
319 BRACKET; SELECT LEVER
(B) 		1-33657-603-0 01 1 0005-0210 ●
319 BRACKET; SELECT LEVER
6SD1 TCN ENG(31L) (B) 		1-33657-603-0 01 1 0211- ●
319 BRACKET; SELECT LEVER
(A) 		1-33657-648-0 01 1 0005-0210 ●
319 BRACKET; SELECT LEVER
6SD1 TCN ENG(31L) (A) 		1-33657-648-0 01 1 0211- ●
319 BRACKET; SELECT LEVER
(C) 		1-33657-631-0 01 1 0005- ●
319 BRACKET; SELECT LEVER
(D) 		1-33657-816-0 01 1 0303-0609 ●
319 BRACKET; SELECT LEVER
6HK1 TCS ENG(80L) (D) 		1-33657-816-0 01 1 0610- ●
319 BRACKET; SELECT LEVER
(D) 		1-33657-816-0 01 1 0610- ●
320 SHAFT; LEVER 1-33619-511-0 01 1 0005- ●
321 BOLT; BRKT,RELAY LEVER
6HK1 TCS ENG(80L) M10X35 L=65 		8-97178-725-0 01 1 0704- ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0005-0210 ●
321 BOLT; BRKT,RELAY LEVER
6SD1 TCN ENG(31L) M10X22 FLANGE 		0-28181-022-0 02 1 0211- ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28181-030-0 01 1 0005-0210 ●
321 BOLT; BRKT,RELAY LEVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> M10X30 FLANGE 		0-28181-030-0 01 1 0211-0302 ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28181-030-0 01 1 0303-0512 ● ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28151-030-0 01 1 0601- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28681-025-0 02 1 0005-0210 ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28681-025-0 02 1 0211-0512 ●
321 BOLT; BRKT,RELAY LEVER
6SD1 TCN ENG(31L) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 0005-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X60 FLANGE 		0-28181-060-0 01 1 0303-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X60 FLANGE 		0-28151-060-0 01 1 0601-0609 ●
321 BOLT; BRKT,RELAY LEVER
6HK1 TCS ENG(80L) M10X60 FLANGE 		0-28151-060-0 01 1 0610- ●
321 BOLT; BRKT,RELAY LEVER
M10X60 FLANGE 		0-28151-060-0 01 1 0610- ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28781-025-0 01 1 0303-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28751-025-0 01 1 0601-0609 ●
321 BOLT; BRKT,RELAY LEVER
6HK1 TCS ENG(80L) M10X25 FLANGE 		0-28751-025-0 01 1 0610- ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28751-025-0 01 1 0610- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 0005-0210 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0211-0302 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0303-0609 ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0610- ● ●
323 NUT; LK,SELECT LEVER
6HK1 TCS ENG(80L) M10 FLANGE 		0-91150-110-0 01 1 0610- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005-0210 ●
323 NUT; LK,SELECT LEVER
6SD1 TCN ENG(31L) M10 FLANGE 		0-91150-110-0 02 1 0211- ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
328 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 0005-0603 ●
328 WASHER; LK,BRKT
ID=10.2 		0-91510-510-0 01 1 0604- ●
339 NUT; QUAD BOX
(C) 3/8 UNF 		1-33549-068-0 02 1 0604- ●
339 NUT; QUAD BOX
(B) 5/8 UNF 		1-33549-069-0 02 1 0604- ●
339 NUT; QUAD BOX
(A) M10 		9-09110-510-0 02 1 0005-0512 ●
339 NUT; QUAD BOX
(A) M10 		0-91110-510-0 02 1 0601- ●
340 NUT; BRKT
M10 		9-09110-510-0 01 1 0005-0512 ●
340 NUT; BRKT
M10 		0-91110-510-0 01 1 0601- ●
341 STUD; QUAD BOX
(C) 		1-33549-067-0 02 1 0604- ●
341 STUD; QUAD BOX
(A) 		1-09305-006-0 06 1 0604- ●
341 STUD; QUAD BOX
(B)EATON 		1-09305-004-0 02 1 0005- ●
433 GASKET; BUSHING
(C) 		1-09623-594-0 04 1 0005-0210 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0211-0302 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0303-0609 ● ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0610- ● ●
433 GASKET; BUSHING
6HK1 TCS ENG(80L) (B) 		1-09623-594-0 02 1 0610- ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0005-0210 ●
433 GASKET; BUSHING
6SD1 TCN ENG(31L) (C) 		1-09623-594-0 04 1 0211- ●
433 GASKET; BUSHING
(A) 		1-09623-130-0 01 1 0005- ●
460 ADAPTER; NEUTRAL SW 1-09660-460-2 01 1 0005- ●
461 ROD; ADAPTER 1-82446-001-0 01 1 0005- ●
çizim 10225
489 359 359 356 363 365 359 488 359 359 347 359 363 489 361 359 350 363 359 358 359 359 356 361 350 352 359 359 347 492 492 492 485 486 486 486 485
BalonParca AdiParca NoAdetTipApplied Date A B C D
347 ARM; SHIFT,RANGE CHANGE
(C) 		1-33511-533-0 01 1 0005-0210 ●
347 ARM; SHIFT,RANGE CHANGE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33511-533-0 01 1 0211-0609 ●
347 ARM; SHIFT,RANGE CHANGE
(C) 		1-33511-533-0 01 1 0610- ●
347 ARM; SHIFT,RANGE CHANGE
(A) 		1-87061-260-0 01 1 0005- ●
347 ARM; SHIFT,RANGE CHANGE
(B) 		1-87061-432-0 01 1 0005- ●
350 SCREW; SHIFT ARM
(D) 		1-33519-163-0 01 1 0303- ●
350 SCREW; SHIFT ARM
(C) 		1-33519-102-0 01 1 0005-0210 ●
350 SCREW; SHIFT ARM
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33519-102-0 01 1 0211-0609 ●
350 SCREW; SHIFT ARM
(C) 		1-33519-102-0 01 1 0610- ●
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 04 1 0005- ●
350 SCREW; SHIFT ARM
(A) 		1-87061-257-0 02 1 0005- ●
352 ROD; SHIFT,RANGE CHANGE
(A) 		1-33539-082-0 01 1 0303- ●
352 ROD; SHIFT,RANGE CHANGE
(B) 		1-33539-083-0 01 1 0303- ●
352 ROD; SHIFT,RANGE CHANGE
(C) 		1-33531-435-0 01 1 0005-0210 ●
352 ROD; SHIFT,RANGE CHANGE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33531-435-0 01 1 0211-0609 ●
352 ROD; SHIFT,RANGE CHANGE
(C) 		1-33531-435-0 01 1 0610- ●
352 ROD; SHIFT,RANGE CHANGE
(D) 		1-87061-261-0 01 1 0005- ●
356 PISTON; AIR CYL
(C) 		1-33551-015-0 01 1 0005-0210 ●
356 PISTON; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33551-015-0 01 1 0211-0609 ●
356 PISTON; AIR CYL
(C) 		1-33551-015-0 01 1 0610- ●
356 PISTON; AIR CYL
(A) 		1-87061-121-0 01 1 0005- ●
356 PISTON; AIR CYL
(B) 		1-87061-477-0 01 1 0005- ●
358 NUT; SHIFT ROD
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33539-091-0 01 1 0406- ●
358 NUT; SHIFT ROD 1-33539-053-0 01 1 0005-0210 ●
358 NUT; SHIFT ROD
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33539-053-0 01 1 0211- ●
358 NUT; SHIFT ROD 1-87061-222-0 01 1 0005- ●
359 GASKET; AIR CYL
(B) 		1-33552-007-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33552-007-0 01 1 0211-0609 ●
359 GASKET; AIR CYL
(B) 		1-33552-007-0 01 1 0610- ●
359 GASKET; AIR CYL
(C) 		1-33563-008-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33563-008-0 01 1 0211-0609 ●
359 GASKET; AIR CYL
(C) 		1-33563-008-0 01 1 0610- ●
359 GASKET; AIR CYL
(A) 		1-33569-043-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33569-043-0 01 1 0211-0609 ●
359 GASKET; AIR CYL
(A) 		1-33569-043-0 01 1 0610- ●
359 GASKET; AIR CYL
(E) 		1-33569-044-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (E) 		1-33569-044-0 01 1 0211-0609 ●
359 GASKET; AIR CYL
(E) 		1-33569-044-0 01 1 0610- ●
359 GASKET; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (D) 		1-33552-006-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (D) 		1-33552-006-0 01 1 0211-0609 ●
359 GASKET; AIR CYL
(D) 		1-33552-006-0 01 1 0610- ●
359 GASKET; AIR CYL
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-87061-122-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
(D) 		1-87061-122-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
(D) 		1-87061-122-0 01 1 0211- ●
359 GASKET; AIR CYL
(F) 		1-87060-994-0 03 1 0005- ●
359 GASKET; AIR CYL
(G) 		1-87061-123-0 01 1 0005- ●
359 GASKET; AIR CYL
(H) 		1-87061-136-0 01 1 0005- ●
359 GASKET; AIR CYL
(I) 		1-87061-256-0 01 1 0005- ●
359 GASKET; AIR CYL
(J) 		1-87061-258-0 01 1 0005- ●
359 GASKET; AIR CYL
(K) 		1-87061-264-0 01 1 0005- ●
359 GASKET; AIR CYL
(L) 		1-87061-268-0 01 1 0005- ●
359 GASKET; AIR CYL
(M) 		1-87061-474-0 01 1 0005- ●
359 GASKET; AIR CYL
(N) 		1-87061-475-0 01 1 0005- ●
361 CYLINDER; AIR,SHIFT
(C) 		1-33569-045-0 01 1 0005-0210 ●
361 CYLINDER; AIR,SHIFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33569-045-0 01 1 0211-0609 ●
361 CYLINDER; AIR,SHIFT
(C) 		1-33569-045-0 01 1 0610- ●
361 CYLINDER; AIR,SHIFT
(A) 		1-87061-262-0 01 1 0005- ●
361 CYLINDER; AIR,SHIFT
(B) 		1-87061-476-0 01 1 0005- ●
363 BOLT; AIR CYL
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (C) 		1-33119-538-0 03 1 0406- ●
363 BOLT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (C) 		1-33119-433-0 03 1 0005-0210 ●
363 BOLT; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33119-433-0 03 1 0211- ●
363 BOLT; AIR CYL
EXC. BRAKE SYSTEM RETARDER<RE2> (C) M10X60 		1-33119-326-0 03 1 0005-0210 ●
363 BOLT; AIR CYL
(A) 		1-87060-778-0 08 1 0005- ●
363 BOLT; AIR CYL
(B) 		1-87061-270-0 04 1 0005- ●
365 VALVE; AIR CYL 1-87060-997-0 01 1 0005- ●
485 TROUGH; OIL
(A) 		1-87061-489-0 01 1 0005- ●
485 TROUGH; OIL
(B) 		1-87061-490-0 01 1 0005- ●
486 BOLT; OIL TROUGH
(A) 		1-87061-527-0 02 1 0005- ●
486 BOLT; OIL TROUGH
(B) 		1-87061-528-0 01 1 0005- ●
488 PLUG; AIR CYL 1-87060-998-0 01 1 0005- ●
489 COVER; AIR CYL
(A) 		1-87061-259-0 01 1 0005- ●
489 COVER; AIR CYL
(B) 		1-87061-269-0 01 1 0005- ●
492 SPACER; OIL TROUGH 1-87061-494-0 03 1 0005- ●
çizim 10570
433 317 292 324 335 188 292 315 321 168 48 332 317 433 319 323 323 316 433 292 317 292 315 317 296 321 433 292 321 295 292 296 218 319
BalonParca AdiParca NoAdetTipApplied Date A B C D
48 LEVER; 4TH,SHIFT 1-33651-681-0 01 1 0005-0210 ●
48 LEVER; 4TH,SHIFT
6SD1 TCN ENG(31L) 		1-33651-681-0 01 1 0211- ●
48 LEVER; 4TH,SHIFT 1-33651-811-0 01 1 0303-0609 ●
48 LEVER; 4TH,SHIFT
6HK1 TCS ENG(80L) 		1-33651-811-0 01 1 0610- ●
48 LEVER; 4TH,SHIFT 1-33651-811-0 01 1 0610- ●
168 WASHER; LK,SELECT LEVER
ID=10.2 		9-09150-510-0 01 1 0005-0210 ●
168 WASHER; LK,SELECT LEVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> ID=10.2 		9-09150-510-0 01 1 0211-0302 ●
168 WASHER; LK,SELECT LEVER
ID=10.2 		9-09150-510-0 01 1 0303-0603 ● ●
168 WASHER; LK,SELECT LEVER
ID=10.2 		0-91510-510-0 01 1 0604- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0005-0210 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0211- ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005-0210 ●
188 NUT; SELECT LEVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> M10 FLANGE 		0-91150-110-0 01 1 0211-0302 ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0303-0602 ● ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-47475-868-0 01 1 0310- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0005-0210 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-82699-639-1 01 1 0211-0302 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0303-0309 ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0310- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) L=59 		1-82699-228-0 01 1 0005- ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0005-0210 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0211-0302 ●
292 NUT; LINK ROD
6SD1 TCN ENG(31L) (B) M8 FLANGE 		1-09440-062-1 02 1 0211-0302 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0303- ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0005-0210 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0211-0512 ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601- ● ●
292 NUT; LINK ROD
(C) M10 FLANGE 		1-09440-056-0 02 1 0005-0210 ●
292 NUT; LINK ROD
6SD1 TCN ENG(31L) (C) M10 FLANGE 		1-09440-056-0 02 1 0211- ●
295 ROD; LINK,RELAY LEVER 9-08400-824-0 01 1 0005-0210 ●
295 ROD; LINK,RELAY LEVER
6SD1 TCN ENG(31L) 		9-08400-824-0 01 1 0211- ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0005- ●
296 ROD END
L=48 		1-09760-038-1 02 1 0005-0210 ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 0211-0309 ● ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310- ● ●
315 LEVER; SELECT
(A) 		1-33651-682-0 01 1 0005-0210 ●
315 LEVER; SELECT
6SD1 TCN ENG(31L) (A) 		1-33651-682-0 01 1 0211- ●
315 LEVER; SELECT
(B) 		1-33651-683-0 01 1 0005-0210 ●
315 LEVER; SELECT
6SD1 TCN ENG(31L) (B) 		1-33651-683-0 01 1 0211- ●
315 LEVER; SELECT
(C) 		1-33651-670-0 01 1 0005- ●
315 LEVER; SELECT
(D) 		1-33651-715-0 01 1 0303-0609 ●
315 LEVER; SELECT
6HK1 TCS ENG(80L) (D) 		1-33651-715-0 01 1 0610- ●
315 LEVER; SELECT
(D) 		1-33651-715-0 01 1 0610- ●
316 WASHER; PL,LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 0005-0210 ●
316 WASHER; PL,LEVER
6SD1 TCN ENG(31L) ID=10.5 OD=26 		9-09160-710-0 01 1 0211- ●
317 BUSHING; LEVER 1-09330-119-0 04 1 0005-0210 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0005-0210 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0211-0302 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0303-0609 ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0610- ● ●
317 BUSHING; LEVER
6HK1 TCS ENG(80L) 		1-09330-119-0 02 1 0610- ●
317 BUSHING; LEVER
6SD1 TCN ENG(31L) 		1-09330-119-0 04 1 0211- ●
319 BRACKET; SELECT LEVER
(B) 		1-33657-603-0 01 1 0005-0210 ●
319 BRACKET; SELECT LEVER
6SD1 TCN ENG(31L) (B) 		1-33657-603-0 01 1 0211- ●
319 BRACKET; SELECT LEVER
(A) 		1-33657-648-0 01 1 0005-0210 ●
319 BRACKET; SELECT LEVER
6SD1 TCN ENG(31L) (A) 		1-33657-648-0 01 1 0211- ●
319 BRACKET; SELECT LEVER
(C) 		1-33657-631-0 01 1 0005- ●
319 BRACKET; SELECT LEVER
(D) 		1-33657-816-0 01 1 0303-0609 ●
319 BRACKET; SELECT LEVER
6HK1 TCS ENG(80L) (D) 		1-33657-816-0 01 1 0610- ●
319 BRACKET; SELECT LEVER
(D) 		1-33657-816-0 01 1 0610- ●
321 BOLT; BRKT,RELAY LEVER
6HK1 TCS ENG(80L) M10X35 L=65 		8-97178-725-0 01 1 0704- ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0005-0210 ●
321 BOLT; BRKT,RELAY LEVER
6SD1 TCN ENG(31L) M10X22 FLANGE 		0-28181-022-0 02 1 0211- ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28181-030-0 01 1 0005-0210 ●
321 BOLT; BRKT,RELAY LEVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> M10X30 FLANGE 		0-28181-030-0 01 1 0211-0302 ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28181-030-0 01 1 0303-0512 ● ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28151-030-0 01 1 0601- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28681-025-0 02 1 0005-0210 ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28681-025-0 02 1 0211-0512 ●
321 BOLT; BRKT,RELAY LEVER
6SD1 TCN ENG(31L) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 0005-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X60 FLANGE 		0-28181-060-0 01 1 0303-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X60 FLANGE 		0-28151-060-0 01 1 0601-0609 ●
321 BOLT; BRKT,RELAY LEVER
6HK1 TCS ENG(80L) M10X60 FLANGE 		0-28151-060-0 01 1 0610- ●
321 BOLT; BRKT,RELAY LEVER
M10X60 FLANGE 		0-28151-060-0 01 1 0610- ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28781-025-0 01 1 0303-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28751-025-0 01 1 0601-0609 ●
321 BOLT; BRKT,RELAY LEVER
6HK1 TCS ENG(80L) M10X25 FLANGE 		0-28751-025-0 01 1 0610- ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28751-025-0 01 1 0610- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 0005-0210 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0211-0302 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0303-0609 ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0610- ● ●
323 NUT; LK,SELECT LEVER
6HK1 TCS ENG(80L) M10 FLANGE 		0-91150-110-0 01 1 0610- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005-0210 ●
323 NUT; LK,SELECT LEVER
6SD1 TCN ENG(31L) M10 FLANGE 		0-91150-110-0 02 1 0211- ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0005-0210 ●
324 BOLT; SHAFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> M10X60 FLANGE 		0-28081-060-0 01 1 0211-0302 ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0303- ● ●
332 BOLT; 4TH,SHIFT LEVER 0-20801-060-0 01 1 0005-0210 ●
332 BOLT; 4TH,SHIFT LEVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		0-20801-060-0 01 1 0211-0302 ●
332 BOLT; 4TH,SHIFT LEVER 0-20801-060-0 01 1 0303- ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-203-0 01 1 0005-0210 ●
335 COLLAR; DIST,RELAY LEVER ASM
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33659-203-0 01 1 0211-0302 ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-203-0 01 1 0303- ● ●
433 GASKET; BUSHING
(C) 		1-09623-594-0 04 1 0005-0210 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0211-0302 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0303-0609 ● ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0610- ● ●
433 GASKET; BUSHING
6HK1 TCS ENG(80L) (B) 		1-09623-594-0 02 1 0610- ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0005-0210 ●
433 GASKET; BUSHING
6SD1 TCN ENG(31L) (C) 		1-09623-594-0 04 1 0211- ●
433 GASKET; BUSHING
(A) 		1-09623-130-0 01 1 0005- ●
çizim 11016
433 317 292 324 335 188 321 292 315 168 48 332 317 319 323 433 323 316 433 292 317 292 315 317 296 321 433 292 321 295 292 296 218 319
BalonParca AdiParca NoAdetTipApplied Date A B C D
48 LEVER; 4TH,SHIFT 1-33651-681-0 01 1 0005-0210 ●
48 LEVER; 4TH,SHIFT
6SD1 TCN ENG(31L) 		1-33651-681-0 01 1 0211- ●
48 LEVER; 4TH,SHIFT 1-33651-811-0 01 1 0303-0609 ●
48 LEVER; 4TH,SHIFT
6HK1 TCS ENG(80L) 		1-33651-811-0 01 1 0610- ●
48 LEVER; 4TH,SHIFT 1-33651-811-0 01 1 0610- ●
168 WASHER; LK,SELECT LEVER
ID=10.2 		9-09150-510-0 01 1 0005-0210 ●
168 WASHER; LK,SELECT LEVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> ID=10.2 		9-09150-510-0 01 1 0211-0302 ●
168 WASHER; LK,SELECT LEVER
ID=10.2 		9-09150-510-0 01 1 0303-0603 ● ●
168 WASHER; LK,SELECT LEVER
ID=10.2 		0-91510-510-0 01 1 0604- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0005-0210 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0211- ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005-0210 ●
188 NUT; SELECT LEVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> M10 FLANGE 		0-91150-110-0 01 1 0211-0302 ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0303-0602 ● ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-47475-868-0 01 1 0310- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0005-0210 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-82699-639-1 01 1 0211-0302 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0303-0309 ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0310- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) L=59 		1-82699-228-0 01 1 0005- ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0005-0210 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0211-0302 ●
292 NUT; LINK ROD
6SD1 TCN ENG(31L) (B) M8 FLANGE 		1-09440-062-1 02 1 0211-0302 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0303- ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0005-0210 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0211-0512 ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601- ● ●
292 NUT; LINK ROD
(C) M10 FLANGE 		1-09440-056-0 02 1 0005-0210 ●
292 NUT; LINK ROD
6SD1 TCN ENG(31L) (C) M10 FLANGE 		1-09440-056-0 02 1 0211- ●
295 ROD; LINK,RELAY LEVER 9-08400-824-0 01 1 0005-0210 ●
295 ROD; LINK,RELAY LEVER
6SD1 TCN ENG(31L) 		9-08400-824-0 01 1 0211- ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0005- ●
296 ROD END
L=48 		1-09760-038-1 02 1 0005-0210 ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 0211-0309 ● ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310- ● ●
315 LEVER; SELECT
(A) 		1-33651-682-0 01 1 0005-0210 ●
315 LEVER; SELECT
6SD1 TCN ENG(31L) (A) 		1-33651-682-0 01 1 0211- ●
315 LEVER; SELECT
(B) 		1-33651-683-0 01 1 0005-0210 ●
315 LEVER; SELECT
6SD1 TCN ENG(31L) (B) 		1-33651-683-0 01 1 0211- ●
315 LEVER; SELECT
(C) 		1-33651-670-0 01 1 0005- ●
315 LEVER; SELECT
(D) 		1-33651-715-0 01 1 0303-0609 ●
315 LEVER; SELECT
6HK1 TCS ENG(80L) (D) 		1-33651-715-0 01 1 0610- ●
315 LEVER; SELECT
(D) 		1-33651-715-0 01 1 0610- ●
316 WASHER; PL,LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 0005-0210 ●
316 WASHER; PL,LEVER
6SD1 TCN ENG(31L) ID=10.5 OD=26 		9-09160-710-0 01 1 0211- ●
317 BUSHING; LEVER 1-09330-119-0 04 1 0005-0210 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0005-0210 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0211-0302 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0303-0609 ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0610- ● ●
317 BUSHING; LEVER
6HK1 TCS ENG(80L) 		1-09330-119-0 02 1 0610- ●
317 BUSHING; LEVER
6SD1 TCN ENG(31L) 		1-09330-119-0 04 1 0211- ●
319 BRACKET; SELECT LEVER
(B) 		1-33657-603-0 01 1 0005-0210 ●
319 BRACKET; SELECT LEVER
6SD1 TCN ENG(31L) (B) 		1-33657-603-0 01 1 0211- ●
319 BRACKET; SELECT LEVER
(A) 		1-33657-648-0 01 1 0005-0210 ●
319 BRACKET; SELECT LEVER
6SD1 TCN ENG(31L) (A) 		1-33657-648-0 01 1 0211- ●
319 BRACKET; SELECT LEVER
(C) 		1-33657-631-0 01 1 0005- ●
319 BRACKET; SELECT LEVER
(D) 		1-33657-816-0 01 1 0303-0609 ●
319 BRACKET; SELECT LEVER
6HK1 TCS ENG(80L) (D) 		1-33657-816-0 01 1 0610- ●
319 BRACKET; SELECT LEVER
(D) 		1-33657-816-0 01 1 0610- ●
321 BOLT; BRKT,RELAY LEVER
6HK1 TCS ENG(80L) M10X35 L=65 		8-97178-725-0 01 1 0704- ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0005-0210 ●
321 BOLT; BRKT,RELAY LEVER
6SD1 TCN ENG(31L) M10X22 FLANGE 		0-28181-022-0 02 1 0211- ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28181-030-0 01 1 0005-0210 ●
321 BOLT; BRKT,RELAY LEVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> M10X30 FLANGE 		0-28181-030-0 01 1 0211-0302 ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28181-030-0 01 1 0303-0512 ● ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28151-030-0 01 1 0601- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28681-025-0 02 1 0005-0210 ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28681-025-0 02 1 0211-0512 ●
321 BOLT; BRKT,RELAY LEVER
6SD1 TCN ENG(31L) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 0005-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X60 FLANGE 		0-28181-060-0 01 1 0303-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X60 FLANGE 		0-28151-060-0 01 1 0601-0609 ●
321 BOLT; BRKT,RELAY LEVER
6HK1 TCS ENG(80L) M10X60 FLANGE 		0-28151-060-0 01 1 0610- ●
321 BOLT; BRKT,RELAY LEVER
M10X60 FLANGE 		0-28151-060-0 01 1 0610- ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28781-025-0 01 1 0303-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28751-025-0 01 1 0601-0609 ●
321 BOLT; BRKT,RELAY LEVER
6HK1 TCS ENG(80L) M10X25 FLANGE 		0-28751-025-0 01 1 0610- ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28751-025-0 01 1 0610- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 0005-0210 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0211-0302 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0303-0609 ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0610- ● ●
323 NUT; LK,SELECT LEVER
6HK1 TCS ENG(80L) M10 FLANGE 		0-91150-110-0 01 1 0610- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005-0210 ●
323 NUT; LK,SELECT LEVER
6SD1 TCN ENG(31L) M10 FLANGE 		0-91150-110-0 02 1 0211- ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0005-0210 ●
324 BOLT; SHAFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> M10X60 FLANGE 		0-28081-060-0 01 1 0211-0302 ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0303- ● ●
332 BOLT; 4TH,SHIFT LEVER 0-20801-060-0 01 1 0005-0210 ●
332 BOLT; 4TH,SHIFT LEVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		0-20801-060-0 01 1 0211-0302 ●
332 BOLT; 4TH,SHIFT LEVER 0-20801-060-0 01 1 0303- ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-203-0 01 1 0005-0210 ●
335 COLLAR; DIST,RELAY LEVER ASM
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33659-203-0 01 1 0211-0302 ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-203-0 01 1 0303- ● ●
433 GASKET; BUSHING
(C) 		1-09623-594-0 04 1 0005-0210 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0211-0302 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0303-0609 ● ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0610- ● ●
433 GASKET; BUSHING
6HK1 TCS ENG(80L) (B) 		1-09623-594-0 02 1 0610- ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0005-0210 ●
433 GASKET; BUSHING
6SD1 TCN ENG(31L) (C) 		1-09623-594-0 04 1 0211- ●
433 GASKET; BUSHING
(A) 		1-09623-130-0 01 1 0005- ●
çizim 11017
359 359 364 363 362 362 359 359 358 359 359 359 359 361 359 358 356 27 305 104 289 19 243 396 469 470 157 277 19 277 285 256 142 393 545 225 224 472 446 273 252 251 130 298 253 446
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 SPRING; COIL COMP
(C) 		1-33539-085-0 01 1 0303- ●
19 SPRING; COIL COMP
(D) 		1-33549-392-0 01 1 0303- ●
19 SPRING; COIL COMP
(E) 		1-33549-393-0 01 1 0303- ●
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 0005-0210 ●
19 SPRING; COIL COMP
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33539-052-0 02 1 0211-0609 ●
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 0610- ●
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 0005-0210 ●
19 SPRING; COIL COMP
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-226-0 01 1 0211- ●
27 BUSHING; SHIFT ROD 1-33569-042-0 01 1 0005-0210 ●
27 BUSHING; SHIFT ROD
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33569-042-0 01 1 0211-0609 ●
27 BUSHING; SHIFT ROD 1-33569-042-0 01 1 0610- ●
104 PLUG; PLATE 1-33549-550-0 01 1 0303- ●
104 PLUG; PLATE
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33549-481-0 01 1 0406- ●
104 PLUG; PLATE
BRAKE SYSTEM RETARDER<RE2> 		1-33549-353-0 01 1 0005-0210 ●
104 PLUG; PLATE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-353-0 01 1 0211- ●
104 PLUG; PLATE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-231-0 01 1 0005-0210 ●
130 LEVER; SHIFT,INTERNAL 1-33521-186-0 01 1 0303- ●
130 LEVER; SHIFT,INTERNAL
BRAKE SYSTEM RETARDER<RE2> 		1-33521-181-0 01 1 0005-0210 ●
130 LEVER; SHIFT,INTERNAL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33521-181-0 01 1 0211-0609 ●
130 LEVER; SHIFT,INTERNAL 1-33521-181-0 01 1 0610- ●
130 LEVER; SHIFT,INTERNAL
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33521-161-0 01 1 0005-0210 ●
130 LEVER; SHIFT,INTERNAL 1-33521-109-0 01 1 0005- ●
142 BOLT; QUAD BOX
(E) 		1-33119-569-0 04 1 0303- ●
142 BOLT; QUAD BOX
(F) 		1-33119-585-0 02 1 0303- ●
142 BOLT; QUAD BOX
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (E) 		1-33549-479-0 04 1 0406- ●
142 BOLT; QUAD BOX
6HK1 TCS ENG(80L) (E) 		1-33119-543-0 02 1 0610- ●
142 BOLT; QUAD BOX
BRAKE SYSTEM RETARDER<RE2> (E) M10X35 		1-33549-350-0 04 1 0005-0210 ●
142 BOLT; QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (E) M10X35 		1-33549-350-0 04 1 0211- ●
142 BOLT; QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> (E) 		1-33549-222-0 04 1 0005-0210 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 0005-0906 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50641-028-0 04 1 0907- ●
142 BOLT; QUAD BOX
(A) 		1-87060-778-0 11 1 0005- ●
142 BOLT; QUAD BOX
(B) 		1-87060-786-0 02 1 0005- ●
142 BOLT; QUAD BOX
(C) 		1-87061-229-0 02 1 0005- ●
157 BOX; QUAD,TRANS
(E) 		1-33541-537-0 01 1 0303-0609 ●
157 BOX; QUAD,TRANS
6HK1 TCS ENG(80L) (E) 		1-33541-537-0 01 1 0610- ●
157 BOX; QUAD,TRANS
(E) 		1-33541-537-0 01 1 0610- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-486-0 01 1 0005-0210 ●
157 BOX; QUAD,TRANS
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (D) 		1-33541-535-0 01 1 0211- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 0005- ●
157 BOX; QUAD,TRANS
(A) 		1-87061-518-0 01 1 0005- ●
224 WASHER; PL,QUAD BOX 1-33119-567-0 07 1 0303-1104 ●
224 WASHER; PL,QUAD BOX 1-33119-567-0 05 1 1105- ●
224 WASHER; PL,QUAD BOX
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33119-524-0 03 1 0406- ●
224 WASHER; PL,QUAD BOX
6HK1 TCS ENG(80L) 		1-33119-524-0 01 1 0610- ●
224 WASHER; PL,QUAD BOX
BRAKE SYSTEM RETARDER<RE2> 		1-33119-424-0 03 1 0005-0210 ●
224 WASHER; PL,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-424-0 03 1 0211- ●
224 WASHER; PL,QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33119-318-0 03 1 0005-0210 ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 0005-0605 ●
224 WASHER; PL,QUAD BOX
ID=10.5 		0-91610-510-0 02 1 0606- ●
225 WASHER; LK,QUAD BOX 1-33119-568-0 06 1 0303- ●
225 WASHER; LK,QUAD BOX
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-34159-121-0 04 1 0406- ●
225 WASHER; LK,QUAD BOX
6HK1 TCS ENG(80L) 		1-34159-121-0 06 1 0610- ●
225 WASHER; LK,QUAD BOX
BRAKE SYSTEM RETARDER<RE2> 		1-34519-096-0 04 1 0005-0210 ●
225 WASHER; LK,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-34159-096-0 04 1 0211- ●
225 WASHER; LK,QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-34159-066-0 04 1 0005-0210 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 0005-0603 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		0-91510-510-0 02 1 0604- ●
243 BOLT; COVER
(A) 		1-33119-575-0 02 1 0303- ●
243 BOLT; COVER
(B) 		1-33549-551-0 02 1 0303- ●
243 BOLT; COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33549-480-0 02 1 0406- ●
243 BOLT; COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (B) 		1-33549-482-0 02 1 0406- ●
243 BOLT; COVER
BRAKE SYSTEM RETARDER<RE2> (A) 		1-33119-426-0 02 1 0005-0210 ●
243 BOLT; COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33549-376-0 02 1 0211- ●
243 BOLT; COVER
BRAKE SYSTEM RETARDER<RE2> (B) 		1-33549-352-0 02 1 0005-0210 ●
243 BOLT; COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-352-0 02 1 0211- ●
243 BOLT; COVER
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-33119-322-0 02 1 0005-0210 ●
243 BOLT; COVER
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-33549-230-0 02 1 0005-0210 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28080-610-0 01 1 0005-0512 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28050-610-0 01 1 0601- ●
251 COVER; SIDE 1-33545-013-0 01 1 0303- ●
251 COVER; SIDE 1-33545-009-0 01 1 0005-0210 ●
251 COVER; SIDE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33545-012-0 01 1 0211-0609 ●
251 COVER; SIDE 1-33545-012-0 01 1 0610- ●
252 BOLT; SIDE COVER 1-33549-552-0 04 1 0303- ●
252 BOLT; SIDE COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33549-483-0 04 1 0406- ●
252 BOLT; SIDE COVER
BRAKE SYSTEM RETARDER<RE2> 		1-33549-351-0 04 1 0005-0210 ●
252 BOLT; SIDE COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-374-0 04 1 0211- ●
252 BOLT; SIDE COVER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-228-0 04 1 0005-0210 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-051-0 01 1 0005-0210 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33544-055-0 01 1 0211-0302 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) 		1-33544-055-0 01 1 0303-0609 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 6HK1 TCS ENG(80L) 		1-33544-055-0 01 1 0303-0609 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-055-0 01 1 0610- ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-391-0 01 1 0303- ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-87061-421-0 01 1 0005- ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-377-0 01 1 0211-0609 ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-377-0 01 1 0610- ●
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 0005-0210 ●
273 PIN; SPR,STOPPER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33529-095-0 01 1 0211-0302 ●
273 PIN; SPR,STOPPER
6SD1 TCN ENG(31L) 		1-33529-095-0 01 1 0303-0609 ●
273 PIN; SPR,STOPPER
6HK1 TCS ENG(80L) 		1-33529-095-0 01 1 0303-0609 ●
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 0610- ● ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 0005- ●
277 PLATE; SPRING SEAT
(C) 		1-33549-388-0 01 1 0303- ●
277 PLATE; SPRING SEAT
(D) 		1-33549-389-0 01 1 0303- ●
277 PLATE; SPRING SEAT
(E) 		1-33549-395-0 01 1 0303- ●
277 PLATE; SPRING SEAT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-372-0 01 1 0211-0609 ●
277 PLATE; SPRING SEAT
(B) 		1-33549-372-0 01 1 0610- ●
277 PLATE; SPRING SEAT
(A) 		1-33549-224-0 02 1 0005-0210 ●
277 PLATE; SPRING SEAT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33549-224-0 01 1 0211-0609 ●
277 PLATE; SPRING SEAT
(A) 		1-33549-224-0 01 1 0610- ●
285 BREATHER; AIR,QUAD BOX
BRAKE SYSTEM RETARDER<RE2> 		1-33549-354-0 01 1 0005-0210 ●
285 BREATHER; AIR,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-354-0 01 1 0211-0302 ●
285 BREATHER; AIR,QUAD BOX
6SD1 TCN ENG(31L) 		1-33549-354-0 01 1 0303-0609 ●
285 BREATHER; AIR,QUAD BOX
6HK1 TCS ENG(80L) 		1-33549-354-0 01 1 0303-0609 ●
285 BREATHER; AIR,QUAD BOX 1-33549-354-0 01 1 0610- ● ●
285 BREATHER; AIR,QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33549-232-0 01 1 0005-0210 ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0005- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0005-0210 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0211-0307 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0005-0210 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0211- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33542-059-0 01 1 0005-0210 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (D) 		1-33542-061-0 01 1 0211-0302 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) (D) 		1-33542-061-0 01 1 0303-0609 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 6HK1 TCS ENG(80L) (D) 		1-33542-061-0 01 1 0303-0609 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (D) 		1-33542-061-0 01 1 0610- ● ●
298 SHAFT; SHIFT LEVER 1-33522-209-0 01 1 0303- ●
298 SHAFT; SHIFT LEVER
6HK1 TCS ENG(80L) 		1-33522-181-0 01 1 0610- ●
298 SHAFT; SHIFT LEVER 1-33522-158-0 01 1 0005-0210 ●
298 SHAFT; SHIFT LEVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33522-158-0 01 1 0211- ●
298 SHAFT; SHIFT LEVER 1-33522-148-0 01 1 0005- ●
305 BOOT; LEVER SHAFT 1-33549-233-0 01 1 0005-0210 ●
305 BOOT; LEVER SHAFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-233-0 01 1 0211-0302 ●
305 BOOT; LEVER SHAFT
6SD1 TCN ENG(31L) 		1-33549-233-0 01 1 0303-0609 ●
305 BOOT; LEVER SHAFT
6HK1 TCS ENG(80L) 		1-33549-233-0 01 1 0303-0609 ●
305 BOOT; LEVER SHAFT 1-33549-233-0 01 1 0610- ● ●
356 PISTON; AIR CYL
(C) 		1-33551-015-0 01 1 0005-0210 ●
356 PISTON; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33551-015-0 01 1 0211-0609 ●
356 PISTON; AIR CYL
(C) 		1-33551-015-0 01 1 0610- ●
356 PISTON; AIR CYL
(A) 		1-87061-121-0 01 1 0005- ●
356 PISTON; AIR CYL
(B) 		1-87061-477-0 01 1 0005- ●
358 NUT; SHIFT ROD
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33539-091-0 01 1 0406- ●
358 NUT; SHIFT ROD 1-33539-053-0 01 1 0005-0210 ●
358 NUT; SHIFT ROD
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33539-053-0 01 1 0211- ●
358 NUT; SHIFT ROD 1-87061-222-0 01 1 0005- ●
359 GASKET; AIR CYL
(B) 		1-33552-007-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33552-007-0 01 1 0211-0609 ●
359 GASKET; AIR CYL
(B) 		1-33552-007-0 01 1 0610- ●
359 GASKET; AIR CYL
(C) 		1-33563-008-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33563-008-0 01 1 0211-0609 ●
359 GASKET; AIR CYL
(C) 		1-33563-008-0 01 1 0610- ●
359 GASKET; AIR CYL
(A) 		1-33569-043-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33569-043-0 01 1 0211-0609 ●
359 GASKET; AIR CYL
(A) 		1-33569-043-0 01 1 0610- ●
359 GASKET; AIR CYL
(E) 		1-33569-044-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (E) 		1-33569-044-0 01 1 0211-0609 ●
359 GASKET; AIR CYL
(E) 		1-33569-044-0 01 1 0610- ●
359 GASKET; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (D) 		1-33552-006-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (D) 		1-33552-006-0 01 1 0211-0609 ●
359 GASKET; AIR CYL
(D) 		1-33552-006-0 01 1 0610- ●
359 GASKET; AIR CYL
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-87061-122-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
(D) 		1-87061-122-0 01 1 0005-0210 ●
359 GASKET; AIR CYL
(D) 		1-87061-122-0 01 1 0211- ●
359 GASKET; AIR CYL
(F) 		1-87060-994-0 03 1 0005- ●
359 GASKET; AIR CYL
(G) 		1-87061-123-0 01 1 0005- ●
359 GASKET; AIR CYL
(H) 		1-87061-136-0 01 1 0005- ●
359 GASKET; AIR CYL
(I) 		1-87061-256-0 01 1 0005- ●
359 GASKET; AIR CYL
(J) 		1-87061-258-0 01 1 0005- ●
359 GASKET; AIR CYL
(K) 		1-87061-264-0 01 1 0005- ●
359 GASKET; AIR CYL
(L) 		1-87061-268-0 01 1 0005- ●
359 GASKET; AIR CYL
(M) 		1-87061-474-0 01 1 0005- ●
359 GASKET; AIR CYL
(N) 		1-87061-475-0 01 1 0005- ●
361 CYLINDER; AIR,SHIFT
(C) 		1-33569-045-0 01 1 0005-0210 ●
361 CYLINDER; AIR,SHIFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33569-045-0 01 1 0211-0609 ●
361 CYLINDER; AIR,SHIFT
(C) 		1-33569-045-0 01 1 0610- ●
361 CYLINDER; AIR,SHIFT
(A) 		1-87061-262-0 01 1 0005- ●
361 CYLINDER; AIR,SHIFT
(B) 		1-87061-476-0 01 1 0005- ●
362 WASHER; AIR CYL
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33119-524-0 03 1 0406- ●
362 WASHER; AIR CYL
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (B) 		1-34159-121-0 03 1 0406- ●
362 WASHER; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (A) 		1-33119-424-0 03 1 0005-0210 ●
362 WASHER; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33119-424-0 03 1 0211- ●
362 WASHER; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (B) 		1-34519-096-0 03 1 0005-0210 ●
362 WASHER; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-34159-096-0 03 1 0211- ●
362 WASHER; AIR CYL
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-33119-318-0 03 1 0005-0210 ●
362 WASHER; AIR CYL
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-34159-066-0 03 1 0005-0210 ●
363 BOLT; AIR CYL
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (C) 		1-33119-538-0 03 1 0406- ●
363 BOLT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (C) 		1-33119-433-0 03 1 0005-0210 ●
363 BOLT; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33119-433-0 03 1 0211- ●
363 BOLT; AIR CYL
EXC. BRAKE SYSTEM RETARDER<RE2> (C) M10X60 		1-33119-326-0 03 1 0005-0210 ●
363 BOLT; AIR CYL
(A) 		1-87060-778-0 08 1 0005- ●
363 BOLT; AIR CYL
(B) 		1-87061-270-0 04 1 0005- ●
364 SEAL KIT; AIR CYL 1-85572-108-0 01 1 0005-0210 ●
364 SEAL KIT; AIR CYL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-85572-108-0 01 1 0211-0609 ●
364 SEAL KIT; AIR CYL 1-85572-108-0 01 1 0610- ●
393 PIN; SW 1-33549-394-0 01 1 0303- ●
393 PIN; SW 1-33549-234-0 01 1 0005-0210 ●
393 PIN; SW
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-234-0 01 1 0211-0609 ●
393 PIN; SW 1-33549-234-0 01 1 0610- ●
393 PIN; SW 1-87061-139-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(C) 		1-33539-084-0 01 1 0303- ●
396 PLUNGER; SHIFT ROD
(D) 		1-33549-390-0 01 1 0303- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 0005-0210 ●
396 PLUNGER; SHIFT ROD
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33539-051-0 01 1 0211-0609 ●
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 0610- ●
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 0005-0210 ●
396 PLUNGER; SHIFT ROD
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-229-0 01 1 0211-0609 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 0610- ●
446 RING; SNAP,SPR SEAT 1-33549-223-0 02 1 0005-0210 ●
446 RING; SNAP,SPR SEAT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-223-0 02 1 0211-0302 ●
446 RING; SNAP,SPR SEAT
6SD1 TCN ENG(31L) 		1-33549-223-0 02 1 0303-0609 ●
446 RING; SNAP,SPR SEAT
6HK1 TCS ENG(80L) 		1-33549-223-0 02 1 0303-0609 ●
446 RING; SNAP,SPR SEAT 1-33549-223-0 02 1 0610- ● ●
469 COVER; SPRING,QUAD BOX 1-33119-574-0 01 1 0303- ●
469 COVER; SPRING,QUAD BOX
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33119-529-0 01 1 0406- ●
469 COVER; SPRING,QUAD BOX
BRAKE SYSTEM RETARDER<RE2> 		1-33119-425-0 01 1 0005-0210 ●
469 COVER; SPRING,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-425-0 01 1 0211- ●
469 COVER; SPRING,QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33119-320-0 01 1 0005-0210 ●
469 COVER; SPRING,QUAD BOX 1-87061-419-0 01 1 0005- ●
470 GASKET; SPRING COVER 1-33119-489-0 02 1 0303- ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 0005-0210 ●
470 GASKET; SPRING COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-321-0 02 1 0211-0609 ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 0610- ●
470 GASKET; SPRING COVER 1-87061-420-0 01 1 0005- ●
472 EYE; LIFTING
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33119-528-0 01 1 0406- ●
472 EYE; LIFTING
BRAKE SYSTEM RETARDER<RE2> 		1-33119-430-0 01 1 0005-0210 ●
472 EYE; LIFTING
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-430-0 01 1 0211- ●
472 EYE; LIFTING
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-87060-783-0 01 1 0005-0210 ●
472 EYE; LIFTING 1-87060-783-0 02 1 0005- ●
545 VALVE; POPPET 1-33549-236-0 01 1 0005-0210 ●
545 VALVE; POPPET
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-383-0 01 1 0211-0609 ●
545 VALVE; POPPET 1-33549-383-0 01 1 0610- ●
çizim 43408
91 352 347 261 532 532 350 304 1 54 25 49
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 ARM; SHIFT,1ST & REV
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33511-629-0 01 1 0406- ●
1 ARM; SHIFT,1ST & REV 1-33511-535-0 01 1 0005-0210 ●
1 ARM; SHIFT,1ST & REV
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33511-535-0 01 1 0211- ●
25 ARM; SHIFT,2ND & 3RD
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33511-630-0 01 1 0406- ●
25 ARM; SHIFT,2ND & 3RD
BRAKE SYSTEM RETARDER<RE2> 		1-33511-614-0 01 1 0005-0210 ●
25 ARM; SHIFT,2ND & 3RD
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33511-614-0 01 1 0211- ●
25 ARM; SHIFT,2ND & 3RD
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33511-536-0 01 1 0005-0210 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-537-0 01 1 0005-0210 ●
49 ARM; SHIFT,4TH & 5TH
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33511-537-0 01 1 0211-0609 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-537-0 01 1 0610- ●
54 PIN; SPR,SHIFT BLOCK
BRAKE SYSTEM RETARDER<RE2> 		1-33519-101-0 01 1 0005-0210 ●
54 PIN; SPR,SHIFT BLOCK
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33519-101-0 01 1 0211-0302 ●
54 PIN; SPR,SHIFT BLOCK
6SD1 TCN ENG(31L) 		1-33519-101-0 01 1 0303-0609 ●
54 PIN; SPR,SHIFT BLOCK
6HK1 TCS ENG(80L) 		1-33519-101-0 01 1 0303-0609 ●
54 PIN; SPR,SHIFT BLOCK 1-33519-101-0 01 1 0610- ● ●
91 PIN; SPR,SHIFT ARM 1-33519-100-0 01 1 0005-0210 ●
91 PIN; SPR,SHIFT ARM
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33519-100-0 01 1 0211-0609 ●
91 PIN; SPR,SHIFT ARM 1-33519-100-0 01 1 0610- ●
261 ROD; GEAR CONT 1-33531-480-0 01 1 0303- ●
261 ROD; GEAR CONT 1-33531-436-0 01 1 0005-0210 ●
261 ROD; GEAR CONT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33531-436-0 01 1 0211-0609 ●
261 ROD; GEAR CONT 1-33531-436-0 01 1 0610- ●
304 BLOCK; SHIFT SHAFT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-33511-534-0 01 1 0005-0210 ●
304 BLOCK; SHIFT SHAFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33511-534-0 01 1 0211-0302 ●
304 BLOCK; SHIFT SHAFT
6SD1 TCN ENG(31L) (B) 		1-33511-534-0 01 1 0303-0609 ●
304 BLOCK; SHIFT SHAFT
6HK1 TCS ENG(80L) (B) 		1-33511-534-0 01 1 0303-0609 ●
304 BLOCK; SHIFT SHAFT
(B) 		1-33511-534-0 01 1 0610- ● ●
304 BLOCK; SHIFT SHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-33511-575-0 01 1 0005-0210 ●
347 ARM; SHIFT,RANGE CHANGE
(C) 		1-33511-533-0 01 1 0005-0210 ●
347 ARM; SHIFT,RANGE CHANGE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33511-533-0 01 1 0211-0609 ●
347 ARM; SHIFT,RANGE CHANGE
(C) 		1-33511-533-0 01 1 0610- ●
347 ARM; SHIFT,RANGE CHANGE
(A) 		1-87061-260-0 01 1 0005- ●
347 ARM; SHIFT,RANGE CHANGE
(B) 		1-87061-432-0 01 1 0005- ●
350 SCREW; SHIFT ARM
(D) 		1-33519-163-0 01 1 0303- ●
350 SCREW; SHIFT ARM
(C) 		1-33519-102-0 01 1 0005-0210 ●
350 SCREW; SHIFT ARM
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33519-102-0 01 1 0211-0609 ●
350 SCREW; SHIFT ARM
(C) 		1-33519-102-0 01 1 0610- ●
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 04 1 0005- ●
350 SCREW; SHIFT ARM
(A) 		1-87061-257-0 02 1 0005- ●
352 ROD; SHIFT,RANGE CHANGE
(A) 		1-33539-082-0 01 1 0303- ●
352 ROD; SHIFT,RANGE CHANGE
(B) 		1-33539-083-0 01 1 0303- ●
352 ROD; SHIFT,RANGE CHANGE
(C) 		1-33531-435-0 01 1 0005-0210 ●
352 ROD; SHIFT,RANGE CHANGE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33531-435-0 01 1 0211-0609 ●
352 ROD; SHIFT,RANGE CHANGE
(C) 		1-33531-435-0 01 1 0610- ●
352 ROD; SHIFT,RANGE CHANGE
(D) 		1-87061-261-0 01 1 0005- ●
532 PLATE; SHIFT FORK
(A) 		1-33539-054-0 01 1 0005-0210 ●
532 PLATE; SHIFT FORK
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33539-054-0 01 1 0211-0609 ●
532 PLATE; SHIFT FORK
(A) 		1-33539-054-0 01 1 0610- ●
532 PLATE; SHIFT FORK
(B) 		1-33539-055-0 01 1 0005-0210 ●
532 PLATE; SHIFT FORK
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33539-055-0 01 1 0211-0609 ●
532 PLATE; SHIFT FORK
(B) 		1-33539-055-0 01 1 0610- ●
çizim 43709
142 142 341 472 171 469 38 142 140 470 39 484 472 341 398 411 393 341 389 157 84 256 142 21 487 78 350 33 89 28 473 31 28 62 350 350 61
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 SPRING; COIL COMP SLEEVE 1-87061-207-0 01 1 0005- ●
28 BALL; INTER LK 1-87061-224-0 02 1 0005- ●
31 ARM; SHIFT,LOW & 2ND 1-87061-463-0 01 1 0005- ●
33 ROD; SHIFT,LOW & 2ND 1-87061-417-0 01 1 0005- ●
38 SPRING; DETENT 1-87060-785-0 03 1 0005- ●
39 BALL; DETENT 1-87060-789-0 03 1 0005- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-635-0 01 1 0303- ●
61 ARM; SHIFT,3RD & 4TH 1-87061-462-0 01 1 0005- ●
62 ROD; SHIFT,3RD & 4TH 1-87061-418-0 01 1 0005- ●
78 ARM; SHIFT,REV 1-33511-633-0 01 1 0303- ●
78 ARM; SHIFT,REV 1-87061-464-0 01 1 0005- ●
84 SLEEVE; REV 1-87061-112-0 01 1 0005- ●
89 ROD; SHIFT,REV 1-87061-424-0 01 1 0005- ●
140 BREATHER; AIR,TRANS 1-87060-780-0 01 1 0005- ●
142 BOLT; QUAD BOX
(E) 		1-33119-569-0 04 1 0303- ●
142 BOLT; QUAD BOX
(F) 		1-33119-585-0 02 1 0303- ●
142 BOLT; QUAD BOX
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (E) 		1-33549-479-0 04 1 0406- ●
142 BOLT; QUAD BOX
6HK1 TCS ENG(80L) (E) 		1-33119-543-0 02 1 0610- ●
142 BOLT; QUAD BOX
BRAKE SYSTEM RETARDER<RE2> (E) M10X35 		1-33549-350-0 04 1 0005-0210 ●
142 BOLT; QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (E) M10X35 		1-33549-350-0 04 1 0211- ●
142 BOLT; QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> (E) 		1-33549-222-0 04 1 0005-0210 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 0005-0906 ●
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50641-028-0 04 1 0907- ●
142 BOLT; QUAD BOX
(A) 		1-87060-778-0 11 1 0005- ●
142 BOLT; QUAD BOX
(B) 		1-87060-786-0 02 1 0005- ●
142 BOLT; QUAD BOX
(C) 		1-87061-229-0 02 1 0005- ●
157 BOX; QUAD,TRANS
(E) 		1-33541-537-0 01 1 0303-0609 ●
157 BOX; QUAD,TRANS
6HK1 TCS ENG(80L) (E) 		1-33541-537-0 01 1 0610- ●
157 BOX; QUAD,TRANS
(E) 		1-33541-537-0 01 1 0610- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-486-0 01 1 0005-0210 ●
157 BOX; QUAD,TRANS
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (D) 		1-33541-535-0 01 1 0211- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 0005- ●
157 BOX; QUAD,TRANS
(A) 		1-87061-518-0 01 1 0005- ●
171 SWITCH; NEUTRAL 1-82440-123-0 01 1 0303- ●
171 SWITCH; NEUTRAL 1-82440-104-0 01 1 0005-0210 ●
171 SWITCH; NEUTRAL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-82440-120-0 01 1 0211-0609 ●
171 SWITCH; NEUTRAL 1-82440-120-0 01 1 0610- ●
171 SWITCH; NEUTRAL 1-87061-488-0 01 1 0005- ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-391-0 01 1 0303- ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-87061-421-0 01 1 0005- ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-377-0 01 1 0211-0609 ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-377-0 01 1 0610- ●
341 STUD; QUAD BOX
(C) 		1-33549-067-0 02 1 0604- ●
341 STUD; QUAD BOX
(A) 		1-09305-006-0 06 1 0604- ●
341 STUD; QUAD BOX
(B)EATON 		1-09305-004-0 02 1 0005- ●
350 SCREW; SHIFT ARM
(D) 		1-33519-163-0 01 1 0303- ●
350 SCREW; SHIFT ARM
(C) 		1-33519-102-0 01 1 0005-0210 ●
350 SCREW; SHIFT ARM
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33519-102-0 01 1 0211-0609 ●
350 SCREW; SHIFT ARM
(C) 		1-33519-102-0 01 1 0610- ●
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 04 1 0005- ●
350 SCREW; SHIFT ARM
(A) 		1-87061-257-0 02 1 0005- ●
389 PLUG; QUAD BOX,NEUTRAL SW 1-87061-091-0 01 1 0005- ●
393 PIN; SW 1-33549-394-0 01 1 0303- ●
393 PIN; SW 1-33549-234-0 01 1 0005-0210 ●
393 PIN; SW
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33549-234-0 01 1 0211-0609 ●
393 PIN; SW 1-33549-234-0 01 1 0610- ●
393 PIN; SW 1-87061-139-0 01 1 0005- ●
398 SWITCH; REV LAMP 1-82440-128-0 01 1 0303- ●
398 SWITCH; REV LAMP 1-82440-103-0 01 1 0005-0210 ●
398 SWITCH; REV LAMP
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-82440-121-0 01 1 0211-0609 ●
398 SWITCH; REV LAMP 1-82440-121-0 01 1 0610- ●
398 SWITCH; REV LAMP 1-82440-102-0 01 1 0005- ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-87060-781-0 01 1 0005- ●
469 COVER; SPRING,QUAD BOX 1-33119-574-0 01 1 0303- ●
469 COVER; SPRING,QUAD BOX
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33119-529-0 01 1 0406- ●
469 COVER; SPRING,QUAD BOX
BRAKE SYSTEM RETARDER<RE2> 		1-33119-425-0 01 1 0005-0210 ●
469 COVER; SPRING,QUAD BOX
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-425-0 01 1 0211- ●
469 COVER; SPRING,QUAD BOX
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33119-320-0 01 1 0005-0210 ●
469 COVER; SPRING,QUAD BOX 1-87061-419-0 01 1 0005- ●
470 GASKET; SPRING COVER 1-33119-489-0 02 1 0303- ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 0005-0210 ●
470 GASKET; SPRING COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-321-0 02 1 0211-0609 ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 0610- ●
470 GASKET; SPRING COVER 1-87061-420-0 01 1 0005- ●
472 EYE; LIFTING
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33119-528-0 01 1 0406- ●
472 EYE; LIFTING
BRAKE SYSTEM RETARDER<RE2> 		1-33119-430-0 01 1 0005-0210 ●
472 EYE; LIFTING
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-430-0 01 1 0211- ●
472 EYE; LIFTING
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-87060-783-0 01 1 0005-0210 ●
472 EYE; LIFTING 1-87060-783-0 02 1 0005- ●
473 PIN; ROLL 1-87060-808-0 01 1 0005- ●
484 SHAFT; AIR VALVE 1-87061-164-0 01 1 0005- ●
487 PLUG; SHIFT BLOCK 1-87061-213-0 01 1 0005- ●
çizim 45198
352 261 352 304 54 78 107 32 61 350 483 483 114
BalonParca AdiParca NoAdetTipApplied Date A B C D
32 ARM; SHIFT,1ST & 2ND 1-33511-634-0 01 1 0303- ●
54 PIN; SPR,SHIFT BLOCK
BRAKE SYSTEM RETARDER<RE2> 		1-33519-101-0 01 1 0005-0210 ●
54 PIN; SPR,SHIFT BLOCK
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33519-101-0 01 1 0211-0302 ●
54 PIN; SPR,SHIFT BLOCK
6SD1 TCN ENG(31L) 		1-33519-101-0 01 1 0303-0609 ●
54 PIN; SPR,SHIFT BLOCK
6HK1 TCS ENG(80L) 		1-33519-101-0 01 1 0303-0609 ●
54 PIN; SPR,SHIFT BLOCK 1-33519-101-0 01 1 0610- ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-635-0 01 1 0303- ●
61 ARM; SHIFT,3RD & 4TH 1-87061-462-0 01 1 0005- ●
78 ARM; SHIFT,REV 1-33511-633-0 01 1 0303- ●
78 ARM; SHIFT,REV 1-87061-464-0 01 1 0005- ●
107 BLOCK; SHIFT,OD TO TOP 1-33511-636-0 01 1 0303- ●
114 ARM; SHIFT,OD TO TOP 1-33511-637-0 01 1 0303- ●
261 ROD; GEAR CONT 1-33531-480-0 01 1 0303- ●
261 ROD; GEAR CONT 1-33531-436-0 01 1 0005-0210 ●
261 ROD; GEAR CONT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33531-436-0 01 1 0211-0609 ●
261 ROD; GEAR CONT 1-33531-436-0 01 1 0610- ●
304 BLOCK; SHIFT SHAFT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-33511-534-0 01 1 0005-0210 ●
304 BLOCK; SHIFT SHAFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33511-534-0 01 1 0211-0302 ●
304 BLOCK; SHIFT SHAFT
6SD1 TCN ENG(31L) (B) 		1-33511-534-0 01 1 0303-0609 ●
304 BLOCK; SHIFT SHAFT
6HK1 TCS ENG(80L) (B) 		1-33511-534-0 01 1 0303-0609 ●
304 BLOCK; SHIFT SHAFT
(B) 		1-33511-534-0 01 1 0610- ● ●
304 BLOCK; SHIFT SHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-33511-575-0 01 1 0005-0210 ●
350 SCREW; SHIFT ARM
(D) 		1-33519-163-0 01 1 0303- ●
350 SCREW; SHIFT ARM
(C) 		1-33519-102-0 01 1 0005-0210 ●
350 SCREW; SHIFT ARM
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33519-102-0 01 1 0211-0609 ●
350 SCREW; SHIFT ARM
(C) 		1-33519-102-0 01 1 0610- ●
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 04 1 0005- ●
350 SCREW; SHIFT ARM
(A) 		1-87061-257-0 02 1 0005- ●
352 ROD; SHIFT,RANGE CHANGE
(A) 		1-33539-082-0 01 1 0303- ●
352 ROD; SHIFT,RANGE CHANGE
(B) 		1-33539-083-0 01 1 0303- ●
352 ROD; SHIFT,RANGE CHANGE
(C) 		1-33531-435-0 01 1 0005-0210 ●
352 ROD; SHIFT,RANGE CHANGE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33531-435-0 01 1 0211-0609 ●
352 ROD; SHIFT,RANGE CHANGE
(C) 		1-33531-435-0 01 1 0610- ●
352 ROD; SHIFT,RANGE CHANGE
(D) 		1-87061-261-0 01 1 0005- ●
483 BUSHING; SHIFT ARM 1-33519-164-0 02 1 0303- ●
çizim 45234
243 244 538 470 396 398 243 244 19 321 433 317 315 292 321 324 319 317 433 335 321 323 292 332 168 188 48
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 SPRING; COIL COMP
(C) 		1-33539-085-0 01 1 0303- ●
19 SPRING; COIL COMP
(D) 		1-33549-392-0 01 1 0303- ●
19 SPRING; COIL COMP
(E) 		1-33549-393-0 01 1 0303- ●
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 0005-0210 ●
19 SPRING; COIL COMP
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33539-052-0 02 1 0211-0609 ●
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 0610- ●
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 0005-0210 ●
19 SPRING; COIL COMP
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-226-0 01 1 0211- ●
48 LEVER; 4TH,SHIFT 1-33651-681-0 01 1 0005-0210 ●
48 LEVER; 4TH,SHIFT
6SD1 TCN ENG(31L) 		1-33651-681-0 01 1 0211- ●
48 LEVER; 4TH,SHIFT 1-33651-811-0 01 1 0303-0609 ●
48 LEVER; 4TH,SHIFT
6HK1 TCS ENG(80L) 		1-33651-811-0 01 1 0610- ●
48 LEVER; 4TH,SHIFT 1-33651-811-0 01 1 0610- ●
168 WASHER; LK,SELECT LEVER
ID=10.2 		9-09150-510-0 01 1 0005-0210 ●
168 WASHER; LK,SELECT LEVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> ID=10.2 		9-09150-510-0 01 1 0211-0302 ●
168 WASHER; LK,SELECT LEVER
ID=10.2 		9-09150-510-0 01 1 0303-0603 ● ●
168 WASHER; LK,SELECT LEVER
ID=10.2 		0-91510-510-0 01 1 0604- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0005-0210 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0211- ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005-0210 ●
188 NUT; SELECT LEVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> M10 FLANGE 		0-91150-110-0 01 1 0211-0302 ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0303-0602 ● ●
188 NUT; SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
243 BOLT; COVER
(A) 		1-33119-575-0 02 1 0303- ●
243 BOLT; COVER
(B) 		1-33549-551-0 02 1 0303- ●
243 BOLT; COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33549-480-0 02 1 0406- ●
243 BOLT; COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (B) 		1-33549-482-0 02 1 0406- ●
243 BOLT; COVER
BRAKE SYSTEM RETARDER<RE2> (A) 		1-33119-426-0 02 1 0005-0210 ●
243 BOLT; COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33549-376-0 02 1 0211- ●
243 BOLT; COVER
BRAKE SYSTEM RETARDER<RE2> (B) 		1-33549-352-0 02 1 0005-0210 ●
243 BOLT; COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-352-0 02 1 0211- ●
243 BOLT; COVER
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-33119-322-0 02 1 0005-0210 ●
243 BOLT; COVER
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-33549-230-0 02 1 0005-0210 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28080-610-0 01 1 0005-0512 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28050-610-0 01 1 0601- ●
244 WASHER; LK,COVER 1-33119-564-0 02 1 0303- ●
244 WASHER; LK,COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33119-530-0 02 1 0406- ●
244 WASHER; LK,COVER
BRAKE SYSTEM RETARDER<RE2> 		1-33119-427-0 06 1 0005-0210 ●
244 WASHER; LK,COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-427-0 02 1 0211- ●
244 WASHER; LK,COVER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33119-323-0 06 1 0005-0210 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0005-0210 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0211-0302 ●
292 NUT; LINK ROD
6SD1 TCN ENG(31L) (B) M8 FLANGE 		1-09440-062-1 02 1 0211-0302 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0303- ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0005-0210 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0211-0512 ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601- ● ●
292 NUT; LINK ROD
(C) M10 FLANGE 		1-09440-056-0 02 1 0005-0210 ●
292 NUT; LINK ROD
6SD1 TCN ENG(31L) (C) M10 FLANGE 		1-09440-056-0 02 1 0211- ●
315 LEVER; SELECT
(A) 		1-33651-682-0 01 1 0005-0210 ●
315 LEVER; SELECT
6SD1 TCN ENG(31L) (A) 		1-33651-682-0 01 1 0211- ●
315 LEVER; SELECT
(B) 		1-33651-683-0 01 1 0005-0210 ●
315 LEVER; SELECT
6SD1 TCN ENG(31L) (B) 		1-33651-683-0 01 1 0211- ●
315 LEVER; SELECT
(C) 		1-33651-670-0 01 1 0005- ●
315 LEVER; SELECT
(D) 		1-33651-715-0 01 1 0303-0609 ●
315 LEVER; SELECT
6HK1 TCS ENG(80L) (D) 		1-33651-715-0 01 1 0610- ●
315 LEVER; SELECT
(D) 		1-33651-715-0 01 1 0610- ●
317 BUSHING; LEVER 1-09330-119-0 04 1 0005-0210 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0005-0210 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0211-0302 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0303-0609 ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0610- ● ●
317 BUSHING; LEVER
6HK1 TCS ENG(80L) 		1-09330-119-0 02 1 0610- ●
317 BUSHING; LEVER
6SD1 TCN ENG(31L) 		1-09330-119-0 04 1 0211- ●
319 BRACKET; SELECT LEVER
(B) 		1-33657-603-0 01 1 0005-0210 ●
319 BRACKET; SELECT LEVER
6SD1 TCN ENG(31L) (B) 		1-33657-603-0 01 1 0211- ●
319 BRACKET; SELECT LEVER
(A) 		1-33657-648-0 01 1 0005-0210 ●
319 BRACKET; SELECT LEVER
6SD1 TCN ENG(31L) (A) 		1-33657-648-0 01 1 0211- ●
319 BRACKET; SELECT LEVER
(C) 		1-33657-631-0 01 1 0005- ●
319 BRACKET; SELECT LEVER
(D) 		1-33657-816-0 01 1 0303-0609 ●
319 BRACKET; SELECT LEVER
6HK1 TCS ENG(80L) (D) 		1-33657-816-0 01 1 0610- ●
319 BRACKET; SELECT LEVER
(D) 		1-33657-816-0 01 1 0610- ●
321 BOLT; BRKT,RELAY LEVER
6HK1 TCS ENG(80L) M10X35 L=65 		8-97178-725-0 01 1 0704- ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0005-0210 ●
321 BOLT; BRKT,RELAY LEVER
6SD1 TCN ENG(31L) M10X22 FLANGE 		0-28181-022-0 02 1 0211- ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28181-030-0 01 1 0005-0210 ●
321 BOLT; BRKT,RELAY LEVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> M10X30 FLANGE 		0-28181-030-0 01 1 0211-0302 ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28181-030-0 01 1 0303-0512 ● ●
321 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28151-030-0 01 1 0601- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28681-025-0 02 1 0005-0210 ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28681-025-0 02 1 0211-0512 ●
321 BOLT; BRKT,RELAY LEVER
6SD1 TCN ENG(31L) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 0005-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0601- ●
321 BOLT; BRKT,RELAY LEVER
M10X60 FLANGE 		0-28181-060-0 01 1 0303-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X60 FLANGE 		0-28151-060-0 01 1 0601-0609 ●
321 BOLT; BRKT,RELAY LEVER
6HK1 TCS ENG(80L) M10X60 FLANGE 		0-28151-060-0 01 1 0610- ●
321 BOLT; BRKT,RELAY LEVER
M10X60 FLANGE 		0-28151-060-0 01 1 0610- ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28781-025-0 01 1 0303-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28751-025-0 01 1 0601-0609 ●
321 BOLT; BRKT,RELAY LEVER
6HK1 TCS ENG(80L) M10X25 FLANGE 		0-28751-025-0 01 1 0610- ●
321 BOLT; BRKT,RELAY LEVER
M10X25 FLANGE 		0-28751-025-0 01 1 0610- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 0005-0210 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0211-0302 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0303-0609 ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0610- ● ●
323 NUT; LK,SELECT LEVER
6HK1 TCS ENG(80L) M10 FLANGE 		0-91150-110-0 01 1 0610- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005-0210 ●
323 NUT; LK,SELECT LEVER
6SD1 TCN ENG(31L) M10 FLANGE 		0-91150-110-0 02 1 0211- ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0005-0210 ●
324 BOLT; SHAFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> M10X60 FLANGE 		0-28081-060-0 01 1 0211-0302 ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0303- ● ●
332 BOLT; 4TH,SHIFT LEVER 0-20801-060-0 01 1 0005-0210 ●
332 BOLT; 4TH,SHIFT LEVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		0-20801-060-0 01 1 0211-0302 ●
332 BOLT; 4TH,SHIFT LEVER 0-20801-060-0 01 1 0303- ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-203-0 01 1 0005-0210 ●
335 COLLAR; DIST,RELAY LEVER ASM
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33659-203-0 01 1 0211-0302 ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-203-0 01 1 0303- ● ●
396 PLUNGER; SHIFT ROD
(C) 		1-33539-084-0 01 1 0303- ●
396 PLUNGER; SHIFT ROD
(D) 		1-33549-390-0 01 1 0303- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 0005-0210 ●
396 PLUNGER; SHIFT ROD
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33539-051-0 01 1 0211-0609 ●
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 0610- ●
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 0005-0210 ●
396 PLUNGER; SHIFT ROD
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-229-0 01 1 0211-0609 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 0610- ●
398 SWITCH; REV LAMP 1-82440-128-0 01 1 0303- ●
398 SWITCH; REV LAMP 1-82440-103-0 01 1 0005-0210 ●
398 SWITCH; REV LAMP
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-82440-121-0 01 1 0211-0609 ●
398 SWITCH; REV LAMP 1-82440-121-0 01 1 0610- ●
398 SWITCH; REV LAMP 1-82440-102-0 01 1 0005- ●
433 GASKET; BUSHING
(C) 		1-09623-594-0 04 1 0005-0210 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0211-0302 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0303-0609 ● ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0610- ● ●
433 GASKET; BUSHING
6HK1 TCS ENG(80L) (B) 		1-09623-594-0 02 1 0610- ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0005-0210 ●
433 GASKET; BUSHING
6SD1 TCN ENG(31L) (C) 		1-09623-594-0 04 1 0211- ●
433 GASKET; BUSHING
(A) 		1-09623-130-0 01 1 0005- ●
470 GASKET; SPRING COVER 1-33119-489-0 02 1 0303- ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 0005-0210 ●
470 GASKET; SPRING COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-321-0 02 1 0211-0609 ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 0610- ●
470 GASKET; SPRING COVER 1-87061-420-0 01 1 0005- ●
538 COVER; DETENT 1-33119-574-0 01 1 0303- ●
538 COVER; DETENT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33119-529-0 01 1 0406- ●
538 COVER; DETENT
BRAKE SYSTEM RETARDER<RE2> 		1-33119-425-0 01 1 0005-0210 ●
538 COVER; DETENT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-425-0 01 1 0211- ●
538 COVER; DETENT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33119-320-0 01 1 0005-0210 ●
çizim 48967
449 171 506 243 244 538 470 497 398 396 243 244 19 30
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 SPRING; COIL COMP
(C) 		1-33539-085-0 01 1 0303- ●
19 SPRING; COIL COMP
(D) 		1-33549-392-0 01 1 0303- ●
19 SPRING; COIL COMP
(E) 		1-33549-393-0 01 1 0303- ●
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 0005-0210 ●
19 SPRING; COIL COMP
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33539-052-0 02 1 0211-0609 ●
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 0610- ●
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 0005-0210 ●
19 SPRING; COIL COMP
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-226-0 01 1 0211- ●
30 PIN; INTER LK 1-33119-309-0 01 1 0005-0210 ●
30 PIN; INTER LK
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-309-0 01 1 0211-0609 ●
30 PIN; INTER LK 1-33119-309-0 01 1 0610- ●
171 SWITCH; NEUTRAL 1-82440-123-0 01 1 0303- ●
171 SWITCH; NEUTRAL 1-82440-104-0 01 1 0005-0210 ●
171 SWITCH; NEUTRAL
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-82440-120-0 01 1 0211-0609 ●
171 SWITCH; NEUTRAL 1-82440-120-0 01 1 0610- ●
171 SWITCH; NEUTRAL 1-87061-488-0 01 1 0005- ●
243 BOLT; COVER
(A) 		1-33119-575-0 02 1 0303- ●
243 BOLT; COVER
(B) 		1-33549-551-0 02 1 0303- ●
243 BOLT; COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33549-480-0 02 1 0406- ●
243 BOLT; COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (B) 		1-33549-482-0 02 1 0406- ●
243 BOLT; COVER
BRAKE SYSTEM RETARDER<RE2> (A) 		1-33119-426-0 02 1 0005-0210 ●
243 BOLT; COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33549-376-0 02 1 0211- ●
243 BOLT; COVER
BRAKE SYSTEM RETARDER<RE2> (B) 		1-33549-352-0 02 1 0005-0210 ●
243 BOLT; COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-352-0 02 1 0211- ●
243 BOLT; COVER
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-33119-322-0 02 1 0005-0210 ●
243 BOLT; COVER
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-33549-230-0 02 1 0005-0210 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28080-610-0 01 1 0005-0512 ●
243 BOLT; COVER
(C) M6X10 FLANGE 		0-28050-610-0 01 1 0601- ●
244 WASHER; LK,COVER 1-33119-564-0 02 1 0303- ●
244 WASHER; LK,COVER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33119-530-0 02 1 0406- ●
244 WASHER; LK,COVER
BRAKE SYSTEM RETARDER<RE2> 		1-33119-427-0 06 1 0005-0210 ●
244 WASHER; LK,COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-427-0 02 1 0211- ●
244 WASHER; LK,COVER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33119-323-0 06 1 0005-0210 ●
396 PLUNGER; SHIFT ROD
(C) 		1-33539-084-0 01 1 0303- ●
396 PLUNGER; SHIFT ROD
(D) 		1-33549-390-0 01 1 0303- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 0005-0210 ●
396 PLUNGER; SHIFT ROD
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33539-051-0 01 1 0211-0609 ●
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 0610- ●
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 0005-0210 ●
396 PLUNGER; SHIFT ROD
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) 		1-33549-229-0 01 1 0211-0609 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 0610- ●
398 SWITCH; REV LAMP 1-82440-128-0 01 1 0303- ●
398 SWITCH; REV LAMP 1-82440-103-0 01 1 0005-0210 ●
398 SWITCH; REV LAMP
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-82440-121-0 01 1 0211-0609 ●
398 SWITCH; REV LAMP 1-82440-121-0 01 1 0610- ●
398 SWITCH; REV LAMP 1-82440-102-0 01 1 0005- ●
449 HARNESS; NEUTRAL SW
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-82676-207-0 01 1 0211- ●
470 GASKET; SPRING COVER 1-33119-489-0 02 1 0303- ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 0005-0210 ●
470 GASKET; SPRING COVER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-321-0 02 1 0211-0609 ●
470 GASKET; SPRING COVER 1-33119-321-0 02 1 0610- ●
470 GASKET; SPRING COVER 1-87061-420-0 01 1 0005- ●
497 BALL; SWITCH 1-33119-308-0 01 1 0005-0210 ●
497 BALL; SWITCH
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-308-0 01 1 0211-0609 ●
497 BALL; SWITCH 1-33119-308-0 01 1 0610- ●
506 HARNESS; REV SW
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-82676-207-0 01 1 0211- ●
538 COVER; DETENT 1-33119-574-0 01 1 0303- ●
538 COVER; DETENT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33119-529-0 01 1 0406- ●
538 COVER; DETENT
BRAKE SYSTEM RETARDER<RE2> 		1-33119-425-0 01 1 0005-0210 ●
538 COVER; DETENT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33119-425-0 01 1 0211- ●
538 COVER; DETENT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33119-320-0 01 1 0005-0210 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
