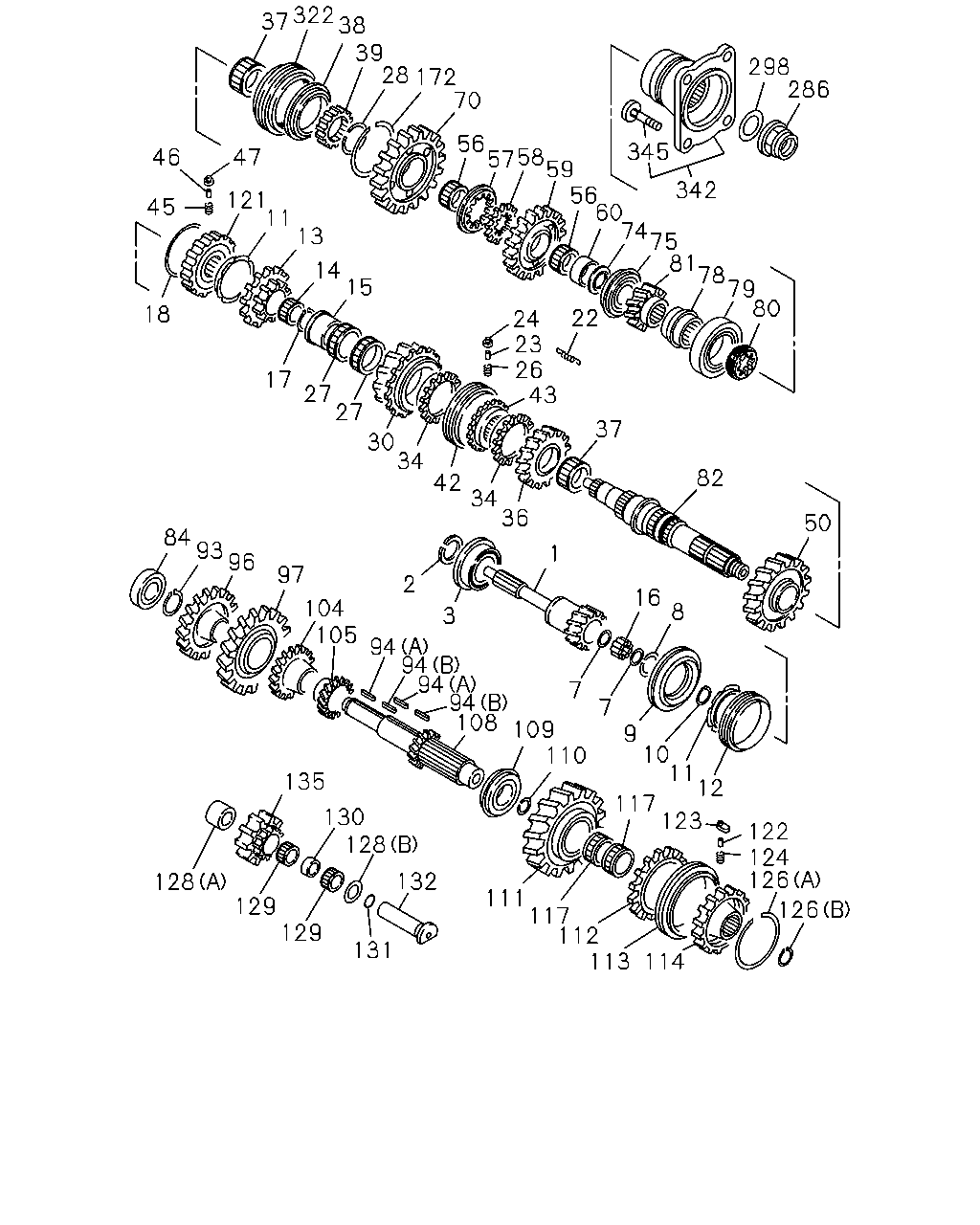

1 |
SHAFT; TOP GEAR,TRANS
Z=24
|
1-33211-505-1 |
01 |
1 |
0005-0006 |
| |
1 |
SHAFT; TOP GEAR,TRANS
Z=24
|
1-33211-987-0 |
01 |
1 |
0007-0210 |
| |
2 |
RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.53 WHITE
|
1-09588-160-1 |
AR |
1 |
0005-0210 |
| |
2 |
RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.56 YELLOW
|
1-09588-161-1 |
AR |
1 |
0005-0210 |
| |
2 |
RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.60 BLUE
|
1-09588-162-1 |
AR |
1 |
0005-0210 |
| |
2 |
RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.64 GREEN
|
1-09588-163-1 |
AR |
1 |
0005-0210 |
| |
3 |
BEARING; TOP GEAR SHAFT
NSK
|
1-09810-050-2 |
01 |
1 |
0005-0210 |
| |
7 |
WASHER; THRUST,MAINSHAFT
|
1-33239-080-1 |
02 |
1 |
0005-0210 |
| |
8 |
CLIP; DOG CLU
|
1-33219-020-0 |
01 |
1 |
0005-0210 |
| |
9 |
CLUTCH; DOG,TOP GEAR
Z=48
|
1-33265-227-2 |
01 |
1 |
0005-0210 |
| |
10 |
RING; SNAP,PILOT BRG
OD=53.2
|
1-09587-072-0 |
01 |
1 |
0005-0210 |
| |
11 |
RING; BLOCK,5TH & 6TH
Z=36
|
1-33265-281-1 |
02 |
1 |
0005-0210 |
| |
12 |
SLEEVE; 5TH & 6TH
Z=42
|
1-33262-136-0 |
01 |
1 |
0005-0210 |
| |
13 |
GEAR; 5TH,MAINSHAFT
Z=28
|
1-33253-711-0 |
01 |
1 |
0005-0210 |
| |
14 |
BEARING; NEEDLE,5TH
NSK
|
1-09811-298-0 |
01 |
1 |
0005-0210 |
| |
15 |
COLLAR; 4TH GEAR
|
1-33234-048-1 |
01 |
1 |
0005-0210 |
| |
16 |
BEARING; PILOT,MAINSHAFT
JTEKT
|
1-09844-015-0 |
13 |
1 |
0005-0210 |
| |
17 |
RING; SNAP,4TH GEAR
|
1-09588-151-1 |
01 |
1 |
0005-0210 |
| |
18 |
RING; SNAP,CLU HUB
T=2.00
|
1-09588-150-1 |
01 |
1 |
0005-0210 |
| |
22 |
SPRING; BLOCK,INSERT
|
1-09583-228-1 |
03 |
1 |
0005-0210 |
| |
23 |
PLUNGER; DETENT,SYN
|
1-33269-037-1 |
03 |
1 |
0005-0210 |
| |
24 |
BLOCK; INDEX,SYN
|
1-33269-035-1 |
03 |
1 |
0005-0210 |
| |
26 |
SPRING; BLOCK,INSERT
D=3.8
|
1-09580-395-0 |
03 |
1 |
0005-0210 |
| |
27 |
BEARING; 4TH GEAR
NSK
|
1-09811-300-0 |
02 |
1 |
0005-0210 |
| |
28 |
RING; SNAP,3RD GEAR
|
1-09588-124-1 |
01 |
1 |
0005-0210 |
| |
30 |
GEAR; 4TH,MAINSHAFT
Z=36
|
1-33253-502-0 |
01 |
1 |
0005-0210 |
| |
34 |
SYNCHRONIZER; 4TH & 3RD
|
1-33265-372-1 |
02 |
1 |
0005-0210 |
| |
36 |
GEAR; 3RD,MAINSHAFT
Z=44
|
1-33252-374-1 |
01 |
1 |
0005-0210 |
| |
37 |
BEARING; NEEDLE,2ND & 3RD
JTEKT
|
1-09811-277-0 |
02 |
1 |
0005-0210 |
| |
37 |
BEARING; NEEDLE,2ND & 3RD
NSK
|
1-09811-279-0 |
02 |
1 |
0005-0210 |
| |
38 |
SYNCHRONIZER; LOW & 2ND
|
1-33265-372-1 |
01 |
1 |
0005-0210 |
| |
39 |
HUB; CLU,LOW & 2ND
Z=54
|
1-33261-217-0 |
01 |
1 |
0005-0210 |
| |
42 |
SLEEVE
Z=54
|
1-33262-154-0 |
01 |
1 |
0005-0210 |
| |
43 |
HUB; CLU,3RD & 4TH,MAIN
Z=54
|
1-33261-218-0 |
01 |
1 |
0005-0210 |
| |
45 |
SPRING; BLOCK INSERT
D=3.8
|
1-09580-395-0 |
06 |
1 |
0005-0210 |
| |
46 |
PLUNGER; DETENT,SYN
|
1-33269-037-1 |
06 |
1 |
0005-0210 |
| |
47 |
BLOCK; INDEX,SYN
|
1-33269-035-1 |
06 |
1 |
0005-0210 |
| |
50 |
GEAR; 2ND,MAINSHAFT
Z=48
|
1-33251-294-1 |
01 |
1 |
0005-0210 |
| |
56 |
BEARING; NEEDLE,1ST,REV
JTEKT
|
1-09811-320-0 |
02 |
1 |
0005-0210 |
| |
57 |
SLEEVE; REV
Z=40
|
1-33262-110-0 |
01 |
1 |
0005-0210 |
| |
58 |
HUB; CLU,REV
Z=26
|
1-33261-132-2 |
01 |
1 |
0005-0210 |
| |
59 |
GEAR; REV MAINSHAFT
Z=44
|
1-33257-060-1 |
01 |
1 |
0005-0210 |
| |
60 |
COLLAR; REV MAIN
|
1-33234-059-0 |
01 |
1 |
0005-0009 |
| |
60 |
COLLAR; REV MAIN
|
1-33234-095-0 |
01 |
1 |
0010-0210 |
| |
70 |
GEAR; 1ST,MAINSHAFT
Z=52
|
1-33255-055-1 |
01 |
1 |
0005-0210 |
| |
74 |
WASHER; THRUST,REV GEAR
|
1-33239-035-2 |
01 |
1 |
0005-0210 |
| |
75 |
BEARING; MAINSHAFT
NSK
|
1-09810-047-1 |
01 |
1 |
0005-0210 |
| |
75 |
BEARING; MAINSHAFT
NTN
|
1-09810-154-0 |
01 |
1 |
0005-0210 |
| |
78 |
COLLAR; DIST,MAINSHAFT BRG
|
1-33235-085-0 |
01 |
1 |
0005-0210 |
| |
79 |
BEARING; BALL,MAINSHAFT
JTEKT
|
1-09800-150-0 |
01 |
1 |
0005-0210 |
| |
79 |
BEARING; BALL,MAINSHAFT
NTN
|
1-09800-151-0 |
01 |
1 |
0005-0210 |
| |
80 |
GEAR; SPD DRIVE
Z=5
|
1-33371-041-2 |
01 |
1 |
0005-0210 |
| |
81 |
GEAR; 7TH,MAIN
Z=19
|
1-33254-013-0 |
01 |
1 |
0005-0210 |
| |
82 |
SHAFT; MAIN,TRANS
Z=19-34-37-26-20
|
1-33231-271-0 |
01 |
1 |
0005-0210 |
| |
84 |
BEARING; COUNTER SHAFT,FRT
NSK
|
1-09810-140-0 |
01 |
1 |
0005-0210 |
| |
93 |
RING; SNAP,COUNTER FRT BRG
ID=55.8
|
1-09588-125-0 |
01 |
1 |
0005-0210 |
| |
94 |
KEY; FEATHER,COUNTER SHAFT
(A)
L=47
|
1-09735-022-1 |
02 |
1 |
0005-0210 |
| |
94 |
KEY; FEATHER,COUNTER SHAFT
(B)
L=55
|
1-09735-025-0 |
02 |
1 |
0005-0210 |
| |
96 |
GEAR; COUNTER DRIVE
Z=43
|
1-33331-215-1 |
01 |
1 |
0005-0210 |
| |
97 |
GEAR; 5TH,COUNTER
Z=40
|
1-33332-113-0 |
01 |
1 |
0005-0210 |
| |
104 |
GEAR; 4TH,COUNTER
Z=33
|
1-33332-122-0 |
01 |
1 |
0005-0210 |
| |
105 |
GEAR; 3RD,COUNTER
Z=27
|
1-33333-160-0 |
01 |
1 |
0005-0210 |
| |
108 |
SHAFT; COUNTER
Z=19-13
|
1-33311-274-0 |
01 |
1 |
0005-0210 |
| |
109 |
BEARING; COUNTER SHAFT,RR
JTEKT
|
1-09810-039-1 |
01 |
1 |
0005-0210 |
| |
109 |
BEARING; COUNTER SHAFT,RR
NSK
|
1-09810-041-1 |
01 |
1 |
0005-0210 |
| |
110 |
RING; SNAP,COUNTER BRG
ID=46.3
|
1-09588-047-0 |
01 |
1 |
0005-0210 |
| |
111 |
GEAR; 7TH COUNTER SHAFT
Z=45
|
1-33338-311-1 |
01 |
1 |
0005-0210 |
| |
112 |
RING; BLOCK,7TH SYN
Z=36
|
1-33265-281-1 |
01 |
1 |
0005-0210 |
| |
113 |
SLEEVE; 7TH COUNTER SHAFT
|
1-33262-111-3 |
01 |
1 |
0005-0210 |
| |
114 |
HUB; CLU,7TH
|
1-33261-159-1 |
01 |
1 |
0005-0210 |
| |
117 |
BEARING; NEEDLE,7TH,COUNTER SHAFT
NSK
|
1-09811-105-0 |
02 |
1 |
0005-0210 |
| |
121 |
HUB; CLU,6TH
|
1-33261-156-2 |
01 |
1 |
0005-0210 |
| |
122 |
PLUNGER; DETENT,SYN
|
1-33269-037-1 |
03 |
1 |
0005-0210 |
| |
123 |
BLOCK; INDEX,SYN
|
1-33269-035-1 |
03 |
1 |
0005-0210 |
| |
124 |
SPRING; PLUNGER,CLU HUB
D=3.8
|
1-09580-395-0 |
03 |
1 |
0005-0210 |
| |
126 |
RING; SNAP,CLU HUB
(A)
OD=121.2
|
1-09587-031-0 |
01 |
1 |
0005-0210 |
| |
126 |
RING; SNAP,CLU HUB
(B)
OD=55.8
|
1-09588-043-0 |
01 |
1 |
0005-0210 |
| |
128 |
WASHER; THRUST,REV SHAFT
(A)
ID=38.5 T=42
|
1-33239-079-1 |
01 |
1 |
0005-0210 |
| |
128 |
WASHER; THRUST,REV SHAFT
(B)
ID=38.5 T=2
|
1-33363-024-1 |
01 |
1 |
0005-0210 |
| |
129 |
BEARING; NEEDLE,IDLER
JTEKT
|
1-09811-102-0 |
02 |
1 |
0005-0210 |
| |
129 |
BEARING; NEEDLE,IDLER
NTN
|
1-09811-103-0 |
02 |
1 |
0005-0210 |
| |
130 |
COLLAR; DIST,NEEDLE BRG
|
1-33363-023-0 |
01 |
1 |
0005-0210 |
| |
131 |
GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T).
|
1-09623-384-0 |
01 |
1 |
0005-0210 |
| |
132 |
SHAFT; REV
|
1-33351-017-0 |
01 |
1 |
0005-0210 |
| |
135 |
GEAR; REV IDLER
Z=30-25
|
1-33361-063-0 |
01 |
1 |
0005-0210 |
| |
172 |
RING; SNAP,CLU HUB
ID=130 T=2.5
|
1-09588-040-0 |
01 |
1 |
0005-0210 |
| |
286 |
NUT; LK,MAINSHAFT
M36 FLANGE
|
1-09449-063-0 |
01 |
1 |
0005-0210 |
| |
298 |
GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T).
ID=47 T=5
|
1-09623-380-0 |
01 |
1 |
0005-0210 |
| |
322 |
SLEEVE; SYN,LOW & 2ND
|
1-33262-153-1 |
01 |
1 |
0005-0210 |
| |
342 |
FLANGE; OUTPUT
|
1-37243-297-0 |
01 |
1 |
0005-0210 |
| |
345 |
BOLT; FLANGE TO YOKE
M16X51 W/MARK
|
1-46219-086-0 |
04 |
1 |
0005-0210 |
