◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25C - SPEEDOMETER DRIVEN GEAR ▶
2-25C — SPEEDOMETER DRIVEN GEAR (#9245) — 15 parça

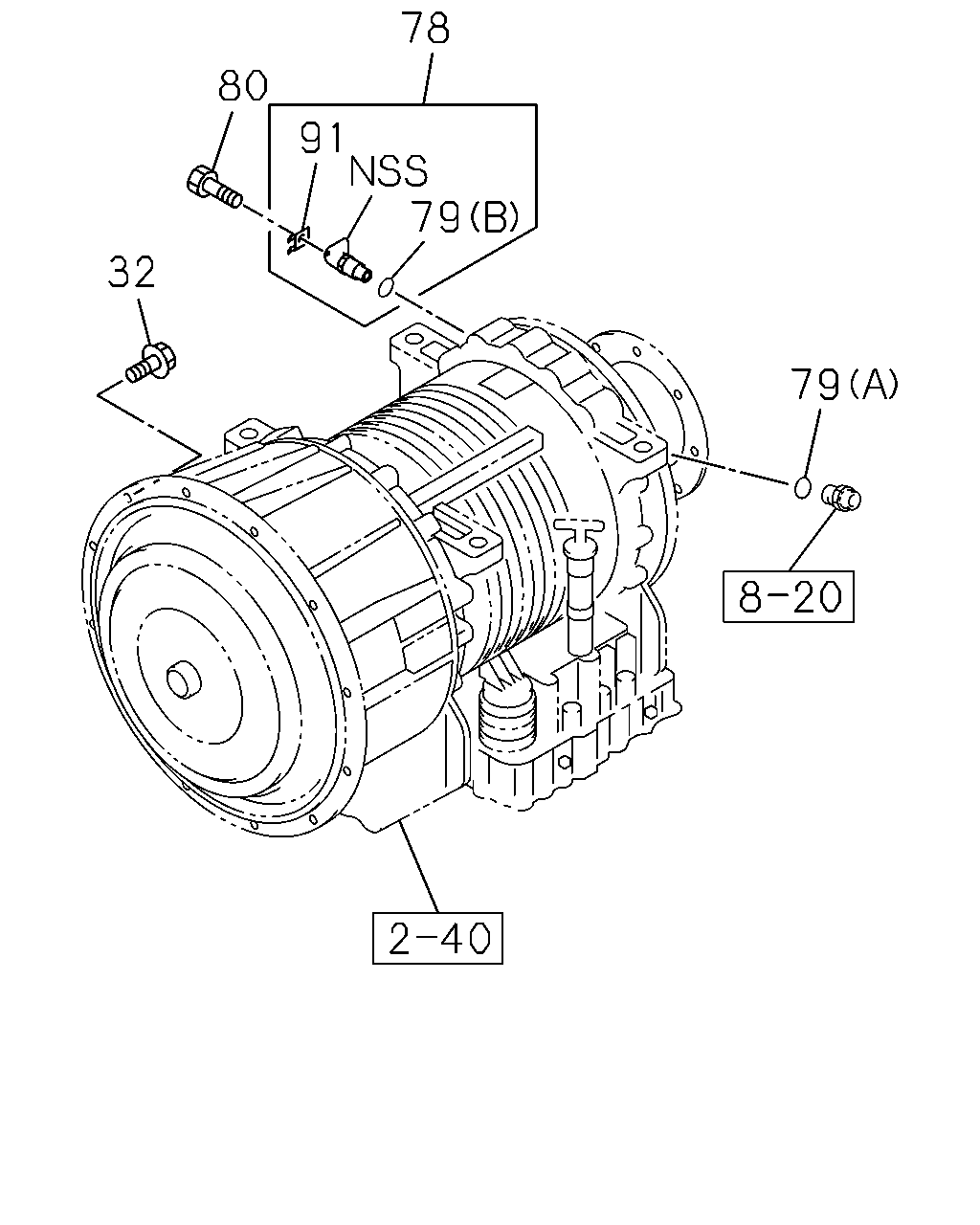

çizim 48908
78 80 91 79 32 79
BalonParca AdiParca NoAdetTipApplied Date A B
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X40 FLANGE 		0-28181-040-0 12 1 0005-0512 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X40 FLANGE 		0-28151-040-0 12 1 0601- ● ●
78 SENSOR; SPD 1-34119-020-0 02 1 0005-0112 ●
78 SENSOR; SPD 1-34119-020-0 02 1 0201-0501 ● ●
78 SENSOR; SPD 1-34119-018-0 02 1 0502- ● ●
78 SENSOR; SPD 1-34119-018-0 02 1 0005-0112 ●
79 GASKET; SPD SENSOR
(A) T=0.6 		8-98087-226-0 AR 1 0707- ● ●
79 GASKET; SPD SENSOR
(A) T=1.0 		8-98087-227-0 AR 1 0707- ● ●
79 GASKET; SPD SENSOR
(A) 		1-34119-070-0 01 1 0005-0112 ●
79 GASKET; SPD SENSOR
(B) 		1-34119-021-0 02 1 0005- ● ●
79 GASKET; SPD SENSOR
(A) T=1.2 		1-80249-003-0 01 1 0005-0112 ●
79 GASKET; SPD SENSOR
(A) T=1.2 		1-80249-003-0 01 1 0201-0706 ● ●
79 GASKET; SPD SENSOR
(A) T=1.2 		1-80249-003-0 AR 1 0707- ● ●
80 BOLT; SPD SENSOR 1-34119-022-0 02 1 0005- ● ●
91 RETAINER; SPEED SENSOR 1-34119-073-0 02 1 0005- ● ●
