Sayfa 2-25B - Isuzu EPC

2-25B — SPEEDOMETER DRIVEN GEAR (#9244) — 188 parça

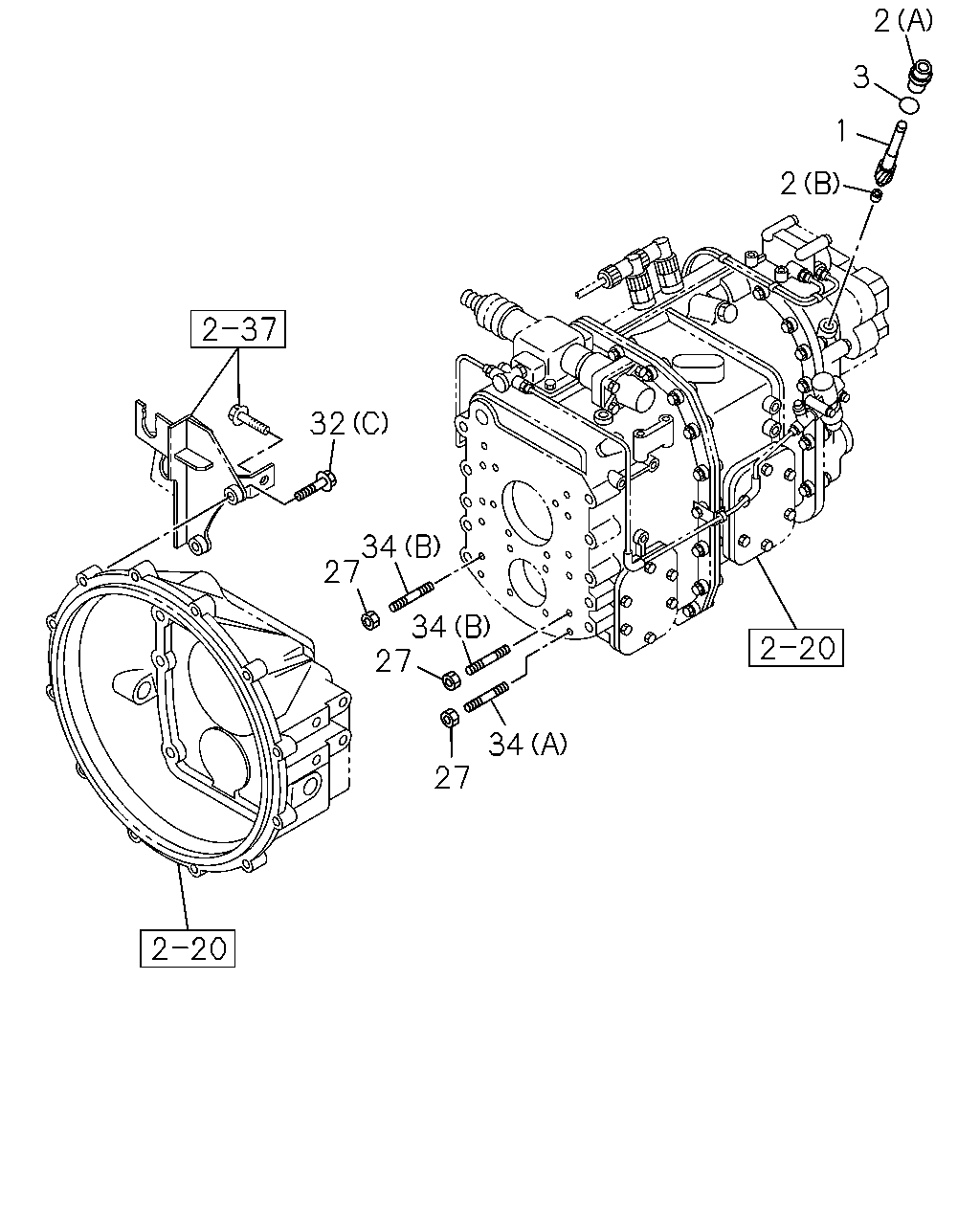

2 3 1 2 32 34 27 34 27 34 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	GEAR; DRIVEN,SPD	1-33372-193-0	01	1	0303-	●
1	GEAR; DRIVEN,SPD Z=14	1-33372-181-0	01	1	0005-0210		●
1	GEAR; DRIVEN,SPD 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> Z=14	1-33372-181-0	01	1	0211-0609			●
1	GEAR; DRIVEN,SPD Z=14	1-33372-181-0	01	1	0610-			●
1	GEAR; DRIVEN,SPD Z=14	1-33372-158-0	01	1	0005-				●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (C)	1-33379-020-0	01	1	0303-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (A)	1-33379-009-0	01	1	0005-0210		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A)	1-33379-009-0	01	1	0211-0609			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (A)	1-33379-009-0	01	1	0610-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (B)	1-87060-757-0	01	1	0005-0210		●		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (B)	1-87060-757-0	01	1	0211-			●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). BRAKE SYSTEM RETARDER<RE2>	1-33379-014-0	01	1	0005-0210		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY>	1-33379-014-0	01	1	0211-0302			●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L)	1-33379-014-0	01	1	0303-0609			●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 6HK1 TCS ENG(80L)	1-33379-014-0	01	1	0303-0609	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-33379-014-0	01	1	0610-	●		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). EXC. BRAKE SYSTEM RETARDER<RE2>	1-33379-010-0	01	1	0005-0210		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-87060-995-0	01	1	0005-				●
27	NUT; CLU HSG TO TRANS	1-33119-582-0	12	1	0303-	●
27	NUT; CLU HSG TO TRANS 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY>	1-33119-537-0	12	1	0406-			●
27	NUT; CLU HSG TO TRANS	1-33119-314-0	12	1	0005-0210		●
27	NUT; CLU HSG TO TRANS 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY>	1-33119-314-0	12	1	0211-			●
27	NUT; CLU HSG TO TRANS	1-87061-220-0	06	1	0005-				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	0005-0210				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	0211-0512				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28751-030-0	10	1	0601-				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	0005-0210				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	0211-0805				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	8-98010-334-0	02	1	0806-				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28181-045-0	02	1	0005-0210		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28181-045-0	02	1	0211-0302			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28181-045-0	02	1	0303-0512	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28151-045-0	02	1	0601-	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X35 FLANGE	0-28781-035-0	10	1	0005-0210		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X35 FLANGE	0-28781-035-0	10	1	0211-0302			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X35 FLANGE	0-28781-035-0	10	1	0303-0512	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X35 FLANGE	0-28751-035-0	10	1	0601-	●		●
34	STUD; CLU HSG (E)	1-33119-580-0	02	1	0303-	●
34	STUD; CLU HSG (D)	1-33119-581-0	10	1	0303-	●
34	STUD; CLU HSG 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A)	1-33119-535-0	10	1	0406-			●
34	STUD; CLU HSG 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (B)	1-33119-536-0	02	1	0406-			●
34	STUD; CLU HSG (A) M12X75	1-33119-312-0	10	1	0005-0210		●
34	STUD; CLU HSG 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) M12X75	1-33119-312-0	10	1	0211-			●
34	STUD; CLU HSG (B) M12X65	1-33119-313-0	02	1	0005-0210		●
34	STUD; CLU HSG 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) M12X65	1-33119-313-0	02	1	0211-			●
34	STUD; CLU HSG (C)	1-87061-431-0	06	1	0005-				●

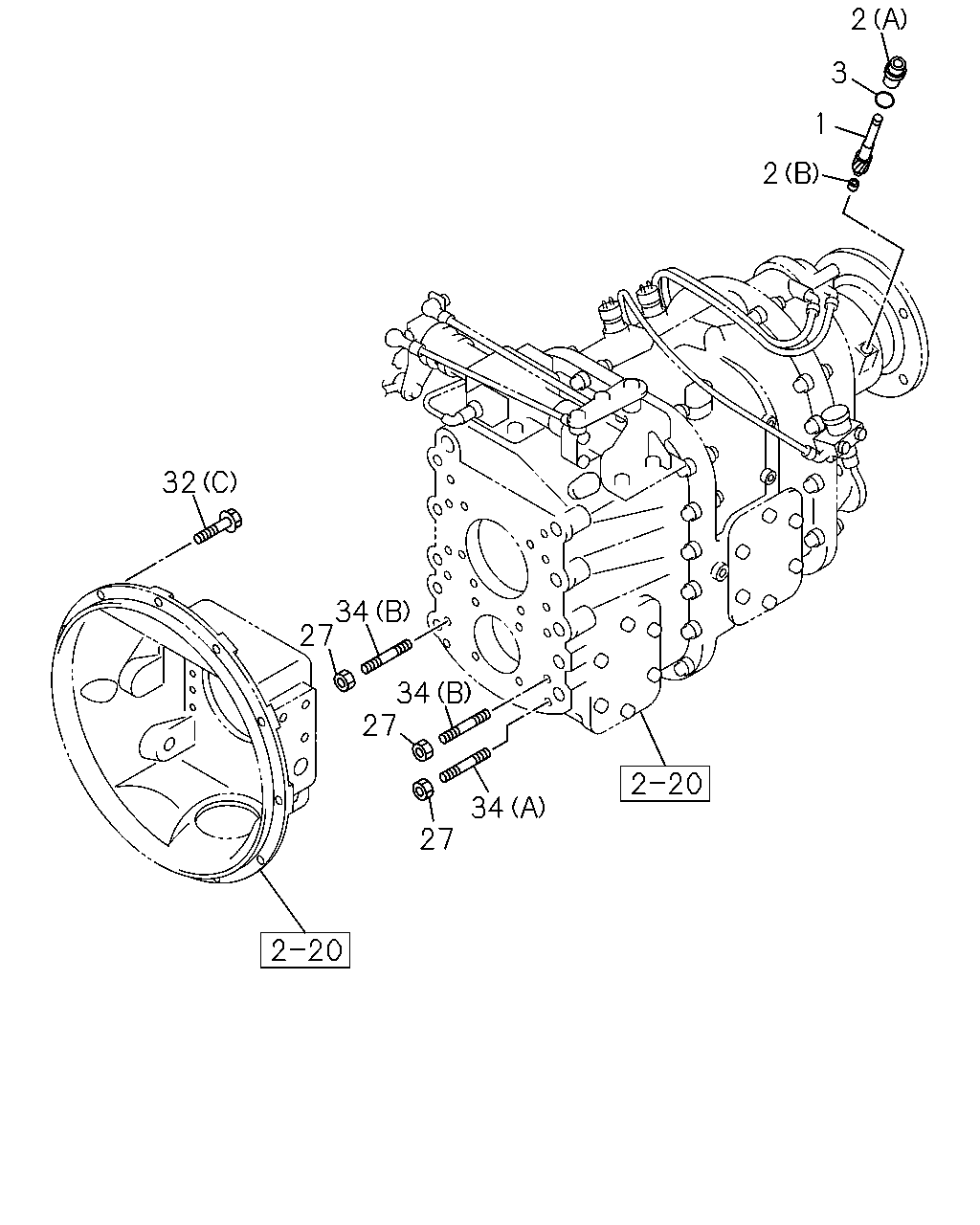

3 1 2 32 34 27 34 27 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	GEAR; DRIVEN,SPD	1-33372-193-0	01	1	0303-	●
1	GEAR; DRIVEN,SPD Z=14	1-33372-181-0	01	1	0005-0210		●
1	GEAR; DRIVEN,SPD 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> Z=14	1-33372-181-0	01	1	0211-0609			●
1	GEAR; DRIVEN,SPD Z=14	1-33372-181-0	01	1	0610-			●
1	GEAR; DRIVEN,SPD Z=14	1-33372-158-0	01	1	0005-				●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (C)	1-33379-020-0	01	1	0303-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (A)	1-33379-009-0	01	1	0005-0210		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A)	1-33379-009-0	01	1	0211-0609			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (A)	1-33379-009-0	01	1	0610-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (B)	1-87060-757-0	01	1	0005-0210		●		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (B)	1-87060-757-0	01	1	0211-			●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). BRAKE SYSTEM RETARDER<RE2>	1-33379-014-0	01	1	0005-0210		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY>	1-33379-014-0	01	1	0211-0302			●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L)	1-33379-014-0	01	1	0303-0609			●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 6HK1 TCS ENG(80L)	1-33379-014-0	01	1	0303-0609	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-33379-014-0	01	1	0610-	●		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). EXC. BRAKE SYSTEM RETARDER<RE2>	1-33379-010-0	01	1	0005-0210		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-87060-995-0	01	1	0005-				●
27	NUT; CLU HSG TO TRANS	1-33119-582-0	12	1	0303-	●
27	NUT; CLU HSG TO TRANS 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY>	1-33119-537-0	12	1	0406-			●
27	NUT; CLU HSG TO TRANS	1-33119-314-0	12	1	0005-0210		●
27	NUT; CLU HSG TO TRANS 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY>	1-33119-314-0	12	1	0211-			●
27	NUT; CLU HSG TO TRANS	1-87061-220-0	06	1	0005-				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	0005-0210				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	0211-0512				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28751-030-0	10	1	0601-				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	0005-0210				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	0211-0805				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	8-98010-334-0	02	1	0806-				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28181-045-0	02	1	0005-0210		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28181-045-0	02	1	0211-0302			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28181-045-0	02	1	0303-0512	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28151-045-0	02	1	0601-	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X35 FLANGE	0-28781-035-0	10	1	0005-0210		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X35 FLANGE	0-28781-035-0	10	1	0211-0302			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X35 FLANGE	0-28781-035-0	10	1	0303-0512	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X35 FLANGE	0-28751-035-0	10	1	0601-	●		●
34	STUD; CLU HSG (E)	1-33119-580-0	02	1	0303-	●
34	STUD; CLU HSG (D)	1-33119-581-0	10	1	0303-	●
34	STUD; CLU HSG 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A)	1-33119-535-0	10	1	0406-			●
34	STUD; CLU HSG 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (B)	1-33119-536-0	02	1	0406-			●
34	STUD; CLU HSG (A) M12X75	1-33119-312-0	10	1	0005-0210		●
34	STUD; CLU HSG 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) M12X75	1-33119-312-0	10	1	0211-			●
34	STUD; CLU HSG (B) M12X65	1-33119-313-0	02	1	0005-0210		●
34	STUD; CLU HSG 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) M12X65	1-33119-313-0	02	1	0211-			●
34	STUD; CLU HSG (C)	1-87061-431-0	06	1	0005-				●

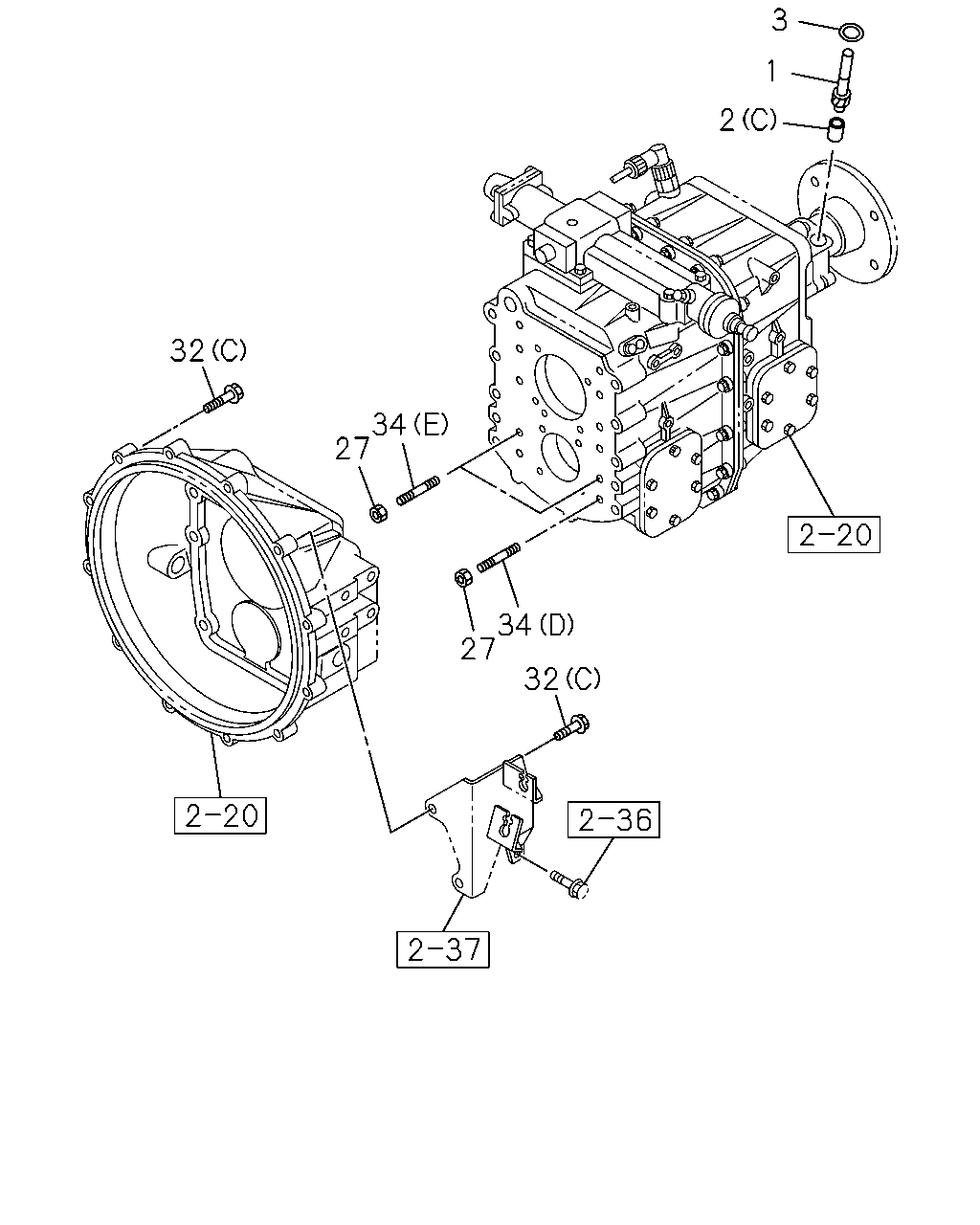

2 3 1 2 32 34 27 34 27 34 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	GEAR; DRIVEN,SPD	1-33372-193-0	01	1	0303-	●
1	GEAR; DRIVEN,SPD Z=14	1-33372-181-0	01	1	0005-0210		●
1	GEAR; DRIVEN,SPD 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> Z=14	1-33372-181-0	01	1	0211-0609			●
1	GEAR; DRIVEN,SPD Z=14	1-33372-181-0	01	1	0610-			●
1	GEAR; DRIVEN,SPD Z=14	1-33372-158-0	01	1	0005-				●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (C)	1-33379-020-0	01	1	0303-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (A)	1-33379-009-0	01	1	0005-0210		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A)	1-33379-009-0	01	1	0211-0609			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (A)	1-33379-009-0	01	1	0610-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (B)	1-87060-757-0	01	1	0005-0210		●		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (B)	1-87060-757-0	01	1	0211-			●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). BRAKE SYSTEM RETARDER<RE2>	1-33379-014-0	01	1	0005-0210		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY>	1-33379-014-0	01	1	0211-0302			●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L)	1-33379-014-0	01	1	0303-0609			●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 6HK1 TCS ENG(80L)	1-33379-014-0	01	1	0303-0609	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-33379-014-0	01	1	0610-	●		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). EXC. BRAKE SYSTEM RETARDER<RE2>	1-33379-010-0	01	1	0005-0210		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-87060-995-0	01	1	0005-				●
27	NUT; CLU HSG TO TRANS	1-33119-582-0	12	1	0303-	●
27	NUT; CLU HSG TO TRANS 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY>	1-33119-537-0	12	1	0406-			●
27	NUT; CLU HSG TO TRANS	1-33119-314-0	12	1	0005-0210		●
27	NUT; CLU HSG TO TRANS 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY>	1-33119-314-0	12	1	0211-			●
27	NUT; CLU HSG TO TRANS	1-87061-220-0	06	1	0005-				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	0005-0210				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	0211-0512				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28751-030-0	10	1	0601-				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	0005-0210				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	0211-0805				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	8-98010-334-0	02	1	0806-				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28181-045-0	02	1	0005-0210		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28181-045-0	02	1	0211-0302			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28181-045-0	02	1	0303-0512	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28151-045-0	02	1	0601-	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X35 FLANGE	0-28781-035-0	10	1	0005-0210		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X35 FLANGE	0-28781-035-0	10	1	0211-0302			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X35 FLANGE	0-28781-035-0	10	1	0303-0512	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X35 FLANGE	0-28751-035-0	10	1	0601-	●		●
34	STUD; CLU HSG (E)	1-33119-580-0	02	1	0303-	●
34	STUD; CLU HSG (D)	1-33119-581-0	10	1	0303-	●
34	STUD; CLU HSG 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A)	1-33119-535-0	10	1	0406-			●
34	STUD; CLU HSG 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (B)	1-33119-536-0	02	1	0406-			●
34	STUD; CLU HSG (A) M12X75	1-33119-312-0	10	1	0005-0210		●
34	STUD; CLU HSG 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) M12X75	1-33119-312-0	10	1	0211-			●
34	STUD; CLU HSG (B) M12X65	1-33119-313-0	02	1	0005-0210		●
34	STUD; CLU HSG 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) M12X65	1-33119-313-0	02	1	0211-			●
34	STUD; CLU HSG (C)	1-87061-431-0	06	1	0005-				●

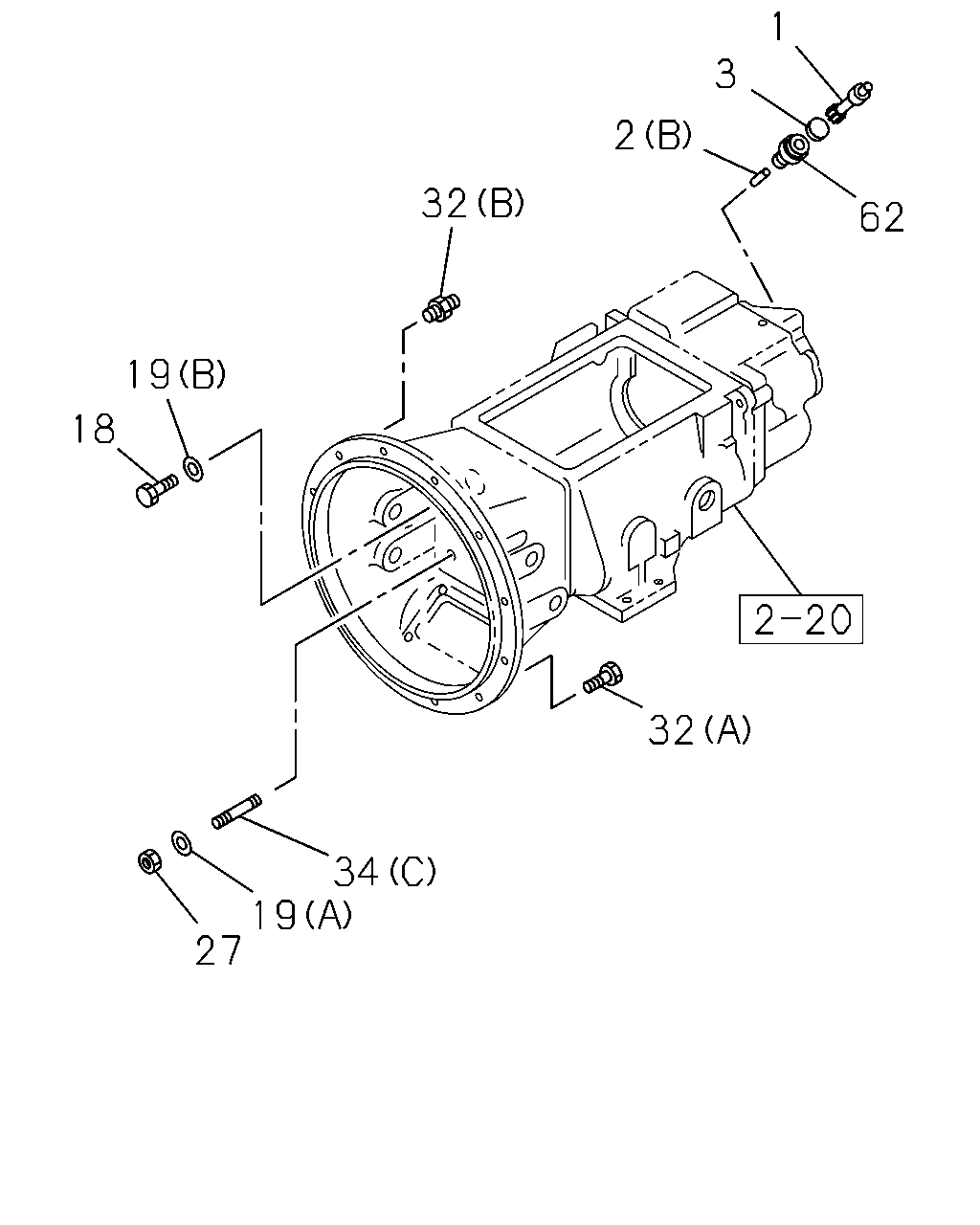

1 3 2 32 62 19 18 32 34 19 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	GEAR; DRIVEN,SPD	1-33372-193-0	01	1	0303-	●
1	GEAR; DRIVEN,SPD Z=14	1-33372-181-0	01	1	0005-0210		●
1	GEAR; DRIVEN,SPD 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> Z=14	1-33372-181-0	01	1	0211-0609			●
1	GEAR; DRIVEN,SPD Z=14	1-33372-181-0	01	1	0610-			●
1	GEAR; DRIVEN,SPD Z=14	1-33372-158-0	01	1	0005-				●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (C)	1-33379-020-0	01	1	0303-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (A)	1-33379-009-0	01	1	0005-0210		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A)	1-33379-009-0	01	1	0211-0609			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (A)	1-33379-009-0	01	1	0610-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (B)	1-87060-757-0	01	1	0005-0210		●		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (B)	1-87060-757-0	01	1	0211-			●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). BRAKE SYSTEM RETARDER<RE2>	1-33379-014-0	01	1	0005-0210		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY>	1-33379-014-0	01	1	0211-0302			●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L)	1-33379-014-0	01	1	0303-0609			●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 6HK1 TCS ENG(80L)	1-33379-014-0	01	1	0303-0609	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-33379-014-0	01	1	0610-	●		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). EXC. BRAKE SYSTEM RETARDER<RE2>	1-33379-010-0	01	1	0005-0210		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-87060-995-0	01	1	0005-				●
18	BOLT; CLU HSG TO TRANS	1-87061-537-0	02	1	0005-				●
19	WASHER; PL,CLU HSG TO TRANS (A)	1-87060-770-0	06	1	0005-				●
19	WASHER; PL,CLU HSG TO TRANS (B)	1-87061-525-0	02	1	0005-				●
27	NUT; CLU HSG TO TRANS	1-33119-582-0	12	1	0303-	●
27	NUT; CLU HSG TO TRANS 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY>	1-33119-537-0	12	1	0406-			●
27	NUT; CLU HSG TO TRANS	1-33119-314-0	12	1	0005-0210		●
27	NUT; CLU HSG TO TRANS 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY>	1-33119-314-0	12	1	0211-			●
27	NUT; CLU HSG TO TRANS	1-87061-220-0	06	1	0005-				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	0005-0210				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28781-030-0	10	1	0211-0512				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X30 FLANGE	0-28751-030-0	10	1	0601-				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	0005-0210				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	1-09049-014-1	02	1	0211-0805				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X20,M10X26 L=56	8-98010-334-0	02	1	0806-				●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28181-045-0	02	1	0005-0210		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28181-045-0	02	1	0211-0302			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28181-045-0	02	1	0303-0512	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28151-045-0	02	1	0601-	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X35 FLANGE	0-28781-035-0	10	1	0005-0210		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X35 FLANGE	0-28781-035-0	10	1	0211-0302			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X35 FLANGE	0-28781-035-0	10	1	0303-0512	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X35 FLANGE	0-28751-035-0	10	1	0601-	●		●
34	STUD; CLU HSG (E)	1-33119-580-0	02	1	0303-	●
34	STUD; CLU HSG (D)	1-33119-581-0	10	1	0303-	●
34	STUD; CLU HSG 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A)	1-33119-535-0	10	1	0406-			●
34	STUD; CLU HSG 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (B)	1-33119-536-0	02	1	0406-			●
34	STUD; CLU HSG (A) M12X75	1-33119-312-0	10	1	0005-0210		●
34	STUD; CLU HSG 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) M12X75	1-33119-312-0	10	1	0211-			●
34	STUD; CLU HSG (B) M12X65	1-33119-313-0	02	1	0005-0210		●
34	STUD; CLU HSG 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (B) M12X65	1-33119-313-0	02	1	0211-			●
34	STUD; CLU HSG (C)	1-87061-431-0	06	1	0005-				●
62	SLEEVE; DRIVEN GEAR	1-87061-234-0	01	1	0005-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
