2-05C — CLUTCH PIPING (#9234) — 21 parça

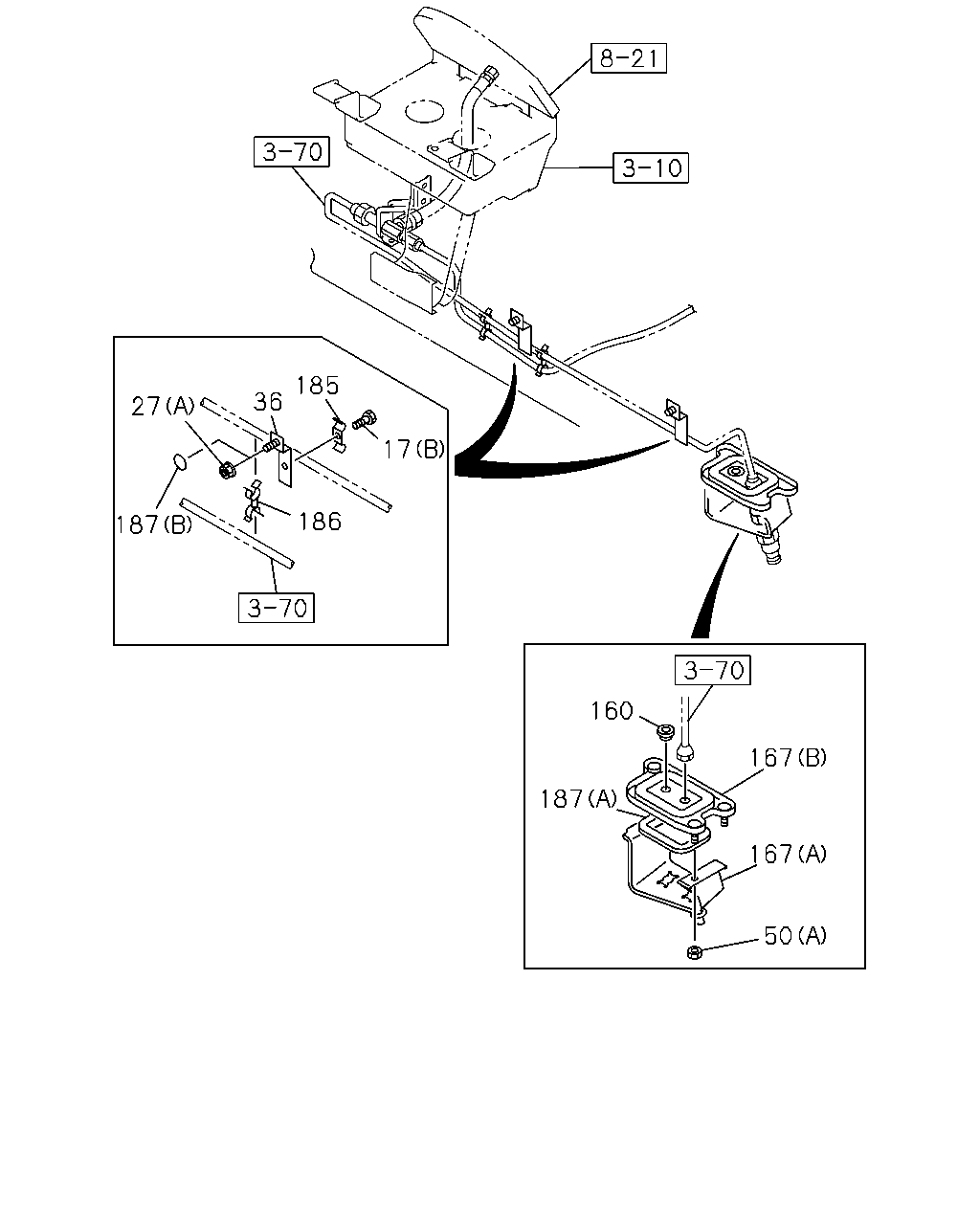

çizim 43182
185 36 27 17 186 187 160 167 187 167 50
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0210 ● ●
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211- ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0005-0210 ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0211- ● ●
36 BRACKET; CLIP 1-79738-186-1 02 1 0005-0210 ● ●
36 BRACKET; CLIP 1-79738-186-1 02 1 0211- ● ●
50 NUT; UNION
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0005-0210 ● ●
50 NUT; UNION
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0211- ● ●
160 GROMMET; OIL PIPE
OD=31.6 		8-94198-177-0 01 1 0005- ● ●
167 BRACKET; UNION
(A) 		1-79738-193-6 01 1 0005-0011 ● ●
167 BRACKET; UNION
(A) 		1-79738-193-6 01 1 0012-0210 ● ●
167 BRACKET; UNION
(A) 		1-79738-847-2 01 1 0211- ● ●
167 BRACKET; UNION
(B) 		1-79738-845-0 01 1 0005-0210 ● ●
167 BRACKET; UNION
(B) 		1-79738-845-1 01 1 0211- ● ●
185 CLIP; BRKT
ID=5 & 8 		5-09700-165-0 02 1 0005-0210 ● ●
185 CLIP; BRKT
ID=5 & 8 		5-09700-165-0 02 1 0211- ● ●
186 HOLDER; CLIP
ID=6 & 4.8 		8-94313-325-0 02 1 0005-0210 ● ●
186 HOLDER; CLIP
ID=6 & 4.8 		8-94313-325-0 02 1 0211- ● ●
187 SEAL; BRKT
(A) 		1-79738-190-0 01 1 0005-0210 ● ●
187 SEAL; BRKT
(A) 		1-79738-190-0 01 1 0211- ● ●
187 SEAL; BRKT
(B) OD=25 BLACK 		1-76798-019-0 02 1 0005- ● ●
