2-05A — CLUTCH PIPING (#9232) — 56 parça

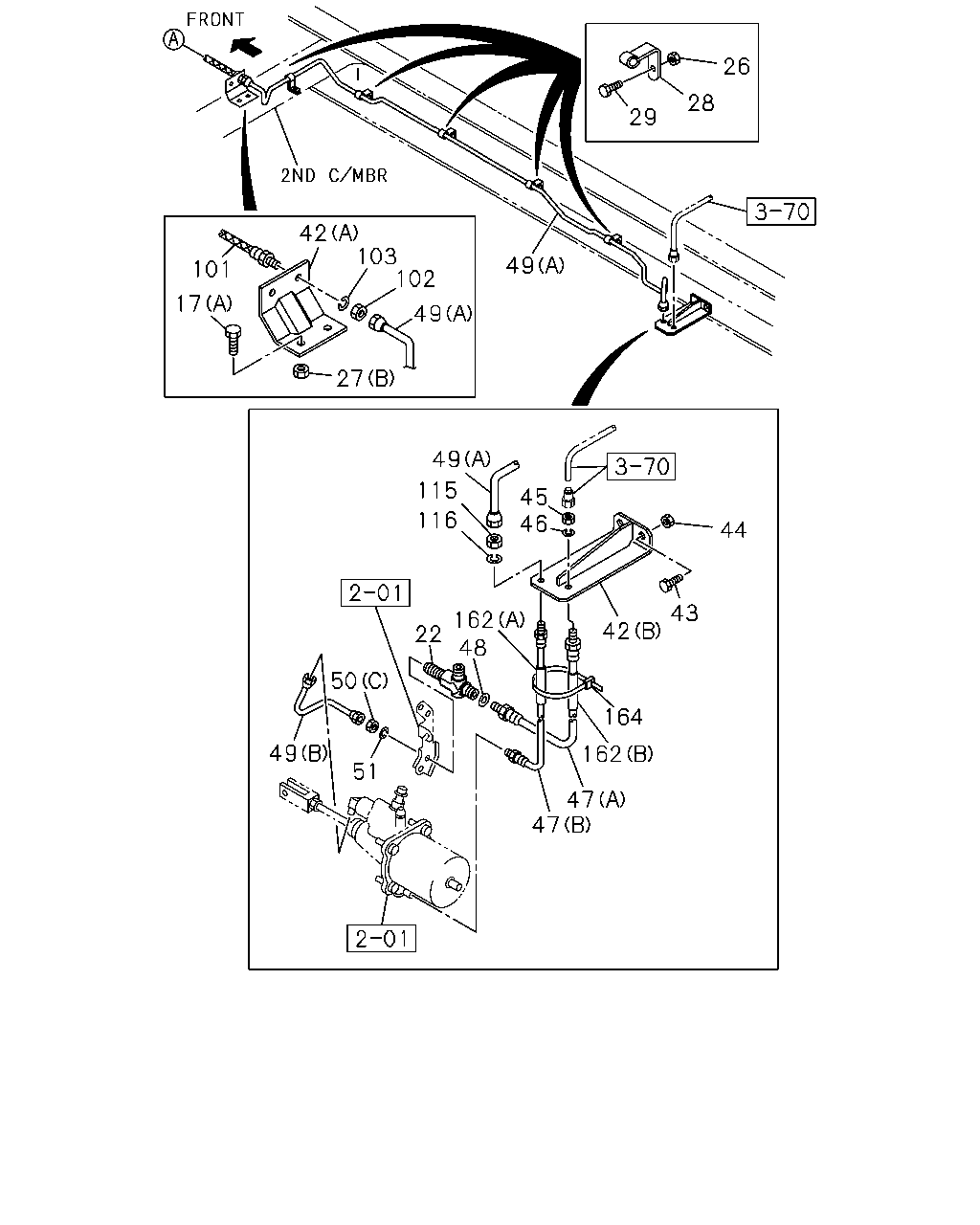

26 28 29 42 103 102 49 101 17 49 27 49 115 45 46 116 44 43 42 162 48 22 50 164 49 162 51 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0210
22	UNION; CLU PIPE M12 3WAY	9-09228-706-1	01	1	0005-0210
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	05	1	0005-0210
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0210
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0210
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	05	1	0005-0210
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	05	1	0005-0210
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-0210
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-912-1	01	1	0005-0210
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0005-0210
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0210
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0005-0210
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	0005-0210
47	HOSE; FLEX,CLU CONT (A) OD=12.7 L=450	1-09363-631-0	01	1	0005-0210
47	HOSE; FLEX,CLU CONT (B) L=500	1-09364-329-0	01	1	0005-0210
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0005-0210
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=3129 SERVICED BY L=3300	1-47426-398-0	01	1	0005-0210
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=204	1-49117-400-0	01	1	0005-0210
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0210
50	NUT; UNION (C) M12	9-09840-280-0	01	1	0005-0210
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0005-0210
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	0005-0210
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0210
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0210
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0210
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0210
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0210
162	COVER; RUBBER,FLEX HOSE (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	0005-0210
162	COVER; RUBBER,FLEX HOSE (B) ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	0005-0210
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0005-0210

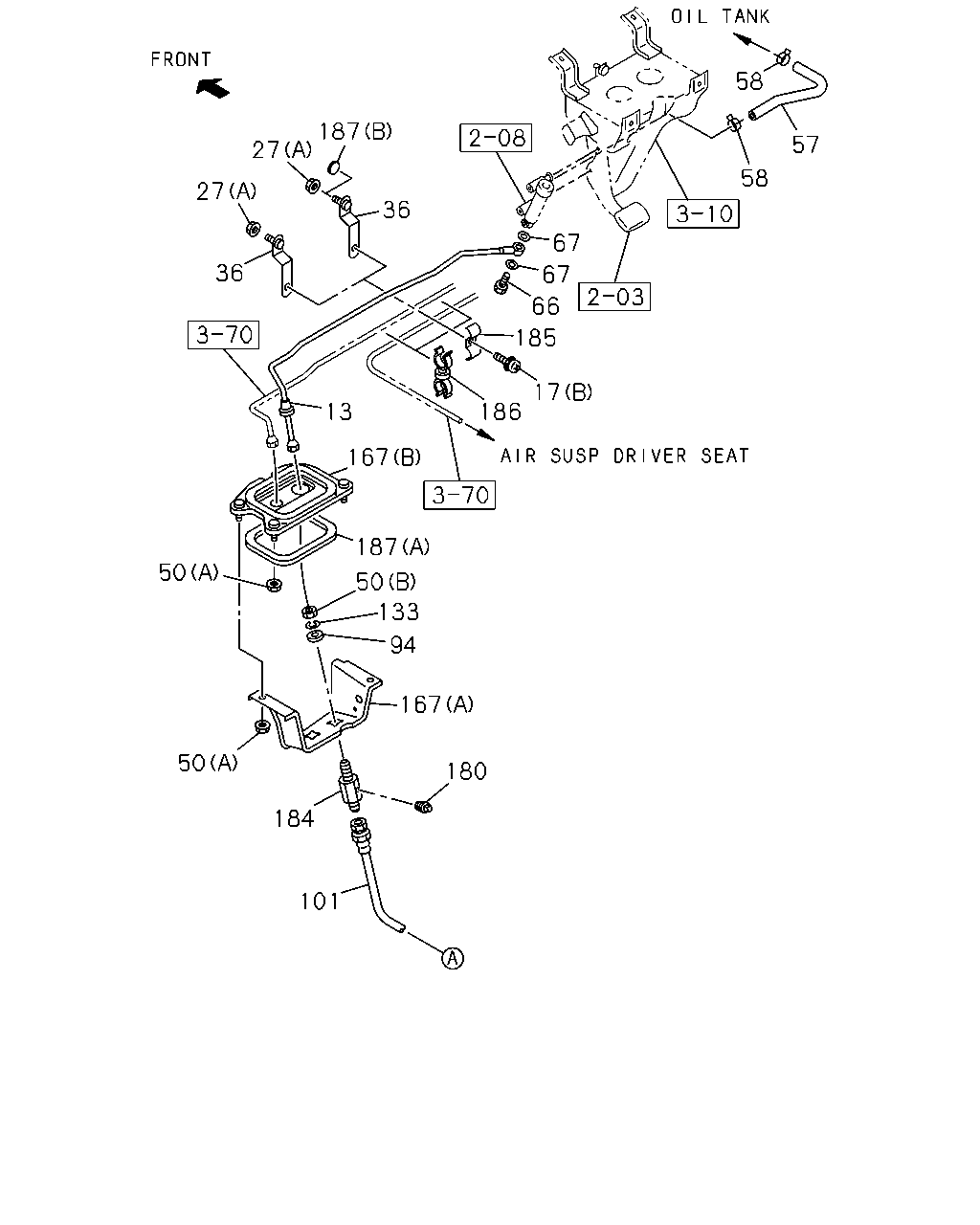

58 187 57 27 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 94 167 50 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0005-0210
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0210
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0210
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0210
36	BRACKET; CLIP	1-79738-186-1	02	1	0005-0210
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0210
50	NUT; UNION (C) M12	9-09840-280-0	01	1	0005-0210
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0005-0210
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0005-0210
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0005-0210
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0005-0210
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0005-0210
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0210
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0005-0210
167	BRACKET; UNION (A)	1-79738-193-6	01	1	0005-0011
167	BRACKET; UNION (A)	1-79738-193-6	01	1	0012-0210
167	BRACKET; UNION (B)	1-79738-845-0	01	1	0005-0210
180	PLUG; PIPE	9-09204-510-0	01	1	0005-0210
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0005-0210
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0005-0210
186	HOLDER; CLIP ID=6 & 4.8	8-94313-325-0	02	1	0005-0210
187	SEAL; BRKT (B) OD=25 BLACK	1-76798-019-0	01	1	0005-0210
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0005-0210
