2-03 — CLUTCH PEDAL AND CONTROL (#9231) — 161 parça

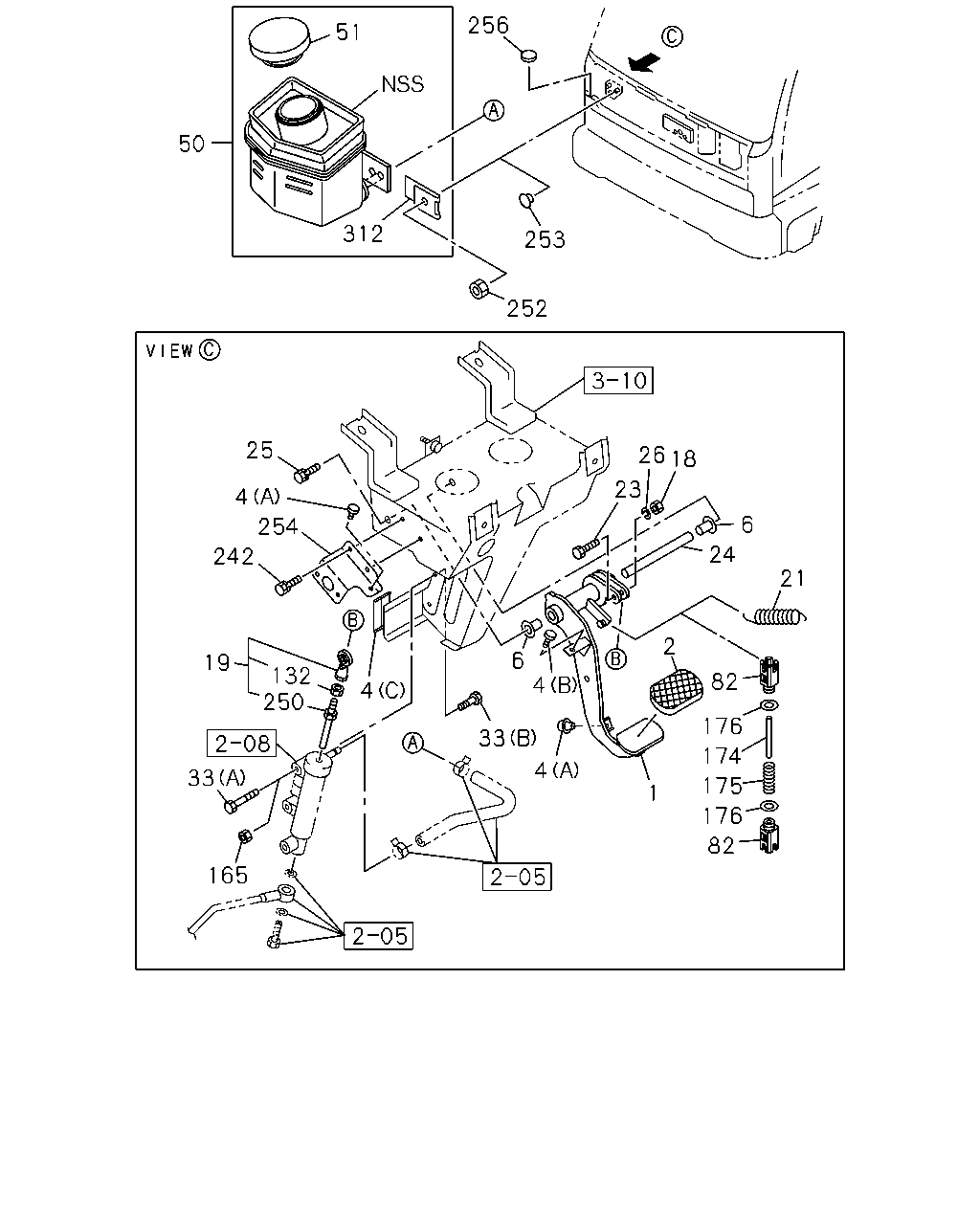

çizim 5703
256 51 50 312 253 252 25 26 18 23 4 6 254 24 242 21 2 6 4 19 132 250 82 4 176 33 174 4 33 175 1 176 82 165
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PEDAL; CLU
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-73907-321-4 01 1 0005-0011 ●
1 PEDAL; CLU
FULLER M/T<X9B> 		1-73907-321-4 01 1 0005-0011 ●
1 PEDAL; CLU 1-73907-321-4 01 1 0005-0011 ●
1 PEDAL; CLU
AIR ASSIST CLUTCH<PK1> 		1-73907-321-4 01 1 0012-0210 ● ●
1 PEDAL; CLU 1-73907-321-4 01 1 0012-0210 ● ●
1 PEDAL; CLU
FULLER M/T<X9B> 		1-73907-321-4 01 1 0211- ● ●
1 PEDAL; CLU 1-73907-321-4 01 1 0211- ● ●
1 PEDAL; CLU
FULLER M/T<X9B> EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-331-2 01 1 0005-0210 ● ●
2 COVER; CLU PEDAL
FULLER M/T<X9B> 		8-94204-810-0 01 1 0005-0011 ● ●
2 COVER; CLU PEDAL 8-94204-810-0 01 1 0005-0011 ●
2 COVER; CLU PEDAL
ISUZU M/T<X9A>,FULLER M/T<X9B> 		8-94204-810-0 01 1 0012-0103 ●
2 COVER; CLU PEDAL
FULLER M/T<X9B> 		8-94204-810-0 01 1 0012-0103 ●
2 COVER; CLU PEDAL 8-94204-810-0 01 1 0012-0103 ● ●
2 COVER; CLU PEDAL
ISUZU M/T<X9A>,FULLER M/T<X9B> 		8-97893-618-1 01 1 0104-0210 ●
2 COVER; CLU PEDAL
FULLER M/T<X9B> 		8-97893-618-1 01 1 0104-0210 ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0104-0210 ● ●
2 COVER; CLU PEDAL
FULLER M/T<X9B> 		8-97893-618-1 01 1 0211- ● ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0211- ● ●
4 STOPPER; CLU PEDAL
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) 		1-47319-014-1 02 1 0005-0011 ●
4 STOPPER; CLU PEDAL
FULLER M/T<X9B> (A) 		1-47319-014-1 02 1 0005-0011 ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 02 1 0005-0011 ●
4 STOPPER; CLU PEDAL
AIR ASSIST CLUTCH<PK1> (A) 		1-47319-014-1 02 1 0012-0210 ● ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 02 1 0012-0210 ● ●
4 STOPPER; CLU PEDAL
FULLER M/T<X9B> (A) 		1-47319-014-1 02 1 0211- ● ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 02 1 0211- ● ●
4 STOPPER; CLU PEDAL
A/T<X9D> (A) 		1-47319-014-1 01 1 0005- ● ●
4 STOPPER; CLU PEDAL
FULLER M/T<X9B> (B) 		5-31419-003-0 01 1 0005-0011 ● ●
4 STOPPER; CLU PEDAL
(B) 		5-31419-003-0 01 1 0005-0011 ●
4 STOPPER; CLU PEDAL
ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		5-31419-003-0 01 1 0012-0103 ●
4 STOPPER; CLU PEDAL
FULLER M/T<X9B> (B) 		5-31419-003-0 01 1 0012-0103 ●
4 STOPPER; CLU PEDAL
(B) 		5-31419-003-0 01 1 0012-0103 ● ●
4 STOPPER; CLU PEDAL
FULLER M/T<X9B> EXC. AIR ASSIST CLUTCH<PK1> (C) 		1-73908-088-1 01 1 0104-0210 ● ●
4 STOPPER; CLU PEDAL
FULLER M/T<X9B> EXC. AIR ASSIST CLUTCH<PK1> (A) 		1-47319-014-1 02 1 0005-0210 ● ●
6 BUSHING; CLU PEDAL
FULLER M/T<X9B> 		1-09330-045-0 02 1 0005-0011 ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0005-0011 ●
6 BUSHING; CLU PEDAL
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-09330-045-0 02 1 0012-0210 ●
6 BUSHING; CLU PEDAL
FULLER M/T<X9B> 		1-09330-045-0 02 1 0012-0210 ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0012-0210 ● ●
6 BUSHING; CLU PEDAL
FULLER M/T<X9B> 		1-09330-045-0 02 1 0211- ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0211- ● ●
18 NUT; PUSH ROD
FULLER M/T<X9B> M8 		9-09110-508-0 01 1 0005-0011 ● ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0005-0011 ●
18 NUT; PUSH ROD
ISUZU M/T<X9A>,FULLER M/T<X9B> M8 		9-09110-508-0 01 1 0012-0210 ●
18 NUT; PUSH ROD
FULLER M/T<X9B> M8 		9-09110-508-0 01 1 0012-0210 ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0012-0210 ● ●
18 NUT; PUSH ROD
FULLER M/T<X9B> M8 		9-09110-508-0 01 1 0211- ● ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0211- ● ●
19 ROD ASM; PUSH,CLU
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-73907-320-1 01 1 0005-0011 ●
19 ROD ASM; PUSH,CLU
FULLER M/T<X9B> 		1-73907-320-1 01 1 0005-0011 ●
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 0005-0011 ●
19 ROD ASM; PUSH,CLU
AIR ASSIST CLUTCH<PK1> 		1-73907-320-1 01 1 0012-0210 ● ●
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 0012-0210 ● ●
19 ROD ASM; PUSH,CLU
FULLER M/T<X9B> 		1-73907-320-1 01 1 0211- ● ●
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 0211- ● ●
19 ROD ASM; PUSH,CLU
FULLER M/T<X9B> EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-332-0 01 1 0005-0210 ● ●
21 SPRING; RETURN,CLU PEDAL
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-73908-265-0 01 1 0005-0011 ●
21 SPRING; RETURN,CLU PEDAL
FULLER M/T<X9B> 		1-73908-265-0 01 1 0005-0011 ●
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 0005-0011 ●
21 SPRING; RETURN,CLU PEDAL
AIR ASSIST CLUTCH<PK1> 		1-73908-265-0 01 1 0012-0210 ● ●
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 0012-0210 ● ●
21 SPRING; RETURN,CLU PEDAL
FULLER M/T<X9B> 		1-73908-265-0 01 1 0211- ● ●
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 0211- ● ●
23 BOLT; PUSH ROD
ISUZU M/T<X9A>,FULLER M/T<X9B> M8X39.7 		1-09009-150-0 01 1 0005-0011 ●
23 BOLT; PUSH ROD
FULLER M/T<X9B> M8X39.7 		1-09009-150-0 01 1 0005-0011 ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 0005-0011 ●
23 BOLT; PUSH ROD
AIR ASSIST CLUTCH<PK1> M8X39.7 		1-09009-150-0 01 1 0012-0210 ● ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 0012-0210 ● ●
23 BOLT; PUSH ROD
FULLER M/T<X9B> M8X39.7 		1-09009-150-0 01 1 0211- ● ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 0211- ● ●
23 BOLT; PUSH ROD
FULLER M/T<X9B> EXC. AIR ASSIST CLUTCH<PK1> M8X43.7 		1-73908-333-0 01 1 0005-0210 ● ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 0005-0011 ● ● ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 0012- ● ● ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 0005-0011 ● ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 0012- ● ● ● ●
26 WASHER; LK,PUSH ROD
FULLER M/T<X9B> ID=8.2 		9-09150-608-0 01 1 0005-0011 ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0005-0011 ●
26 WASHER; LK,PUSH ROD
ISUZU M/T<X9A>,FULLER M/T<X9B> ID=8.2 		9-09150-608-0 01 1 0012-0210 ●
26 WASHER; LK,PUSH ROD
FULLER M/T<X9B> ID=8.2 		9-09150-608-0 01 1 0012-0210 ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0012-0210 ● ●
26 WASHER; LK,PUSH ROD
FULLER M/T<X9B> ID=8.2 		9-09150-608-0 01 1 0211- ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0211- ● ●
33 BOLT; CLU M/CYL TO BRKT
AIR ASSIST CLUTCH<PK1> (A) M10X60 FLANGE 		0-28081-060-0 02 1 0005-0011 ● ●
33 BOLT; CLU M/CYL TO BRKT
(A) M10X60 FLANGE 		0-28081-060-0 02 1 0005-0011 ●
33 BOLT; CLU M/CYL TO BRKT
AIR ASSIST CLUTCH<PK1> (A) M10X60 FLANGE 		0-28081-060-0 02 1 0012-0210 ● ●
33 BOLT; CLU M/CYL TO BRKT
(A) M10X60 FLANGE 		0-28081-060-0 02 1 0012-0210 ● ●
33 BOLT; CLU M/CYL TO BRKT
FULLER M/T<X9B> (A) M10X60 FLANGE 		0-28081-060-0 02 1 0211-0512 ● ●
33 BOLT; CLU M/CYL TO BRKT
(A) M10X60 FLANGE 		0-28081-060-0 02 1 0211-0512 ● ●
33 BOLT; CLU M/CYL TO BRKT
FULLER M/T<X9B> (A) M10X60 FLANGE 		0-28051-060-0 02 1 0601- ● ●
33 BOLT; CLU M/CYL TO BRKT
(A) M10X60 FLANGE 		0-28051-060-0 02 1 0601- ● ●
33 BOLT; CLU M/CYL TO BRKT
FULLER M/T<X9B> EXC. AIR ASSIST CLUTCH<PK1> (B) M10X65 		5-09030-024-1 02 1 0005-0210 ● ●
50 TANK; OIL,CLU
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-47530-182-0 01 1 0005-0011 ●
50 TANK; OIL,CLU
FULLER M/T<X9B> 		1-47530-182-0 01 1 0005-0011 ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 0005-0011 ●
50 TANK; OIL,CLU
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-47530-182-0 01 1 0012-0210 ●
50 TANK; OIL,CLU
FULLER M/T<X9B> 		1-47530-182-0 01 1 0012-0210 ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 0012-0210 ● ●
50 TANK; OIL,CLU
FULLER M/T<X9B> 		1-47530-182-0 01 1 0211- ● ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 0211- ● ●
51 CAP; OIL TANK,CLU
ISUZU M/T<X9A>,FULLER M/T<X9B> 		8-94136-483-1 01 1 0005-0011 ●
51 CAP; OIL TANK,CLU
FULLER M/T<X9B> 		8-94136-483-1 01 1 0005-0011 ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0005-0011 ●
51 CAP; OIL TANK,CLU
ISUZU M/T<X9A>,FULLER M/T<X9B> 		8-94136-483-1 01 1 0012-0210 ●
51 CAP; OIL TANK,CLU
FULLER M/T<X9B> 		8-94136-483-1 01 1 0012-0210 ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0012-0210 ● ●
51 CAP; OIL TANK,CLU
FULLER M/T<X9B> 		8-94136-483-1 01 1 0211- ● ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0211- ● ●
82 CLEVIS; HELPER,CLU PEDAL
FULLER M/T<X9B> EXC. AIR ASSIST CLUTCH<PK1> 		1-73998-472-1 02 1 0005-0210 ● ●
132 NUT; LK,PUSH ROD
FULLER M/T<X9B> M8 		9-09110-408-0 01 1 0005-0011 ● ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0005-0011 ●
132 NUT; LK,PUSH ROD
ISUZU M/T<X9A>,FULLER M/T<X9B> M8 		9-09110-408-0 01 1 0012-0210 ●
132 NUT; LK,PUSH ROD
FULLER M/T<X9B> M8 		9-09110-408-0 01 1 0012-0210 ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0012-0210 ● ●
132 NUT; LK,PUSH ROD
FULLER M/T<X9B> M8 		9-09110-408-0 01 1 0211- ● ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0211- ● ●
165 NUT; CLU M/CYL
FULLER M/T<X9B> EXC. AIR ASSIST CLUTCH<PK1> M10 FLANGE 		0-91150-210-0 02 1 0005-0210 ● ●
174 PIN; STRAIGHT,CLU PEDAL
FULLER M/T<X9B> EXC. AIR ASSIST CLUTCH<PK1> 		1-73998-474-0 01 1 0005-0210 ● ●
175 SPRING; HELPER
FULLER M/T<X9B> EXC. AIR ASSIST CLUTCH<PK1> 		1-73908-052-0 01 1 0005-0210 ● ●
176 SEAT; SPRING
FULLER M/T<X9B> EXC. AIR ASSIST CLUTCH<PK1> 		1-09503-114-0 02 1 0104-0210 ● ●
242 BOLT; BRKT,CLUTCH
ISUZU M/T<X9A>,FULLER M/T<X9B> M6X16 W/LK WASHER 		0-50040-616-0 02 1 0005-0011 ●
242 BOLT; BRKT,CLUTCH
FULLER M/T<X9B> M6X16 W/LK WASHER 		0-50040-616-0 02 1 0005-0011 ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 02 1 0005-0011 ●
242 BOLT; BRKT,CLUTCH
AIR ASSIST CLUTCH<PK1> M6X16 W/LK WASHER 		0-50040-616-0 02 1 0012-0210 ● ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 02 1 0012-0210 ● ●
242 BOLT; BRKT,CLUTCH
FULLER M/T<X9B> M6X16 W/LK WASHER 		0-50040-616-0 02 1 0211- ● ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 02 1 0211- ● ●
242 BOLT; BRKT,CLUTCH
FULLER M/T<X9B> EXC. AIR ASSIST CLUTCH<PK1> M6X16 W/LK WASHER 		0-50040-616-0 04 1 0005-0210 ● ●
250 ROD; PUSH,CLU
FULLER M/T<X9B> 		1-73996-219-0 01 1 0005-0011 ● ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0005-0011 ●
250 ROD; PUSH,CLU
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-73996-219-0 01 1 0012-0210 ●
250 ROD; PUSH,CLU
FULLER M/T<X9B> 		1-73996-219-0 01 1 0012-0210 ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0012-0210 ● ●
250 ROD; PUSH,CLU
FULLER M/T<X9B> 		1-73996-219-0 01 1 0211- ● ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0211- ● ●
252 NUT; OIL TANK
ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0005-0011 ●
252 NUT; OIL TANK
FULLER M/T<X9B> M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0005-0011 ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0005-0011 ●
252 NUT; OIL TANK
ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0012-0210 ●
252 NUT; OIL TANK
FULLER M/T<X9B> M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0012-0210 ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0012-0210 ● ●
252 NUT; OIL TANK
FULLER M/T<X9B> M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0211- ● ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0211- ● ●
253 GROMMET; HOLE,OIL TANK
A/T<X9D> 		1-09983-146-0 01 1 0005- ● ●
254 BRACKET; CLU SENSOR
FULLER M/T<X9B> 		1-73998-979-4 01 1 0005-0011 ● ●
254 BRACKET; CLU SENSOR 1-73998-979-4 01 1 0005-0011 ●
254 BRACKET; CLU SENSOR
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-73998-979-4 01 1 0012-0210 ●
254 BRACKET; CLU SENSOR
FULLER M/T<X9B> 		1-73998-979-4 01 1 0012-0210 ●
254 BRACKET; CLU SENSOR 1-73998-979-4 01 1 0012-0210 ● ●
254 BRACKET; CLU SENSOR
FULLER M/T<X9B> 		1-73998-979-5 01 1 0211- ● ●
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 0211- ● ●
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0005-0011 ● ● ●
256 SEAL; HOLE
A/T<X9D> OD=25 BLACK 		1-76798-019-0 01 1 0005-0011 ● ●
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0012- ● ● ● ●
256 SEAL; HOLE
A/T<X9D> OD=25 BLACK 		1-76798-019-0 01 1 0012- ● ●
312 PLATE; OIL TANK,CLU
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-21249-007-1 01 1 0005-0011 ●
312 PLATE; OIL TANK,CLU
FULLER M/T<X9B> 		1-21249-007-1 01 1 0005-0011 ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0005-0011 ●
312 PLATE; OIL TANK,CLU
ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-21249-007-1 01 1 0012-0210 ●
312 PLATE; OIL TANK,CLU
FULLER M/T<X9B> 		1-21249-007-1 01 1 0012-0210 ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0012-0210 ● ●
312 PLATE; OIL TANK,CLU
FULLER M/T<X9B> 		1-21249-007-1 01 1 0211- ● ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0211- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
