◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#9228) — 117 parça
çizim 9065
93 92
BalonParca AdiParca NoAdetTipApplied Date A B C
92 BOLT; MAG VLV
(D) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ●
92 BOLT; MAG VLV
(E) M8X30 FLANGE 		0-28080-830-0 02 1 0005-0512 ●
92 BOLT; MAG VLV
(E) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> (C) M8X70 FLANGE 		0-28080-870-0 02 1 0005-0210 ●
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 02 1 0303-0512 ●
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0601- ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0303-0512 ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
93 NUT; MAG VLV
(B) M6 FLANGE 		0-91150-106-0 02 1 0303-0602 ●
93 NUT; MAG VLV
(B) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
93 NUT; MAG VLV
(C) M8 FLANGE 		0-91150-108-0 02 1 0303-0602 ●
93 NUT; MAG VLV
(C) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
çizim 9092
87 92 87 87 86 87
BalonParca AdiParca NoAdetTipApplied Date A B C
86 VALVE; MAG,EXH BRK 1-82563-602-5 01 1 0005-0210 ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-6 01 1 0211- ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 03 1 0303- ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0005-0210 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0006 ●
87 CONNECTOR
EXC. A/T<X9D> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0006 ●
87 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0007-0210 ●
87 CONNECTOR
FULLER M/T<X9B> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0007-0210 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0211-0302 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0303- ● ●
87 CONNECTOR
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0005-0210 ●
87 CONNECTOR
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0211- ●
87 CONNECTOR
EXC. A/T<X9D> (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0005-0006 ●
87 CONNECTOR
FULLER M/T<X9B> (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0007-0210 ●
87 CONNECTOR
FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A) (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0211- ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0303- ●
92 BOLT; MAG VLV
(D) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ●
92 BOLT; MAG VLV
(E) M8X30 FLANGE 		0-28080-830-0 02 1 0005-0512 ●
92 BOLT; MAG VLV
(E) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> (C) M8X70 FLANGE 		0-28080-870-0 02 1 0005-0210 ●
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 02 1 0303-0512 ●
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0601- ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0303-0512 ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
çizim 44717
41 29 29 41
BalonParca AdiParca NoAdetTipApplied Date A B C
29 BOLT; CONT CYL
(A) M10X25 FLANGE 		0-28681-025-0 02 1 0211-0512 ●
29 BOLT; CONT CYL
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
29 BOLT; CONT CYL
(B) M10X20 FLANGE 		0-28781-020-0 02 1 0211-0512 ●
29 BOLT; CONT CYL
(B) M10X20 FLANGE 		0-28751-020-0 02 1 0601- ●
41 BRACKET
(A) 		1-14149-243-0 01 1 0211- ●
41 BRACKET
(B) 		1-14149-248-1 01 1 0211- ●

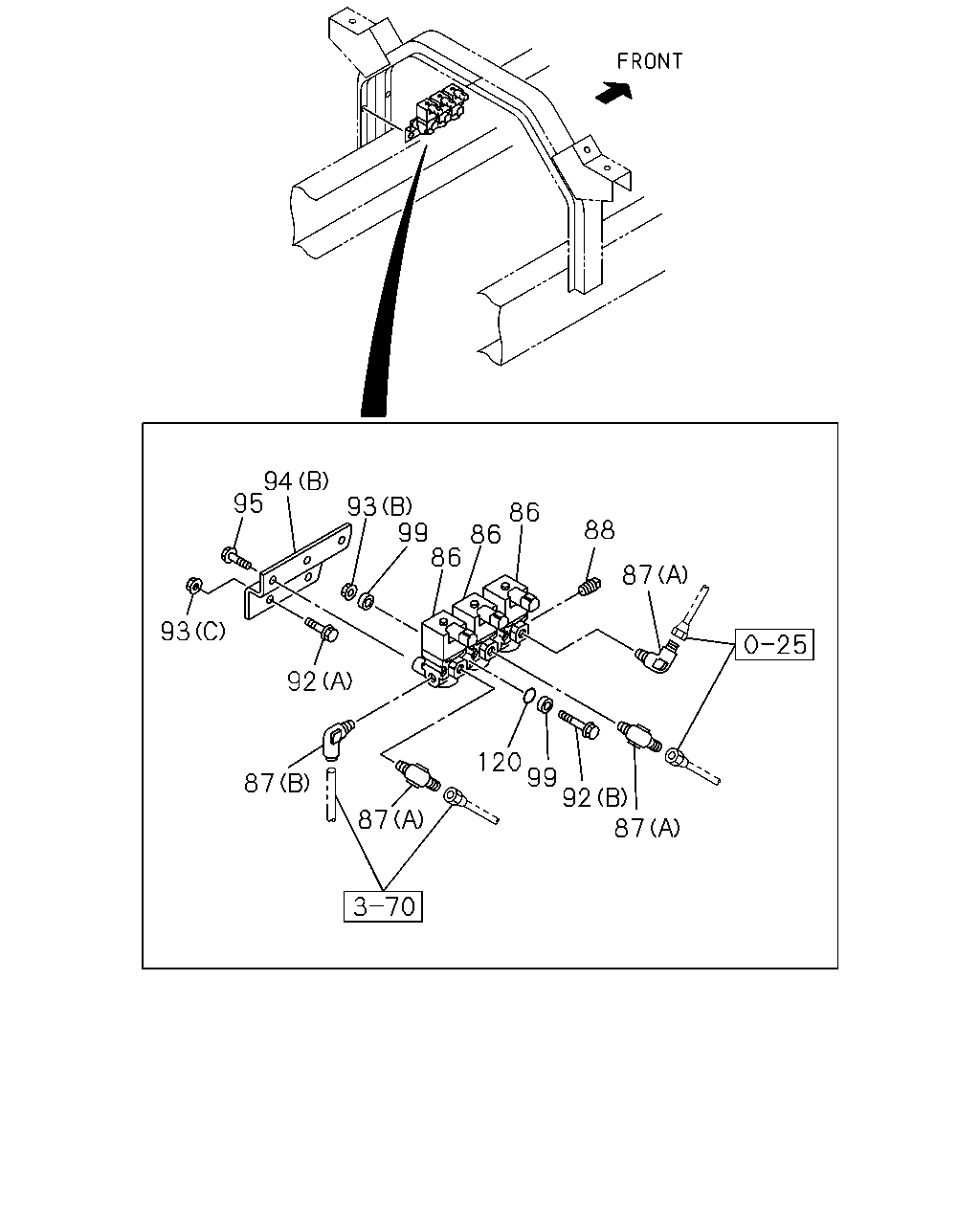

çizim 44723
94 95 93 86 86 88 87 93 92 120 99 92 87 87 87
BalonParca AdiParca NoAdetTipApplied Date A B C
86 VALVE; MAG,EXH BRK 1-82563-602-5 01 1 0005-0210 ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-6 01 1 0211- ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 03 1 0303- ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0005-0210 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0006 ●
87 CONNECTOR
EXC. A/T<X9D> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0006 ●
87 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0007-0210 ●
87 CONNECTOR
FULLER M/T<X9B> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0007-0210 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0211-0302 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0303- ● ●
87 CONNECTOR
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0005-0210 ●
87 CONNECTOR
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0211- ●
87 CONNECTOR
EXC. A/T<X9D> (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0005-0006 ●
87 CONNECTOR
FULLER M/T<X9B> (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0007-0210 ●
87 CONNECTOR
FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A) (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0211- ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0303- ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0303- ●
92 BOLT; MAG VLV
(D) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ●
92 BOLT; MAG VLV
(E) M8X30 FLANGE 		0-28080-830-0 02 1 0005-0512 ●
92 BOLT; MAG VLV
(E) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> (C) M8X70 FLANGE 		0-28080-870-0 02 1 0005-0210 ●
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 02 1 0303-0512 ●
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0601- ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0303-0512 ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
93 NUT; MAG VLV
(B) M6 FLANGE 		0-91150-106-0 02 1 0303-0602 ●
93 NUT; MAG VLV
(B) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
93 NUT; MAG VLV
(C) M8 FLANGE 		0-91150-108-0 02 1 0303-0602 ●
93 NUT; MAG VLV
(C) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		1-47477-266-0 01 1 0005-0210 ●
94 BRACKET; MAG VLV,EXH BRAKE
(B) 		1-47478-888-0 01 1 0303- ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 03 1 0303-0512 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
99 WASHER; MAG VLV 1-82569-266-0 04 1 0303- ●
120 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0303- ●

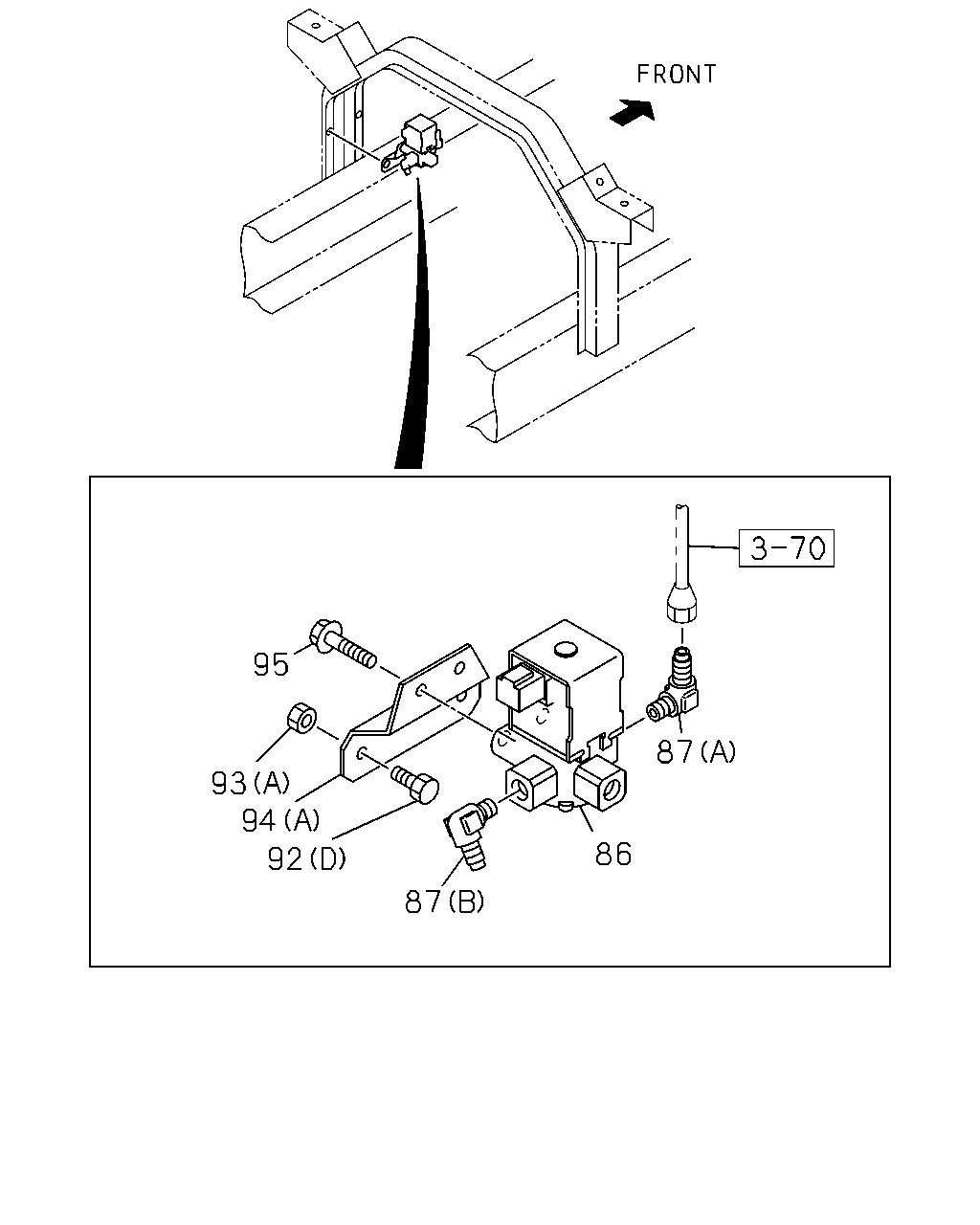

çizim 45682
95 87 93 94 92 86 87
BalonParca AdiParca NoAdetTipApplied Date A B C
86 VALVE; MAG,EXH BRK 1-82563-602-5 01 1 0005-0210 ● ●
86 VALVE; MAG,EXH BRK 1-82563-602-6 01 1 0211- ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 03 1 0303- ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0005-0210 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0006 ●
87 CONNECTOR
EXC. A/T<X9D> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0006 ●
87 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0007-0210 ●
87 CONNECTOR
FULLER M/T<X9B> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0007-0210 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0211-0302 ●
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0303- ● ●
87 CONNECTOR
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0005-0210 ●
87 CONNECTOR
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0211- ●
87 CONNECTOR
EXC. A/T<X9D> (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0005-0006 ●
87 CONNECTOR
FULLER M/T<X9B> (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0007-0210 ●
87 CONNECTOR
FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A) (C) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0211- ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0303- ●
92 BOLT; MAG VLV
(D) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ●
92 BOLT; MAG VLV
(E) M8X30 FLANGE 		0-28080-830-0 02 1 0005-0512 ●
92 BOLT; MAG VLV
(E) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> (C) M8X70 FLANGE 		0-28080-870-0 02 1 0005-0210 ●
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 02 1 0303-0512 ●
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0601- ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0303-0512 ●
92 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
93 NUT; MAG VLV
(B) M6 FLANGE 		0-91150-106-0 02 1 0303-0602 ●
93 NUT; MAG VLV
(B) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
93 NUT; MAG VLV
(C) M8 FLANGE 		0-91150-108-0 02 1 0303-0602 ●
93 NUT; MAG VLV
(C) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		1-47477-266-0 01 1 0005-0210 ●
94 BRACKET; MAG VLV,EXH BRAKE
(B) 		1-47478-888-0 01 1 0303- ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28680-820-0 03 1 0303-0512 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
