1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#9227) — 215 parça

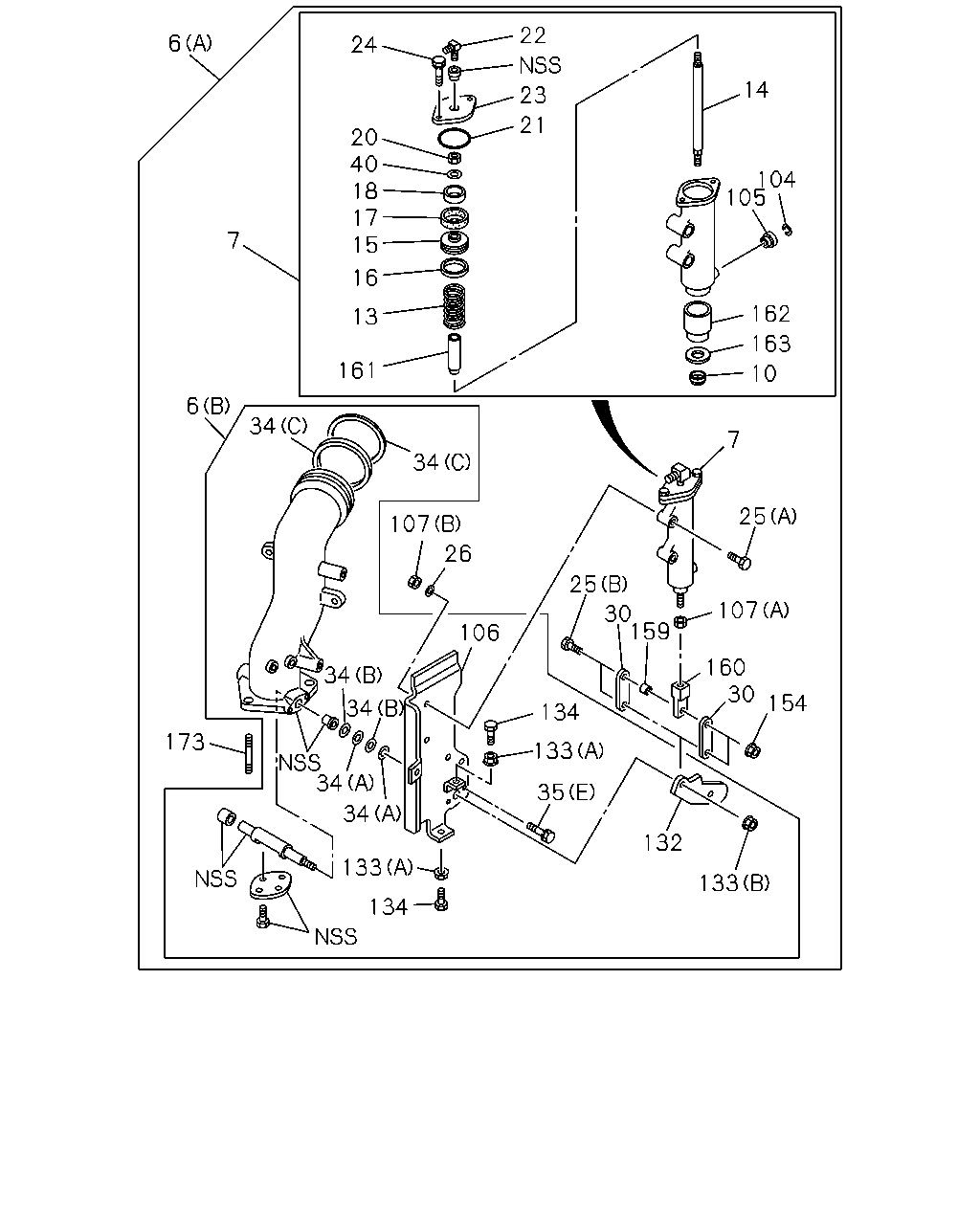

çizim 5705
22 6 24 14 23 21 20 40 18 17 15 104 105 7 16 162 13 163 161 10 6 34 7 34 25 107 26 25 107 30 159 106 160 30 34 154 34 134 173 133 34 35 34 132 133 133 134
BalonParca AdiParca NoAdetTipApplied Date A B C
6 VALVE; EXH BRAKE
(B) 		1-22181-134-0 01 1 0005-0210 ●
6 VALVE; EXH BRAKE
(A) 		8-94395-246-2 01 1 0005-0210 ●
6 VALVE; EXH BRAKE
(A) 		1-14144-608-3 01 1 0005-0206 ●
6 VALVE; EXH BRAKE
(A) 		1-14144-636-1 01 1 0207-0210 ●
6 VALVE; EXH BRAKE
(D) 		8-97602-527-1 01 1 0211- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-141-0 01 1 0005-0210 ●
6 VALVE; EXH BRAKE
(C) 		8-97602-533-1 01 1 0303- ●
7 CYLINDER ASM; CONT 1-22190-632-0 01 1 0005-0210 ●
7 CYLINDER ASM; CONT 1-22190-635-0 01 1 0005-0206 ●
7 CYLINDER ASM; CONT 1-22190-650-1 01 1 0207-0210 ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0005-0210 ● ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 0005-0210 ●
13 SPRING; CONT CYL 1-22199-077-0 01 1 0005-0210 ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 0005-0210 ● ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 0005-0206 ● ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 0207-0210 ●
15 PLATE; CONT CYL 8-97600-316-0 01 1 0207-0210 ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 0005-0206 ● ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 0207-0210 ●
16 RING; WEAR,CONT CYL 8-97600-317-0 01 1 0207-0210 ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 0005-0206 ● ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 0207-0210 ●
17 GASKET; CONT CYL 8-97600-318-0 01 1 0207-0210 ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 0005-0206 ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 0207-0210 ●
20 NUT; CONT CYL 9-83315-085-0 01 1 0005-0206 ● ●
20 NUT; CONT CYL 9-83315-085-0 01 1 0207-0210 ●
20 NUT; CONT CYL
M8 FLANGE 		0-91150-108-0 01 1 0207-0210 ●
21 GASKET; COVER 1-22199-072-0 01 1 0005-0210 ● ●
22 CONNECTOR; CONT CYL
PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 0005-0206 ●
22 CONNECTOR; CONT CYL
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0207-0210 ●
23 COVER; CONT CYL 1-22199-066-0 01 1 0005-0210 ● ●
24 BOLT; COVER 1-22199-155-0 02 1 0005-0206 ● ●
24 BOLT; COVER 1-22199-155-0 02 1 0207-0210 ●
24 BOLT; COVER 1-22199-217-0 02 1 0207-0210 ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 0005-0210 ● ●
25 BOLT; CONT CYL
(B) 		1-33739-200-0 02 1 0005-0210 ●
26 WASHER; LK,CONT CYL
ID=10.2 		9-09150-510-0 02 1 0005-0206 ●
30 ROD; LINK,CONT CYL 1-22199-124-0 02 1 0005-0210 ●
30 ROD; LINK,CONT CYL 1-22199-162-0 02 1 0005-0210 ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 0005-0210 ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 0005-0210 ●
34 RING; SEAL
(C) 		1-14149-207-0 02 1 0005-0206 ●
34 RING; SEAL
(B) 		1-22189-272-0 02 1 0005-0210 ●
34 RING; SEAL
(A) 		1-22189-273-0 02 1 0005-0210 ●
35 BOLT; PLATE FIX
(A) M10X20 		0-28021-020-0 01 1 0005-0210 ●
35 BOLT; PLATE FIX
(B) M8X16 W/LK WASHER 		0-50040-816-0 02 1 0005-0210 ●
35 BOLT; PLATE FIX
(C) 		1-22199-174-0 02 1 0005-0210 ●
35 BOLT; PLATE FIX
(D) 		1-22199-188-0 01 1 0005-0210 ●
35 BOLT; PLATE FIX
(E) M8X16 FLANGE 		0-28080-816-0 04 1 0005-0206 ●
35 BOLT; PLATE FIX
(E) 		1-22189-308-0 04 1 0207-0210 ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 01 1 0005-0206 ● ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 01 1 0207-0210 ●
104 RING; RET 9-88510-331-0 01 1 0005-0210 ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 0005-0210 ● ●
106 BRACKET; CONT CYL 8-94395-578-0 01 1 0005-0210 ●
106 BRACKET; CONT CYL 1-22186-141-0 01 1 0005-0210 ●
107 NUT; CONT CYL
(B) M10 FLANGE 		0-91150-110-0 02 1 0005-0206 ●
107 NUT; CONT CYL
(B) M10 FLANGE 		0-91150-110-0 02 1 0207-0210 ● ●
107 NUT; CONT CYL
(A) 		9-83315-085-0 01 1 0005-0210 ● ●
107 NUT; CONT CYL
(B) 		9-83315-080-0 02 1 0005-0206 ●
132 LEVER; BRK VLV 1-22196-342-0 01 1 0005-0210 ●
132 LEVER; BRK VLV 1-22196-347-1 01 1 0005-0210 ●
133 NUT; LK
(A) M8 FLANGE 		0-91150-108-0 03 1 0005-0210 ●
133 NUT; LK
(A) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
133 NUT; LK
(B) M8 W/LK WASHER 		8-94279-050-0 01 1 0005-0210 ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 0005-0210 ● ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ●
159 COLLAR; CONT CYL 1-22199-138-0 02 1 0005-0210 ●
159 COLLAR; CONT CYL 1-22199-151-0 02 1 0005-0210 ●
160 JOINT; CONT CYL 1-22199-137-0 01 1 0005-0210 ●
160 JOINT; CONT CYL 1-22199-163-0 01 1 0005-0210 ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 0005-0210 ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 0005-0210 ● ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 0005-0210 ● ●
173 STUD; EXH BRK VLV
M12X40 L=64 		9-94321-240-0 03 1 0005-0206 ●

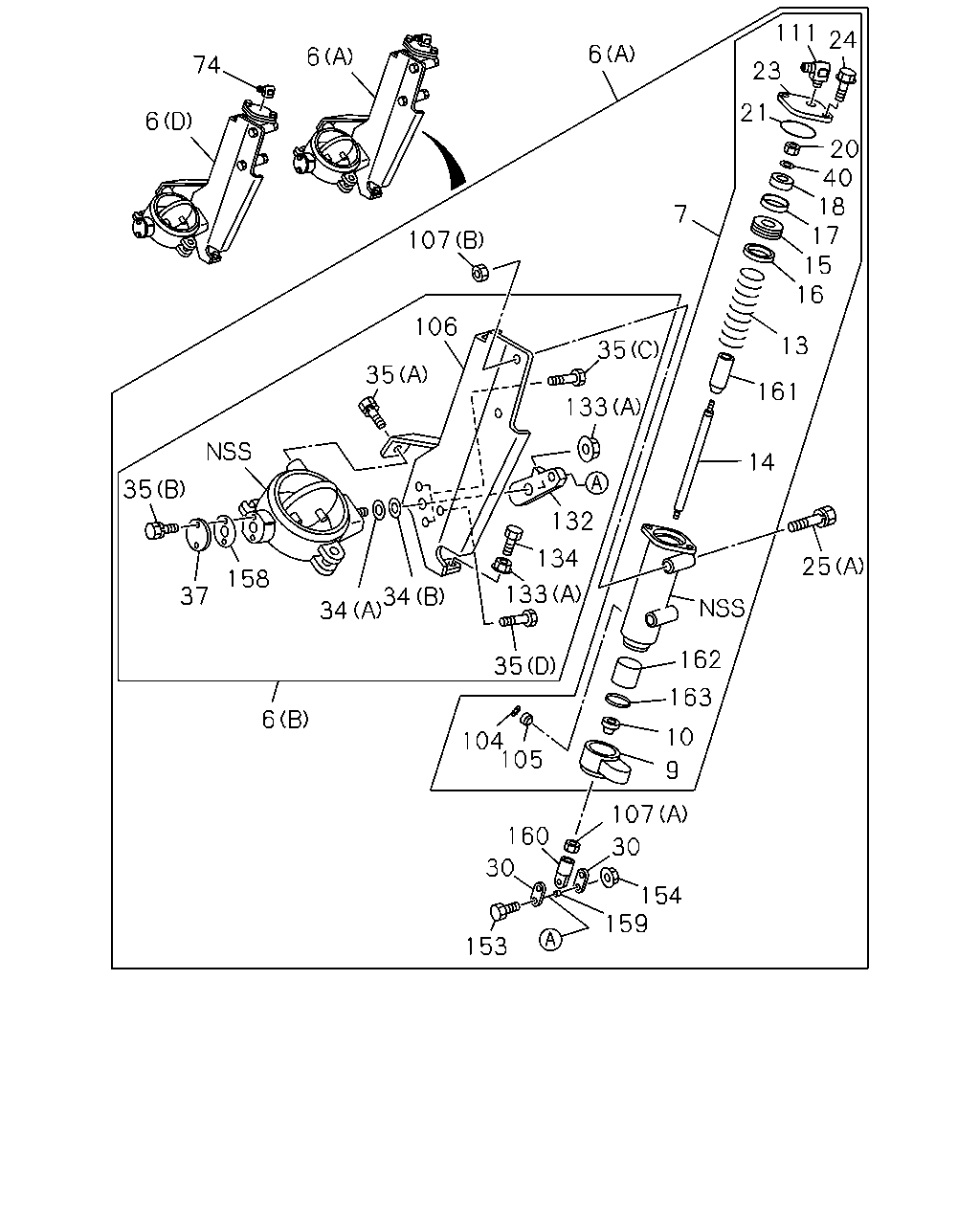

çizim 10467
111 24 6 6 74 23 21 6 20 40 18 17 15 16 7 107 106 13 35 35 161 133 14 35 132 134 25 158 133 37 34 34 162 35 163 6 10 104 105 9 107 160 30 30 154 159 153
BalonParca AdiParca NoAdetTipApplied Date A B C
6 VALVE; EXH BRAKE
(B) 		1-22181-134-0 01 1 0005-0210 ●
6 VALVE; EXH BRAKE
(A) 		8-94395-246-2 01 1 0005-0210 ●
6 VALVE; EXH BRAKE
(A) 		1-14144-608-3 01 1 0005-0206 ●
6 VALVE; EXH BRAKE
(A) 		1-14144-636-1 01 1 0207-0210 ●
6 VALVE; EXH BRAKE
(D) 		8-97602-527-1 01 1 0211- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-141-0 01 1 0005-0210 ●
6 VALVE; EXH BRAKE
(C) 		8-97602-533-1 01 1 0303- ●
7 CYLINDER ASM; CONT 1-22190-632-0 01 1 0005-0210 ●
7 CYLINDER ASM; CONT 1-22190-635-0 01 1 0005-0206 ●
7 CYLINDER ASM; CONT 1-22190-650-1 01 1 0207-0210 ●
9 COVER; CYL 1-22199-070-0 01 1 0005-0210 ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0005-0210 ● ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 0005-0210 ●
13 SPRING; CONT CYL 1-22199-077-0 01 1 0005-0210 ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 0005-0210 ● ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 0005-0206 ● ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 0207-0210 ●
15 PLATE; CONT CYL 8-97600-316-0 01 1 0207-0210 ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 0005-0206 ● ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 0207-0210 ●
16 RING; WEAR,CONT CYL 8-97600-317-0 01 1 0207-0210 ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 0005-0206 ● ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 0207-0210 ●
17 GASKET; CONT CYL 8-97600-318-0 01 1 0207-0210 ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 0005-0206 ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 0207-0210 ●
20 NUT; CONT CYL 9-83315-085-0 01 1 0005-0206 ● ●
20 NUT; CONT CYL 9-83315-085-0 01 1 0207-0210 ●
20 NUT; CONT CYL
M8 FLANGE 		0-91150-108-0 01 1 0207-0210 ●
21 GASKET; COVER 1-22199-072-0 01 1 0005-0210 ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 0005-0210 ● ●
24 BOLT; COVER 1-22199-155-0 02 1 0005-0206 ● ●
24 BOLT; COVER 1-22199-155-0 02 1 0207-0210 ●
24 BOLT; COVER 1-22199-217-0 02 1 0207-0210 ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 0005-0210 ● ●
25 BOLT; CONT CYL
(B) 		1-33739-200-0 02 1 0005-0210 ●
30 ROD; LINK,CONT CYL 1-22199-124-0 02 1 0005-0210 ●
30 ROD; LINK,CONT CYL 1-22199-162-0 02 1 0005-0210 ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 0005-0210 ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 0005-0210 ●
34 RING; SEAL
(C) 		1-14149-207-0 02 1 0005-0206 ●
34 RING; SEAL
(B) 		1-22189-272-0 02 1 0005-0210 ●
34 RING; SEAL
(A) 		1-22189-273-0 02 1 0005-0210 ●
35 BOLT; PLATE FIX
(A) M10X20 		0-28021-020-0 01 1 0005-0210 ●
35 BOLT; PLATE FIX
(B) M8X16 W/LK WASHER 		0-50040-816-0 02 1 0005-0210 ●
35 BOLT; PLATE FIX
(C) 		1-22199-174-0 02 1 0005-0210 ●
35 BOLT; PLATE FIX
(D) 		1-22199-188-0 01 1 0005-0210 ●
35 BOLT; PLATE FIX
(E) M8X16 FLANGE 		0-28080-816-0 04 1 0005-0206 ●
35 BOLT; PLATE FIX
(E) 		1-22189-308-0 04 1 0207-0210 ●
37 COVER; BODY 1-22189-327-0 01 1 0005-0210 ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 01 1 0005-0206 ● ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 01 1 0207-0210 ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0211-0302 ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0303- ● ●
104 RING; RET 9-88510-331-0 01 1 0005-0210 ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 0005-0210 ● ●
106 BRACKET; CONT CYL 8-94395-578-0 01 1 0005-0210 ●
106 BRACKET; CONT CYL 1-22186-141-0 01 1 0005-0210 ●
107 NUT; CONT CYL
(B) M10 FLANGE 		0-91150-110-0 02 1 0005-0206 ●
107 NUT; CONT CYL
(B) M10 FLANGE 		0-91150-110-0 02 1 0207-0210 ● ●
107 NUT; CONT CYL
(A) 		9-83315-085-0 01 1 0005-0210 ● ●
107 NUT; CONT CYL
(B) 		9-83315-080-0 02 1 0005-0206 ●
111 ELBOW; CONT CYL 1-09650-358-1 01 1 0005-0210 ●
132 LEVER; BRK VLV 1-22196-342-0 01 1 0005-0210 ●
132 LEVER; BRK VLV 1-22196-347-1 01 1 0005-0210 ●
133 NUT; LK
(A) M8 FLANGE 		0-91150-108-0 03 1 0005-0210 ●
133 NUT; LK
(A) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
133 NUT; LK
(B) M8 W/LK WASHER 		8-94279-050-0 01 1 0005-0210 ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 0005-0210 ● ●
153 BOLT; CLEVIS,CONT CYL 1-33739-200-0 02 1 0005-0210 ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ●
158 GASKET; COVER 1-22189-286-0 01 1 0005-0210 ●
159 COLLAR; CONT CYL 1-22199-138-0 02 1 0005-0210 ●
159 COLLAR; CONT CYL 1-22199-151-0 02 1 0005-0210 ●
160 JOINT; CONT CYL 1-22199-137-0 01 1 0005-0210 ●
160 JOINT; CONT CYL 1-22199-163-0 01 1 0005-0210 ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 0005-0210 ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 0005-0210 ● ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 0005-0210 ● ●

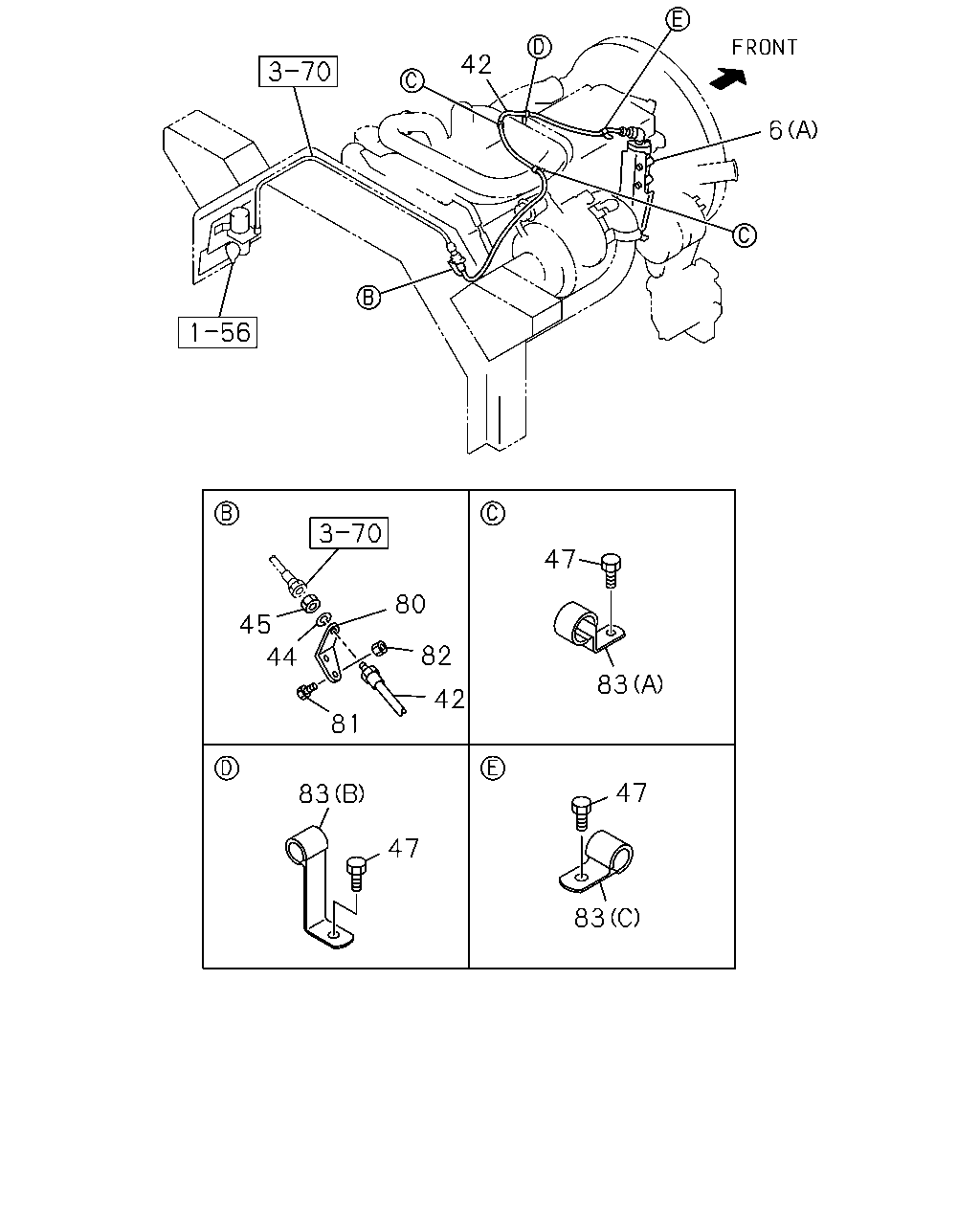

çizim 44191
42 6 47 80 45 82 44 83 42 81 47 83 47 83
BalonParca AdiParca NoAdetTipApplied Date A B C
6 VALVE; EXH BRAKE
(B) 		1-22181-134-0 01 1 0005-0210 ●
6 VALVE; EXH BRAKE
(A) 		8-94395-246-2 01 1 0005-0210 ●
6 VALVE; EXH BRAKE
(A) 		1-14144-608-3 01 1 0005-0206 ●
6 VALVE; EXH BRAKE
(A) 		1-14144-636-1 01 1 0207-0210 ●
6 VALVE; EXH BRAKE
(D) 		8-97602-527-1 01 1 0211- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-141-0 01 1 0005-0210 ●
6 VALVE; EXH BRAKE
(C) 		8-97602-533-1 01 1 0303- ●
42 HOSE; FLEX,EXH BRK
L=1030 		1-09363-568-1 01 1 0005-0210 ●
42 HOSE; FLEX,EXH BRK
L=330 		1-09363-584-0 01 1 0303- ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 0005-0210 ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 0303-0603 ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 01 1 0604- ●
45 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0005-0210 ●
45 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0303- ●
47 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 04 1 0005-0210 ●
47 BOLT; CLIP
M6X35 FLANGE 		0-28680-635-0 01 1 0303-0512 ●
47 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 01 1 0601- ●
80 BRACKET; FLEX HOSE 1-47476-880-1 01 1 0005-0210 ●
80 BRACKET; FLEX HOSE 1-47476-880-1 01 1 0303- ●
81 BOLT; HOSE BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ●
81 BOLT; HOSE BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0303-0512 ●
81 BOLT; HOSE BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
82 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
82 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 0303-0602 ●
82 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
83 CLIP; FLEX HOSE
(A) ID=11 H=20 L=25 		1-09700-848-0 02 1 0005-0210 ●
83 CLIP; FLEX HOSE
(B) ID=11 H=34 L=27 		1-09701-023-0 01 1 0005-0210 ●
83 CLIP; FLEX HOSE
(C) ID=13 L=32 		9-09525-265-0 01 1 0005-0210 ●

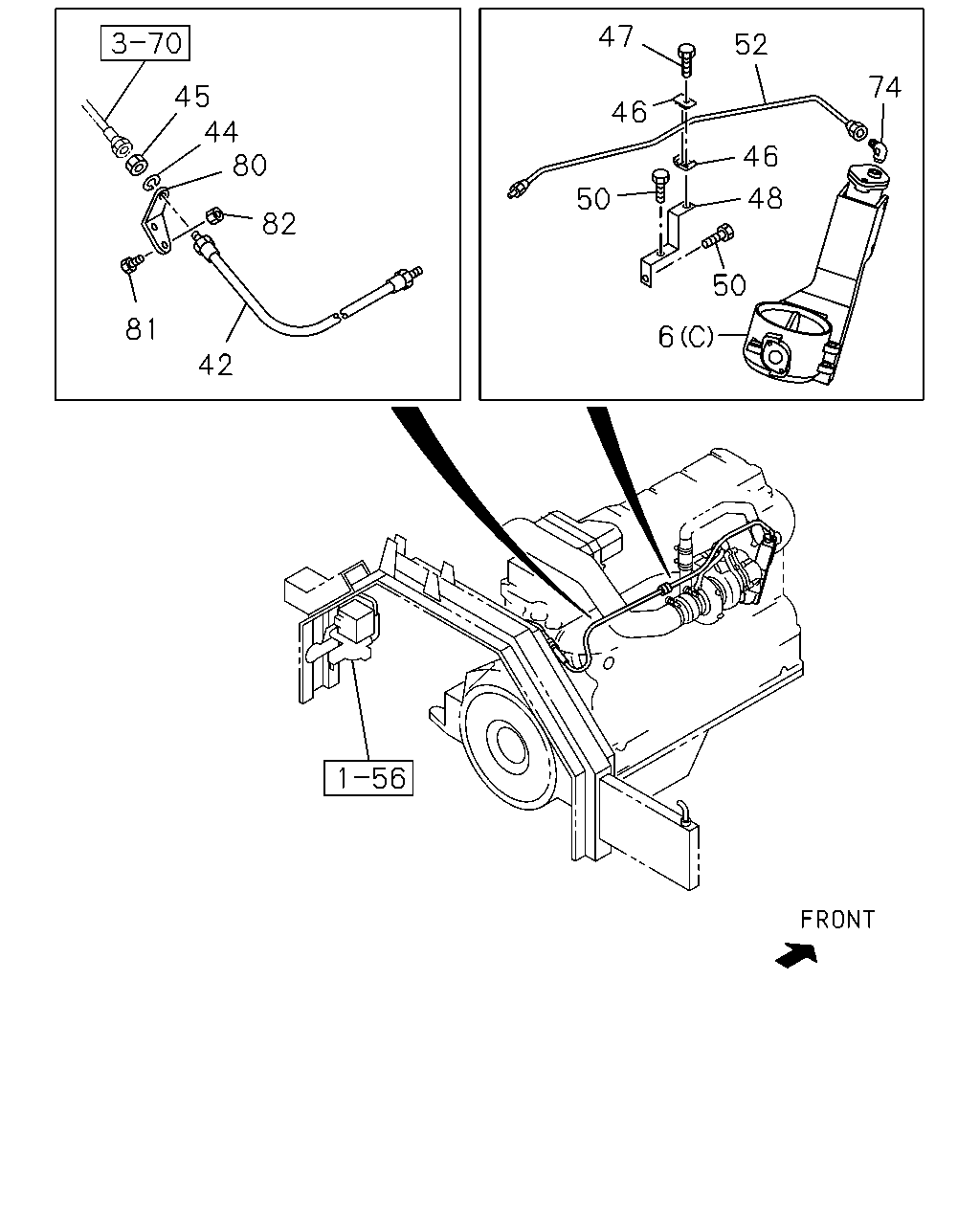

çizim 46604
47 52 74 45 44 80 46 46 48 50 82 50 81 6 42
BalonParca AdiParca NoAdetTipApplied Date A B C
6 VALVE; EXH BRAKE
(B) 		1-22181-134-0 01 1 0005-0210 ●
6 VALVE; EXH BRAKE
(A) 		8-94395-246-2 01 1 0005-0210 ●
6 VALVE; EXH BRAKE
(A) 		1-14144-608-3 01 1 0005-0206 ●
6 VALVE; EXH BRAKE
(A) 		1-14144-636-1 01 1 0207-0210 ●
6 VALVE; EXH BRAKE
(D) 		8-97602-527-1 01 1 0211- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-141-0 01 1 0005-0210 ●
6 VALVE; EXH BRAKE
(C) 		8-97602-533-1 01 1 0303- ●
42 HOSE; FLEX,EXH BRK
L=1030 		1-09363-568-1 01 1 0005-0210 ●
42 HOSE; FLEX,EXH BRK
L=330 		1-09363-584-0 01 1 0303- ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 0005-0210 ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 0303-0603 ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 01 1 0604- ●
45 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0005-0210 ●
45 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0303- ●
46 CLIP; AIR PIPE 1-09701-240-0 02 1 0303- ●
47 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 04 1 0005-0210 ●
47 BOLT; CLIP
M6X35 FLANGE 		0-28680-635-0 01 1 0303-0512 ●
47 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 01 1 0601- ●
48 BRACKET; AIR PIPE 8-97600-122-1 01 1 0303- ●
50 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 0303-0512 ●
50 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
52 PIPE ASM; AIR FLEX HOSE 8-97602-396-0 01 1 0303- ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0211-0302 ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0303- ● ●
80 BRACKET; FLEX HOSE 1-47476-880-1 01 1 0005-0210 ●
80 BRACKET; FLEX HOSE 1-47476-880-1 01 1 0303- ●
81 BOLT; HOSE BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ●
81 BOLT; HOSE BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0303-0512 ●
81 BOLT; HOSE BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
82 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
82 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 0303-0602 ●
82 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
