Sayfa 1-50 - Isuzu EPC

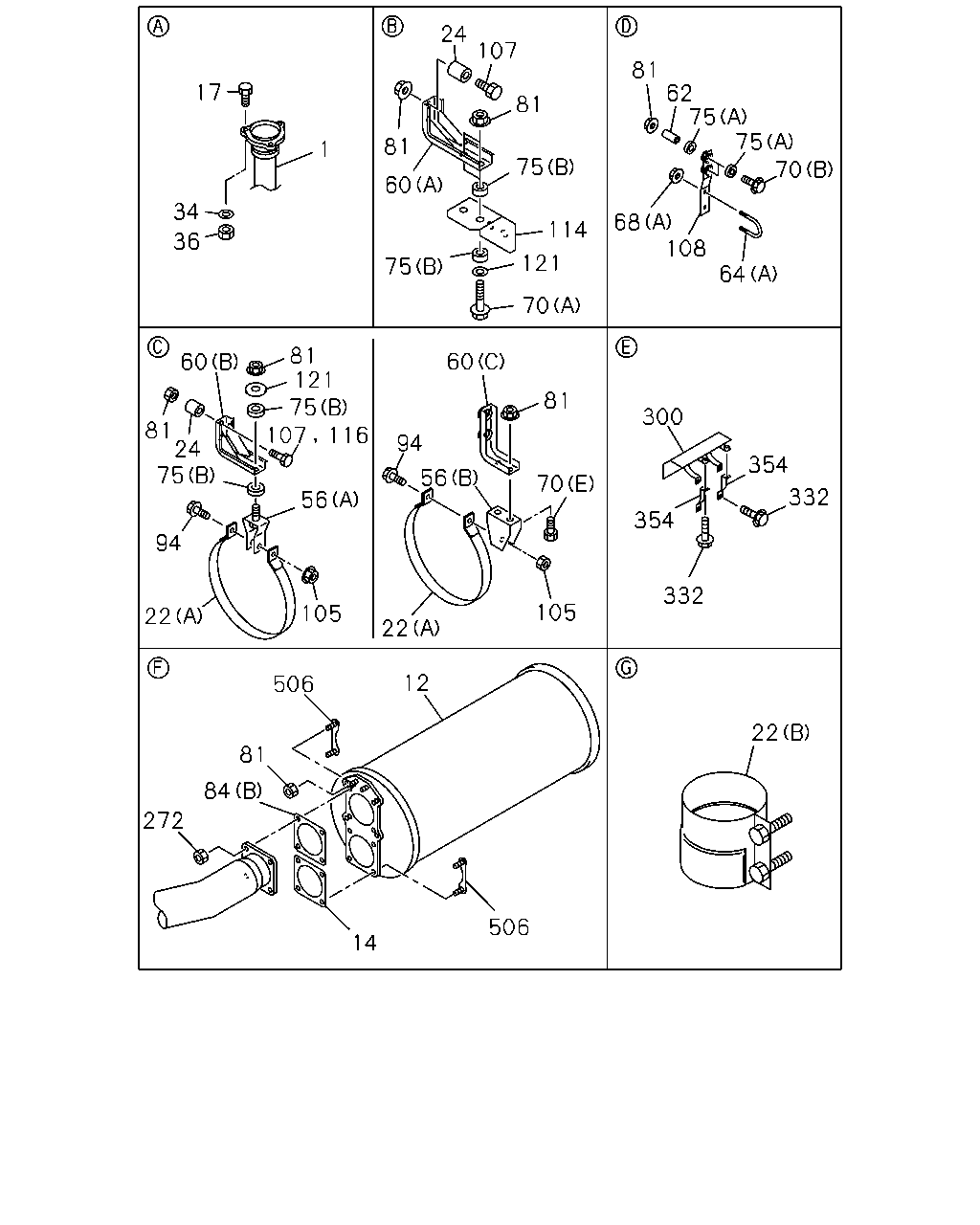

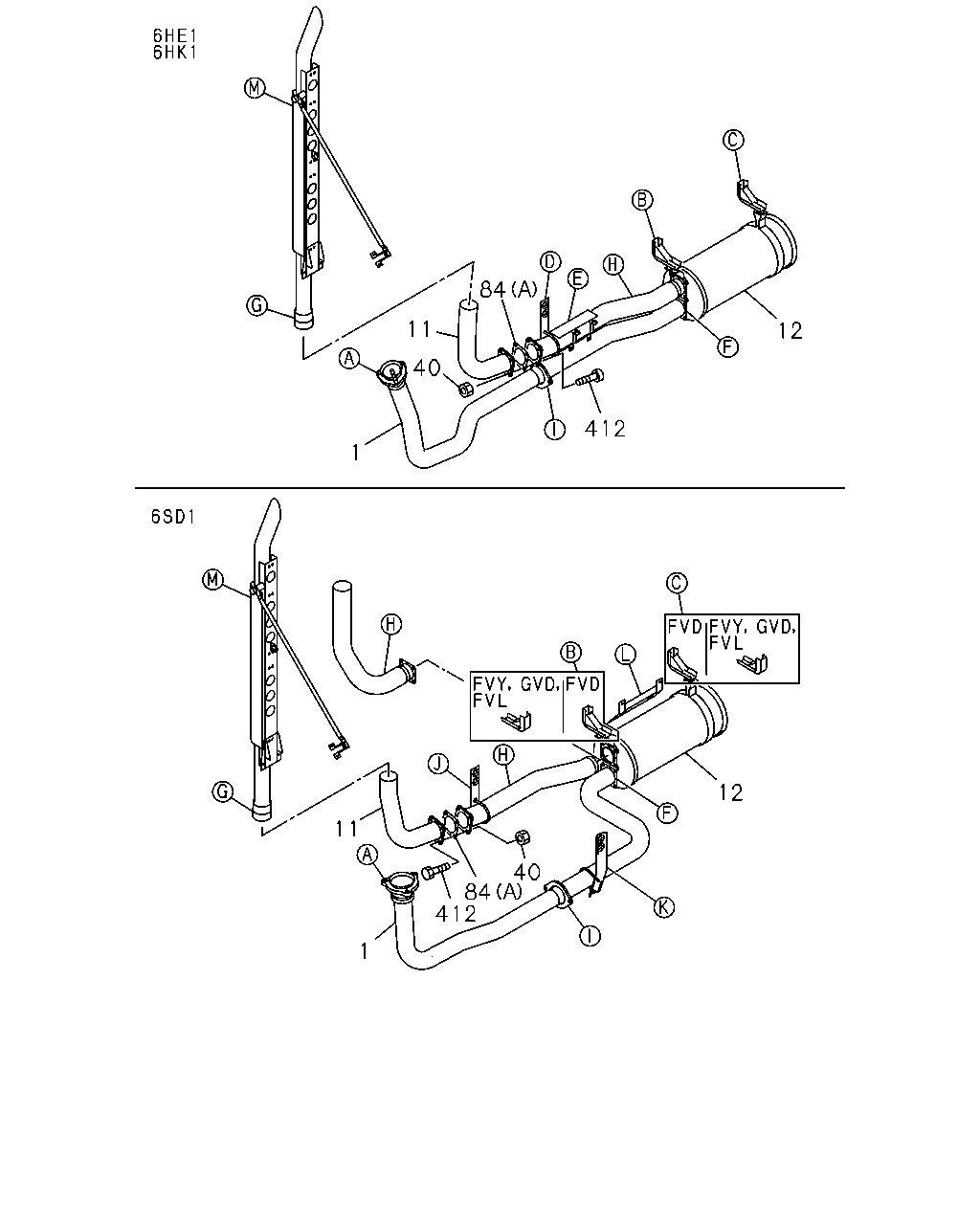

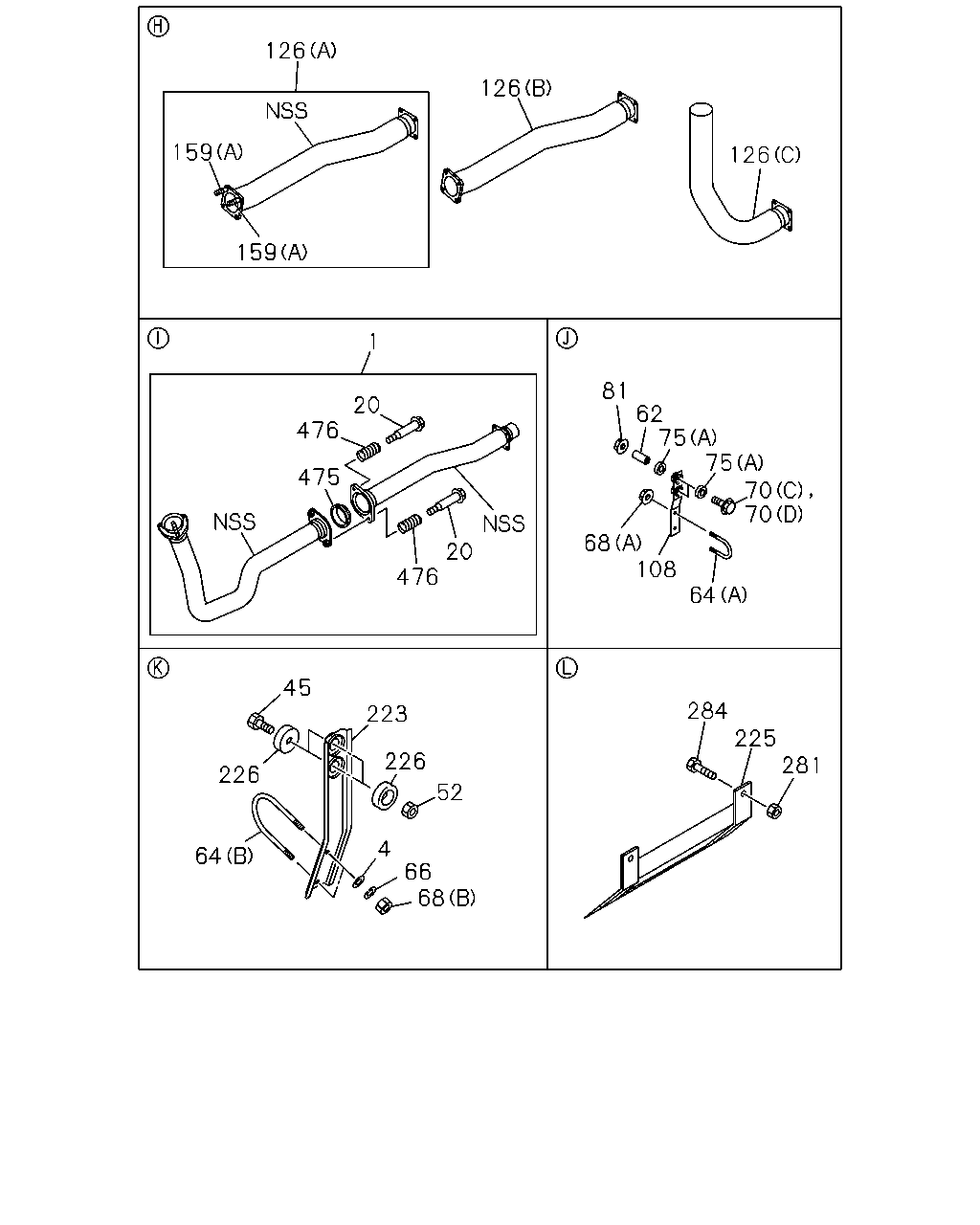

1-50 — EXHAUST PIPE AND SILENCER (#9226) — 569 parça

24 107 81 17 62 75 75 70 81 81 1 75 60 34 68 108 114 36 121 75 64 70 81 121 75 107 116 60 60 81 300 81 24 75 94 354 56 70 332 56 354 94 332 105 105 22 22 12 506 22 81 84 272 506 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH FVD(FVD***) FULLER FS8209HD DD M/T(Y3A)	8-98057-255-0	01	1	0610-	●
1	PIPE; EXH	1-22123-319-1	01	1	0005-0005		●
1	PIPE; EXH	1-22123-419-0	01	1	0006-0210		●
1	PIPE; EXH FVD(FVD***)	1-22123-356-1	01	1	0005-0106			●
1	PIPE; EXH FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-22123-356-1	01	1	0107-0210			●
1	PIPE; EXH FVD(FVD***)	1-22123-609-2	01	1	0211-			●
1	PIPE; EXH FVY(FVY*) GVD(GV**)	1-22123-355-0	01	1	0005-0011			●
1	PIPE; EXH FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****)	1-22123-355-0	01	1	0012-0106			●
1	PIPE; EXH FVD(FVD***) WHEEL BASE 4200MM(42W)	1-22123-355-0	01	1	0107-0210			●
1	PIPE; EXH FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****)	1-22123-355-0	01	1	0107-0210			●
1	PIPE; EXH FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****)	1-22123-610-2	01	1	0211-			●
1	PIPE; EXH	1-22123-652-2	01	1	0303-0609	●
1	PIPE; EXH FVD(FVD***) FULLER FSO5206B OD M/T(Y4V)	1-22123-652-2	01	1	0610-	●
12	SILENCER ASM; EXH	1-22140-943-0	01	1	0005-0210		●	●
12	SILENCER ASM; EXH	1-22140-943-0	01	1	0211-	●		●
14	GASKET; SILENCER TO EXH PIPE	8-94394-391-0	01	1	0005-0210		●	●
14	GASKET; SILENCER TO EXH PIPE	8-94394-391-0	01	1	0211-	●		●
17	BOLT; EXH PIPE M12X110	1-09000-290-0	01	1	0005-0210		●
22	CLAMP; EXH PIPE (A)	1-22133-277-1	01	1	0005-0106		●
22	CLAMP; EXH PIPE FVD(FVD***) (A)	1-22133-277-1	01	1	0005-0106			●
22	CLAMP; EXH PIPE (A)	1-22133-277-1	01	1	0107-0210		●
22	CLAMP; EXH PIPE FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-22133-277-1	01	1	0107-0210			●
22	CLAMP; EXH PIPE FVD(FVD***) (A)	1-22133-277-1	01	1	0211-	●		●
22	CLAMP; EXH PIPE (B)	1-22133-284-0	01	1	0005-0210		●	●
22	CLAMP; EXH PIPE (B)	1-22133-284-0	01	1	0211-	●		●
22	CLAMP; EXH PIPE (D)	1-22133-291-0	03	1	0112-0210		●	●
22	CLAMP; EXH PIPE (D)	1-22133-291-0	03	1	0211-	●		●
22	CLAMP; EXH PIPE FVY(FVY*) GVD(GV**) (A)	1-22133-285-0	01	1	0005-0011			●
22	CLAMP; EXH PIPE FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (A)	1-22133-285-0	01	1	0012-0106			●
22	CLAMP; EXH PIPE FVD(FVD***) WHEEL BASE 4200MM(42W) (A)	1-22133-285-0	01	1	0107-0210			●
22	CLAMP; EXH PIPE FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (A)	1-22133-285-0	01	1	0107-0210			●
22	CLAMP; EXH PIPE FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (A)	1-22133-285-0	01	1	0211-			●
24	COLLAR; DIST,CLAMP FVY(FVY*) GVD(GV**) L=22	9-22159-024-0	04	1	0005-0011			●
24	COLLAR; DIST,CLAMP FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) L=22	9-22159-024-0	04	1	0012-0106			●
24	COLLAR; DIST,CLAMP FVD(FVD***) WHEEL BASE 4200MM(42W) L=22	9-22159-024-0	04	1	0107-0210			●
24	COLLAR; DIST,CLAMP FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) L=22	9-22159-024-0	04	1	0107-0210			●
24	COLLAR; DIST,CLAMP FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) L=22	9-22159-024-0	04	1	0211-			●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	0005-0210		●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	0211-0410	●		●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0411-	●		●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	0005-0212			●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	0301-	●		●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22139-143-0	01	1	0005-0106		●
56	BRACKET; CLAMP,EXH PIPE FVD(FVD***) (A)	1-22139-143-0	01	1	0005-0106			●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22139-143-0	01	1	0107-0210		●
56	BRACKET; CLAMP,EXH PIPE FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-22139-143-0	01	1	0107-0210			●
56	BRACKET; CLAMP,EXH PIPE FVD(FVD***) (A)	1-22139-143-0	01	1	0211-	●		●
56	BRACKET; CLAMP,EXH PIPE FVY(FVY*) GVD(GV**) (B)	1-22139-141-1	01	1	0005-0011			●
56	BRACKET; CLAMP,EXH PIPE FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (B)	1-22139-141-1	01	1	0012-0106			●
56	BRACKET; CLAMP,EXH PIPE FVD(FVD***) WHEEL BASE 4200MM(42W) (B)	1-22139-141-1	01	1	0107-0210			●
56	BRACKET; CLAMP,EXH PIPE FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (B)	1-22139-141-1	01	1	0107-0210			●
56	BRACKET; CLAMP,EXH PIPE FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (B)	1-22139-141-1	01	1	0211-			●
60	BRACKET; FRAME TO BRKT (B)	1-22151-844-0	01	1	0005-0106		●
60	BRACKET; FRAME TO BRKT FVD(FVD***) (B)	1-22151-844-0	01	1	0005-0106			●
60	BRACKET; FRAME TO BRKT (B)	1-22151-844-0	01	1	0107-0210		●
60	BRACKET; FRAME TO BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	1-22151-844-0	01	1	0107-0210			●
60	BRACKET; FRAME TO BRKT FVD(FVD***) (B)	1-22151-844-0	01	1	0211-	●		●
60	BRACKET; FRAME TO BRKT FVD(FVD***) (A)	1-22151-843-0	01	1	0005-0106		●	●
60	BRACKET; FRAME TO BRKT FVD(FVD***) (A)	1-22151-843-0	01	1	0107-0210		●
60	BRACKET; FRAME TO BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-22151-843-0	01	1	0107-0210			●
60	BRACKET; FRAME TO BRKT FVD(FVD***) (A)	1-22151-843-0	01	1	0211-0302			●
60	BRACKET; FRAME TO BRKT FVD(FVD***) (A)	1-22151-843-0	01	1	0303-	●		●
60	BRACKET; FRAME TO BRKT FVY(FVY*) GVD(GV**) (C)	1-22151-846-0	02	1	0005-0011			●
60	BRACKET; FRAME TO BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (C)	1-22151-846-0	02	1	0012-0106			●
60	BRACKET; FRAME TO BRKT FVD(FVD***) WHEEL BASE 4200MM(42W) (C)	1-22151-846-0	02	1	0107-0210			●
60	BRACKET; FRAME TO BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (C)	1-22151-846-0	02	1	0107-0210			●
60	BRACKET; FRAME TO BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (C)	1-22151-846-0	02	1	0211-			●
62	TUBE; DIST,BRKT FVD(FVD***) L=22	9-22159-024-0	02	1	0005-0106		●	●
62	TUBE; DIST,BRKT FVD(FVD***) L=22	9-22159-024-0	02	1	0107-0210		●
62	TUBE; DIST,BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=22	9-22159-024-0	02	1	0107-0210			●
62	TUBE; DIST,BRKT FVD(FVD***) L=22	9-22159-024-0	02	1	0211-0302			●
62	TUBE; DIST,BRKT FVD(FVD***) L=22	9-22159-024-0	02	1	0303-	●		●
64	U-BOLT; EXH PIPE,RR FVD(FVD***) (A)	1-22113-009-0	01	1	0005-0106		●	●
64	U-BOLT; EXH PIPE,RR FVD(FVD***) (A)	1-22113-009-0	01	1	0107-0210		●
64	U-BOLT; EXH PIPE,RR FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-22113-009-0	01	1	0107-0210			●
64	U-BOLT; EXH PIPE,RR FVD(FVD***) (A)	1-22113-009-0	01	1	0211-0302			●
64	U-BOLT; EXH PIPE,RR FVD(FVD***) (A)	1-22113-009-0	01	1	0303-	●		●
64	U-BOLT; EXH PIPE,RR FVD(FVD***) (B)	1-22139-033-1	01	1	0005-0106			●
64	U-BOLT; EXH PIPE,RR FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	1-22139-033-1	01	1	0107-0210			●
64	U-BOLT; EXH PIPE,RR FVD(FVD***) (B)	1-22139-033-1	01	1	0211-1105			●
64	U-BOLT; EXH PIPE,RR FVD(FVD***) (B)	1-22113-101-0	01	1	1106-			●
68	NUT; U BOLT FVD(FVD***) (A) M8 FLANGE	0-91150-208-0	02	1	0005-0106		●	●
68	NUT; U BOLT FVD(FVD***) (A) M8 FLANGE	0-91150-208-0	02	1	0107-0210		●
68	NUT; U BOLT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M8 FLANGE	0-91150-208-0	02	1	0107-0210			●
68	NUT; U BOLT FVD(FVD***) (A) M8 FLANGE	0-91150-208-0	02	1	0211-0302			●
68	NUT; U BOLT FVD(FVD***) (A) M8 FLANGE	0-91150-208-0	02	1	0303-0602	●		●
68	NUT; U BOLT FVD(FVD***) (A) M8 FLANGE	0-91180-208-0	02	1	0603-	●		●
68	NUT; U BOLT FVD(FVD***) (B) M8	9-09110-408-0	02	1	0005-0106			●
68	NUT; U BOLT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M8	9-09110-408-0	02	1	0107-0210			●
68	NUT; U BOLT FVD(FVD***) (B) M8	9-09110-408-0	02	1	0211-0512			●
68	NUT; U BOLT FVD(FVD***) (B) M8	0-91110-508-0	02	1	0601-			●
70	BOLT; BRKT (A) M10X50	0-10806-050-0	02	1	0005-0210		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	0005-0006		●
70	BOLT; BRKT FVD(FVD***) (B) M10X50 FLANGE	0-28081-050-0	04	1	0005-0006			●
70	BOLT; BRKT FVD(FVD***) (B) M10X50 FLANGE	0-28081-050-0	02	1	0007-0106		●	●
70	BOLT; BRKT FVD(FVD***) (B) M10X50 FLANGE	0-28081-050-0	02	1	0107-0210		●
70	BOLT; BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M10X50 FLANGE	0-28081-050-0	02	1	0107-0210			●
70	BOLT; BRKT FVD(FVD***) (B) M10X50 FLANGE	0-28081-050-0	02	1	0211-0302			●
70	BOLT; BRKT FVD(FVD***) (B) M10X50 FLANGE	0-28081-050-0	02	1	0303-0512	●		●
70	BOLT; BRKT FVD(FVD***) (B) M10X50 FLANGE	0-28051-050-0	02	1	0601-	●		●
70	BOLT; BRKT FVD(FVD***) (C) M10X35 FLANGE	0-28681-035-0	02	1	0005-0106			●
70	BOLT; BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) M10X35 FLANGE	0-28681-035-0	02	1	0107-0201			●
70	BOLT; BRKT FVY(FVY*) GVD(GV**) (D) M10X60 FLANGE	0-28081-060-0	02	1	0005-0006			●
70	BOLT; BRKT (D) M10X60 FLANGE	0-28081-060-0	02	1	0007-0512			●
70	BOLT; BRKT (D) M10X60 FLANGE	0-28051-060-0	02	1	0601-			●
70	BOLT; BRKT FVY(FVY*) GVD(GV**) (E) M10X25 FLANGE	0-28681-025-0	03	1	0005-0011			●
70	BOLT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (E) M10X25 FLANGE	0-28681-025-0	03	1	0012-0106			●
70	BOLT; BRKT FVD(FVD***) WHEEL BASE 4200MM(42W) (E) M10X25 FLANGE	0-28681-025-0	03	1	0107-0210			●
70	BOLT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (E) M10X25 FLANGE	0-28681-025-0	03	1	0107-0210			●
70	BOLT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (E) M10X25 FLANGE	0-28681-025-0	03	1	0211-0512			●
70	BOLT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (E) M10X25 FLANGE	0-28651-025-0	03	1	0601-			●
70	BOLT; BRKT (A) M10X50	0-10806-050-0	02	1	0303-0512	●
70	BOLT; BRKT (A) M10X50	0-10856-050-0	02	1	0601-	●
75	RUBBER; SUPPORT,BRKT (B) OD=30	1-22159-106-1	06	1	0005-0210		●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) (B) OD=30	1-22159-106-1	02	1	0211-	●		●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) (A) OD=40	1-22159-094-0	04	1	0005-0106		●	●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) (A) OD=40	1-22159-094-0	04	1	0107-0210		●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) OD=40	1-22159-094-0	04	1	0107-0210			●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) (A) OD=40	1-22159-094-0	04	1	0211-0302			●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) (A) OD=40	1-22159-094-0	04	1	0303-	●		●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) (B) OD=30	1-22159-106-1	02	1	0005-0106		●	●
75	RUBBER; SUPPORT,BRKT (B) OD=30	1-22159-106-1	02	1	0107-0210		●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) OD=30	1-22159-106-1	02	1	0107-0210			●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) (B) OD=30	1-22159-106-1	04	1	0005-0106			●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) OD=30	1-22159-106-1	04	1	0107-0210			●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) (B) OD=30	1-22159-106-1	04	1	0211-0302			●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) (B) OD=30	1-22159-106-1	04	1	0303-	●		●
75	RUBBER; SUPPORT,BRKT FVY(FVY*) GVD(GV**) (A) OD=40	1-22159-094-0	08	1	0005-0011			●
75	RUBBER; SUPPORT,BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (A) OD=40	1-22159-094-0	08	1	0012-0106			●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) WHEEL BASE 4200MM(42W) (A) OD=40	1-22159-094-0	08	1	0107-0210			●
75	RUBBER; SUPPORT,BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (A) OD=40	1-22159-094-0	08	1	0107-0210			●
75	RUBBER; SUPPORT,BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (A) OD=40	1-22159-094-0	08	1	0211-			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	06	1	0005-0011		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	06	1	0012-0210		●
81	NUT; BRKT FVL(FVL***) M10 FLANGE	0-91150-210-0	06	1	0012-0210			●
81	NUT; BRKT M10 LOCK NUT	9-09131-510-0	03	1	0005-0210		●
81	NUT; BRKT FVD(FVD***) M10 LOCK NUT	9-09131-510-0	01	1	0211-0603	●		●
81	NUT; BRKT FVD(FVD***) M10 LOCK NUT	0-91370-010-0	01	1	0604-	●		●
81	NUT; BRKT M12	9-99110-512-0	04	1	0005-0210		●	●
81	NUT; BRKT M12	9-99110-512-0	04	1	0211-0512	●		●
81	NUT; BRKT M12	0-91110-512-0	04	1	0601-	●		●
81	NUT; BRKT FVD(FVD***) M10 FLANGE	0-91150-210-0	02	1	0005-0106		●	●
81	NUT; BRKT FVD(FVD***) M10 FLANGE	0-91150-210-0	02	1	0005-0106		●	●
81	NUT; BRKT FVD MIDDLE CHASSIS(FVD5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-210-0	02	1	0005-0106			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0107-0201		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0107-0201		●
81	NUT; BRKT FVD MIDDLE CHASSIS(FVD5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-210-0	02	1	0107-0201			●
81	NUT; BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10 FLANGE	0-91150-210-0	02	1	0107-0201			●
81	NUT; BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10 FLANGE	0-91150-210-0	02	1	0107-0201			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0202-0210		●	●
81	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10 FLANGE	0-91150-210-0	02	1	0202-0210			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0211-0302	●		●
81	NUT; BRKT FVD(FVD***) M10 FLANGE	0-91150-210-0	02	1	0211-0302			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0303-0602	●		●
81	NUT; BRKT FVD(FVD***) M10 FLANGE	0-91150-210-0	02	1	0303-0602	●		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●		●
81	NUT; BRKT FVD(FVD***) M10 FLANGE	0-91180-210-0	02	1	0603-	●		●
81	NUT; BRKT FVD(FVD***) M10 LOCK NUT	9-09131-510-0	01	1	0005-0106		●	●
81	NUT; BRKT M10 LOCK NUT	9-09131-510-0	01	1	0107-0210		●
81	NUT; BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10 LOCK NUT	9-09131-510-0	01	1	0107-0210			●
81	NUT; BRKT FVD MIDDLE CHASSIS(FVD5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-210-0	04	1	0005-0106		●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0107-0210		●
81	NUT; BRKT FVD MIDDLE CHASSIS(FVD5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-210-0	04	1	0107-0210			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0211-0602	●		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-	●		●
81	NUT; BRKT FVD(FVD***) M10 LOCK NUT	9-09131-510-0	02	1	0005-0106			●
81	NUT; BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10 LOCK NUT	9-09131-510-0	02	1	0107-0210			●
81	NUT; BRKT FVD(FVD***) M10 LOCK NUT	9-09131-510-0	02	1	0211-0302			●
81	NUT; BRKT FVD(FVD***) M10 LOCK NUT	9-09131-510-0	02	1	0303-0603	●		●
81	NUT; BRKT FVD(FVD***) M10 LOCK NUT	0-91370-010-0	02	1	0604-	●		●
81	NUT; BRKT FVY(FVY*) GVD(GV**) M10 FLANGE	0-91150-110-0	03	1	0005-0011			●
81	NUT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-110-0	03	1	0012-0106			●
81	NUT; BRKT FVD(FVD***) WHEEL BASE 4200MM(42W) M10 FLANGE	0-91150-110-0	03	1	0107-0210			●
81	NUT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-110-0	03	1	0107-0210			●
81	NUT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-110-0	03	1	0211-0602			●
81	NUT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91180-110-0	03	1	0603-			●
84	GASKET; EXH PIPE (A)	1-14145-157-0	01	1	0005-0106		●
84	GASKET; EXH PIPE FVD(FVD***) (A)	1-14145-157-0	01	1	0005-0106			●
84	GASKET; EXH PIPE (A)	1-14145-157-0	01	1	0107-0210		●
84	GASKET; EXH PIPE FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-14145-157-0	01	1	0107-0210			●
84	GASKET; EXH PIPE FVD(FVD***) (A)	1-14145-157-0	01	1	0211-	●		●
84	GASKET; EXH PIPE (B)	8-94394-391-0	01	1	0005-0210		●	●
84	GASKET; EXH PIPE (B)	8-94394-391-0	01	1	0211-	●		●
94	BOLT; CLAMP M10X50 FLANGE	0-28081-050-0	01	1	0005-0106		●
94	BOLT; CLAMP FVD(FVD***) M10X50 FLANGE	0-28081-050-0	01	1	0005-0106			●
94	BOLT; CLAMP M10X50 FLANGE	0-28081-050-0	01	1	0107-0210		●
94	BOLT; CLAMP FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10X50 FLANGE	0-28081-050-0	01	1	0107-0210			●
94	BOLT; CLAMP FVD(FVD***) M10X50 FLANGE	0-28081-050-0	01	1	0211-0512	●		●
94	BOLT; CLAMP FVD(FVD***) M10X50 FLANGE	0-28051-050-0	01	1	0601-	●		●
94	BOLT; CLAMP FVY(FVY*) GVD(GV**) M10X40 FLANGE	0-28681-040-0	01	1	0005-0011			●
94	BOLT; CLAMP FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10X40 FLANGE	0-28681-040-0	01	1	0012-0106			●
94	BOLT; CLAMP FVD(FVD***) WHEEL BASE 4200MM(42W) M10X40 FLANGE	0-28681-040-0	01	1	0107-0210			●
94	BOLT; CLAMP FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10X40 FLANGE	0-28681-040-0	01	1	0107-0210			●
94	BOLT; CLAMP FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10X40 FLANGE	0-28681-040-0	01	1	0211-0512			●
94	BOLT; CLAMP FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10X40 FLANGE	0-28651-040-0	01	1	0601-			●
105	NUT; CLAMP M10 FLANGE	0-91150-210-0	01	1	0005-0106		●
105	NUT; CLAMP FVD(FVD***) M10 FLANGE	0-91150-210-0	01	1	0005-0106			●
105	NUT; CLAMP M10 FLANGE	0-91150-210-0	01	1	0107-0210		●
105	NUT; CLAMP FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10 FLANGE	0-91150-210-0	01	1	0107-0210			●
105	NUT; CLAMP FVD(FVD***) M10 FLANGE	0-91150-210-0	01	1	0211-0602	●		●
105	NUT; CLAMP FVD(FVD***) M10 FLANGE	0-91180-210-0	01	1	0603-	●		●
105	NUT; CLAMP FVY(FVY*) GVD(GV**) M10 FLANGE	0-91150-110-0	01	1	0005-0011			●
105	NUT; CLAMP FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-110-0	01	1	0012-0106			●
105	NUT; CLAMP FVD(FVD***) WHEEL BASE 4200MM(42W) M10 FLANGE	0-91150-110-0	01	1	0107-0210			●
105	NUT; CLAMP FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-110-0	01	1	0107-0210			●
105	NUT; CLAMP FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-110-0	01	1	0211-0602			●
105	NUT; CLAMP FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91180-110-0	01	1	0603-			●
107	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	04	1	0005-0106		●
107	BOLT; BRKT FVD(FVD***) M10X35 FLANGE	0-28681-035-0	04	1	0005-0106			●
107	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	04	1	0107-0210		●
107	BOLT; BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10X35 FLANGE	0-28681-035-0	04	1	0107-0210			●
107	BOLT; BRKT FVD(FVD***) M10X35 FLANGE	0-28681-035-0	04	1	0211-0512	●		●
107	BOLT; BRKT FVD(FVD***) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR	1-22131-842-1	01	1	0005-0210		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR FVD(FVD***)	1-22131-845-0	01	1	0005-0106			●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-22131-845-0	01	1	0107-0210			●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR FVD(FVD***)	1-22131-845-0	01	1	0211-			●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR	1-22131-842-1	01	1	0303-	●
114	BRACKET; EXH SILENCER	1-22139-136-2	01	1	0005-0210		●
114	BRACKET; EXH SILENCER FVD(FVD***)	1-22139-137-1	01	1	0005-0106			●
114	BRACKET; EXH SILENCER FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-22139-137-1	01	1	0107-0210			●
114	BRACKET; EXH SILENCER FVD(FVD***)	1-22139-137-1	01	1	0211-			●
114	BRACKET; EXH SILENCER FVY(FVY*) GVD(GV**)	1-22139-140-0	01	1	0005-0011			●
114	BRACKET; EXH SILENCER FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****)	1-22139-140-0	01	1	0012-0106			●
114	BRACKET; EXH SILENCER FVD(FVD***) WHEEL BASE 4200MM(42W)	1-22139-140-0	01	1	0107-0210			●
114	BRACKET; EXH SILENCER FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****)	1-22139-140-0	01	1	0107-0210			●
114	BRACKET; EXH SILENCER FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****)	1-22139-140-0	01	1	0211-			●
114	BRACKET; EXH SILENCER	1-22139-136-2	01	1	0303-	●
116	BOLT; BRKT FVY(FVY*) GVD(GV**) M10X60 FLANGE	0-28081-060-0	02	1	0005-0011			●
116	BOLT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10X60 FLANGE	0-28081-060-0	02	1	0012-0106			●
116	BOLT; BRKT FVD(FVD***) WHEEL BASE 4200MM(42W) M10X60 FLANGE	0-28081-060-0	02	1	0107-0210			●
116	BOLT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10X60 FLANGE	0-28081-060-0	02	1	0107-0210			●
116	BOLT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10X60 FLANGE	0-28081-060-0	02	1	0211-0512			●
116	BOLT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10X60 FLANGE	0-28051-060-0	02	1	0601-			●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	03	1	0005-0210		●
121	WASHER; PL,BRKT FVD(FVD***) ID=10.5 OD=32	9-09164-810-0	01	1	0211-0605	●		●
121	WASHER; PL,BRKT FVD(FVD***) ID=10.5 OD=32	0-91614-810-0	01	1	0606-	●		●
121	WASHER; PL,BRKT FVD(FVD***) ID=10.5 OD=32	9-09164-810-0	01	1	0005-0106		●	●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	0107-0210		●
121	WASHER; PL,BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=10.5 OD=32	9-09164-810-0	01	1	0107-0210			●
121	WASHER; PL,BRKT FVD(FVD***) ID=10.5 OD=32	9-09164-810-0	02	1	0005-0106			●
121	WASHER; PL,BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=10.5 OD=32	9-09164-810-0	02	1	0107-0210			●
121	WASHER; PL,BRKT FVD(FVD***) ID=10.5 OD=32	9-09164-810-0	02	1	0211-0302			●
121	WASHER; PL,BRKT FVD(FVD***) ID=10.5 OD=32	9-09164-810-0	02	1	0303-0605	●		●
121	WASHER; PL,BRKT FVD(FVD***) ID=10.5 OD=32	0-91614-810-0	02	1	0606-	●		●
272	NUT; FLANGE M12	9-99110-512-0	04	1	0005-0210		●	●
272	NUT; FLANGE M12	9-99110-512-0	04	1	0211-0512	●		●
272	NUT; FLANGE M12	0-91110-512-0	04	1	0601-	●		●
300	PROTECTOR; HEAT,EXH PIPE	1-22119-460-1	01	1	0005-0210		●
300	PROTECTOR; HEAT,EXH PIPE	1-22119-460-1	01	1	0303-	●
332	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28680-825-0	04	1	0005-0210		●
332	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28680-825-0	04	1	0303-0512	●
332	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
354	CLAMP; HEAT PROTECTOR	1-22119-300-0	02	1	0005-0210		●
354	CLAMP; HEAT PROTECTOR	1-22119-300-0	02	1	0303-	●
506	BRACKET; STUD	1-22131-788-0	04	1	0005-0011		●
506	BRACKET; STUD	1-22131-788-0	04	1	0012-0206		●
506	BRACKET; STUD FVL(FVL***)	1-22131-788-0	04	1	0012-0206			●
506	BRACKET; STUD M12X35	1-22131-963-0	04	1	0207-0210		●
506	BRACKET; STUD FVL(FVL***) M12X35	1-22131-963-0	04	1	0207-0210			●
506	BRACKET; STUD FVD MIDDLE CHASSIS(FVD5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****)	1-22131-788-0	02	1	0005-0206			●
506	BRACKET; STUD FVD MIDDLE CHASSIS(FVD5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****)	1-22131-788-0	02	1	0005-0206			●
506	BRACKET; STUD FVD MIDDLE CHASSIS(FVD5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M12X35	1-22131-963-0	02	1	0207-0210			●
506	BRACKET; STUD FVD MIDDLE CHASSIS(FVD5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M12X35	1-22131-963-0	02	1	0207-0210			●
506	BRACKET; STUD M12X35	1-22131-963-0	04	1	0211-	●		●

126 126 159 126 159 1 81 20 62 75 75 70 70 476 475 68 108 20 476 64 45 284 225 281 223 226 226 52 4 64 66 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH FVD(FVD***) FULLER FS8209HD DD M/T(Y3A)	8-98057-255-0	01	1	0610-	●
1	PIPE; EXH	1-22123-319-1	01	1	0005-0005		●
1	PIPE; EXH	1-22123-419-0	01	1	0006-0210		●
1	PIPE; EXH FVD(FVD***)	1-22123-356-1	01	1	0005-0106			●
1	PIPE; EXH FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-22123-356-1	01	1	0107-0210			●
1	PIPE; EXH FVD(FVD***)	1-22123-609-2	01	1	0211-			●
1	PIPE; EXH FVY(FVY*) GVD(GV**)	1-22123-355-0	01	1	0005-0011			●
1	PIPE; EXH FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****)	1-22123-355-0	01	1	0012-0106			●
1	PIPE; EXH FVD(FVD***) WHEEL BASE 4200MM(42W)	1-22123-355-0	01	1	0107-0210			●
1	PIPE; EXH FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****)	1-22123-355-0	01	1	0107-0210			●
1	PIPE; EXH FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****)	1-22123-610-2	01	1	0211-			●
1	PIPE; EXH	1-22123-652-2	01	1	0303-0609	●
1	PIPE; EXH FVD(FVD***) FULLER FSO5206B OD M/T(Y4V)	1-22123-652-2	01	1	0610-	●
4	WASHER; PL,U BOLT FVD(FVD***) ID=8.4	9-09160-508-0	02	1	0005-0106			●
4	WASHER; PL,U BOLT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=8.4	9-09160-508-0	02	1	0107-0210			●
4	WASHER; PL,U BOLT FVD(FVD***) ID=8.4	9-09160-508-0	02	1	0211-0605			●
4	WASHER; PL,U BOLT FVD(FVD***) ID=8.4 OD=16	0-91610-508-0	02	1	0606-			●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	0306-0402	●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	0403-0412	●		●
20	BOLT; FLANGE,EXH PIPE M10X49.8	8-97039-586-0	02	1	0501-	●		●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	0005-0210		●	●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	0211-0402			●
45	BOLT; BRKT FVD(FVD***) M10X60 FLANGE	0-28081-060-0	02	1	0005-0106			●
45	BOLT; BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10X60 FLANGE	0-28081-060-0	02	1	0107-0210			●
45	BOLT; BRKT FVD(FVD***) M10X60 FLANGE	0-28081-060-0	02	1	0211-0512			●
45	BOLT; BRKT FVD(FVD***) M10X60 FLANGE	0-28051-060-0	02	1	0601-			●
52	NUT; BRKT FVD(FVD***) M10 FLANGE	0-91150-210-0	02	1	0005-0106			●
52	NUT; BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10 FLANGE	0-91150-210-0	02	1	0107-0210			●
52	NUT; BRKT FVD(FVD***) M10 FLANGE	0-91150-210-0	02	1	0211-0602			●
52	NUT; BRKT FVD(FVD***) M10 FLANGE	0-91180-210-0	02	1	0603-			●
62	TUBE; DIST,BRKT FVD(FVD***) L=22	9-22159-024-0	02	1	0005-0106		●	●
62	TUBE; DIST,BRKT FVD(FVD***) L=22	9-22159-024-0	02	1	0107-0210		●
62	TUBE; DIST,BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=22	9-22159-024-0	02	1	0107-0210			●
62	TUBE; DIST,BRKT FVD(FVD***) L=22	9-22159-024-0	02	1	0211-0302			●
62	TUBE; DIST,BRKT FVD(FVD***) L=22	9-22159-024-0	02	1	0303-	●		●
64	U-BOLT; EXH PIPE,RR FVD(FVD***) (A)	1-22113-009-0	01	1	0005-0106		●	●
64	U-BOLT; EXH PIPE,RR FVD(FVD***) (A)	1-22113-009-0	01	1	0107-0210		●
64	U-BOLT; EXH PIPE,RR FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-22113-009-0	01	1	0107-0210			●
64	U-BOLT; EXH PIPE,RR FVD(FVD***) (A)	1-22113-009-0	01	1	0211-0302			●
64	U-BOLT; EXH PIPE,RR FVD(FVD***) (A)	1-22113-009-0	01	1	0303-	●		●
64	U-BOLT; EXH PIPE,RR FVD(FVD***) (B)	1-22139-033-1	01	1	0005-0106			●
64	U-BOLT; EXH PIPE,RR FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	1-22139-033-1	01	1	0107-0210			●
64	U-BOLT; EXH PIPE,RR FVD(FVD***) (B)	1-22139-033-1	01	1	0211-1105			●
64	U-BOLT; EXH PIPE,RR FVD(FVD***) (B)	1-22113-101-0	01	1	1106-			●
66	WASHER; LK,U BOLT FVD(FVD***) ID=8.2	9-09150-508-0	02	1	0005-0106			●
66	WASHER; LK,U BOLT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=8.2	9-09150-508-0	02	1	0107-0210			●
66	WASHER; LK,U BOLT FVD(FVD***) ID=8.2	9-09150-508-0	02	1	0211-0603			●
66	WASHER; LK,U BOLT FVD(FVD***) ID=8.2	0-91510-508-0	02	1	0604-			●
68	NUT; U BOLT FVD(FVD***) (A) M8 FLANGE	0-91150-208-0	02	1	0005-0106		●	●
68	NUT; U BOLT FVD(FVD***) (A) M8 FLANGE	0-91150-208-0	02	1	0107-0210		●
68	NUT; U BOLT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M8 FLANGE	0-91150-208-0	02	1	0107-0210			●
68	NUT; U BOLT FVD(FVD***) (A) M8 FLANGE	0-91150-208-0	02	1	0211-0302			●
68	NUT; U BOLT FVD(FVD***) (A) M8 FLANGE	0-91150-208-0	02	1	0303-0602	●		●
68	NUT; U BOLT FVD(FVD***) (A) M8 FLANGE	0-91180-208-0	02	1	0603-	●		●
68	NUT; U BOLT FVD(FVD***) (B) M8	9-09110-408-0	02	1	0005-0106			●
68	NUT; U BOLT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M8	9-09110-408-0	02	1	0107-0210			●
68	NUT; U BOLT FVD(FVD***) (B) M8	9-09110-408-0	02	1	0211-0512			●
68	NUT; U BOLT FVD(FVD***) (B) M8	0-91110-508-0	02	1	0601-			●
70	BOLT; BRKT (A) M10X50	0-10806-050-0	02	1	0005-0210		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	0005-0006		●
70	BOLT; BRKT FVD(FVD***) (B) M10X50 FLANGE	0-28081-050-0	04	1	0005-0006			●
70	BOLT; BRKT FVD(FVD***) (B) M10X50 FLANGE	0-28081-050-0	02	1	0007-0106		●	●
70	BOLT; BRKT FVD(FVD***) (B) M10X50 FLANGE	0-28081-050-0	02	1	0107-0210		●
70	BOLT; BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M10X50 FLANGE	0-28081-050-0	02	1	0107-0210			●
70	BOLT; BRKT FVD(FVD***) (B) M10X50 FLANGE	0-28081-050-0	02	1	0211-0302			●
70	BOLT; BRKT FVD(FVD***) (B) M10X50 FLANGE	0-28081-050-0	02	1	0303-0512	●		●
70	BOLT; BRKT FVD(FVD***) (B) M10X50 FLANGE	0-28051-050-0	02	1	0601-	●		●
70	BOLT; BRKT FVD(FVD***) (C) M10X35 FLANGE	0-28681-035-0	02	1	0005-0106			●
70	BOLT; BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) M10X35 FLANGE	0-28681-035-0	02	1	0107-0201			●
70	BOLT; BRKT FVY(FVY*) GVD(GV**) (D) M10X60 FLANGE	0-28081-060-0	02	1	0005-0006			●
70	BOLT; BRKT (D) M10X60 FLANGE	0-28081-060-0	02	1	0007-0512			●
70	BOLT; BRKT (D) M10X60 FLANGE	0-28051-060-0	02	1	0601-			●
70	BOLT; BRKT FVY(FVY*) GVD(GV**) (E) M10X25 FLANGE	0-28681-025-0	03	1	0005-0011			●
70	BOLT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (E) M10X25 FLANGE	0-28681-025-0	03	1	0012-0106			●
70	BOLT; BRKT FVD(FVD***) WHEEL BASE 4200MM(42W) (E) M10X25 FLANGE	0-28681-025-0	03	1	0107-0210			●
70	BOLT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (E) M10X25 FLANGE	0-28681-025-0	03	1	0107-0210			●
70	BOLT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (E) M10X25 FLANGE	0-28681-025-0	03	1	0211-0512			●
70	BOLT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (E) M10X25 FLANGE	0-28651-025-0	03	1	0601-			●
70	BOLT; BRKT (A) M10X50	0-10806-050-0	02	1	0303-0512	●
70	BOLT; BRKT (A) M10X50	0-10856-050-0	02	1	0601-	●
75	RUBBER; SUPPORT,BRKT (B) OD=30	1-22159-106-1	06	1	0005-0210		●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) (B) OD=30	1-22159-106-1	02	1	0211-	●		●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) (A) OD=40	1-22159-094-0	04	1	0005-0106		●	●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) (A) OD=40	1-22159-094-0	04	1	0107-0210		●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) OD=40	1-22159-094-0	04	1	0107-0210			●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) (A) OD=40	1-22159-094-0	04	1	0211-0302			●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) (A) OD=40	1-22159-094-0	04	1	0303-	●		●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) (B) OD=30	1-22159-106-1	02	1	0005-0106		●	●
75	RUBBER; SUPPORT,BRKT (B) OD=30	1-22159-106-1	02	1	0107-0210		●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) OD=30	1-22159-106-1	02	1	0107-0210			●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) (B) OD=30	1-22159-106-1	04	1	0005-0106			●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) OD=30	1-22159-106-1	04	1	0107-0210			●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) (B) OD=30	1-22159-106-1	04	1	0211-0302			●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) (B) OD=30	1-22159-106-1	04	1	0303-	●		●
75	RUBBER; SUPPORT,BRKT FVY(FVY*) GVD(GV**) (A) OD=40	1-22159-094-0	08	1	0005-0011			●
75	RUBBER; SUPPORT,BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (A) OD=40	1-22159-094-0	08	1	0012-0106			●
75	RUBBER; SUPPORT,BRKT FVD(FVD***) WHEEL BASE 4200MM(42W) (A) OD=40	1-22159-094-0	08	1	0107-0210			●
75	RUBBER; SUPPORT,BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (A) OD=40	1-22159-094-0	08	1	0107-0210			●
75	RUBBER; SUPPORT,BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (A) OD=40	1-22159-094-0	08	1	0211-			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	06	1	0005-0011		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	06	1	0012-0210		●
81	NUT; BRKT FVL(FVL***) M10 FLANGE	0-91150-210-0	06	1	0012-0210			●
81	NUT; BRKT M10 LOCK NUT	9-09131-510-0	03	1	0005-0210		●
81	NUT; BRKT FVD(FVD***) M10 LOCK NUT	9-09131-510-0	01	1	0211-0603	●		●
81	NUT; BRKT FVD(FVD***) M10 LOCK NUT	0-91370-010-0	01	1	0604-	●		●
81	NUT; BRKT M12	9-99110-512-0	04	1	0005-0210		●	●
81	NUT; BRKT M12	9-99110-512-0	04	1	0211-0512	●		●
81	NUT; BRKT M12	0-91110-512-0	04	1	0601-	●		●
81	NUT; BRKT FVD(FVD***) M10 FLANGE	0-91150-210-0	02	1	0005-0106		●	●
81	NUT; BRKT FVD(FVD***) M10 FLANGE	0-91150-210-0	02	1	0005-0106		●	●
81	NUT; BRKT FVD MIDDLE CHASSIS(FVD5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-210-0	02	1	0005-0106			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0107-0201		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0107-0201		●
81	NUT; BRKT FVD MIDDLE CHASSIS(FVD5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-210-0	02	1	0107-0201			●
81	NUT; BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10 FLANGE	0-91150-210-0	02	1	0107-0201			●
81	NUT; BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10 FLANGE	0-91150-210-0	02	1	0107-0201			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0202-0210		●	●
81	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10 FLANGE	0-91150-210-0	02	1	0202-0210			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0211-0302	●		●
81	NUT; BRKT FVD(FVD***) M10 FLANGE	0-91150-210-0	02	1	0211-0302			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0303-0602	●		●
81	NUT; BRKT FVD(FVD***) M10 FLANGE	0-91150-210-0	02	1	0303-0602	●		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●		●
81	NUT; BRKT FVD(FVD***) M10 FLANGE	0-91180-210-0	02	1	0603-	●		●
81	NUT; BRKT FVD(FVD***) M10 LOCK NUT	9-09131-510-0	01	1	0005-0106		●	●
81	NUT; BRKT M10 LOCK NUT	9-09131-510-0	01	1	0107-0210		●
81	NUT; BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10 LOCK NUT	9-09131-510-0	01	1	0107-0210			●
81	NUT; BRKT FVD MIDDLE CHASSIS(FVD5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-210-0	04	1	0005-0106		●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0107-0210		●
81	NUT; BRKT FVD MIDDLE CHASSIS(FVD5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-210-0	04	1	0107-0210			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0211-0602	●		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-	●		●
81	NUT; BRKT FVD(FVD***) M10 LOCK NUT	9-09131-510-0	02	1	0005-0106			●
81	NUT; BRKT FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10 LOCK NUT	9-09131-510-0	02	1	0107-0210			●
81	NUT; BRKT FVD(FVD***) M10 LOCK NUT	9-09131-510-0	02	1	0211-0302			●
81	NUT; BRKT FVD(FVD***) M10 LOCK NUT	9-09131-510-0	02	1	0303-0603	●		●
81	NUT; BRKT FVD(FVD***) M10 LOCK NUT	0-91370-010-0	02	1	0604-	●		●
81	NUT; BRKT FVY(FVY*) GVD(GV**) M10 FLANGE	0-91150-110-0	03	1	0005-0011			●
81	NUT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-110-0	03	1	0012-0106			●
81	NUT; BRKT FVD(FVD***) WHEEL BASE 4200MM(42W) M10 FLANGE	0-91150-110-0	03	1	0107-0210			●
81	NUT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-110-0	03	1	0107-0210			●
81	NUT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-110-0	03	1	0211-0602			●
81	NUT; BRKT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91180-110-0	03	1	0603-			●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR	1-22131-842-1	01	1	0005-0210		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR FVD(FVD***)	1-22131-845-0	01	1	0005-0106			●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-22131-845-0	01	1	0107-0210			●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR FVD(FVD***)	1-22131-845-0	01	1	0211-			●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR	1-22131-842-1	01	1	0303-	●
126	PIPE; EXH,RR FVD(FVD***) FULLER FS8209HD DD M/T(Y3A) (A)	8-98057-256-0	01	1	0610-	●
126	PIPE; EXH,RR (A)	1-22123-324-2	01	1	0005-0210		●
126	PIPE; EXH,RR FVD(FVD***) (B)	1-22126-310-0	01	1	0005-0106			●
126	PIPE; EXH,RR FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	1-22126-310-0	01	1	0107-0210			●
126	PIPE; EXH,RR FVD(FVD***) (B)	1-22126-310-0	01	1	0211-			●
126	PIPE; EXH,RR FVY(FVY*) GVD(GV**) (C)	1-22126-309-0	01	1	0005-0011			●
126	PIPE; EXH,RR FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (C)	1-22126-309-0	01	1	0012-0106			●
126	PIPE; EXH,RR FVD(FVD***) WHEEL BASE 4200MM(42W) (C)	1-22126-309-0	01	1	0107-0210			●
126	PIPE; EXH,RR FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (C)	1-22126-309-0	01	1	0107-0210			●
126	PIPE; EXH,RR FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (C)	1-22126-309-0	01	1	0211-			●
126	PIPE; EXH,RR (A)	1-22123-324-2	01	1	0303-0609	●
126	PIPE; EXH,RR FVD(FVD***) FULLER FSO5206B OD M/T(Y4V) (A)	1-22123-324-2	01	1	0610-	●
159	BOLT; HEAT PROTECTOR (A) M12X35 FLANGE	0-28681-235-0	02	1	0005-0210		●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	10	1	0005-0210		●	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	10	1	0211-0512	●		●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28050-820-0	10	1	0601-	●		●
159	BOLT; HEAT PROTECTOR (A) M12X35 FLANGE	0-28681-235-0	02	1	0303-0512	●
159	BOLT; HEAT PROTECTOR (A) M12X35 FLANGE	0-28651-235-0	02	1	0601-	●
223	BRACKET; EXH PIPE FVD(FVD***)	1-22131-727-0	01	1	0005-0106			●
223	BRACKET; EXH PIPE FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-22131-727-0	01	1	0107-0210			●
223	BRACKET; EXH PIPE FVD(FVD***)	1-22131-727-0	01	1	0211-			●
225	PROTECTOR; HEAT FVY(FVY*) GVD(GV**)	1-22159-320-1	01	1	0005-0008			●
225	PROTECTOR; HEAT FVY(FVY*) GVD(GV**)	1-22159-344-0	01	1	0009-0011			●
225	PROTECTOR; HEAT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****)	1-22159-344-0	01	1	0012-0103			●
225	PROTECTOR; HEAT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF)	1-22159-344-0	01	1	0104-0106			●
225	PROTECTOR; HEAT FVD(FVD***) WHEEL BASE 4200MM(42W)	1-22159-344-0	01	1	0107-0210			●
225	PROTECTOR; HEAT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF)	1-22159-344-0	01	1	0107-0210			●
225	PROTECTOR; HEAT FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF)	1-22159-344-0	01	1	0211-			●
225	PROTECTOR; HEAT GVD(GV****)	1-22159-320-1	01	1	0104-0210			●
225	PROTECTOR; HEAT GVD(GV****)	1-22159-320-1	01	1	0211-			●
226	RUBBER; CUSHION FVD(FVD***) OD=40	1-22159-094-0	04	1	0005-0106			●
226	RUBBER; CUSHION FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) OD=40	1-22159-094-0	04	1	0107-0210			●
226	RUBBER; CUSHION FVD(FVD***) OD=40	1-22159-094-0	04	1	0211-			●
281	NUT; HEAT PROTECTOR FVY(FVY*) GVD(GV**) M10 FLANGE	0-91150-210-0	02	1	0005-0011			●
281	NUT; HEAT PROTECTOR FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-210-0	02	1	0012-0106			●
281	NUT; HEAT PROTECTOR FVD(FVD***) WHEEL BASE 4200MM(42W) M10 FLANGE	0-91150-210-0	02	1	0107-0210			●
281	NUT; HEAT PROTECTOR FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-210-0	02	1	0107-0210			●
281	NUT; HEAT PROTECTOR FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-210-0	02	1	0211-0212			●
281	NUT; HEAT PROTECTOR FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91150-210-0	02	1	0301-0602			●
281	NUT; HEAT PROTECTOR FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10 FLANGE	0-91180-210-0	02	1	0603-			●
284	BOLT; HEAT PROTECTOR FVY(FVY*) GVD(GV**) M10X25 FLANGE	0-28681-025-0	02	1	0005-0011			●
284	BOLT; HEAT PROTECTOR FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10X25 FLANGE	0-28681-025-0	02	1	0012-0106			●
284	BOLT; HEAT PROTECTOR FVD(FVD***) WHEEL BASE 4200MM(42W) M10X25 FLANGE	0-28681-025-0	02	1	0107-0210			●
284	BOLT; HEAT PROTECTOR FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10X25 FLANGE	0-28681-025-0	02	1	0107-0210			●
284	BOLT; HEAT PROTECTOR FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) M10X25 FLANGE	0-28681-025-0	02	1	0211-0212			●
284	BOLT; HEAT PROTECTOR FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10X25 FLANGE	0-28681-025-0	02	1	0301-0512			●
284	BOLT; HEAT PROTECTOR FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) M10X25 FLANGE	0-28651-025-0	02	1	0601-			●
284	BOLT; HEAT PROTECTOR GVD(GV****) M10X35 FLANGE	0-28681-035-0	02	1	0211-0212			●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	01	1	0306-0402	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-1	01	1	0403-	●		●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	01	1	0005-0210		●	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	01	1	0211-0402			●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0306-0402	●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0403-	●		●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0005-0210		●	●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0211-0402			●

359 22 151 8 201 197 22 216 8 439 159 216 201 8 436 22 421 417 418 434 433

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	BRACKET; EXH PIPE	1-22131-885-0	03	1	0112-0210		●	●
8	BRACKET; EXH PIPE	1-22131-885-0	03	1	0211-	●		●
22	CLAMP; EXH PIPE (A)	1-22133-277-1	01	1	0005-0106		●
22	CLAMP; EXH PIPE FVD(FVD***) (A)	1-22133-277-1	01	1	0005-0106			●
22	CLAMP; EXH PIPE (A)	1-22133-277-1	01	1	0107-0210		●
22	CLAMP; EXH PIPE FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-22133-277-1	01	1	0107-0210			●
22	CLAMP; EXH PIPE FVD(FVD***) (A)	1-22133-277-1	01	1	0211-	●		●
22	CLAMP; EXH PIPE (B)	1-22133-284-0	01	1	0005-0210		●	●
22	CLAMP; EXH PIPE (B)	1-22133-284-0	01	1	0211-	●		●
22	CLAMP; EXH PIPE (D)	1-22133-291-0	03	1	0112-0210		●	●
22	CLAMP; EXH PIPE (D)	1-22133-291-0	03	1	0211-	●		●
22	CLAMP; EXH PIPE FVY(FVY*) GVD(GV**) (A)	1-22133-285-0	01	1	0005-0011			●
22	CLAMP; EXH PIPE FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (A)	1-22133-285-0	01	1	0012-0106			●
22	CLAMP; EXH PIPE FVD(FVD***) WHEEL BASE 4200MM(42W) (A)	1-22133-285-0	01	1	0107-0210			●
22	CLAMP; EXH PIPE FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (A)	1-22133-285-0	01	1	0107-0210			●
22	CLAMP; EXH PIPE FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) (A)	1-22133-285-0	01	1	0211-			●
151	PROTECTOR; HEAT,EXH PIPE	1-22159-240-1	01	1	0005-0210		●	●
151	PROTECTOR; HEAT,EXH PIPE	1-22159-240-1	01	1	0211-	●		●
159	BOLT; HEAT PROTECTOR (A) M12X35 FLANGE	0-28681-235-0	02	1	0005-0210		●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	10	1	0005-0210		●	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	10	1	0211-0512	●		●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28050-820-0	10	1	0601-	●		●
159	BOLT; HEAT PROTECTOR (A) M12X35 FLANGE	0-28681-235-0	02	1	0303-0512	●
159	BOLT; HEAT PROTECTOR (A) M12X35 FLANGE	0-28651-235-0	02	1	0601-	●
197	BRACKET; EXH PIPE,VERTICAL	1-22131-796-0	01	1	0005-0210		●	●
197	BRACKET; EXH PIPE,VERTICAL	1-22131-796-1	01	1	0211-	●		●
201	BOLT; STAY (A) M10X25 FLANGE	0-28081-025-0	01	1	0005-0210		●	●
201	BOLT; STAY (A) M10X25 FLANGE	0-28081-025-0	01	1	0211-0512	●		●
201	BOLT; STAY (A) M10X25 FLANGE	0-28051-025-0	01	1	0601-	●		●
201	BOLT; STAY (B) M10X50 FLANGE	0-28081-050-0	02	1	0005-0210		●	●
201	BOLT; STAY (B) M10X50 FLANGE	0-28081-050-0	02	1	0211-0512	●		●
201	BOLT; STAY (B) M10X50 FLANGE	0-28051-050-0	02	1	0601-	●		●
216	BOLT; CLAMP M10X20 FLANGE	0-28081-020-0	06	1	0112-0210		●	●
216	BOLT; CLAMP M10X20 FLANGE	0-28081-020-0	06	1	0211-0512	●		●
216	BOLT; CLAMP M10X20 FLANGE	0-28051-020-0	06	1	0601-	●		●
359	PIPE; EXH,VERTICAL	1-22123-350-0	01	1	0005-0210		●	●
359	PIPE; EXH,VERTICAL	1-22123-350-0	01	1	0211-	●		●
417	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	06	1	0007-0210		●
417	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	06	1	0005-0006		●	●
417	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	06	1	0007-0512			●
417	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	06	1	0601-			●
417	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	06	1	0303-0512	●
417	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	06	1	0601-	●
418	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0005-0210		●	●
418	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0211-0602	●		●
418	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0603-	●		●
421	BOLT; PIPE BRKT M10X25 FLANGE	0-28081-025-0	06	1	0005-0210		●	●
421	BOLT; PIPE BRKT M10X25 FLANGE	0-28081-025-0	06	1	0211-0512	●		●
421	BOLT; PIPE BRKT M10X25 FLANGE	0-28051-025-0	06	1	0601-	●		●
433	BRACKET; STAY,EXH PIPE	1-22131-783-1	01	1	0005-0210		●	●
433	BRACKET; STAY,EXH PIPE	1-22131-783-1	01	1	0211-	●		●
434	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0005-0210		●	●
434	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●		●
434	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●
436	STAY; SUPPORT,EXH	1-22131-698-2	01	1	0005-0210		●	●
436	STAY; SUPPORT,EXH	1-22131-698-2	01	1	0211-	●		●
439	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	0005-0106		●	●
439	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	0107-0210		●
439	TUBE; DIST,SUPPORT RUBBER FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=22	9-22159-024-0	02	1	0107-0210			●
439	TUBE; DIST,SUPPORT RUBBER FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****) L=22	9-22159-024-0	02	1	0107-0210			●
439	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	0211-	●		●
439	TUBE; DIST,SUPPORT RUBBER FVD(FVD***) L=22	9-22159-024-0	02	1	0211-			●

84 11 12 40 412 1 12 11 40 84 412 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH FVD(FVD***) FULLER FS8209HD DD M/T(Y3A)	8-98057-255-0	01	1	0610-	●
1	PIPE; EXH	1-22123-319-1	01	1	0005-0005		●
1	PIPE; EXH	1-22123-419-0	01	1	0006-0210		●
1	PIPE; EXH FVD(FVD***)	1-22123-356-1	01	1	0005-0106			●
1	PIPE; EXH FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-22123-356-1	01	1	0107-0210			●
1	PIPE; EXH FVD(FVD***)	1-22123-609-2	01	1	0211-			●
1	PIPE; EXH FVY(FVY*) GVD(GV**)	1-22123-355-0	01	1	0005-0011			●
1	PIPE; EXH FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****)	1-22123-355-0	01	1	0012-0106			●
1	PIPE; EXH FVD(FVD***) WHEEL BASE 4200MM(42W)	1-22123-355-0	01	1	0107-0210			●
1	PIPE; EXH FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****)	1-22123-355-0	01	1	0107-0210			●
1	PIPE; EXH FVL MIDDLE CHASSIS(FVL5MF) FVY MIDDLE CHASSIS(FVY5MF) GVD(GV****)	1-22123-610-2	01	1	0211-			●
1	PIPE; EXH	1-22123-652-2	01	1	0303-0609	●
1	PIPE; EXH FVD(FVD***) FULLER FSO5206B OD M/T(Y4V)	1-22123-652-2	01	1	0610-	●
11	PIPE; EXH,RR	1-22123-325-1	01	1	0005-0210		●
11	PIPE; EXH,RR FVD(FVD***)	1-22126-311-0	01	1	0005-0106			●
11	PIPE; EXH,RR FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-22126-311-0	01	1	0107-0210			●
11	PIPE; EXH,RR FVD(FVD***)	1-22126-311-1	01	1	0211-			●
11	PIPE; EXH,RR	1-22123-325-1	01	1	0303-	●
12	SILENCER ASM; EXH	1-22140-943-0	01	1	0005-0210		●	●
12	SILENCER ASM; EXH	1-22140-943-0	01	1	0211-	●		●
40	NUT; RR TO CENTER M12 FLANGE	0-91150-212-0	04	1	0005-0106		●
40	NUT; RR TO CENTER FVD(FVD***) M12 FLANGE	0-91150-212-0	04	1	0005-0106			●
40	NUT; RR TO CENTER M12 FLANGE	0-91150-212-0	04	1	0107-0210		●
40	NUT; RR TO CENTER FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12 FLANGE	0-91150-212-0	04	1	0107-0210			●
40	NUT; RR TO CENTER FVD(FVD***) M12 FLANGE	0-91150-212-0	04	1	0211-0602	●		●
40	NUT; RR TO CENTER FVD(FVD***) M12 FLANGE	0-91180-212-0	04	1	0603-	●		●
84	GASKET; EXH PIPE (A)	1-14145-157-0	01	1	0005-0106		●
84	GASKET; EXH PIPE FVD(FVD***) (A)	1-14145-157-0	01	1	0005-0106			●
84	GASKET; EXH PIPE (A)	1-14145-157-0	01	1	0107-0210		●
84	GASKET; EXH PIPE FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-14145-157-0	01	1	0107-0210			●
84	GASKET; EXH PIPE FVD(FVD***) (A)	1-14145-157-0	01	1	0211-	●		●
84	GASKET; EXH PIPE (B)	8-94394-391-0	01	1	0005-0210		●	●
84	GASKET; EXH PIPE (B)	8-94394-391-0	01	1	0211-	●		●
412	BOLT; EXH PIPE,RR M12X35 FLANGE	0-28681-235-0	02	1	0005-0210		●
412	BOLT; EXH PIPE,RR FVD(FVD***) M12X35 FLANGE	0-28681-235-0	04	1	0211-0512	●		●
412	BOLT; EXH PIPE,RR FVD(FVD***) M12X35 FLANGE	0-28651-235-0	04	1	0601-	●		●
412	BOLT; EXH PIPE,RR FVD(FVD***) M12X35 FLANGE	0-28681-235-0	04	1	0005-0106			●
412	BOLT; EXH PIPE,RR FVD(FVD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M12X35 FLANGE	0-28681-235-0	04	1	0107-0210			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
