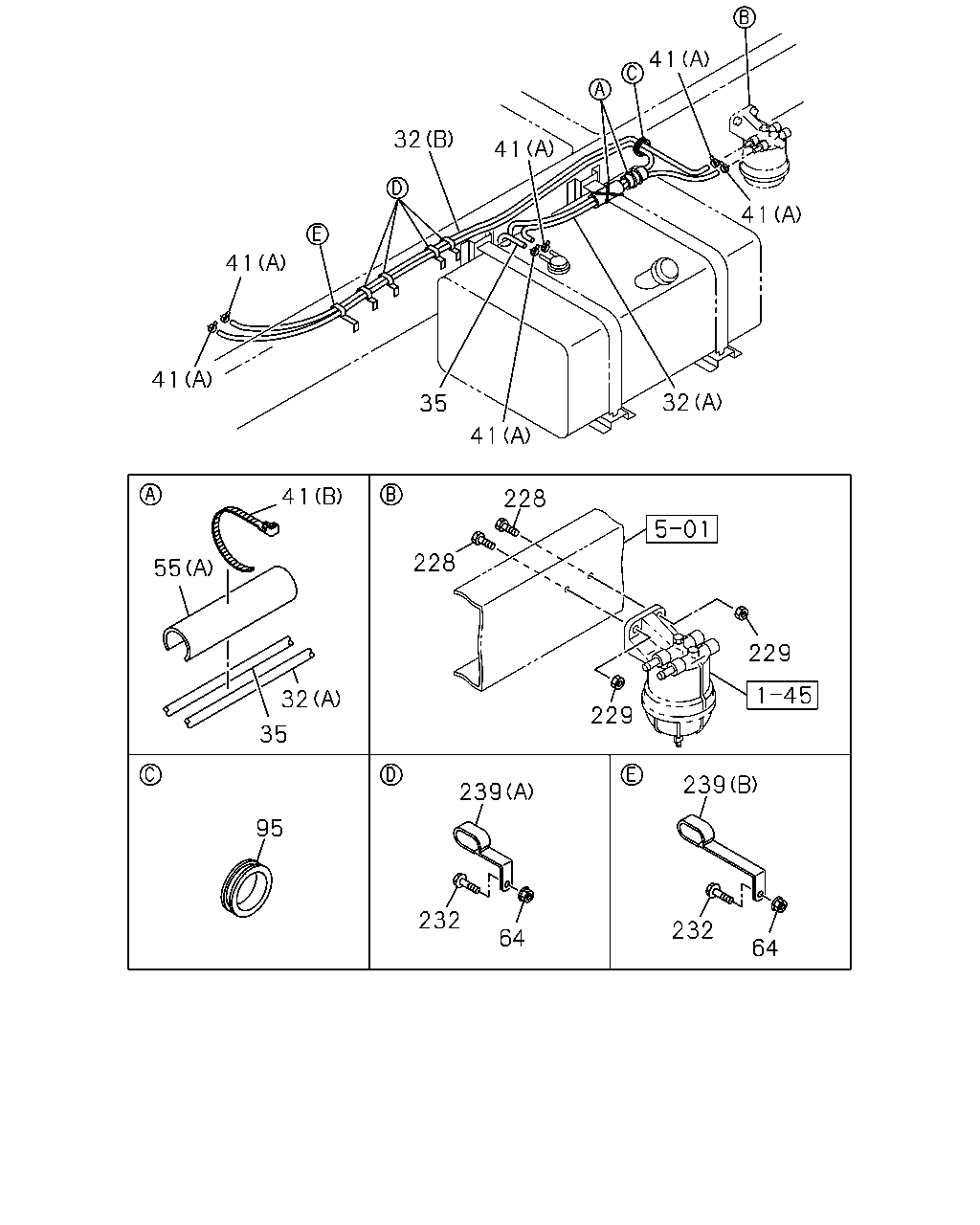

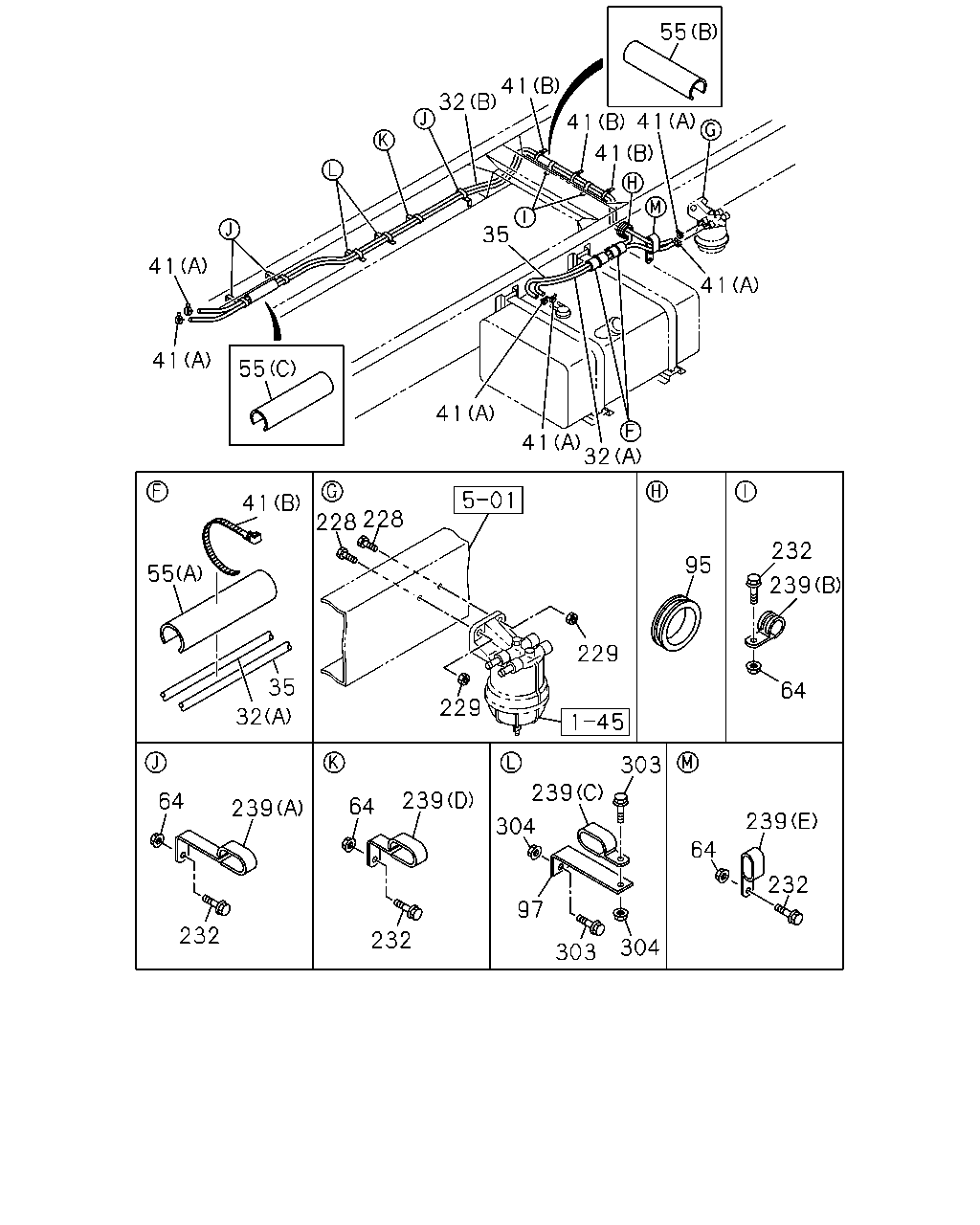

32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0006 |
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVD(FVD***)
FUEL TANK 200L FMCSR<PK6>
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0006 |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVD(FVD***)
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0007-0210 |
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVD(FVD***)
FUEL TANK 200L FMCSR<PK6>
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0007-0210 |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVD(FVD***)
FUEL TANK 200L FMCSR<PK6>
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0211-0302 |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVD(FVD***)
FUEL TANK 200L FMCSR<PK6>
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0303- |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0303- |
|
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
(B)
L=1750
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVY(FVY***)
(A)
L=980
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVY(FVY***)
(B)
L=2850
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0211- |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVY(FVY***)
(B)
L=2800
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVD(FVD***)
FUEL TANK 200L FMCSR<PK6>
(B)
L=3800
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0005-0210 |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVD(FVD***)
FUEL TANK 200L FMCSR<PK6>
(B)
L=3950
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0211- |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVD(FVD***)
FUEL TANK 400L<SDH>
(A)
L=1050
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0011 |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
GVD(GV****)
(A)
L=1050
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0011 |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVD(FVD***)
FUEL TANK 400L<SDH>
(A)
L=1050
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0012-0210 |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVL(FVL***)
GVD(GV****)
(A)
L=1050
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0012-0210 |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVD(FVD***)
FUEL TANK 400L<SDH>
(B)
L=3050
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0211- |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVL(FVL***)
GVD(GV****)
(B)
L=3050
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0211- |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVD(FVD***)
FUEL TANK 400L<SDH>
(B)
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0011 |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
GVD(GV****)
(B)
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0011 |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVD(FVD***)
FUEL TANK 400L<SDH>
(B)
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0012-0210 |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FVL(FVL***)
GVD(GV****)
(B)
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0012-0210 |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FUEL TANK 400L<SDH>
(A)
L=980
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0211- |
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(B)
L=1600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0303- |
|
|
● |
| |
35 |
PIPE; FUEL TANK,RETURN
L=1550
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVY(FVY***)
L=3450
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0005-0210 |
|
● |
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVD(FVD***)
FUEL TANK 200L FMCSR<PK6>
L=3550
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0005-0210 |
|
● |
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVD(FVD***)
FUEL TANK 400L<SDH>
L=3650
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0005-0006 |
|
● |
|
| |
35 |
PIPE; FUEL TANK,RETURN
GVD(GV****)
L=3650
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0005-0006 |
|
● |
|
| |
35 |
PIPE; FUEL TANK,RETURN
GVD(GV****)
L=3650
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0007-0011 |
|
● |
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVL(FVL***)
GVD(GV****)
L=3650
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0012-0210 |
|
● |
|
| |
35 |
PIPE; FUEL TANK,RETURN
FVD(FVD***)
FUEL TANK 400L<SDH>
L=3800
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0007-0210 |
|
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
01 |
1 |
0005-0011 |
● |
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
03 |
1 |
0012-0201 |
● |
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
04 |
1 |
0202-0210 |
● |
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=14
|
1-09704-102-0 |
06 |
1 |
0005-0210 |
● |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=14
|
1-09704-102-0 |
06 |
1 |
0211- |
|
● |
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
04 |
1 |
0005-0011 |
|
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
06 |
1 |
0012-0201 |
|
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
07 |
1 |
0202-0210 |
|
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
07 |
1 |
0211- |
|
● |
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
04 |
1 |
0303- |
|
|
● |
| |
55 |
COVER; PIPE,FUEL TANK
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0005-0011 |
● |
|
|
| |
55 |
COVER; PIPE,FUEL TANK
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0012-0210 |
● |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0211-0302 |
|
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
(A)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0303- |
|
● |
● |
| |
55 |
COVER; PIPE,FUEL TANK
(A)
L=250
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0005-0011 |
|
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
(B)
L=800
|
1-09361-018-0 |
01 |
1 |
0005- |
|
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
FVD(FVD***)
(C)
L=300
|
1-09361-073-0 |
01 |
1 |
0008- |
|
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
FVY(FVY***)
GVD(GV****)
(C)
L=350
|
1-09360-460-1 |
01 |
1 |
0008-0011 |
|
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
FVL MIDDLE CHASSIS(FVL5MF)
FVY MIDDLE CHASSIS(FVY5MF)
GVD(GV****)
(C)
L=350
|
1-09360-460-1 |
01 |
1 |
0012- |
|
● |
|
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0005-0210 |
● |
|
|
| |
64 |
NUT; CLIP
WHEEL BASE 5500MM(55W)
FUEL TANK 200L FMCSR<PK6>
M8 FLANGE
|
0-91150-108-0 |
12 |
1 |
0109-0210 |
● |
|
|
| |
64 |
NUT; CLIP
FUEL TANK 400L<SDH>
M8 FLANGE
|
0-91150-108-0 |
08 |
1 |
0005-0210 |
|
● |
|
| |
64 |
NUT; CLIP
FVD(FVD***)
GVD(GV****)
FUEL TANK 400L<SDH>
M8 FLANGE
|
0-91150-108-0 |
08 |
1 |
0211-0602 |
|
● |
|
| |
64 |
NUT; CLIP
FVD(FVD***)
GVD(GV****)
FUEL TANK 400L<SDH>
M8 FLANGE
|
0-91180-108-0 |
08 |
1 |
0603- |
|
● |
|
| |
64 |
NUT; CLIP
FVD(FVD***)
FUEL TANK 200L FMCSR<PK6>
M8 FLANGE
|
0-91150-108-0 |
11 |
1 |
0005-0108 |
|
● |
|
| |
64 |
NUT; CLIP
WHEEL BASE 4200MM(42W)
FUEL TANK 200L FMCSR<PK6>
M8 FLANGE
|
0-91150-108-0 |
11 |
1 |
0109-0210 |
● |
|
|
| |
64 |
NUT; CLIP
FVD(FVD***)
FUEL TANK 200L FMCSR<PK6>
M8 FLANGE
|
0-91150-108-0 |
12 |
1 |
0211-0602 |
|
● |
|
| |
64 |
NUT; CLIP
FVD(FVD***)
FUEL TANK 200L FMCSR<PK6>
M8 FLANGE
|
0-91180-108-0 |
12 |
1 |
0603- |
|
● |
|
| |
64 |
NUT; CLIP
FVY(FVY***)
M8 FLANGE
|
0-91150-108-0 |
09 |
1 |
0007-0011 |
|
● |
|
| |
64 |
NUT; CLIP
FVL MIDDLE CHASSIS(FVL5MF)
FVY MIDDLE CHASSIS(FVY5MF)
M8 FLANGE
|
0-91150-108-0 |
09 |
1 |
0012-0602 |
|
● |
|
| |
64 |
NUT; CLIP
FVL MIDDLE CHASSIS(FVL5MF)
FVY MIDDLE CHASSIS(FVY5MF)
M8 FLANGE
|
0-91180-108-0 |
09 |
1 |
0603- |
|
● |
|
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
0303-0602 |
|
|
● |
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91180-108-0 |
05 |
1 |
0603- |
|
|
● |
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
0005-0210 |
● |
● |
|
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
0211- |
|
● |
● |
| |
97 |
BRACKET; CLIP
L=95
|
1-82699-085-0 |
02 |
1 |
0005-0210 |
|
● |
|
| |
97 |
BRACKET; CLIP
FVD(FVD***)
GVD(GV****)
L=95
|
1-82699-085-0 |
02 |
1 |
0211- |
|
● |
|
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X45 FLANGE
|
0-28081-045-0 |
02 |
1 |
0005-0209 |
● |
● |
|
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
|
0-28681-040-0 |
02 |
1 |
0210-0210 |
● |
● |
|
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
|
0-28681-040-0 |
02 |
1 |
0211-0512 |
|
● |
● |
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
0601- |
|
● |
● |
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0005-0210 |
● |
● |
|
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0211-0602 |
|
● |
● |
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
|
● |
● |
| |
232 |
BOLT; CLIP,PIPE
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
0005-0210 |
● |
|
|
| |
232 |
BOLT; CLIP,PIPE
WHEEL BASE 5500MM(55W)
FUEL TANK 200L FMCSR<PK6>
M8X30 FLANGE
|
0-28680-830-0 |
12 |
1 |
0109-0210 |
● |
|
|
| |
232 |
BOLT; CLIP,PIPE
FUEL TANK 400L<SDH>
M8X30 FLANGE
|
0-28680-830-0 |
08 |
1 |
0005-0210 |
|
● |
|
| |
232 |
BOLT; CLIP,PIPE
FVD(FVD***)
GVD(GV****)
FUEL TANK 400L<SDH>
M8X30 FLANGE
|
0-28680-830-0 |
08 |
1 |
0211-0512 |
|
● |
|
| |
232 |
BOLT; CLIP,PIPE
FVD(FVD***)
GVD(GV****)
FUEL TANK 400L<SDH>
M8X30 FLANGE
|
0-28650-830-0 |
08 |
1 |
0601- |
|
● |
|
| |
232 |
BOLT; CLIP,PIPE
FVD(FVD***)
FUEL TANK 200L FMCSR<PK6>
M8X30 FLANGE
|
0-28680-830-0 |
11 |
1 |
0005-0108 |
|
● |
|
| |
232 |
BOLT; CLIP,PIPE
WHEEL BASE 4200MM(42W)
FUEL TANK 200L FMCSR<PK6>
M8X30 FLANGE
|
0-28680-830-0 |
11 |
1 |
0109-0210 |
● |
|
|
| |
232 |
BOLT; CLIP,PIPE
FVD(FVD***)
FUEL TANK 200L FMCSR<PK6>
M8X30 FLANGE
|
0-28680-830-0 |
12 |
1 |
0211-0512 |
|
● |
|
| |
232 |
BOLT; CLIP,PIPE
FVD(FVD***)
FUEL TANK 200L FMCSR<PK6>
M8X30 FLANGE
|
0-28650-830-0 |
12 |
1 |
0601- |
|
● |
|
| |
232 |
BOLT; CLIP,PIPE
FVY(FVY***)
M8X30 FLANGE
|
0-28680-830-0 |
09 |
1 |
0007-0011 |
|
● |
|
| |
232 |
BOLT; CLIP,PIPE
FVL MIDDLE CHASSIS(FVL5MF)
FVY MIDDLE CHASSIS(FVY5MF)
M8X30 FLANGE
|
0-28680-830-0 |
09 |
1 |
0012-0512 |
|
● |
|
| |
232 |
BOLT; CLIP,PIPE
FVL MIDDLE CHASSIS(FVL5MF)
FVY MIDDLE CHASSIS(FVY5MF)
M8X30 FLANGE
|
0-28650-830-0 |
09 |
1 |
0601- |
|
● |
|
| |
232 |
BOLT; CLIP,PIPE
M8X30 FLANGE
|
0-28680-830-0 |
05 |
1 |
0303-0512 |
|
|
● |
| |
232 |
BOLT; CLIP,PIPE
M8X30 FLANGE
|
0-28650-830-0 |
05 |
1 |
0601- |
|
|
● |
| |
239 |
CLIP; FUEL PIPE
(A)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
0005-0006 |
● |
|
|
| |
239 |
CLIP; FUEL PIPE
FVD(FVD***)
FUEL TANK 200L FMCSR<PK6>
(A)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
0007-0011 |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
FVD(FVD***)
FUEL TANK 200L FMCSR<PK6>
(A)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
0012-0108 |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
FVL(FVL***)
(A)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
0012-0108 |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
WHEEL BASE 4200MM(42W)
FUEL TANK 200L FMCSR<PK6>
(A)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
0109-0210 |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
WHEEL BASE 7100MM(71W)
(A)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
0109-0210 |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
FVD(FVD***)
FUEL TANK 200L FMCSR<PK6>
(A)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
05 |
1 |
0211- |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
FVL MIDDLE CHASSIS(FVL5MF)
FVY MIDDLE CHASSIS(FVY5MF)
(A)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
05 |
1 |
0211- |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
(B)
M13X2 H=20 L=60
|
1-09701-280-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
239 |
CLIP; FUEL PIPE
FVL(FVL***)
(E)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
01 |
1 |
0012-0210 |
● |
● |
|
| |
239 |
CLIP; FUEL PIPE
(A)
ID=16X2 H=76 L=50
|
1-09700-902-0 |
03 |
1 |
0005-0006 |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
FVD(FVD***)
FUEL TANK 200L FMCSR<PK6>
(A)
ID=16X2 H=76 L=50
|
1-09700-902-0 |
03 |
1 |
0007-0210 |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
FVD(FVD***)
FUEL TANK 200L FMCSR<PK6>
(A)
ID=16X2 H=76 L=50
|
1-09700-902-0 |
03 |
1 |
0211- |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
(B)
ID=32 L=50
|
1-09701-055-1 |
02 |
1 |
0005- |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
(C)
ID=16X2 L=20
|
9-09535-536-0 |
02 |
1 |
0005-0210 |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
FVD(FVD***)
GVD(GV****)
(C)
ID=16X2 L=20
|
9-09535-536-0 |
02 |
1 |
0211-0606 |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
FVD(FVD***)
GVD(GV****)
(C)
ID=16X2 L=20
|
0-95325-536-0 |
02 |
1 |
0607- |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
FUEL TANK 400L<SDH>
(D)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
0005-0006 |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
FUEL TANK 400L<SDH>
(A)
ID=16X2 H=76 L=50
|
1-09700-902-0 |
02 |
1 |
0007- |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
FVD(FVD***)
FUEL TANK 200L FMCSR<PK6>
(D)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
06 |
1 |
0005-0006 |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
FUEL TANK 400L<SDH>
(D)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
0007-0210 |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
FVD(FVD***)
GVD(GV****)
FUEL TANK 400L<SDH>
(D)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
0211- |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
FVY(FVY***)
(A)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
05 |
1 |
0007-0108 |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
WHEEL BASE 5500MM(55W)
FUEL TANK 200L FMCSR<PK6>
(A)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
05 |
1 |
0109-0210 |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
WHEEL BASE 6300MM(63W)
(A)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
05 |
1 |
0109-0210 |
|
● |
|
| |
239 |
CLIP; FUEL PIPE
(A)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
0303- |
|
|
● |
| |
239 |
CLIP; FUEL PIPE
(B)
M13X2 H=20 L=60
|
1-09701-280-0 |
01 |
1 |
0303- |
|
|
● |
| |
303 |
BOLT; BRKT
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0005-0210 |
|
● |
|
| |
303 |
BOLT; BRKT
FVD(FVD***)
GVD(GV****)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0211-0512 |
|
● |
|
| |
303 |
BOLT; BRKT
FVD(FVD***)
GVD(GV****)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
|
● |
|
| |
304 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0005-0210 |
|
● |
|
| |
304 |
NUT; BRKT
FVD(FVD***)
GVD(GV****)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0211-0602 |
|
● |
|
| |
304 |
NUT; BRKT
FVD(FVD***)
GVD(GV****)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
● |
|
| |
634 |
HOSE; RUBBER RETURN
FVD MIDDLE CHASSIS(FVD5MF)
FVL MIDDLE CHASSIS(FVL5MF)
GVD(GV****)
L=3750
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0211- |
|
● |
● |
| |
634 |
HOSE; RUBBER RETURN
FVY(FVY***)
L=3550
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0211- |
|
● |
|
| |
634 |
HOSE; RUBBER RETURN
L=1350
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0303- |
|
|
● |
