Sayfa 1-40 - Isuzu EPC

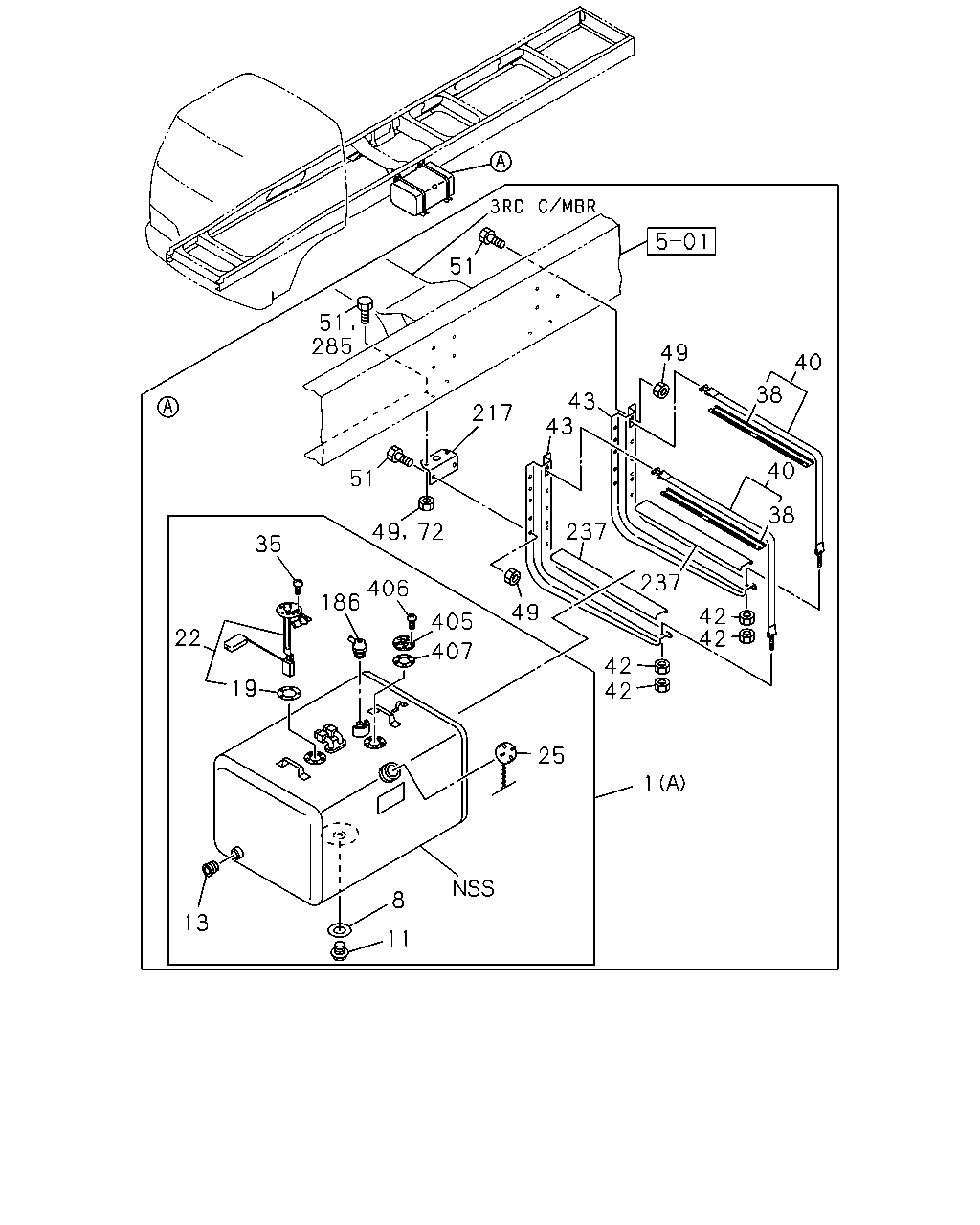

1-40 — FUEL TANK (#9223) — 271 parça

51 51 285 49 40 38 43 43 217 40 51 38 237 49 72 35 237 406 186 42 42 49 405 22 407 42 42 19 25 1 8 13 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL FUEL TANK 400L<SDH> (B) 1020X680X625 400L	1-87411-168-0	01	1	0005-1202	●
1	TANK; FUEL FUEL TANK 400L<SDH> (B) 1020X685X625 400L	1-87412-052-0	01	1	1203-	●
1	TANK; FUEL (A) 869X597X413 200L	1-22400-819-0	01	1	0005-0109		●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> (A) 869X597X413 200L	1-22400-819-0	01	1	0005-0109	●
1	TANK; FUEL (A) 864X597X413 200L	1-22401-174-0	01	1	0110-0210		●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> (A) 864X597X413 200L	1-22401-174-0	01	1	0110-0210	●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> (A) 864X597X413 200L	1-22401-174-0	01	1	0211-0501	●		●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> (A) 864X597X413 200L	8-98003-138-0	01	1	0502-0804	●		●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> (A) 864X597X413 200L	8-98114-400-0	01	1	0805-	●		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> T=1.60	8-98030-453-0	01	1	1211-	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	0110-0210		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FMCSR<PK6> ID=14.2 OD=23.0	9-09572-014-0	01	1	0110-0210	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FMCSR<PK6> ID=14.2 OD=23.0	9-09572-014-0	01	1	0211-	●		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> M18X12	0-92002-418-0	01	1	1211-	●
11	PLUG; DRAIN,FUEL TANK	1-09604-082-0	01	1	0005-0109		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-09604-082-0	01	1	0005-0109	●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	0110-0210		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6> M14X14	9-09862-156-0	01	1	0110-0210	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6> M14X14	9-09862-156-0	01	1	0211-	●		●
13	PLUG; SCREW,SUB TANK JOINT	8-94421-626-0	02	1	0110-0210		●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L FMCSR<PK6>	8-94421-626-0	02	1	0110-0210	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L FMCSR<PK6>	8-94421-626-0	02	1	0211-	●		●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> M18X12	9-99202-318-0	01	1	0005-0606	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> M18X12	0-92002-418-0	01	1	0607-1210	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6>	1-83149-003-0	01	1	0211-	●		●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	0005-1210	●
22	UNIT; FUEL TANK	1-83141-121-0	01	1	0005-0210		●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-83141-121-0	01	1	0005-0210	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-83141-121-0	01	1	0211-0501	●		●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-83141-149-0	01	1	0502-	●		●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	0005-1210	●
25	CAP; FILLER,FUEL TANK	1-22440-050-0	01	1	0005-0109		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22440-050-0	01	1	0005-0109	●
25	CAP; FILLER,FUEL TANK	8-97233-810-0	01	1	0110-0210		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>	8-97233-810-0	01	1	0110-0210	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>	8-97233-810-0	01	1	0211-	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	0005-	●
35	SCREW; FUEL TANK UNIT	1-09187-007-0	05	1	0005-0109		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6>	1-09187-007-0	05	1	0005-0109	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	0110-0210		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6> M5X10 W/LK WASHER	9-03910-510-0	05	1	0110-0210	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6> M5X10 W/LK WASHER	9-03910-510-0	05	1	0211-0604	●		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6> M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-	●		●
38	INSULATION; SUPPORT BELT	1-22553-059-0	02	1	0110-0210		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>	1-22553-059-0	02	1	0110-0210	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>	1-22553-059-0	02	1	0211-	●		●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	0005-	●
40	BELT; SUPPORT,FUEL TANK L=1035	1-22550-221-0	02	1	0005-0109		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6> L=1035	1-22550-221-0	02	1	0005-0109	●
40	BELT; SUPPORT,FUEL TANK L=925	1-22550-255-1	02	1	0110-0210		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6> L=925	1-22550-255-1	02	1	0110-0210	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6> L=925	1-22550-255-1	02	1	0211-	●		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-2	02	1	0005-	●
42	NUT; SUPPORT BELT	1-09487-027-1	04	1	0005-0109		●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>	1-09487-027-1	04	1	0005-0109	●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	0005-0109	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	0110-0210	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	0211-0512	●		●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 400L<SDH> M10	0-91110-510-0	04	1	0601-	●		●
43	BRACKET; FUEL TANK	1-53461-354-2	02	1	0005-0109		●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-53461-354-2	02	1	0005-0109	●
43	BRACKET; FUEL TANK	1-53461-527-1	02	1	0110-0210		●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-53461-527-1	02	1	0110-0210	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-53461-527-1	02	1	0211-	●		●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-458-2	02	1	0005-0012	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0101-	●
49	NUT; BRKT M12	9-99110-512-0	12	1	0005-0210	●	●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	11	1	0211-0512	●		●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6> M12	0-91110-512-0	11	1	0601-	●		●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	9-99110-512-0	10	1	0211-0512	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	0-91110-512-0	10	1	0601-	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0005-0210		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FMCSR<PK6> M12X40 FLANGE	0-28681-240-0	12	1	0005-0210	●
51	BOLT; BRKT TO FRAME FVD,FVY,FVL(FV****) FUEL TANK 200L FMCSR<PK6> M12X40 FLANGE	0-28681-240-0	12	1	0211-0512	●		●
51	BOLT; BRKT TO FRAME GVD(GV****) M12X40 FLANGE	0-28681-240-0	12	1	0211-0512	●
51	BOLT; BRKT TO FRAME FVD,FVY,FVL(FV****) FUEL TANK 200L FMCSR<PK6> M12X40 FLANGE	0-28651-240-0	12	1	0601-	●		●
51	BOLT; BRKT TO FRAME GVD(GV****) M12X40 FLANGE	0-28651-240-0	12	1	0601-	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	0005-0210	●
51	BOLT; BRKT TO FRAME FVD,FVY,FVL(FV****) FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	0211-0512	●
51	BOLT; BRKT TO FRAME FVD,FVY,FVL(FV****) FUEL TANK 400L<SDH> M12X45 FLANGE	0-28051-245-0	12	1	0601-	●
72	NUT; BRKT FUEL TANK 200L FMCSR<PK6> M12 FLANGE	0-91150-212-0	04	1	0301-0602	●		●
72	NUT; BRKT FUEL TANK 200L FMCSR<PK6> M12 FLANGE	0-91180-212-0	04	1	0603-	●		●
186	VALVE; GT,FUEL TANK	1-22453-005-0	01	1	0005-0109		●
186	VALVE; GT,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22453-005-0	01	1	0005-0109	●
186	VALVE; GT,FUEL TANK	1-22453-003-0	01	1	0110-0210		●
186	VALVE; GT,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22453-003-0	01	1	0110-0210	●
186	VALVE; GT,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22453-003-0	01	1	0211-0804	●		●
186	VALVE; GT,FUEL TANK FUEL TANK 200L FMCSR<PK6>	8-98103-512-0	01	1	0805-	●		●
217	BRACKET; FUEL TANK,LOW	1-53461-432-1	02	1	0005-0210		●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FMCSR<PK6>	1-53461-432-1	02	1	0005-0210	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FMCSR<PK6>	1-53461-432-1	02	1	0211-	●		●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	0110-0210		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FMCSR<PK6> L=480	1-22553-002-0	02	1	0110-0210	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FMCSR<PK6> L=480	1-22553-002-0	02	1	0211-	●		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	0006-	●
285	BOLT; BRKT FUEL TANK 200L FMCSR<PK6> M12X50 FLANGE	0-28081-250-0	04	1	0301-0512	●		●
285	BOLT; BRKT FUEL TANK 200L FMCSR<PK6> M12X50 FLANGE	0-28051-250-0	04	1	0601-	●		●
405	VALVE ASM; SAFETY,PRESS FUEL TANK	1-22451-012-0	01	1	0110-0210		●
405	VALVE ASM; SAFETY,PRESS FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22451-012-0	01	1	0110-0210	●
405	VALVE ASM; SAFETY,PRESS FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22451-012-0	01	1	0211-0804	●		●
405	VALVE ASM; SAFETY,PRESS FUEL TANK FUEL TANK 200L FMCSR<PK6>	8-98106-041-0	01	1	0805-	●		●
406	SCREW; PRESS SAFETY VLV,FUEL TANK M5X14 W/LK WASHER	9-03910-514-0	05	1	0110-0210		●
406	SCREW; PRESS SAFETY VLV,FUEL TANK FUEL TANK 200L FMCSR<PK6> M5X14 W/LK WASHER	9-03910-514-0	05	1	0110-0210	●
406	SCREW; PRESS SAFETY VLV,FUEL TANK FUEL TANK 200L FMCSR<PK6> M5X14 W/LK WASHER	9-03910-514-0	05	1	0211-0604	●		●
406	SCREW; PRESS SAFETY VLV,FUEL TANK FUEL TANK 200L FMCSR<PK6> M5X14 W/LK WASHER	0-36220-514-0	05	1	0605-	●		●
407	GASKET; PRESS SAFETY VLV,FUEL TANK	1-22459-001-1	01	1	0110-0210		●
407	GASKET; PRESS SAFETY VLV,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22459-001-1	01	1	0110-0210	●
407	GASKET; PRESS SAFETY VLV,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22459-001-1	01	1	0211-	●		●

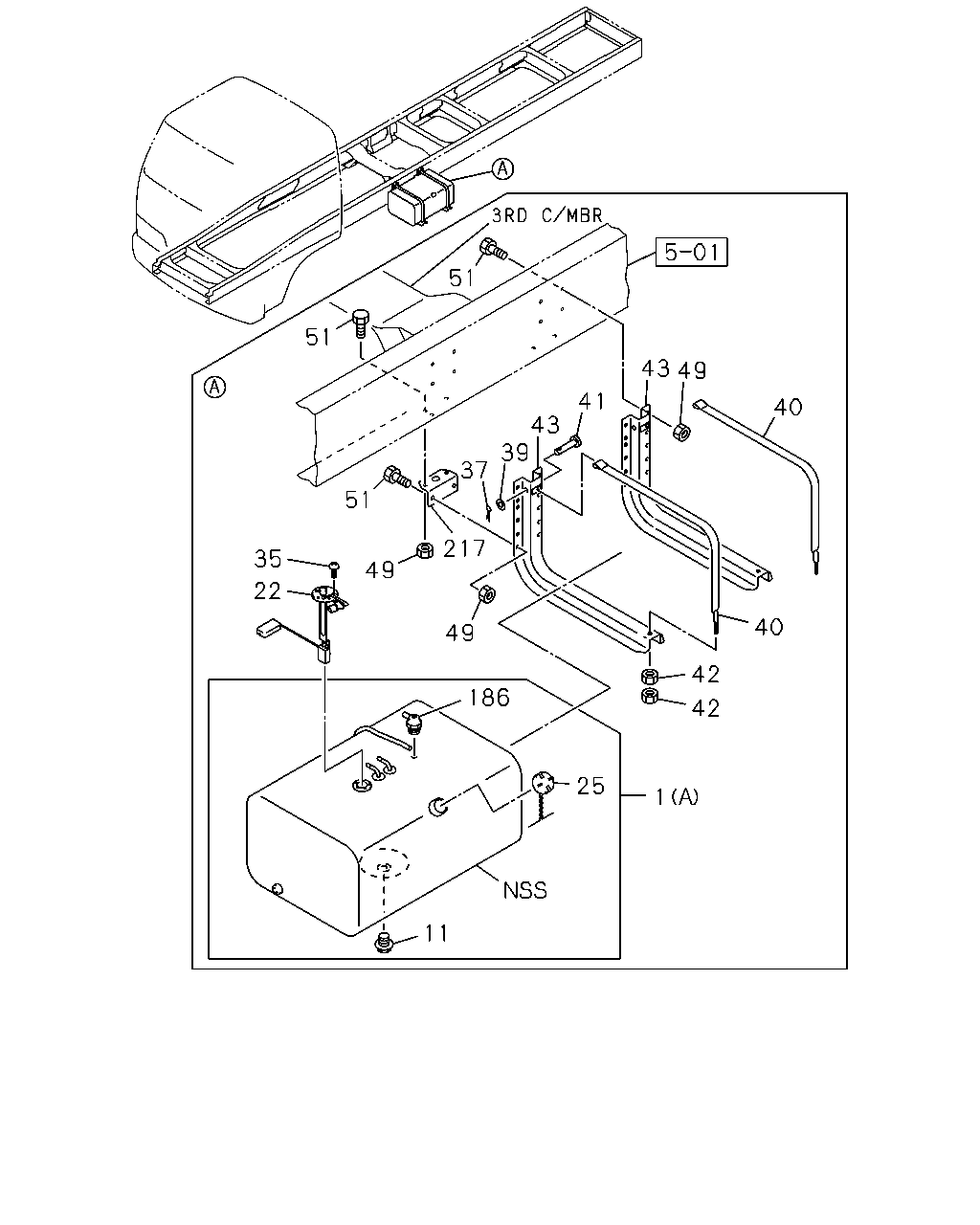

51 51 43 49 41 40 43 39 37 51 217 35 49 22 40 49 42 186 42 25 1 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL FUEL TANK 400L<SDH> (B) 1020X680X625 400L	1-87411-168-0	01	1	0005-1202	●
1	TANK; FUEL FUEL TANK 400L<SDH> (B) 1020X685X625 400L	1-87412-052-0	01	1	1203-	●
1	TANK; FUEL (A) 869X597X413 200L	1-22400-819-0	01	1	0005-0109		●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> (A) 869X597X413 200L	1-22400-819-0	01	1	0005-0109	●
1	TANK; FUEL (A) 864X597X413 200L	1-22401-174-0	01	1	0110-0210		●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> (A) 864X597X413 200L	1-22401-174-0	01	1	0110-0210	●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> (A) 864X597X413 200L	1-22401-174-0	01	1	0211-0501	●		●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> (A) 864X597X413 200L	8-98003-138-0	01	1	0502-0804	●		●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> (A) 864X597X413 200L	8-98114-400-0	01	1	0805-	●		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> M18X12	0-92002-418-0	01	1	1211-	●
11	PLUG; DRAIN,FUEL TANK	1-09604-082-0	01	1	0005-0109		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-09604-082-0	01	1	0005-0109	●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	0110-0210		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6> M14X14	9-09862-156-0	01	1	0110-0210	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6> M14X14	9-09862-156-0	01	1	0211-	●		●
22	UNIT; FUEL TANK	1-83141-121-0	01	1	0005-0210		●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-83141-121-0	01	1	0005-0210	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-83141-121-0	01	1	0211-0501	●		●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-83141-149-0	01	1	0502-	●		●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	0005-1210	●
25	CAP; FILLER,FUEL TANK	1-22440-050-0	01	1	0005-0109		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22440-050-0	01	1	0005-0109	●
25	CAP; FILLER,FUEL TANK	8-97233-810-0	01	1	0110-0210		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>	8-97233-810-0	01	1	0110-0210	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>	8-97233-810-0	01	1	0211-	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	0005-	●
35	SCREW; FUEL TANK UNIT	1-09187-007-0	05	1	0005-0109		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6>	1-09187-007-0	05	1	0005-0109	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	0110-0210		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6> M5X10 W/LK WASHER	9-03910-510-0	05	1	0110-0210	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6> M5X10 W/LK WASHER	9-03910-510-0	05	1	0211-0604	●		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6> M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-	●		●
37	PIN; SPLIT,SUPPORT BELT OD=3.7 L=28	9-08114-028-0	02	1	0005-0109		●
37	PIN; SPLIT,SUPPORT BELT FUEL TANK 200L FMCSR<PK6> OD=3.7 L=28	9-08114-028-0	02	1	0005-0109	●
39	WASHER; PL,SUPPORT BELT ID=17	9-09164-516-0	02	1	0005-0109		●
39	WASHER; PL,SUPPORT BELT FUEL TANK 200L FMCSR<PK6> ID=17	9-09164-516-0	02	1	0005-0109	●
40	BELT; SUPPORT,FUEL TANK L=1035	1-22550-221-0	02	1	0005-0109		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6> L=1035	1-22550-221-0	02	1	0005-0109	●
40	BELT; SUPPORT,FUEL TANK L=925	1-22550-255-1	02	1	0110-0210		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6> L=925	1-22550-255-1	02	1	0110-0210	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6> L=925	1-22550-255-1	02	1	0211-	●		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-2	02	1	0005-	●
41	PIN; SUPPORT BELT OD=16 L=75	9-08224-675-0	02	1	0005-0109		●
41	PIN; SUPPORT BELT FUEL TANK 200L FMCSR<PK6> OD=16 L=75	9-08224-675-0	02	1	0005-0109	●
42	NUT; SUPPORT BELT	1-09487-027-1	04	1	0005-0109		●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>	1-09487-027-1	04	1	0005-0109	●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	0005-0109	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	0110-0210	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	0211-0512	●		●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 400L<SDH> M10	0-91110-510-0	04	1	0601-	●		●
43	BRACKET; FUEL TANK	1-53461-354-2	02	1	0005-0109		●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-53461-354-2	02	1	0005-0109	●
43	BRACKET; FUEL TANK	1-53461-527-1	02	1	0110-0210		●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-53461-527-1	02	1	0110-0210	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-53461-527-1	02	1	0211-	●		●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-458-2	02	1	0005-0012	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0101-	●
49	NUT; BRKT M12	9-99110-512-0	12	1	0005-0210	●	●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	11	1	0211-0512	●		●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6> M12	0-91110-512-0	11	1	0601-	●		●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	9-99110-512-0	10	1	0211-0512	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	0-91110-512-0	10	1	0601-	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0005-0210		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FMCSR<PK6> M12X40 FLANGE	0-28681-240-0	12	1	0005-0210	●
51	BOLT; BRKT TO FRAME FVD,FVY,FVL(FV****) FUEL TANK 200L FMCSR<PK6> M12X40 FLANGE	0-28681-240-0	12	1	0211-0512	●		●
51	BOLT; BRKT TO FRAME GVD(GV****) M12X40 FLANGE	0-28681-240-0	12	1	0211-0512	●
51	BOLT; BRKT TO FRAME FVD,FVY,FVL(FV****) FUEL TANK 200L FMCSR<PK6> M12X40 FLANGE	0-28651-240-0	12	1	0601-	●		●
51	BOLT; BRKT TO FRAME GVD(GV****) M12X40 FLANGE	0-28651-240-0	12	1	0601-	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	0005-0210	●
51	BOLT; BRKT TO FRAME FVD,FVY,FVL(FV****) FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	0211-0512	●
51	BOLT; BRKT TO FRAME FVD,FVY,FVL(FV****) FUEL TANK 400L<SDH> M12X45 FLANGE	0-28051-245-0	12	1	0601-	●
186	VALVE; GT,FUEL TANK	1-22453-005-0	01	1	0005-0109		●
186	VALVE; GT,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22453-005-0	01	1	0005-0109	●
186	VALVE; GT,FUEL TANK	1-22453-003-0	01	1	0110-0210		●
186	VALVE; GT,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22453-003-0	01	1	0110-0210	●
186	VALVE; GT,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22453-003-0	01	1	0211-0804	●		●
186	VALVE; GT,FUEL TANK FUEL TANK 200L FMCSR<PK6>	8-98103-512-0	01	1	0805-	●		●
217	BRACKET; FUEL TANK,LOW	1-53461-432-1	02	1	0005-0210		●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FMCSR<PK6>	1-53461-432-1	02	1	0005-0210	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FMCSR<PK6>	1-53461-432-1	02	1	0211-	●		●

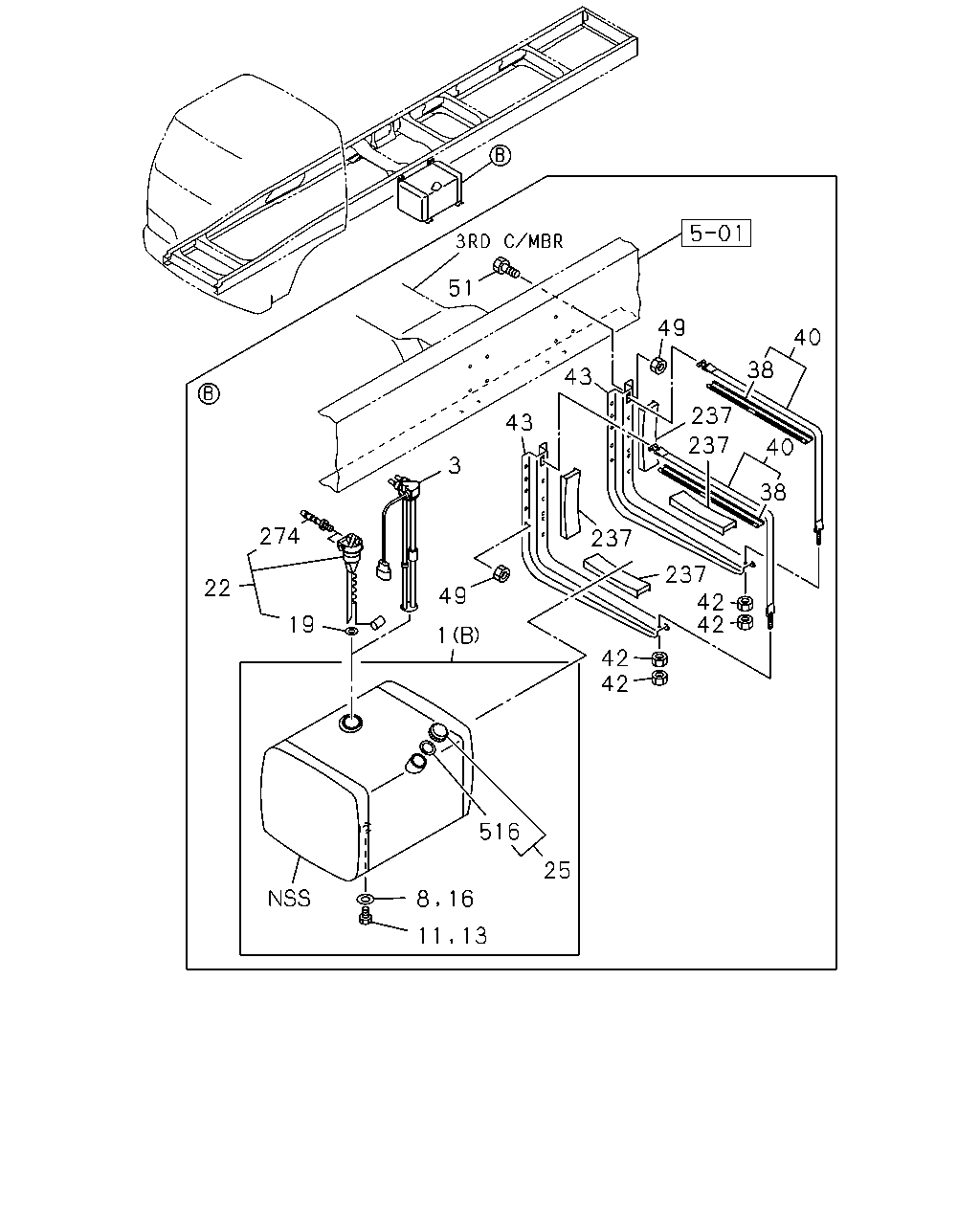

40 38 49 43 43 3 274 22 19 49 1 516 25 16 8 11 13 42 42 237 237 237 40 38 237 42 42 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL FUEL TANK 400L<SDH> (B) 1020X680X625 400L	1-87411-168-0	01	1	0005-1202	●
1	TANK; FUEL FUEL TANK 400L<SDH> (B) 1020X685X625 400L	1-87412-052-0	01	1	1203-	●
1	TANK; FUEL (A) 869X597X413 200L	1-22400-819-0	01	1	0005-0109		●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> (A) 869X597X413 200L	1-22400-819-0	01	1	0005-0109	●
1	TANK; FUEL (A) 864X597X413 200L	1-22401-174-0	01	1	0110-0210		●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> (A) 864X597X413 200L	1-22401-174-0	01	1	0110-0210	●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> (A) 864X597X413 200L	1-22401-174-0	01	1	0211-0501	●		●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> (A) 864X597X413 200L	8-98003-138-0	01	1	0502-0804	●		●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> (A) 864X597X413 200L	8-98114-400-0	01	1	0805-	●		●
3	UNIT; FUEL TANK,SUB FUEL TANK 400L<SDH>	8-98217-749-0	01	1	1211-	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> T=1.60	8-98030-453-0	01	1	1211-	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	0110-0210		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FMCSR<PK6> ID=14.2 OD=23.0	9-09572-014-0	01	1	0110-0210	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FMCSR<PK6> ID=14.2 OD=23.0	9-09572-014-0	01	1	0211-	●		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> M18X12	0-92002-418-0	01	1	1211-	●
11	PLUG; DRAIN,FUEL TANK	1-09604-082-0	01	1	0005-0109		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-09604-082-0	01	1	0005-0109	●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	0110-0210		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6> M14X14	9-09862-156-0	01	1	0110-0210	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR<PK6> M14X14	9-09862-156-0	01	1	0211-	●		●
13	PLUG; SCREW,SUB TANK JOINT	8-94421-626-0	02	1	0110-0210		●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L FMCSR<PK6>	8-94421-626-0	02	1	0110-0210	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L FMCSR<PK6>	8-94421-626-0	02	1	0211-	●		●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> M18X12	9-99202-318-0	01	1	0005-0606	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> M18X12	0-92002-418-0	01	1	0607-1210	●
16	GASKET; PLUG FUEL TANK 400L<SDH> T=1.60	1-22416-001-0	01	1	0005-0509	●
16	GASKET; PLUG FUEL TANK 400L<SDH> T=1.60	8-98030-453-0	01	1	0510-1210	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FMCSR<PK6>	1-83149-003-0	01	1	0211-	●		●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	0005-1210	●
22	UNIT; FUEL TANK	1-83141-121-0	01	1	0005-0210		●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-83141-121-0	01	1	0005-0210	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-83141-121-0	01	1	0211-0501	●		●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-83141-149-0	01	1	0502-	●		●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	0005-1210	●
25	CAP; FILLER,FUEL TANK	1-22440-050-0	01	1	0005-0109		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-22440-050-0	01	1	0005-0109	●
25	CAP; FILLER,FUEL TANK	8-97233-810-0	01	1	0110-0210		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>	8-97233-810-0	01	1	0110-0210	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR<PK6>	8-97233-810-0	01	1	0211-	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	0005-	●
38	INSULATION; SUPPORT BELT	1-22553-059-0	02	1	0110-0210		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>	1-22553-059-0	02	1	0110-0210	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>	1-22553-059-0	02	1	0211-	●		●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	0005-	●
40	BELT; SUPPORT,FUEL TANK L=1035	1-22550-221-0	02	1	0005-0109		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6> L=1035	1-22550-221-0	02	1	0005-0109	●
40	BELT; SUPPORT,FUEL TANK L=925	1-22550-255-1	02	1	0110-0210		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6> L=925	1-22550-255-1	02	1	0110-0210	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR<PK6> L=925	1-22550-255-1	02	1	0211-	●		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-2	02	1	0005-	●
42	NUT; SUPPORT BELT	1-09487-027-1	04	1	0005-0109		●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>	1-09487-027-1	04	1	0005-0109	●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	0005-0109	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	0110-0210	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	0211-0512	●		●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR<PK6>,FUEL TANK 400L<SDH> M10	0-91110-510-0	04	1	0601-	●		●
43	BRACKET; FUEL TANK	1-53461-354-2	02	1	0005-0109		●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-53461-354-2	02	1	0005-0109	●
43	BRACKET; FUEL TANK	1-53461-527-1	02	1	0110-0210		●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-53461-527-1	02	1	0110-0210	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR<PK6>	1-53461-527-1	02	1	0211-	●		●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-458-2	02	1	0005-0012	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0101-	●
49	NUT; BRKT M12	9-99110-512-0	12	1	0005-0210	●	●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	11	1	0211-0512	●		●
49	NUT; BRKT FUEL TANK 200L FMCSR<PK6> M12	0-91110-512-0	11	1	0601-	●		●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	9-99110-512-0	10	1	0211-0512	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	0-91110-512-0	10	1	0601-	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0005-0210		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FMCSR<PK6> M12X40 FLANGE	0-28681-240-0	12	1	0005-0210	●
51	BOLT; BRKT TO FRAME FVD,FVY,FVL(FV****) FUEL TANK 200L FMCSR<PK6> M12X40 FLANGE	0-28681-240-0	12	1	0211-0512	●		●
51	BOLT; BRKT TO FRAME GVD(GV****) M12X40 FLANGE	0-28681-240-0	12	1	0211-0512	●
51	BOLT; BRKT TO FRAME FVD,FVY,FVL(FV****) FUEL TANK 200L FMCSR<PK6> M12X40 FLANGE	0-28651-240-0	12	1	0601-	●		●
51	BOLT; BRKT TO FRAME GVD(GV****) M12X40 FLANGE	0-28651-240-0	12	1	0601-	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	0005-0210	●
51	BOLT; BRKT TO FRAME FVD,FVY,FVL(FV****) FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	0211-0512	●
51	BOLT; BRKT TO FRAME FVD,FVY,FVL(FV****) FUEL TANK 400L<SDH> M12X45 FLANGE	0-28051-245-0	12	1	0601-	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	0110-0210		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FMCSR<PK6> L=480	1-22553-002-0	02	1	0110-0210	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FMCSR<PK6> L=480	1-22553-002-0	02	1	0211-	●		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	0006-	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 400L<SDH>	1-83149-006-0	02	1	0211-1210	●
516	GASKET; CAP FUEL TANK 400L<SDH> ID=78	8-98259-383-0	01	1	1312-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
