1-31 — AIR DUCT (#9221) — 57 parça

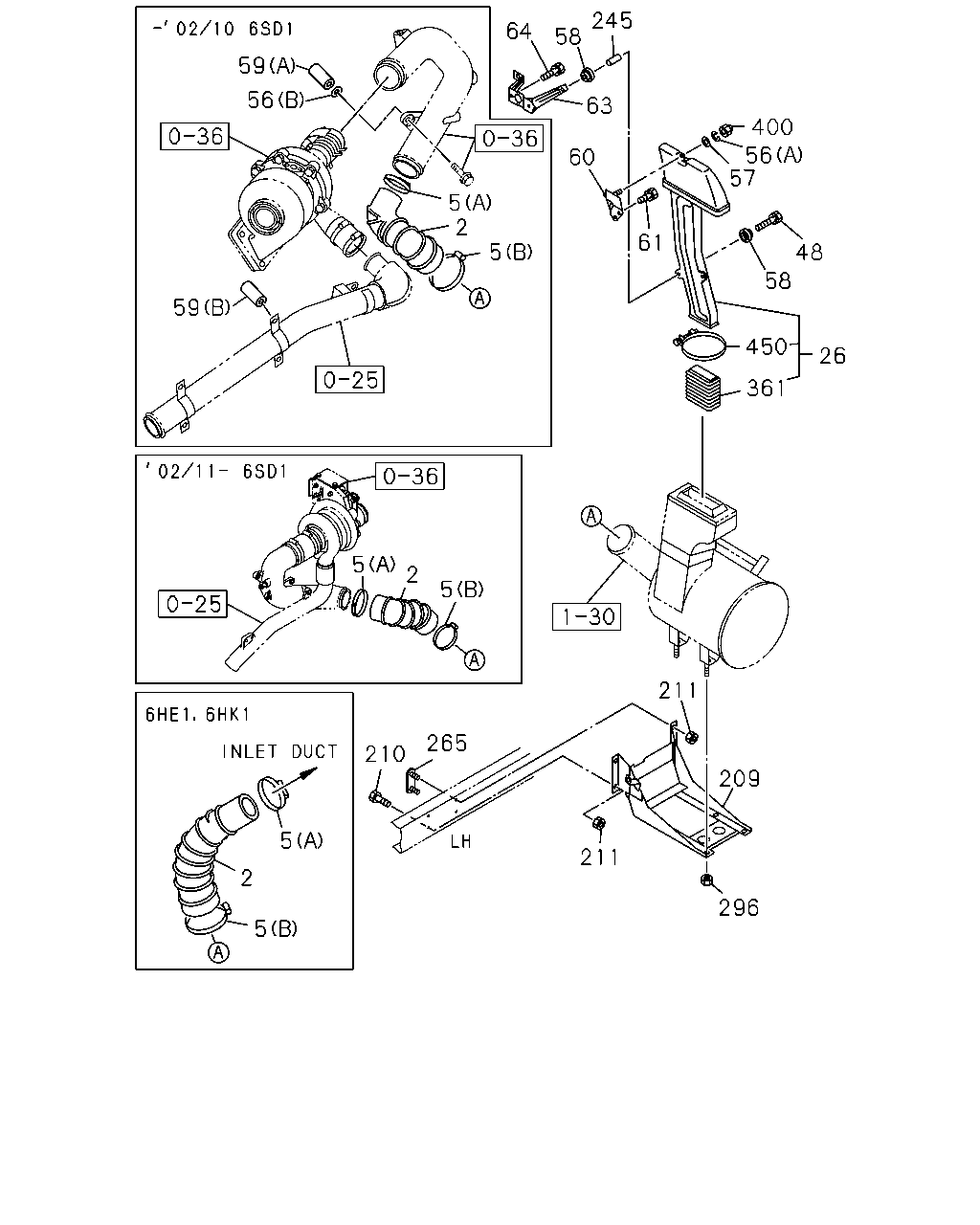

çizim 48350
245 64 58 59 63 56 400 56 57 60 5 2 61 5 48 58 59 450 26 361 5 2 5 211 265 210 209 5 211 2 296 5
BalonParca AdiParca NoAdetTipApplied Date A B C
2 HOSE; ACL 1-14231-854-0 01 1 0005-0210 ●
2 HOSE; ACL 1-14231-914-1 01 1 0005-0210 ●
2 HOSE; ACL 1-14232-111-0 01 1 0211- ●
2 HOSE; ACL 1-14232-126-0 01 1 0303- ●
5 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 0005-0210 ● ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 01 1 0211-0212 ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0301-0812 ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 0901- ●
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 0005-0210 ● ●
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 0211-0212 ● ●
5 CLIP; AIR DUCT
(B) ID=130-165 		1-09707-201-0 01 1 0301-0810 ● ●
5 CLIP; AIR DUCT
(B) ID=130-150 		8-98133-360-0 01 1 0811- ● ●
5 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-198-0 01 1 0303-0810 ●
5 CLIP; AIR DUCT
(A) ID=75-95 		8-98133-357-0 01 1 0811- ●
26 DUCT; AIR INT 1-14230-175-0 01 1 0005-0210 ● ●
26 DUCT; AIR INT 1-14230-173-2 01 1 0211- ● ●
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 0005-0210 ● ●
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 0211- ● ●
56 WASHER; LK,AIR INT DUCT
(A) M10 		1-09500-046-0 01 1 0005-0210 ● ●
56 WASHER; LK,AIR INT DUCT
(A) M10 		1-09500-046-0 01 1 0211- ● ●
56 WASHER; LK,AIR INT DUCT
(B) T=5.5 		1-14149-042-0 02 1 0005-0210 ●
57 WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0210 ● ●
57 WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0211- ● ●
58 SUPPORT; AIR INL DUCT 1-14119-397-0 04 1 0005-0210 ● ●
58 SUPPORT; AIR INL DUCT
OD=40 T=18.5 		1-14119-267-0 04 1 0211- ● ●
59 TUBE; DIST,AIR INT DUCT
(B) L=43 		1-14149-048-1 02 1 0005-0210 ●
59 TUBE; DIST,AIR INT DUCT
(A) L=55 		1-14149-166-0 02 1 0005-0210 ●
60 BRACKET; AIR DUCT,UPR 1-79998-748-2 01 1 0005-0210 ● ●
60 BRACKET; AIR DUCT,UPR 1-79998-748-2 01 1 0211- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0005-0210 ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0211- ● ●
63 BRACKET; AIR DUCT,LWR 1-79998-749-3 01 1 0005-0210 ● ●
63 BRACKET; AIR DUCT,LWR 1-79998-749-3 01 1 0211- ● ●
64 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0005-0210 ● ●
64 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0211- ● ●
209 BRACKET; ACL 1-53497-587-0 01 1 0005-0210 ● ●
209 BRACKET; ACL 1-53497-587-0 01 1 0211- ●
209 BRACKET; ACL 1-53497-589-0 01 1 0303- ●
210 BOLT; ACL BRKT
M12X40 FLANGE 		0-28681-240-0 02 1 0005-0210 ● ●
210 BOLT; ACL BRKT
M12X40 FLANGE 		0-28681-240-0 02 1 0211-0512 ● ●
210 BOLT; ACL BRKT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ●
211 NUT; BRKT
M12 FLANGE 		0-91150-212-0 04 1 0005-0210 ● ●
211 NUT; BRKT
M12 FLANGE 		0-91150-212-0 04 1 0211-0602 ● ●
211 NUT; BRKT
M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0005-0210 ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0211- ● ●
265 BRACKET; STUD,ACL 1-53497-454-1 01 1 0005-0210 ● ●
265 BRACKET; STUD,ACL 1-53497-454-1 01 1 0211- ● ●
296 NUT; ACL
M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ● ●
296 NUT; ACL
M8 FLANGE 		0-91150-108-0 04 1 0211-0602 ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
361 RUBBER; CUSHION,AIR DUCT 1-14231-973-0 01 1 0005-0210 ● ●
361 RUBBER; CUSHION,AIR DUCT 1-14231-973-1 01 1 0211- ● ●
400 NUT; CAP,AIR DUCT
M10 		1-09984-145-0 01 1 0005-0210 ● ●
400 NUT; CAP,AIR DUCT
M10 		1-09984-145-0 01 1 0211- ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 0005-0210 ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 0211- ● ●
