Isuzu WW
▶
TRUCKS
▶
FTR
▶
10627 - FTR-LHD
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶

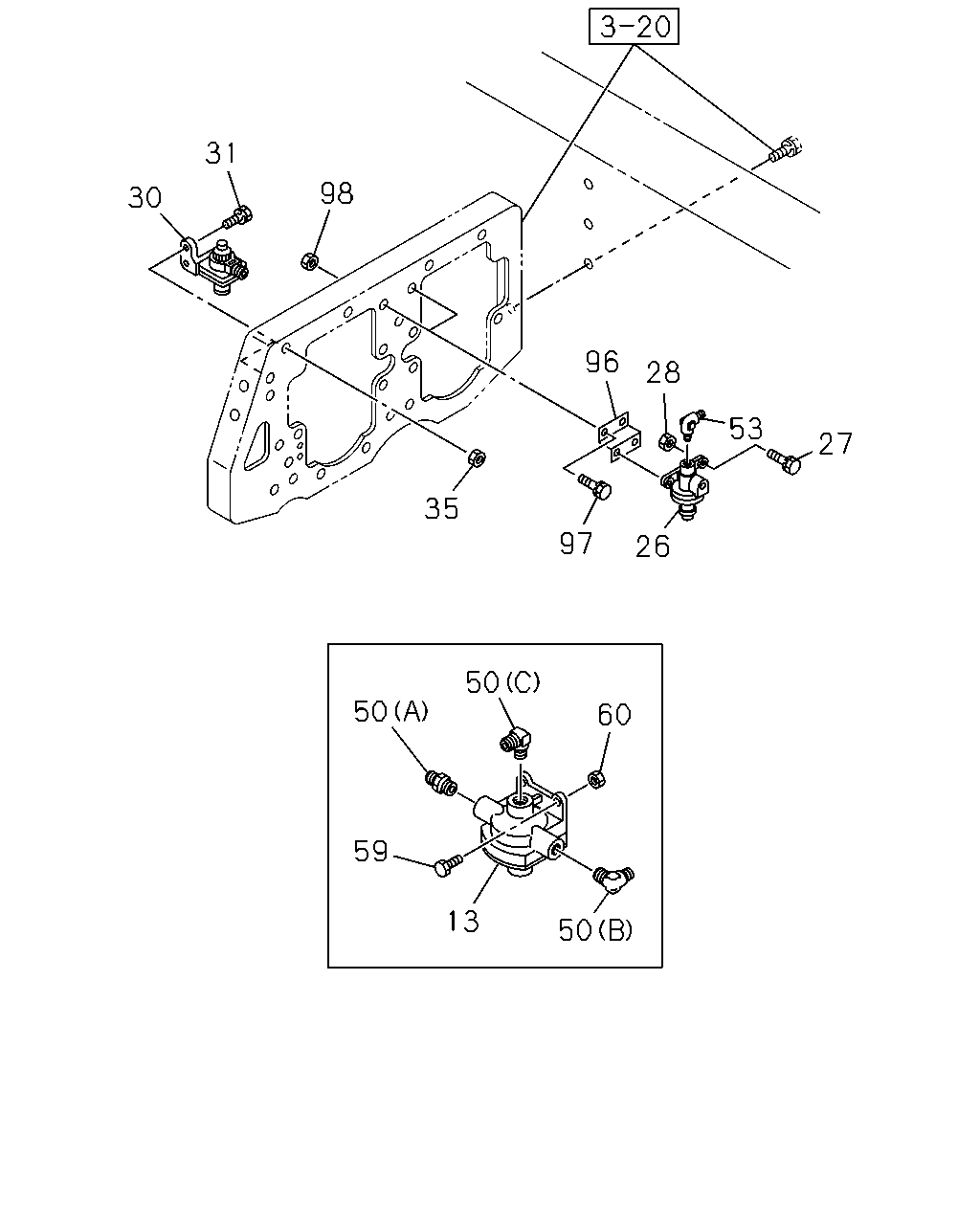

3-22 — AIR CONTROL PARTS
(#922) — 23 parça
Tümü
A - FTR6MC
B - FTR6MF
31
98
30
96
28
53
27
35
97
26
50
50
60
59
13
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48410-052-1
01
1
9202-9307
●
●
13
VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48410-320-0
01
1
9308-
●
●
26
VALVE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48110-006-0
01
1
9202-
●
●
27
BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/LK&PL WASHER
0-50140-825-0
02
1
9202-
●
●
28
NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8
9-09110-408-0
02
1
9202-
●
●
30
GOVERNOR; AIR CONT
1-48350-037-0
01
1
9202-9208
●
●
30
GOVERNOR; AIR CONT
1-48350-050-1
01
1
9209-9409
●
●
30
GOVERNOR; AIR CONT
1-48350-059-0
01
1
9410-
●
●
31
BOLT; GOV TO FRAME
M8X30 FLANGE
0-28010-830-0
02
1
9202-9204
●
●
31
BOLT; GOV TO FRAME
M8X30 FLANGE
0-28080-830-0
02
1
9205-
●
●
35
NUT; GOV TO FRAME
M8
9-09110-408-0
02
1
9202-
●
●
50
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
1-09650-085-1
01
1
9202-
●
●
50
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
1-09650-092-1
01
1
9202-9302
●
●
50
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW
1-09650-437-0
01
1
9303-
●
●
50
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)
1-09656-056-1
01
1
9202-9302
●
●
50
CONNECTOR; RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/8 ELBOW
1-09660-684-0
01
1
9303-
●
●
53
CONNECTOR; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
9-09234-310-1
02
1
9202-9302
●
●
53
CONNECTOR; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-09650-434-0
02
1
9303-
●
●
59
BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER
0-50040-820-0
02
1
9202-
●
●
60
NUT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8
9-09110-408-0
02
1
9202-
●
●
96
BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48495-053-1
01
1
9202-
●
●
97
BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER
0-50040-820-0
02
1
9202-
●
●
98
NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8
9-09110-408-0
02
1
9202-
●
●
