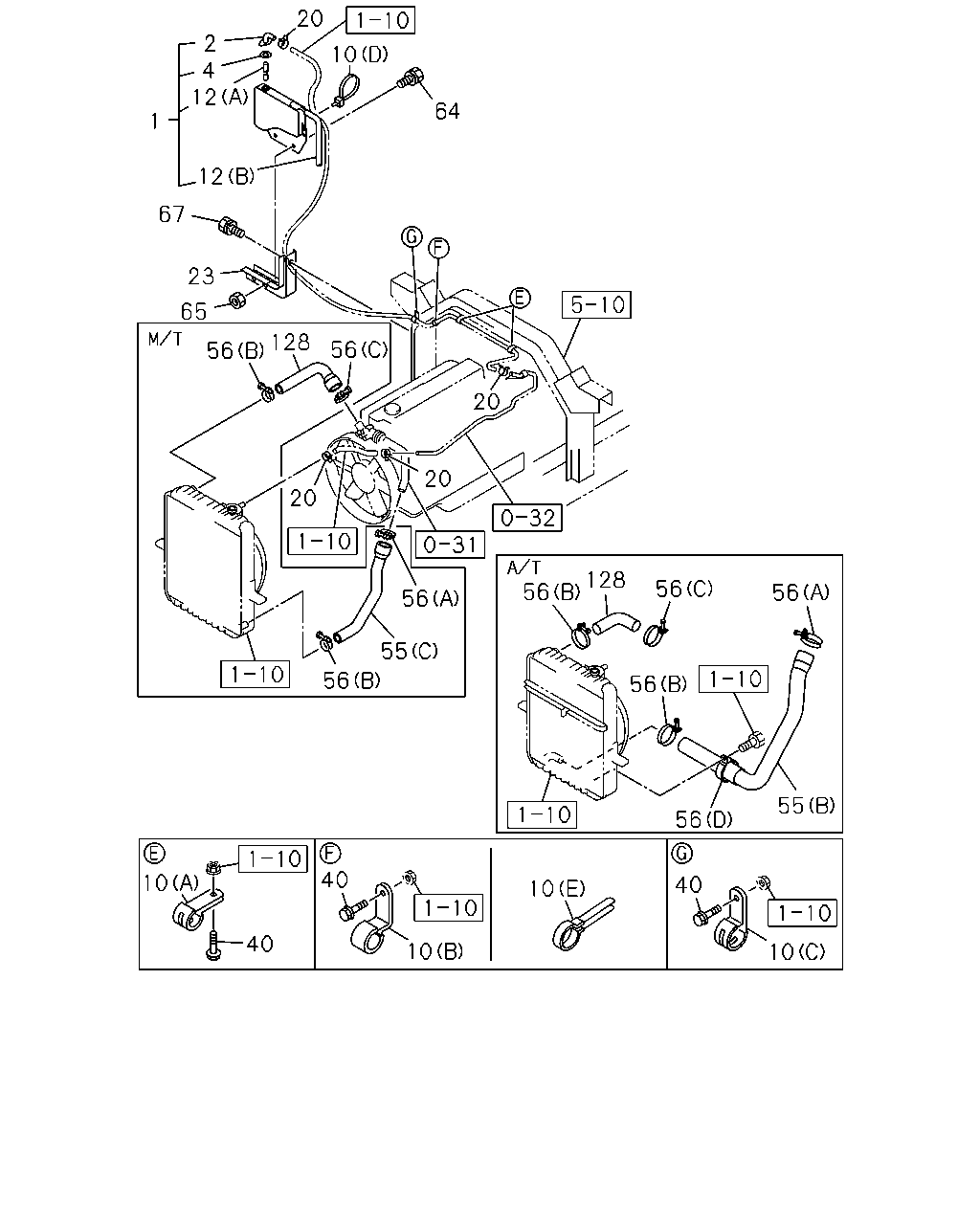

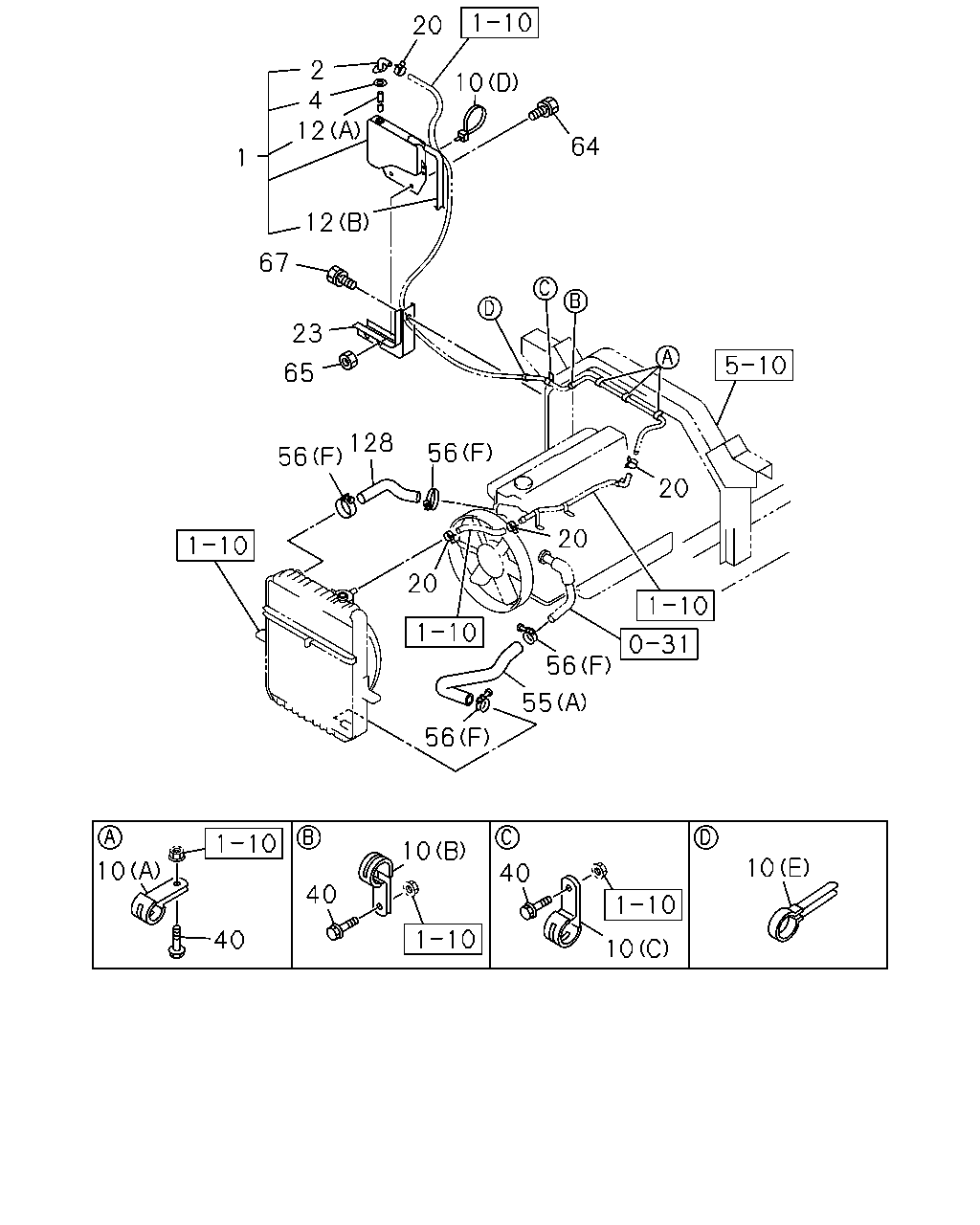

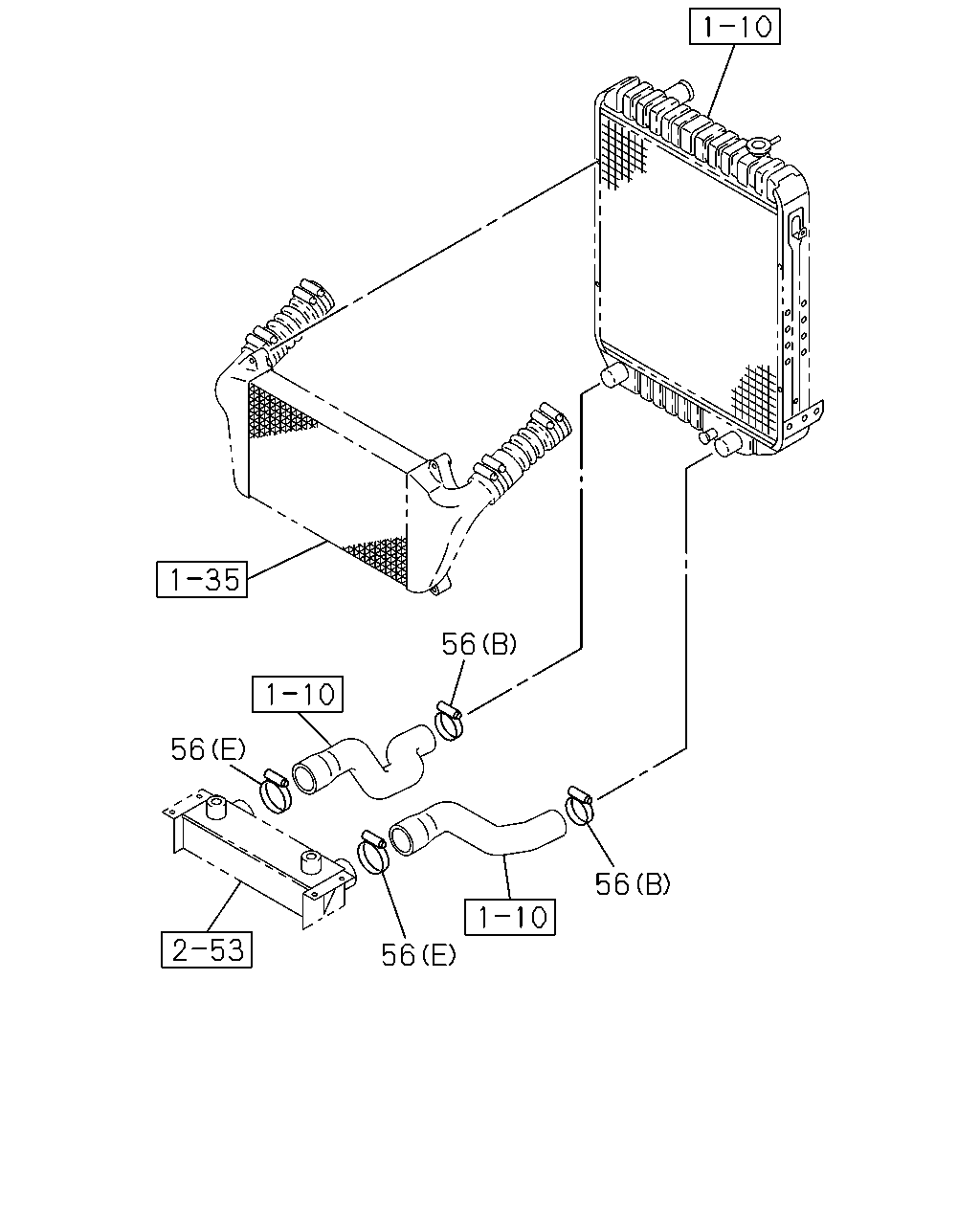

1-11 — RADIATOR HOSE AND SUB TANK (#9219) — 146 parça

20 2 4 12 10 64 1 12 67 23 65 128 56 56 20 20 20 128 56 56 56 56 55 56 56 55 56 40 10 40 10 40 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; SURGE,RAD	1-21480-104-0	01	1	0005-0210	●	●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0211-	●		●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0005-0210	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0211-	●		●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0005-0210	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0211-	●		●
10	CLIP; RUBBER HOSE (B) ID=12 L=70	1-09700-097-1	01	1	0005-0210		●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	03	1	0005-0210		●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0005-0210	●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0211-	●		●
10	CLIP; RUBBER HOSE (C) ID=13 L=20	9-09525-235-0	01	1	0005-0210	●	●
10	CLIP; RUBBER HOSE (E) ID=14 L=44	9-09917-427-0	01	1	0201-0210	●	●
10	CLIP; RUBBER HOSE (E) ID=14 L=44	9-09917-427-0	01	1	0211-	●		●
10	CLIP; RUBBER HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0005-0210	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	01	1	0211-	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	0005-0210	●
10	CLIP; RUBBER HOSE (C) ID=13 L=20	9-09525-235-0	01	1	0211-0606	●		●
10	CLIP; RUBBER HOSE (C) ID=13 L=20	0-95235-235-0	01	1	0607-	●		●
10	CLIP; RUBBER HOSE (B) ID=12 L=70	1-09700-097-1	01	1	0303-			●
10	CLIP; RUBBER HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0303-			●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	0303-			●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0005-0210	●	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0211-	●		●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0005-0210	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0211-	●		●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0005-0210	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0211-	●		●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0005-0210	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0211-	●		●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0005-0210		●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0005-0210	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0303-0512			●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-			●
55	HOSE; WATER,RAD OUTLET AUXILIARY TRANSMISSION OIL COOLER<V14> (B)	1-21437-701-0	01	1	0612-	●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-663-2	01	1	0005-0210		●
55	HOSE; WATER,RAD OUTLET ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (B)	1-21437-701-0	01	1	0005-0210	●
55	HOSE; WATER,RAD OUTLET FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) (C)	1-21437-543-0	01	1	0005-0210	●
55	HOSE; WATER,RAD OUTLET (C)	1-21437-543-0	01	1	0211-0611	●
55	HOSE; WATER,RAD OUTLET EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (C)	1-21437-543-0	01	1	0612-	●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-663-2	01	1	0303-			●
56	CLIP; WATER HOSE,RAD AUXILIARY TRANSMISSION OIL COOLER<V14> (D) ID=68	8-94224-262-0	01	1	0702-	●
56	CLIP; WATER HOSE,RAD AUXILIARY TRANSMISSION OIL COOLER<V14> (E) ID=74	1-09704-101-0	02	1	0612-	●
56	CLIP; WATER HOSE,RAD (F) ID=63	1-09704-067-0	04	1	0303-			●
56	CLIP; WATER HOSE,RAD (F) ID=63	1-09704-067-0	04	1	0009-0210		●
56	CLIP; WATER HOSE,RAD (C) ID=76	1-09704-069-0	01	1	0005-	●
56	CLIP; WATER HOSE,RAD (A) ID=70	1-09704-078-0	01	1	0005-	●
56	CLIP; WATER HOSE,RAD ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (B) ID=63	1-09704-067-0	02	1	0005-0210	●
56	CLIP; WATER HOSE,RAD (B) ID=63	1-09704-067-0	02	1	0211-0611	●
56	CLIP; WATER HOSE,RAD AUXILIARY TRANSMISSION OIL COOLER<V14> (B) ID=63	1-09704-067-0	02	1	0612-	●
56	CLIP; WATER HOSE,RAD ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (E) ID=74	1-09704-101-0	02	1	0005-0210	●
56	CLIP; WATER HOSE,RAD ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (D) ID=68	8-94224-262-0	01	1	0005-0210	●
56	CLIP; WATER HOSE,RAD (B) ID=63	1-09704-067-0	02	1	0005-0210	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0210	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0211-0707	●		●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0708-	●		●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0005-0210	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0211-0602	●		●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	04	1	0603-	●		●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0005-0210	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0211-0512	●		●
67	BOLT; BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-	●		●
128	HOSE; WATER,RAD INL	1-21437-648-0	01	1	0005-0210		●
128	HOSE; WATER,RAD INL	1-21437-700-0	01	1	0005-0210	●
128	HOSE; WATER,RAD INL	1-21437-544-0	01	1	0211-	●
128	HOSE; WATER,RAD INL	1-21437-757-0	01	1	0303-			●

20 2 4 12 10 64 1 12 67 23 65 128 56 56 20 20 20 56 55 56 10 10 10 40 40 40 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; SURGE,RAD	1-21480-104-0	01	1	0005-0210	●	●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0211-	●		●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0005-0210	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0211-	●		●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0005-0210	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0211-	●		●
10	CLIP; RUBBER HOSE (B) ID=12 L=70	1-09700-097-1	01	1	0005-0210		●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	03	1	0005-0210		●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0005-0210	●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0211-	●		●
10	CLIP; RUBBER HOSE (C) ID=13 L=20	9-09525-235-0	01	1	0005-0210	●	●
10	CLIP; RUBBER HOSE (E) ID=14 L=44	9-09917-427-0	01	1	0201-0210	●	●
10	CLIP; RUBBER HOSE (E) ID=14 L=44	9-09917-427-0	01	1	0211-	●		●
10	CLIP; RUBBER HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0005-0210	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	01	1	0211-	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	0005-0210	●
10	CLIP; RUBBER HOSE (C) ID=13 L=20	9-09525-235-0	01	1	0211-0606	●		●
10	CLIP; RUBBER HOSE (C) ID=13 L=20	0-95235-235-0	01	1	0607-	●		●
10	CLIP; RUBBER HOSE (B) ID=12 L=70	1-09700-097-1	01	1	0303-			●
10	CLIP; RUBBER HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0303-			●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	0303-			●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0005-0210	●	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0211-	●		●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0005-0210	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0211-	●		●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0005-0210	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0211-	●		●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0005-0210	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0211-	●		●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0005-0210		●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0005-0210	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0303-0512			●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-			●
55	HOSE; WATER,RAD OUTLET AUXILIARY TRANSMISSION OIL COOLER<V14> (B)	1-21437-701-0	01	1	0612-	●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-663-2	01	1	0005-0210		●
55	HOSE; WATER,RAD OUTLET ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (B)	1-21437-701-0	01	1	0005-0210	●
55	HOSE; WATER,RAD OUTLET FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) (C)	1-21437-543-0	01	1	0005-0210	●
55	HOSE; WATER,RAD OUTLET (C)	1-21437-543-0	01	1	0211-0611	●
55	HOSE; WATER,RAD OUTLET EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (C)	1-21437-543-0	01	1	0612-	●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-663-2	01	1	0303-			●
56	CLIP; WATER HOSE,RAD AUXILIARY TRANSMISSION OIL COOLER<V14> (D) ID=68	8-94224-262-0	01	1	0702-	●
56	CLIP; WATER HOSE,RAD AUXILIARY TRANSMISSION OIL COOLER<V14> (E) ID=74	1-09704-101-0	02	1	0612-	●
56	CLIP; WATER HOSE,RAD (F) ID=63	1-09704-067-0	04	1	0303-			●
56	CLIP; WATER HOSE,RAD (F) ID=63	1-09704-067-0	04	1	0009-0210		●
56	CLIP; WATER HOSE,RAD (C) ID=76	1-09704-069-0	01	1	0005-	●
56	CLIP; WATER HOSE,RAD (A) ID=70	1-09704-078-0	01	1	0005-	●
56	CLIP; WATER HOSE,RAD ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (B) ID=63	1-09704-067-0	02	1	0005-0210	●
56	CLIP; WATER HOSE,RAD (B) ID=63	1-09704-067-0	02	1	0211-0611	●
56	CLIP; WATER HOSE,RAD AUXILIARY TRANSMISSION OIL COOLER<V14> (B) ID=63	1-09704-067-0	02	1	0612-	●
56	CLIP; WATER HOSE,RAD ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (E) ID=74	1-09704-101-0	02	1	0005-0210	●
56	CLIP; WATER HOSE,RAD ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (D) ID=68	8-94224-262-0	01	1	0005-0210	●
56	CLIP; WATER HOSE,RAD (B) ID=63	1-09704-067-0	02	1	0005-0210	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0210	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0211-0707	●		●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0708-	●		●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0005-0210	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0211-0602	●		●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	04	1	0603-	●		●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0005-0210	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0211-0512	●		●
67	BOLT; BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-	●		●
128	HOSE; WATER,RAD INL	1-21437-648-0	01	1	0005-0210		●
128	HOSE; WATER,RAD INL	1-21437-700-0	01	1	0005-0210	●
128	HOSE; WATER,RAD INL	1-21437-544-0	01	1	0211-	●
128	HOSE; WATER,RAD INL	1-21437-757-0	01	1	0303-			●

56 56 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
56	CLIP; WATER HOSE,RAD AUXILIARY TRANSMISSION OIL COOLER<V14> (D) ID=68	8-94224-262-0	01	1	0702-	●
56	CLIP; WATER HOSE,RAD AUXILIARY TRANSMISSION OIL COOLER<V14> (E) ID=74	1-09704-101-0	02	1	0612-	●
56	CLIP; WATER HOSE,RAD (F) ID=63	1-09704-067-0	04	1	0303-			●
56	CLIP; WATER HOSE,RAD (F) ID=63	1-09704-067-0	04	1	0009-0210		●
56	CLIP; WATER HOSE,RAD (C) ID=76	1-09704-069-0	01	1	0005-	●
56	CLIP; WATER HOSE,RAD (A) ID=70	1-09704-078-0	01	1	0005-	●
56	CLIP; WATER HOSE,RAD ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (B) ID=63	1-09704-067-0	02	1	0005-0210	●
56	CLIP; WATER HOSE,RAD (B) ID=63	1-09704-067-0	02	1	0211-0611	●
56	CLIP; WATER HOSE,RAD AUXILIARY TRANSMISSION OIL COOLER<V14> (B) ID=63	1-09704-067-0	02	1	0612-	●
56	CLIP; WATER HOSE,RAD ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (E) ID=74	1-09704-101-0	02	1	0005-0210	●
56	CLIP; WATER HOSE,RAD ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (D) ID=68	8-94224-262-0	01	1	0005-0210	●
56	CLIP; WATER HOSE,RAD (B) ID=63	1-09704-067-0	02	1	0005-0210	●
