◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#9218) — 435 parça

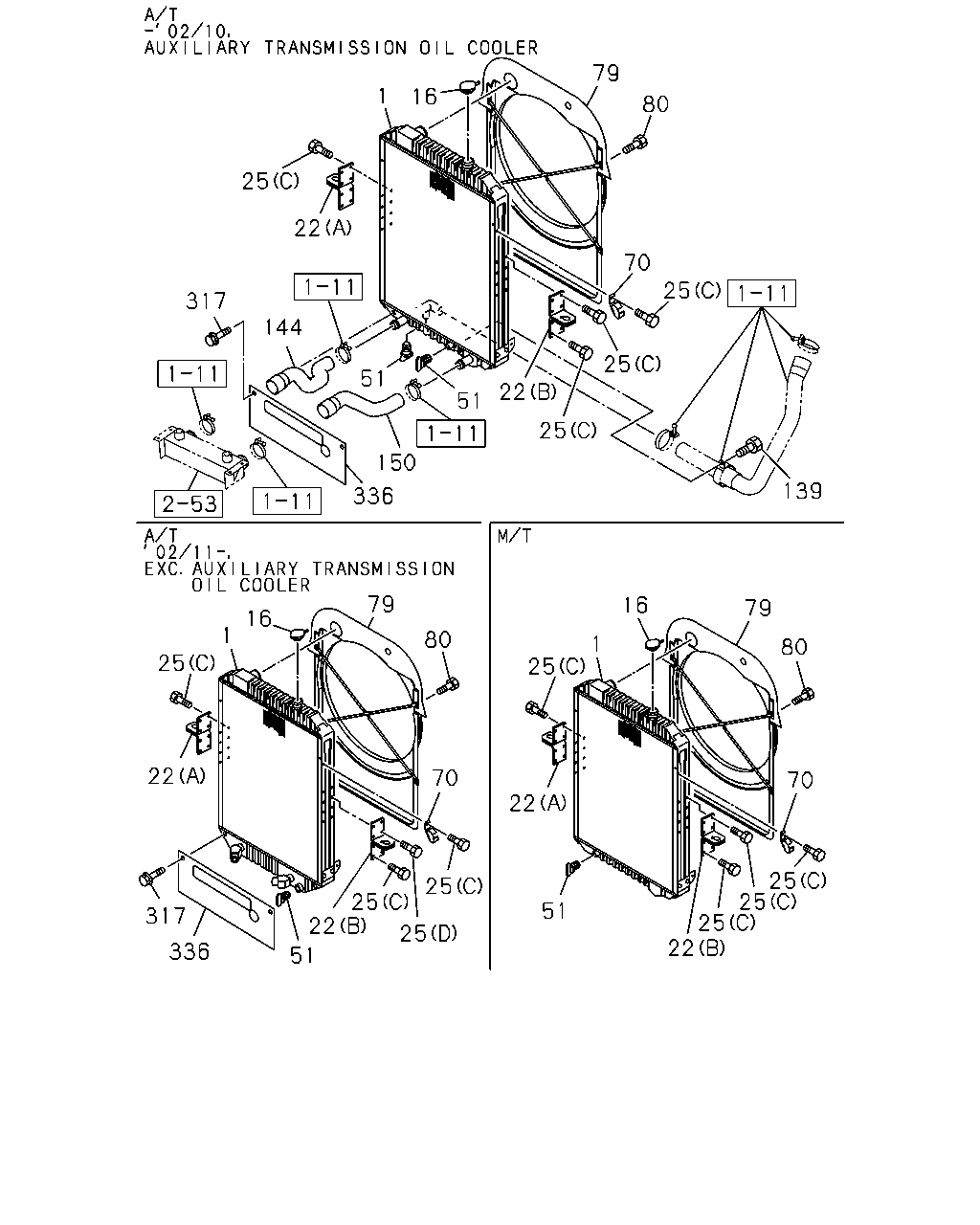

çizim 5837
79 1 16 80 25 22 70 25 317 144 25 22 51 51 25 150 139 336 79 16 79 16 1 25 80 1 25 80 22 70 70 22 25 25 25 22 25 25 22 51 317 25 336 51
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
AUXILIARY TRANSMISSION OIL COOLER<V14> 		8-98073-838-0 01 1 0612- ●
1 RADIATOR ASM 1-21410-741-2 01 1 0005-0210 ●
1 RADIATOR ASM
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) 		1-21410-773-0 01 1 0005-0210 ●
1 RADIATOR ASM
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) 		1-21410-885-0 01 1 0211-0611 ●
1 RADIATOR ASM
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> 		1-21410-885-0 01 1 0612- ●
1 RADIATOR ASM
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 		1-21410-708-0 01 1 0005-0210 ●
1 RADIATOR ASM
FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A) 		1-21410-875-0 01 1 0211-0303 ●
1 RADIATOR ASM
FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A) 		1-21410-884-0 01 1 0304- ●
1 RADIATOR ASM 1-21410-889-0 01 1 0303- ●
16 CAP; RAD
AUXILIARY TRANSMISSION OIL COOLER<V14> 		1-21450-142-0 01 1 0612- ●
16 CAP; RAD 1-21450-053-2 01 1 0005-0210 ● ●
16 CAP; RAD 1-21450-053-2 01 1 0211-0611 ●
16 CAP; RAD
EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> 		1-21450-053-2 01 1 0612- ●
16 CAP; RAD 1-21450-097-2 01 1 0303- ●
22 BRACKET; RAD MTG
(A) 		1-21464-750-0 01 1 0303- ●
22 BRACKET; RAD MTG
(A) 		1-21464-463-1 01 1 0005-0210 ●
22 BRACKET; RAD MTG
(B) 		1-21464-549-0 01 1 0005-0210 ●
22 BRACKET; RAD MTG
(A) 		1-21464-458-0 01 1 0005- ●
22 BRACKET; RAD MTG
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (B) 		1-21464-459-0 01 1 0005-0210 ●
22 BRACKET; RAD MTG
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) (B) 		1-21464-520-0 01 1 0005-0210 ●
22 BRACKET; RAD MTG
(B) 		1-21464-520-0 01 1 0211-0303 ●
22 BRACKET; RAD MTG
(B) 		1-21464-749-0 01 1 0304- ●
22 BRACKET; RAD MTG
(B) 		1-21464-737-0 01 1 0303- ●
25 BOLT; BRKT
AUXILIARY TRANSMISSION OIL COOLER<V14> (A) M8X12 FLANGE 		0-28050-812-0 14 1 0612- ●
25 BOLT; BRKT
AUXILIARY TRANSMISSION OIL COOLER<V14> (B) M8X16 FLANGE 		0-28050-816-0 01 1 0612- ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 14 1 0304-0611 ●
25 BOLT; BRKT
EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (A) M8X12 FLANGE 		0-28080-812-0 14 1 0612- ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 0005-0210 ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0302 ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0303-0611 ● ●
25 BOLT; BRKT
EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (B) M8X16 FLANGE 		0-28080-816-0 01 1 0612- ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 17 1 0005-0210 ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 15 1 0211-0302 ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 15 1 0303-0303 ● ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 15 1 0304- ●
25 BOLT; BRKT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0303-0512 ●
25 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
51 PLUG; DRAIN
AUXILIARY TRANSMISSION OIL COOLER<V14> W/GASKET 		1-09609-009-0 02 1 0612- ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0005-0210 ●
51 PLUG; DRAIN
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) W/GASKET 		1-09609-009-0 01 1 0005-0210 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0211-0302 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0303-0611 ● ●
51 PLUG; DRAIN
EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> W/GASKET 		1-09609-009-0 01 1 0612- ●
51 PLUG; DRAIN
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) W/GASKET 		1-09609-009-0 02 1 0005-0210 ●
70 STAY; RAD 1-83571-875-0 01 1 0005- ●
79 GUIDE; FAN,RAD
AUXILIARY TRANSMISSION OIL COOLER<V14> 		8-98077-134-0 01 1 0702- ●
79 GUIDE; FAN,RAD 1-21551-452-0 01 1 0005-0210 ●
79 GUIDE; FAN,RAD
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) 		1-21551-444-0 01 1 0005-0210 ●
79 GUIDE; FAN,RAD
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 		1-21551-397-2 01 1 0005-0210 ●
79 GUIDE; FAN,RAD 1-21551-531-0 01 1 0211-0701 ●
79 GUIDE; FAN,RAD
EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> 		1-21551-531-0 01 1 0702- ●
79 GUIDE; FAN,RAD 1-21551-532-0 01 1 0303- ●
80 BOLT; FAN GUIDE
AUXILIARY TRANSMISSION OIL COOLER<V14> M6X10 FLANGE 		0-28050-610-0 04 1 0612- ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0005-0210 ●
80 BOLT; FAN GUIDE
M6X12 FLANGE 		0-28080-612-0 04 1 0005-0210 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0211-0611 ●
80 BOLT; FAN GUIDE
EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M6X10 FLANGE 		0-28080-610-0 04 1 0612- ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 08 1 0303- ●
139 BOLT; CLIP BRKT
AUXILIARY TRANSMISSION OIL COOLER<V14> M8X20 FLANGE 		0-28650-820-0 01 1 0702- ●
139 BOLT; CLIP BRKT
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) M8X20 FLANGE 		0-28680-820-0 01 1 0005-0210 ●
144 HOSE; RUBBER,PIPE
AUXILIARY TRANSMISSION OIL COOLER<V14> 		1-21437-746-0 01 1 0612- ●
144 HOSE; RUBBER,PIPE
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) 		1-21437-746-0 01 1 0005-0210 ●
150 HOSE; OIL COOLER
AUXILIARY TRANSMISSION OIL COOLER<V14> 		1-21437-747-0 01 1 0612- ●
150 HOSE; OIL COOLER
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) 		1-21437-747-0 01 1 0005-0210 ●
317 BOLT; SEAL
AUXILIARY TRANSMISSION OIL COOLER<V14> M8X12 FLANGE 		0-28050-812-0 02 1 0612- ●
317 BOLT; SEAL
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0611 ●
317 BOLT; SEAL
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M8X12 FLANGE 		0-28080-812-0 02 1 0612- ●
336 SEAL; LWR,RAD
AUXILIARY TRANSMISSION OIL COOLER<V14> 		8-98073-837-0 01 1 0612- ●
336 SEAL; LWR,RAD
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) 		1-21469-147-0 01 1 0211-0611 ●
336 SEAL; LWR,RAD
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> 		1-21469-147-0 01 1 0612- ●

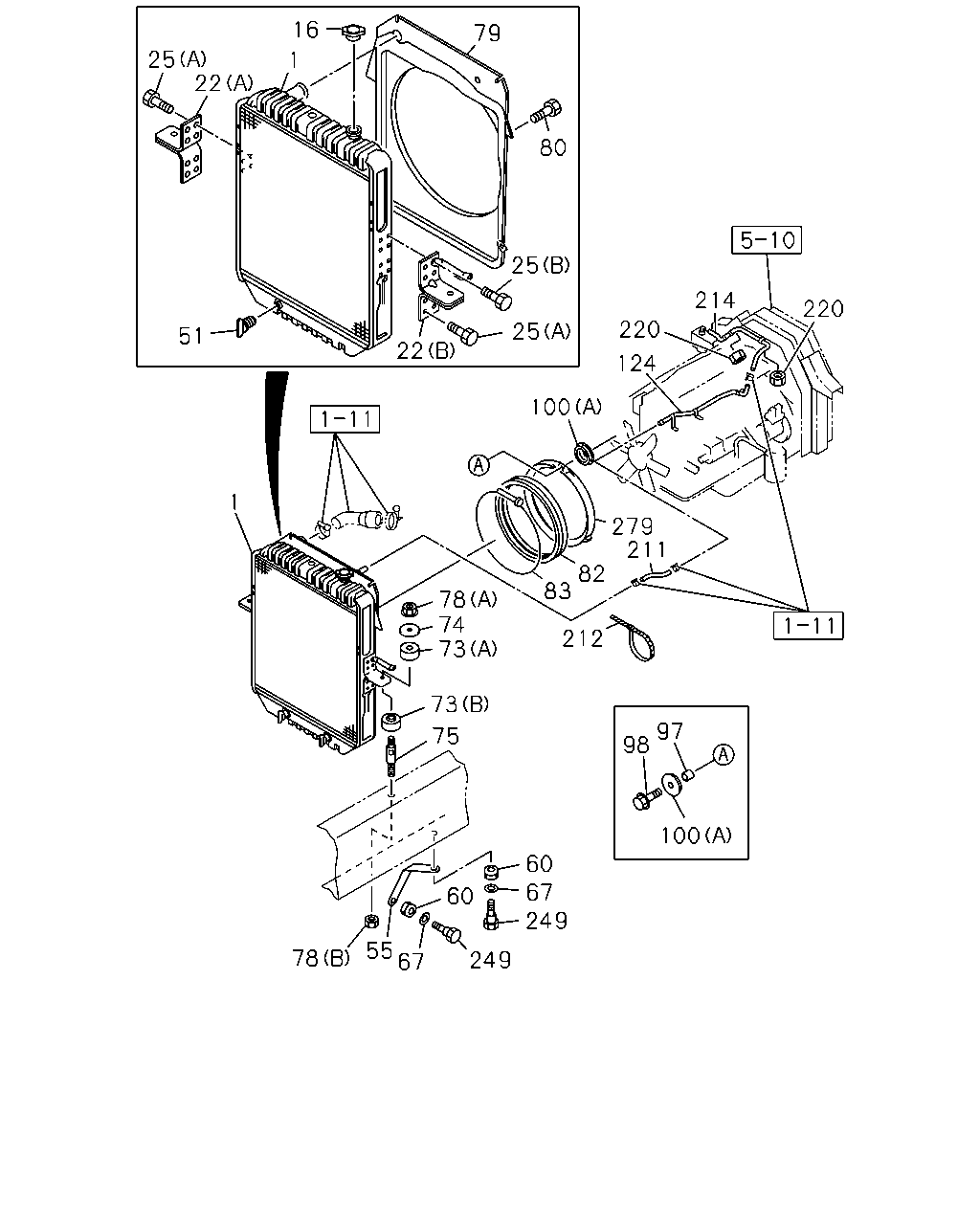

çizim 7566
16 79 25 22 1 80 25 214 220 220 25 51 22 124 100 1 279 211 82 83 78 74 73 212 73 97 98 75 100 60 67 249 60 55 67 78 249
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
AUXILIARY TRANSMISSION OIL COOLER<V14> 		8-98073-838-0 01 1 0612- ●
1 RADIATOR ASM 1-21410-741-2 01 1 0005-0210 ●
1 RADIATOR ASM
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) 		1-21410-773-0 01 1 0005-0210 ●
1 RADIATOR ASM
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) 		1-21410-885-0 01 1 0211-0611 ●
1 RADIATOR ASM
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> 		1-21410-885-0 01 1 0612- ●
1 RADIATOR ASM
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 		1-21410-708-0 01 1 0005-0210 ●
1 RADIATOR ASM
FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A) 		1-21410-875-0 01 1 0211-0303 ●
1 RADIATOR ASM
FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A) 		1-21410-884-0 01 1 0304- ●
1 RADIATOR ASM 1-21410-889-0 01 1 0303- ●
16 CAP; RAD
AUXILIARY TRANSMISSION OIL COOLER<V14> 		1-21450-142-0 01 1 0612- ●
16 CAP; RAD 1-21450-053-2 01 1 0005-0210 ● ●
16 CAP; RAD 1-21450-053-2 01 1 0211-0611 ●
16 CAP; RAD
EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> 		1-21450-053-2 01 1 0612- ●
16 CAP; RAD 1-21450-097-2 01 1 0303- ●
22 BRACKET; RAD MTG
(A) 		1-21464-750-0 01 1 0303- ●
22 BRACKET; RAD MTG
(A) 		1-21464-463-1 01 1 0005-0210 ●
22 BRACKET; RAD MTG
(B) 		1-21464-549-0 01 1 0005-0210 ●
22 BRACKET; RAD MTG
(A) 		1-21464-458-0 01 1 0005- ●
22 BRACKET; RAD MTG
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (B) 		1-21464-459-0 01 1 0005-0210 ●
22 BRACKET; RAD MTG
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) (B) 		1-21464-520-0 01 1 0005-0210 ●
22 BRACKET; RAD MTG
(B) 		1-21464-520-0 01 1 0211-0303 ●
22 BRACKET; RAD MTG
(B) 		1-21464-749-0 01 1 0304- ●
22 BRACKET; RAD MTG
(B) 		1-21464-737-0 01 1 0303- ●
25 BOLT; BRKT
AUXILIARY TRANSMISSION OIL COOLER<V14> (A) M8X12 FLANGE 		0-28050-812-0 14 1 0612- ●
25 BOLT; BRKT
AUXILIARY TRANSMISSION OIL COOLER<V14> (B) M8X16 FLANGE 		0-28050-816-0 01 1 0612- ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 14 1 0304-0611 ●
25 BOLT; BRKT
EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (A) M8X12 FLANGE 		0-28080-812-0 14 1 0612- ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 0005-0210 ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0302 ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0303-0611 ● ●
25 BOLT; BRKT
EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (B) M8X16 FLANGE 		0-28080-816-0 01 1 0612- ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 17 1 0005-0210 ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 15 1 0211-0302 ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 15 1 0303-0303 ● ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 15 1 0304- ●
25 BOLT; BRKT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0303-0512 ●
25 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
51 PLUG; DRAIN
AUXILIARY TRANSMISSION OIL COOLER<V14> W/GASKET 		1-09609-009-0 02 1 0612- ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0005-0210 ●
51 PLUG; DRAIN
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) W/GASKET 		1-09609-009-0 01 1 0005-0210 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0211-0302 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0303-0611 ● ●
51 PLUG; DRAIN
EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> W/GASKET 		1-09609-009-0 01 1 0612- ●
51 PLUG; DRAIN
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) W/GASKET 		1-09609-009-0 02 1 0005-0210 ●
55 STAY; RAD TO UPR MBR 1-21464-570-0 01 1 0005-0210 ●
55 STAY; RAD TO UPR MBR 1-21464-569-0 01 1 0005-0210 ●
55 STAY; RAD TO UPR MBR 1-21464-453-0 01 1 0005- ●
55 STAY; RAD TO UPR MBR 1-21464-452-0 01 1 0005- ●
60 GROMMET 1-09332-117-0 04 1 0005-0210 ● ●
60 GROMMET 1-09332-117-0 04 1 0211-0302 ●
60 GROMMET 1-09332-117-0 04 1 0303- ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 0005-0210 ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 0211-0605 ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0005-0210 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0211- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0005-0210 ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0211- ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0005-0210 ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0211- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0005-0210 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0211- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0005-0210 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0211-0602 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0005-0210 ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0211- ● ●
79 GUIDE; FAN,RAD
AUXILIARY TRANSMISSION OIL COOLER<V14> 		8-98077-134-0 01 1 0702- ●
79 GUIDE; FAN,RAD 1-21551-452-0 01 1 0005-0210 ●
79 GUIDE; FAN,RAD
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) 		1-21551-444-0 01 1 0005-0210 ●
79 GUIDE; FAN,RAD
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 		1-21551-397-2 01 1 0005-0210 ●
79 GUIDE; FAN,RAD 1-21551-531-0 01 1 0211-0701 ●
79 GUIDE; FAN,RAD
EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> 		1-21551-531-0 01 1 0702- ●
79 GUIDE; FAN,RAD 1-21551-532-0 01 1 0303- ●
80 BOLT; FAN GUIDE
AUXILIARY TRANSMISSION OIL COOLER<V14> M6X10 FLANGE 		0-28050-610-0 04 1 0612- ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0005-0210 ●
80 BOLT; FAN GUIDE
M6X12 FLANGE 		0-28080-612-0 04 1 0005-0210 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0211-0611 ●
80 BOLT; FAN GUIDE
EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M6X10 FLANGE 		0-28080-610-0 04 1 0612- ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 08 1 0303- ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 0005-0210 ●
82 COVER; FAN,RAD 1-21559-397-0 01 1 0005- ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 0303- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0005-0210 ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0211- ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0005-0210 ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0211- ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0005-0210 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0211-0512 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0005-0210 ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0005-0210 ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0211- ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0303-0910 ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ●
124 PIPE; WATER,TANK TO RAD 8-94395-451-1 01 1 0005-0210 ●
124 PIPE; WATER,TANK TO RAD 8-97601-482-0 01 1 0303- ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
211 HOSE; RAD TO PIPE
L=350 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
211 HOSE; RAD TO PIPE
L=350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
211 HOSE; RAD TO PIPE
L=260 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ●
211 HOSE; RAD TO PIPE
L=660 SERVICED BY L=3000 		0-03557-300-0 01 1 0303- ●
212 CLIP; HOSE
L=100 		5-09707-036-1 01 1 0005-0102 ●
212 CLIP; HOSE
L=140 		5-09707-031-1 01 1 0103-0210 ●
212 CLIP; HOSE
L=250 		5-09707-030-1 01 1 0303- ●
214 HOSE; PIPE TO RESERVE TANK
L=1400 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
214 HOSE; PIPE TO RESERVE TANK
L=1400 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
214 HOSE; PIPE TO RESERVE TANK
L=760 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ●
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0303- ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0005-0210 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0303-0602 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 0005-0205 ● ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 02 1 0206-0210 ● ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 02 1 0211- ●
249 BOLT; STAY,RAD MBR
M8X22 		1-09009-123-0 02 1 0206-0210 ● ●
249 BOLT; STAY,RAD MBR
M8X22 		1-09009-123-0 02 1 0211- ●
279 BELL MOUTH 8-94393-779-0 01 1 0005-0210 ●
279 BELL MOUTH 1-21551-395-0 01 1 0005- ●
279 BELL MOUTH 8-97601-172-1 01 1 0303- ●

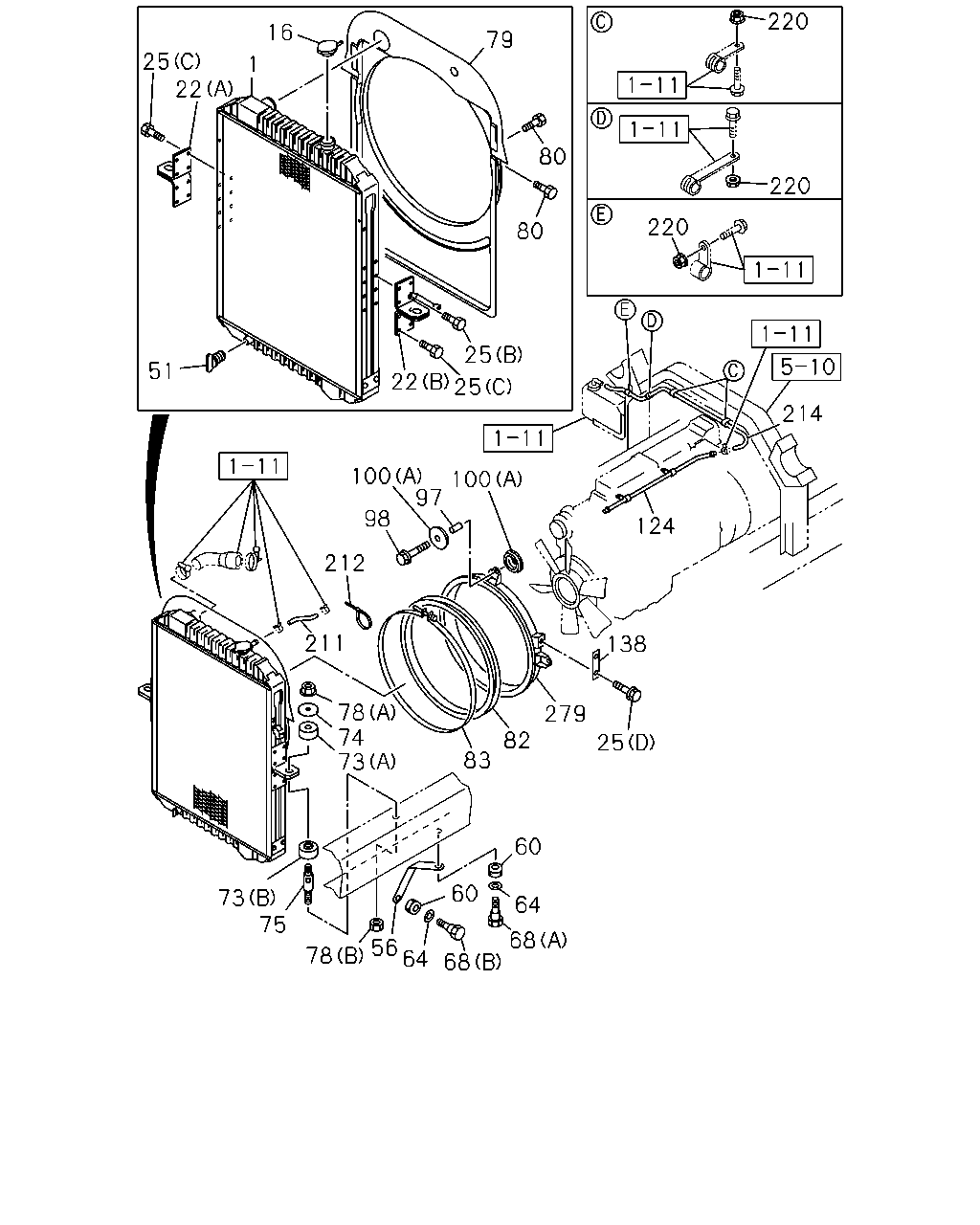

çizim 7669
220 16 79 25 22 1 80 220 220 80 25 51 22 25 214 100 97 100 98 124 212 211 138 78 74 73 279 82 25 83 60 60 73 75 64 68 68 56 78 64
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
AUXILIARY TRANSMISSION OIL COOLER<V14> 		8-98073-838-0 01 1 0612- ●
1 RADIATOR ASM 1-21410-741-2 01 1 0005-0210 ●
1 RADIATOR ASM
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) 		1-21410-773-0 01 1 0005-0210 ●
1 RADIATOR ASM
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) 		1-21410-885-0 01 1 0211-0611 ●
1 RADIATOR ASM
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> 		1-21410-885-0 01 1 0612- ●
1 RADIATOR ASM
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 		1-21410-708-0 01 1 0005-0210 ●
1 RADIATOR ASM
FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A) 		1-21410-875-0 01 1 0211-0303 ●
1 RADIATOR ASM
FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A) 		1-21410-884-0 01 1 0304- ●
1 RADIATOR ASM 1-21410-889-0 01 1 0303- ●
16 CAP; RAD
AUXILIARY TRANSMISSION OIL COOLER<V14> 		1-21450-142-0 01 1 0612- ●
16 CAP; RAD 1-21450-053-2 01 1 0005-0210 ● ●
16 CAP; RAD 1-21450-053-2 01 1 0211-0611 ●
16 CAP; RAD
EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> 		1-21450-053-2 01 1 0612- ●
16 CAP; RAD 1-21450-097-2 01 1 0303- ●
22 BRACKET; RAD MTG
(A) 		1-21464-750-0 01 1 0303- ●
22 BRACKET; RAD MTG
(A) 		1-21464-463-1 01 1 0005-0210 ●
22 BRACKET; RAD MTG
(B) 		1-21464-549-0 01 1 0005-0210 ●
22 BRACKET; RAD MTG
(A) 		1-21464-458-0 01 1 0005- ●
22 BRACKET; RAD MTG
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (B) 		1-21464-459-0 01 1 0005-0210 ●
22 BRACKET; RAD MTG
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) (B) 		1-21464-520-0 01 1 0005-0210 ●
22 BRACKET; RAD MTG
(B) 		1-21464-520-0 01 1 0211-0303 ●
22 BRACKET; RAD MTG
(B) 		1-21464-749-0 01 1 0304- ●
22 BRACKET; RAD MTG
(B) 		1-21464-737-0 01 1 0303- ●
25 BOLT; BRKT
AUXILIARY TRANSMISSION OIL COOLER<V14> (A) M8X12 FLANGE 		0-28050-812-0 14 1 0612- ●
25 BOLT; BRKT
AUXILIARY TRANSMISSION OIL COOLER<V14> (B) M8X16 FLANGE 		0-28050-816-0 01 1 0612- ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 14 1 0304-0611 ●
25 BOLT; BRKT
EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (A) M8X12 FLANGE 		0-28080-812-0 14 1 0612- ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 0005-0210 ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0302 ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0303-0611 ● ●
25 BOLT; BRKT
EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (B) M8X16 FLANGE 		0-28080-816-0 01 1 0612- ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 17 1 0005-0210 ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 15 1 0211-0302 ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 15 1 0303-0303 ● ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 15 1 0304- ●
25 BOLT; BRKT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0303-0512 ●
25 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
51 PLUG; DRAIN
AUXILIARY TRANSMISSION OIL COOLER<V14> W/GASKET 		1-09609-009-0 02 1 0612- ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0005-0210 ●
51 PLUG; DRAIN
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) W/GASKET 		1-09609-009-0 01 1 0005-0210 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0211-0302 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0303-0611 ● ●
51 PLUG; DRAIN
EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> W/GASKET 		1-09609-009-0 01 1 0612- ●
51 PLUG; DRAIN
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) W/GASKET 		1-09609-009-0 02 1 0005-0210 ●
56 STAY; RAD 1-21464-708-0 01 1 0303- ●
56 STAY; RAD 1-21464-709-0 01 1 0303- ●
60 GROMMET 1-09332-117-0 04 1 0005-0210 ● ●
60 GROMMET 1-09332-117-0 04 1 0211-0302 ●
60 GROMMET 1-09332-117-0 04 1 0303- ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 0303-0605 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ●
68 BOLT; STAY TO BRKT
(A) M8X30 		1-09009-020-1 02 1 0303- ●
68 BOLT; STAY TO BRKT
(B) M8X22 		1-09009-123-0 02 1 0303- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0005-0210 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0211- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0005-0210 ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0211- ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0005-0210 ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0211- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0005-0210 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0211- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0005-0210 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0211-0602 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0005-0210 ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0211- ● ●
79 GUIDE; FAN,RAD
AUXILIARY TRANSMISSION OIL COOLER<V14> 		8-98077-134-0 01 1 0702- ●
79 GUIDE; FAN,RAD 1-21551-452-0 01 1 0005-0210 ●
79 GUIDE; FAN,RAD
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) 		1-21551-444-0 01 1 0005-0210 ●
79 GUIDE; FAN,RAD
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 		1-21551-397-2 01 1 0005-0210 ●
79 GUIDE; FAN,RAD 1-21551-531-0 01 1 0211-0701 ●
79 GUIDE; FAN,RAD
EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> 		1-21551-531-0 01 1 0702- ●
79 GUIDE; FAN,RAD 1-21551-532-0 01 1 0303- ●
80 BOLT; FAN GUIDE
AUXILIARY TRANSMISSION OIL COOLER<V14> M6X10 FLANGE 		0-28050-610-0 04 1 0612- ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0005-0210 ●
80 BOLT; FAN GUIDE
M6X12 FLANGE 		0-28080-612-0 04 1 0005-0210 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0211-0611 ●
80 BOLT; FAN GUIDE
EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M6X10 FLANGE 		0-28080-610-0 04 1 0612- ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 08 1 0303- ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 0005-0210 ●
82 COVER; FAN,RAD 1-21559-397-0 01 1 0005- ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 0303- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0005-0210 ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0211- ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0005-0210 ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0211- ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0005-0210 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0211-0512 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0005-0210 ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0005-0210 ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0211- ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0303-0910 ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ●
124 PIPE; WATER,TANK TO RAD 8-94395-451-1 01 1 0005-0210 ●
124 PIPE; WATER,TANK TO RAD 8-97601-482-0 01 1 0303- ●
138 BRACKET; CLIP 1-47476-881-0 01 1 0303- ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
211 HOSE; RAD TO PIPE
L=350 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
211 HOSE; RAD TO PIPE
L=350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
211 HOSE; RAD TO PIPE
L=260 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ●
211 HOSE; RAD TO PIPE
L=660 SERVICED BY L=3000 		0-03557-300-0 01 1 0303- ●
212 CLIP; HOSE
L=100 		5-09707-036-1 01 1 0005-0102 ●
212 CLIP; HOSE
L=140 		5-09707-031-1 01 1 0103-0210 ●
212 CLIP; HOSE
L=250 		5-09707-030-1 01 1 0303- ●
214 HOSE; PIPE TO RESERVE TANK
L=1400 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
214 HOSE; PIPE TO RESERVE TANK
L=1400 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
214 HOSE; PIPE TO RESERVE TANK
L=760 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ●
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0303- ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0005-0210 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0303-0602 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
279 BELL MOUTH 8-94393-779-0 01 1 0005-0210 ●
279 BELL MOUTH 1-21551-395-0 01 1 0005- ●
279 BELL MOUTH 8-97601-172-1 01 1 0303- ●

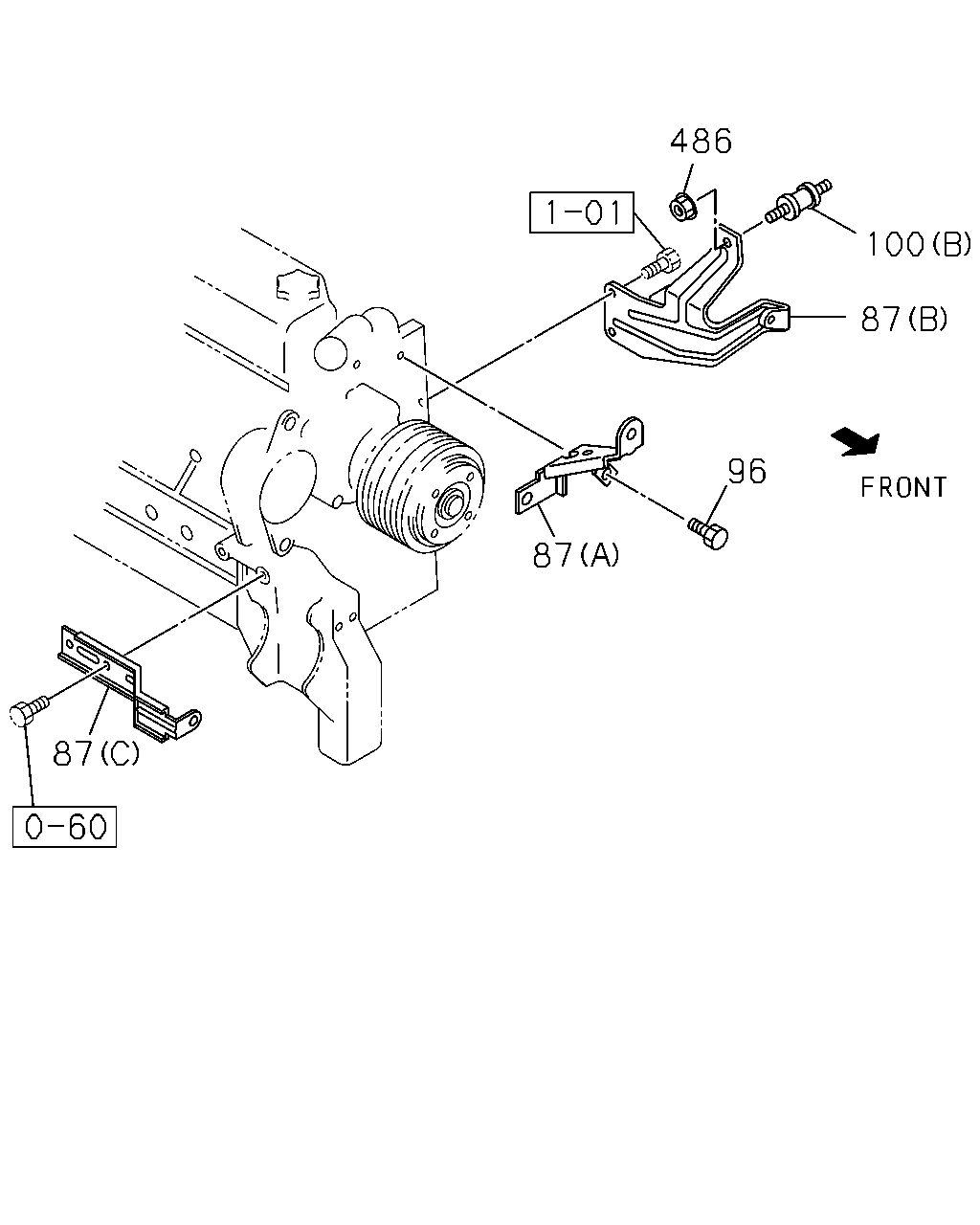

çizim 47964
486 100 87 96 87 87
BalonParca AdiParca NoAdetTipApplied Date A B C
87 STAY; FAN GUIDE
(A) 		8-94393-776-0 01 1 0005-0210 ●
87 STAY; FAN GUIDE
(C) 		8-94393-777-1 01 1 0005-0012 ●
87 STAY; FAN GUIDE
(C) 		8-97601-850-0 01 1 0101-0210 ●
87 STAY; FAN GUIDE
(B) 		8-94393-778-2 01 1 0005-0210 ●
87 STAY; FAN GUIDE
(D) 		1-21559-373-0 01 1 0005- ●
87 STAY; FAN GUIDE
(E) 		1-21559-379-0 01 1 0005-0210 ●
87 STAY; FAN GUIDE
(F) 		1-21559-457-0 01 1 0211- ●
87 STAY; FAN GUIDE
(A) 		8-94393-776-1 01 1 0303- ●
87 STAY; FAN GUIDE
(B) 		8-94393-778-2 01 1 0303- ●
87 STAY; FAN GUIDE
(C) 		8-97601-850-0 01 1 0303- ●
96 BOLT; STAY FIX
M8X16 FLANGE 		0-28080-816-0 04 1 0211-0512 ●
96 BOLT; STAY FIX
M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0005-0210 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0303-0512 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0005-0210 ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0005-0210 ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0211- ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0303-0910 ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0303-0602 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0603- ●

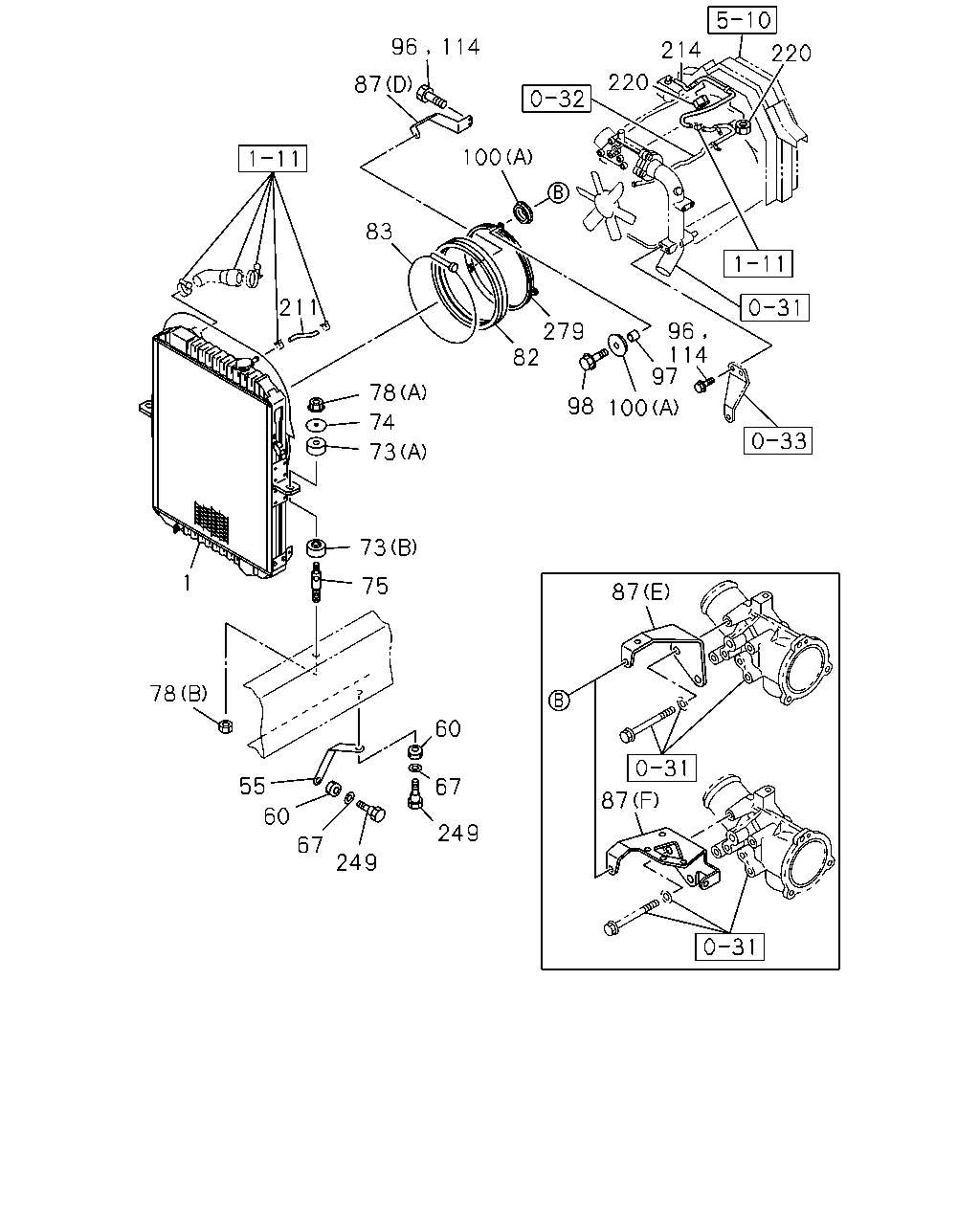

çizim 49560
96 114 214 220 220 87 100 83 211 96 114 97 279 82 78 98 100 74 73 73 1 75 87 78 60 55 67 87 60 249 67 249
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
AUXILIARY TRANSMISSION OIL COOLER<V14> 		8-98073-838-0 01 1 0612- ●
1 RADIATOR ASM 1-21410-741-2 01 1 0005-0210 ●
1 RADIATOR ASM
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) 		1-21410-773-0 01 1 0005-0210 ●
1 RADIATOR ASM
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) 		1-21410-885-0 01 1 0211-0611 ●
1 RADIATOR ASM
ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> 		1-21410-885-0 01 1 0612- ●
1 RADIATOR ASM
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 		1-21410-708-0 01 1 0005-0210 ●
1 RADIATOR ASM
FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A) 		1-21410-875-0 01 1 0211-0303 ●
1 RADIATOR ASM
FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A) 		1-21410-884-0 01 1 0304- ●
1 RADIATOR ASM 1-21410-889-0 01 1 0303- ●
55 STAY; RAD TO UPR MBR 1-21464-570-0 01 1 0005-0210 ●
55 STAY; RAD TO UPR MBR 1-21464-569-0 01 1 0005-0210 ●
55 STAY; RAD TO UPR MBR 1-21464-453-0 01 1 0005- ●
55 STAY; RAD TO UPR MBR 1-21464-452-0 01 1 0005- ●
60 GROMMET 1-09332-117-0 04 1 0005-0210 ● ●
60 GROMMET 1-09332-117-0 04 1 0211-0302 ●
60 GROMMET 1-09332-117-0 04 1 0303- ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 0005-0210 ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 0211-0605 ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0005-0210 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0211- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0005-0210 ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0211- ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0005-0210 ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0211- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0005-0210 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0211- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0005-0210 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0211-0602 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0005-0210 ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0211- ● ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 0005-0210 ●
82 COVER; FAN,RAD 1-21559-397-0 01 1 0005- ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 0303- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0005-0210 ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0211- ● ●
87 STAY; FAN GUIDE
(A) 		8-94393-776-0 01 1 0005-0210 ●
87 STAY; FAN GUIDE
(C) 		8-94393-777-1 01 1 0005-0012 ●
87 STAY; FAN GUIDE
(C) 		8-97601-850-0 01 1 0101-0210 ●
87 STAY; FAN GUIDE
(B) 		8-94393-778-2 01 1 0005-0210 ●
87 STAY; FAN GUIDE
(D) 		1-21559-373-0 01 1 0005- ●
87 STAY; FAN GUIDE
(E) 		1-21559-379-0 01 1 0005-0210 ●
87 STAY; FAN GUIDE
(F) 		1-21559-457-0 01 1 0211- ●
87 STAY; FAN GUIDE
(A) 		8-94393-776-1 01 1 0303- ●
87 STAY; FAN GUIDE
(B) 		8-94393-778-2 01 1 0303- ●
87 STAY; FAN GUIDE
(C) 		8-97601-850-0 01 1 0303- ●
96 BOLT; STAY FIX
M8X16 FLANGE 		0-28080-816-0 04 1 0211-0512 ●
96 BOLT; STAY FIX
M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0005-0210 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0303-0512 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0005-0210 ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0211- ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0005-0210 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0211-0512 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0005-0210 ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0005-0210 ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0211- ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0303-0910 ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ●
114 BOLT; STAY
M8X16 FLANGE 		0-28080-816-0 04 1 0005-0210 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
211 HOSE; RAD TO PIPE
L=350 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
211 HOSE; RAD TO PIPE
L=350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
211 HOSE; RAD TO PIPE
L=260 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ●
211 HOSE; RAD TO PIPE
L=660 SERVICED BY L=3000 		0-03557-300-0 01 1 0303- ●
214 HOSE; PIPE TO RESERVE TANK
L=1400 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
214 HOSE; PIPE TO RESERVE TANK
L=1400 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
214 HOSE; PIPE TO RESERVE TANK
L=760 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ●
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0303- ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0005-0210 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0303-0602 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 0005-0205 ● ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 02 1 0206-0210 ● ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 02 1 0211- ●
249 BOLT; STAY,RAD MBR
M8X22 		1-09009-123-0 02 1 0206-0210 ● ●
249 BOLT; STAY,RAD MBR
M8X22 		1-09009-123-0 02 1 0211- ●
279 BELL MOUTH 8-94393-779-0 01 1 0005-0210 ●
279 BELL MOUTH 1-21551-395-0 01 1 0005- ●
279 BELL MOUTH 8-97601-172-1 01 1 0303- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
