0-87 — COUPLING; INJECTION PUMP (#9216) — 80 parça

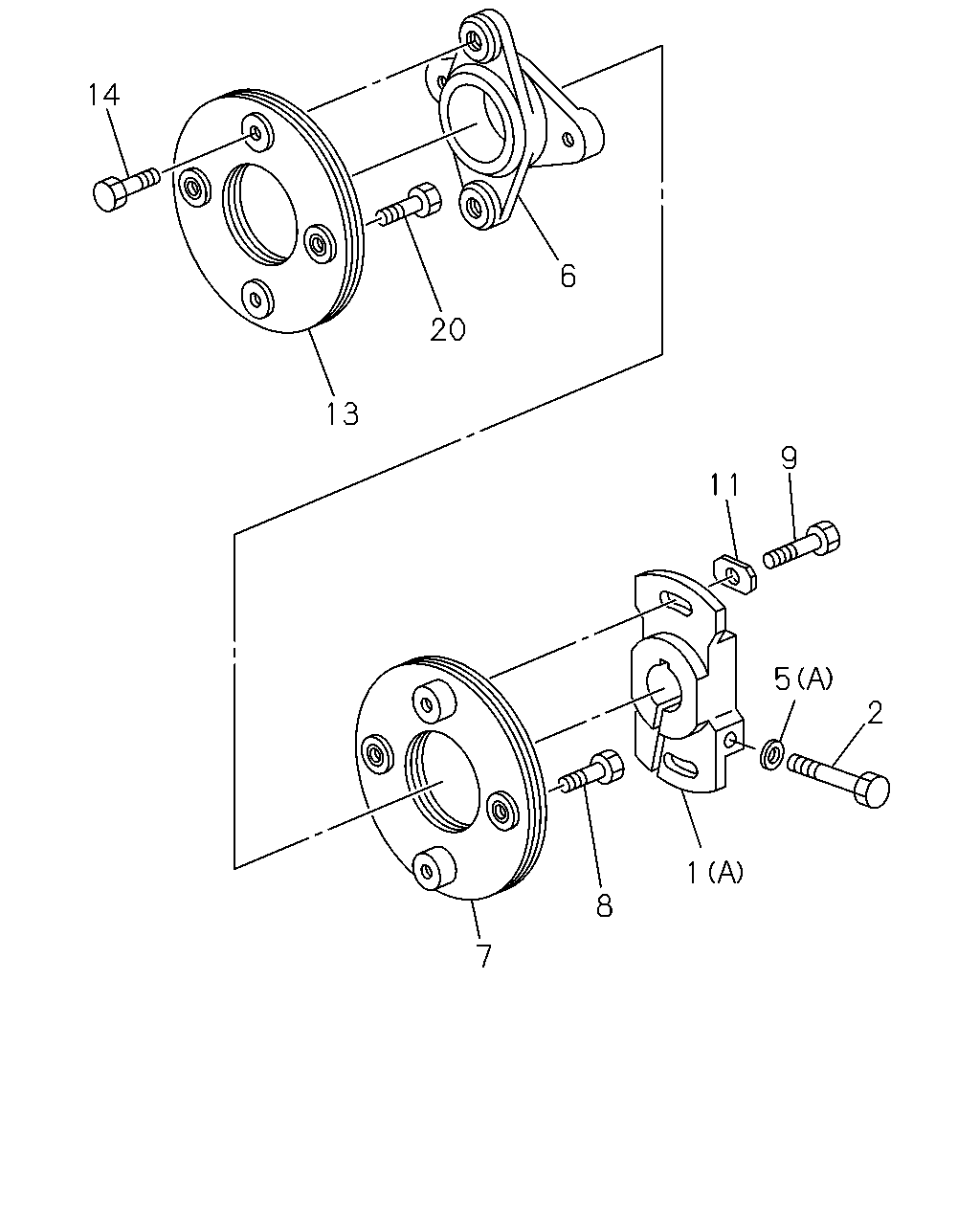

çizim 10138
14 6 20 13 11 5 2 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 0005-0210 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 0005-0210 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15781-039-0 01 1 0005-0210 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15789-207-0 01 1 0211- ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-041-0 01 1 0303- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-046-0 01 1 0303- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0005-0210 ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-212-0 01 1 0211- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0303- ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 0005-0210 ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 0005-0210 ● ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 0303- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 0303- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 0005-0210 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-208-0 01 1 0211- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 0303- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 0005-0210 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 0005-0210 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-209-0 02 1 0211- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 0303- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0005-0210 ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0303- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-188-0 02 1 0005-0210 ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-188-0 02 1 0303- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0005-0210 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0303- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0005-0210 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-211-0 04 1 0211- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0303- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0005-0210 ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-214-0 02 1 0211- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0303- ●

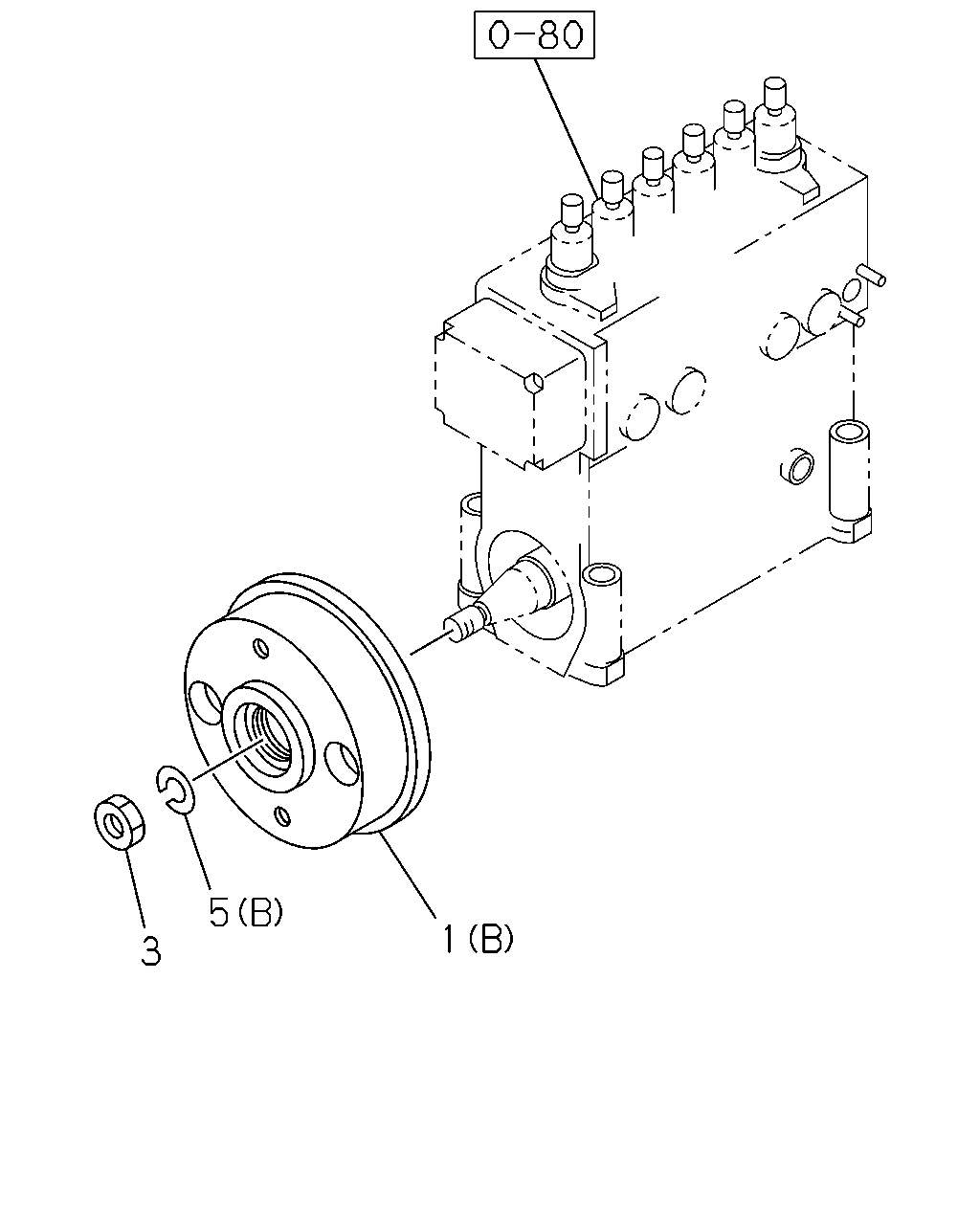

çizim 10386
5 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 0005-0210 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 0005-0210 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15781-039-0 01 1 0005-0210 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15789-207-0 01 1 0211- ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-041-0 01 1 0303- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-046-0 01 1 0303- ●
3 NUT; COUPLING FIX,INJ PUMP 1-15619-132-0 01 1 0005-0210 ●
3 NUT; COUPLING FIX,INJ PUMP 1-15619-132-0 01 1 0303- ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 0005-0210 ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 0005-0210 ● ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 0303- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 0303- ●

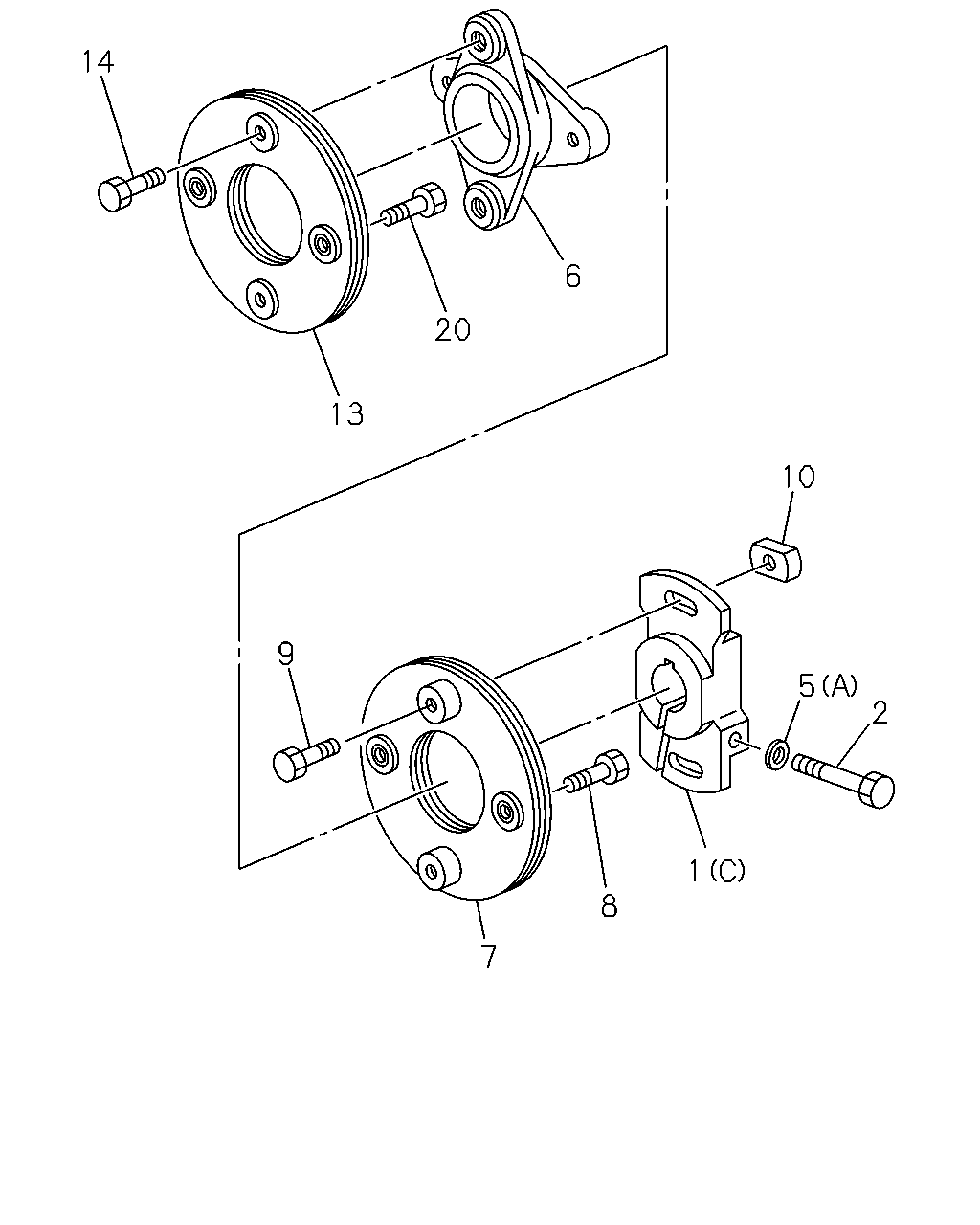

çizim 43816
14 6 20 13 10 9 5 2 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 0005-0210 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 0005-0210 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15781-039-0 01 1 0005-0210 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15789-207-0 01 1 0211- ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-041-0 01 1 0303- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-046-0 01 1 0303- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0005-0210 ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-212-0 01 1 0211- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0303- ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 0005-0210 ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 0005-0210 ● ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 0303- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 0303- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 0005-0210 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-208-0 01 1 0211- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 0303- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 0005-0210 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 0005-0210 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-209-0 02 1 0211- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 0303- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0005-0210 ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0303- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 0005-0210 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 0005-0210 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-210-0 02 1 0211- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 0303- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 0005-0210 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-213-0 02 1 0211- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0005-0210 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0303- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0005-0210 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-211-0 04 1 0211- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0303- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0005-0210 ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-214-0 02 1 0211- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0303- ●
