Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#92142) — 225 parça

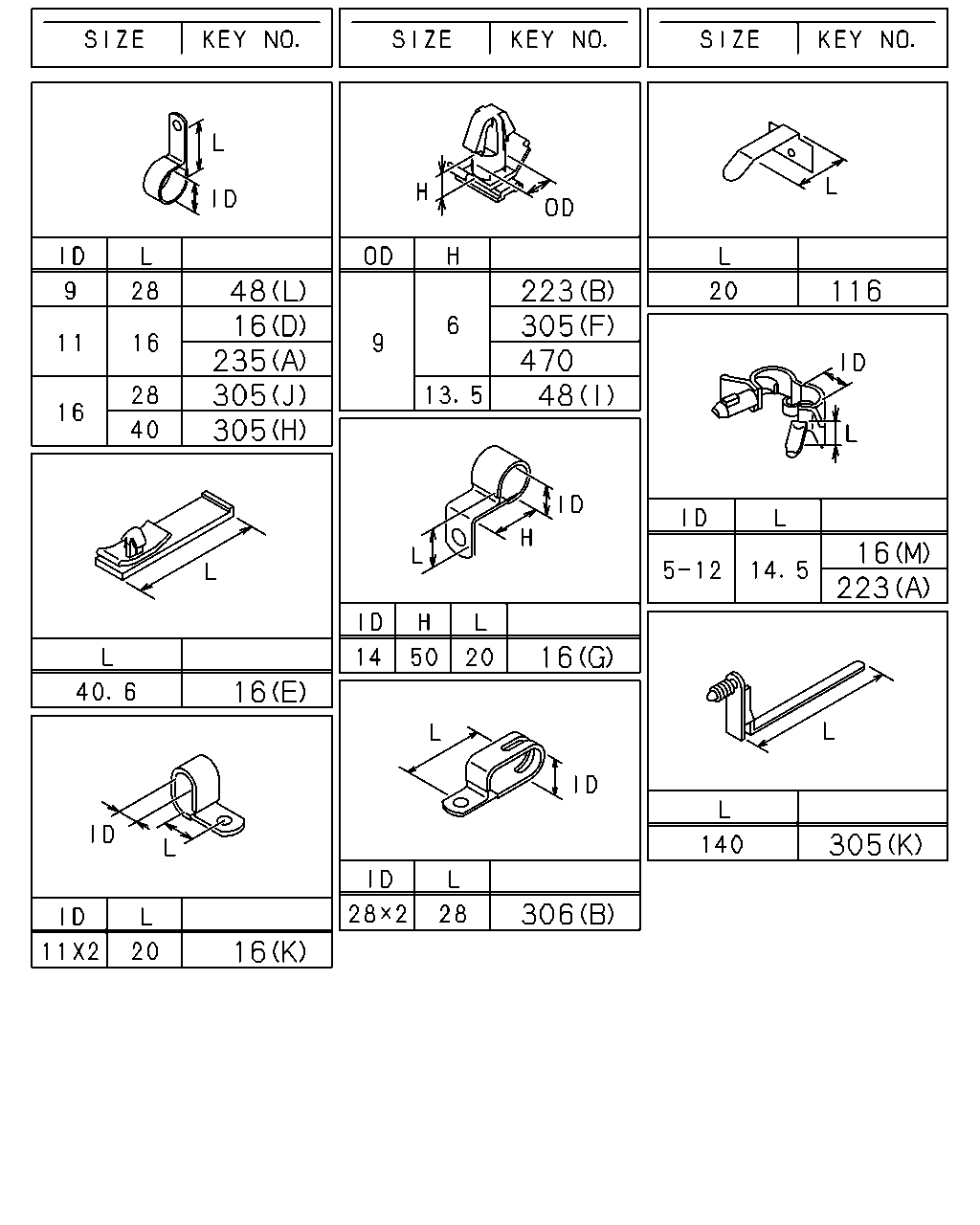

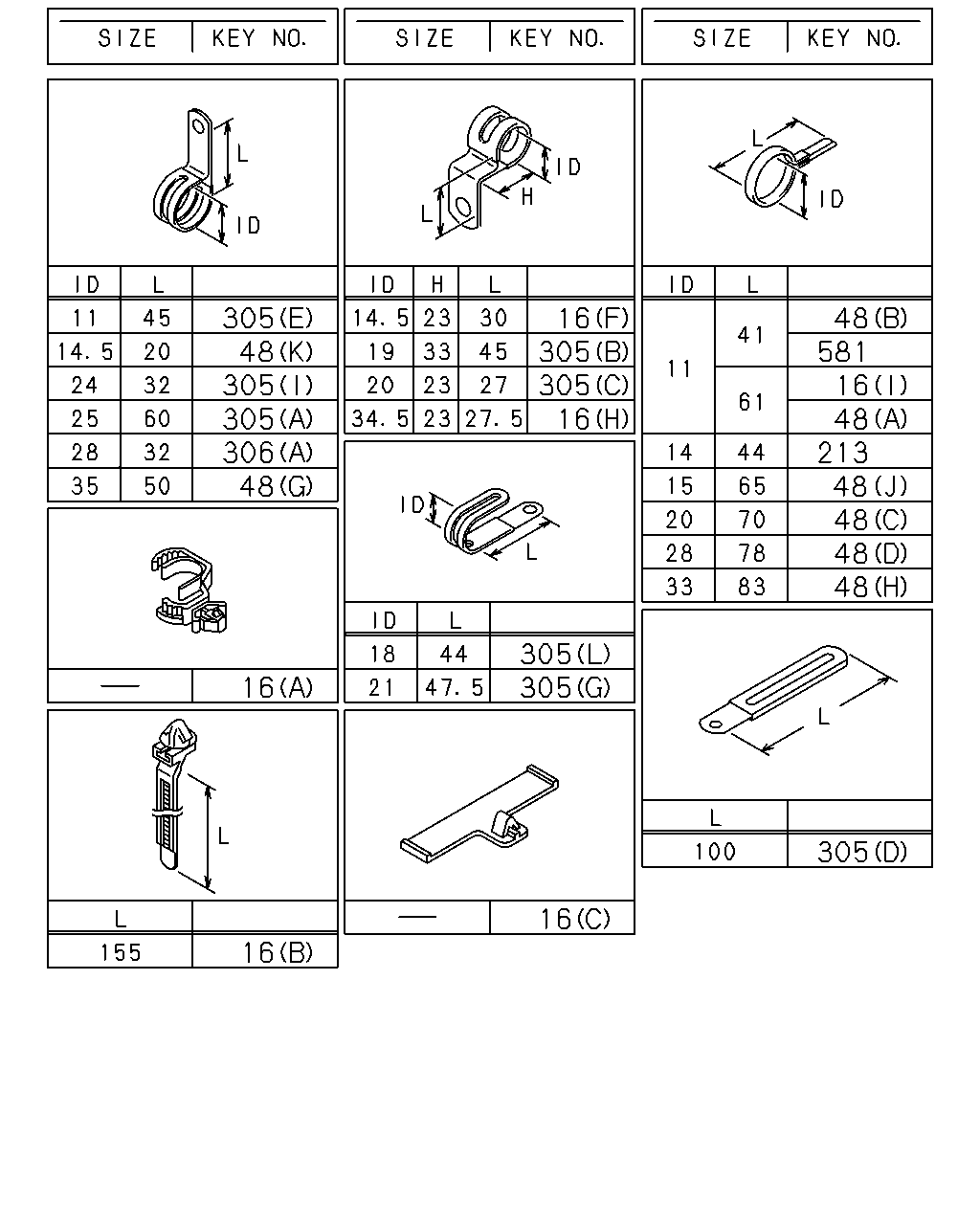

305 48 305 305 306 48 16 305 305 16 48 581 16 48 213 48 48 48 48 305 305 16 305 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1206-
16	CLIP; HARNESS (G) ID=14 H=50 L=20	1-09700-843-0	02	1	1206-
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1206-
16	CLIP; HARNESS (K) ID=11X2 L=20	1-09700-871-0	04	1	1206-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1206-
16	CLIP; HARNESS (L) L=250	1-09707-126-0	01	1	1206-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1206-
16	CLIP; HARNESS (J) L=250	5-09707-030-1	04	1	1206-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1206-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1206-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1206-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	1206-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	1206-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1206-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1206-
16	CLIP; HARNESS WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> (I) ID=11 L=61	1-09700-484-0	02	1	1206-
16	CLIP; HARNESS FUEL TANK 200L FRAME SIDE<N20> (I) ID=11 L=61	1-09700-484-0	02	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (J) ID=15 L=65	1-09700-466-0	17	1	1206-
48	CLIP; FRAME HARNESS (A) ID=11 L=61	1-09700-484-0	02	1	1206-
48	CLIP; FRAME HARNESS (L) ID=9 L=28	0-95234-855-0	02	1	1206-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1206-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	01	1	1206-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1206-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	03	1	1206-
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	1206-
48	CLIP; FRAME HARNESS (K) ID=14.5 L=20	1-09701-012-0	01	1	1206-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1206-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	04	1	1206-
48	CLIP; FRAME HARNESS (E) L=180	1-09707-162-1	02	1	1206-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1206-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1206-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (J) ID=15 L=65	1-09700-466-0	24	1	1206-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1206-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1206-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1206-
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	1206-
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1206-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1206-
305	CLIP; ENG HARNESS (B) ID=19 H=33 L=45	1-09701-045-0	01	1	1206-
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	1206-
305	CLIP; ENG HARNESS (E) ID=11 L=45	8-94296-897-1	01	1	1206-
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	1206-
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1206-
305	CLIP; ENG HARNESS (L) ID=18 L=44	8-97367-985-1	01	1	1206-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1206-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1206-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1206-
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	01	1	1206-

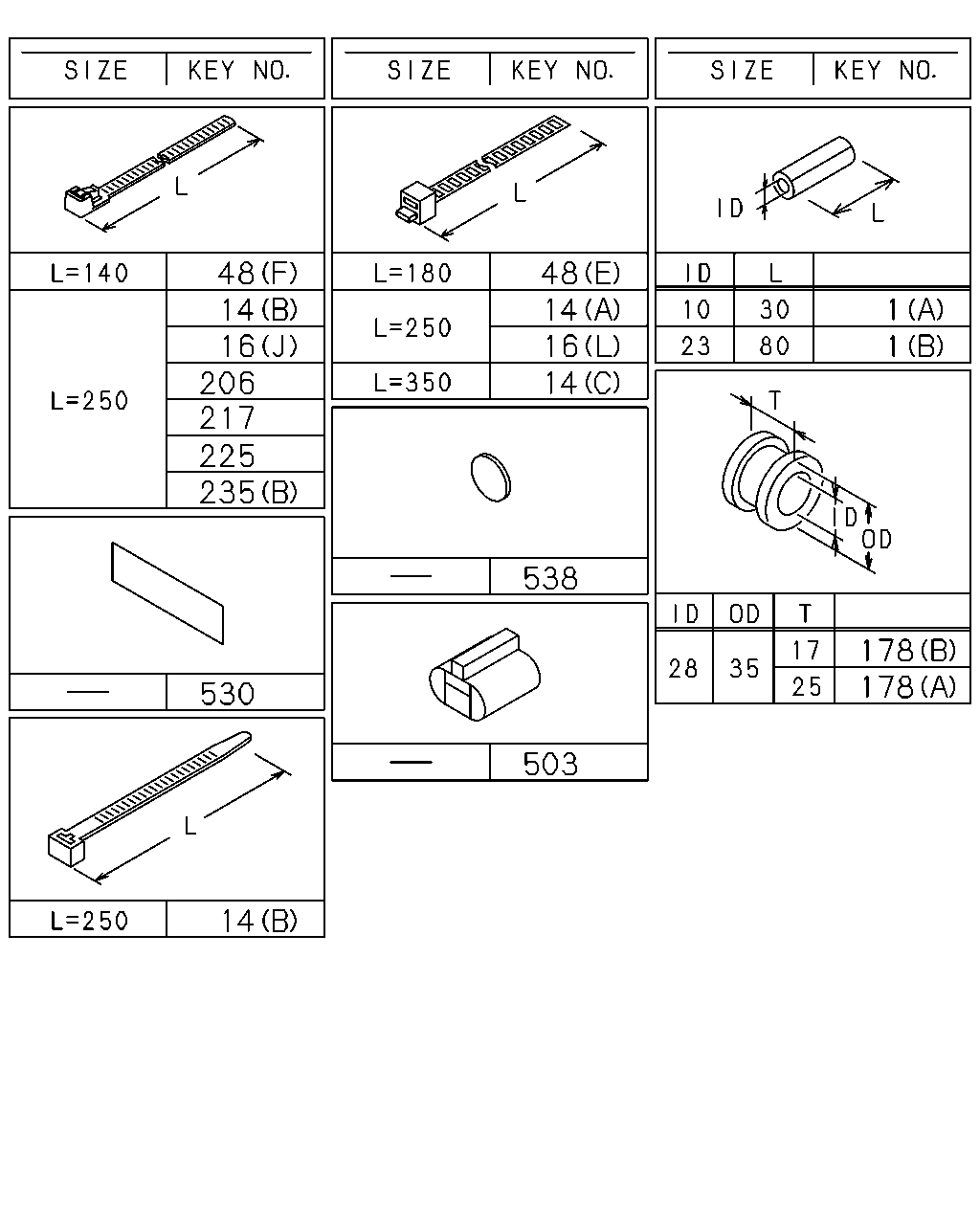

48 14 16 206 217 235 225 48 14 16 14 1 1 178 178 14 530 538 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1206-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1206-
14	CLIP; BAND,HARNESS (B) L=250	8-98216-430-0	13	1	1206-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1206-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	1206-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1206-
16	CLIP; HARNESS (G) ID=14 H=50 L=20	1-09700-843-0	02	1	1206-
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1206-
16	CLIP; HARNESS (K) ID=11X2 L=20	1-09700-871-0	04	1	1206-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1206-
16	CLIP; HARNESS (L) L=250	1-09707-126-0	01	1	1206-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1206-
16	CLIP; HARNESS (J) L=250	5-09707-030-1	04	1	1206-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1206-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1206-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1206-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	1206-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	1206-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1206-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1206-
16	CLIP; HARNESS WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> (I) ID=11 L=61	1-09700-484-0	02	1	1206-
16	CLIP; HARNESS FUEL TANK 200L FRAME SIDE<N20> (I) ID=11 L=61	1-09700-484-0	02	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (J) ID=15 L=65	1-09700-466-0	17	1	1206-
48	CLIP; FRAME HARNESS (A) ID=11 L=61	1-09700-484-0	02	1	1206-
48	CLIP; FRAME HARNESS (L) ID=9 L=28	0-95234-855-0	02	1	1206-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1206-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	01	1	1206-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1206-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	03	1	1206-
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	1206-
48	CLIP; FRAME HARNESS (K) ID=14.5 L=20	1-09701-012-0	01	1	1206-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1206-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	04	1	1206-
48	CLIP; FRAME HARNESS (E) L=180	1-09707-162-1	02	1	1206-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1206-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1206-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (J) ID=15 L=65	1-09700-466-0	24	1	1206-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	02	1	1206-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1206-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1206-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1206-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1206-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1206-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	08	1	1206-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=16	0-95235-025-0	02	1	1206-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) L=250	5-09707-030-1	02	1	1206-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82690-668-0	01	1	1206-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1206-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1206-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1206-

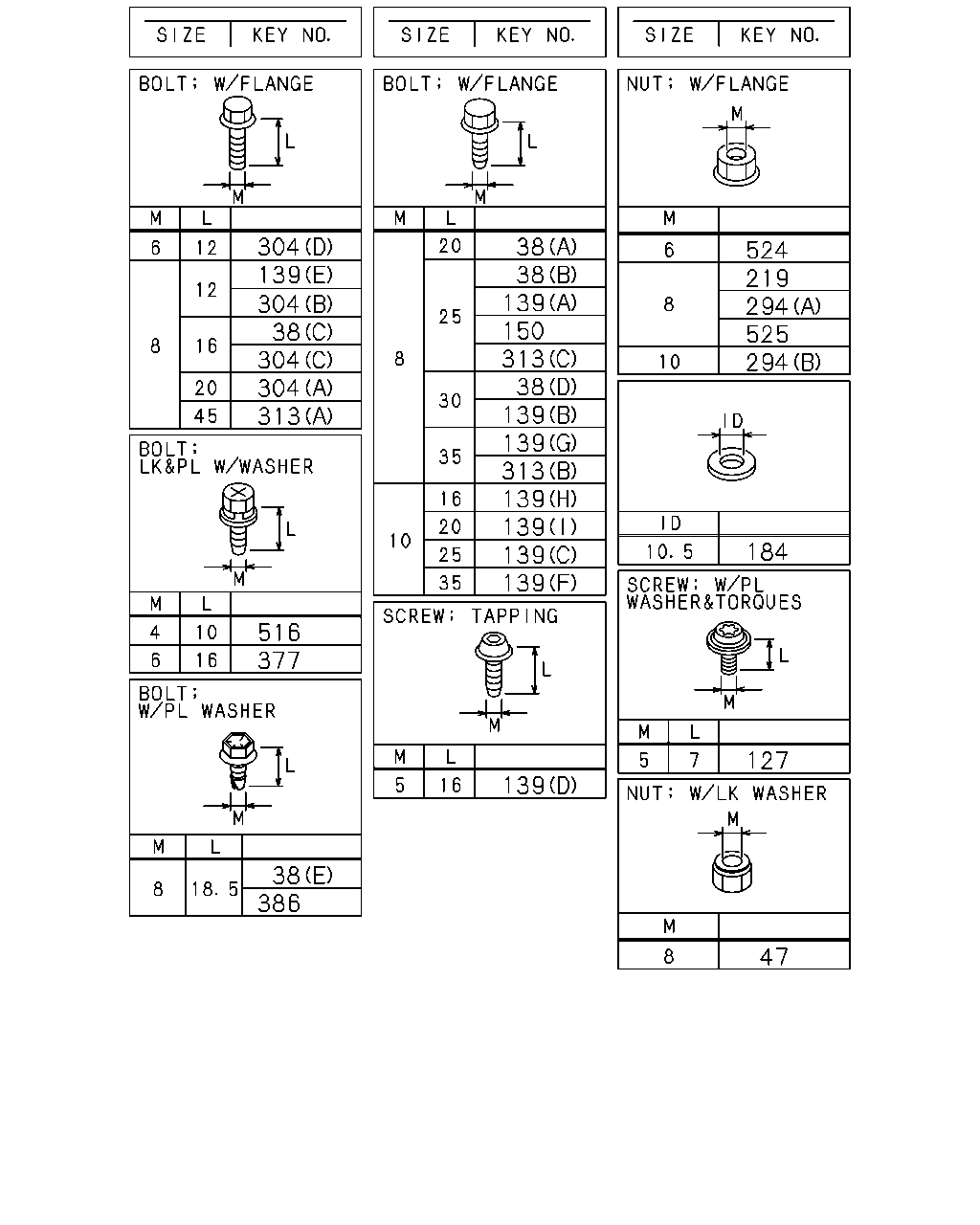

304 304 139 38 304 304 313 516 377 38 386 139 139 139 139 139 313 139 139 38 313 150 139 38 38 47 127 184 294 525 294 219 524

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	03	1	1206-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	03	1	1206-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1206-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1206-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	1206-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1206-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1206-
38	BOLT; CLIP,HARNESS (E) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1206-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1206-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1206-
139	BOLT; BRKT (H) M10X16 FLANGE	0-28151-016-0	01	1	1206-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1206-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1206-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1206-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1206-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1206-
139	BOLT; BRKT (G) M8X35 FLANGE	0-28650-835-0	01	1	1206-
139	BOLT; BRKT (I) M10X20 FLANGE	0-28651-020-0	01	1	1206-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1206-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	02	1	1206-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1206-
150	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1206-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1206-
219	NUT M8 FLANGE	0-91180-108-0	04	1	1206-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1206-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1206-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1206-
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1206-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1206-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1206-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1206-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1206-
304	BOLT; ENG HARNESS CLIP (D) M6X12 FLANGE	0-28050-612-0	01	1	1206-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1206-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	1206-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	1206-
313	BOLT; BRKT (A) M8X45 FLANGE	0-28050-845-0	01	1	1206-
313	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	01	1	1206-
313	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	1206-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1206-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1206-
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1206-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1206-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	1206-
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	1206-

48 16 235 305 305 223 305 470 48 116 16 223 16 16 305 306 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1206-
16	CLIP; HARNESS (G) ID=14 H=50 L=20	1-09700-843-0	02	1	1206-
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1206-
16	CLIP; HARNESS (K) ID=11X2 L=20	1-09700-871-0	04	1	1206-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1206-
16	CLIP; HARNESS (L) L=250	1-09707-126-0	01	1	1206-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1206-
16	CLIP; HARNESS (J) L=250	5-09707-030-1	04	1	1206-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1206-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1206-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1206-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	1206-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	1206-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1206-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1206-
16	CLIP; HARNESS WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> (I) ID=11 L=61	1-09700-484-0	02	1	1206-
16	CLIP; HARNESS FUEL TANK 200L FRAME SIDE<N20> (I) ID=11 L=61	1-09700-484-0	02	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (J) ID=15 L=65	1-09700-466-0	17	1	1206-
48	CLIP; FRAME HARNESS (A) ID=11 L=61	1-09700-484-0	02	1	1206-
48	CLIP; FRAME HARNESS (L) ID=9 L=28	0-95234-855-0	02	1	1206-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1206-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	01	1	1206-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1206-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	03	1	1206-
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	1206-
48	CLIP; FRAME HARNESS (K) ID=14.5 L=20	1-09701-012-0	01	1	1206-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1206-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	04	1	1206-
48	CLIP; FRAME HARNESS (E) L=180	1-09707-162-1	02	1	1206-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1206-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1206-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (J) ID=15 L=65	1-09700-466-0	24	1	1206-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1206-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1206-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1206-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=16	0-95235-025-0	02	1	1206-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) L=250	5-09707-030-1	02	1	1206-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1206-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1206-
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	1206-
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1206-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1206-
305	CLIP; ENG HARNESS (B) ID=19 H=33 L=45	1-09701-045-0	01	1	1206-
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	1206-
305	CLIP; ENG HARNESS (E) ID=11 L=45	8-94296-897-1	01	1	1206-
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	1206-
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1206-
305	CLIP; ENG HARNESS (L) ID=18 L=44	8-97367-985-1	01	1	1206-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1206-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1206-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1206-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1206-

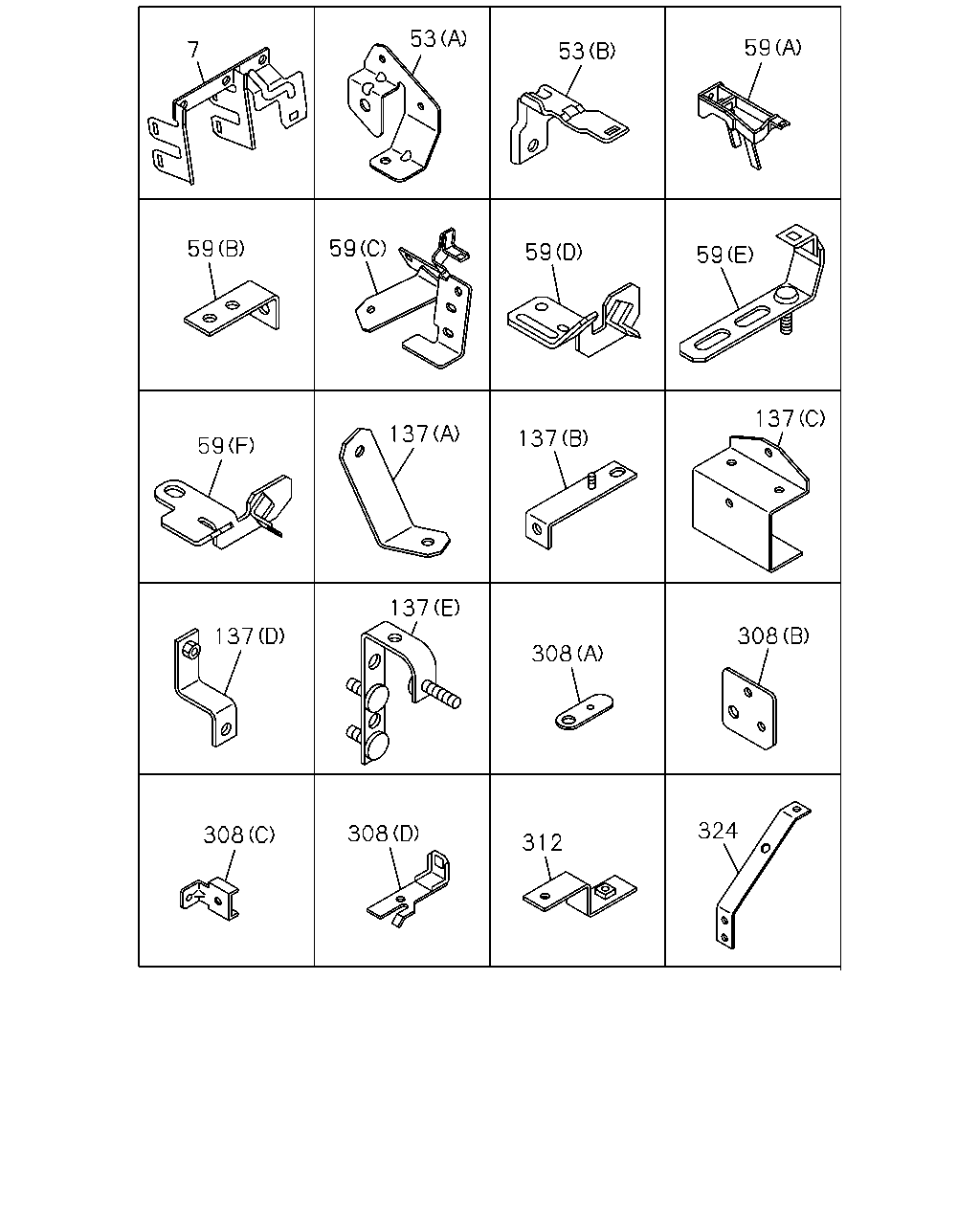

7 53 53 59 59 59 59 59 59 137 137 137 137 137 308 308 308 308 312 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	1206-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1206-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	1206-
59	BRACKET; FRAME HARNESS (B) L=62	1-21464-170-2	01	1	1206-
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1206-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1206-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (E)	8-98047-730-0	02	1	1206-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1206-
137	BRACKET; HARNESS CLAMP (C)	8-97609-797-1	02	1	1206-
137	BRACKET; HARNESS CLAMP (A)	8-97614-728-1	01	1	1206-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	1206-
137	BRACKET; HARNESS CLAMP (D)	1-47475-654-2	01	1	1206-
137	BRACKET; HARNESS CLAMP (E)	1-47479-329-0	01	1	1206-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1206-
308	BRACKET; CLIP,ENG HARNESS (C)	8-97614-078-0	01	1	1206-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-291-2	01	1	1206-
308	BRACKET; CLIP,ENG HARNESS (B)	8-98021-692-1	01	1	1206-
312	BRACKET; CLIP HARNESS	8-97609-110-1	01	1	1206-
324	BRACKET; CLIP	1-47479-430-0	02	1	1206-

334 334 335 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
334	BRACKET (A)	1-82698-630-0	01	1	1206-
334	BRACKET (B)	8-98098-890-0	01	1	1206-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1206-
428	BRACKET	8-97620-514-0	01	1	1206-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
