Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11466 - FVZ(LHD)W/DOC EURO4
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#92129) — 69 parça
◀

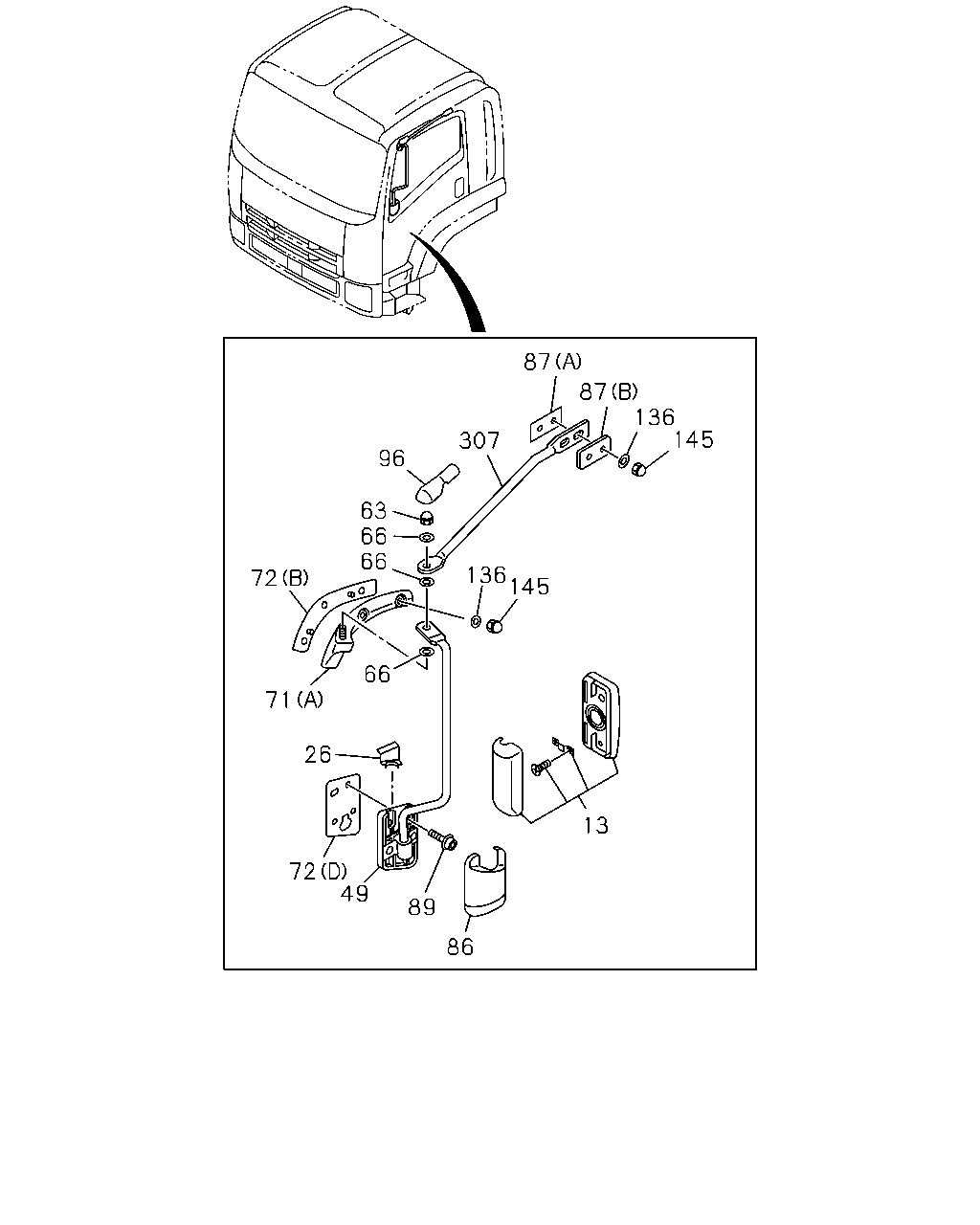

[720A] LH (28 parça)

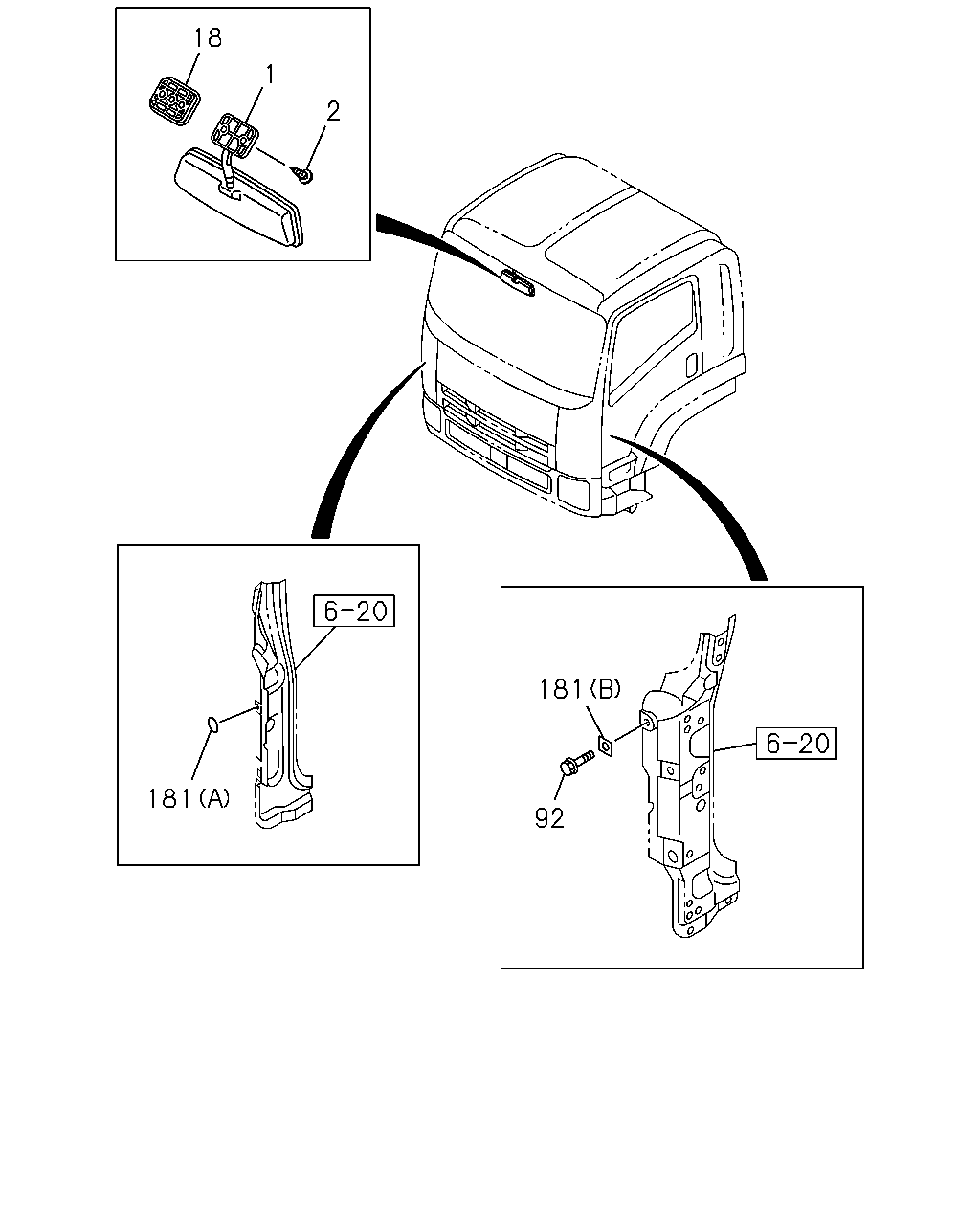

[720A] ROOM MIRROR AND OTHER PARTS (6 parça)

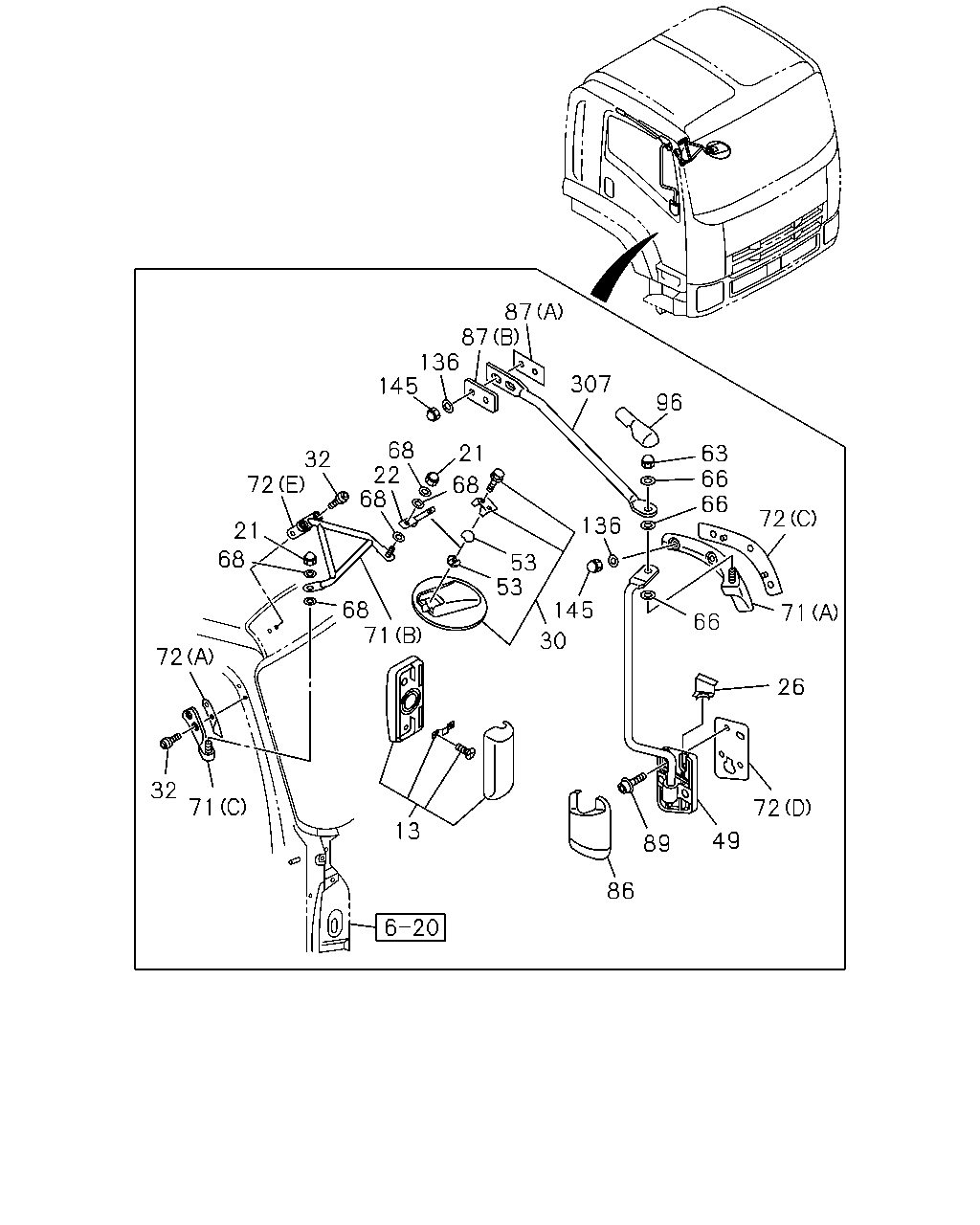

[720A] RH (35 parça)
▶
87
87
136
145
307
96
63
66
66
136
145
72
66
71
26
13
72
49
89
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
8-98055-992-1
01
1
1206-
13
MIRROR ASM; OUTSIDE RR VIEW
8-98055-991-1
01
1
1206-
26
COVER; OUTSIDE MIRROR
8-98031-806-0
01
1
1206-
26
COVER; OUTSIDE MIRROR
8-98031-805-0
01
1
1206-
49
STAY; MIRROR SIDE
8-98166-195-0
01
1
1206-
49
STAY; MIRROR SIDE
8-98166-194-0
01
1
1206-
63
NUT; STAY
M10 CAP NUT
1-09984-134-0
02
1
1206-
66
WASHER; PL
ID=10.5 OD=26 T=2.6
1-09985-204-0
06
1
1206-
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-794-2
01
1
1206-
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-793-2
01
1
1206-
71
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C)
8-98064-775-0
01
1
1206-
71
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B)
8-98092-491-3
01
1
1206-
72
SHEET
(B)
8-98031-797-0
01
1
1206-
72
SHEET
(D)
8-98116-605-0
01
1
1206-
72
SHEET
(C)
8-98031-796-0
01
1
1206-
72
SHEET
(D)
8-98116-604-0
01
1
1206-
72
SHEET
MIRROR O/S UNDER VIEW<RR9> (E)
8-98060-225-1
01
1
1206-
72
SHEET
MIRROR O/S UNDER VIEW<RR9> (A)
8-98064-773-0
01
1
1206-
86
COVER; STAY,OUTSIDE MIRROR
8-98031-803-2
01
1
1206-
86
COVER; STAY,OUTSIDE MIRROR
8-98031-802-2
01
1
1206-
87
SPACER
(A)
8-98063-786-0
02
1
1206-
87
SPACER
(B)
8-98063-789-0
02
1
1206-
89
SCREW; BRKT,OUTSIDE MIRROR
M8X23
8-97310-216-1
08
1
1206-
96
CAP; MIRROR STAY
8-98080-173-0
02
1
1206-
136
WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
10
1
1206-
145
NUT; CAP,SUB STAY
M8 CAP NUT
8-98059-914-0
10
1
1206-
307
STAY; MIRROR SUPPORT
8-98063-785-2
01
1
1206-
307
STAY; MIRROR SUPPORT
8-98063-784-2
01
1
1206-
18
1
2
181
181
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
DARK GRAY
8-98097-534-1
01
1
1206-
2
SCREW; MIRROR TO BODY
M6X26
8-98033-674-0
02
1
1206-
18
CLIP; MIRROR
DARK GRAY
8-97408-241-0
01
1
1206-
92
BOLT; STAY BRKT,MIRROR
M8X16 FLANGE
8-98076-109-0
01
1
1206-
181
SEAL; BRKT
(A) OD=25 BLACK
1-76798-019-0
02
1
1206-
181
SEAL; BRKT
(B) 25X25
8-94272-533-0
01
1
1206-
87
87
136
145
307
96
68
22
68
21
63
66
66
32
72
68
72
136
21
68
53
53
68
71
145
71
66
30
72
26
32
71
72
13
49
89
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
8-98055-992-1
01
1
1206-
13
MIRROR ASM; OUTSIDE RR VIEW
8-98055-991-1
01
1
1206-
21
NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9> M10 CAP NUT
1-09984-134-0
02
1
1206-
22
STAY; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
8-98092-493-0
01
1
1206-
26
COVER; OUTSIDE MIRROR
8-98031-806-0
01
1
1206-
26
COVER; OUTSIDE MIRROR
8-98031-805-0
01
1
1206-
30
MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>
8-98055-994-0
01
1
1206-1504
30
MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>
8-98309-725-0
01
1
1505-
32
SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9> M8X26 W/PL WASHER
8-98067-249-2
04
1
1206-
49
STAY; MIRROR SIDE
8-98166-195-0
01
1
1206-
49
STAY; MIRROR SIDE
8-98166-194-0
01
1
1206-
53
PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> ID=19.1
1-71737-633-2
02
1
1206-
63
NUT; STAY
M10 CAP NUT
1-09984-134-0
02
1
1206-
66
WASHER; PL
ID=10.5 OD=26 T=2.6
1-09985-204-0
06
1
1206-
68
WASHER; STAY
MIRROR O/S UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6
1-09985-204-0
04
1
1206-
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-794-2
01
1
1206-
71
BRACKET; OUTSIDE MIRROR
(A)
8-98031-793-2
01
1
1206-
71
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C)
8-98064-775-0
01
1
1206-
71
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B)
8-98092-491-3
01
1
1206-
72
SHEET
(B)
8-98031-797-0
01
1
1206-
72
SHEET
(D)
8-98116-605-0
01
1
1206-
72
SHEET
(C)
8-98031-796-0
01
1
1206-
72
SHEET
(D)
8-98116-604-0
01
1
1206-
72
SHEET
MIRROR O/S UNDER VIEW<RR9> (E)
8-98060-225-1
01
1
1206-
72
SHEET
MIRROR O/S UNDER VIEW<RR9> (A)
8-98064-773-0
01
1
1206-
86
COVER; STAY,OUTSIDE MIRROR
8-98031-803-2
01
1
1206-
86
COVER; STAY,OUTSIDE MIRROR
8-98031-802-2
01
1
1206-
87
SPACER
(A)
8-98063-786-0
02
1
1206-
87
SPACER
(B)
8-98063-789-0
02
1
1206-
89
SCREW; BRKT,OUTSIDE MIRROR
M8X23
8-97310-216-1
08
1
1206-
96
CAP; MIRROR STAY
8-98080-173-0
02
1
1206-
136
WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
10
1
1206-
145
NUT; CAP,SUB STAY
M8 CAP NUT
8-98059-914-0
10
1
1206-
307
STAY; MIRROR SUPPORT
8-98063-785-2
01
1
1206-
307
STAY; MIRROR SUPPORT
8-98063-784-2
01
1
1206-
