◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11466 - FVZ(LHD)W/DOC EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#92128) — 12 parça
çizim 284206
35 49 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> 		8-98082-439-0 01 1 1206-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS SPANISH<YN1> 		8-98082-437-0 01 1 1206-
35 PLATE; CAUTION,CAB
CAUTIONS SPANISH<YN1> 		8-98070-109-0 01 1 1206-
35 PLATE; CAUTION,CAB
EXC. CAUTIONS SPANISH<YN1> 		8-98065-363-0 01 1 1206-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		8-98069-841-0 01 1 1206-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS SPANISH<YN1> 		8-98122-354-0 01 1 1206-

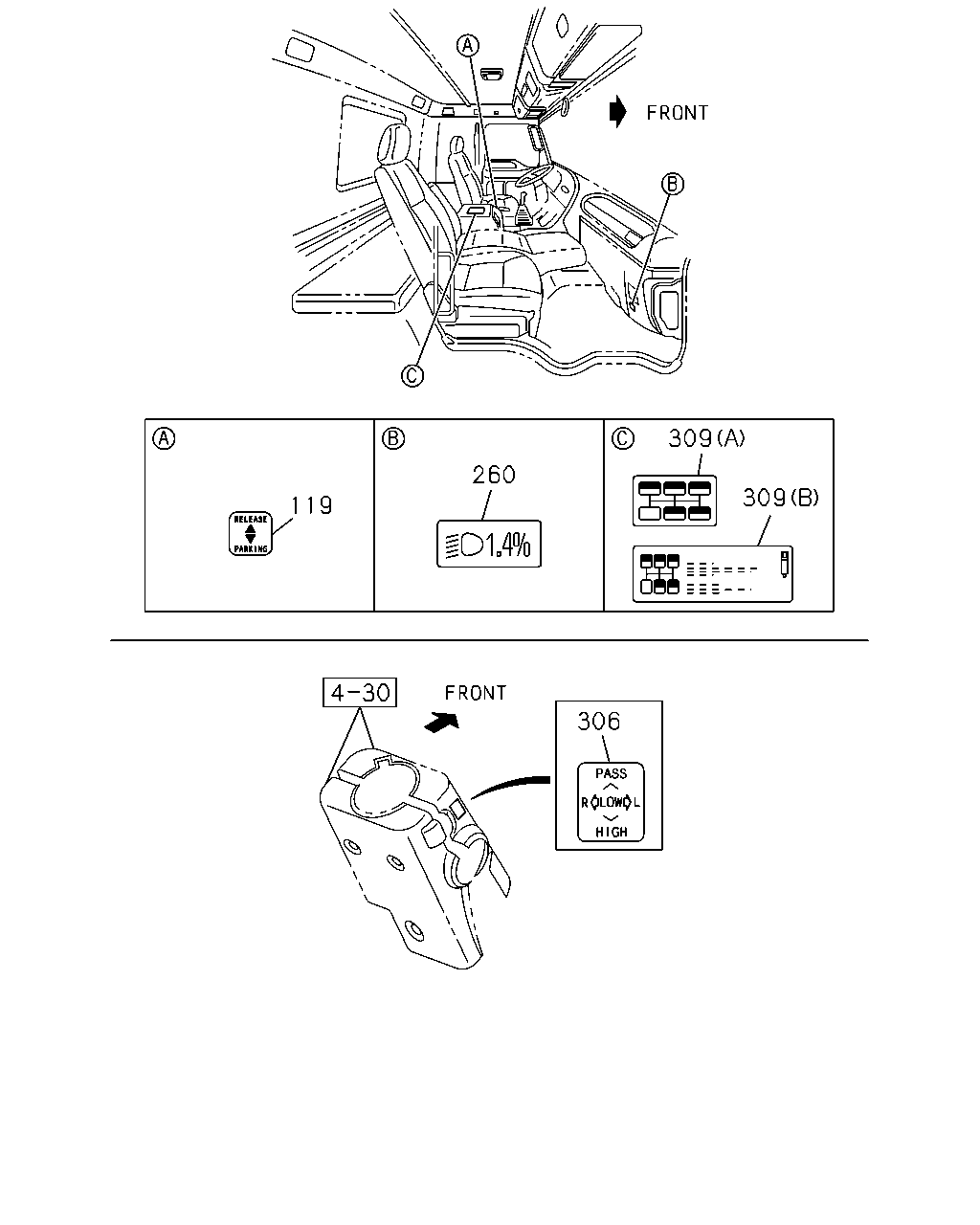

çizim 284207
309 260 309 119 306
BalonParca AdiParca NoAdetTipApplied Date
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS SPANISH<YN1> 		1-85881-944-0 01 1 1206-
119 PLATE; CAUTION,HAND BRK LEVER
EXC. CAUTIONS SPANISH<YN1> 		1-85881-759-0 01 1 1206-
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1206-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1206-
309 LABEL; M/T SHIFT
(A) 		1-85881-598-0 01 1 1206-
309 LABEL; M/T SHIFT
(B) 		8-98098-606-0 01 1 1206-
