Sayfa 0-81 - Isuzu EPC

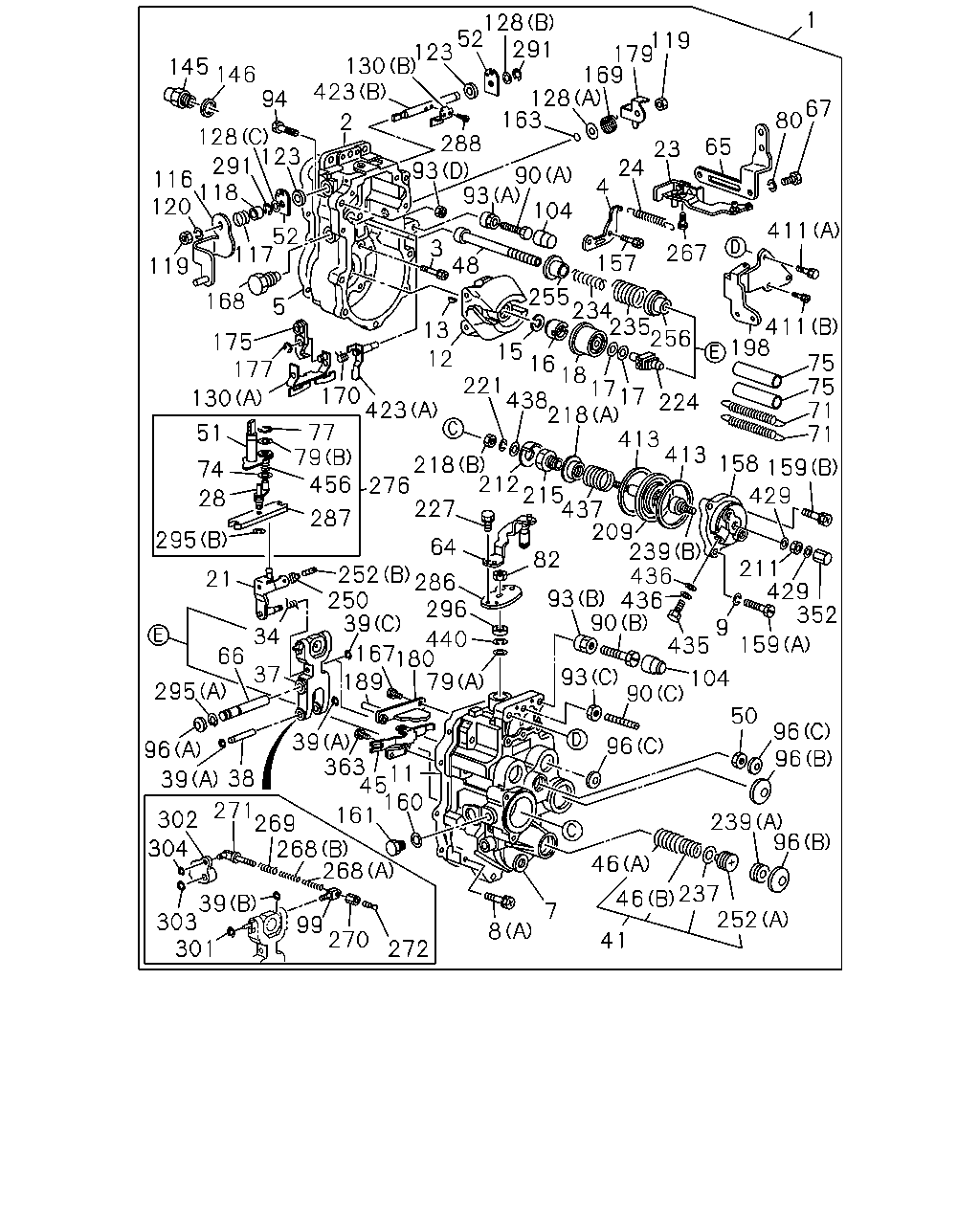

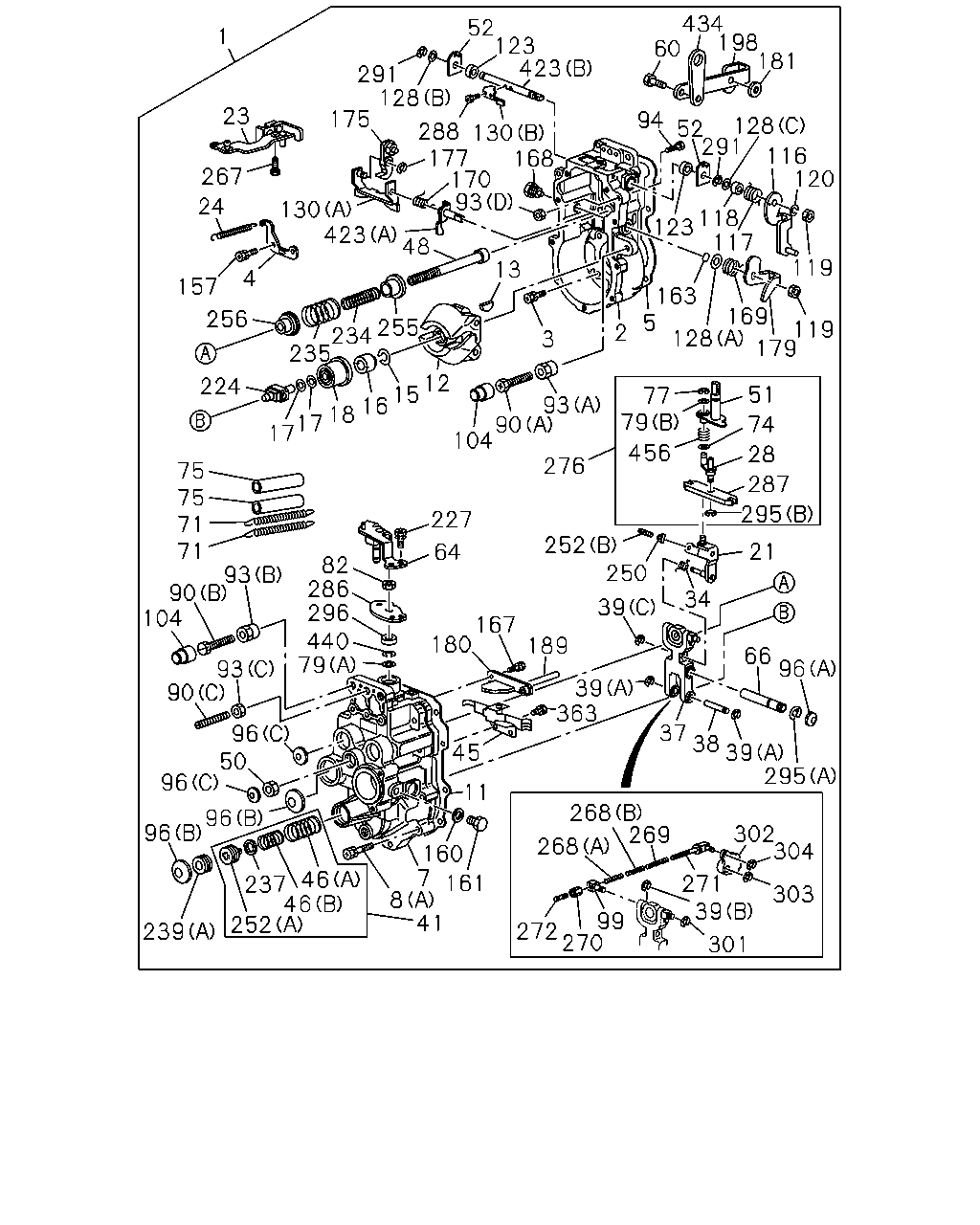

0-81 — GOVERNOR; INJECTION PUMP (#9212) — 614 parça

1 128 52 123 291 130 423 119 179 169 128 163 145 146 94 67 80 2 128 123 288 93 93 65 23 24 4 291 116 118 120 52 117 90 104 411 157 255 234 235 256 3 48 267 119 168 5 411 198 13 175 177 15 16 18 221 17 438 17 218 413 413 12 75 75 71 71 170 423 130 224 77 79 456 51 218 276 212 215 227 437 209 239 436 90 158 159 74 429 28 287 295 64 82 211 429 352 252 286 250 296 39 21 9 435 34 66 37 440 167 180 189 79 159 93 104 90 295 50 96 96 39 363 11 45 160 96 96 39 271 269 268 268 161 302 239 96 304 46 237 46 252 39 303 99 270 301 7 8 41 272 93 436

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-258-3	1-15770-940-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 8-94390-618-3	1-15770-941-2	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15603-287-1	1-15790-008-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 8-97600-665-4	1-15790-117-2	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15721-327-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: C = 8-94390-618-3	1-15721-343-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: D = 8-97600-665-4	1-15721-362-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: D = 8-97600-665-4	1-15729-846-0	08	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-226-0	06	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: C = 8-94390-618-3	1-15779-226-0	08	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-294-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: C = 8-94390-618-3	1-15779-524-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-297-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: C = 8-94390-618-3	1-15779-529-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: D = 8-97600-665-4	1-15779-657-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15721-324-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: C = 8-94390-618-3	1-15721-357-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: D = 8-97600-665-4	1-15721-364-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: D = 8-97600-665-4	1-15779-802-0	06	1	-
8	BOLT; GOV COVER,INJ PUMP (C) ASM PART: D = 8-97600-665-4	1-15779-804-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-033-0	09	1	-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-09150-506-0	02	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-251-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: D = 8-97600-665-4	1-15779-637-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15722-018-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: C = 8-94390-618-3	1-15722-024-0	01	1	-
13	KEY; FLYWEIGHT,GOV 13MM ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-030-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-372-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15725-779-1	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: C = 8-94390-618-3	1-15725-899-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15725-865-1	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: C = 8-94390-618-3	1-15725-900-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15723-450-0	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15725-780-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-444-1	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: C = 8-94390-618-3	1-15723-549-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 1-15603-258-3	1-15725-778-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: B = 1-15603-287-1	1-15725-874-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: C = 8-94390-618-3	1-15725-898-1	01	1	-
39	RING; SNAP,LEVER PIN,GOV (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-09588-170-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	8-94244-599-0	02	1	-
39	RING; SNAP,LEVER PIN,GOV (C), ID=4 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-09185-404-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: C = 8-94390-618-3	1-15723-484-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-530-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: C = 8-94390-618-3	1-15725-819-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15725-860-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: C = 8-94390-618-3	1-15723-480-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: C = 8-94390-618-3	1-15723-481-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-501-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-513-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-240-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	8-94171-147-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-243-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: C = 8-94390-618-3	1-15779-528-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-269-0	02	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 1-15603-258-3	1-15725-884-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: C = 8-94390-618-3	1-15725-897-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: B = 1-15603-287-1	1-15725-922-0	01	1	-
65	BRACKET; RETURN SPRING,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-332-0	01	1	-
66	SHAFT; LEVER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-234-0	01	1	-
67	BOLT; SPRING BRKT,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15729-818-0	02	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-482-0	02	1	-
71	SPRING; CONT LEVER,GOV ASM PART: C = 8-94390-618-3	1-15723-552-0	02	1	-
74	WASHER; LEVER SPR ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-232-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: C = 8-94390-618-3	1-15779-284-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	5-15729-013-0	02	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-023-0	01	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-988-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-232-0	01	1	-
80	WASHER; LK,CONT LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-199-0	02	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M10X70 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-248-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), L=53 ASM PART: C = 8-94390-618-3	1-15779-296-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-278-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C), M10 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-09111-410-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-88410-525-0	01	1	-
94	SCREW; ADJ,CONT LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-233-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-293-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-076-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	8-94171-148-0	03	1	-
99	PIN; TENSION LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-286-1	01	1	-
104	CAP; LOCK NUT,ADJ SCREW ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	8-97085-022-0	02	1	-
116	LEVER; ENG STOP,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15725-857-0	01	1	-
116	LEVER; ENG STOP,GOV ASM PART: C = 8-94390-618-3	1-15725-896-0	01	1	-
116	LEVER; ENG STOP,GOV ASM PART: D = 8-97600-665-4	1-15725-970-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-443-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: C = 8-94390-618-3	1-15723-471-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: D = 8-97600-665-4	1-15723-611-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-389-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: D = 8-97600-665-4	1-15779-738-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: D = 8-97600-665-4	1-15629-117-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-236-0	02	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-83579-492-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-282-0	02	1	-
123	SEAL; OIL,CONT SHAFT,GOV ASM PART: D = 8-97600-665-4	1-15779-731-0	02	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.60 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.80 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.90 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-230-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.20 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-231-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-388-0	01	1	-
128	SHIM; CONT SHAFT,GOV (D) ASM PART: D = 8-97600-665-4	1-15779-730-0	02	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.30 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.40 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.25 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.35 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.20 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15725-775-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15725-877-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: C = 8-94390-618-3	1-15725-895-0	01	1	-
145	CAP; GOV COVER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15729-041-0	01	1	-
146	GASKET; COVER CAP,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-81325-528-0	01	1	-
157	BOLT; START SPRING PLATE,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-226-0	02	1	-
158	COVER; GOV HSG ASM PART: C = 8-94390-618-3	1-15619-283-0	01	1	-
158	COVER; GOV HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15721-303-0	01	1	-
159	BOLT; COVER (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-202-0	02	1	-
159	BOLT; COVER (B), M6X20 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-187-0	01	1	-
160	GASKET; PLUG TO HSG L=96 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-066-0	01	1	-
161	PLUG; HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	8-97037-288-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-227-0	01	1	-
167	BOLT; PLATE M6X16 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-071-0	02	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-285-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-458-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: C = 8-94390-618-3	1-15723-548-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-132-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: C = 8-94390-618-3	5-15723-033-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15725-854-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: C = 8-94390-618-3	1-15725-893-0	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	8-94324-735-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15725-876-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: C = 8-94390-618-3	1-15725-894-0	01	1	-
180	PLATE; GOV COVER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-335-0	01	1	-
180	PLATE; GOV COVER ASM PART: C = 8-94390-618-3	1-15779-532-0	01	1	-
189	ROD; PUSH,GOV L=72.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-336-0	01	1	-
189	ROD; PUSH,GOV L=73.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-337-0	01	1	-
189	ROD; PUSH,GOV L=73.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-338-0	01	1	-
189	ROD; PUSH,GOV L=74.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-339-0	01	1	-
189	ROD; PUSH,GOV L=74.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-340-0	01	1	-
189	ROD; PUSH,GOV L=75.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-341-0	01	1	-
189	ROD; PUSH,GOV L=75.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-342-0	01	1	-
189	ROD; PUSH,GOV L=76.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-343-0	01	1	-
189	ROD; PUSH,GOV L=76.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-344-0	01	1	-
189	ROD; PUSH,GOV L=77.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-345-0	01	1	-
189	ROD; PUSH,GOV L=77.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-346-0	01	1	-
189	ROD; PUSH,GOV L=78.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-347-0	01	1	-
189	ROD; PUSH,GOV L=78.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-348-0	01	1	-
189	ROD; PUSH,GOV L=79.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-349-0	01	1	-
189	ROD; PUSH,GOV L=79.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-350-0	01	1	-
189	ROD; PUSH,GOV L=80.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-351-0	01	1	-
189	ROD; PUSH,GOV L=80.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-352-0	01	1	-
189	ROD; PUSH,GOV L=81.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-353-0	01	1	-
189	ROD; PUSH,GOV L=81.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-354-0	01	1	-
189	ROD; PUSH,GOV L=82.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-355-0	01	1	-
189	ROD; PUSH,GOV L=82.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-356-0	01	1	-
189	ROD; PUSH,GOV L=83.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-426-0	01	1	-
189	ROD; PUSH,GOV L=83.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-427-0	01	1	-
189	ROD; PUSH,GOV L=84.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-428-0	01	1	-
189	ROD; PUSH,GOV L=84.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-429-0	01	1	-
189	ROD; PUSH,GOV L=85.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-430-0	01	1	-
189	ROD; PUSH,GOV L=85.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-431-0	01	1	-
189	ROD; PUSH,GOV L=86.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-432-0	01	1	-
189	ROD; PUSH,GOV L=86.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-433-0	01	1	-
189	ROD; PUSH,GOV L=87.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-434-0	01	1	-
189	ROD; PUSH,GOV L=87.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-435-0	01	1	-
189	ROD; PUSH,GOV L=88.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-436-0	01	1	-
189	ROD; PUSH,GOV L=88.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-437-0	01	1	-
189	ROD; PUSH,GOV L=89.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-438-0	01	1	-
189	ROD; PUSH,GOV L=89.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-439-0	01	1	-
189	ROD; PUSH,GOV L=90.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-440-0	01	1	-
198	BRACKET; COVER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-481-0	01	1	-
198	BRACKET; COVER ASM PART: C = 8-94390-618-3	1-15779-530-0	01	1	-

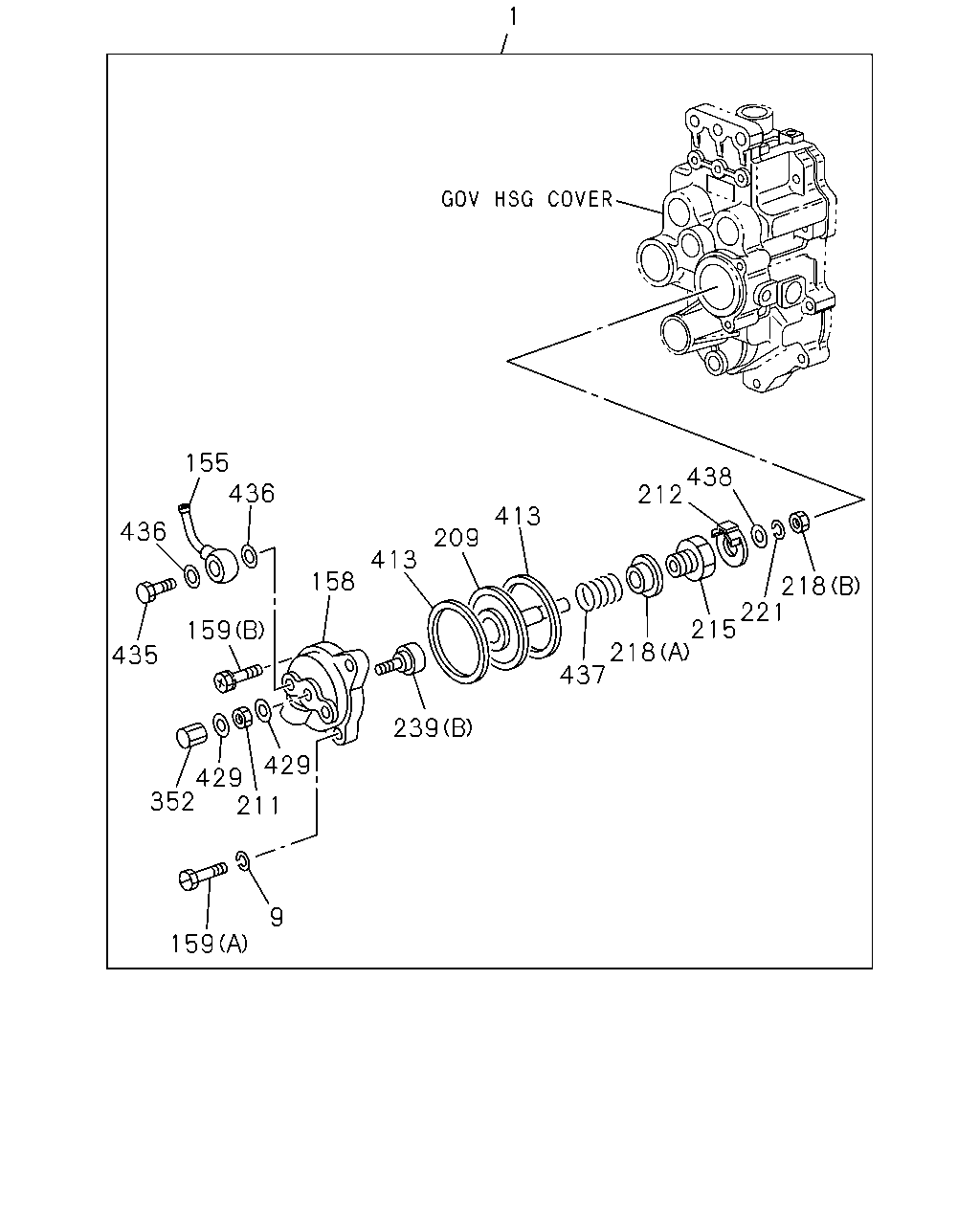

209	DIAPHRAGM; GOV ASM PART: C = 8-94390-618-3	1-15713-005-0	01	1	-
209	DIAPHRAGM; GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15713-006-0	01	1	-
211	NUT; LOCK,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-88410-525-0	01	1	-
212	PLATE; GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	8-94122-719-0	01	1	-
215	BOLT; DIAPH ASM PART: A = 1-15603-258-3, C = 8-94390-618-3	8-97037-284-0	01	1	-
215	BOLT; DIAPH ASM PART: B = 1-15603-287-1	8-97104-945-0	01	1	-
218	NUT; DIAPH (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-249-0	01	1	-
218	NUT; DIAPH (A) ASM PART: A = 1-15603-258-3, C = 8-94390-618-3	8-94122-726-0	01	1	-
218	NUT; DIAPH (A) ASM PART: B = 1-15603-287-1	8-97104-978-0	01	1	-
221	WASHER; LK,DIAPH ID=6.1 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-09150-506-0	01	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-334-0	01	1	-
227	BOLT; GOV LEVER ASM PART: C = 8-94390-618-3	1-15719-005-0	03	1	-
227	BOLT; GOV LEVER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15719-005-0	02	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15723-479-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-512-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: C = 8-94390-618-3	1-15723-550-0	01	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=2.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-891-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=3.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-892-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=4.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-893-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-286-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-287-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-088-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-551-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.40 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-552-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-553-0	AR	1	-
239	SCREW; GOV (B) ASM PART: C = 8-94390-618-3	1-15729-386-0	01	1	-
239	SCREW; GOV (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-239-0	01	1	-
239	SCREW; GOV (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	8-97037-287-0	01	1	-
250	NUT; GUIDE SCREW,GOV SHAFT ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-287-0	01	1	-
252	SCREW; GUIDE (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-238-0	01	1	-
252	SCREW; GUIDE (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-288-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-241-0	01	1	-
256	SEAT; GOV SPRING ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-242-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15749-747-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15723-445-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15723-446-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15723-459-0	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-272-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-235-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-289-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15725-788-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: C = 8-94390-618-3	1-15725-901-0	01	1	-
286	LEVER; GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15725-782-0	01	1	-
287	LEVER; GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15725-781-0	01	1	-
288	BOLT; LEVER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-197-0	02	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-196-0	02	1	-
295	RING; SNAP (C) ASM PART: D = 8-97600-665-4	1-15729-723-0	01	1	-
295	RING; SNAP (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-273-0	02	1	-
295	RING; SNAP (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-023-0	01	1	-
296	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	8-97024-879-0	01	1	-
301	RING; SNAP ID=4 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-09185-404-0	01	1	-
302	PLATE; CAM,GOV ASM PART: C = 8-94390-618-3	1-15779-521-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-522-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-09185-404-0	01	1	-
352	NUT; CAP CAP NUT ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-093-0	01	1	-
363	BOLT; LEVER FIX ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	8-94247-029-0	02	1	-
411	BOLT; BRKT (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15619-187-0	02	1	-
411	BOLT; BRKT (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-415-0	01	1	-
413	GASKET; GOV COVER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-129-0	02	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-228-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-387-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: C = 8-94390-618-3	1-15779-525-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: C = 8-94390-618-3	1-15779-607-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (C) ASM PART: D = 8-97600-665-4	1-15779-729-0	01	1	-
429	GASKET; CAP NUT ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-868-0	02	1	-
435	BOLT; EYE,GOV COVER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-325-0	01	1	-
436	GASKET; EYE BOLT ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-849-0	02	1	-
437	SPRING; DIAPHRAGM ASM PART: C = 8-94390-618-3	1-15723-247-0	01	1	-
437	SPRING; DIAPHRAGM ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-541-0	01	1	-
438	DISK; DIAPHRAGM ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-333-0	01	1	-
440	RING; SNAP,LEVER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-989-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-452-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: C = 8-94390-618-3	1-15723-551-0	01	1	-

434 198 60 181 52 123 423 1 291 128 177 168 170 93 118 123 117 23 175 94 2 128 291 116 120 267 24 130 423 48 4 119 13 157 163 5 169 128 256 255 234 235 119 179 2 3 12 15 16 18 17 17 224 51 77 79 93 74 90 104 456 28 276 75 75 71 71 287 295 227 252 250 21 64 82 286 296 440 79 93 90 104 34 39 167 180 189 66 96 93 90 96 50 96 39 363 45 37 38 39 295 11 96 96 268 269 302 304 271 39 268 160 7 8 41 99 272 270 46 237 46 252 161 303 239 301 288 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

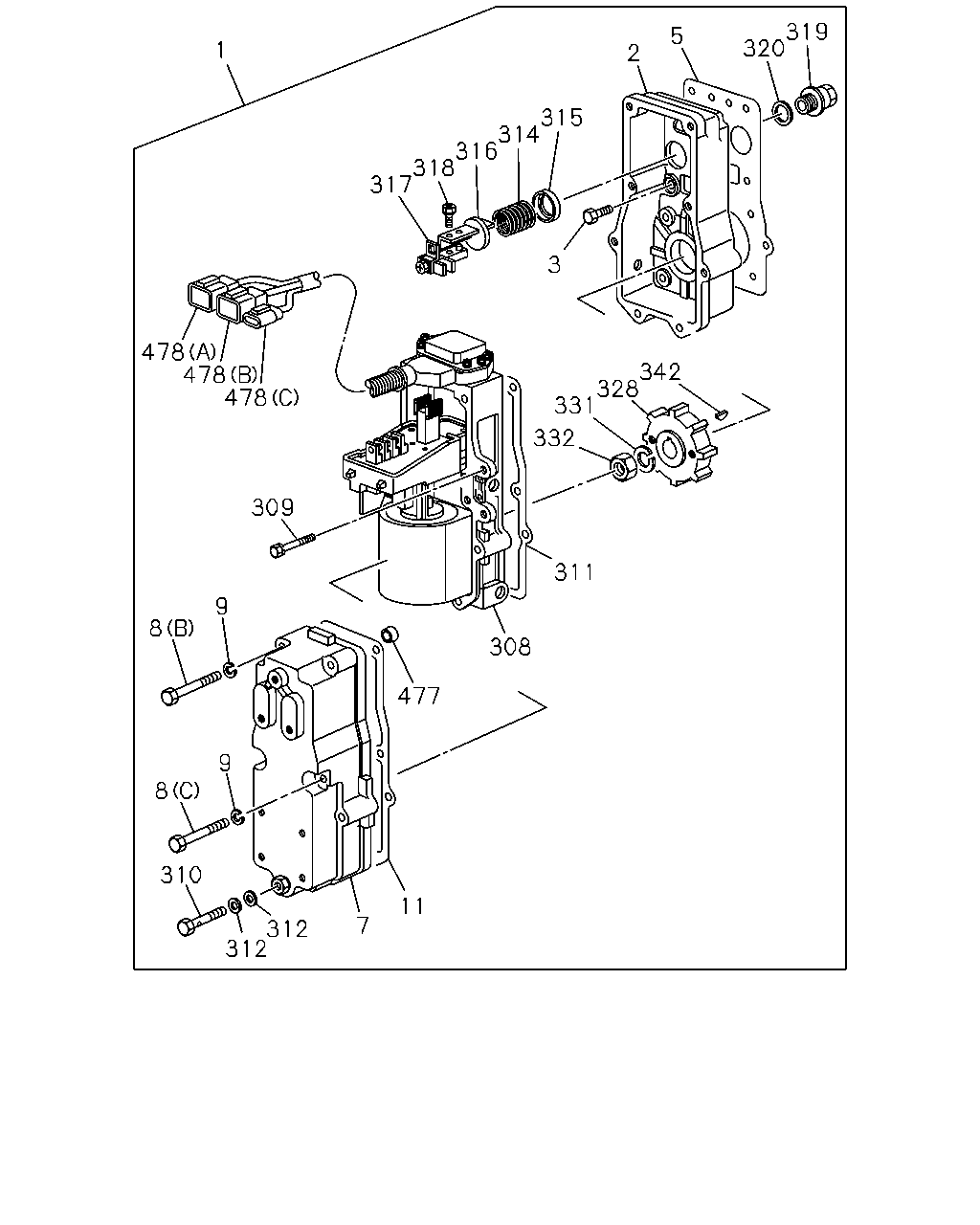

1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-258-3	1-15770-940-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 8-94390-618-3	1-15770-941-2	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15603-287-1	1-15790-008-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 8-97600-665-4	1-15790-117-2	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15721-327-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: C = 8-94390-618-3	1-15721-343-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: D = 8-97600-665-4	1-15721-362-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: D = 8-97600-665-4	1-15729-846-0	08	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-226-0	06	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: C = 8-94390-618-3	1-15779-226-0	08	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-294-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: C = 8-94390-618-3	1-15779-524-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-297-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: C = 8-94390-618-3	1-15779-529-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: D = 8-97600-665-4	1-15779-657-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15721-324-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: C = 8-94390-618-3	1-15721-357-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: D = 8-97600-665-4	1-15721-364-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: D = 8-97600-665-4	1-15779-802-0	06	1	-
8	BOLT; GOV COVER,INJ PUMP (C) ASM PART: D = 8-97600-665-4	1-15779-804-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-033-0	09	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-251-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: D = 8-97600-665-4	1-15779-637-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15722-018-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: C = 8-94390-618-3	1-15722-024-0	01	1	-
13	KEY; FLYWEIGHT,GOV 13MM ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-030-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-372-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15725-779-1	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: C = 8-94390-618-3	1-15725-899-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15725-865-1	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: C = 8-94390-618-3	1-15725-900-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15723-450-0	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15725-780-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-444-1	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: C = 8-94390-618-3	1-15723-549-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 1-15603-258-3	1-15725-778-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: B = 1-15603-287-1	1-15725-874-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: C = 8-94390-618-3	1-15725-898-1	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-271-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-09588-170-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	8-94244-599-0	02	1	-
39	RING; SNAP,LEVER PIN,GOV (C), ID=4 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-09185-404-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: C = 8-94390-618-3	1-15723-484-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-530-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: C = 8-94390-618-3	1-15725-819-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15725-860-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: C = 8-94390-618-3	1-15723-480-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: C = 8-94390-618-3	1-15723-481-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-501-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-513-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-240-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	8-94171-147-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-243-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: C = 8-94390-618-3	1-15779-528-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-269-0	02	1	-
60	BOLT; COVER FIX,GOV COVER ASM PART: C = 8-94390-618-3	1-15789-098-0	02	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 1-15603-258-3	1-15725-884-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: C = 8-94390-618-3	1-15725-897-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: B = 1-15603-287-1	1-15725-922-0	01	1	-
66	SHAFT; LEVER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-234-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-482-0	02	1	-
71	SPRING; CONT LEVER,GOV ASM PART: C = 8-94390-618-3	1-15723-552-0	02	1	-
74	WASHER; LEVER SPR ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-232-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: C = 8-94390-618-3	1-15779-284-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	5-15729-013-0	02	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-023-0	01	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-988-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-232-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M10X70 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-248-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), L=53 ASM PART: C = 8-94390-618-3	1-15779-296-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-278-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C), M10 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-09111-410-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-88410-525-0	01	1	-
94	SCREW; ADJ,CONT LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-233-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-293-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-076-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	8-94171-148-0	03	1	-
99	PIN; TENSION LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-286-1	01	1	-
104	CAP; LOCK NUT,ADJ SCREW ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	8-97085-022-0	02	1	-
116	LEVER; ENG STOP,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15725-857-0	01	1	-
116	LEVER; ENG STOP,GOV ASM PART: C = 8-94390-618-3	1-15725-896-0	01	1	-
116	LEVER; ENG STOP,GOV ASM PART: D = 8-97600-665-4	1-15725-970-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-443-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: C = 8-94390-618-3	1-15723-471-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: D = 8-97600-665-4	1-15723-611-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-389-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: D = 8-97600-665-4	1-15779-738-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: D = 8-97600-665-4	1-15629-117-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-236-0	02	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-83579-492-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-282-0	02	1	-
123	SEAL; OIL,CONT SHAFT,GOV ASM PART: D = 8-97600-665-4	1-15779-731-0	02	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.60 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.80 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.90 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-230-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.20 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-231-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-388-0	01	1	-
128	SHIM; CONT SHAFT,GOV (D) ASM PART: D = 8-97600-665-4	1-15779-730-0	02	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.30 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.40 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.25 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.35 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.20 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15725-775-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15725-877-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: C = 8-94390-618-3	1-15725-895-0	01	1	-
157	BOLT; START SPRING PLATE,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-226-0	02	1	-
160	GASKET; PLUG TO HSG L=96 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-066-0	01	1	-
161	PLUG; HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	8-97037-288-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-227-0	01	1	-
167	BOLT; PLATE M6X16 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-071-0	02	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-285-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-458-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: C = 8-94390-618-3	1-15723-548-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-132-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: C = 8-94390-618-3	5-15723-033-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15725-854-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: C = 8-94390-618-3	1-15725-893-0	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	8-94324-735-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15725-876-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: C = 8-94390-618-3	1-15725-894-0	01	1	-
180	PLATE; GOV COVER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-335-0	01	1	-
180	PLATE; GOV COVER ASM PART: C = 8-94390-618-3	1-15779-532-0	01	1	-
181	SPACER; BRKT ASM PART: C = 8-94390-618-3	1-15779-531-0	01	1	-
189	ROD; PUSH,GOV L=72.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-336-0	01	1	-
189	ROD; PUSH,GOV L=73.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-337-0	01	1	-
189	ROD; PUSH,GOV L=73.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-338-0	01	1	-
189	ROD; PUSH,GOV L=74.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-339-0	01	1	-
189	ROD; PUSH,GOV L=74.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-340-0	01	1	-
189	ROD; PUSH,GOV L=75.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-341-0	01	1	-
189	ROD; PUSH,GOV L=75.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-342-0	01	1	-
189	ROD; PUSH,GOV L=76.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-343-0	01	1	-
189	ROD; PUSH,GOV L=76.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-344-0	01	1	-
189	ROD; PUSH,GOV L=77.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-345-0	01	1	-
189	ROD; PUSH,GOV L=77.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-346-0	01	1	-
189	ROD; PUSH,GOV L=78.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-347-0	01	1	-
189	ROD; PUSH,GOV L=78.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-348-0	01	1	-
189	ROD; PUSH,GOV L=79.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-349-0	01	1	-
189	ROD; PUSH,GOV L=79.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-350-0	01	1	-
189	ROD; PUSH,GOV L=80.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-351-0	01	1	-
189	ROD; PUSH,GOV L=80.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-352-0	01	1	-
189	ROD; PUSH,GOV L=81.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-353-0	01	1	-
189	ROD; PUSH,GOV L=81.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-354-0	01	1	-
189	ROD; PUSH,GOV L=82.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-355-0	01	1	-
189	ROD; PUSH,GOV L=82.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-356-0	01	1	-
189	ROD; PUSH,GOV L=83.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-426-0	01	1	-
189	ROD; PUSH,GOV L=83.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-427-0	01	1	-
189	ROD; PUSH,GOV L=84.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-428-0	01	1	-
189	ROD; PUSH,GOV L=84.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-429-0	01	1	-
189	ROD; PUSH,GOV L=85.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-430-0	01	1	-
189	ROD; PUSH,GOV L=85.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-431-0	01	1	-
189	ROD; PUSH,GOV L=86.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-432-0	01	1	-
189	ROD; PUSH,GOV L=86.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-433-0	01	1	-
189	ROD; PUSH,GOV L=87.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-434-0	01	1	-
189	ROD; PUSH,GOV L=87.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-435-0	01	1	-
189	ROD; PUSH,GOV L=88.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-436-0	01	1	-
189	ROD; PUSH,GOV L=88.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-437-0	01	1	-
189	ROD; PUSH,GOV L=89.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-438-0	01	1	-
189	ROD; PUSH,GOV L=89.5 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-439-0	01	1	-
189	ROD; PUSH,GOV L=90.0 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-440-0	01	1	-
198	BRACKET; COVER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-481-0	01	1	-
198	BRACKET; COVER ASM PART: C = 8-94390-618-3	1-15779-530-0	01	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-334-0	01	1	-
227	BOLT; GOV LEVER ASM PART: C = 8-94390-618-3	1-15719-005-0	03	1	-
227	BOLT; GOV LEVER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15719-005-0	02	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15723-479-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-512-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: C = 8-94390-618-3	1-15723-550-0	01	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=2.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-891-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=3.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-892-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=4.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-893-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-286-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-287-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-088-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-551-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.40 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-552-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-553-0	AR	1	-
239	SCREW; GOV (B) ASM PART: C = 8-94390-618-3	1-15729-386-0	01	1	-
239	SCREW; GOV (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-239-0	01	1	-
239	SCREW; GOV (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	8-97037-287-0	01	1	-
250	NUT; GUIDE SCREW,GOV SHAFT ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-287-0	01	1	-
252	SCREW; GUIDE (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-238-0	01	1	-
252	SCREW; GUIDE (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-288-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-241-0	01	1	-
256	SEAT; GOV SPRING ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-242-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15749-747-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15723-445-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15723-446-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15723-459-0	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-272-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-235-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-289-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15725-788-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: C = 8-94390-618-3	1-15725-901-0	01	1	-
286	LEVER; GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15725-782-0	01	1	-
287	LEVER; GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15725-781-0	01	1	-
288	BOLT; LEVER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-197-0	02	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-196-0	02	1	-
295	RING; SNAP (C) ASM PART: D = 8-97600-665-4	1-15729-723-0	01	1	-
295	RING; SNAP (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-273-0	02	1	-
295	RING; SNAP (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-023-0	01	1	-
296	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	8-97024-879-0	01	1	-
301	RING; SNAP ID=4 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-09185-404-0	01	1	-
302	PLATE; CAM,GOV ASM PART: C = 8-94390-618-3	1-15779-521-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-522-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-09185-404-0	01	1	-
363	BOLT; LEVER FIX ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	8-94247-029-0	02	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-228-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-387-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: C = 8-94390-618-3	1-15779-525-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: C = 8-94390-618-3	1-15779-607-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (C) ASM PART: D = 8-97600-665-4	1-15779-729-0	01	1	-
434	HANGER; GOV ASM PART: C = 8-94390-618-3	1-15619-347-0	01	1	-
440	RING; SNAP,LEVER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-989-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-452-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: C = 8-94390-618-3	1-15723-551-0	01	1	-

1 155 436 438 212 413 436 209 413 158 218 221 215 159 218 437 435 239 429 429 352 211 9 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-258-3	1-15770-940-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 8-94390-618-3	1-15770-941-2	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15603-287-1	1-15790-008-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 8-97600-665-4	1-15790-117-2	01	1	-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-09150-506-0	02	1	-
155	JOINT; HOSE,HSG ASM PART: C = 8-94390-618-3	1-15779-527-0	01	1	-
158	COVER; GOV HSG ASM PART: C = 8-94390-618-3	1-15619-283-0	01	1	-
158	COVER; GOV HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15721-303-0	01	1	-
159	BOLT; COVER (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-202-0	02	1	-
159	BOLT; COVER (B), M6X20 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-187-0	01	1	-
209	DIAPHRAGM; GOV ASM PART: C = 8-94390-618-3	1-15713-005-0	01	1	-
209	DIAPHRAGM; GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15713-006-0	01	1	-
211	NUT; LOCK,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-88410-525-0	01	1	-
212	PLATE; GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	8-94122-719-0	01	1	-
215	BOLT; DIAPH ASM PART: A = 1-15603-258-3, C = 8-94390-618-3	8-97037-284-0	01	1	-
215	BOLT; DIAPH ASM PART: B = 1-15603-287-1	8-97104-945-0	01	1	-
218	NUT; DIAPH (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-249-0	01	1	-
218	NUT; DIAPH (A) ASM PART: A = 1-15603-258-3, C = 8-94390-618-3	8-94122-726-0	01	1	-
218	NUT; DIAPH (A) ASM PART: B = 1-15603-287-1	8-97104-978-0	01	1	-
221	WASHER; LK,DIAPH ID=6.1 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-09150-506-0	01	1	-
239	SCREW; GOV (B) ASM PART: C = 8-94390-618-3	1-15729-386-0	01	1	-
239	SCREW; GOV (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-239-0	01	1	-
239	SCREW; GOV (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	8-97037-287-0	01	1	-
352	NUT; CAP CAP NUT ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-093-0	01	1	-
413	GASKET; GOV COVER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-129-0	02	1	-
429	GASKET; CAP NUT ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-868-0	02	1	-
435	BOLT; EYE,GOV COVER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-325-0	01	1	-
436	GASKET; EYE BOLT ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-849-0	02	1	-
437	SPRING; DIAPHRAGM ASM PART: C = 8-94390-618-3	1-15723-247-0	01	1	-
437	SPRING; DIAPHRAGM ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-541-0	01	1	-
438	DISK; DIAPHRAGM ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-333-0	01	1	-

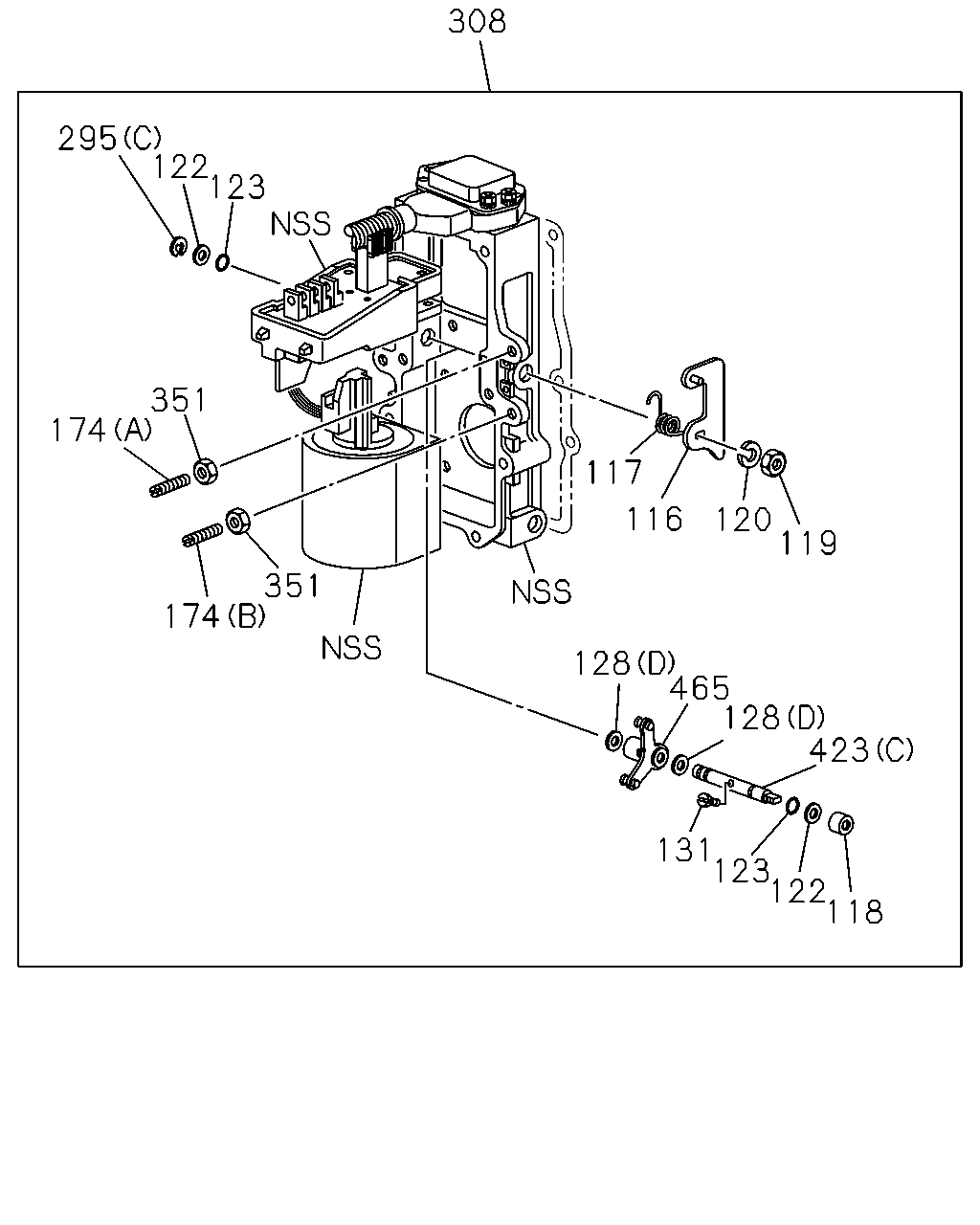

308 295 122 123 351 174 117 116 120 119 351 174 128 465 128 423 131 123 122 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
116	LEVER; ENG STOP,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15725-857-0	01	1	-
116	LEVER; ENG STOP,GOV ASM PART: C = 8-94390-618-3	1-15725-896-0	01	1	-
116	LEVER; ENG STOP,GOV ASM PART: D = 8-97600-665-4	1-15725-970-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-443-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: C = 8-94390-618-3	1-15723-471-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: D = 8-97600-665-4	1-15723-611-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-389-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: D = 8-97600-665-4	1-15779-738-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: D = 8-97600-665-4	1-15629-117-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-236-0	02	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-83579-492-0	01	1	-
122	WASHER; CONT SHAFT,GOV ID=10.5 ASM PART: D = 8-97600-665-4	9-09164-510-0	02	1	-
123	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-282-0	02	1	-
123	SEAL; OIL,CONT SHAFT,GOV ASM PART: D = 8-97600-665-4	1-15779-731-0	02	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.60 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.80 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.90 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-230-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.20 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-231-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-388-0	01	1	-
128	SHIM; CONT SHAFT,GOV (D) ASM PART: D = 8-97600-665-4	1-15779-730-0	02	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.30 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.40 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.25 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.35 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.20 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-88410-421-0	AR	1	-
131	SCREW; LEVER TO SHAFT,GOV ASM PART: D = 8-97600-665-4	1-15779-739-0	01	1	-
174	SCREW; PLATE (A) ASM PART: D = 8-97600-665-4	1-15779-831-0	01	1	-
174	SCREW; PLATE (B) ASM PART: D = 8-97600-665-4	1-15779-832-0	01	1	-
295	RING; SNAP (C) ASM PART: D = 8-97600-665-4	1-15729-723-0	01	1	-
295	RING; SNAP (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-273-0	02	1	-
295	RING; SNAP (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-023-0	01	1	-
308	ACTUATOR; GOV,ELEC ASM PART: D = 8-97600-665-4	1-15779-716-1	01	1	-
351	NUT; SCREW ASM PART: D = 8-97600-665-4	1-15729-006-0	02	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-228-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-387-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: C = 8-94390-618-3	1-15779-525-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: C = 8-94390-618-3	1-15779-607-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (C) ASM PART: D = 8-97600-665-4	1-15779-729-0	01	1	-
465	LINK; GOVERNOR ASM PART: D = 8-97600-665-4	1-15725-968-0	01	1	-

319 320 5 1 2 315 314 316 318 317 3 478 478 478 342 328 331 332 309 311 9 8 308 477 9 8 310 11 7 312 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-258-3	1-15770-940-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 8-94390-618-3	1-15770-941-2	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15603-287-1	1-15790-008-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 8-97600-665-4	1-15790-117-2	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15721-327-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: C = 8-94390-618-3	1-15721-343-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: D = 8-97600-665-4	1-15721-362-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: D = 8-97600-665-4	1-15729-846-0	08	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-226-0	06	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: C = 8-94390-618-3	1-15779-226-0	08	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15779-297-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: C = 8-94390-618-3	1-15779-529-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: D = 8-97600-665-4	1-15779-657-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15721-324-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: C = 8-94390-618-3	1-15721-357-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: D = 8-97600-665-4	1-15721-364-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: D = 8-97600-665-4	1-15779-802-0	06	1	-
8	BOLT; GOV COVER,INJ PUMP (C) ASM PART: D = 8-97600-665-4	1-15779-804-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	5-15729-033-0	09	1	-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-09150-506-0	02	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15779-251-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: D = 8-97600-665-4	1-15779-637-0	01	1	-
308	ACTUATOR; GOV,ELEC ASM PART: D = 8-97600-665-4	1-15779-716-1	01	1	-
309	BOLT; ACTUATOR FIX,ELEC GOV ASM PART: D = 8-97600-665-4	1-15729-535-0	02	1	-
310	BOLT; EYE,ACTUATOR,ELEC GOV ASM PART: D = 8-97600-665-4	1-15729-538-0	01	1	-
311	GASKET; ACTUATOR,ELEC GOV ASM PART: D = 8-97600-665-4	1-15779-147-0	01	1	-
312	GASKET; EYE BOLT,ACTUATOR,GOV ID=14.2 OD=19.2 ASM PART: D = 8-97600-665-4	1-09630-085-0	02	1	-
314	SPRING; CONT RACK,GOV ASM PART: D = 8-97600-665-4	1-15723-575-0	01	1	-
315	SEAT; SPRING,CONT RACK,HSG SIDE ASM PART: D = 8-97600-665-4	1-15723-307-0	01	1	-
316	SEAT; SPRING,CONT RACK,CONNECTOR SIDE ASM PART: D = 8-97600-665-4	1-15723-606-0	01	1	-
317	CONNECTOR; CONT RACK,GOV,ELEC M3.5 ASM PART: D = 8-97600-665-4	1-15779-713-1	01	1	-
317	CONNECTOR; CONT RACK,GOV,ELEC M4.0 ASM PART: D = 8-97600-665-4	1-15779-714-1	01	1	-
317	CONNECTOR; CONT RACK,GOV,ELEC M4.5 ASM PART: D = 8-97600-665-4	1-15779-715-1	01	1	-
318	BOLT; CONT RACK,GOV,ELEC ASM PART: D = 8-97600-665-4	1-83569-079-0	01	1	-
319	CAP; CONT RACK,GOV,ELEC ASM PART: D = 8-97600-665-4	1-15729-465-0	01	1	-
320	GASKET; CAP,CONT RACK,GOV ASM PART: D = 8-97600-665-4	9-81325-528-0	01	1	-
328	GEAR; HSG TO MAGNET ASM PART: D = 8-97600-665-4	1-15779-712-0	01	1	-
331	WASHER; LK,GEAR ASM PART: D = 8-97600-665-4	1-15749-007-0	01	1	-
332	NUT; GEAR ASM PART: D = 8-97600-665-4	1-15779-012-0	01	1	-
342	KEY; WOODRUFF,SHAFT 13MM ASM PART: D = 8-97600-665-4	9-81325-030-0	01	1	-
477	BUSHING; GOVERNOR ASM PART: D = 8-97600-665-4	1-15779-643-0	02	1	-
478	HOUSING; PLUG,GOVERNOR (A), L=44.35 B=31.8 ASM PART: D = 8-97600-665-4	1-15779-640-0	01	1	-
478	HOUSING; PLUG,GOVERNOR (B), L=44.35 B=25.6 ASM PART: D = 8-97600-665-4	1-15779-641-0	01	1	-
478	HOUSING; PLUG,GOVERNOR (C), L=44.35 B=26.7 ASM PART: D = 8-97600-665-4	1-15779-642-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
