Sayfa 0-80 - Isuzu EPC

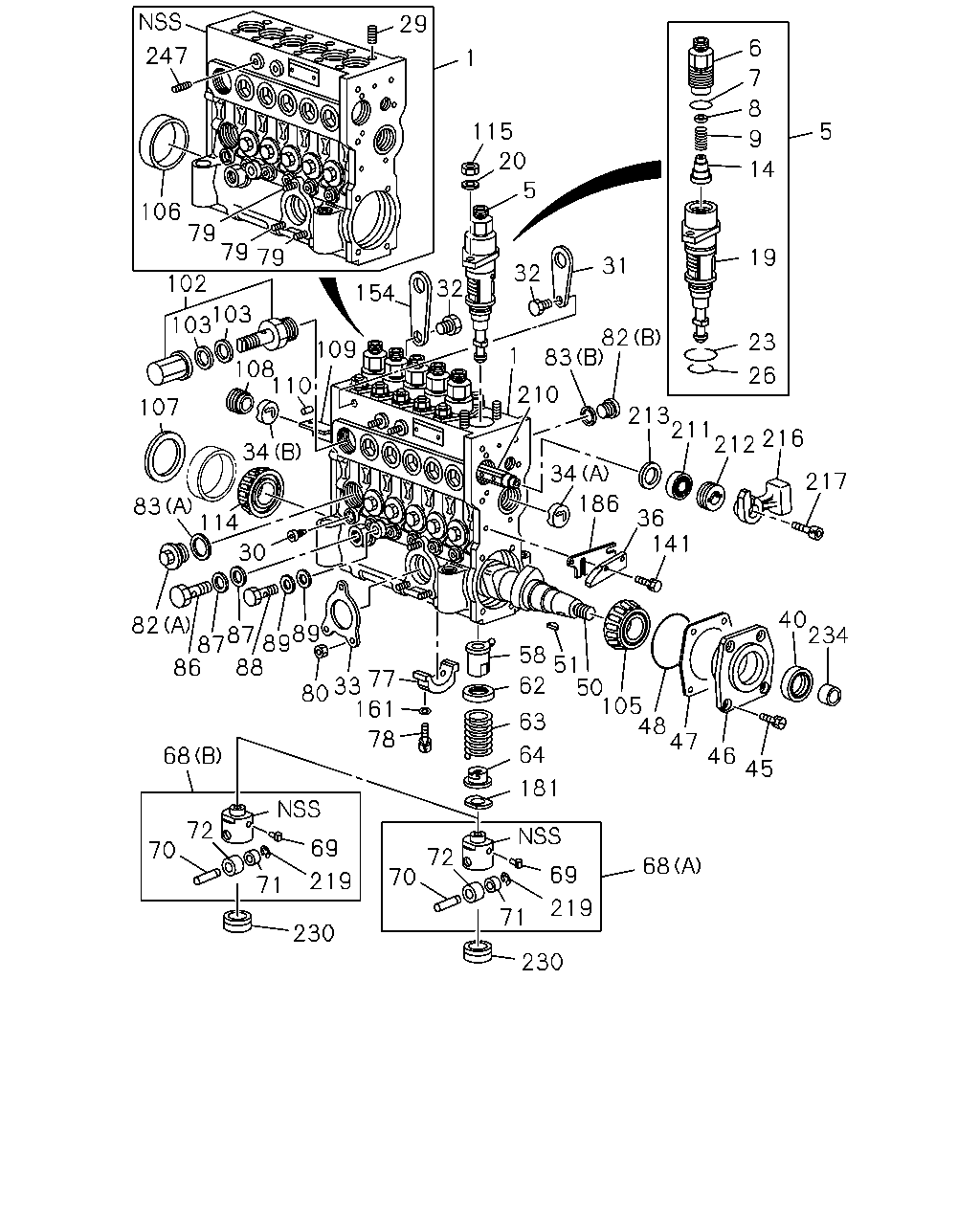

0-80 — INJECTION PUMP (#9211) — 419 parça

29 6 247 1 7 8 115 5 9 20 14 5 106 79 79 79 19 31 32 102 32 154 103 103 108 110 82 83 23 109 1 26 210 107 213 211 216 212 34 34 217 186 83 114 36 141 30 40 234 82 58 51 62 50 105 48 47 46 45 77 33 80 161 63 78 64 68 181 72 69 70 72 68 69 70 219 71 219 71 230 230 89 89 88 87 87 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15611-178-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 8-94390-618-3	1-15611-191-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: D = 8-97600-665-4	1-15611-212-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: C = 8-94390-618-3	1-15631-203-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15631-207-2	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: D = 8-97600-665-4	1-15631-231-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15644-012-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15644-018-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 8-94390-618-3	1-09623-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: D = 8-97600-665-4	1-15619-456-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15629-088-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-084-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-104-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15643-012-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-273-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: D = 8-97600-665-4	1-15619-453-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15641-035-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 8-94390-618-3	1-15641-043-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 8-94390-618-3	1-15632-044-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15632-045-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: D = 8-97600-665-4	1-15632-066-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-15639-020-0	12	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15619-449-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15629-131-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15619-424-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15629-132-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-426-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-432-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-81215-130-0	06	1	-
31	HANGER; FRT,INJ PUMP ASM PART: D = 8-97600-665-4	1-15619-347-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: D = 8-97600-665-4	9-02341-012-0	02	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: C = 8-94390-618-3	9-02341-012-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (B) ASM PART: C = 8-94390-618-3	1-15619-429-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: D = 8-97600-665-4	1-15619-493-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (B) ASM PART: D = 8-97600-665-4	1-15619-510-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: C = 8-94390-618-3	9-81215-123-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-81215-123-0	02	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-304-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15619-417-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-15749-498-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-338-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	5-15729-027-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15612-063-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15629-067-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-166-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-167-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-168-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-169-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-170-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-171-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-172-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: D = 8-97600-665-4	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81215-128-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15621-108-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15621-116-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-15629-009-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15629-085-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15635-006-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15634-020-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-81215-136-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15634-013-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15634-022-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15634-021-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15643-004-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15622-008-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15622-014-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15622-015-0	02	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15629-134-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-431-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-81225-062-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15629-133-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-81225-061-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15619-288-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-430-0	06	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15619-358-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-433-0	03	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: D = 8-97600-665-4	1-09054-030-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: C = 8-94390-618-3	1-15619-434-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-81325-187-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-436-0	06	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-437-0	07	1	-
82	PLUG; HSG,INJ PUMP (C) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG (C) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15619-067-0	01	1	-
83	GASKET; HSG PLUG (B) ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-102-0	07	1	-
83	GASKET; HSG PLUG (A) ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	5-15729-021-0	06	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15619-309-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: D = 8-97600-665-4	1-15619-457-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-09630-085-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 8-94390-618-3	1-15619-363-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: D = 8-97600-665-4	1-15619-447-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-09630-085-0	02	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15637-017-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 8-94390-618-3	1-15637-033-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: D = 8-97600-665-4	1-15637-055-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-337-0	12	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-456-0	12	1	-
141	BOLT; POINTER ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15729-758-0	02	1	-
141	BOLT; POINTER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	5-15729-063-0	02	1	-
154	HANGER; RR,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-347-0	01	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	5-15729-099-0	06	1	-
181	SHIM; TAPPET,INJ PUMP T=0.500 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.525 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.550 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.575 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.600 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.625 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-111-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.650 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-112-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.675 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-113-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.700 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-114-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.725 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-115-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.750 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-116-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.775 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-117-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.800 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-118-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.825 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-119-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.850 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-120-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.875 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-121-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.900 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-122-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.925 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-123-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.950 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-124-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.975 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-125-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.000 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-126-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.025 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-127-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.050 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-128-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.075 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-129-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.100 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-130-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.125 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-131-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.150 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-132-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.175 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-133-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.200 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-134-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.225 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-135-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.250 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-136-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.275 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-137-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.300 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-138-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.325 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-139-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.350 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-140-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.375 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-141-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.400 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-142-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.425 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-143-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.450 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-144-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.475 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-145-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.500 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-146-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.525 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-147-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.550 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-148-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.575 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-149-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.600 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-150-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.625 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-151-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.650 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-152-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.675 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-153-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.700 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-154-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.725 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-155-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.750 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-156-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.775 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-157-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.800 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-158-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.825 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-159-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.850 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-160-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.875 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-161-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.900 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-162-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.925 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-163-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.950 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-164-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.975 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-165-0	AR	1	-
186	SHIM; POINTER T=0.20 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15619-302-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-089-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-090-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-091-0	AR	1	-
186	SHIM; POINTER T=1.10 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-092-0	AR	1	-
186	SHIM; POINTER T=0.20 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-093-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-094-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-095-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-096-0	AR	1	-
210	ROD; CONT ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15637-032-0	01	1	-
211	BEARING; CONT ROD ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15629-098-0	01	1	-
212	BUSHING; CONT ROD ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-330-0	01	1	-
213	WASHER; CONT ROD ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-336-0	01	1	-
216	CONNECTOR; CONT ROD ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-428-0	01	1	-
217	BOLT; CONT ROD ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-335-0	01	1	-
219	RING; SNAP,ROLLER ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-432-0	06	1	-
230	PLUG; TAPPET ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-435-0	06	1	-
234	SLEEVE; FRT COVER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-15635-002-0	01	1	-
247	STUD; HOUSING,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-427-0	02	1	-

29 5 6 7 8 9 10 14 19 29 106 1 115 79 79 20 79 21 23 24 28 25 26 27 38 108 5 34 110 109 107 105 1 34 30 101 101 186 36 90 141 89 89 88 40 83 82 51 77 50 87 87 86 114 48 47 46 45 78 58 62 33 80 234 63 64 69 68 70 73 72 71 74 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15611-178-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 8-94390-618-3	1-15611-191-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: D = 8-97600-665-4	1-15611-212-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: C = 8-94390-618-3	1-15631-203-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15631-207-2	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: D = 8-97600-665-4	1-15631-231-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15644-012-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15644-018-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 8-94390-618-3	1-09623-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: D = 8-97600-665-4	1-15619-456-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15629-088-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-084-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-104-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15643-012-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15723-273-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-81215-174-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: D = 8-97600-665-4	1-15619-453-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15641-035-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 8-94390-618-3	1-15641-043-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 8-94390-618-3	1-15632-044-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15632-045-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: D = 8-97600-665-4	1-15632-066-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-15639-020-0	12	1	-
21	FLANGE; PLUNGER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15742-141-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15619-449-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15629-131-0	06	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-430-0	06	1	-
25	RING; SNAP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-431-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15619-424-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15629-132-0	06	1	-
27	GASKET; PLUNGER LWR ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15619-424-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15629-093-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-426-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-432-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-81215-130-0	06	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (B) ASM PART: C = 8-94390-618-3	1-15619-429-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: D = 8-97600-665-4	1-15619-493-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (B) ASM PART: D = 8-97600-665-4	1-15619-510-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: C = 8-94390-618-3	9-81215-123-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-81215-123-0	02	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-304-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15619-417-0	01	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-15749-498-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-338-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	5-15729-027-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15612-063-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15629-067-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-166-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-167-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-168-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-169-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-170-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-171-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-172-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: D = 8-97600-665-4	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	9-81215-128-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15621-108-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15621-116-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-15629-009-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15629-085-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15635-006-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15634-020-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-81215-136-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15634-013-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15634-022-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15634-021-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15643-004-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15622-008-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15622-014-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15622-015-0	02	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15629-134-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-431-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-81225-062-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15629-133-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-81225-061-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15619-288-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-430-0	06	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15629-094-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15612-012-0	01	1	-
76	BOLT; COVER TO HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15619-066-0	12	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15619-358-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-433-0	03	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: D = 8-97600-665-4	1-09054-030-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: C = 8-94390-618-3	1-15619-434-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-81325-187-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-436-0	06	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-437-0	07	1	-
82	PLUG; HSG,INJ PUMP (C) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG (C) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15619-067-0	01	1	-
83	GASKET; HSG PLUG (B) ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-102-0	07	1	-
83	GASKET; HSG PLUG (A) ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	5-15729-021-0	06	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3	1-15619-309-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: D = 8-97600-665-4	1-15619-457-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-09630-085-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-15719-093-0	02	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15637-017-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 8-94390-618-3	1-15637-033-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: D = 8-97600-665-4	1-15637-055-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-337-0	12	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	9-88410-456-0	12	1	-
141	BOLT; POINTER ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15729-758-0	02	1	-
141	BOLT; POINTER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	5-15729-063-0	02	1	-
186	SHIM; POINTER T=0.20 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15619-302-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-089-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-090-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-091-0	AR	1	-
186	SHIM; POINTER T=1.10 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15639-092-0	AR	1	-
186	SHIM; POINTER T=0.20 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-093-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-094-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-095-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15639-096-0	AR	1	-
234	SLEEVE; FRT COVER ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94390-618-3, D = 8-97600-665-4	1-15635-002-0	01	1	-

221 203 185 185 205 209 208 118 204 117 205 206 207 206 206 231 233 232 209 208 205 245 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
117	GASKET; EYE BOLT,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	5-15729-099-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	9-81215-148-0	01	1	-
185	GASKET; PLUG ID=14.2 OD=19.2 ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-09630-085-0	02	1	-
203	BOLT; FUEL INL ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15759-011-0	01	1	-
204	ACTUATOR; INJ PUMP ASM PART: C = 8-94390-618-3	1-15612-116-0	01	1	-
204	ACTUATOR; INJ PUMP ASM PART: D = 8-97600-665-4	1-15612-121-3	01	1	-
205	BOLT; ACTUATOR (A) ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-09054-032-0	04	1	-
205	BOLT; ACTUATOR (B) ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-348-0	04	1	-
206	GASKET; ACTUATOR (A) ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15629-140-0	01	1	-
206	GASKET; ACTUATOR (B) ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15629-141-0	01	1	-
206	GASKET; ACTUATOR (C) ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15629-143-0	01	1	-
207	HOUSING; ACTUATOR ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15611-192-0	01	1	-
208	WASHER; LK,ACTUATOR ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	8-94128-928-0	04	1	-
209	WASHER; PL,ACTUATOR (A) ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-351-0	01	1	-
209	WASHER; PL,ACTUATOR (B) ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-352-0	03	1	-
221	ACTUATOR ASM; INJ PUMP ASM PART: C = 8-94390-618-3	1-15612-117-0	01	1	-
221	ACTUATOR ASM; INJ PUMP ASM PART: D = 8-97600-665-4	1-15612-119-3	01	1	-
231	COVER; ACTUATOR ASM PART: C = 8-94390-618-3	1-15619-440-0	01	1	-
231	COVER; ACTUATOR ASM PART: D = 8-97600-665-4	1-15619-460-0	01	1	-
232	BOLT; ACTUATOR COVER ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-09054-032-0	04	1	-
233	WASHER; ACTUATOR COVER ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	8-94128-928-0	04	1	-
245	HOUSING; SOCKET,INJ PUMP ASM PART: C = 8-94390-618-3, D = 8-97600-665-4	1-15619-441-0	01	1	-
248	RING; SOCKET HOUSING,INJ PUMP ASM PART: C = 8-94390-618-3	1-15619-442-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
