3-20 — AIR TANK (#921) — 91 parça

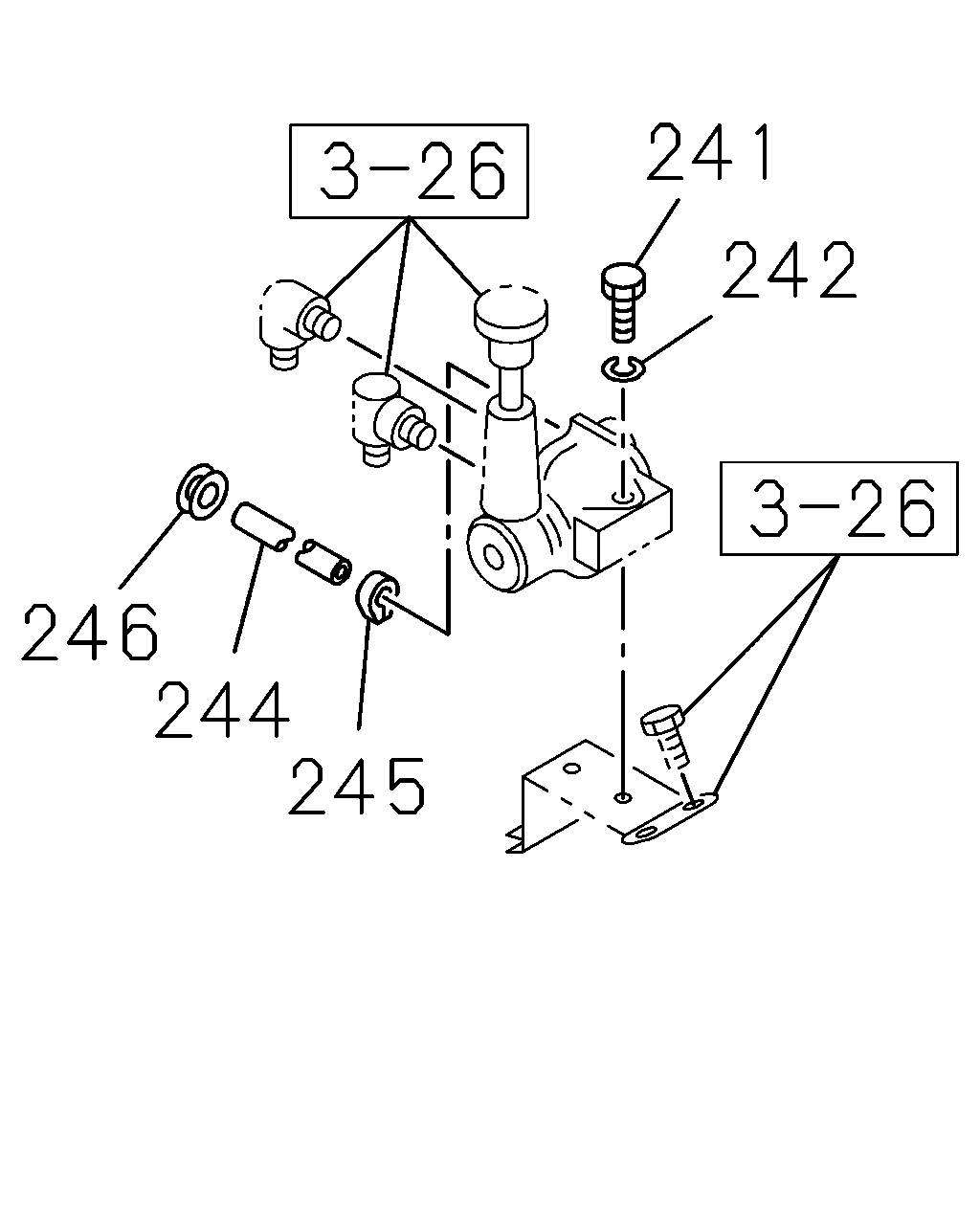

241 242 246 244 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X65	0-10805-865-0	02	1	9202-	●	●
242	WASHER; LK,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8.2	9-09150-508-0	02	1	9202-	●	●
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●	●
245	CLIP; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=15	9-09715-098-0	01	1	9202-	●	●
246	GROMMET; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	9202-	●	●

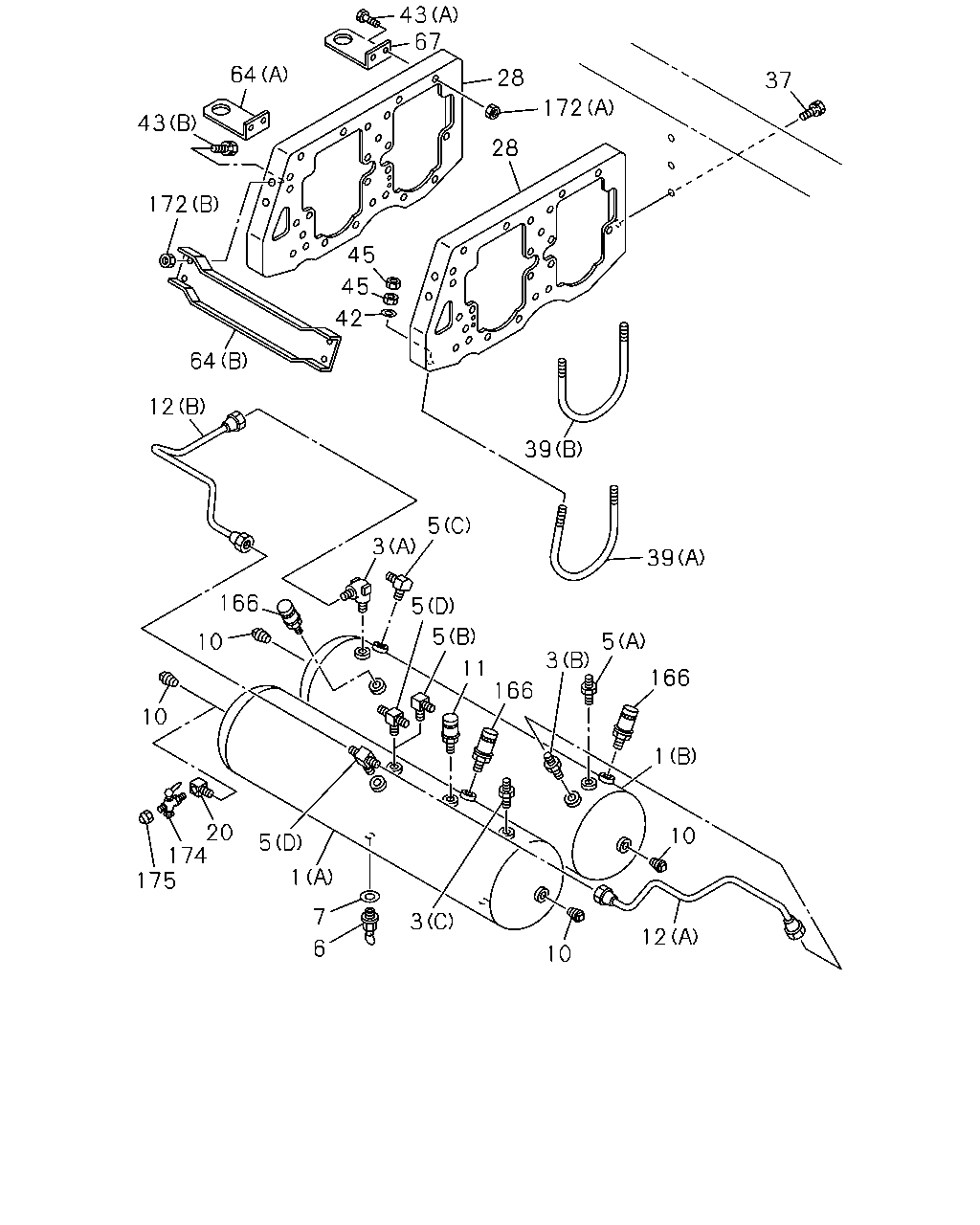

43 67 64 28 37 172 43 28 172 45 45 42 64 12 39 5 3 39 166 5 5 5 10 3 11 166 166 10 1 10 20 174 175 5 1 7 3 12 6 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (B)	1-48330-206-1	01	1	9202-	●	●
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (B),(C)	1-48410-182-2	02	1	9202-	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (B) M22 & PT3/4	1-48410-136-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (C)	1-48410-182-2	01	1	9202-	●	●
5	UNION; AIR TANK (C)	1-09650-221-1	01	1	9202-9302	●	●
5	UNION; AIR TANK (C)	1-09650-442-0	01	1	9303-	●	●
5	UNION; AIR TANK (A)	1-09650-245-1	01	1	9202-	●	●
5	UNION; AIR TANK (D)	1-09656-340-1	01	1	9202-	●	●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09650-170-1	01	1	9202-	●	●
5	UNION; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09650-117-1	01	1	9202-9302	●	●
5	UNION; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09650-430-0	01	1	9303-	●	●
6	COCK; DRAIN,AIR TANK W/COVER	1-48312-004-1	04	1	9202-	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9202-	●	●
10	PLUG; AIR TANK PT1/4	9-99204-513-0	04	1	9202-9207	●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE(SG4) EXC. AIR DRYER<PS7> PT1/4	9-99204-513-0	03	1	9208-	●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) PT1/4	9-99204-513-0	04	1	9208-	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9202-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47481-349-0	01	1	9202-9212	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-011-0	01	1	9301-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47482-864-0	01	1	9202-9212	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-012-0	01	1	9301-	●	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE(SG4)	9-09903-738-0	01	1	9202-9207	●	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE(SG4) EXC. AIR DRYER<PS7> PT1/4	1-09660-501-0	01	1	9208-	●	●
28	BRACKET; AIR TANK	1-53318-232-9	02	1	9202-	●	●
37	BOLT; AIR TANK M12X45	1-09030-052-1	06	1	9202-	●	●
39	U-BOLT; AIR TANK (A)	1-48317-323-1	02	1	9202-	●	●
39	U-BOLT; AIR TANK (B)	1-48317-367-2	02	1	9202-	●	●
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	9202-	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X18 W/LK WASHER	0-50040-818-0	04	1	9202-9205	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28080-820-0	04	1	9206-	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X22 W/LK&PL WASHER	0-50141-022-0	04	1	9202-9205	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9206-	●	●
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	16	1	9202-	●	●
64	STAY; AIR TANK,MAIN (B)	1-53318-224-2	01	1	9202-9207	●	●
64	STAY; AIR TANK,MAIN (B)	1-53318-293-1	01	1	9208-	●	●
64	STAY; AIR TANK,MAIN (A)	8-94301-490-0	01	1	9202-	●	●
67	STAY; SUB TANK	1-48317-349-0	01	1	9202-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-040-0	03	1	9202-9411	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	03	1	9412-	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8	9-09110-408-0	04	1	9202-	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10	9-09110-510-0	04	1	9308-	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE(SG4) EXC. AIR DRYER<PS7>	1-09680-036-0	01	1	9202-	●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE(SG4) EXC. AIR DRYER<PS7>	9-48319-102-0	01	1	9202-	●	●

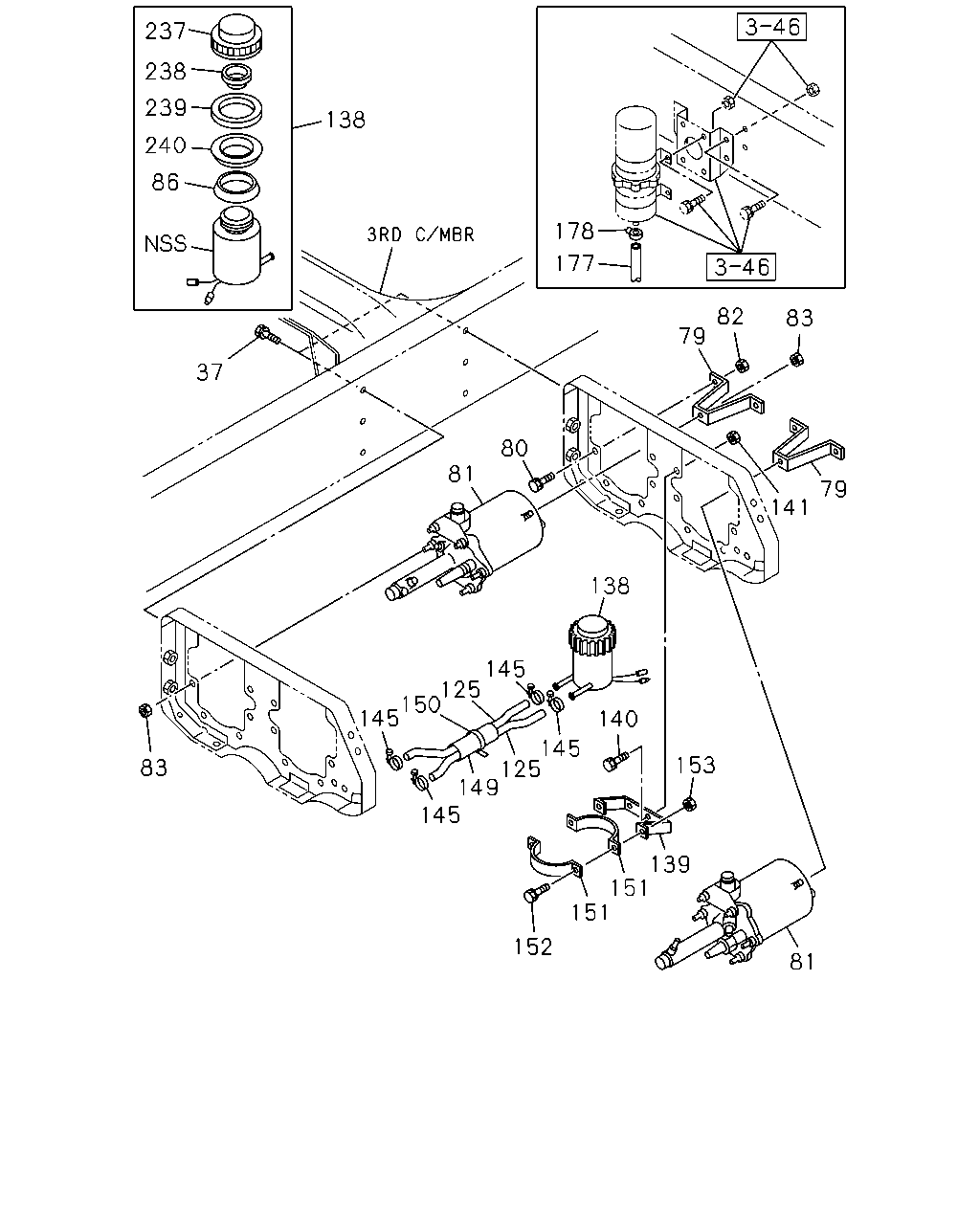

237 238 239 138 240 86 178 177 82 83 79 37 80 81 79 141 138 145 125 150 145 140 145 125 149 145 153 83 139 151 151 152 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	BOLT; AIR TANK M12X45	1-09030-052-1	06	1	9202-	●	●
79	STAY; AIR MASTER TO BRKT H=203	1-53318-217-0	02	1	9202-	●	●
80	BOLT; BRKT M10X25 W/LK WASHER	0-50041-025-0	04	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SECONDARY	1-47800-404-2	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PRIMARY	1-47800-406-2	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SECONDARY	1-47800-395-2	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PRIMARY	1-47800-396-2	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SECONDARY	1-47800-382-2	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PRIMARY	1-47800-397-2	01	1	9202-	●	●
82	NUT; STAY,AIR MASTER BRKT M10	9-09110-410-0	04	1	9202-9205	●	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-110-0	04	1	9206-	●	●
83	NUT; AIR MASTER M10	9-09110-410-0	10	1	9202-9205	●	●
83	NUT; AIR MASTER M10 FLANGE	0-91150-110-0	10	1	9206-	●	●
86	SEAL; DUST	1-47529-019-0	01	1	9202-	●	●
125	HOSE; OIL TANK TO AIR MASTER L=1800	1-09360-320-0	02	1	9202-	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-154-1	01	1	9202-	●	●
139	BRACKET; OIL TANK	1-47537-112-1	01	1	9202-9205	●	●
139	BRACKET; OIL TANK	1-47537-081-1	01	1	9206-	●	●
140	BOLT; OIL TANK TO BRKT M10X20 W/LK WASHER	0-50041-020-0	02	1	9202-9403	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	9404-	●	●
141	NUT; OIL TANK TO BRKT M10	9-09110-510-0	02	1	9202-	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=15	1-09704-018-1	04	1	9202-9205	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9206-	●	●
149	SLEEVE; RUBBER,HOSE ID=15 OD=19 L=50	1-09337-014-0	02	1	9202-9205	●	●
149	SLEEVE; RUBBER,HOSE ID=15 OD=19 L=50	1-09337-014-0	01	1	9206-9209	●	●
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	9210-	●	●
150	CLIP; BAND,RUBBER SLEEVE L=100	5-09707-036-0	02	1	9202-9205	●	●
150	CLIP; BAND,RUBBER SLEEVE L=100	5-09707-036-0	01	1	9206-9209	●	●
150	CLIP; BAND,RUBBER SLEEVE L=140	5-09707-031-0	01	1	9210-	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9202-	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28080-820-0	04	1	9205-	●	●
153	NUT; OIL TANK TO BAND M8	9-09110-408-0	02	1	9202-9205	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	9206-	●	●
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=250 SERVICED BY L=3000	0-02165-300-0	01	1	9202-9310	●	●
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=220 SERVICED BY L=3000	0-03266-300-0	01	1	9311-	●	●
178	CLIP; HOSE AIR DRYER<PS7> ID=21	8-94242-034-0	01	1	9202-9406	●	●
237	CAP; OIL TANK	1-47525-026-1	01	1	9202-	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	9202-	●	●
239	FILTER; DUST	1-47529-017-0	01	1	9202-	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	9202-	●	●
