Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11466 - FVZ(LHD)W/DOC EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

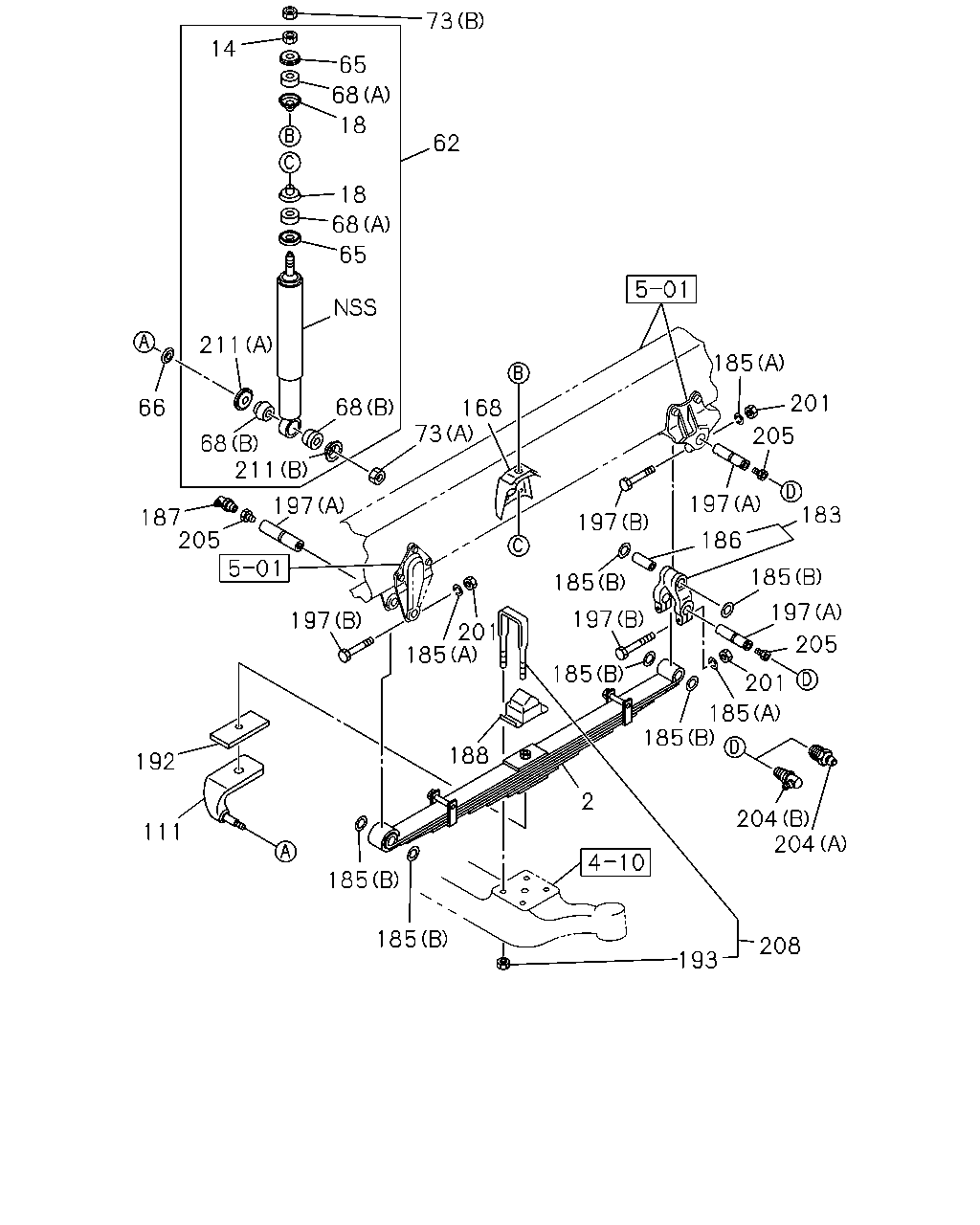

4-50 — FRONT SUSPENSION
(#92095) — 34 parça
73
14
65
68
18
62
18
68
65
211
185
201
68
66
168
205
73
68
211
183
197
197
187
205
197
186
185
185
197
197
197
201
185
205
185
201
185
185
188
192
2
204
204
111
185
185
208
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98029-096-0
02
1
1206-
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
1206-
18
WASHER; CENTERING,S/ABS
ID=20.8
9-51631-041-0
04
1
1206-
62
ABSORBER ASM; SHOCK,FRT
1-51630-579-0
02
1
1206-
62
ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS
1-87610-155-0
02
1
1206-
65
WASHER; S/ABS
ID=16.5
9-51631-040-0
04
1
1206-
66
WASHER; LK,S/ABS SETTING
ID=21
0-91610-520-0
02
1
1206-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
1206-
68
BUSHING; S/ABS
(A)
9-51631-039-0
04
1
1206-
73
NUT; BRKT,SHOCK
(A) M20
0-91110-520-0
02
1
1206-
73
NUT; BRKT,SHOCK
(B) M14
0-91111-514-0
02
1
1206-
111
SUPPORTER; S/ABS,FRT SUSP
8-98121-195-0
01
1
1206-
111
SUPPORTER; S/ABS,FRT SUSP
8-98121-193-0
01
1
1206-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
1206-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1206-
185
WASHER; LK,PIN
(A) ID=12.2
0-91510-612-0
12
1
1206-
185
WASHER; LK,PIN
(B) ID=32.4
1-51169-018-0
12
1
1206-
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1206-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1206-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-125-1
02
1
1206-
192
PIECE; DIST
80X144 ID=17.5
1-51177-284-1
AR
1
1206-
193
NUT; U BOLT
M22
0-91112-822-0
08
1
1206-1206
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1207-
197
PIN; FRT SPR,FRT
(B) M12X80
0-10856-280-0
12
1
1206-
197
PIN; FRT SPR,FRT
(A)
1-51161-031-0
06
1
1206-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
1206-
204
NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
1206-
204
NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
1206-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
1206-
208
U-BOLT SET; FRT SPRING
L=230
1-87870-269-2
04
1
1206-1206
208
U-BOLT SET; FRT SPRING
L=230
1-87870-493-0
04
1
1207-
208
U-BOLT SET; FRT SPRING
L=230
1-87870-493-0
04
1
1206-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
1206-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
1206-
