◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11466 - FVZ(LHD)W/DOC EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#92083) — 143 parça

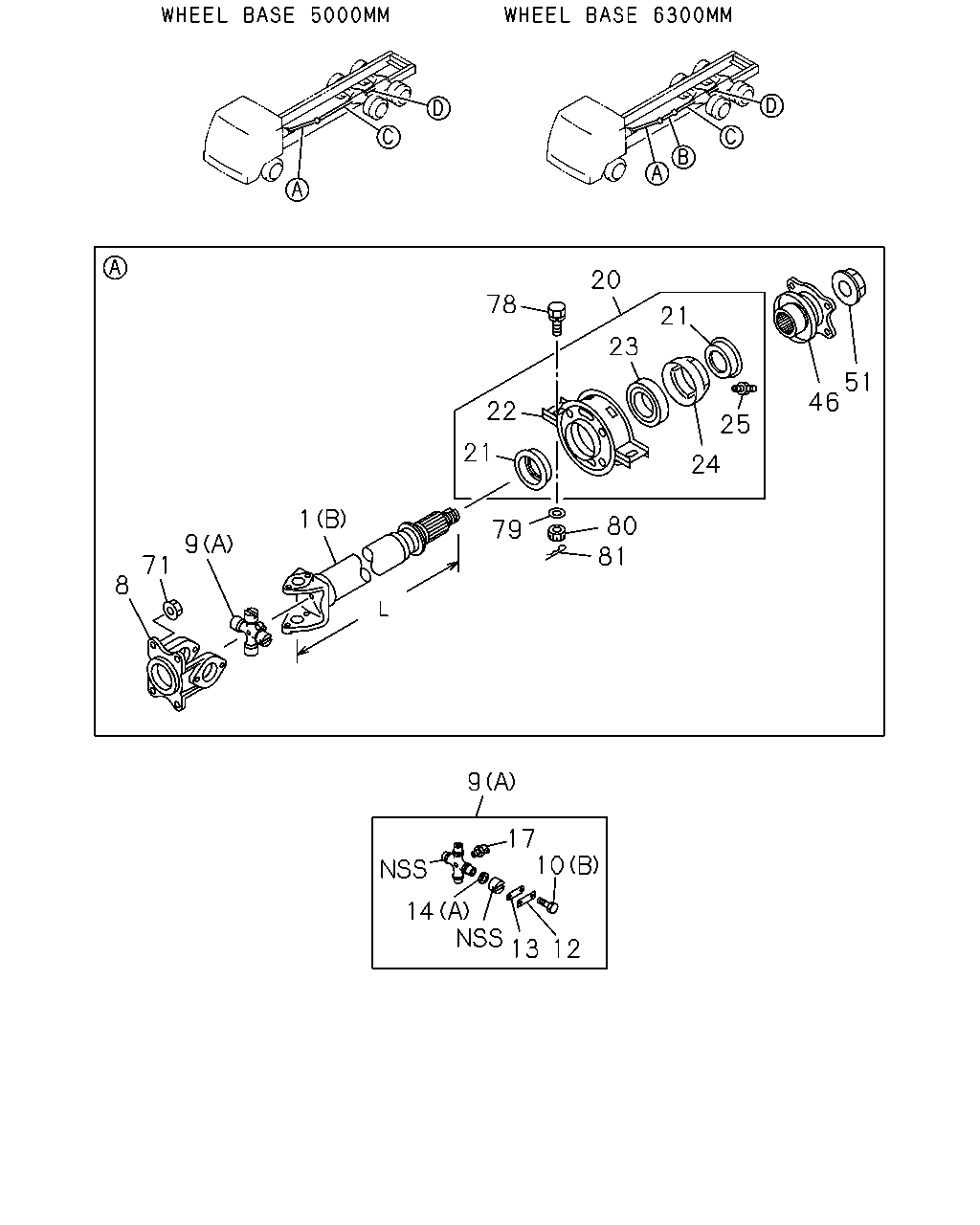

çizim 284152
20 78 21 23 51 46 22 25 21 24 1 80 81 79 9 71 8 9 17 10 14 13 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=607 		1-37124-224-0 01 1 1206- ●
1 SHAFT; PROP
(B) L=632 		8-98193-466-0 01 1 1206- ●
1 SHAFT; PROP
(A) L=762 		1-37123-902-0 01 1 1206- ●
1 SHAFT; PROP
(B) L=772 		8-98193-467-0 01 1 1206- ●
1 SHAFT; PROP
(C) L=922 		8-98193-468-0 01 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 1206- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 03 1 1206- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1206- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1206- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1206- ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 1206- ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 1206- ● ●
10 BOLT; UJT
(A) M12X45 		8-98036-382-0 04 1 1206- ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 24 1 1206- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1206- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1206- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 08 1 1206- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1206- ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1206- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 08 1 1206- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1206- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1206- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1206- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1206- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1206- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1206- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1206- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 1206- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 1206- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 1206- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1206- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1206- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1206- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 1206- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 1206- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1206- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 1206- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 1206- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1206- ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1206- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1206- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1206- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1206- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1206- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1206- ● ●

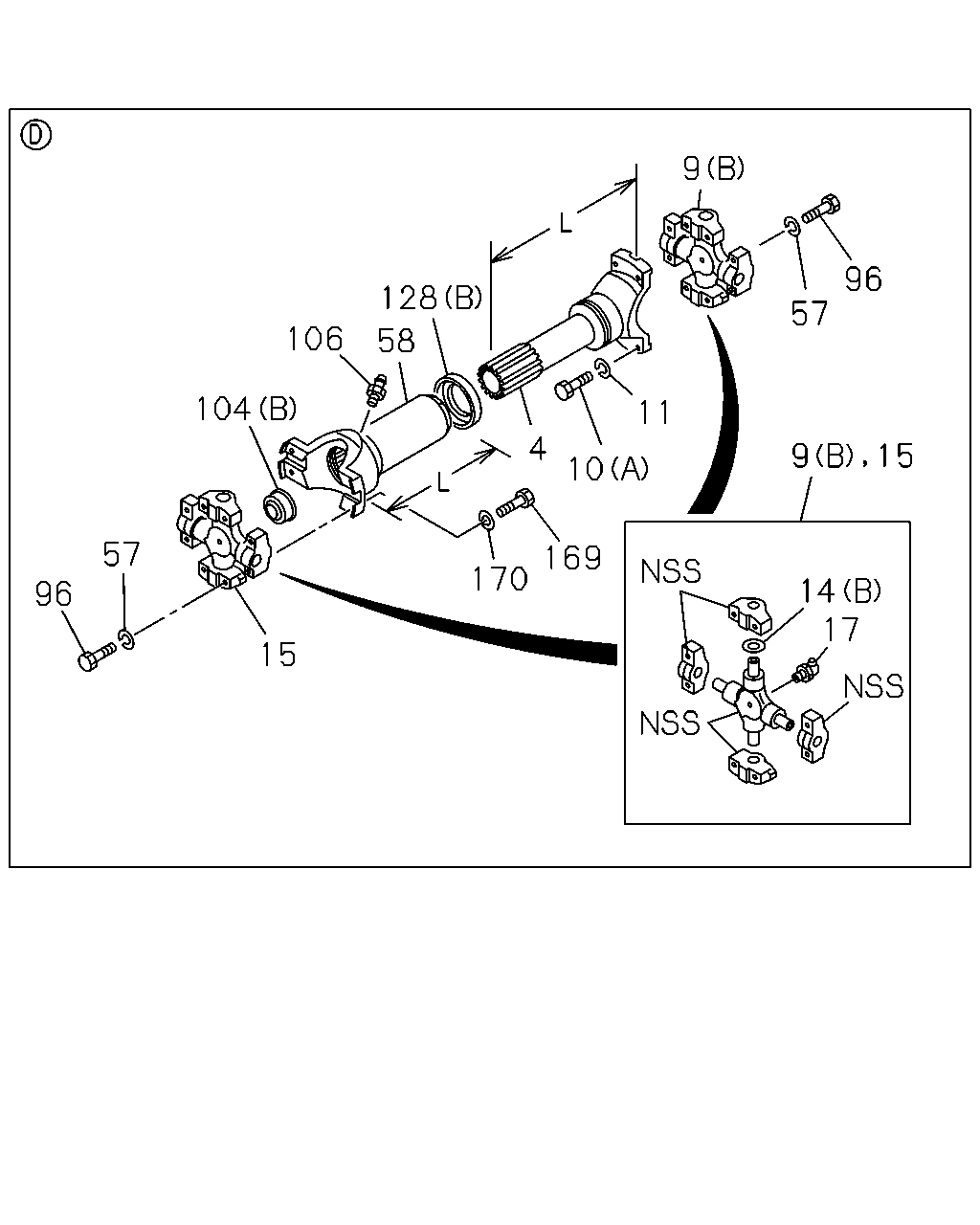

çizim 284156
9 96 12 57 106 58 104 11 4 9 15 10 57 169 170 14 17 96 15
BalonParca AdiParca NoAdetTipApplied Date A B
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 1206- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1206- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1206- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1206- ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 1206- ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 1206- ● ●
10 BOLT; UJT
(A) M12X45 		8-98036-382-0 04 1 1206- ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 24 1 1206- ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1206- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1206- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1206- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 08 1 1206- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1206- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1206- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1206- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1206- ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1206- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1206- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1206- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1206- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1206- ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1206- ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1206- ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1206- ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 1206- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1206- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1206- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1206- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1206- ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1206- ● ●

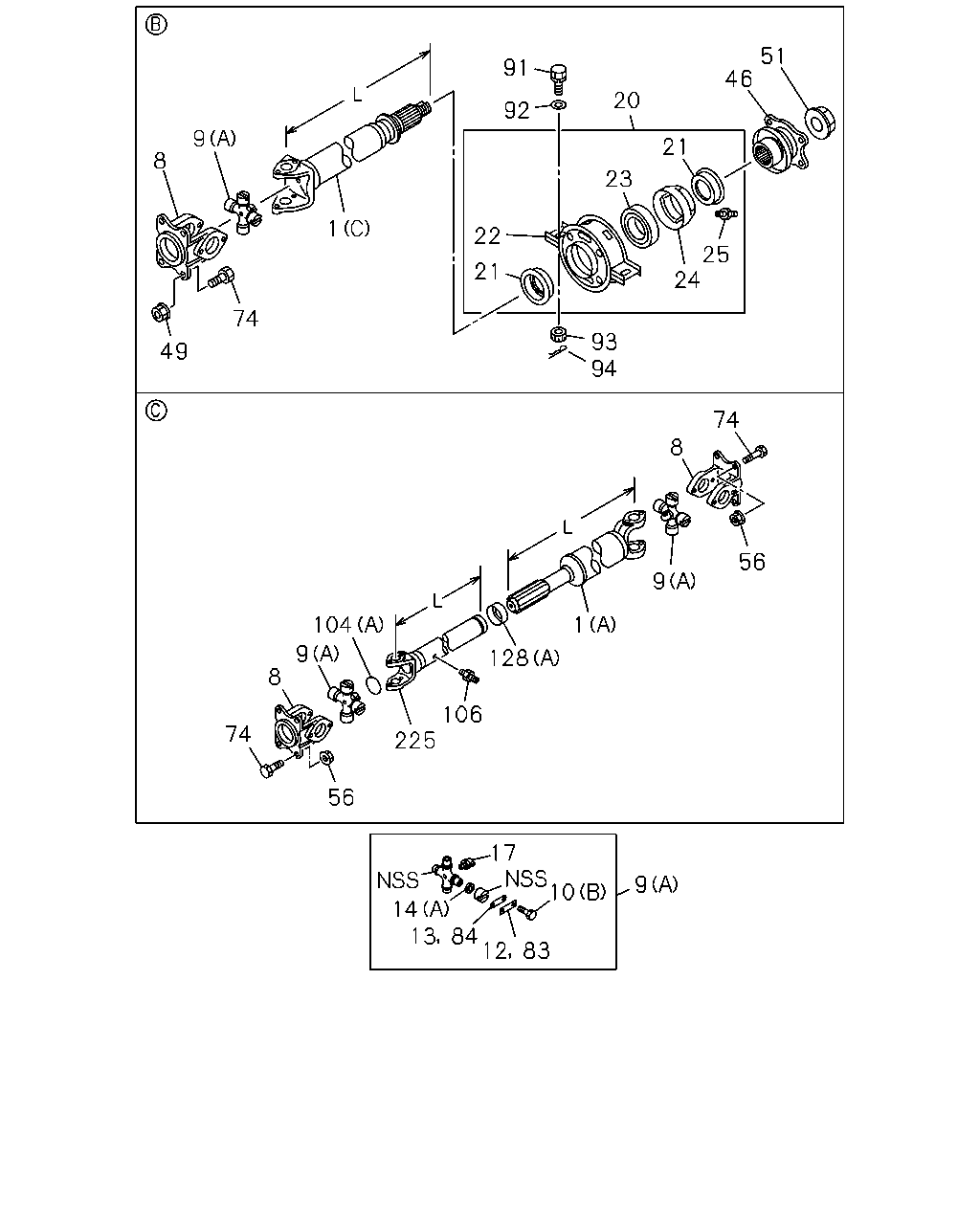

çizim 284426
51 46 91 20 92 9 21 8 23 1 22 25 24 21 74 93 94 49 74 8 56 9 104 1 9 128 8 106 225 74 56 17 10 9 14 12 83 13 84
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=607 		1-37124-224-0 01 1 1206- ●
1 SHAFT; PROP
(B) L=632 		8-98193-466-0 01 1 1206- ●
1 SHAFT; PROP
(A) L=762 		1-37123-902-0 01 1 1206- ●
1 SHAFT; PROP
(B) L=772 		8-98193-467-0 01 1 1206- ●
1 SHAFT; PROP
(C) L=922 		8-98193-468-0 01 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 1206- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 1206- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 03 1 1206- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1206- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1206- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1206- ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 1206- ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 1206- ● ●
10 BOLT; UJT
(A) M12X45 		8-98036-382-0 04 1 1206- ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 24 1 1206- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1206- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1206- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 08 1 1206- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1206- ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1206- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 08 1 1206- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1206- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1206- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1206- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1206- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1206- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1206- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1206- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1206- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 1206- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 1206- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 1206- ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 1206- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1206- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1206- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1206- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1206- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 1206- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 1206- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1206- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1206- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 1206- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 1206- ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1206- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1206- ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1206- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 1206- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1206- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1206- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 08 1 1206- ● ●
83 PLATE; LK,UJT,PROP SHAFT 1-37356-008-0 04 1 1206- ● ●
84 COVER; UJT,PROP SHAFT 1-37355-020-0 04 1 1206- ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1206- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1206- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1206- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1206- ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 1206- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1206- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1206- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1206- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1206- ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1206- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 1206- ● ●
