◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11466 - FVZ(LHD)W/DOC EURO4 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#92079) — 42 parça

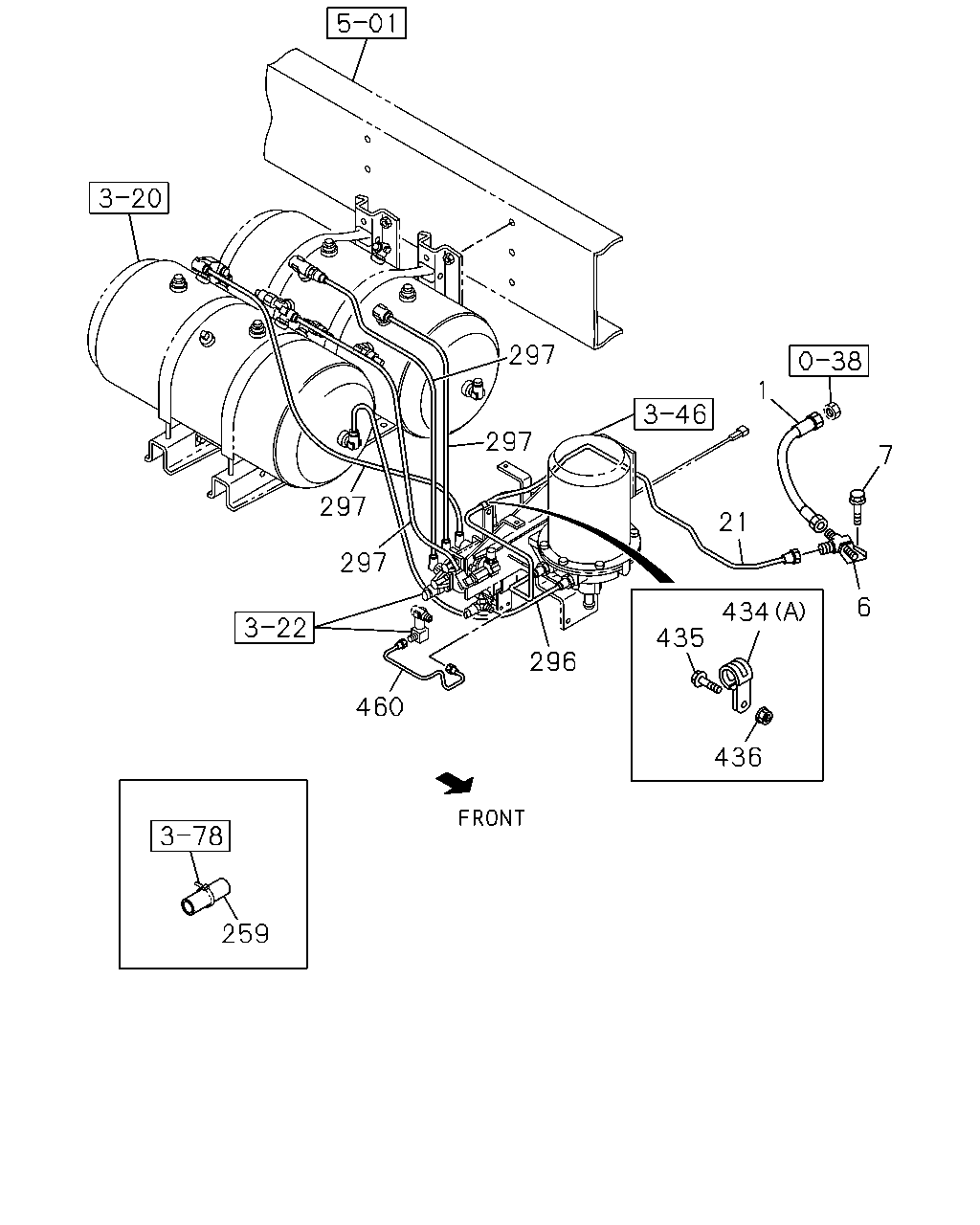

çizim 284138
297 1 297 7 297 21 297 6 434 435 296 460 436 259
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 1206-
6 BRACKET; FLEX HOSE,AIR TANK 8-98076-344-0 01 1 1206-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1206-
21 PIPE; AIR,UNION TO AIR DRYER
L=1715 		8-98095-083-0 01 1 1206-
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 1206-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1206-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1206-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1206-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1206-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1206-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1206-
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1206-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1206-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1206-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1206-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1206-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1206-
460 PIPE; AIR,PROTECTION VALVE 8-98184-394-0 01 1 1206-

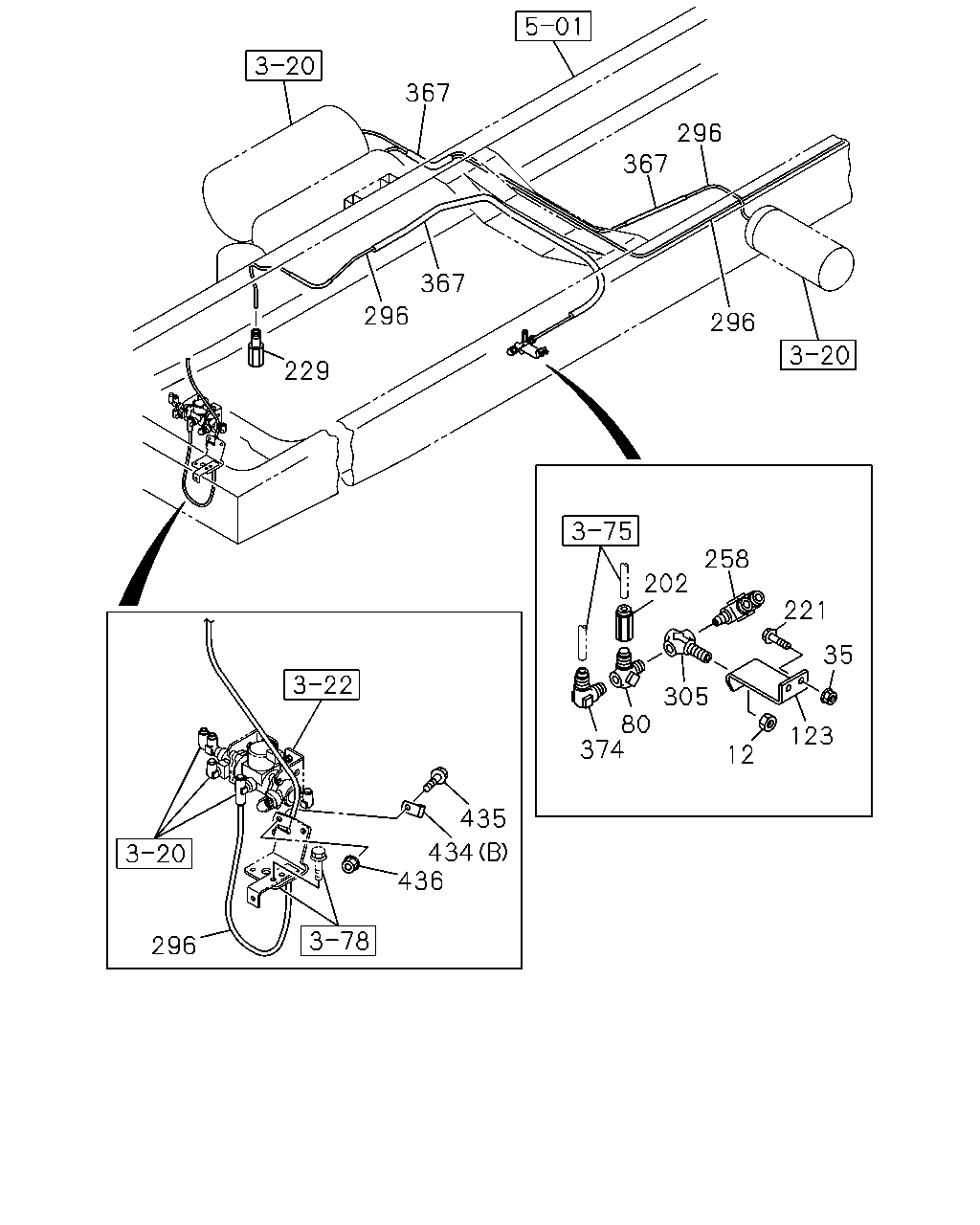

çizim 284139
367 296 367 367 296 296 229 258 202 221 35 305 80 374 123 12 435 434 436 296
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
M12 		0-91111-512-0 01 1 1206-
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1206-
80 UNION; 3 WAY
EXC. RIGID SEAT WO/ARM REST<TAZ> M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1206-
123 BRACKET; UNION 8-98118-545-0 01 1 1206-
202 ADAPTER
EXC. RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1206-
221 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1206-
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1206-
258 CONNECTOR; NYLON TUBE
DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1206-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1206-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1206-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1206-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1206-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1206-
305 UNION ASM; NYLON TUBE
M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1206-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1206-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1206-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1206-
374 CONNECTOR
DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1206-
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1206-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1206-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1206-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1206-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1206-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1206-
