Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11466 - FVZ(LHD)W/DOC EURO4
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#92077) — 43 parça
◀
[346A] THERMOSTAT,PISTON AND REPAIR KIT (12 parça)
[346A] FIXING (5 parça)
[346A] COMPONENT (26 parça)
▶
2
3
104
68
104
104
104
104
104
65
70
70
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-448-0
01
1
1206-1211
2
REPAIR KIT; AIR DRYER
8-98226-328-0
01
1
1212-
3
PISTON KIT; AIR DRYER
1-85576-383-0
01
1
1206-1211
3
PISTON KIT; AIR DRYER
8-98226-322-0
01
1
1212-
4
THERMOSTAT KIT; AIR DRYER
1-85576-444-0
01
1
1206-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1206-
68
BODY; VALVE
1-48199-515-0
01
1
1206-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1206-
104
GASKET
(A)
1-48199-495-0
01
1
1206-1211
104
GASKET
(A)
8-98226-321-0
01
1
1212-
104
GASKET
(B)
1-48199-496-0
02
1
1206-1211
104
GASKET
(B)
1-48199-496-0
01
1
1212-

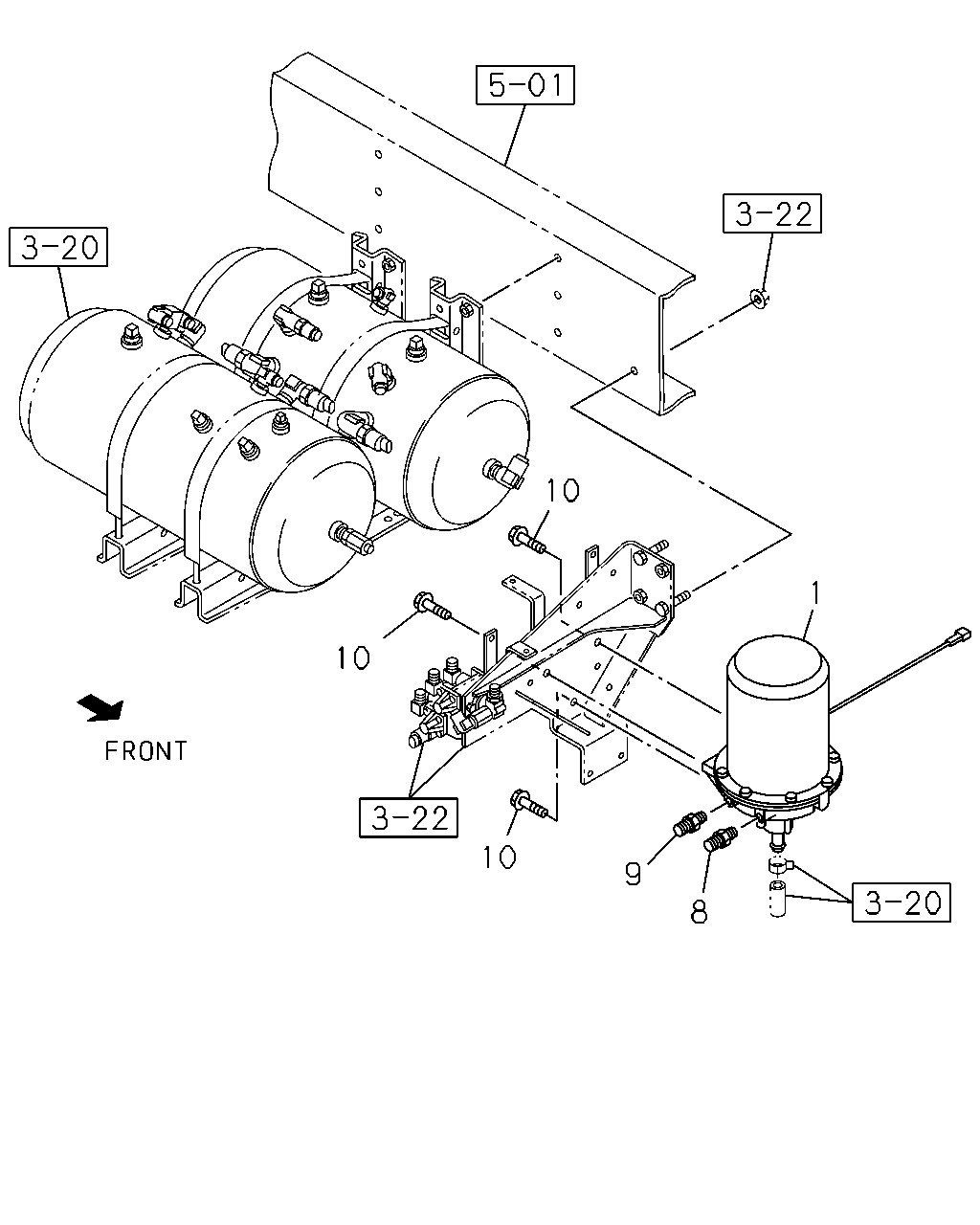

10
1
10
10
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-371-2
01
1
1206-1211
1
DRYER; AIR
8-98225-292-0
01
1
1212-
8
CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 STRAIGHT
1-09660-966-0
01
1
1206-
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 FLARE
0-92121-815-0
01
1
1206-
10
BOLT; AIR DRYER
M12X25 FLANGE
0-28051-225-0
03
1
1206-

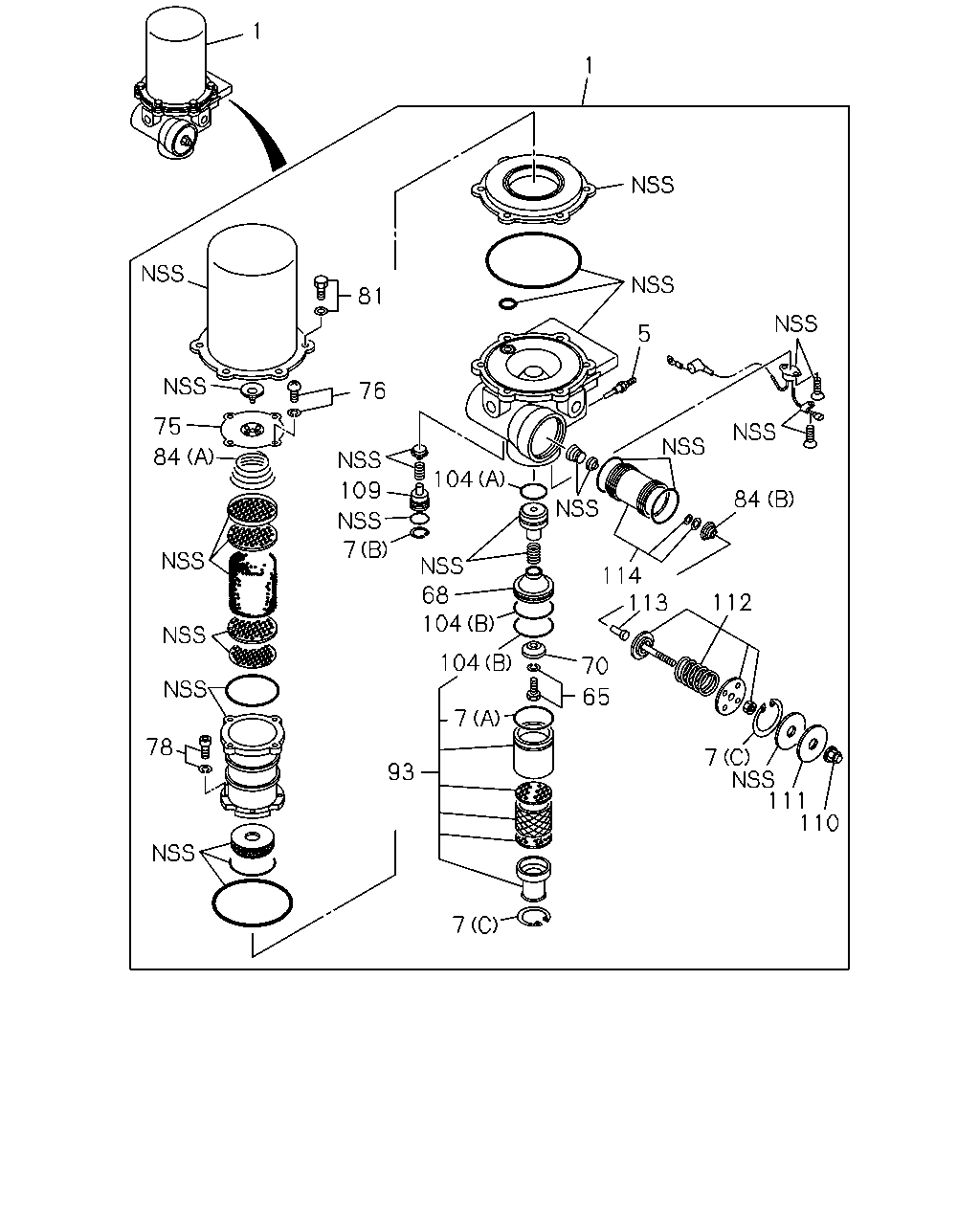

1
1
75
84
78
81
76
109
7
104
68
104
104
7
93
7
65
70
113
114
5
84
112
7
111
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-371-2
01
1
1206-1211
1
DRYER; AIR
8-98225-292-0
01
1
1212-
5
HEATER ASM; AIR DRYER
1-48199-530-0
01
1
1206-
7
RING; SNAP,AIR DRYER
(C)
1-48199-520-0
02
1
1206-
7
RING; SNAP,AIR DRYER
(B)
1-48199-529-0
01
1
1206-
7
RING; SNAP,AIR DRYER
(A)
1-48199-579-0
01
1
1206-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1206-
68
BODY; VALVE
1-48199-515-0
01
1
1206-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1206-
75
COVER; CASE,AIR DRYER
1-48199-562-0
01
1
1206-
76
BOLT; COVER,AIR DRYER
1-48199-561-0
06
1
1206-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-557-0
04
1
1206-
81
BOLT; CASE,AIR DRYER
1-48199-436-0
08
1
1206-
84
SPRING; AIR DRYER
(B)
1-48199-523-0
01
1
1206-
84
SPRING; AIR DRYER
(A)
1-48199-564-0
01
1
1206-
93
SILENCER; AIR DRYER
1-48199-619-0
01
1
1206-
104
GASKET
(A)
1-48199-495-0
01
1
1206-1211
104
GASKET
(A)
8-98226-321-0
01
1
1212-
104
GASKET
(B)
1-48199-496-0
02
1
1206-1211
104
GASKET
(B)
1-48199-496-0
01
1
1212-
109
STOPPER; CHECK VALVE
1-48199-539-0
01
1
1206-
110
NUT; CAP
1-48199-527-0
01
1
1206-
111
PLATE; GOVERNOR
1-48199-526-0
01
1
1206-
112
SCREW & SPRING ASM; AIR DRYER
1-48199-524-0
01
1
1206-
113
STEM; EXHAUST
1-48199-522-0
01
1
1206-
114
PISTON ASM; GOVERNOR
1-48199-521-0
01
1
1206-
