◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11466 - FVZ(LHD)W/DOC EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#92062) — 76 parça

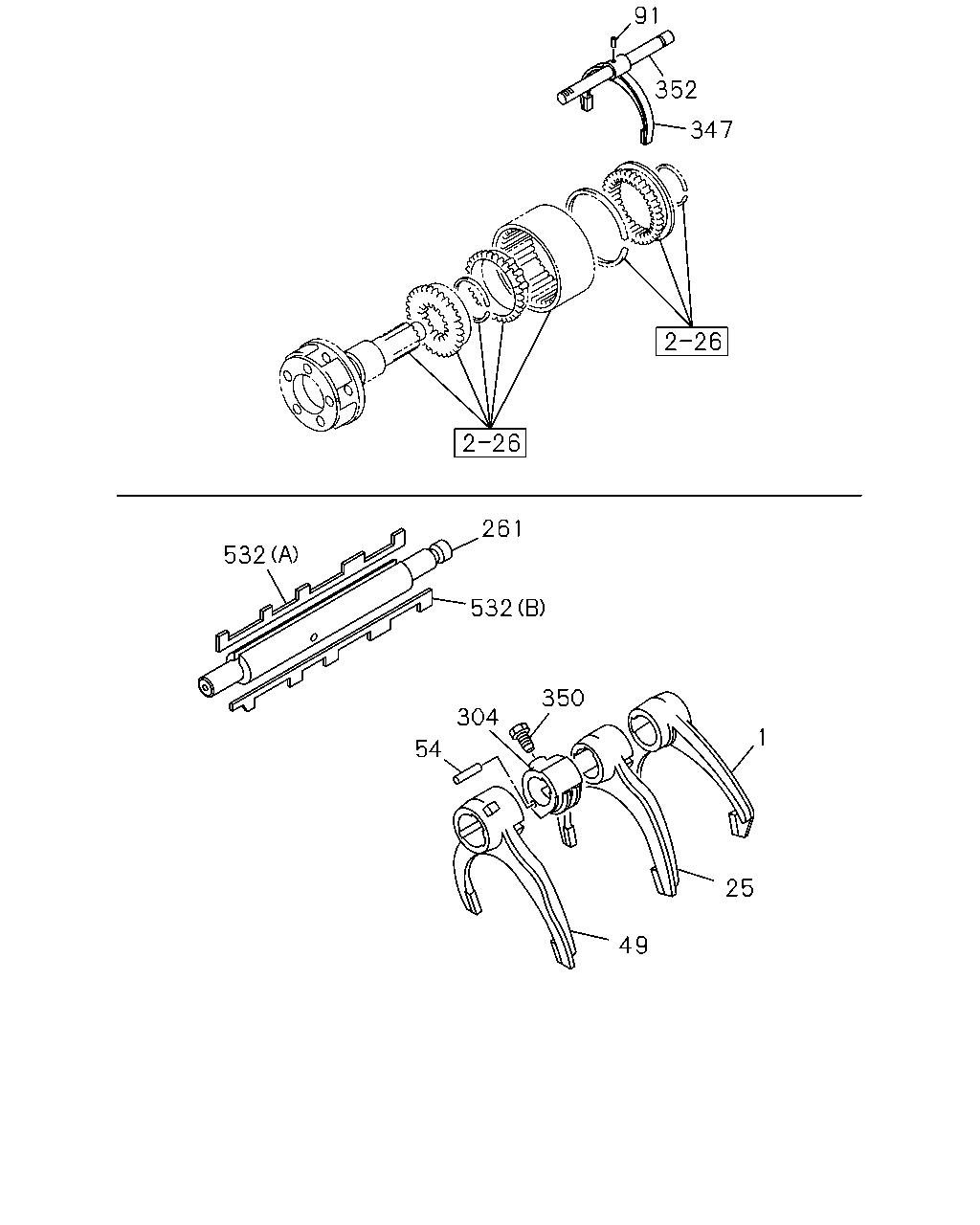

çizim 284084
91 352 347 261 532 532 350 304 1 54 25 49
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-629-0 01 1 1206-
25 ARM; SHIFT,2ND & 3RD 1-33511-630-0 01 1 1206-
49 ARM; SHIFT,4TH & 5TH 1-33511-665-0 01 1 1206-
54 PIN; SPR,SHIFT BLOCK 1-33519-101-0 01 1 1206-
91 PIN; SPR,SHIFT ARM 1-33519-192-0 01 1 1206-
261 ROD; GEAR CONT 1-33531-436-0 01 1 1206-
304 BLOCK; SHIFT SHAFT 1-33511-534-0 01 1 1206-
347 ARM; SHIFT,RANGE CHANGE 1-33511-533-0 01 1 1206-
350 SCREW; SHIFT ARM 1-33519-102-0 01 1 1206-
352 ROD; SHIFT,RANGE CHANGE 1-33531-435-0 01 1 1206-
532 PLATE; SHIFT FORK
(A) 		1-33539-054-0 01 1 1206-
532 PLATE; SHIFT FORK
(B) 		1-33539-055-0 01 1 1206-

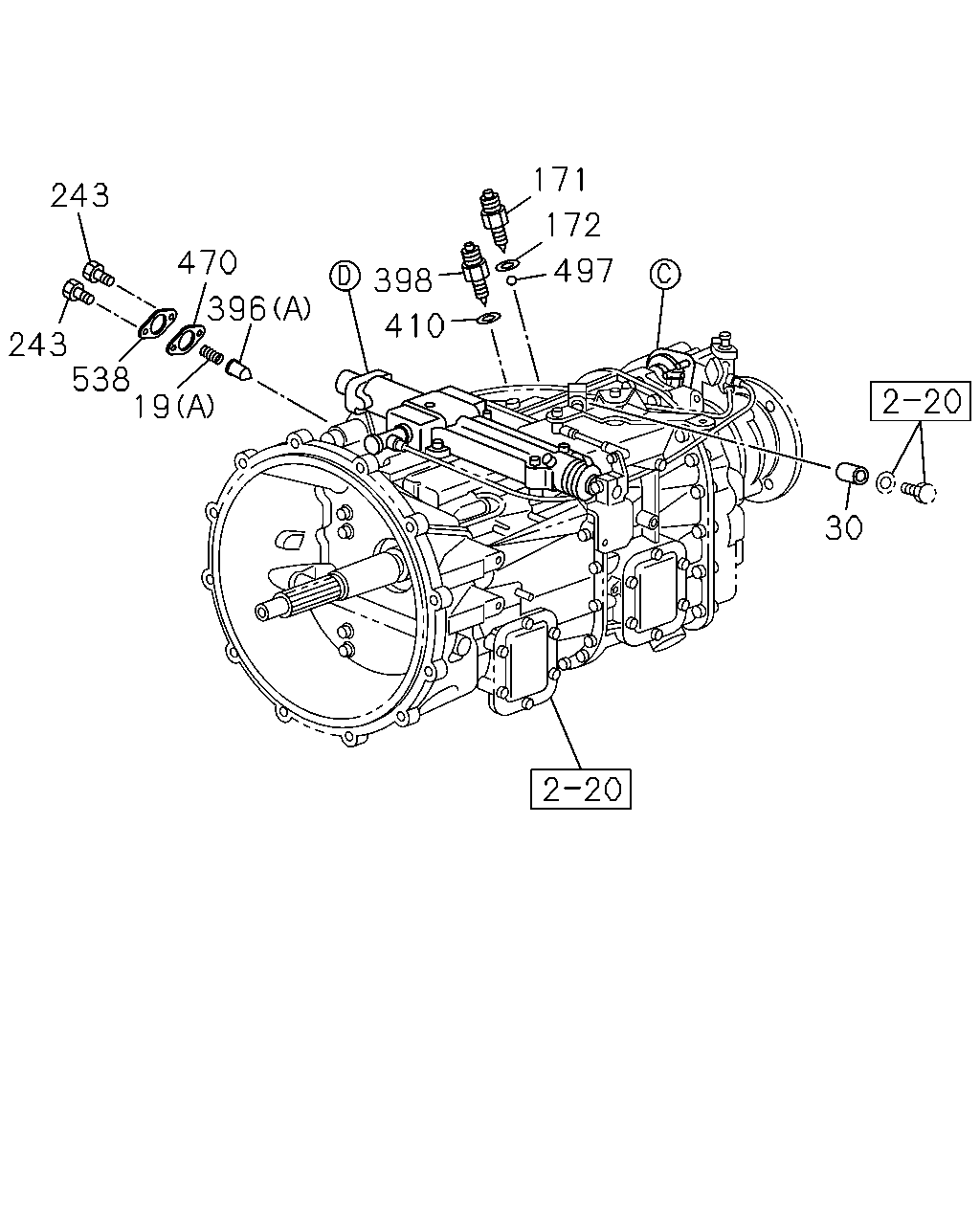

çizim 284085
171 243 172 470 497 398 396 410 243 538 19 30
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 1206-
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 1206-
30 PIN; INTER LK 1-33119-309-0 01 1 1206-
171 SWITCH; NEUTRAL 1-82440-120-0 01 1 1206-
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-601-0 01 1 1206-
243 BOLT; COVER 1-33549-482-0 04 1 1206-
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 1206-
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 1206-
398 SWITCH; REV LAMP 1-82440-128-0 02 1 1206-
410 GASKET; REV SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-601-0 02 1 1206-
470 GASKET; SPRING COVER 1-33119-321-0 02 1 1206-
497 BALL; SWITCH 1-33119-308-0 02 1 1206-
538 COVER; DETENT 1-33119-529-0 01 1 1206-

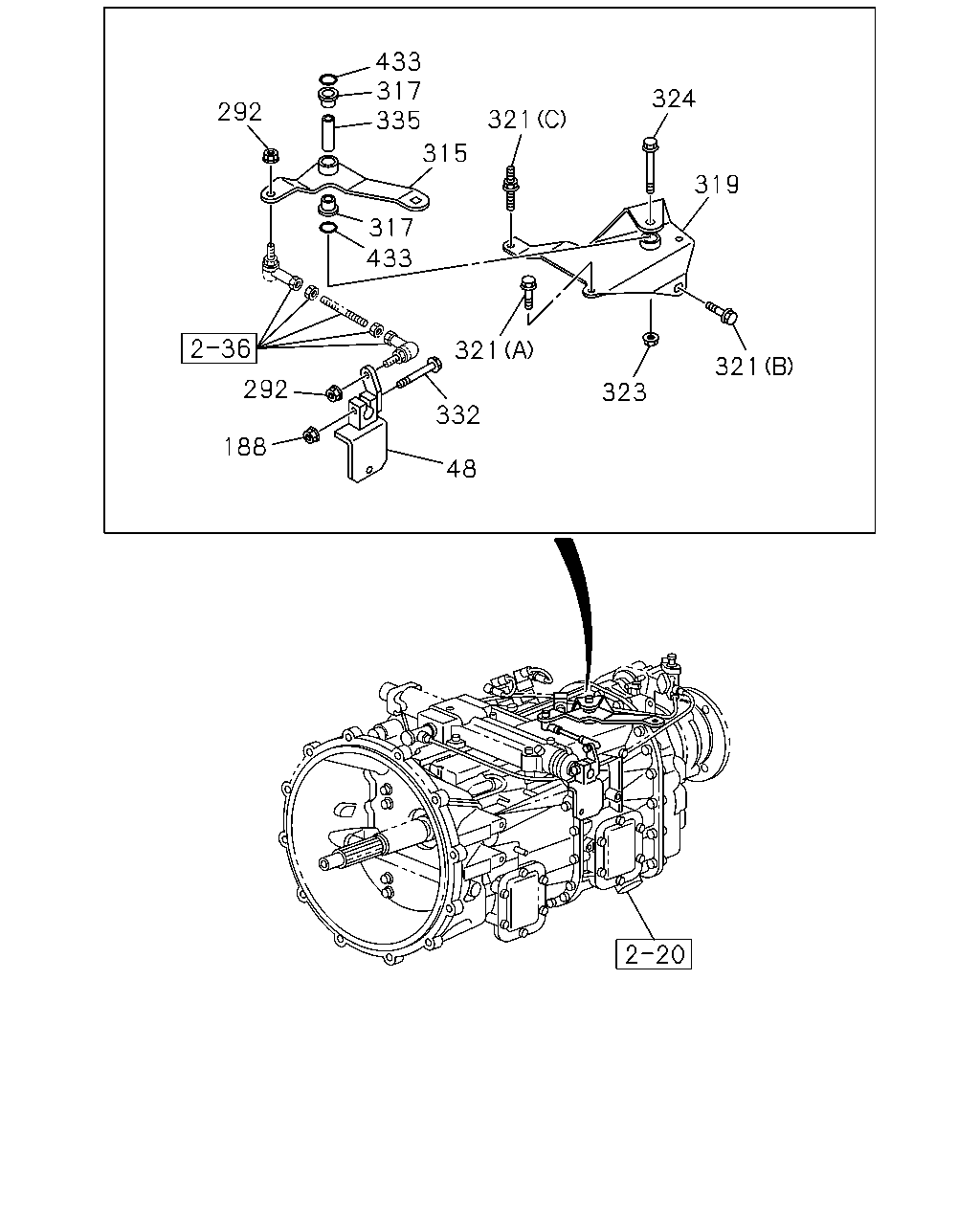

çizim 284087
433 317 335 324 292 321 315 319 317 433 321 321 292 323 332 188 48
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT 8-98031-634-0 01 1 1206-
188 NUT; SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1206-
292 NUT; LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 1206-
315 LEVER; SELECT 8-98032-139-0 01 1 1206-
317 BUSHING; LEVER 1-09330-119-0 02 1 1206-
319 BRACKET; SELECT LEVER 1-33657-816-0 01 1 1206-
321 BOLT; BRKT,RELAY LEVER
(A) M10X60 FLANGE 		0-28151-060-0 01 1 1206-
321 BOLT; BRKT,RELAY LEVER
(B) M10X25 FLANGE 		0-28751-025-0 01 1 1206-
321 BOLT; BRKT,RELAY LEVER
(C) M10X35 L=65 		8-97178-725-0 01 1 1206-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1206-
324 BOLT; SHAFT
M10X60 FLANGE 		0-28051-060-0 01 1 1206-
332 BOLT; 4TH,SHIFT LEVER 0-29261-060-0 01 1 1206-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-203-0 01 1 1206-
433 GASKET; BUSHING 1-09623-594-0 02 1 1206-

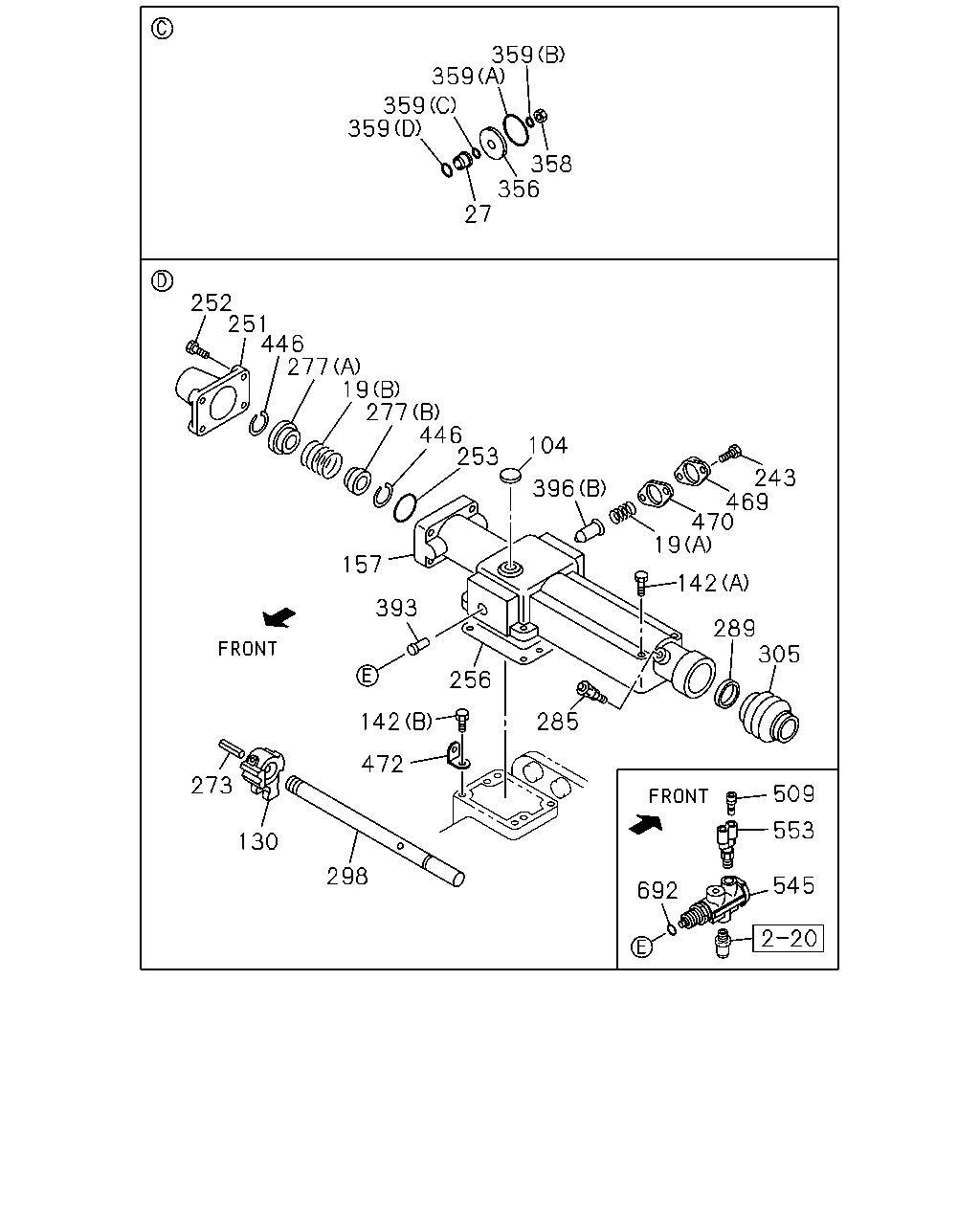

çizim 284397
359 359 359 359 358 356 27 252 251 446 277 19 277 446 253 104 243 469 470 19 396 157 142 393 289 305 256 142 285 472 273 509 553 130 298 545 692
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 1206-
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 1206-
27 BUSHING; SHIFT ROD 1-33569-042-0 01 1 1206-
104 PLUG; PLATE 1-33549-481-0 01 1 1206-
130 LEVER; SHIFT,INTERNAL 1-33521-181-0 01 1 1206-
142 BOLT; QUAD BOX
(B) M10X35 		1-33549-524-0 04 1 1206-
142 BOLT; QUAD BOX
(A) 		1-33549-580-0 02 1 1206-
157 BOX; QUAD,TRANS 1-33541-537-0 01 1 1206-
243 BOLT; COVER 1-33549-482-0 04 1 1206-
251 COVER; SIDE 1-33545-012-0 01 1 1206-
252 BOLT; SIDE COVER 1-33549-483-0 04 1 1206-
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-055-0 01 1 1206-
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-377-0 01 1 1206-
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 1206-
277 PLATE; SPRING SEAT
(A) 		1-33549-224-0 01 1 1206-
277 PLATE; SPRING SEAT
(B) 		1-33549-372-0 01 1 1206-
285 BREATHER; AIR,QUAD BOX 1-33549-354-0 01 1 1206-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-061-0 01 1 1206-
298 SHAFT; SHIFT LEVER 1-33522-209-0 01 1 1206-
305 BOOT; LEVER SHAFT 1-33549-233-0 01 1 1206-
356 PISTON; AIR CYL 1-33551-015-0 01 1 1206-
358 NUT; SHIFT ROD 1-33539-091-0 01 1 1206-
359 GASKET; AIR CYL
(D) 		1-33552-006-0 01 1 1206-
359 GASKET; AIR CYL
(B) 		1-33552-007-0 01 1 1206-
359 GASKET; AIR CYL
(A) 		1-33569-043-0 01 1 1206-
359 GASKET; AIR CYL
(C) 		1-33569-044-0 01 1 1206-
393 PIN; SW 1-33549-394-0 01 1 1206-
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 1206-
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 1206-
446 RING; SNAP,SPR SEAT 1-33549-223-0 02 1 1206-
469 COVER; SPRING,QUAD BOX 1-33119-529-0 01 1 1206-
470 GASKET; SPRING COVER 1-33119-321-0 02 1 1206-
472 EYE; LIFTING 1-33119-528-0 01 1 1206-
509 ADAPTER 1-33119-603-0 01 1 1206-
545 VALVE; POPPET 1-33549-383-0 01 1 1206-
553 ADAPTER; AIR 1-33119-602-0 01 1 1206-
692 GASKET; VALVE 1-33119-601-0 01 1 1206-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
