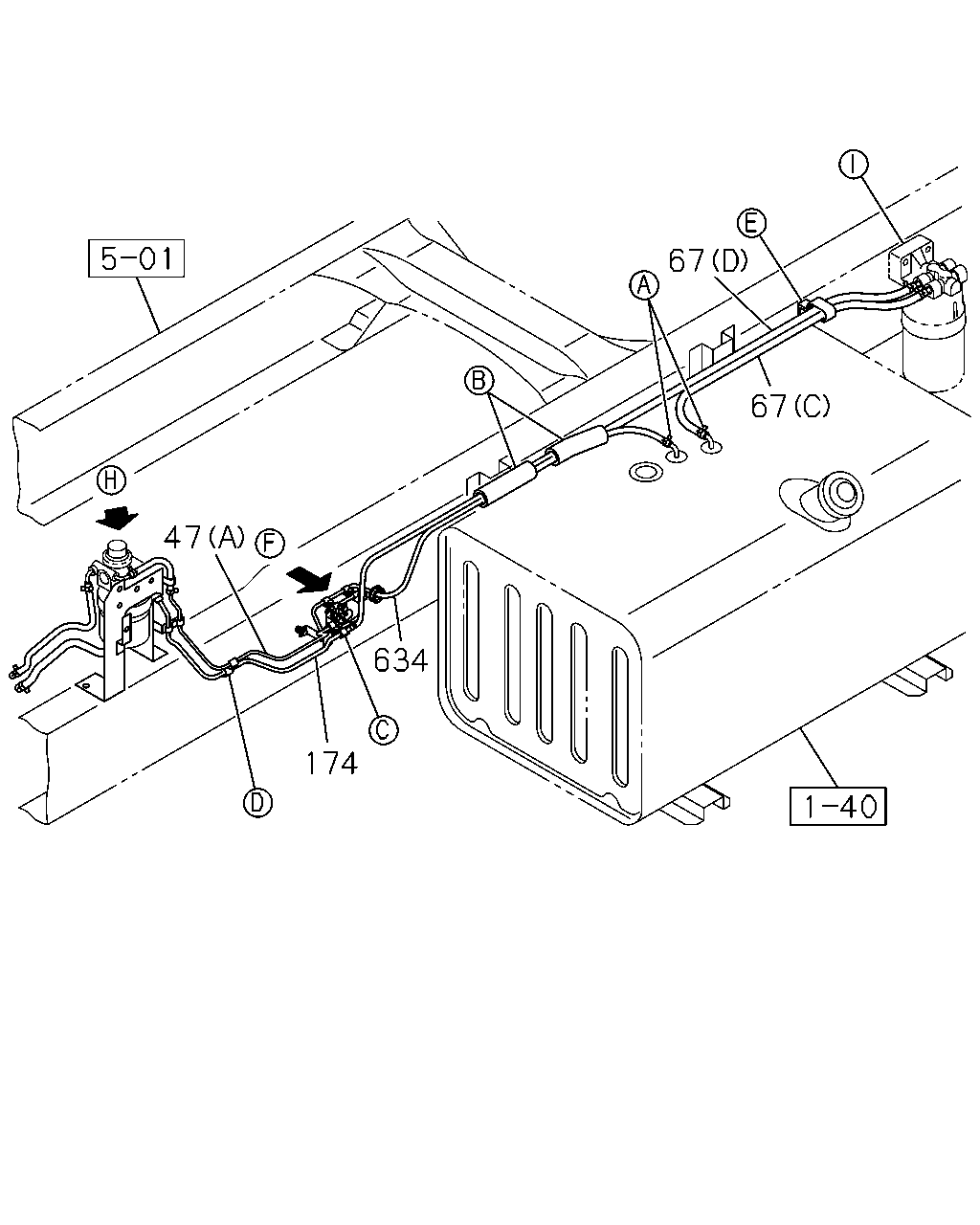

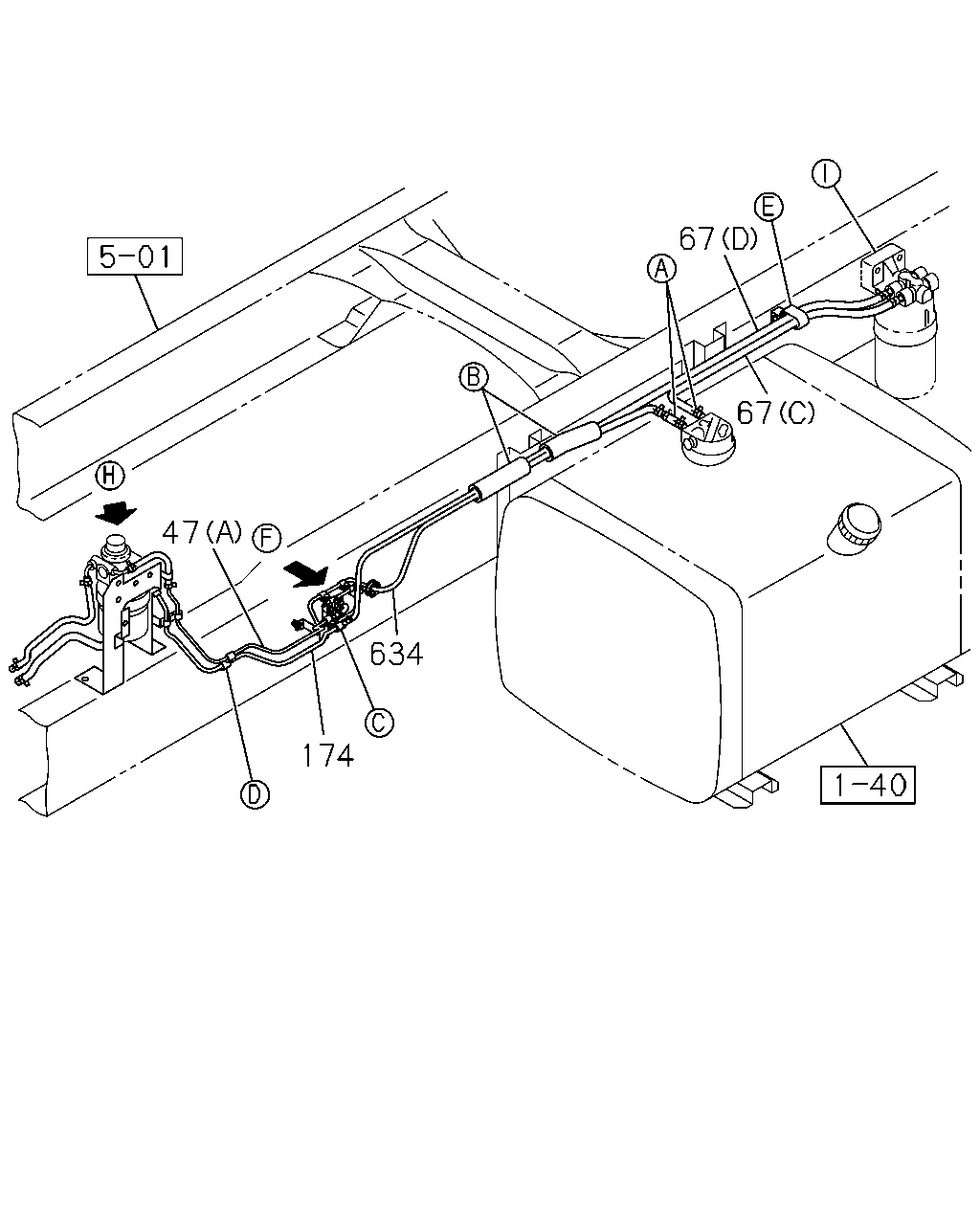

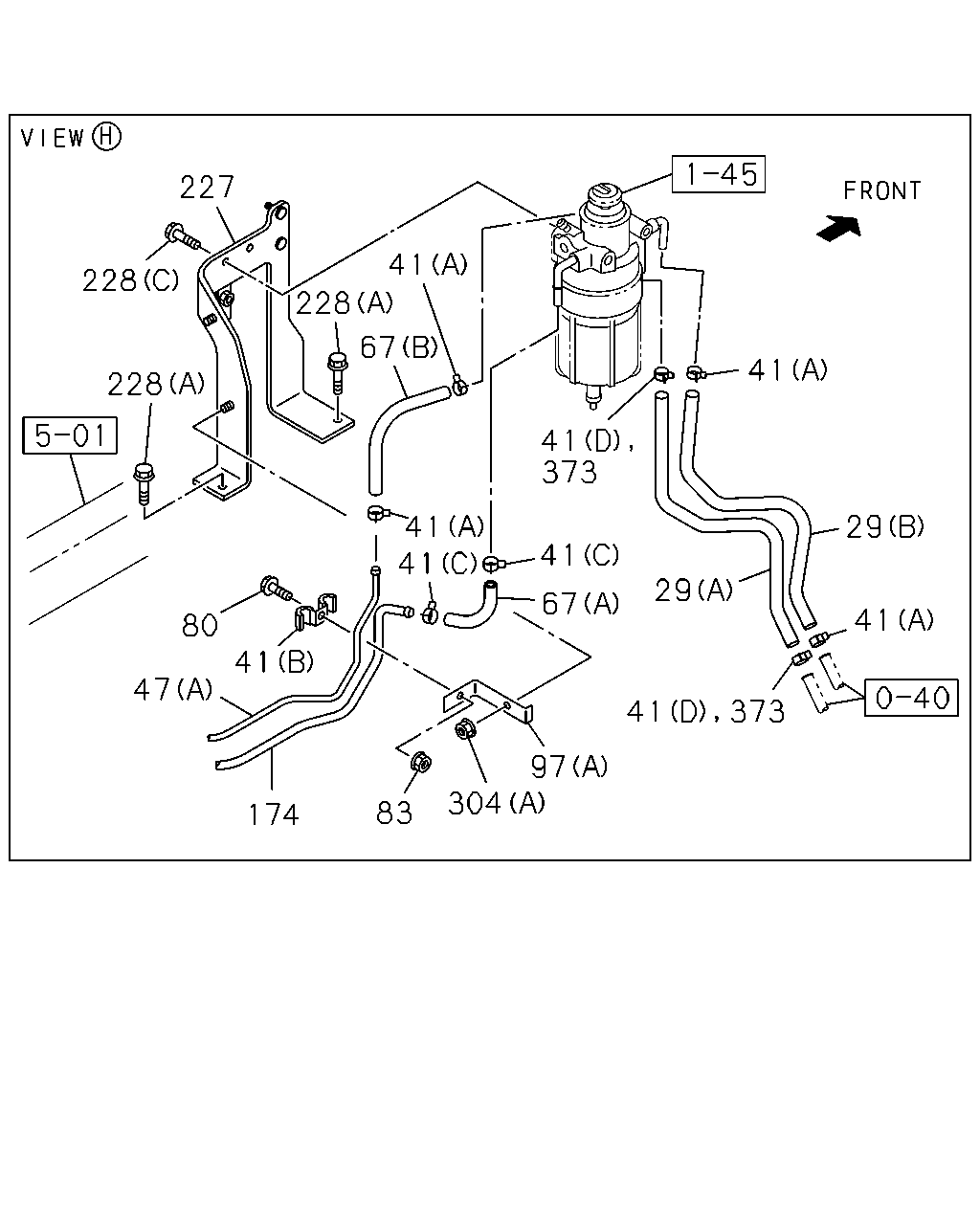

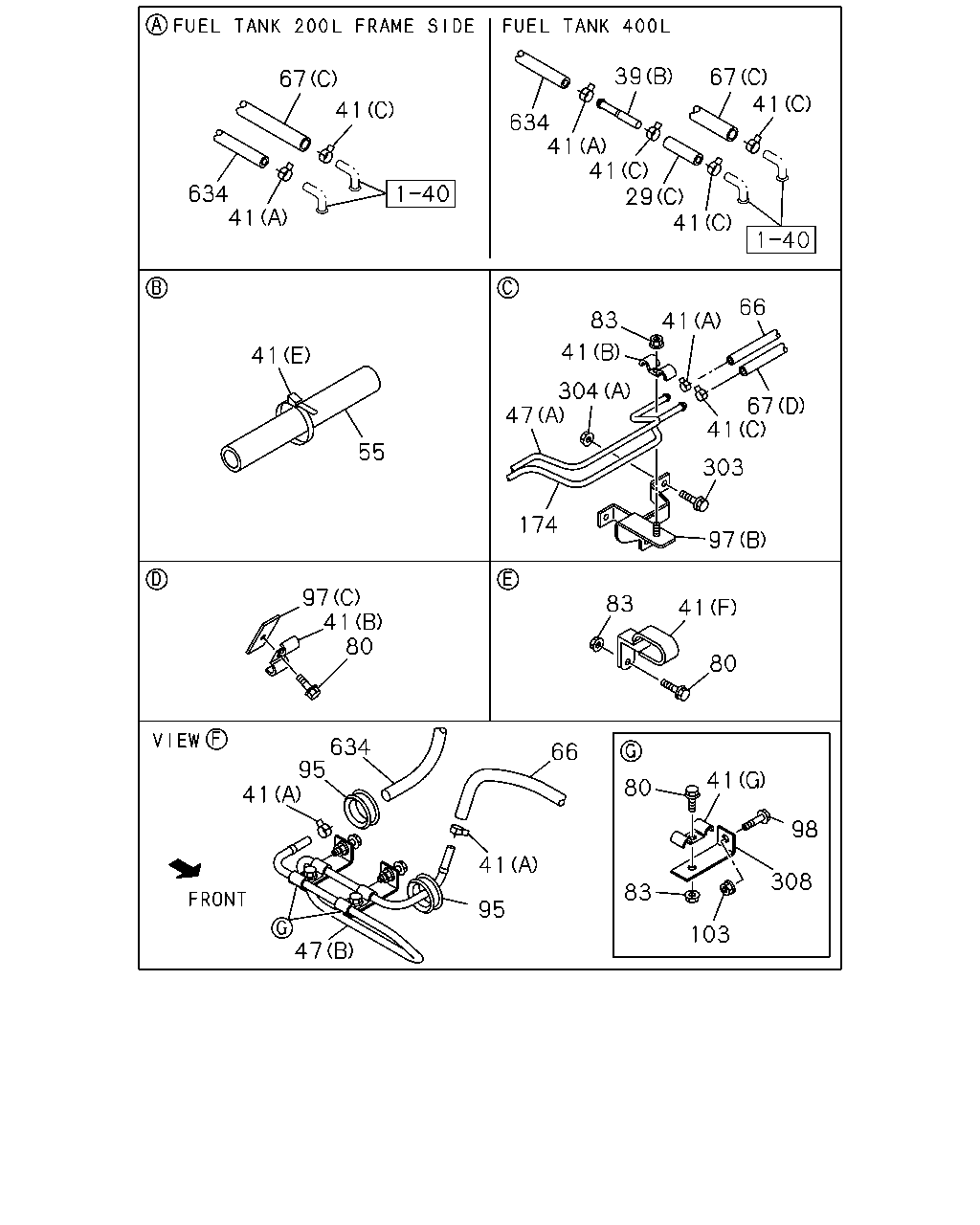

29 |
HOSE; FUEL
(A)
|
8-98078-196-2 |
01 |
1 |
1206-1212 |
| |
29 |
HOSE; FUEL
(A)
|
8-98156-579-0 |
01 |
1 |
1301- |
| |
29 |
HOSE; FUEL
(B)
|
8-98078-197-1 |
01 |
1 |
1206- |
| |
29 |
HOSE; FUEL
FUEL TANK 400L<SDH>
(C)
L=60
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
1206- |
| |
39 |
PIPE; FUEL
(A)
NPTF3/8-18 OD=10
|
8-98122-953-0 |
02 |
1 |
1206- |
| |
39 |
PIPE; FUEL
FUEL TANK 400L<SDH>
(B)
|
8-98009-438-1 |
01 |
1 |
1206- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(G)
ID=9 & 9 L=17 & 17
|
1-09700-651-0 |
02 |
1 |
1206- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
03 |
1 |
1206- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(F)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
01 |
1 |
1206-1212 |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(C)
ID=16
|
8-94238-568-0 |
06 |
1 |
1301- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(C)
ID=14
|
1-09704-102-0 |
06 |
1 |
1206-1212 |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(F)
ID=24 & 24 L=49
|
1-09701-018-0 |
01 |
1 |
1301- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(D)
ID=16
|
8-94238-568-0 |
02 |
1 |
1206- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=13
|
8-94238-571-0 |
08 |
1 |
1206- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(E)
L=250
|
5-09707-030-1 |
05 |
1 |
1206- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
FUEL TANK 400L<SDH>
(E)
L=250
|
5-09707-030-1 |
03 |
1 |
1206- |
| |
47 |
PIPE; FUEL,RETURN
(B)
L=787
|
8-98127-647-0 |
01 |
1 |
1206- |
| |
47 |
PIPE; FUEL,RETURN
(A)
L=688
|
8-98129-921-0 |
01 |
1 |
1206- |
| |
55 |
COVER; PIPE,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
1206-1212 |
| |
55 |
COVER; PIPE,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
1301- |
| |
55 |
COVER; PIPE,FUEL TANK
FUEL TANK 400L<SDH>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
03 |
1 |
1206-1212 |
| |
66 |
HOSE; FUEL,RETURN PIPE
L=180
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1206- |
| |
67 |
HOSE; FUEL,DELIVERY
(B)
L=210
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1206- |
| |
67 |
HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20>
(D)
L=1380
|
8-98186-528-0 |
01 |
1 |
1206-1212 |
| |
67 |
HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20>
(D)
L=1380
|
8-98232-240-0 |
01 |
1 |
1301- |
| |
67 |
HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20>
(C)
L=730
|
8-98205-834-0 |
01 |
1 |
1206-1212 |
| |
67 |
HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20>
(C)
L=730
|
8-98232-243-0 |
01 |
1 |
1301- |
| |
67 |
HOSE; FUEL,DELIVERY
FUEL TANK 400L<SDH>
(A)
L=920
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
1206-1212 |
| |
67 |
HOSE; FUEL,DELIVERY
FUEL TANK 400L<SDH>
(D)
L=1620
|
8-98232-241-0 |
01 |
1 |
1301- |
| |
67 |
HOSE; FUEL,DELIVERY
FUEL TANK 400L<SDH>
(A)
L=1600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
1206-1212 |
| |
67 |
HOSE; FUEL,DELIVERY
FUEL TANK 400L<SDH>
(C)
L=920
|
8-98232-244-0 |
01 |
1 |
1301- |
| |
67 |
HOSE; FUEL,DELIVERY
(A)
L=110
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
1206-1212 |
| |
67 |
HOSE; FUEL,DELIVERY
(A)
L=110
SERVICED BY L=3000
|
0-01859-300-0 |
01 |
1 |
1301- |
| |
80 |
BOLT; CLIP,FUEL TANK
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1206- |
| |
80 |
BOLT; CLIP,FUEL TANK
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1206- |
| |
80 |
BOLT; CLIP,FUEL TANK
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1206-1304 |
| |
80 |
BOLT; CLIP,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1305- |
| |
83 |
NUT; CLIP,FUEL TANK
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1206- |
| |
83 |
NUT; CLIP,FUEL TANK
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
1206- |
| |
83 |
NUT; CLIP,FUEL TANK
FUEL TANK 400L<SDH>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1206- |
| |
95 |
BUSHING; PIPE,FUEL TANK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
ID=28 OD=35 T=25
|
1-09332-011-1 |
02 |
1 |
1207- |
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17
|
9-09956-256-2 |
02 |
1 |
1206-1206 |
| |
95 |
BUSHING; PIPE,FUEL TANK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
ID=28 OD=35 T=17
|
9-09956-256-2 |
02 |
1 |
1207- |
| |
97 |
BRACKET; CLIP
(C)
L=50
|
1-47475-299-2 |
01 |
1 |
1206- |
| |
97 |
BRACKET; CLIP
(A)
|
8-98053-654-0 |
01 |
1 |
1206- |
| |
97 |
BRACKET; CLIP
(B)
|
8-98129-922-0 |
01 |
1 |
1206- |
| |
98 |
BOLT; BRKT,FUEL PIPE
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
1206- |
| |
103 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1206- |
| |
174 |
PIPE; FUEL,FEED,FRT
L=685
|
8-98129-920-0 |
01 |
1 |
1206- |
| |
303 |
BOLT; BRKT
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
1206- |
| |
304 |
NUT; BRKT
(A)
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
1206- |
| |
304 |
NUT; BRKT
(B)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1206- |
| |
308 |
BRACKET; FUEL PIPE
L=75
|
1-47478-323-0 |
02 |
1 |
1206- |
| |
634 |
HOSE; RUBBER RETURN
FUEL TANK 200L FRAME SIDE<N20>
|
8-98186-971-0 |
01 |
1 |
1206- |
| |
634 |
HOSE; RUBBER RETURN
FUEL TANK 400L<SDH>
L=900
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1206- |
