1-31 — AIR DUCT
(#92047) — 35 parça
◀

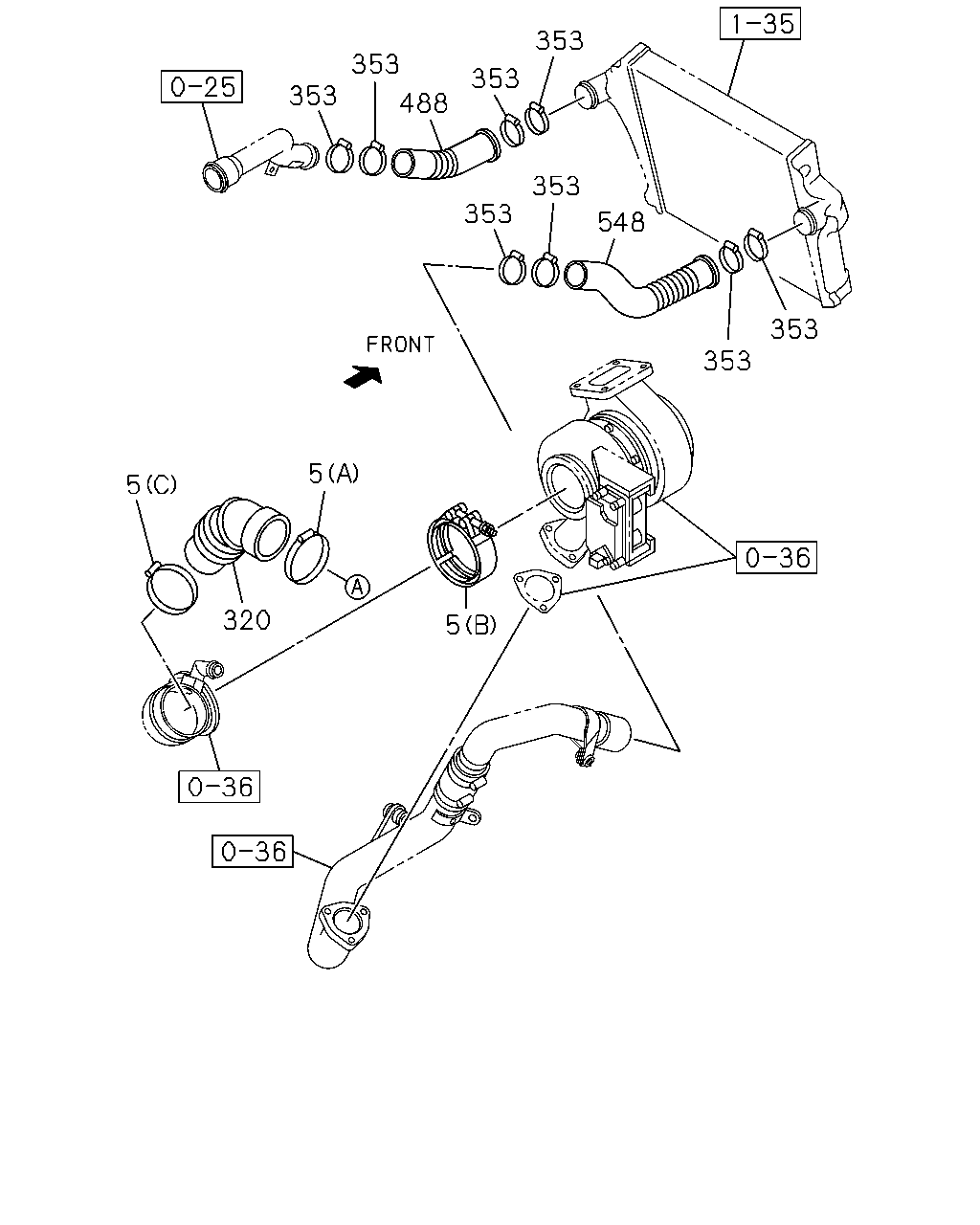

[131A] PIPING (7 parça)
[131A] DUCT FIXING (28 parça)
▶
353
353
353
353
488
353
353
548
353
353
5
5
320
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(B) ID=114
8-15178-030-0
01
1
1206-
5
CLIP; AIR DUCT
(A) ID=130-150
8-98133-360-0
01
1
1206-
5
CLIP; AIR DUCT
(C) ID=100-120
8-98133-366-0
01
1
1206-
320
HOSE; CONN,ACL
8-98021-990-2
01
1
1206-
353
CLIP; RUBBER HOSE
ID=55-75
8-98133-349-0
08
1
1206-
488
HOSE; RUBBER,PIPE
8-98012-936-1
01
1
1206-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98065-044-0
01
1
1206-
49
242
58
56
56
49
49
56
56
58
242
242
245
58
61
58
48
560
26
49
252
450
316
71
558
543
174
379
357
210
209
357
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1206-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
1206-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1206-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1206-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1206-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1206-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1206-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1206-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1206-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1206-
71
CLIP; AIR DUCT
ID=140-160
8-98133-368-0
01
1
1206-
174
SENSOR; AIR FLOW CONT
8-97601-967-0
01
1
1206-
209
BRACKET; ACL
8-98021-995-1
01
1
1206-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1206-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1206-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1206-
242
BRACKET; AIR DUCT
(A)
8-98019-304-1
01
1
1206-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1206-
252
DUCT; AIR INT
8-98021-989-1
01
1
1206-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1206-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1206-
357
CLIP; RUBBER HOSE
ID=26
1-09707-091-0
02
1
1206-
379
HOSE; RUBBER
8-98077-470-0
01
1
1206-
450
CLAMP; HOSE
9-09915-504-1
01
1
1206-
543
SCREW; SENSOR
M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1206-
558
CLIP; AIR FLOW SENSOR
L=600
1-09707-107-1
01
1
1206-
558
CLIP; AIR FLOW SENSOR
L=250
5-09707-030-1
02
1
1206-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1206-
