Isuzu WW
▶
TRUCKS
▶
FRR
▶
11440 - FRR-L SPACE EU4 DOC
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶
3-41 — REAR BRAKE POWER CHAMBER
(#92011) — 21 parça
◀

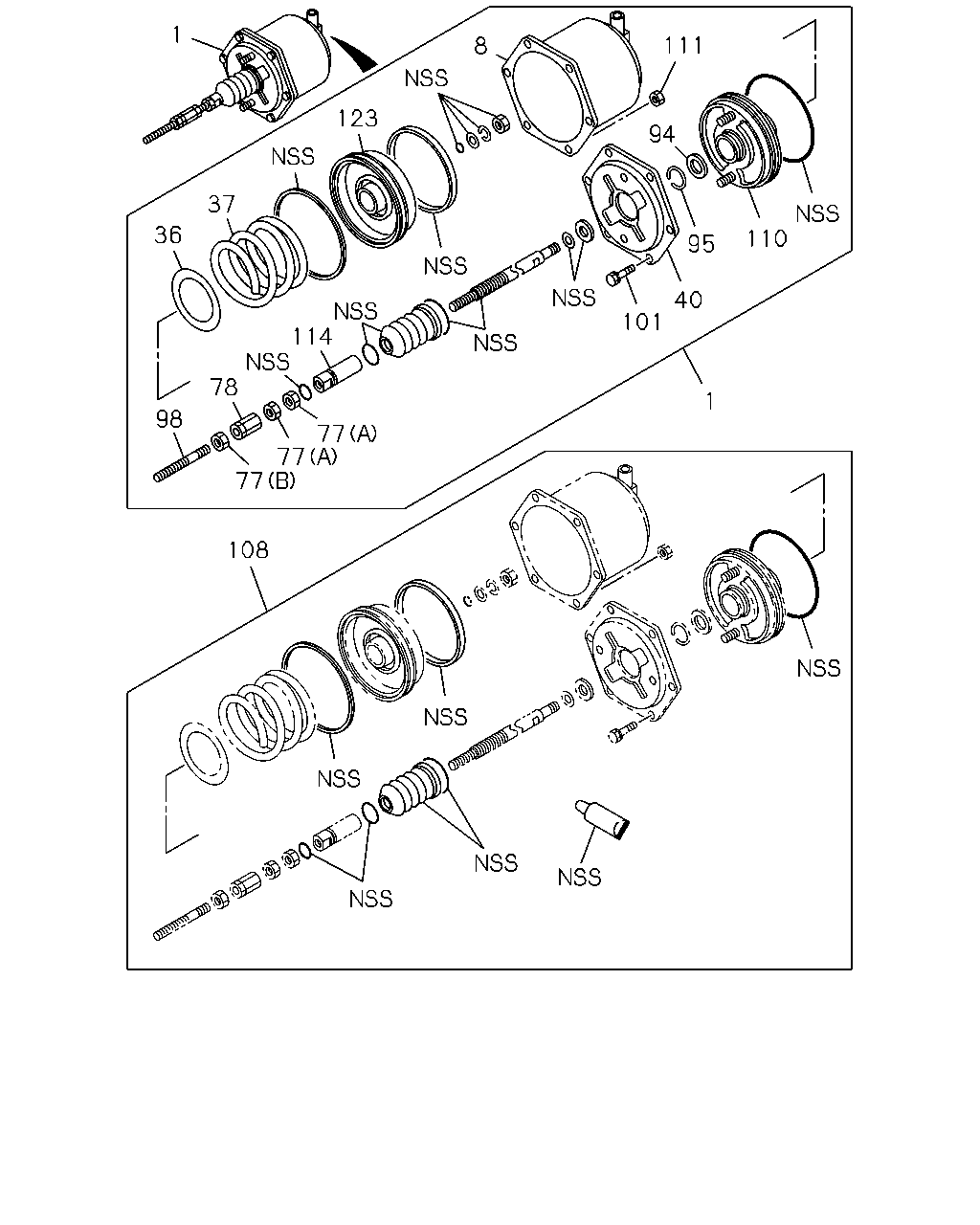

[341A] COMPONENT AND REPAIR KIT (18 parça)
[341A] FIXING (3 parça)
▶
1
111
8
123
94
37
110
36
95
40
114
78
101
1
98
77
77
77
108
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-920-1
01
1
1206-
1
CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-921-1
01
1
1206-
8
SHELL; CYL,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48251-190-1
02
1
1206-
36
RETAINER; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-099-0
02
1
1206-
37
SPRING; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48265-009-0
02
1
1206-
40
COVER ASM; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48266-013-1
02
1
1206-
77
NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
1-48269-105-0
04
1
1206-
77
NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
1-48269-114-0
02
1
1206-
78
TURNBACKLE; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-113-0
02
1
1206-
94
PLATE; RELEASE,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-097-1
02
1
1206-
95
RING; RELEASE,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-098-0
02
1
1206-
98
ROD; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48263-038-0
02
1
1206-
101
BOLT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-102-0
12
1
1206-
108
REPAIR KIT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) W/GREASE
1-85576-442-0
02
1
1206-
110
PLATE; MOUNTING,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48251-189-0
02
1
1206-
111
NUT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-101-0
12
1
1206-
114
HOLDER; ROD,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-250-0
02
1
1206-
123
PISTON ASM; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48262-024-2
02
1
1206-
1
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-920-1
01
1
1206-
1
CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-921-1
01
1
1206-
97
BRACKET; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48258-242-0
02
1
1206-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
