0-65 — STARTER (#9201) — 32 parça

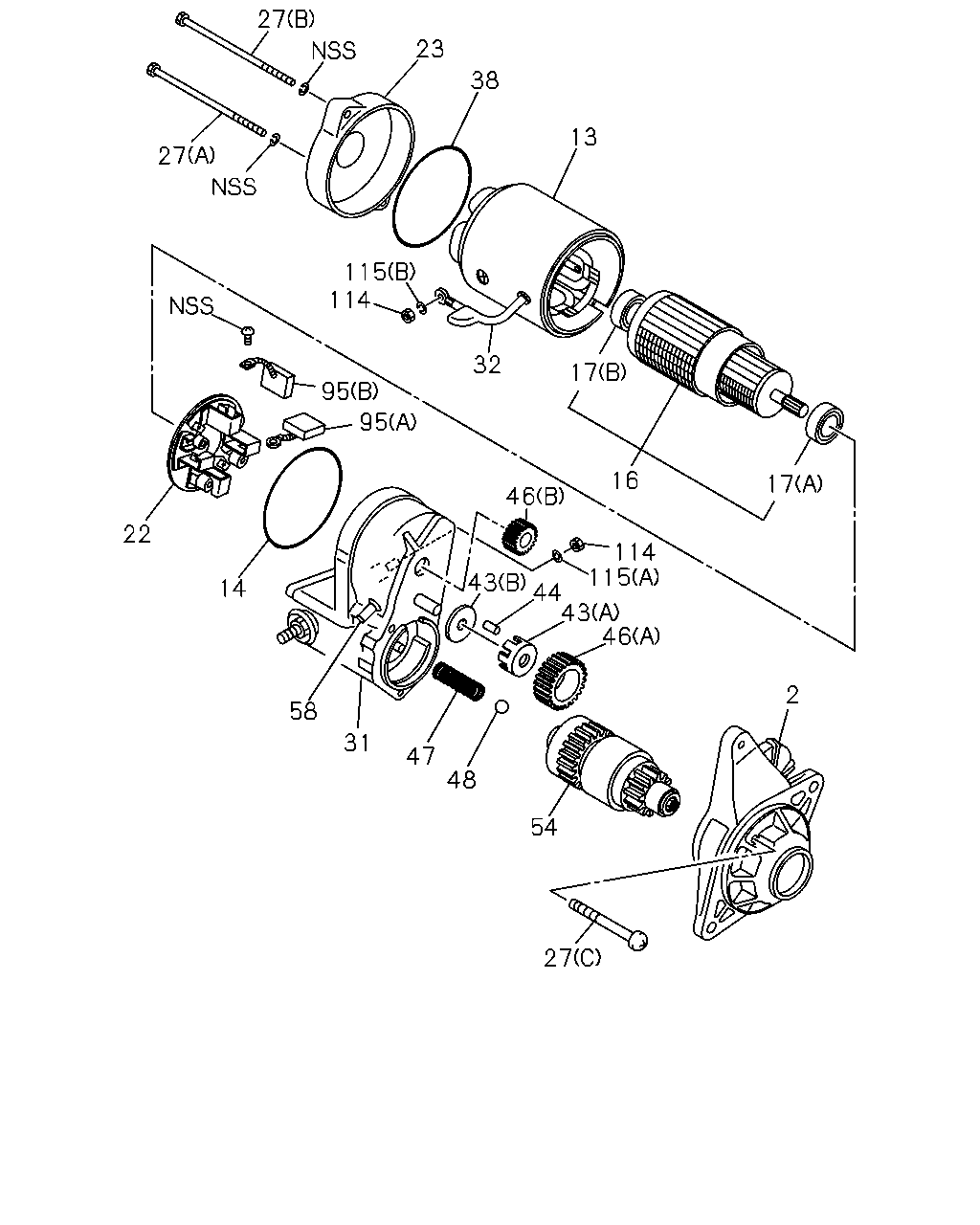

çizim 79128
27 23 38 13 27 115 114 32 17 95 95 16 17 46 22 114 115 43 44 43 46 14 2 58 31 47 48 54 27
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
ASM PART: A = 1-81100-230-2 		1-81114-033-0 01 1 -
2 CASE; PINION,STARTER
ASM PART: B = 1-81100-422-0 		1-81151-074-0 01 1 -
13 YOKE; STARTER
ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		1-81111-004-0 01 1 -
14 GASKET; YOKE,STARTER
ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		1-81129-502-0 01 1 -
16 ARMATURE; STARTER
ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		1-81121-044-0 01 1 -
17 BEARING; ARMATURE,STARTER
(A) ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		1-81129-495-0 01 1 -
17 BEARING; ARMATURE,STARTER
(B) ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		5-09800-081-0 01 1 -
22 HOLDER; BRUSH STARTER
ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		1-81118-043-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: A = 1-81100-230-2 		1-81129-520-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: B = 1-81100-422-0 		1-81129-923-0 01 1 -
27 BOLT; THROUGH,STARTER
(C) ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		1-81129-483-0 03 1 -
27 BOLT; THROUGH,STARTER
(A) ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		1-81129-675-0 01 1 -
27 BOLT; THROUGH,STARTER
(B) ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		1-81129-676-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: A = 1-81100-230-2 		1-81151-077-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: B = 1-81100-422-0 		1-81151-124-0 01 1 -
32 COVER; RUBBER,STARTER
ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		1-81129-504-0 01 1 -
38 GASKET; RR COVER,STARTER
ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		1-81129-502-0 01 1 -
43 RETAINER; PINION STARTER
(A) ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		5-81129-121-0 01 1 -
43 RETAINER; PINION STARTER
(B) ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		5-81129-127-0 01 1 -
44 ROLLER; PINION STARTER
ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		5-81129-120-0 05 1 -
46 GEAR; CLU STARTER
(B) ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		1-81123-034-0 01 1 -
46 GEAR; CLU STARTER
(A) ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		1-81123-035-0 01 1 -
47 SPRING; PINION STARTER
ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		5-81129-119-0 01 1 -
48 BALL; PINION,STARTER
ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		5-81129-092-0 01 1 -
54 CLUTCH; PINION,STARTER
ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		1-81122-049-0 01 1 -
58 PIPE; DRAIN RR COVER STARTER
ASM PART: A = 1-81100-230-2 		1-81129-479-0 01 1 -
58 PIPE; DRAIN RR COVER STARTER
ASM PART: B = 1-81100-422-0 		8-97184-640-0 01 1 -
95 BRUSH ASM; STARTER
(A) ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		1-81116-048-0 02 1 -
95 BRUSH ASM; STARTER
(B) ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		1-81116-049-0 02 1 -
114 NUT; TERMINAL
ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		5-81129-126-0 02 1 -
115 WASHER; TERMINAL
(A) ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		5-81129-129-0 01 1 -
115 WASHER; TERMINAL
(B) ASM PART: A = 1-81100-230-2, B = 1-81100-422-0 		5-81129-134-0 01 1 -
