Sayfa 2-20C - Isuzu EPC

2-20C — MANUAL TRANSMISSION ASM AND CASE (#92004) — 72 parça

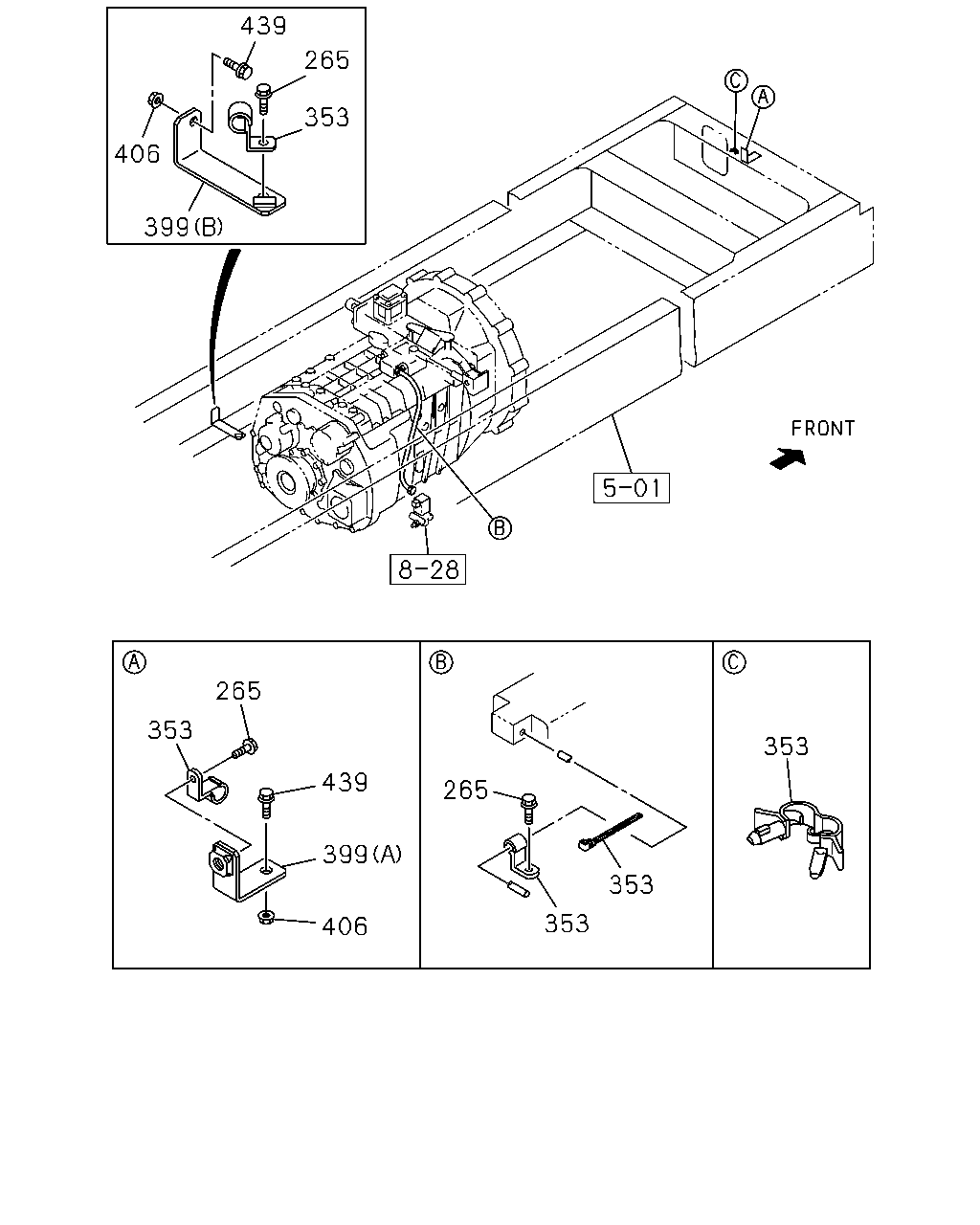

439 265 353 406 399 265 353 353 439 265 399 353 353 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1206-
353	CLIP; NYLON TUBE ID=11 L=20	0-95235-035-0	03	1	1206-
353	CLIP; NYLON TUBE ID=5-12 L=14.5	1-09987-221-0	01	1	1206-
353	CLIP; NYLON TUBE L=140	5-09707-031-1	01	1	1206-
399	BRACKET; CLIP (A)	8-98085-674-0	01	1	1206-
399	BRACKET; CLIP (B)	8-98205-634-0	01	1	1206-
406	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1206-
439	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1206-
439	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1206-

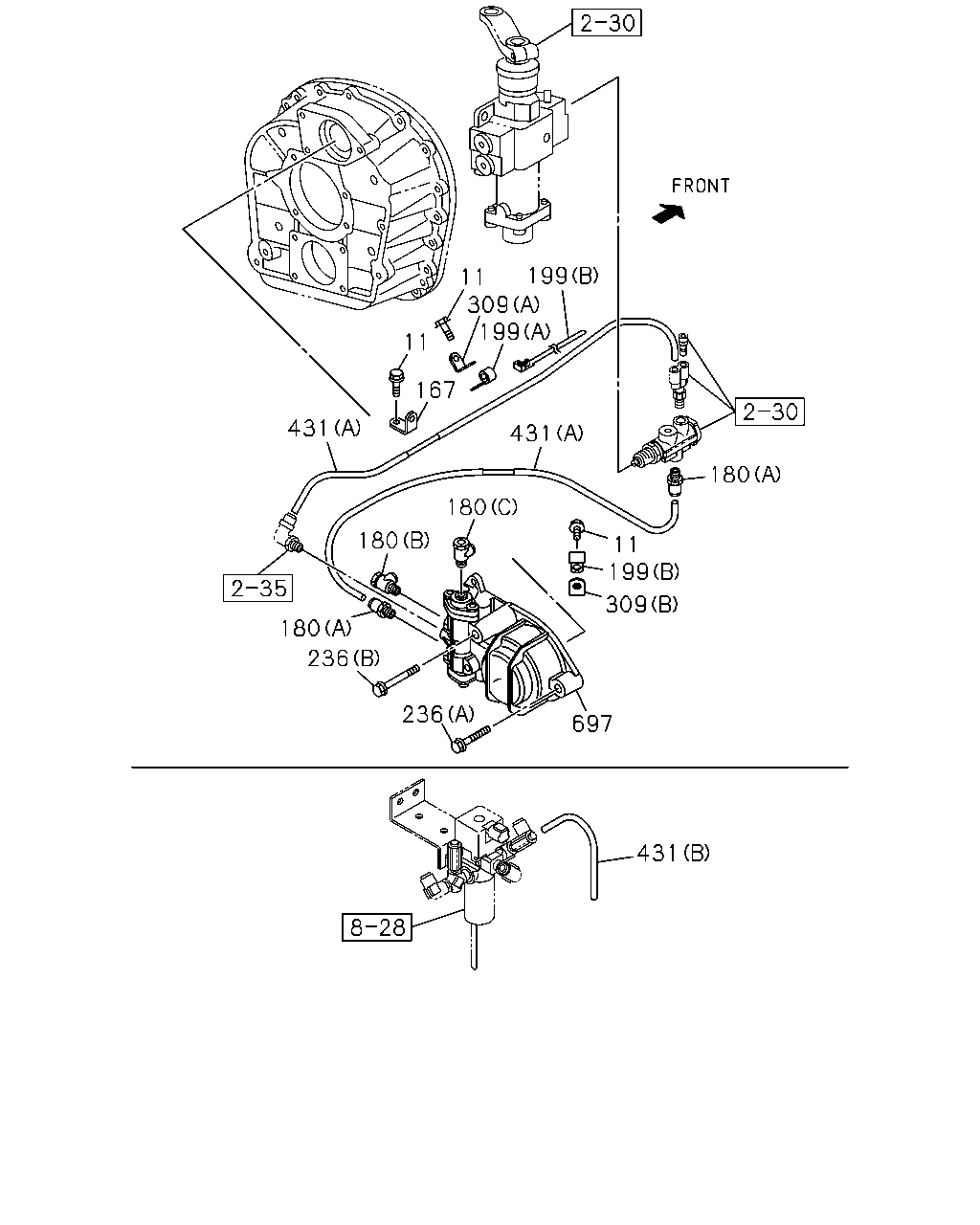

199 11 309 199 11 167 431 431 180 180 180 11 199 309 180 236 236 697 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT	1-33119-589-0	02	1	1206-
167	BRACKET; CLIP,AIR TUBE	1-33119-599-0	01	1	1206-
180	CONNECTOR; NYLON TUBE (A)	1-33119-461-0	02	1	1206-
180	CONNECTOR; NYLON TUBE (B)	1-33119-597-0	01	1	1206-
180	CONNECTOR; NYLON TUBE (C)	1-33119-598-0	01	1	1206-
199	CLIP; NYLON TUBE (A)	1-33119-475-0	01	1	1206-
199	CLIP; NYLON TUBE (B)	1-33119-542-0	01	1	1206-
236	BOLT; VALVE BRKT (A)	1-33119-549-0	02	1	1206-
236	BOLT; VALVE BRKT (B)	1-33119-550-0	01	1	1206-
309	EYE; LIFTING (B)	1-33119-526-0	01	1	1206-
309	EYE; LIFTING (A)	1-33119-528-0	01	1	1206-
431	TUBE; NYLON (B) L=380 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1206-
431	TUBE; NYLON (A)	1-33119-474-0	02	1	1206-
697	VALVE; AIR	1-33119-547-0	01	1	1206-

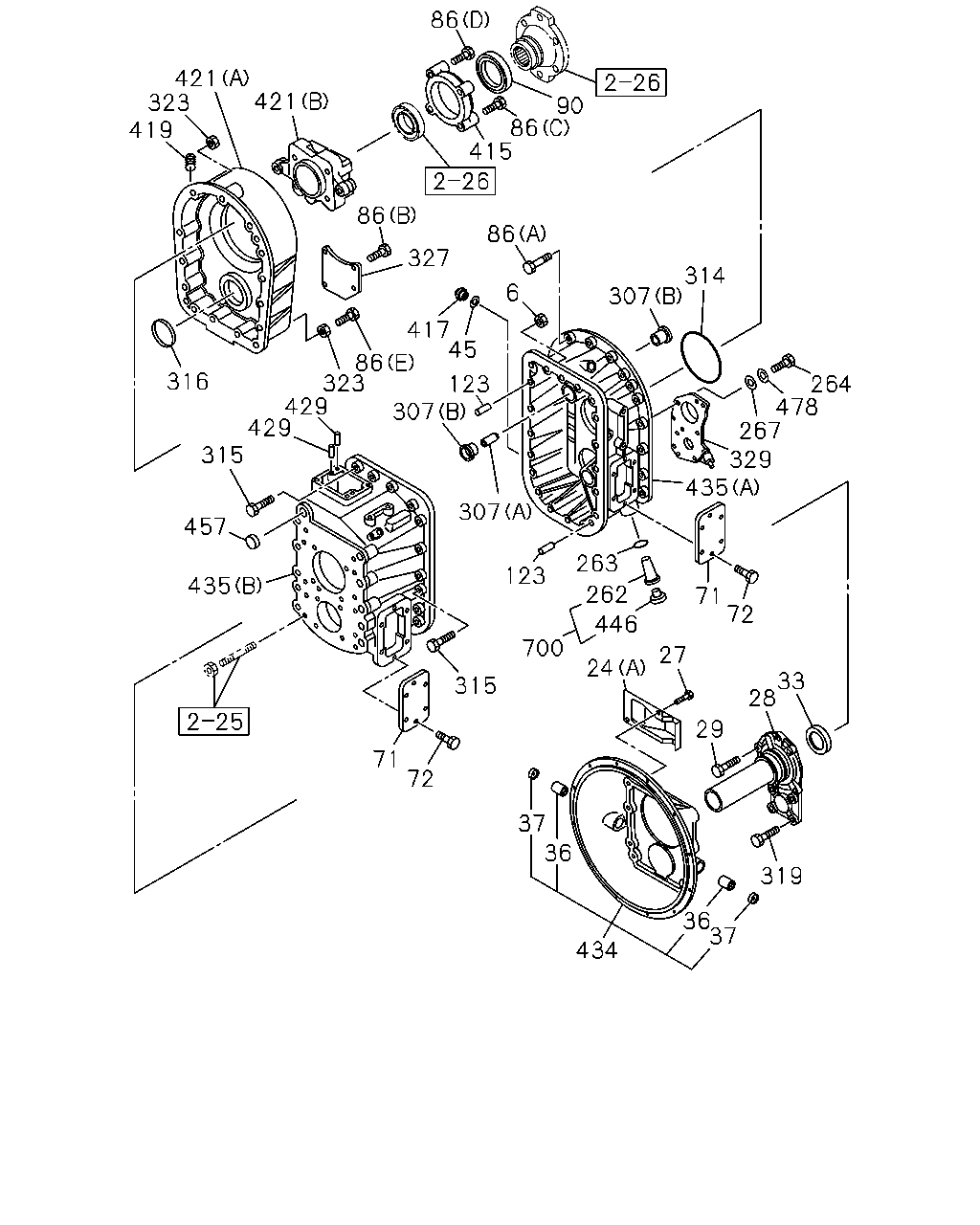

86 90 86 415 421 323 419 86 314 307 86 327 316 417 86 323 429 429 315 457 435 71 72 37 36 434 6 45 123 307 307 123 315 37 36 700 24 29 319 28 33 27 72 71 446 262 263 435 329 267 478 264 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	NUT; CASE,TRANS	1-33119-531-0	15	1	1206-
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	1206-1410
24	COVER; CHECK HOLE,DUST (A)	8-98284-107-0	01	1	1411-
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1206-1410
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-
28	COVER; FRT,TRANS CASE	1-33121-144-0	01	1	1206-
29	BOLT; FRT COVER	1-33129-016-0	05	1	1206-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-194-0	01	1	1206-
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	1206-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1206-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-459-0	01	1	1206-
71	COVER; SIDE,TRANS CASE	1-33141-074-0	02	1	1206-
72	BOLT; SIDE COVER	1-33119-589-0	12	1	1206-
86	BOLT; RR COVER (A) M10X58	1-33119-532-0	16	1	1206-
86	BOLT; RR COVER (E)	1-33119-614-0	01	1	1206-
86	BOLT; RR COVER (C)	1-33159-071-0	04	1	1206-
86	BOLT; RR COVER (B)	1-33159-072-0	03	1	1206-
86	BOLT; RR COVER (D)	1-33159-073-0	01	1	1206-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33159-046-0	01	1	1206-
123	DOWEL; TRANS CASE	1-33119-305-0	04	1	1206-
262	STRAINER; OIL PUMP	1-33119-608-0	01	1	1206-
263	GASKET; STRAINER ALSO INCLUDED IN GASKET SET(M/T).	1-33119-428-0	01	1	1206-
264	BOLT; OIL PUMP	1-34159-120-0	08	1	1206-
267	WASHER; PL	1-33119-524-0	08	1	1206-
307	BUSHING; SHIFT FORK SHAFT (A)	1-33119-303-0	01	1	1206-
307	BUSHING; SHIFT FORK SHAFT (B)	1-33119-525-0	02	1	1206-
314	GASKET; CASE	1-33119-606-0	01	1	1206-
315	BOLT; CASE M10X58	1-33119-532-0	13	1	1206-
315	BOLT; CASE M10X40	1-33119-533-0	04	1	1206-
315	BOLT; CASE M10X58 FLANGE	1-33119-595-0	01	1	1206-
316	MAGNET; TRANS CASE	1-87060-696-0	01	1	1206-
319	BOLT; COVER	1-33159-071-0	04	1	1206-
323	NUT; RR COVER	1-33119-531-0	17	1	1206-
327	COVER; RR,COUNTER	1-33139-213-0	01	1	1206-
329	PUMP ASM; OIL	1-34150-122-0	01	1	1206-
415	COVER; BRG	1-33153-002-0	01	1	1206-
417	PLUG; OIL FILLER,TRANS	1-33119-577-0	01	1	1206-
419	PLUG; RR COVER	1-33119-615-0	01	1	1206-
421	COVER; RR,TRANS (A)	1-33131-264-0	01	1	1206-
421	COVER; RR,TRANS (B)	1-33159-069-0	01	1	1206-
429	PIN; STRAIGHT	1-33119-311-0	02	1	1206-
434	HOUSING; CLU	1-31110-188-2	01	1	1206-
435	CASE; TRANS (A)	1-33111-320-0	01	1	1206-
435	CASE; TRANS (B)	1-33111-363-0	01	1	1206-
446	PLUG; CASE,TRANS	1-33119-546-0	01	1	1206-
457	CUP; SEALING,CASE	1-33119-534-0	01	1	1206-
478	WASHER; LK,OIL PUMP	1-34159-121-0	08	1	1206-
700	STRAINER ASM	1-33119-540-0	01	1	1206-

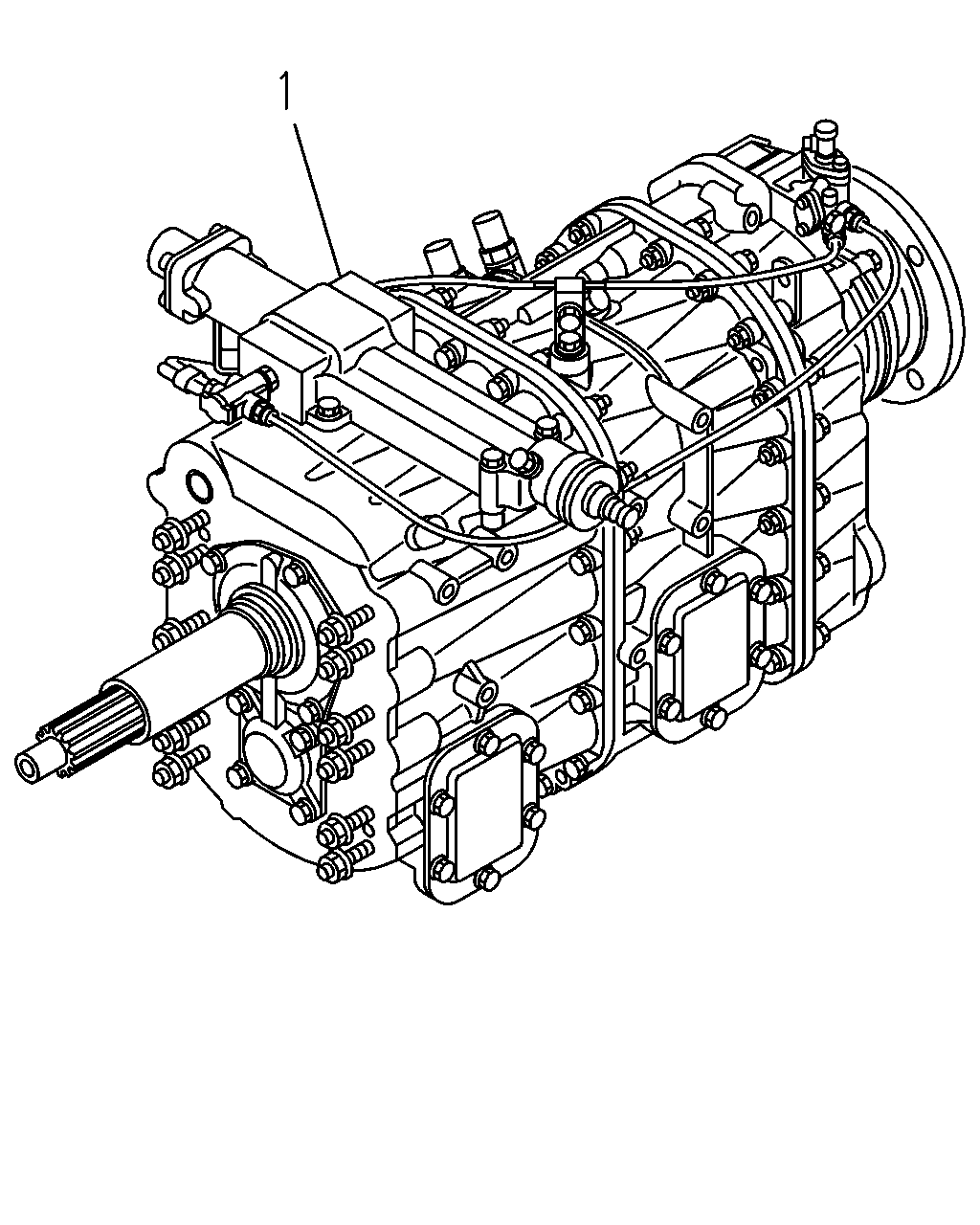

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	TRANSMISSION ASM; MANUAL	8-98190-805-0	01	1	1206-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
