1 |

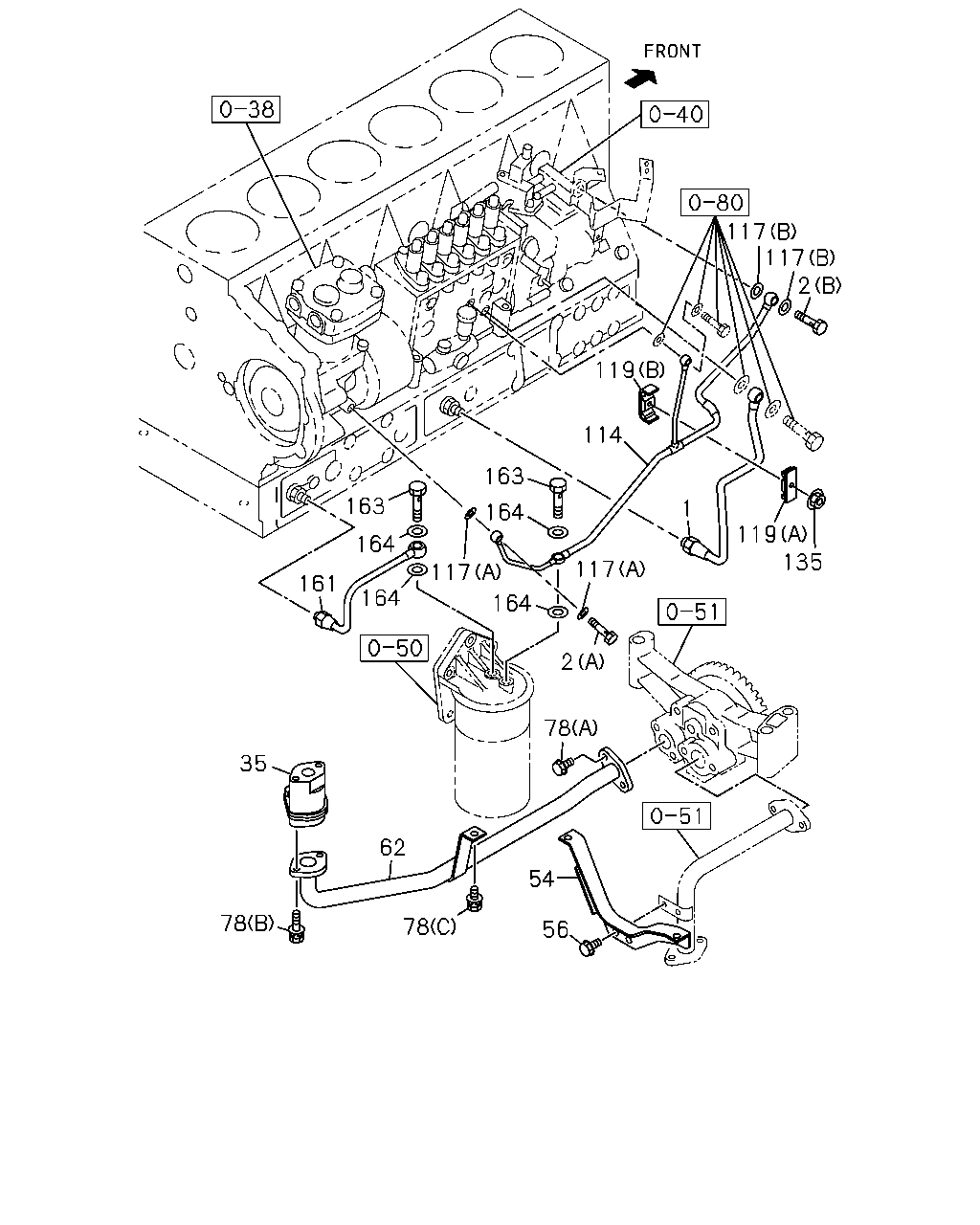

PIPE; OIL,INJ PUMP TO C/BL
|
1-13313-351-0 |
01 |
1 |
0006- |
| |
2 |
BOLT; EYE,OIL PIPE
(A)
M10X21 FLANGE
|
1-09675-077-0 |
01 |
1 |
0006-0805 |
| |
2 |
BOLT; EYE,OIL PIPE
(A)
M10X21 FLANGE
|
8-97372-238-0 |
01 |
1 |
0806- |
| |
2 |
BOLT; EYE,OIL PIPE
(B)
M12X27 FLANGE
|
1-09675-160-0 |
01 |
1 |
0006-0805 |
| |
2 |
BOLT; EYE,OIL PIPE
(B)
M12X27 EYE-BOLT W/FLANGE
|
8-98037-826-0 |
01 |
1 |
0806- |
| |
35 |
VALVE ASM; DRAIN BACK
|
1-13260-086-0 |
01 |
1 |
0006- |
| |
54 |
STAY; OIL STRAINER
|
1-13345-130-1 |
01 |
1 |
0006- |
| |
56 |
BOLT; STAY TO BRKT
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0006-0512 |
| |
56 |
BOLT; STAY TO BRKT
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0601- |
| |
62 |
PIPE; OIL,PUMP TO C/BL
|
1-13313-274-0 |
01 |
1 |
0006- |
| |
78 |
BOLT; OIL PIPE,PUMP TO BODY
(A)
M8X18 FLANGE
|
0-28080-818-0 |
02 |
1 |
0006- |
| |
78 |
BOLT; OIL PIPE,PUMP TO BODY
(B)
M8X100 W/LK&PL WASHER
|
0-50140-800-0 |
02 |
1 |
0006-0906 |
| |
78 |
BOLT; OIL PIPE,PUMP TO BODY
(B)
M8X100 W/LK&PL WASHER
|
0-50640-800-0 |
02 |
1 |
0907- |
| |
78 |
BOLT; OIL PIPE,PUMP TO BODY
(C)
M8X16 W/LK&PL WASHER
|
0-50140-816-0 |
01 |
1 |
0006-0512 |
| |
78 |
BOLT; OIL PIPE,PUMP TO BODY
(C)
M8X16 W/LK&PL WASHER
|
0-50640-816-0 |
01 |
1 |
0601- |
| |
114 |
PIPE ASM; OIL,BODY
|
1-13313-541-1 |
01 |
1 |
0006- |
| |
117 |
GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=10.2 OD=15.2
|
1-09630-083-0 |
02 |
1 |
0006- |
| |
117 |
GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(B)
ID=12.2
|
1-09630-084-0 |
02 |
1 |
0006-1312 |
| |
117 |
GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(B)
ID=12.2
|
8-98251-344-0 |
02 |
1 |
1401- |
| |
119 |
CLIP; OIL PIPE,BODY TO CMPR
(A)
ID=9 & 9 L=25
|
1-09701-180-0 |
01 |
1 |
0006- |
| |
119 |
CLIP; OIL PIPE,BODY TO CMPR
(B)
ID=9 & 9 L=25
|
8-94393-280-3 |
01 |
1 |
0006- |
| |
135 |
NUT; CLIP
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0006-0602 |
| |
135 |
NUT; CLIP
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
0603- |
| |
161 |
PIPE; OIL,PARTIAL FILTER RETURN
|
1-13313-352-0 |
01 |
1 |
0006- |
| |
163 |
BOLT; EYE,OIL PIPE,PARTIAL FILTER
M14X27 FLANGE
|
1-09675-086-0 |
02 |
1 |
0006- |
| |
164 |
GASKET; EYE BOLT,OIL PIPE,FILTER
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=14.2 OD=19.2
|
1-09630-085-0 |
04 |
1 |
0006-1312 |
| |
164 |
GASKET; EYE BOLT,OIL PIPE,FILTER
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=14.2 OD=19.2
|
8-98251-345-0 |
04 |
1 |
1401- |
