Isuzu WW
▶
TRUCKS
▶
FVM
▶
10834 - FVM/FVZ-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

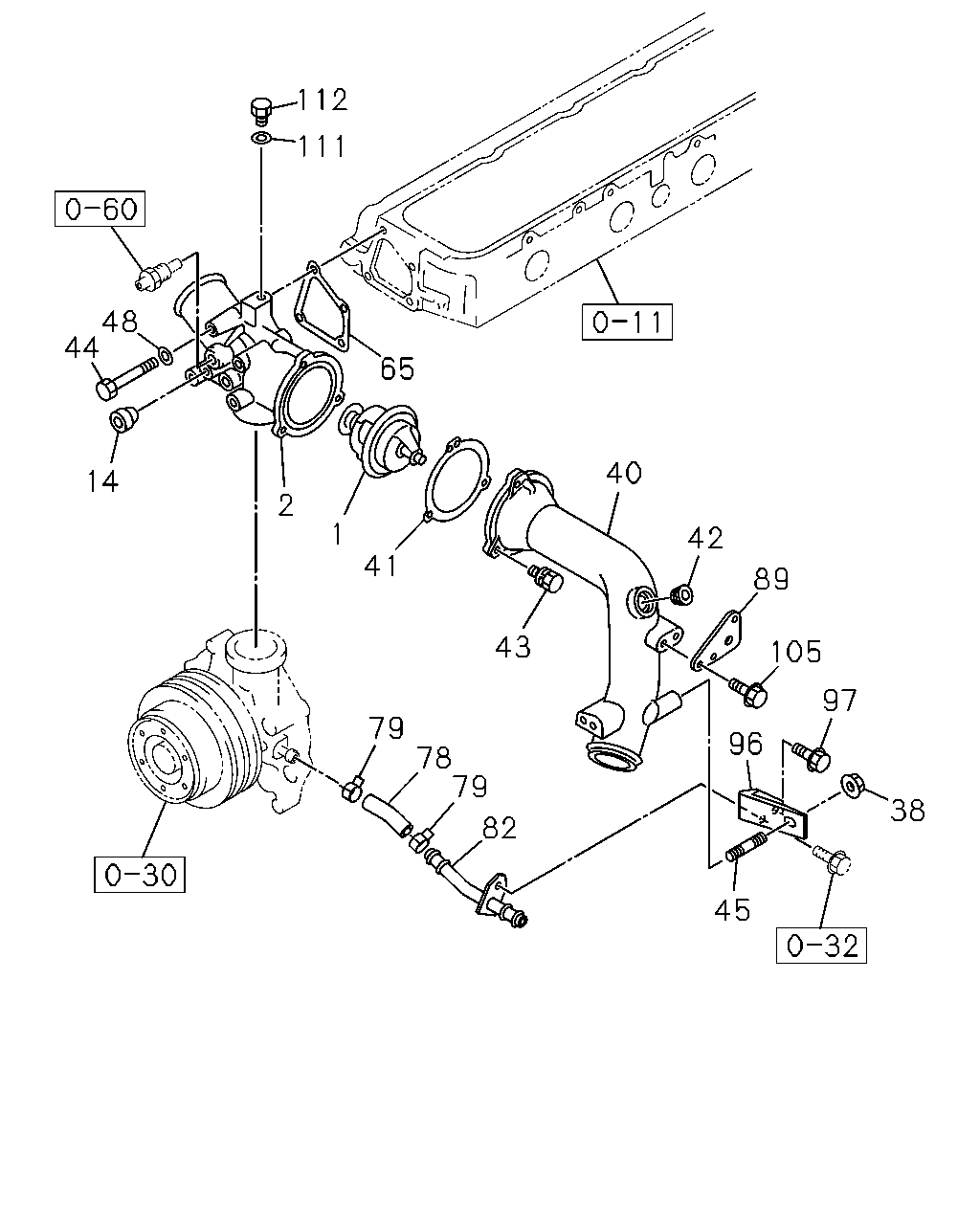

0-31 — THERMOSTAT AND HOUSING
(#9186) — 34 parça
112
111
48
44
65
40
14
2
1
42
41
89
43
105
97
79
78
79
96
38
82
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
76.5 CELSIUS
1-13770-085-0
01
1
0006-
2
HOUSING; THERMOSTAT
1-13716-180-0
01
1
0006-
14
PLUG; SW
PT1/4
1-09605-019-0
01
1
0006-
38
NUT; DUCT,SUCTION
M10 FLANGE
0-91150-110-0
01
1
0006-0602
38
NUT; DUCT,SUCTION
M10 FLANGE
0-91180-110-0
01
1
0603-
40
DUCT; WATER,SUCTION
1-13711-675-0
01
1
0006-
41
GASKET; DUCT TO HSG
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13742-026-0
01
1
0006-
42
PLUG; WATER DUCT
PT3/4
9-09664-005-0
01
1
0006-
43
BOLT; WATER DUCT
M8X28 W/LK&PL WASHER
0-50140-828-0
03
1
0006-0906
43
BOLT; WATER DUCT
M8X28 W/LK&PL WASHER
0-50640-828-0
03
1
0907-
44
BOLT; HSG TO HD
M8X100
0-10805-800-0
04
1
0006-0512
44
BOLT; HSG TO HD
M8X100
0-10855-800-0
04
1
0601-
45
STUD; DUCT
M10X20 L=35
9-04411-020-0
01
1
0006-
48
WASHER; PL,THERMOSTAT HSG
ID=8.4
9-09160-508-0
04
1
0006-0605
48
WASHER; PL,THERMOSTAT HSG
ID=8.4 OD=16
0-91610-508-0
04
1
0606-
65
GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-13743-028-0
01
1
0006-
78
HOSE; RUBBER,WATER PIPE
1-09360-626-0
01
1
0006-0701
78
HOSE; RUBBER,WATER PIPE
HEATER & DEFROSTER(C41)
1-09360-626-0
01
1
0702-
79
CLIP; RUBBER HOSE
ID=20
1-09707-084-1
02
1
0006-0701
79
CLIP; RUBBER HOSE
HEATER & DEFROSTER(C41) ID=20
1-09707-084-1
02
1
0702-
82
PIPE; WATER,HTR
1-13711-698-1
01
1
0006-0701
82
PIPE; WATER,HTR
HEATER & DEFROSTER(C41)
1-13711-698-1
01
1
0702-
89
BRACKET
1-14119-389-0
01
1
0006-0701
89
BRACKET
HEATER & DEFROSTER(C41)
1-14119-389-0
01
1
0702-
96
STAY; WATER PIPE
1-13719-089-0
01
1
0006-
97
BOLT; PIPE STAY
M10X20 FLANGE
0-28181-020-0
02
1
0006-0512
97
BOLT; PIPE STAY
M10X20 FLANGE
0-28151-020-0
02
1
0601-
105
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
02
1
0006-0512
105
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0601-0701
105
BOLT; BRKT
HEATER & DEFROSTER(C41) M8X16 FLANGE
0-28050-816-0
02
1
0702-
111
GASKET; PLUG,WATER PIPE HOLE
ID=14.2 OD=19.2
1-09630-085-0
01
1
0006-1312
111
GASKET; PLUG,WATER PIPE HOLE
ID=14.2 OD=19.2
8-98251-345-0
01
1
1401-
112
PLUG
M14X9
9-99202-314-0
01
1
0006-0805
112
PLUG
M14X9
8-98042-944-0
01
1
0806-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
