3-22 — AIR CONTROL PARTS (#9171) — 97 parça
çizim 22579
155 157
BalonParca AdiParca NoAdetTipApplied Date
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 01 1 0107-
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 01 1 0107-
157 RETAINER; VALVE 1-48213-002-0 01 1 0107-
157 RETAINER; VALVE 1-48213-002-0 01 1 0107-

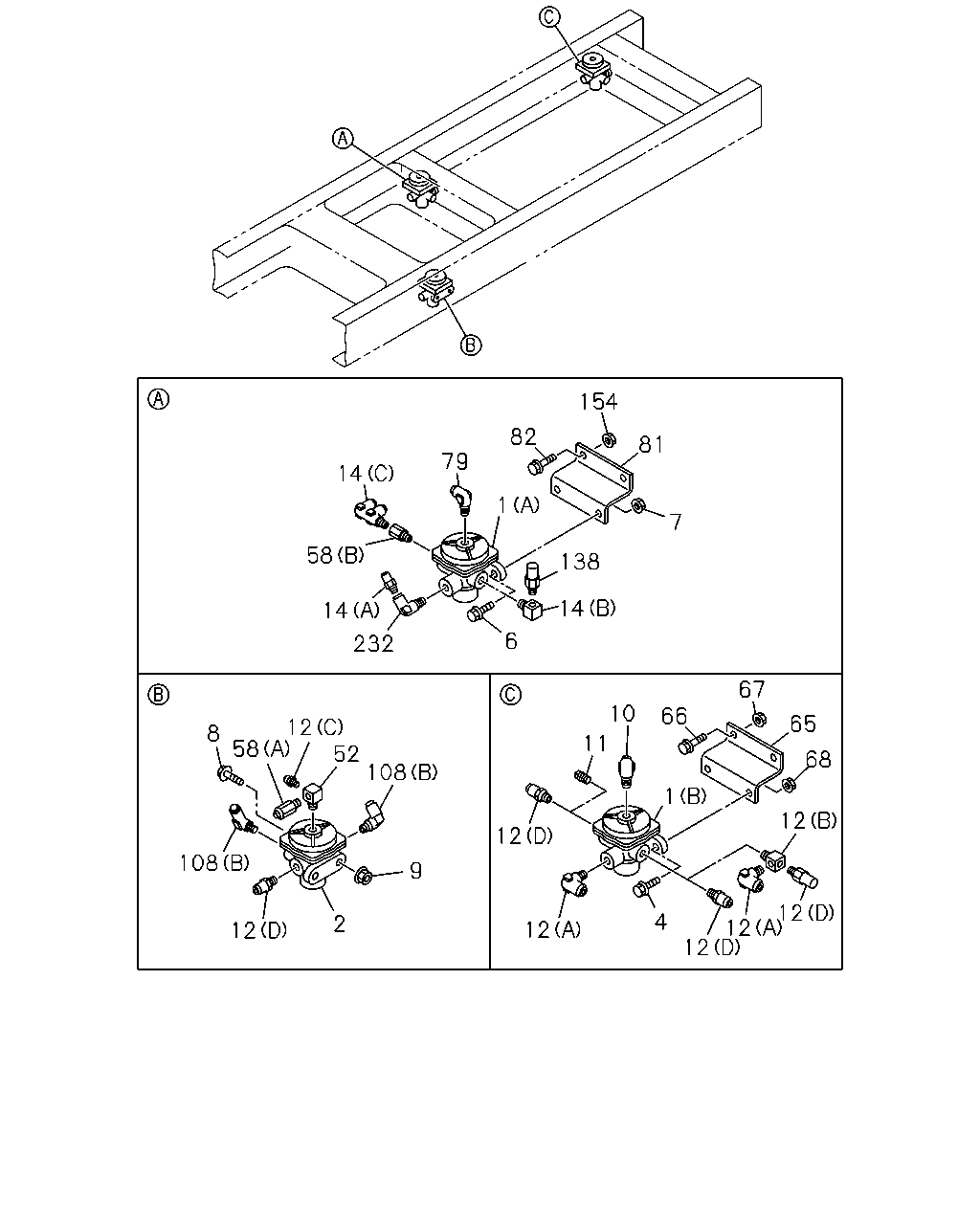

çizim 22580
154 82 81 79 14 1 7 58 138 14 14 6 232 67 10 66 65 12 52 108 8 11 58 68 1 12 12 108 9 12 4 2 12 12 12 12
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR
(B) 		1-48210-875-0 01 1 0107-
1 VALVE; RELAY RWD RR
(A) 		1-48240-052-0 01 1 0107-
2 VALVE; RELAY 1-48210-875-0 01 1 0107-
4 BOLT; RELAY VLV TO BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0107-0512
4 BOLT; RELAY VLV TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601-
6 BOLT; VLV
M10X35 FLANGE 		0-28681-035-0 02 1 0107-0512
6 BOLT; VLV
M10X35 FLANGE 		0-28651-035-0 02 1 0601-
7 NUT; RELAY VLV
M10 FLANGE 		0-91150-210-0 02 1 0107-0602
7 NUT; RELAY VLV
M10 FLANGE 		0-91180-210-0 02 1 0603-
8 BOLT; BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 0107-0512
8 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0601-
9 NUT
M10 FLANGE 		0-91150-210-0 02 1 0107-0602
9 NUT
M10 FLANGE 		0-91180-210-0 02 1 0603-
10 CONNECTOR
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-
11 PLUG
ANTILOCK BRAKE SYSTEM(BFA) PT3/8 		9-09204-517-0 01 1 0107-
12 CONNECTOR; RELAY VLV
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0107-
12 CONNECTOR; RELAY VLV
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0107-
12 CONNECTOR; RELAY VLV
ANTILOCK BRAKE SYSTEM(BFA) (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0107-
12 CONNECTOR; RELAY VLV
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0107-
12 CONNECTOR; RELAY VLV
ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0107-
12 CONNECTOR; RELAY VLV
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
12 CONNECTOR; RELAY VLV
EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0107-
14 CONNECTOR; RELAY VLV
(B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0107-
14 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0107-
14 CONNECTOR; RELAY VLV
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0107-
52 CONNECTOR; RELAY VLV
M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 0107-
58 ADAPTER
(A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0107-
58 ADAPTER
(B) PT3/8 		1-48319-058-0 01 1 0107-
65 BRACKET; RELAY VLV RR 1-47477-964-0 01 1 0107-
66 BOLT; BRKT,RELAY VLV RR
M10X35 FLANGE 		0-28681-035-0 02 1 0107-0512
66 BOLT; BRKT,RELAY VLV RR
M10X35 FLANGE 		0-28651-035-0 02 1 0601-
67 NUT; BRKT,RELAY VLV RR
M10 FLANGE 		0-91150-210-0 02 1 0107-0602
67 NUT; BRKT,RELAY VLV RR
M10 FLANGE 		0-91180-210-0 02 1 0603-
68 NUT; RELAY VLV TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 0107-0602
68 NUT; RELAY VLV TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
79 CONNECTOR; RELAY VLV
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-
81 BRACKET; RELAY VLV,PARKING BRK 1-47478-233-0 01 1 0107-
82 BOLT; BRKT,RELAY VLV
M10X30 FLANGE 		0-28681-030-0 02 1 0107-0512
82 BOLT; BRKT,RELAY VLV
M10X30 FLANGE 		0-28651-030-0 02 1 0601-
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
108 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0107-
108 CONNECTOR; ELBOW
(C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0107-
108 CONNECTOR; ELBOW
(D) DIN12 ID=15.4 ELBOW 		1-09661-079-1 02 1 0107-
138 SWITCH; RELAY VALVE 1-48340-057-1 01 1 0107-0312
138 SWITCH; RELAY VALVE 1-48340-068-0 01 1 0401-
154 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0107-0602
154 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
232 VALVE; CHECK 1-48320-031-1 01 1 0107-

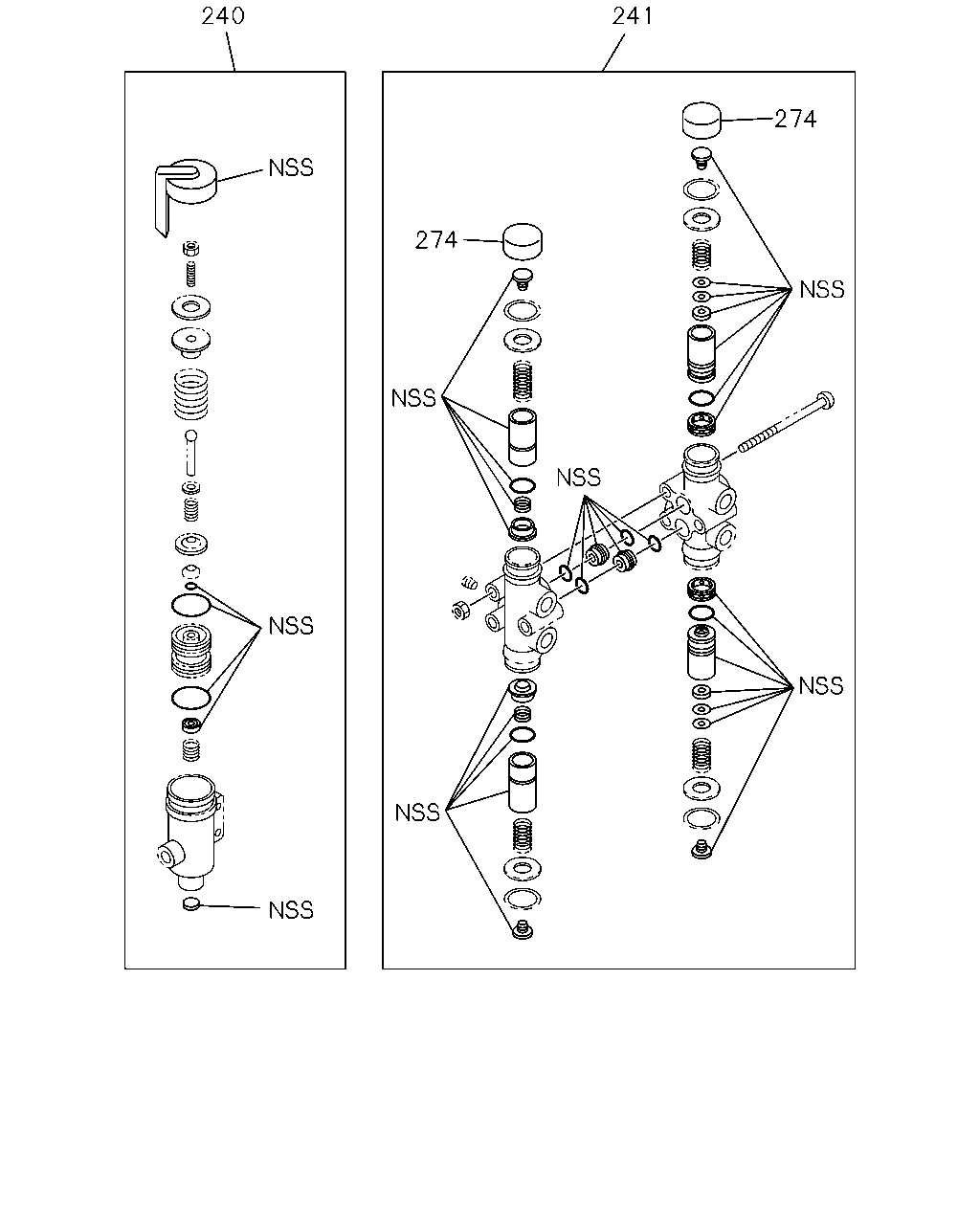

çizim 22581
240 241 274 274
BalonParca AdiParca NoAdetTipApplied Date
240 REPAIR KIT; AIR CONT GOV 1-85576-303-0 01 1 0107-
241 REPAIR KIT; PROTECTION VALVE 1-85576-240-0 01 1 0107-
274 COVER; DUST 1-48119-450-0 02 1 0107-

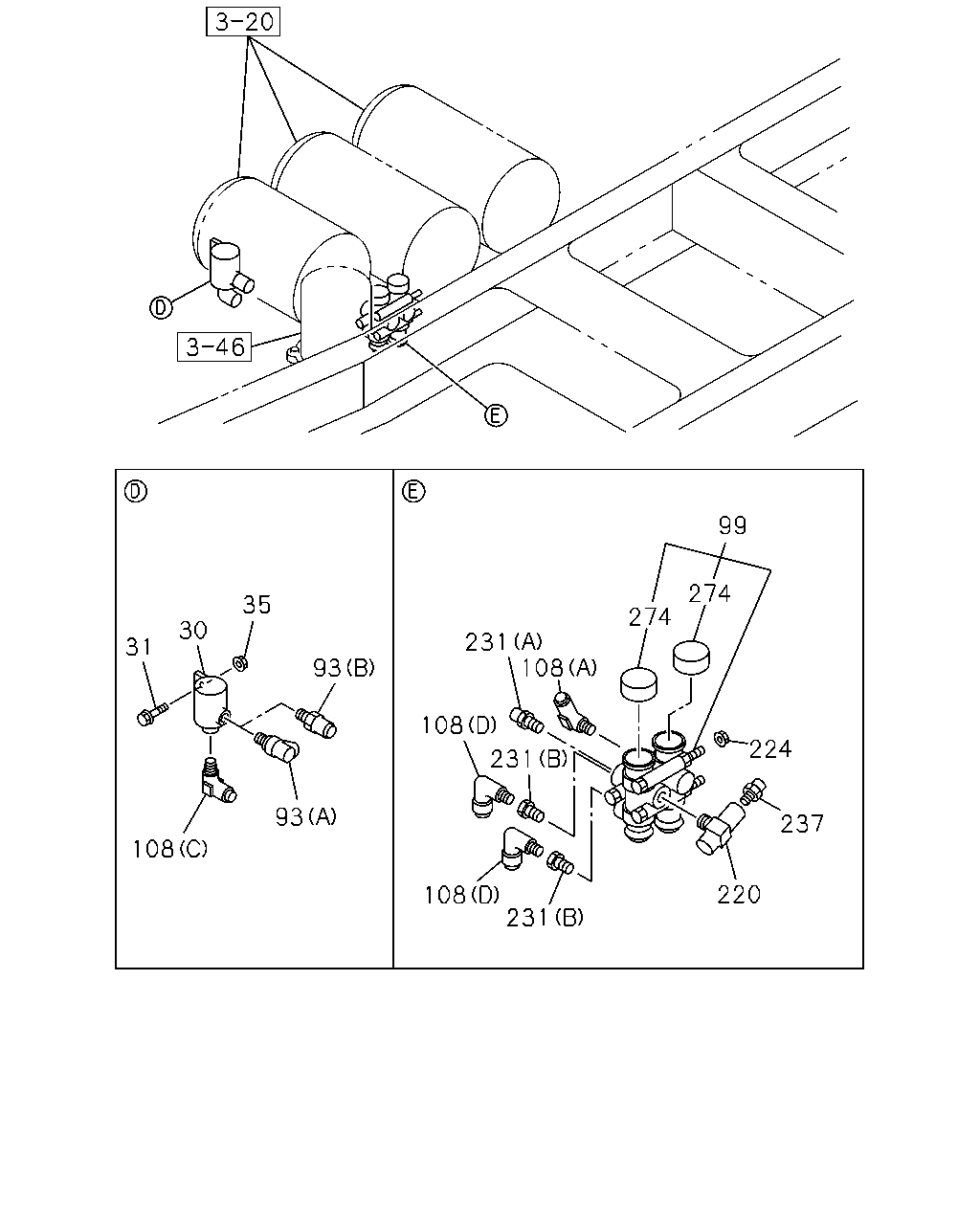

çizim 75297
99 274 35 274 30 231 108 31 93 108 224 231 93 237 108 220 108 231
BalonParca AdiParca NoAdetTipApplied Date
30 GOVERNOR; AIR CONT 1-48350-063-0 01 1 0107-
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
93 CONNECTOR; GOV
AIR DRYER<PS7> (A) DIN6X2 & R1/4 3WAY 		1-09661-070-0 01 1 0107-
93 CONNECTOR; GOV
EXC. AIR DRYER<PS7> (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0107-
99 VALVE; PROTECTION 1-48110-175-1 01 1 0107-
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
108 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0107-
108 CONNECTOR; ELBOW
(C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0107-
108 CONNECTOR; ELBOW
(D) DIN12 ID=15.4 ELBOW 		1-09661-079-1 02 1 0107-
220 CONNECTOR; 3WAY 1-09661-232-0 01 1 0107-
224 NUT; PROTECTION VALVE
M8 FLANGE 		0-91150-108-0 03 1 0107-0602
224 NUT; PROTECTION VALVE
M8 FLANGE 		0-91180-108-0 03 1 0603-
231 CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0107-
231 CONNECTOR; NYLON TUBE
(B) R3/8 OD=15.9 		1-09661-082-0 02 1 0107-
237 VALVE; SAFETY 1-48320-012-1 01 1 0107-
274 COVER; DUST 1-48119-450-0 02 1 0107-
çizim 76928
12 1 170 167 164 166 157 158 161
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR
(B) 		1-48210-875-0 01 1 0107-
1 VALVE; RELAY RWD RR
(A) 		1-48240-052-0 01 1 0107-
12 CONNECTOR; RELAY VLV
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0107-
12 CONNECTOR; RELAY VLV
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0107-
12 CONNECTOR; RELAY VLV
ANTILOCK BRAKE SYSTEM(BFA) (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0107-
12 CONNECTOR; RELAY VLV
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0107-
12 CONNECTOR; RELAY VLV
ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0107-
12 CONNECTOR; RELAY VLV
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
12 CONNECTOR; RELAY VLV
EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0107-
157 RETAINER; VALVE 1-48213-002-0 01 1 0107-
157 RETAINER; VALVE 1-48213-002-0 01 1 0107-
158 SPRING; VALVE 1-47819-089-0 01 1 0107-
158 SPRING; VALVE 1-47819-089-0 01 1 0107-
161 GUIDE; VALVE 1-48129-014-0 01 1 0107-
161 GUIDE; VALVE 1-48129-014-0 01 1 0107-
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0107-
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0107-
166 SPRING; PISTON 1-47819-090-0 01 1 0107-
166 SPRING; PISTON 1-47819-090-0 01 1 0107-
167 COVER; VALVE 1-48219-070-0 01 1 0107-
167 COVER; VALVE 1-48219-070-0 01 1 0107-
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0107-
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0107-
