◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10866 - EXD LHD FUEL TANK 400L ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#9170) — 149 parça

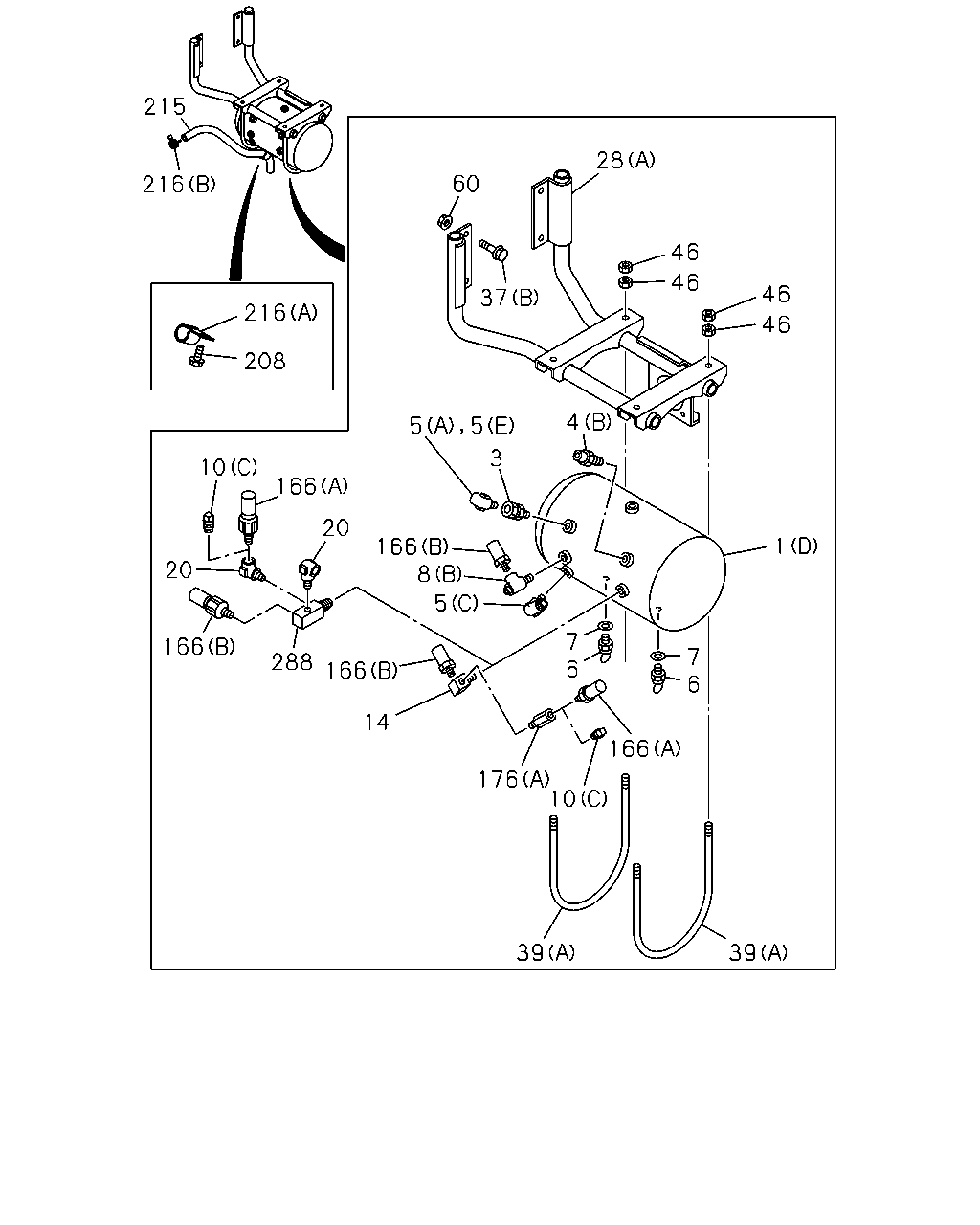

çizim 20730
215 28 60 216 46 46 46 37 216 46 208 4 5 5 3 10 166 20 1 166 8 20 5 7 6 166 7 6 288 166 14 166 176 10 39 39
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		1-48370-710-0 01 1 0107-
1 TANK ASM; AIR
(B) 		1-48370-712-0 01 1 0107-
1 TANK ASM; AIR
(D) 		1-48370-714-0 01 1 0107-
1 TANK ASM; AIR
(C) 		1-48370-942-1 01 1 0107-
3 VALVE; CHECK,AIR TANK 1-48320-013-2 01 1 0107-
4 CONNECTOR; FLARE
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0107-
4 CONNECTOR; FLARE
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 0107-
5 UNION; AIR TANK
(B) 		1-09660-778-1 02 1 0107-
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0107-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0107-
5 UNION; AIR TANK
(D) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 0107-
5 UNION; AIR TANK
AIR DRYER<PS7> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
5 UNION; AIR TANK
EXC. AIR DRYER<PS7> (E) M22 & PT3/8 ELBOW 		1-09650-440-0 01 1 0107-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 0107-
6 COCK; DRAIN,AIR TANK
AIR DRYER<PS7> 		1-48312-015-0 01 1 0107-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0107-
6 COCK; DRAIN,AIR TANK
EXC. AIR DRYER<PS7> 		1-48312-015-0 02 1 0107-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 0107-
7 GASKET; DRAIN COCK
AIR DRYER<PS7> ID=14 		1-09630-145-0 01 1 0107-
7 GASKET; DRAIN COCK
EXC. AIR DRYER<PS7> ID=14 		1-09630-145-0 02 1 0107-
8 CONNECTOR; AIR TANK
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0107-
8 CONNECTOR; AIR TANK
(B) 		1-09661-027-0 01 1 0107-
10 PLUG; AIR TANK
(A) 		1-09604-106-0 02 1 0107-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 03 1 0107-
10 PLUG; AIR TANK
EXC. FULL FLOATING CAB(W16) (C) PT1/4 		9-99204-513-0 01 1 0107-0605
10 PLUG; AIR TANK
EXC. FULL FLOATING CAB(W16) (C) PT1/4 		9-99204-513-0 01 1 0606-
10 PLUG; AIR TANK
EXC. TIRE INFLATOR DEVICE<W47> (C) PT1/4 		9-99204-513-0 01 1 0606-
10 PLUG; AIR TANK
EXC. TIRE INFLATOR DEVICE<W47> (B) PT3/8 		9-09204-517-0 01 1 0107-0605
14 UNION; 3 WAY,AIR TANK
PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 0107-0207
20 NIPPLE; AIR TANK
TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0107-0207
20 NIPPLE; AIR TANK
PT1/4 2WAY 		1-09660-693-0 01 1 0208-
20 NIPPLE; AIR TANK
TIRE INFLATOR DEVICE<W47> PT1/4 2WAY 		1-09660-693-0 01 1 0208-
28 BRACKET; AIR TANK
(A) 		1-48317-820-2 01 1 0107-
28 BRACKET; AIR TANK
(B) 		1-48317-856-0 01 1 0107-
28 BRACKET; AIR TANK
(C) 		1-48317-868-0 01 1 0107-
37 BOLT; AIR TANK
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512
37 BOLT; AIR TANK
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
37 BOLT; AIR TANK
(B) M10X35 FLANGE 		0-28681-035-0 04 1 0107-0512
37 BOLT; AIR TANK
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0601-
37 BOLT; AIR TANK
(B) M12X40 FLANGE 		0-28681-240-0 08 1 0107-0512
37 BOLT; AIR TANK
(B) M12X40 FLANGE 		0-28651-240-0 08 1 0601-
39 U-BOLT; AIR TANK
(A) L=250 		1-48317-308-0 02 1 0107-
39 U-BOLT; AIR TANK
(B) 		1-48317-675-0 06 1 0107-
46 NUT; U-BOLT
M8 		9-09110-408-0 08 1 0107-0512
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0601-
46 NUT; U-BOLT
M8 		9-09110-408-0 24 1 0107-0512
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0601-
60 NUT; AIR TANK FIX
M10 FLANGE 		0-91150-210-0 02 1 0107-0602
60 NUT; AIR TANK FIX
M10 FLANGE 		0-91180-210-0 02 1 0603-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
(B) 530KPA 		1-48340-054-1 05 1 0107-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
FULL FLOATING CAB(W16) (A) 650KPA 		1-48340-059-1 01 1 0107-
176 ADAPTER
(B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 03 1 0107-
176 ADAPTER
(C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0107-0207
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 		1-09664-210-0 02 1 0107-
208 BOLT; CLIP
AIR DRYER<PS7> M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
208 BOLT; CLIP
AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 01 1 0601-
215 PIPE; VINYL
AIR DRYER<PS7> L=500 SERVICED BY L=3000 		0-03566-300-0 01 1 0107-
216 CLIP; PIPE,VINYL
AIR DRYER<PS7> (A) ID=24 L=32 		1-09700-766-1 01 1 0107-
216 CLIP; PIPE,VINYL
AIR DRYER<PS7> (B) ID=21 		8-94242-034-0 01 1 0107-
288 CONNECTOR; PRESSURE UNIT
PT1/4 4WAY 		1-09660-358-0 01 1 0208-
çizim 20731
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 0107-0512
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 0601-

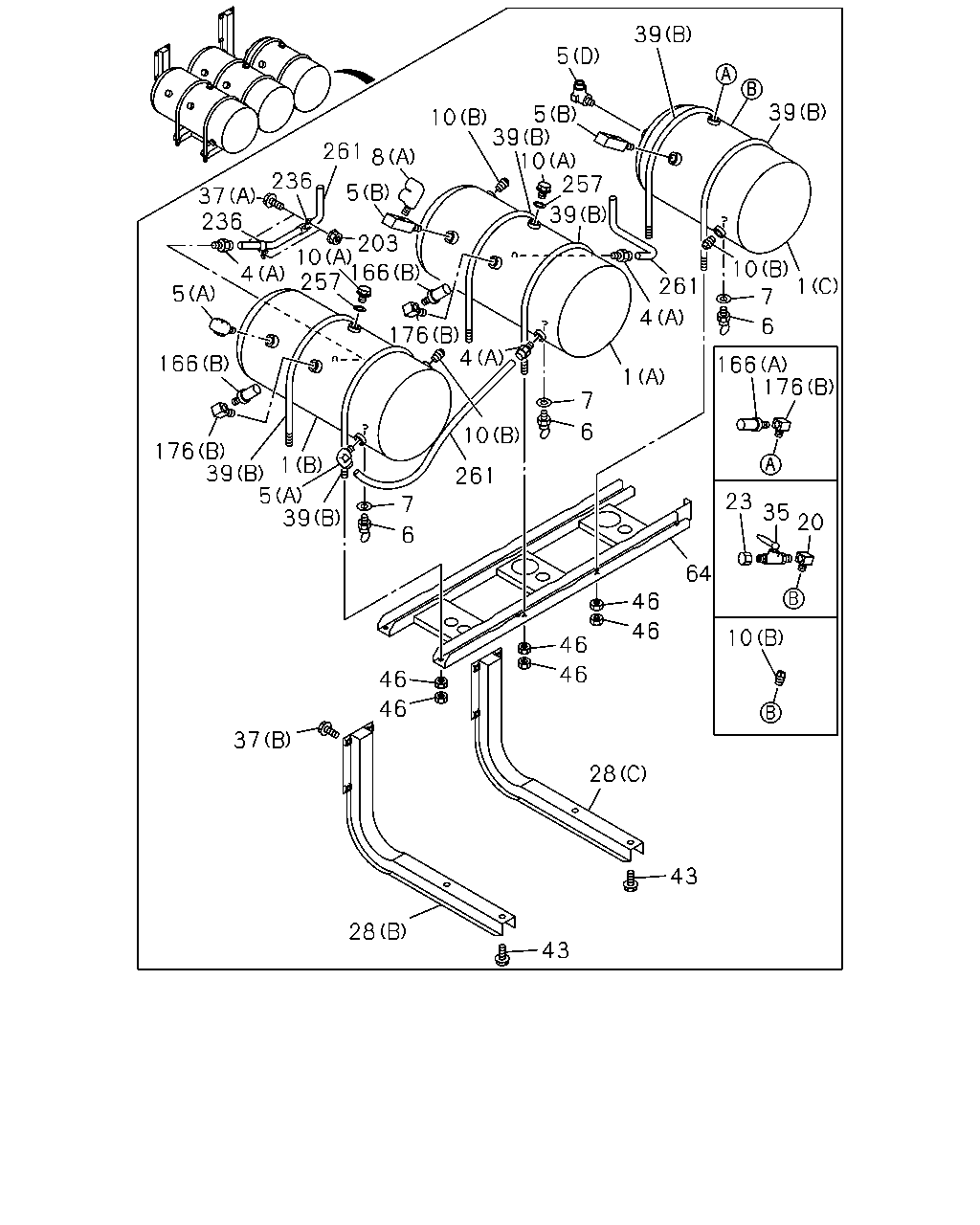

çizim 22484
39 5 39 10 5 39 10 257 261 8 236 5 37 236 39 203 10 166 257 10 1 7 4 261 5 4 6 176 4 166 166 176 1 7 6 10 176 39 5 39 1 261 23 7 35 20 6 64 46 46 10 46 46 46 46 37 28 43 28 43
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		1-48370-710-0 01 1 0107-
1 TANK ASM; AIR
(B) 		1-48370-712-0 01 1 0107-
1 TANK ASM; AIR
(D) 		1-48370-714-0 01 1 0107-
1 TANK ASM; AIR
(C) 		1-48370-942-1 01 1 0107-
4 CONNECTOR; FLARE
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0107-
4 CONNECTOR; FLARE
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 0107-
5 UNION; AIR TANK
(B) 		1-09660-778-1 02 1 0107-
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0107-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0107-
5 UNION; AIR TANK
(D) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 0107-
5 UNION; AIR TANK
AIR DRYER<PS7> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
5 UNION; AIR TANK
EXC. AIR DRYER<PS7> (E) M22 & PT3/8 ELBOW 		1-09650-440-0 01 1 0107-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 0107-
6 COCK; DRAIN,AIR TANK
AIR DRYER<PS7> 		1-48312-015-0 01 1 0107-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0107-
6 COCK; DRAIN,AIR TANK
EXC. AIR DRYER<PS7> 		1-48312-015-0 02 1 0107-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 0107-
7 GASKET; DRAIN COCK
AIR DRYER<PS7> ID=14 		1-09630-145-0 01 1 0107-
7 GASKET; DRAIN COCK
EXC. AIR DRYER<PS7> ID=14 		1-09630-145-0 02 1 0107-
8 CONNECTOR; AIR TANK
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0107-
8 CONNECTOR; AIR TANK
(B) 		1-09661-027-0 01 1 0107-
10 PLUG; AIR TANK
(A) 		1-09604-106-0 02 1 0107-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 03 1 0107-
10 PLUG; AIR TANK
EXC. FULL FLOATING CAB(W16) (C) PT1/4 		9-99204-513-0 01 1 0107-0605
10 PLUG; AIR TANK
EXC. FULL FLOATING CAB(W16) (C) PT1/4 		9-99204-513-0 01 1 0606-
10 PLUG; AIR TANK
EXC. TIRE INFLATOR DEVICE<W47> (C) PT1/4 		9-99204-513-0 01 1 0606-
10 PLUG; AIR TANK
EXC. TIRE INFLATOR DEVICE<W47> (B) PT3/8 		9-09204-517-0 01 1 0107-0605
20 NIPPLE; AIR TANK
TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0107-0207
20 NIPPLE; AIR TANK
PT1/4 2WAY 		1-09660-693-0 01 1 0208-
20 NIPPLE; AIR TANK
TIRE INFLATOR DEVICE<W47> PT1/4 2WAY 		1-09660-693-0 01 1 0208-
23 CAP; COCK,AIR TANK
TIRE INFLATOR DEVICE<W47> 		9-48319-102-0 01 1 0107-
28 BRACKET; AIR TANK
(A) 		1-48317-820-2 01 1 0107-
28 BRACKET; AIR TANK
(B) 		1-48317-856-0 01 1 0107-
28 BRACKET; AIR TANK
(C) 		1-48317-868-0 01 1 0107-
35 COCK; AIR,AIR TANK
TIRE INFLATOR DEVICE<W47> 		1-09680-099-0 01 1 0107-
37 BOLT; AIR TANK
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512
37 BOLT; AIR TANK
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
37 BOLT; AIR TANK
(B) M10X35 FLANGE 		0-28681-035-0 04 1 0107-0512
37 BOLT; AIR TANK
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0601-
37 BOLT; AIR TANK
(B) M12X40 FLANGE 		0-28681-240-0 08 1 0107-0512
37 BOLT; AIR TANK
(B) M12X40 FLANGE 		0-28651-240-0 08 1 0601-
39 U-BOLT; AIR TANK
(A) L=250 		1-48317-308-0 02 1 0107-
39 U-BOLT; AIR TANK
(B) 		1-48317-675-0 06 1 0107-
43 BOLT; STAY,AIR TANK,MAIN
M12X25 FLANGE 		0-28681-225-0 04 1 0107-0512
43 BOLT; STAY,AIR TANK,MAIN
M12X25 FLANGE 		0-28651-225-0 04 1 0601-
46 NUT; U-BOLT
M8 		9-09110-408-0 08 1 0107-0512
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0601-
46 NUT; U-BOLT
M8 		9-09110-408-0 24 1 0107-0512
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0601-
64 STAY; AIR TANK,MAIN 1-48317-819-1 01 1 0107-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
(B) 530KPA 		1-48340-054-1 05 1 0107-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
FULL FLOATING CAB(W16) (A) 650KPA 		1-48340-059-1 01 1 0107-
176 ADAPTER
(B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 03 1 0107-
176 ADAPTER
(C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0107-0207
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 		1-09664-210-0 02 1 0107-
203 NUT
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
203 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
236 CLIP; BAND
ID=14 H=50 L=20 		1-09700-843-0 02 1 0107-
257 GASKET; PLUG
ID=14 		1-09630-145-0 02 1 0107-
261 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0107-

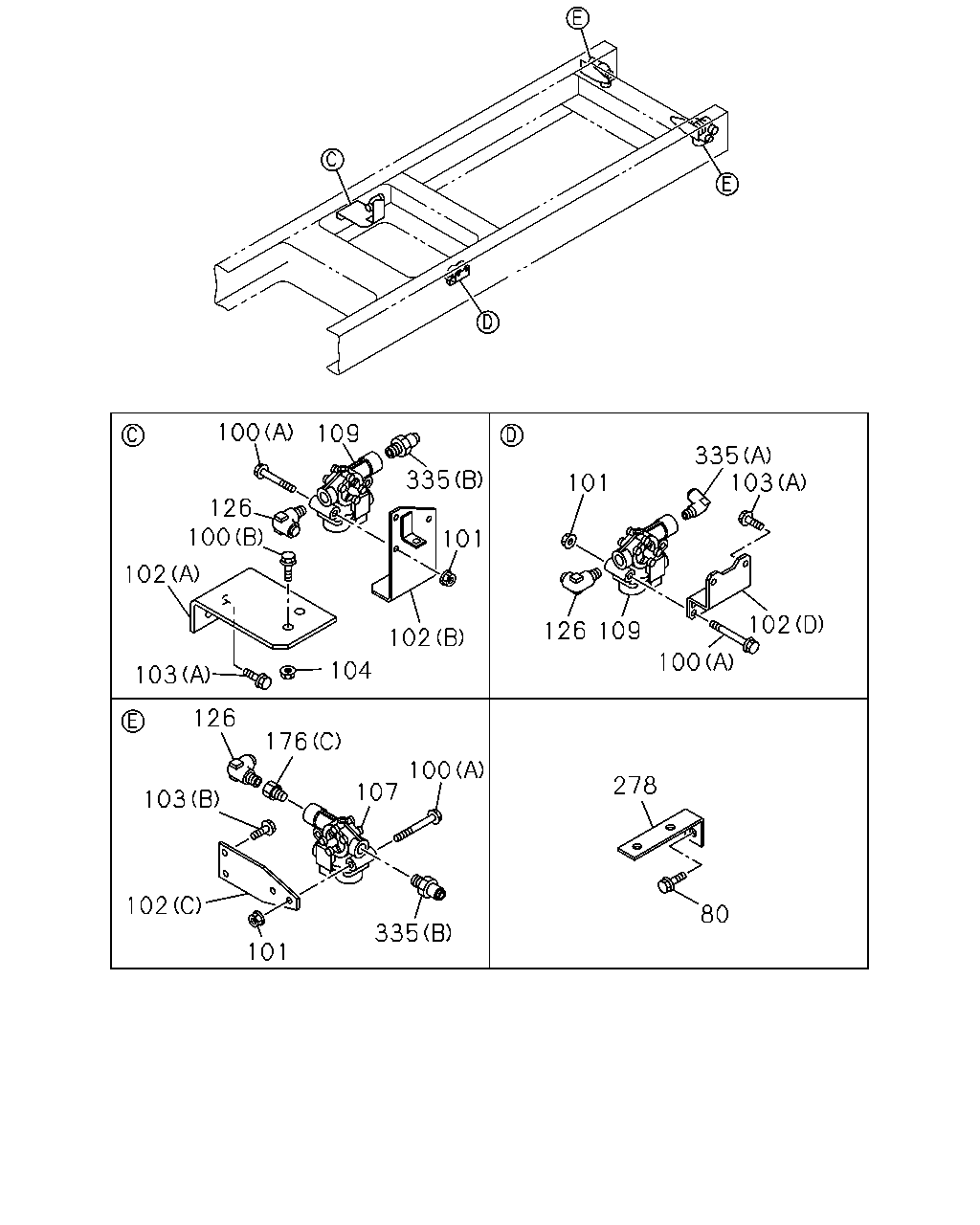

çizim 77403
100 109 335 103 335 101 126 100 101 102 102 126 109 102 100 104 103 126 176 100 278 107 103 102 80 335 101
BalonParca AdiParca NoAdetTipApplied Date
80 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 01 1 0212-0512
80 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0601-
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X80 FLANGE 		0-28080-880-0 08 1 0107-0512
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X80 FLANGE 		0-28050-880-0 08 1 0601-
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 16 1 0107-0602
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 16 1 0603-
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) 		1-47478-304-0 02 1 0107-
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (D) 		1-47478-827-0 01 1 0107-
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47479-028-0 01 1 0107-
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-47479-029-1 01 1 0107-
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X25 FLANGE 		0-28680-825-0 04 1 0107-0512
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X25 FLANGE 		0-28650-825-0 04 1 0601-
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X30 FLANGE 		0-28680-830-0 04 1 0107-0512
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X30 FLANGE 		0-28650-830-0 04 1 0601-
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 02 1 0107-0602
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0603-
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48210-880-0 02 1 0107-
109 MODULATOR; FRT
ANTILOCK BRAKE SYSTEM(BFA) 		1-48210-880-0 02 1 0107-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0107-
176 ADAPTER
(B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 03 1 0107-
176 ADAPTER
(C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0107-0207
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 		1-09664-210-0 02 1 0107-
278 BRACKET; CONNECTOR
L=90 B=25 		1-47476-630-0 01 1 0212-
335 CONNECTOR; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 0107-
335 CONNECTOR; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
