Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#917) — 301 parça

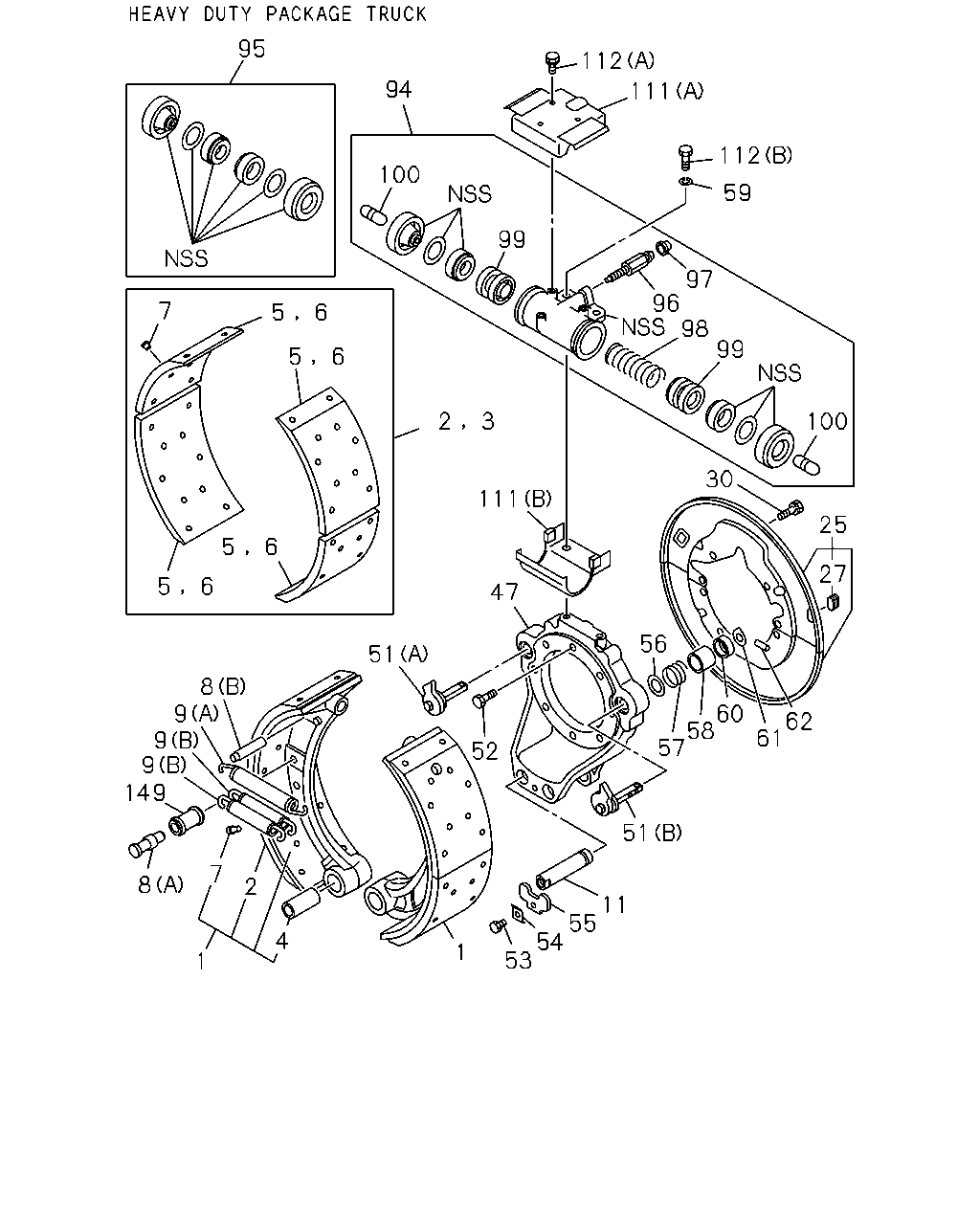

94 95 97 96 100 99 98 100 99 30 112 111 51 57 27 62 61 56 60 58 15 8 1 9 25 51 11 55 54 53 47 7 5 4 1 6 5 5 6 2 3 7 5 6 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47110-962-0	04	1	9202-	●
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	1-47110-962-0	04	1	9202-		●
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47110-988-0	04	1	9202-	●	●
1	SHOE; BRK,RR HEAVY DUTY PACKAGE TRUCK<RD2>	1-47120-218-0	04	1	9202-		●
2	LINING SET; RR BRK,STANDARD	1-88302-956-0	02	1	9202-	●
2	LINING SET; RR BRK,STANDARD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-88302-956-0	02	1	9202-		●
2	LINING SET; RR BRK,STANDARD HEAVY DUTY PACKAGE TRUCK<RD2>	1-88302-958-0	02	1	9202-		●
3	LINING SET; RR BRK,OVER SIZE	1-88310-001-0	02	1	9202-	●
3	LINING SET; RR BRK,OVER SIZE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-88310-001-0	02	1	9202-		●
3	LINING SET; RR BRK,OVER SIZE HEAVY DUTY PACKAGE TRUCK<RD2>	1-88310-157-0	02	1	9202-		●
4	BUSHING; BRK SHOE,RR WHEEL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47112-011-0	04	1	9202-	●
4	BUSHING; BRK SHOE,RR WHEEL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	1-47112-011-0	04	1	9202-		●
4	BUSHING; BRK SHOE,RR WHEEL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47112-012-0	04	1	9202-	●	●
4	BUSHING; BRK SHOE,RR WHEEL HEAVY DUTY PACKAGE TRUCK<RD2>	1-47112-012-0	04	1	9202-		●
5	LINING; RR BRK SHOE,STANDARD	1-47115-867-0	08	1	9202-	●
5	LINING; RR BRK SHOE,STANDARD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47115-867-0	08	1	9202-		●
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY PACKAGE TRUCK<RD2>	1-47125-055-0	08	1	9202-		●
6	LINING; RR BRK SHOE,OVER SIZE	1-47115-869-0	08	1	9202-	●
6	LINING; RR BRK SHOE,OVER SIZE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47115-869-0	08	1	9202-		●
6	LINING; RR BRK SHOE,OVER SIZE HEAVY DUTY PACKAGE TRUCK<RD2>	1-47125-057-0	08	1	9202-		●
7	RIVET; LINING,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=18.5	1-09732-034-0	80	1	9202-	●
7	RIVET; LINING,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2> L=18.5	1-09732-034-0	80	1	9202-		●
7	RIVET; LINING,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-027-0	80	1	9202-	●	●
7	RIVET; LINING,RR BRK HEAVY DUTY PACKAGE TRUCK<RD2> L=18.5	1-09732-034-0	AR	1	9202-		●
8	PIN; RETURN SPRING,RR BRK SHOE	1-47119-017-1	04	1	9202-	●
8	PIN; RETURN SPRING,RR BRK SHOE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47119-017-1	04	1	9202-		●
8	PIN; RETURN SPRING,RR BRK SHOE HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-09744-051-0	04	1	9202-		●
8	PIN; RETURN SPRING,RR BRK SHOE HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-47119-025-0	04	1	9202-		●
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-236-0	02	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09583-237-1	02	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-175-0	02	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-09583-210-0	04	1	9202-		●
11	PIN; ANCHOR,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=106.5	1-47131-038-0	04	1	9202-	●
11	PIN; ANCHOR,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2> L=106.5	1-47131-038-0	04	1	9202-		●
11	PIN; ANCHOR,RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=121.5	1-47131-039-0	04	1	9202-	●	●
11	PIN; ANCHOR,RR WHEEL BRK HEAVY DUTY PACKAGE TRUCK<RD2> L=121.5	1-47131-039-0	04	1	9202-		●
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47116-002-0	04	1	9202-	●
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	1-47116-002-0	04	1	9202-		●
25	COVER SET; RR BRK DRUM EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47151-458-1	02	1	9202-	●
25	COVER SET; RR BRK DRUM EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	1-47151-458-1	02	1	9202-		●
25	COVER SET; RR BRK DRUM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47151-482-1	02	1	9202-	●	●
25	COVER SET; RR BRK DRUM HEAVY DUTY PACKAGE TRUCK<RD2>	1-47151-526-1	02	1	9202-		●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	04	1	9202-9501	●	●
27	COVER; CHECK HOLE,DRUM COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-095-0	04	1	9502-	●	●
27	COVER; CHECK HOLE,DRUM COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-151-0	04	1	9502-	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	12	1	9202-9409	●	●
30	BOLT; DRUM COVER M10X16 FLANGE	0-28081-016-0	12	1	9410-9410	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9411-	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47137-112-3	02	1	9202-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	1-47137-112-3	02	1	9202-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47130-088-1	02	1	9202-	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-47137-151-0	02	1	9202-		●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47165-058-1	02	1	9202-	●	●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47165-059-1	02	1	9202-	●	●
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	02	1	9202-9204	●	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9205-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9202-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9202-	●	●
56	WASHER; ADJ CAM,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-033-0	04	1	9202-	●	●
57	SPRING; ADJ CAM,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09941-293-0	04	1	9202-9506	●	●
57	SPRING; ADJ CAM,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-046-0	04	1	9507-	●	●
58	BOOT; ADJ CAM,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-034-0	04	1	9202-	●	●
60	COVER; ADJ CAM BOOT,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-031-0	04	1	9202-	●	●
61	INDICATOR; WEAR,RR BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-032-1	04	1	9202-	●	●
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-030-0	04	1	9202-	●	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-697-0	02	1	9202-	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	1-47600-697-0	02	1	9202-		●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-597-1	01	1	9202-	●	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-596-1	01	1	9202-	●	●
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-47600-682-0	02	1	9202-		●
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=33.3	1-87830-525-0	02	1	9202-	●
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2> ID=33.3	1-87830-525-0	02	1	9202-		●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-87830-569-0	02	1	9202-	●	●
95	CUP SET; RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK<RD2>	1-87830-528-0	02	1	9202-		●
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=66.5	1-47615-005-0	02	1	9202-	●
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2> L=66.5	1-47615-005-0	02	1	9202-		●
96	SCREW; BLEEDER,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-002-0	02	1	9202-	●	●
96	SCREW; BLEEDER,RR BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-47615-002-0	02	1	9202-		●
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	9202-	●	●
98	SPRING; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09940-435-0	02	1	9202-	●
98	SPRING; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	9-09940-435-0	02	1	9202-		●
98	SPRING; RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK<RD2>	1-09580-019-0	02	1	9202-		●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-47624-211-0	04	1	9202-	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	9-47624-211-0	04	1	9202-		●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-213-0	04	1	9202-	●	●
99	PISTON; RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK<RD2>	1-47624-044-0	04	1	9202-		●
100	ROD; PUSH,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47621-009-0	04	1	9202-	●	●
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-080-0	02	1	9202-	●
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	1-47159-080-0	02	1	9202-		●
111	COVER; WHEEL CYL HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-47159-089-0	02	1	9202-		●
111	COVER; WHEEL CYL HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-47159-118-0	02	1	9202-		●
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X32 W/LK WASHER	0-50051-232-0	04	1	9202-	●
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2> M12X32 W/LK WASHER	0-50051-232-0	04	1	9202-		●
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X70	0-16806-270-0	04	1	9202-	●	●
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK<RD2> (B) M14X35	0-20801-435-0	04	1	9202-		●
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK<RD2> (A) M8X16 W/LK WASHER	9-01900-816-0	06	1	9202-9204		●
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK<RD2> (A) M8X16 W/LK WASHER	0-50040-816-0	06	1	9205-		●

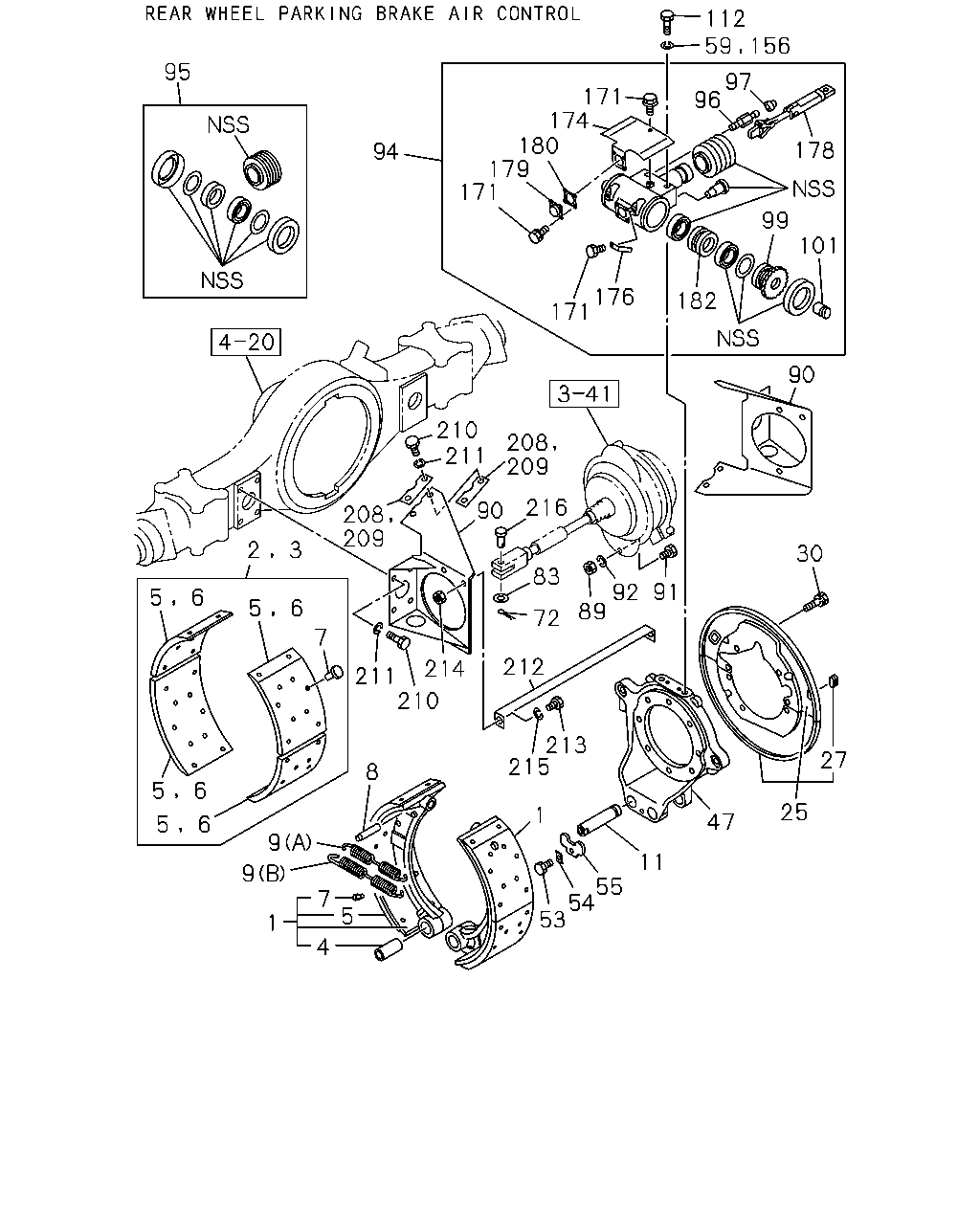

112 156 95 97 96 171 174 180 179 171 178 94 99 101 176 171 182 90 210 211 208 209 90 216 208 209 3 2 30 83 91 92 89 5 6 5 6 72 7 212 214 211 210 213 215 27 8 5 6 25 1 47 5 6 9 11 9 55 54 53 7 5 1 4 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47110-962-0	04	1	9202-	●
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	1-47110-962-0	04	1	9202-		●
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47110-988-0	04	1	9202-	●	●
1	SHOE; BRK,RR HEAVY DUTY PACKAGE TRUCK<RD2>	1-47120-218-0	04	1	9202-		●
2	LINING SET; RR BRK,STANDARD	1-88302-956-0	02	1	9202-	●
2	LINING SET; RR BRK,STANDARD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-88302-956-0	02	1	9202-		●
2	LINING SET; RR BRK,STANDARD HEAVY DUTY PACKAGE TRUCK<RD2>	1-88302-958-0	02	1	9202-		●
3	LINING SET; RR BRK,OVER SIZE	1-88310-001-0	02	1	9202-	●
3	LINING SET; RR BRK,OVER SIZE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-88310-001-0	02	1	9202-		●
3	LINING SET; RR BRK,OVER SIZE HEAVY DUTY PACKAGE TRUCK<RD2>	1-88310-157-0	02	1	9202-		●
4	BUSHING; BRK SHOE,RR WHEEL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47112-011-0	04	1	9202-	●
4	BUSHING; BRK SHOE,RR WHEEL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	1-47112-011-0	04	1	9202-		●
4	BUSHING; BRK SHOE,RR WHEEL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47112-012-0	04	1	9202-	●	●
4	BUSHING; BRK SHOE,RR WHEEL HEAVY DUTY PACKAGE TRUCK<RD2>	1-47112-012-0	04	1	9202-		●
5	LINING; RR BRK SHOE,STANDARD	1-47115-867-0	08	1	9202-	●
5	LINING; RR BRK SHOE,STANDARD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47115-867-0	08	1	9202-		●
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY PACKAGE TRUCK<RD2>	1-47125-055-0	08	1	9202-		●
6	LINING; RR BRK SHOE,OVER SIZE	1-47115-869-0	08	1	9202-	●
6	LINING; RR BRK SHOE,OVER SIZE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47115-869-0	08	1	9202-		●
6	LINING; RR BRK SHOE,OVER SIZE HEAVY DUTY PACKAGE TRUCK<RD2>	1-47125-057-0	08	1	9202-		●
7	RIVET; LINING,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=18.5	1-09732-034-0	80	1	9202-	●
7	RIVET; LINING,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2> L=18.5	1-09732-034-0	80	1	9202-		●
7	RIVET; LINING,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-027-0	80	1	9202-	●	●
7	RIVET; LINING,RR BRK HEAVY DUTY PACKAGE TRUCK<RD2> L=18.5	1-09732-034-0	AR	1	9202-		●
8	PIN; RETURN SPRING,RR BRK SHOE	1-47119-017-1	04	1	9202-	●
8	PIN; RETURN SPRING,RR BRK SHOE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47119-017-1	04	1	9202-		●
8	PIN; RETURN SPRING,RR BRK SHOE HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-09744-051-0	04	1	9202-		●
8	PIN; RETURN SPRING,RR BRK SHOE HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-47119-025-0	04	1	9202-		●
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-236-0	02	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09583-237-1	02	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-175-0	02	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-09583-210-0	04	1	9202-		●
11	PIN; ANCHOR,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=106.5	1-47131-038-0	04	1	9202-	●
11	PIN; ANCHOR,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2> L=106.5	1-47131-038-0	04	1	9202-		●
11	PIN; ANCHOR,RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=121.5	1-47131-039-0	04	1	9202-	●	●
11	PIN; ANCHOR,RR WHEEL BRK HEAVY DUTY PACKAGE TRUCK<RD2> L=121.5	1-47131-039-0	04	1	9202-		●
25	COVER SET; RR BRK DRUM EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47151-458-1	02	1	9202-	●
25	COVER SET; RR BRK DRUM EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	1-47151-458-1	02	1	9202-		●
25	COVER SET; RR BRK DRUM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47151-482-1	02	1	9202-	●	●
25	COVER SET; RR BRK DRUM HEAVY DUTY PACKAGE TRUCK<RD2>	1-47151-526-1	02	1	9202-		●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	04	1	9202-9501	●	●
27	COVER; CHECK HOLE,DRUM COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-095-0	04	1	9502-	●	●
27	COVER; CHECK HOLE,DRUM COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-151-0	04	1	9502-	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	12	1	9202-9409	●	●
30	BOLT; DRUM COVER M10X16 FLANGE	0-28081-016-0	12	1	9410-9410	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9411-	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47137-112-3	02	1	9202-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	1-47137-112-3	02	1	9202-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47130-088-1	02	1	9202-	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-47137-151-0	02	1	9202-		●
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	02	1	9202-9204	●	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9205-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9202-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9202-	●	●
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-612-0	02	1	9202-	●	●
59	WASHER; LK,RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2	9-09150-514-0	04	1	9202-		●
72	PIN; SPLIT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=2.8 L=18	9-08113-018-0	02	1	9202-	●	●
83	WASHER; PL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.5 OD=18	9-09160-510-0	02	1	9408-	●	●
89	NUT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	9-99110-512-0	04	1	9202-	●	●
90	BRACKET; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48258-147-0	01	1	9202-	●	●
90	BRACKET; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48258-146-0	01	1	9202-	●	●
91	BOLT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X30	0-20801-230-0	04	1	9202-	●	●
92	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-612-0	04	1	9202-	●	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-697-0	02	1	9202-	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	1-47600-697-0	02	1	9202-		●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-597-1	01	1	9202-	●	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-596-1	01	1	9202-	●	●
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-47600-682-0	02	1	9202-		●
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=33.3	1-87830-525-0	02	1	9202-	●
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2> ID=33.3	1-87830-525-0	02	1	9202-		●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-87830-569-0	02	1	9202-	●	●
95	CUP SET; RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK<RD2>	1-87830-528-0	02	1	9202-		●
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=66.5	1-47615-005-0	02	1	9202-	●
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2> L=66.5	1-47615-005-0	02	1	9202-		●
96	SCREW; BLEEDER,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-002-0	02	1	9202-	●	●
96	SCREW; BLEEDER,RR BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-47615-002-0	02	1	9202-		●
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	9202-	●	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-47624-211-0	04	1	9202-	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	9-47624-211-0	04	1	9202-		●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-213-0	04	1	9202-	●	●
99	PISTON; RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK<RD2>	1-47624-044-0	04	1	9202-		●
101	SCREW; ADJ,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47622-030-0	04	1	9202-	●	●
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X32 W/LK WASHER	0-50051-232-0	04	1	9202-	●
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2> M12X32 W/LK WASHER	0-50051-232-0	04	1	9202-		●
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X70	0-16806-270-0	04	1	9202-	●	●
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK<RD2> (B) M14X35	0-20801-435-0	04	1	9202-		●
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK<RD2> (A) M8X16 W/LK WASHER	9-01900-816-0	06	1	9202-9204		●
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK<RD2> (A) M8X16 W/LK WASHER	0-50040-816-0	06	1	9205-		●
156	WASHER; LK,WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-612-0	02	1	9202-	●	●
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X10	9-01900-610-0	14	1	9202-	●	●
174	COVER; CYL,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-035-0	02	1	9202-	●	●
176	STOPPER; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-070-0	04	1	9202-	●	●
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47640-003-0	02	1	9202-	●	●
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-011-0	02	1	9202-	●	●
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-017-0	02	1	9202-	●	●
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-074-0	04	1	9202-	●	●
208	WASHER; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=106	1-42129-028-3	02	1	9202-	●	●
208	WASHER; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=113	1-42129-163-2	02	1	9202-	●	●
209	SHIM; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=106	1-42129-027-4	06	1	9202-	●	●
209	SHIM; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=113	1-42129-162-1	06	1	9202-	●	●
210	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X25	0-20801-225-0	08	1	9202-	●	●
210	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X38	0-20801-238-0	08	1	9202-	●	●
211	WASHER; LK,BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-612-0	16	1	9202-	●	●
212	STAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48258-078-0	01	1	9202-	●	●
213	BOLT; STAY FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X25	0-20801-225-0	02	1	9202-	●	●
214	NUT; STAY FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	9-99111-512-0	02	1	9202-	●	●
215	WASHER; LK,STAY FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-612-0	02	1	9202-	●	●
216	PIN; STAY FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-08234-038-0	02	1	9202-	●	●

95 112 94 111 112 100 59 99 97 96 99 7 5 6 5 6 2 3 100 30 11 25 5 6 27 5 6 47 56 51 8 9 9 9 149 60 58 57 62 61 52 51 7 8 2 11 55 54 53 4 1 1

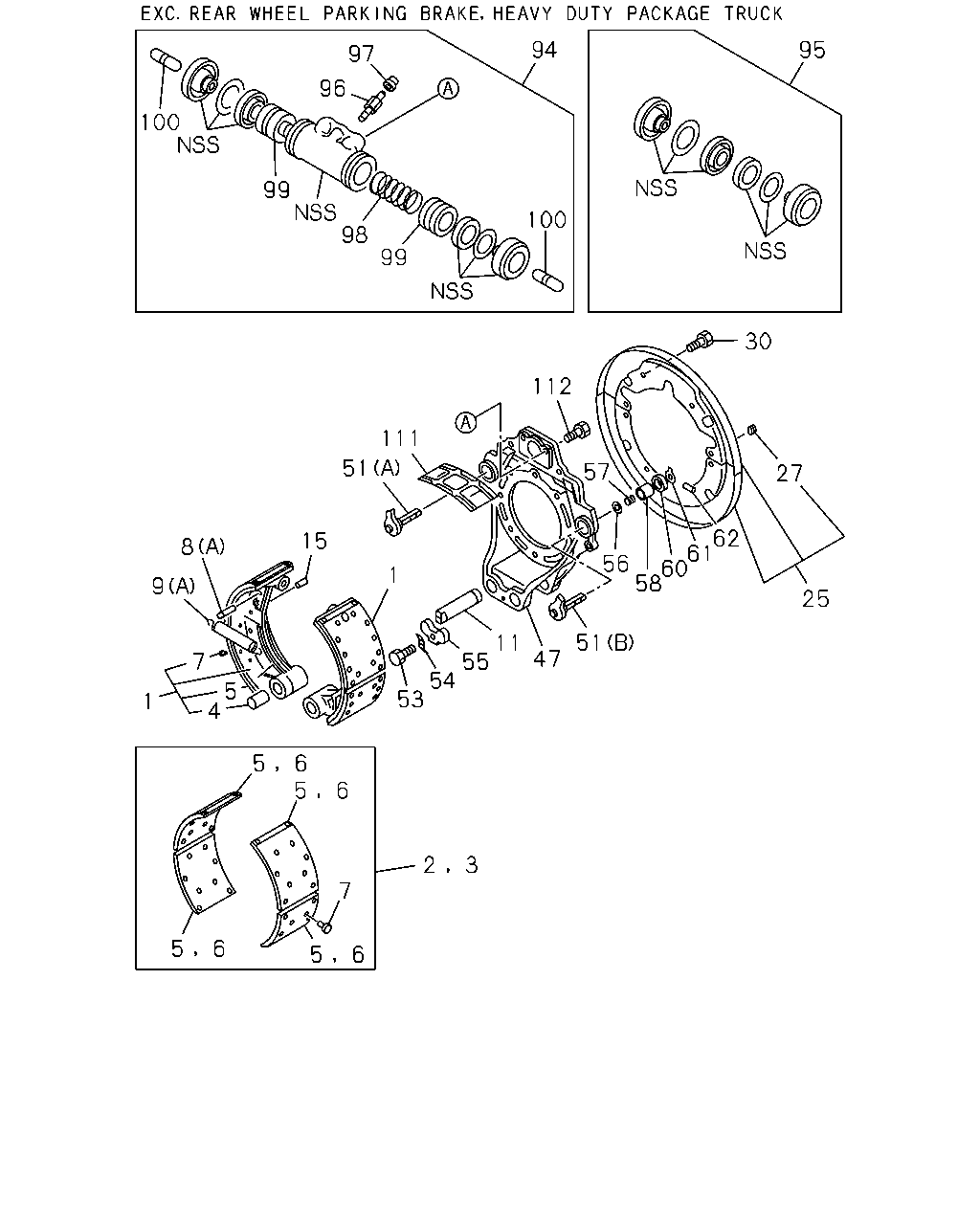

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47110-962-0	04	1	9202-	●
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	1-47110-962-0	04	1	9202-		●
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47110-988-0	04	1	9202-	●	●
1	SHOE; BRK,RR HEAVY DUTY PACKAGE TRUCK<RD2>	1-47120-218-0	04	1	9202-		●
2	LINING SET; RR BRK,STANDARD	1-88302-956-0	02	1	9202-	●
2	LINING SET; RR BRK,STANDARD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-88302-956-0	02	1	9202-		●
2	LINING SET; RR BRK,STANDARD HEAVY DUTY PACKAGE TRUCK<RD2>	1-88302-958-0	02	1	9202-		●
3	LINING SET; RR BRK,OVER SIZE	1-88310-001-0	02	1	9202-	●
3	LINING SET; RR BRK,OVER SIZE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-88310-001-0	02	1	9202-		●
3	LINING SET; RR BRK,OVER SIZE HEAVY DUTY PACKAGE TRUCK<RD2>	1-88310-157-0	02	1	9202-		●
4	BUSHING; BRK SHOE,RR WHEEL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47112-011-0	04	1	9202-	●
4	BUSHING; BRK SHOE,RR WHEEL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	1-47112-011-0	04	1	9202-		●
4	BUSHING; BRK SHOE,RR WHEEL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47112-012-0	04	1	9202-	●	●
4	BUSHING; BRK SHOE,RR WHEEL HEAVY DUTY PACKAGE TRUCK<RD2>	1-47112-012-0	04	1	9202-		●
5	LINING; RR BRK SHOE,STANDARD	1-47115-867-0	08	1	9202-	●
5	LINING; RR BRK SHOE,STANDARD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47115-867-0	08	1	9202-		●
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY PACKAGE TRUCK<RD2>	1-47125-055-0	08	1	9202-		●
6	LINING; RR BRK SHOE,OVER SIZE	1-47115-869-0	08	1	9202-	●
6	LINING; RR BRK SHOE,OVER SIZE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47115-869-0	08	1	9202-		●
6	LINING; RR BRK SHOE,OVER SIZE HEAVY DUTY PACKAGE TRUCK<RD2>	1-47125-057-0	08	1	9202-		●
7	RIVET; LINING,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=18.5	1-09732-034-0	80	1	9202-	●
7	RIVET; LINING,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2> L=18.5	1-09732-034-0	80	1	9202-		●
7	RIVET; LINING,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-027-0	80	1	9202-	●	●
7	RIVET; LINING,RR BRK HEAVY DUTY PACKAGE TRUCK<RD2> L=18.5	1-09732-034-0	AR	1	9202-		●
8	PIN; RETURN SPRING,RR BRK SHOE	1-47119-017-1	04	1	9202-	●
8	PIN; RETURN SPRING,RR BRK SHOE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-47119-017-1	04	1	9202-		●
8	PIN; RETURN SPRING,RR BRK SHOE HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-09744-051-0	04	1	9202-		●
8	PIN; RETURN SPRING,RR BRK SHOE HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-47119-025-0	04	1	9202-		●
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-236-0	02	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09583-237-1	02	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-175-0	02	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-09583-210-0	04	1	9202-		●
11	PIN; ANCHOR,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=106.5	1-47131-038-0	04	1	9202-	●
11	PIN; ANCHOR,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2> L=106.5	1-47131-038-0	04	1	9202-		●
11	PIN; ANCHOR,RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=121.5	1-47131-039-0	04	1	9202-	●	●
11	PIN; ANCHOR,RR WHEEL BRK HEAVY DUTY PACKAGE TRUCK<RD2> L=121.5	1-47131-039-0	04	1	9202-		●
25	COVER SET; RR BRK DRUM EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47151-458-1	02	1	9202-	●
25	COVER SET; RR BRK DRUM EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	1-47151-458-1	02	1	9202-		●
25	COVER SET; RR BRK DRUM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47151-482-1	02	1	9202-	●	●
25	COVER SET; RR BRK DRUM HEAVY DUTY PACKAGE TRUCK<RD2>	1-47151-526-1	02	1	9202-		●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	04	1	9202-9501	●	●
27	COVER; CHECK HOLE,DRUM COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-095-0	04	1	9502-	●	●
27	COVER; CHECK HOLE,DRUM COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-151-0	04	1	9502-	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	12	1	9202-9409	●	●
30	BOLT; DRUM COVER M10X16 FLANGE	0-28081-016-0	12	1	9410-9410	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9411-	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47137-112-3	02	1	9202-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	1-47137-112-3	02	1	9202-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47130-088-1	02	1	9202-	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-47137-151-0	02	1	9202-		●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47165-058-1	02	1	9202-	●	●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47165-059-1	02	1	9202-	●	●
52	BOLT; ANCHOR BRKT HEAVY DUTY PACKAGE TRUCK<RD2> M14X43	1-09040-045-0	02	1	9202-		●
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	02	1	9202-9204	●	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9205-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9202-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9202-	●	●
56	WASHER; ADJ CAM,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-033-0	04	1	9202-	●	●
57	SPRING; ADJ CAM,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09941-293-0	04	1	9202-9506	●	●
57	SPRING; ADJ CAM,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-046-0	04	1	9507-	●	●
58	BOOT; ADJ CAM,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-034-0	04	1	9202-	●	●
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-612-0	02	1	9202-	●	●
59	WASHER; LK,RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2	9-09150-514-0	04	1	9202-		●
60	COVER; ADJ CAM BOOT,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-031-0	04	1	9202-	●	●
61	INDICATOR; WEAR,RR BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-032-1	04	1	9202-	●	●
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-030-0	04	1	9202-	●	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-697-0	02	1	9202-	●
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	1-47600-697-0	02	1	9202-		●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-597-1	01	1	9202-	●	●
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-596-1	01	1	9202-	●	●
94	CYLINDER; WHEEL,RR BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-47600-682-0	02	1	9202-		●
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=33.3	1-87830-525-0	02	1	9202-	●
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2> ID=33.3	1-87830-525-0	02	1	9202-		●
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-87830-569-0	02	1	9202-	●	●
95	CUP SET; RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK<RD2>	1-87830-528-0	02	1	9202-		●
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=66.5	1-47615-005-0	02	1	9202-	●
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2> L=66.5	1-47615-005-0	02	1	9202-		●
96	SCREW; BLEEDER,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-002-0	02	1	9202-	●	●
96	SCREW; BLEEDER,RR BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-47615-002-0	02	1	9202-		●
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	9202-	●	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-47624-211-0	04	1	9202-	●
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	9-47624-211-0	04	1	9202-		●
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-213-0	04	1	9202-	●	●
99	PISTON; RR WHEEL CYL HEAVY DUTY PACKAGE TRUCK<RD2>	1-47624-044-0	04	1	9202-		●
100	ROD; PUSH,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47621-009-0	04	1	9202-	●	●
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-080-0	02	1	9202-	●
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2>	1-47159-080-0	02	1	9202-		●
111	COVER; WHEEL CYL HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-47159-089-0	02	1	9202-		●
111	COVER; WHEEL CYL HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-47159-118-0	02	1	9202-		●
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X32 W/LK WASHER	0-50051-232-0	04	1	9202-	●
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK<RD2> M12X32 W/LK WASHER	0-50051-232-0	04	1	9202-		●
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X70	0-16806-270-0	04	1	9202-	●	●
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK<RD2> (B) M14X35	0-20801-435-0	04	1	9202-		●
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK<RD2> (A) M8X16 W/LK WASHER	9-01900-816-0	06	1	9202-9204		●
112	BOLT; WHEEL CYL SETTING HEAVY DUTY PACKAGE TRUCK<RD2> (A) M8X16 W/LK WASHER	0-50040-816-0	06	1	9205-		●
149	PIN; GUIDE RETURN HEAVY DUTY PACKAGE TRUCK<RD2>	1-47119-024-0	04	1	9202-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
