Isuzu WW
▶
TRUCKS
▶
CVR
▶
10860 - CVR LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶

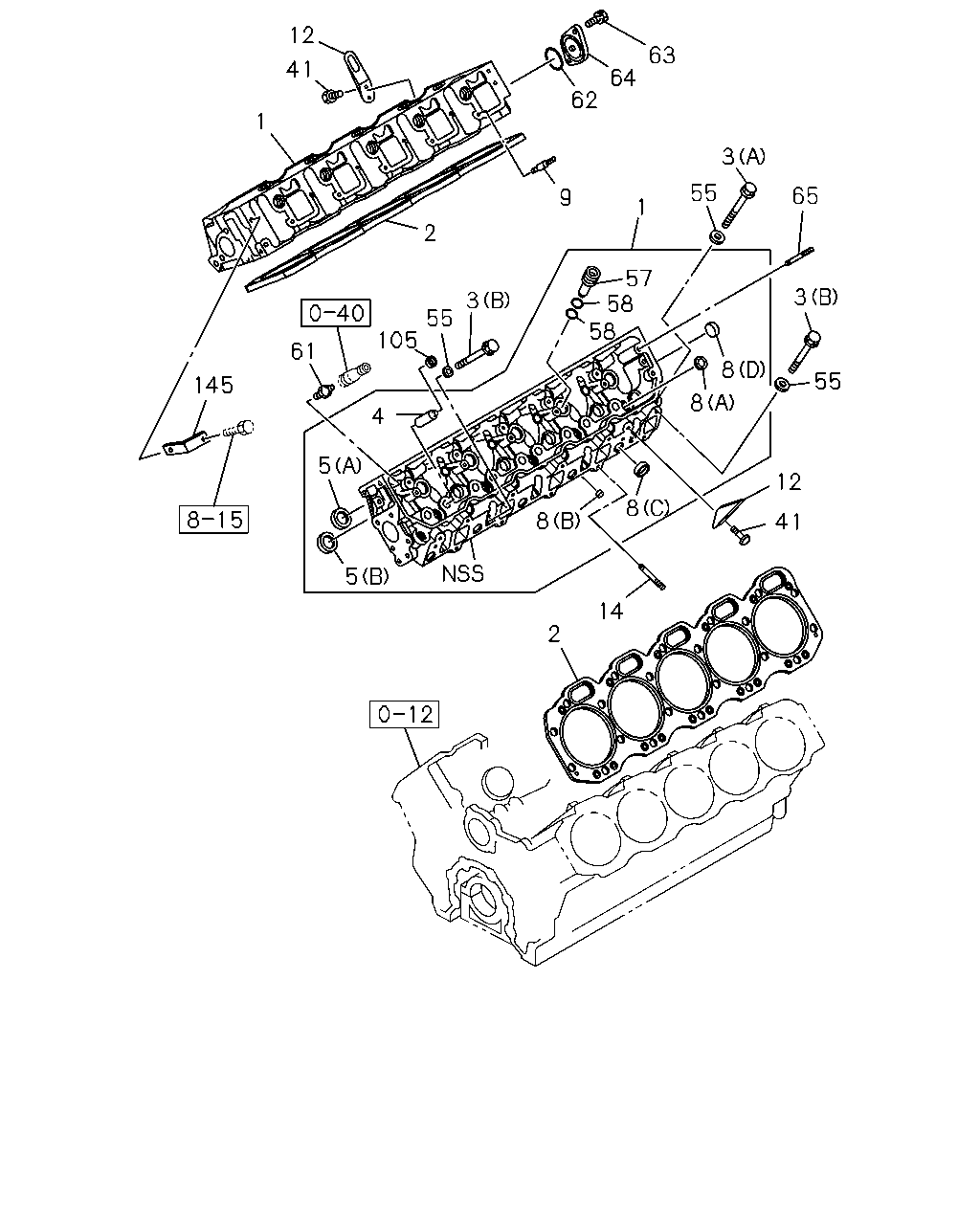

0-11 — CYLINDER HEAD
(#9162) — 29 parça
12
63
41
64
62
1
3
55
65
9
1
2
57
58
58
3
3
55
105
61
8
55
145
8
4
5
12
8
8
41
5
14
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
RH BANK
1-11110-850-2
01
1
0105-
1
HEAD ASM; CYL
LH BANK
1-11110-851-2
01
1
0105-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11141-261-1
02
1
0105-
3
BOLT; CYL HD TO BLOCK
(B) M14X80 FLANGE
1-09070-138-0
20
1
0105-
3
BOLT; CYL HD TO BLOCK
(A) M14X140
1-09070-139-0
24
1
0105-
4
GUIDE; VLV
1-11721-004-0
20
1
0105-
5
SEAT; VLV INSERT
(A) EXHAUST
1-11711-071-0
10
1
0105-0108
5
SEAT; VLV INSERT
(A) EXHAUST
1-11711-054-0
10
1
0109-
5
SEAT; VLV INSERT
(B) INLET
1-11715-078-0
10
1
0105-
8
CUP; SEALING,WATER JACKET
(D) OD=45
1-09600-005-2
01
1
0105-
8
CUP; SEALING,WATER JACKET
(B) OD=12
1-09600-010-2
20
1
0105-
8
CUP; SEALING,WATER JACKET
(A) OD=22
1-09600-011-2
28
1
0105-
8
CUP; SEALING,WATER JACKET
(C) OD=32
1-09600-012-2
10
1
0105-
9
STUD; INL MANIF
M10X13,M10X17 L=65
1-09309-008-0
20
1
0105-
12
HANGER; ENG,RR
1-11777-164-0
02
1
0105-
14
STUD; EXH MANIF
M10X95 L=110
1-09302-063-0
20
1
0105-
41
BOLT; ENG HANGER
M12X26
1-09000-535-1
04
1
0105-
55
WASHER; PL,CYL HD TO BLOCK
ID=14.2
1-09503-050-0
44
1
0105-
57
SLEEVE; NOZZLE HOLDER
1-11129-017-0
10
1
0105-0303
57
SLEEVE; NOZZLE HOLDER
1-11129-069-0
10
1
0304-
58
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09623-592-0
20
1
0105-
61
CONNECTOR; LEAK OFF PIPE
1-09669-015-0
02
1
0105-
62
GASKET; COVER,WATER JACKET
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09623-425-0
01
1
0105-
63
BOLT; CVR,WATER JACKET
M10X25 FLANGE
0-28181-025-0
02
1
0105-0512
63
BOLT; CVR,WATER JACKET
M10X25 FLANGE
0-28151-025-0
02
1
0601-
64
COVER; WATER JACKET
1-11119-013-1
01
1
0105-
65
STUD; ROCKER OIL FEED
M10X88 L=103
1-09300-025-0
02
1
0105-
105
SEAL; OIL VLV STEM
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-12569-017-0
20
1
0105-
145
BRACKET
1-09709-072-0
01
1
0105-
