Isuzu WW
▶
TRUCKS
▶
FTR
▶
10627 - FTR-LHD
▶
3 - Brakes, Brake System
▶
3-01 - FRONT WHEEL BRAKE
▶

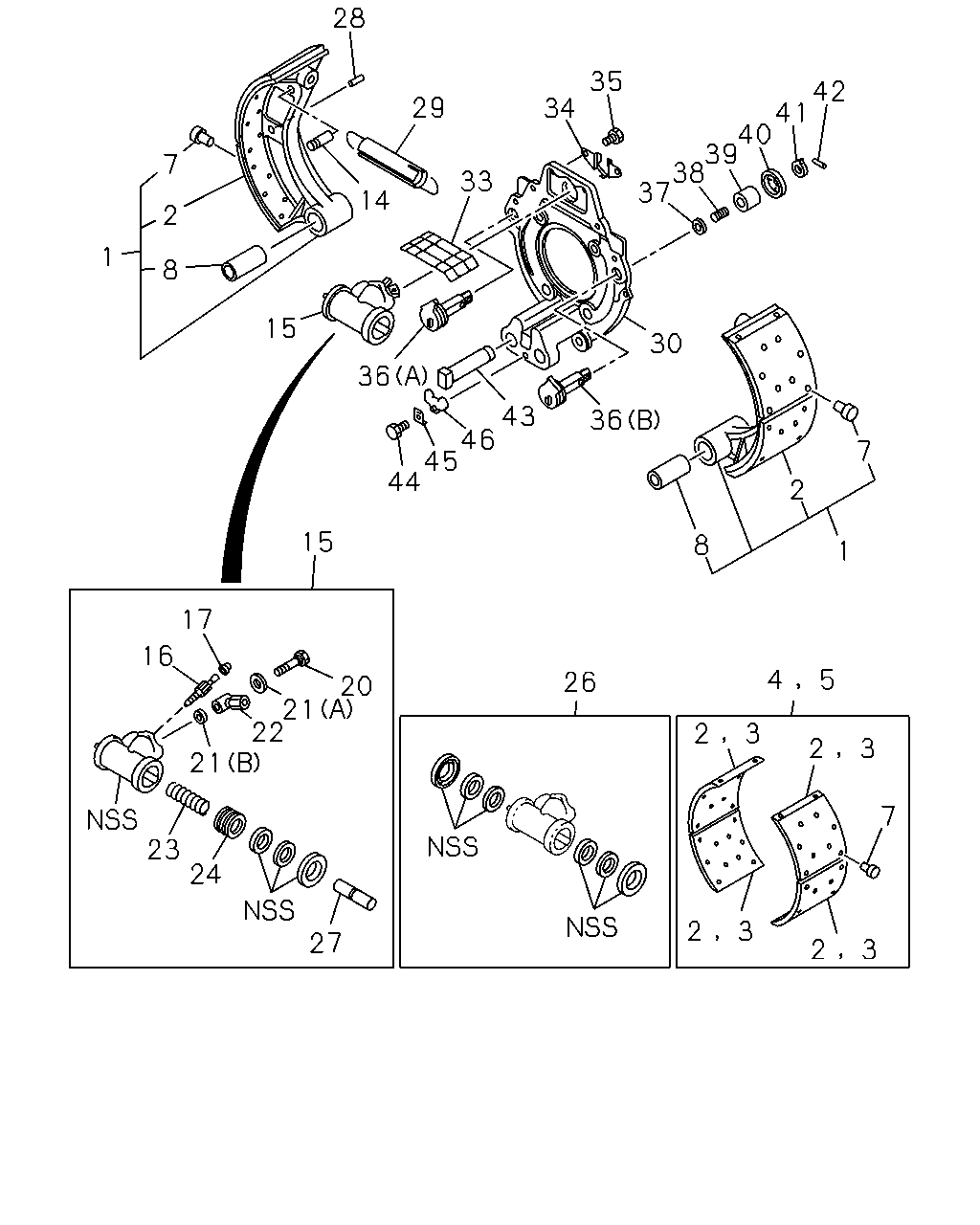

3-01 — FRONT WHEEL BRAKE
(#916) — 40 parça
Tümü
A - FTR6MC
B - FTR6MF
28
35
42
41
40
39
38
37
29
34
7
33
14
2
1
8
15
30
36
43
46
45
44
36
7
2
15
8
1
17
16
5
4
26
20
21
22
21
3
2
3
2
7
23
24
2
3
27
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SHOE; BRK,FRT
1-47110-962-0
04
1
9202-
●
●
2
LINING; FRT BRK SHOE,STANDARD
1-47115-867-0
08
1
9202-
●
●
3
LINING; FRT BRK SHOE,OVER SIZE
1-47115-869-0
08
1
9202-
●
●
4
LINING SET; FRT BRK,STANDARD
1-88302-956-0
02
1
9202-
●
●
5
LINING SET; FRT BRK,OVER SIZE
1-88310-001-0
02
1
9202-
●
●
7
RIVET; LINING,FRT BRK
L=18.5
1-09732-034-0
80
1
9202-
●
●
8
BUSHING; BRK SHOE
1-47112-011-0
04
1
9202-
●
●
14
PIN; SHOE RETURN SPR
L=73.5
1-47119-017-1
04
1
9202-
●
●
15
CYLINDER; WHEEL,FRT BRK
1-47600-675-0
01
1
9202-
●
●
15
CYLINDER; WHEEL,FRT BRK
1-47600-674-0
01
1
9202-
●
●
16
SCREW; BLEEDER,FRT BRK
L=66.5
1-47615-005-0
02
1
9202-
●
●
17
CAP; BLEEDER,FRT WHEEL CYL
OD=12
1-47619-011-0
02
1
9202-
●
●
20
BOLT; JOINT
1-47634-006-0
02
1
9202-
●
●
21
GASKET; UNION BOLT
(A) ID=15.2
1-09630-019-0
02
1
9202-
●
●
21
GASKET; UNION BOLT
(B) ID=12.2
1-09630-020-0
02
1
9202-
●
●
22
JOINT; PIPE
1-47631-057-1
02
1
9202-
●
●
23
SPRING; COIL
9-09940-435-0
02
1
9202-
●
●
24
PISTON; FRT WHEEL CYL
9-47624-210-0
04
1
9202-
●
●
26
CUP SET; FRT WHEEL CYL
ID=47.5
1-87830-521-0
02
1
9202-
●
●
27
ROD; PUSH
1-47621-009-0
04
1
9202-
●
●
28
PIN; SHOE ADJ CAM GUIDE
1-47116-002-0
04
1
9202-
●
●
29
SPRING; RETURN,FRT BRK SHOE
1-09583-185-2
02
1
9202-
●
●
30
BRACKET; ANCHOR,FRT
1-47137-149-0
02
1
9202-
●
●
33
COVER; WHEEL CYL
1-47159-080-0
02
1
9202-
●
●
34
PLATE; DIRECTION,FRT
1-47159-094-0
02
1
9202-
●
●
35
BOLT; FRT WHEEL CYL
M12X35 W/LK WASHER
0-50051-235-0
04
1
9202-
●
●
36
CAM ASM; ADJ
(A)
1-47165-058-1
02
1
9202-
●
●
36
CAM ASM; ADJ
(B)
1-47165-059-1
02
1
9202-
●
●
37
WASHER; ADJ CAM
1-47169-033-0
04
1
9202-
●
●
38
SPRING; ADJ CAM
9-09941-293-0
04
1
9202-9506
●
●
38
SPRING; ADJ CAM
1-47169-046-0
04
1
9507-
●
●
39
BOOT; ADJ CAM
1-47169-034-0
04
1
9202-
●
●
40
COVER; BOOT,ADJ CAM
1-47169-031-0
04
1
9202-
●
●
41
INDICATOR
1-47169-032-1
04
1
9202-
●
●
42
PIN; SPINDLE
1-47169-030-0
04
1
9202-
●
●
43
PIN; ANCHOR
L=106.5
1-47131-038-0
04
1
9202-
●
●
44
BOLT; LOCK,ANCHOR PIN
M10X16
9-02041-016-0
02
1
9202-9204
●
●
44
BOLT; LOCK,ANCHOR PIN
M10X16
0-20801-016-0
02
1
9205-
●
●
45
WASHER; LK
1-47133-011-0
02
1
9202-
●
●
46
PLATE; LOCK
1-47133-005-0
02
1
9202-
●
●
