9-01 — TOOLS (#9159) — 134 parça

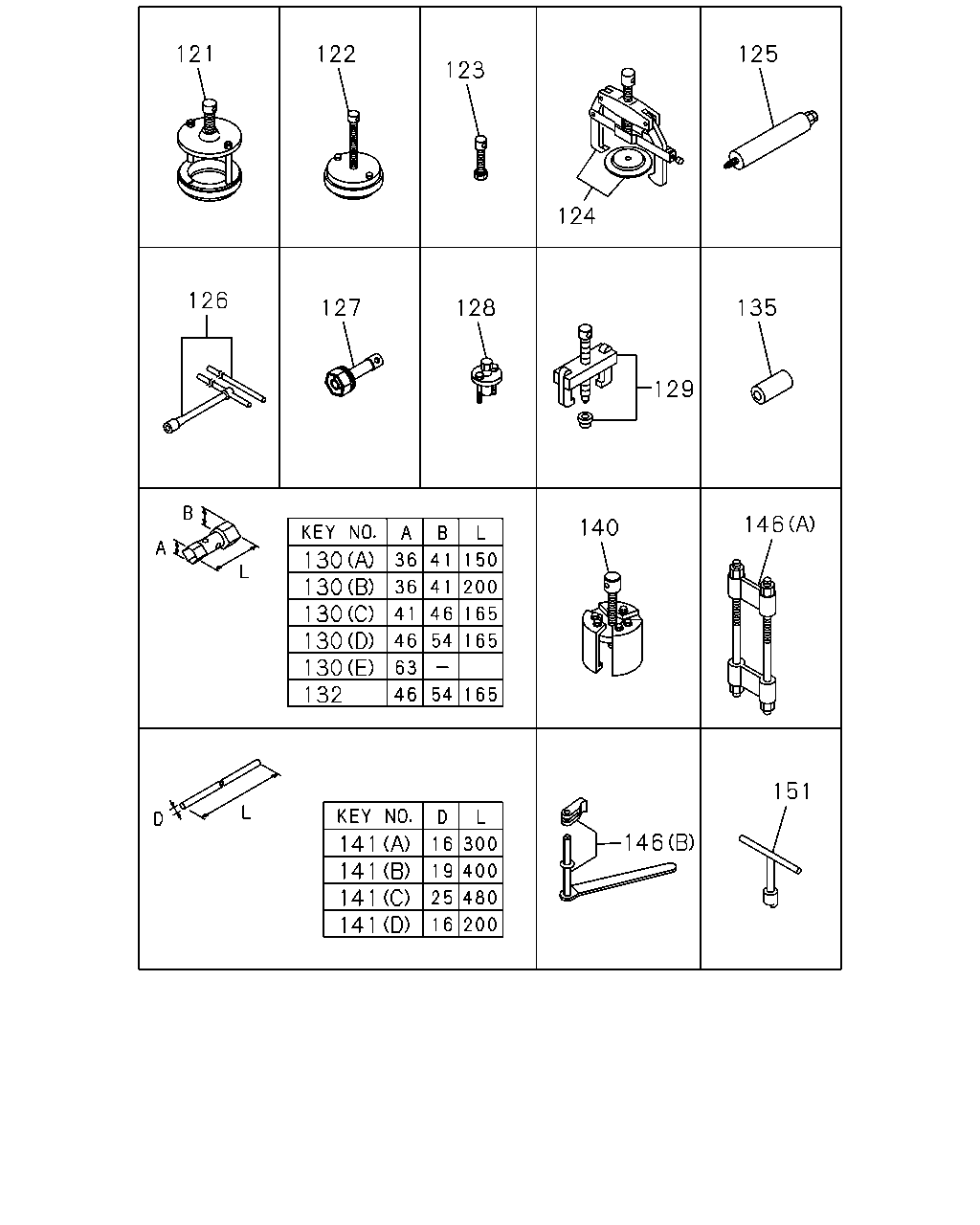

çizim 73342
121 122 125 123 124 126 127 128 135 129 146 140 130 130 130 130 130 132 151 146 141 141 141 141
BalonParca AdiParca NoAdetTipApplied Date A B
121 PULLER ASM; COUNTER REAR 9-85210-185-0 01 1 9606- ● ●
122 PULLER ASM; COUNTER FRT 1-85210-010-0 01 1 9606- ● ●
123 PULLER; SPEEDOMETER BUSHING 9-85210-091-0 01 1 9606- ● ●
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 9606- ● ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 9606- ● ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-0 01 1 9606- ● ●
127 WRENCH ASM; HUB BRG NUT
L=400 B=105 		9-85113-509-0 01 1 9606- ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9606- ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 9606- ● ●
130 WRENCH; BOX
(E) B=63 		9-85111-368-0 01 1 9606- ● ●
130 WRENCH; BOX
(D) B=46 & 54 L=165 		9-85112-320-0 01 1 9606- ● ●
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 9606- ● ●
130 WRENCH; BOX
(B) B=36 & 41 L=200 		9-85112-330-0 01 1 9606- ● ●
130 WRENCH; BOX
(C) B=41 & 46 L=165 		9-85113-401-0 01 1 9606- ● ●
132 WRENCH; NUT CR/SHF
B=46 & 54 L=165 		9-85112-320-0 01 1 9606-9809 ●
132 WRENCH; NUT CR/SHF
B=46 & 54 L=165 		9-85112-320-0 01 1 9810- ● ●
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 9606- ● ●
140 REMOVER; WEAR RING 1-85210-027-0 01 1 9606-9809 ●
140 REMOVER; WEAR RING 1-85210-027-0 01 1 9810- ● ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 9606-9805 ● ●
141 HANDLE; WRENCH
(D) OD=16 L=200 		9-85111-934-0 01 1 9606- ● ●
141 HANDLE; WRENCH
(B) OD=19 L=400 		9-85114-306-0 01 1 9606- ● ●
141 HANDLE; WRENCH
(A) OD=16 L=300 		9-85114-307-0 01 1 9606- ● ●
146 REPLACER KIT; LEAF SPR
(B) 		1-85237-016-0 01 1 9606- ● ●
146 REPLACER KIT; LEAF SPR
(A) 		9-85231-556-0 01 1 9606- ● ●
151 REMOVER; OIL BRK,FRT RETURN SPR 1-85237-002-0 01 1 9606- ● ●
çizim 74440
62 71 61 72 77 84 85 87 88 89 102 93 95 106 91 92 119 115 106 106 120
BalonParca AdiParca NoAdetTipApplied Date A B
61 PULLER ASM; PILOT BRG 9-85210-157-0 01 1 9606-9809 ●
61 PULLER ASM; PILOT BRG 9-85210-157-0 01 1 9810- ● ●
62 TOOL ASM; SETTING WEAR RING 1-85220-014-0 01 1 9606-9809 ●
62 TOOL ASM; SETTING WEAR RING 1-85220-014-0 01 1 9810- ● ●
71 TOOL; SETTING,OIL SEAL,FRT 1-85220-015-0 01 1 9606-9809 ●
71 TOOL; SETTING,OIL SEAL,FRT 1-85220-015-0 01 1 9810- ● ●
72 TOOL; SETTING,OIL SEAL,RR
W/REAR PTO 		1-85220-013-0 01 1 9606-9809 ●
72 TOOL; SETTING,OIL SEAL,RR
W/REAR PTO 		1-85220-013-0 01 1 9810- ● ●
72 TOOL; SETTING,OIL SEAL,RR
WO/REAR PTO 		1-85220-035-0 01 1 9606-9809 ●
72 TOOL; SETTING,OIL SEAL,RR
WO/REAR PTO 		1-85220-035-0 01 1 9810- ● ●
77 TOOL; SETTING,CYL LINER 9-85220-043-0 01 1 9606-9809 ●
77 TOOL; SETTING,CYL LINER 9-85220-043-0 01 1 9810- ● ●
84 REPLACER; VALVE SEAL 9-85221-289-0 01 1 9606-9809 ●
84 REPLACER; VALVE SEAL 9-85221-289-0 01 1 9810- ● ●
85 REPLACER ASM; VALVE SPR 9-85231-436-0 01 1 9606-9809 ●
85 REPLACER ASM; VALVE SPR 9-85231-436-0 01 1 9810- ● ●
87 TOOL; PISTON 9-85221-319-0 01 1 9606-9809 ●
87 TOOL; PISTON 9-85221-319-0 01 1 9810- ● ●
88 TOOL; CONNROD BUSHING 9-85220-042-0 01 1 9606-9809 ●
88 TOOL; CONNROD BUSHING 9-85220-042-0 01 1 9810- ● ●
89 TOOL; PISTON RING 1-85221-025-0 01 1 9606-9809 ●
89 TOOL; PISTON RING 1-85221-025-0 01 1 9810- ● ●
91 REPLACER ASM; CYL LINER 9-85231-186-0 01 1 9606-9809 ●
91 REPLACER ASM; CYL LINER 9-85231-186-0 01 1 9810- ● ●
92 ANKLE; REPLACER,CYL LINER 9-85231-180-0 01 1 9606-9809 ●
92 ANKLE; REPLACER,CYL LINER 9-85231-180-0 01 1 9810- ● ●
93 SETTING KIT; VALVE GUIDE 9-85231-222-0 01 1 9606-9809 ●
93 SETTING KIT; VALVE GUIDE 9-85231-222-0 01 1 9810- ● ●
95 SETTING TOOL; BRIDGE GUIDE 9-85221-324-0 01 1 9606-9809 ●
95 SETTING TOOL; BRIDGE GUIDE 9-85221-324-0 01 1 9810- ● ●
102 ADAPTER; COMP GAGE 9-85431-505-0 01 1 9606-9809 ●
102 ADAPTER; COMP GAGE 9-85431-505-0 01 1 9810- ● ●
106 TOOL; SETTING PILOT BRG
(A) 		9-85221-247-0 01 1 9606- ● ●
106 TOOL; SETTING PILOT BRG
(C) 		9-85221-249-0 01 1 9606- ● ●
106 TOOL; SETTING PILOT BRG
(B) 		9-85241-409-0 01 1 9606-9809 ●
106 TOOL; SETTING PILOT BRG
(B) 		9-85241-409-0 01 1 9810- ● ●
115 PLIER 5-85171-001-0 01 1 9606- ● ●
119 PULLER ASM; TOP GEAR BRG
L=235 		9-85210-190-0 01 1 9606- ● ●
120 PULLER ASM; MAIN REAR BRG
L=285 		9-85210-184-0 01 1 9606- ● ●
çizim 74457
158 163 152 153 154 165 166 167 169 170 172 173 177 171 180 180 181 192 189
BalonParca AdiParca NoAdetTipApplied Date A B
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 9606- ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 9606- ● ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 9606- ● ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 9606- ● ●
163 TOOL; SETTING
L=150 		9-85221-248-0 01 1 9606- ● ●
165 SETTING TOOL; PTO 9-85241-702-0 01 1 9606-9809 ●
165 SETTING TOOL; PTO 9-85241-702-0 01 1 9810- ● ●
166 ALIGNER; CLU RELEASE LEVER
L=550 H=12.5 		1-85253-001-0 01 1 9606- ● ●
167 ALIGNER; CLU PILOT 9-85241-409-0 01 1 9606- ● ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9606- ● ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9606- ● ●
171 PULLER ASM; PINION BRG 1-85210-050-0 01 1 9606- ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 9606- ● ●
173 WRENCH; COUPLING DRIVER 9-85111-944-0 01 1 9606- ● ●
177 SETTING TOOL KIT 1-85220-004-0 01 1 9606- ● ●
180 PULLER; FRT & RR HUB
(A) 		1-85210-002-0 01 1 9606- ● ●
180 PULLER; FRT & RR HUB
(B) 		1-85210-003-0 01 1 9606- ● ●
181 PULLER ASM; AIR CMPR 1-85210-036-0 01 1 9606-9809 ●
181 PULLER ASM; AIR CMPR 1-85210-036-0 01 1 9810- ● ●
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 9606- ● ●
192 GAUGE; TIRE PRESSURE 1-85315-001-0 01 1 9606-9912 ● ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0001- ● ●
çizim 74879
227 193 229 230 208 237 250 248 245 246
BalonParca AdiParca NoAdetTipApplied Date A B
193 JACK ASM
15TON 		1-85510-019-0 01 1 9606-9608 ● ●
193 JACK ASM
15TON 		1-85510-021-0 01 1 9709-9709 ● ●
193 JACK ASM
15TON 		1-85510-019-1 01 1 9710- ● ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9606-0105 ● ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0106- ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 9606- ● ●
229 FUNNEL; RAD 9-85531-110-0 01 1 9606- ● ●
230 PUMP; GREASE 1-85556-007-2 01 1 9606- ● ●
237 BAG; TOOL 8-97130-902-0 01 1 9606- ● ●
245 CHAIN; TIRE,SINGLE
9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 9606- ● ●
246 CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 9606- ● ●
248 CHAIN; TIRE,1000-20,DOUBLE
10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 9606- ● ●
250 CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 9606- ● ●
çizim 75238
13 1 12 5 9 19 20 21 22 23 27 17 47 40 39 38 37 36 29 29 29 29 50 52 53 56 57
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		9-23110-018-0 01 1 9606- ● ●
5 WRENCH ASM; NUT,MAINSHAFT 1-85110-010-0 01 1 9606- ● ●
9 WRENCH; WHEEL PIN
WHEEL 8STUD 7.50VX20 165-13(Q62) B=41X21 L=440 		1-85113-015-1 01 1 9606- ● ●
9 WRENCH; WHEEL PIN
WHEEL 8STUD 7.50VX20 165-13(Q62) B=41X21 L=445 		8-97118-906-0 01 1 9606-9903 ● ●
9 WRENCH; WHEEL PIN
EXC. WHEEL 8STUD 7.50VX20 165-13(Q62) B=33X30 L=450 		1-85111-033-1 01 1 9606- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9606- ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9606- ● ●
17 HAMMER 9-85121-406-0 01 1 9606- ● ●
19 WRENCH; 7X8
7X8 		9-09592-107-0 01 1 9606- ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9606- ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9606- ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9606- ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9606- ● ●
27 WRENCH; OPEN END 5.5X7
5.5X7 		9-09592-105-0 01 1 9606- ● ●
29 DRIVER; SCREW
(A) <+> L=205 		9-09595-022-0 01 1 9606- ● ●
29 DRIVER; SCREW
(B) <+> L=275 		9-09595-023-0 01 1 9606- ● ●
29 DRIVER; SCREW
(C) <-> L=205 		9-09595-126-0 01 1 9606- ● ●
29 DRIVER; SCREW
(D) <-> L=325 		9-09595-129-0 01 1 9606- ● ●
36 WRENCH; 24 9-85111-377-0 01 1 9606- ● ●
37 WRENCH; 27 9-85111-375-0 01 1 9606- ● ●
38 WRENCH; 32 9-85111-358-0 01 1 9606- ● ●
39 WRENCH; 36 9-85111-374-0 01 1 9606- ● ●
40 WRENCH; 41 9-85111-356-0 01 1 9606- ● ●
47 WRENCH ASM; UNIVERSAL,INJ PUMP 9-85113-901-0 01 1 9606-9809 ●
47 WRENCH ASM; UNIVERSAL,INJ PUMP 9-85113-901-0 01 1 9810- ● ●
50 REPLACER; NOZZLE HOLDER 9-85232-001-0 01 1 9606-9809 ●
50 REPLACER; NOZZLE HOLDER 9-85232-001-0 01 1 9810- ● ●
52 REMOVER; WATER PUMP 9-85210-097-0 01 1 9606-9809 ●
52 REMOVER; WATER PUMP 9-85210-097-0 01 1 9810- ● ●
53 PULLER; TAPER BUSHING 9-85210-123-0 01 1 9606-9809 ●
53 PULLER; TAPER BUSHING 9-85210-123-0 01 1 9810- ● ●
56 TOOL; SETTING TOP GEAR MAIN
L=350 		9-85221-310-0 01 1 9606- ● ●
57 TOOL; SETTING CRANK GEAR
OD=153 		9-85220-025-0 01 1 9606-9809 ●
57 TOOL; SETTING CRANK GEAR
OD=153 		9-85220-025-0 01 1 9810- ● ●
