8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#9153) — 15 parça

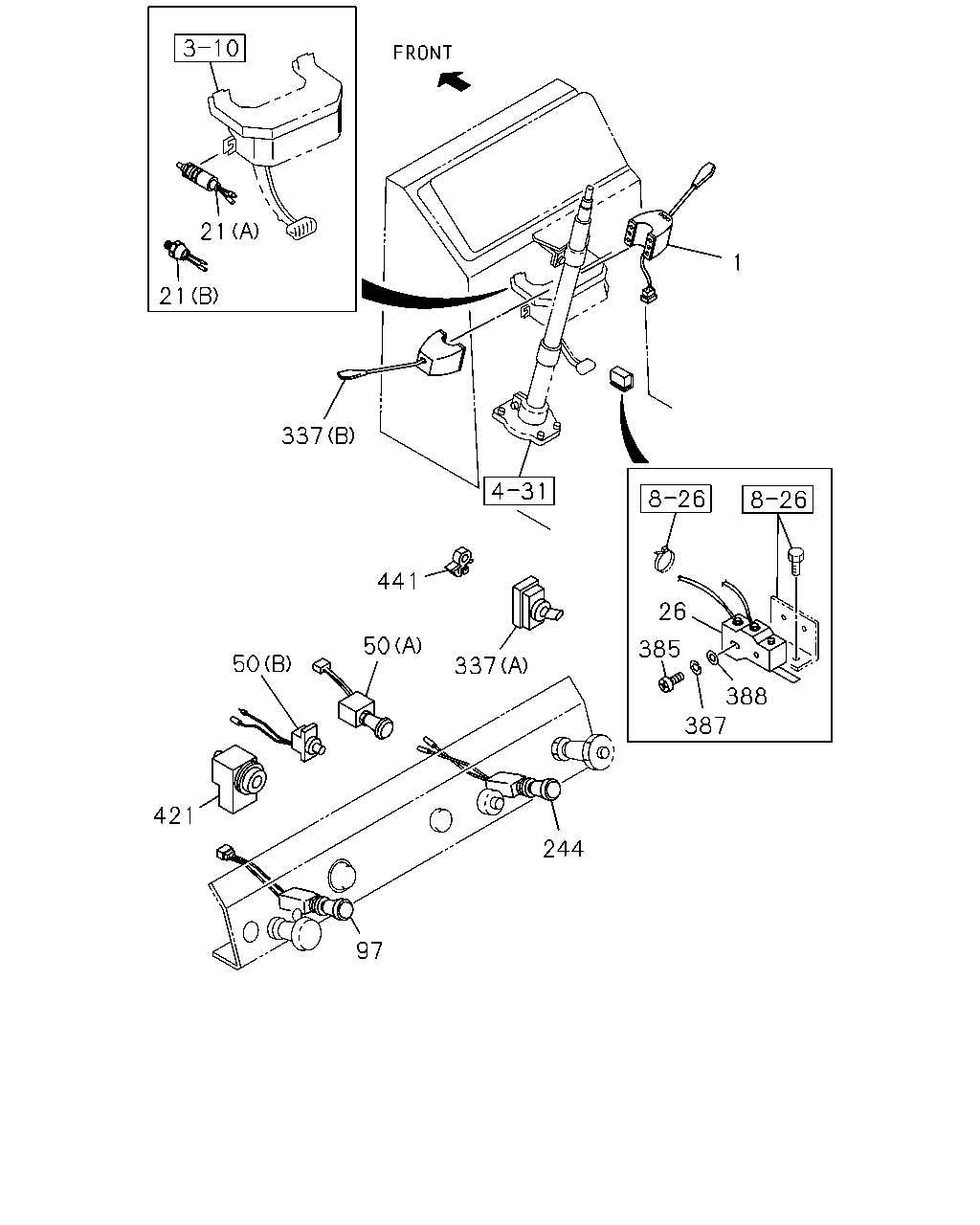

çizim 73284
21 1 21 337 441 26 50 385 50 337 388 387 421 244 97
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 1-82360-154-1 01 1 9606- ● ●
21 SWITCH; CLU
(A) ACCEL 		1-82380-009-3 01 1 9606- ● ●
21 SWITCH; CLU
(B) CLUTCH 		1-82410-024-0 01 1 9606- ● ●
26 SWITCH; ACCEL 9-82770-013-0 01 1 9606- ● ●
50 SWITCH; FRT WIPER
(A) 		1-82340-167-0 01 1 9606- ● ●
50 SWITCH; FRT WIPER
(B) 		1-82380-003-1 01 1 9606- ● ●
97 SWITCH; FOG & PARKING LAMP 1-82340-164-0 01 1 9606- ● ●
244 SWITCH; BATTERY 1-82340-350-0 01 1 9606- ● ●
337 SWITCH; EXH
(A) TOGGLE 		1-82350-019-1 01 1 9606- ● ●
337 SWITCH; EXH
(B) EXH BRAKE 		1-82360-161-3 01 1 9606- ● ●
385 SCREW; ACCEL SW 9-93470-325-0 02 1 9606- ● ●
387 WASHER; LK,ACCEL SW
ID=3.1 		9-09150-503-0 02 1 9606- ● ●
388 WASHER; PL,ACCEL SW
ID=3.2 OD=12 		9-09160-703-0 02 1 9606- ● ●
421 SWITCH ASM; INT HTR
INTAKE HEATER<SL2> 		1-82330-023-0 01 1 9606- ● ●
441 SWITCH; EXH BRAKE 1-09987-106-0 01 1 9606- ● ●
