◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MV ▶ 10857 - MV118 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#9152) — 42 parça

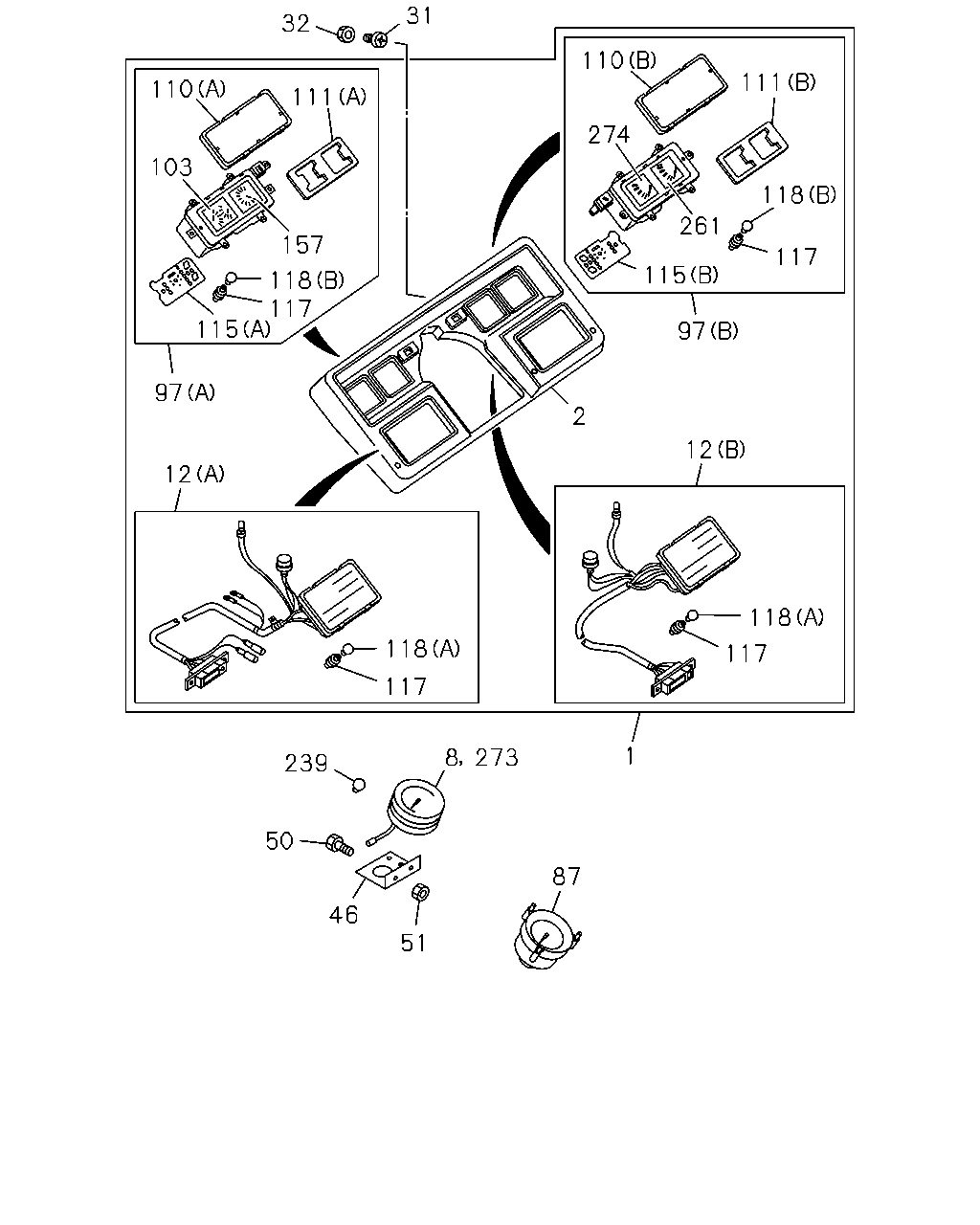

çizim 74927
31 32 110 111 110 111 274 103 118 261 157 117 115 118 117 115 97 97 2 12 12 118 118 117 117 1 8 273 239 50 87 46 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
MILE SPEEDOMETER<UC1> 		1-83110-676-0 01 1 9606- ● ●
1 METER COMPL; CLUSTER
TACHOGRAPH MILES/HOUR(UC5) 		1-83110-676-0 01 1 9606- ● ●
1 METER COMPL; CLUSTER
EXC. MILE SPEEDOMETER<UC1>,TACHOGRAPH MILES/HOUR(UC5) 		1-83110-585-0 01 1 9606- ● ●
2 PANEL; CLUSTER 1-83117-058-0 01 1 9606- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH MILES/HOUR(UC5) 		1-83120-337-0 01 1 9606- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H(SM8) 		1-83120-336-0 01 1 9606- ● ●
12 WARNING ASM; METER COMPL
(A) 		1-82250-047-1 01 1 9606- ● ●
12 WARNING ASM; METER COMPL
(B) 		1-82250-051-0 01 1 9606- ● ●
31 SCREW; METER,INST PANEL
M6X25 W/LK WASHER 		9-03910-625-0 05 1 9606- ● ●
32 NUT; METER FIX,CLUSTER METER
M6 		9-09110-406-0 05 1 9606- ● ●
46 BRACKET; TACHOGRAPH 1-83129-022-0 01 1 9606- ● ●
50 BOLT; FIX
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9606- ● ●
51 NUT; FIX
M8 		9-09110-408-0 02 1 9606- ● ●
87 SPEEDOMETER
MILE SPEEDOMETER<UC1> 80MPH 		1-83120-158-1 01 1 9606- ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H(SM8),MILE SPEEDOMETER<UC1> ,TACHOGRAPH MILES/HOUR(UC5) 120KM/H 		1-83120-157-0 01 1 9606- ● ●
97 METER; COMB,CLUSTER METER
MILE SPEEDOMETER<UC1> (A) 		1-83180-026-0 01 1 9606- ● ●
97 METER; COMB,CLUSTER METER
TACHOGRAPH MILES/HOUR(UC5) (A) 		1-83180-026-0 01 1 9606- ● ●
97 METER; COMB,CLUSTER METER
MILE SPEEDOMETER<UC1> (B) 		1-83180-027-0 01 1 9606- ● ●
97 METER; COMB,CLUSTER METER
TACHOGRAPH MILES/HOUR(UC5) (B) 		1-83180-027-0 01 1 9606- ● ●
97 METER; COMB,CLUSTER METER
EXC. MILE SPEEDOMETER<UC1>,TACHOGRAPH MILES/HOUR(UC5) (B) 		1-83180-018-0 01 1 9606- ● ●
97 METER; COMB,CLUSTER METER
EXC. MILE SPEEDOMETER<UC1>,TACHOGRAPH MILES/HOUR(UC5) (A) 		1-83180-021-0 01 1 9606- ● ●
103 METER ASM; FUEL & AMPERE 1-83180-017-0 01 1 9606- ● ●
110 GLASS; CLUSTER METER
(A) 		1-83189-001-0 01 1 9606- ● ●
110 GLASS; CLUSTER METER
(B) 		1-83189-006-0 01 1 9606- ● ●
111 RIM; GLASS,CLUSTER METER
(A) 		1-83189-004-0 01 1 9606- ● ●
111 RIM; GLASS,CLUSTER METER
(B) 		1-83189-007-0 01 1 9606- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(A) 		1-83189-003-0 01 1 9606- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(B) 		1-83189-009-0 01 1 9606- ● ●
117 SOCKET; BULB,GAUGE & CLOCK
12V 3.4W 		5-82188-001-0 18 1 9606- ● ●
118 BULB; CLUSTER METER
(B) W/GREEN FILTER 24V 3W 		1-82194-022-0 04 1 9606- ● ●
118 BULB; CLUSTER METER
(A) 24V 3W 		9-82691-603-0 16 1 9606- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
MILE SPEEDOMETER<UC1> 		1-83150-105-0 01 1 9606- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
TACHOGRAPH MILES/HOUR(UC5) 		1-83150-105-0 01 1 9606- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
EXC. MILE SPEEDOMETER<UC1>,TACHOGRAPH MILES/HOUR(UC5) 		1-83150-100-0 01 1 9606- ● ●
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H(SM8),TACHOGRAPH MILES/HOUR(UC5) 24V 3W 		1-82194-051-0 02 1 9606- ● ●
261 THERMOMETER
MILE SPEEDOMETER<UC1> 		1-83160-051-0 01 1 9606- ● ●
261 THERMOMETER
TACHOGRAPH MILES/HOUR(UC5) 		1-83160-051-0 01 1 9606- ● ●
261 THERMOMETER
EXC. MILE SPEEDOMETER<UC1>,TACHOGRAPH MILES/HOUR(UC5) 		1-83160-050-0 01 1 9606- ● ●
273 METER ASM; TACHO 1-83120-197-0 01 1 9606- ● ●
274 METER; OIL PRESSURE
MILE SPEEDOMETER<UC1> 		1-83150-106-0 01 1 9606- ● ●
274 METER; OIL PRESSURE
TACHOGRAPH MILES/HOUR(UC5) 		1-83150-106-0 01 1 9606- ● ●
274 METER; OIL PRESSURE
EXC. MILE SPEEDOMETER<UC1>,TACHOGRAPH MILES/HOUR(UC5) 		1-83150-099-0 01 1 9606- ● ●
