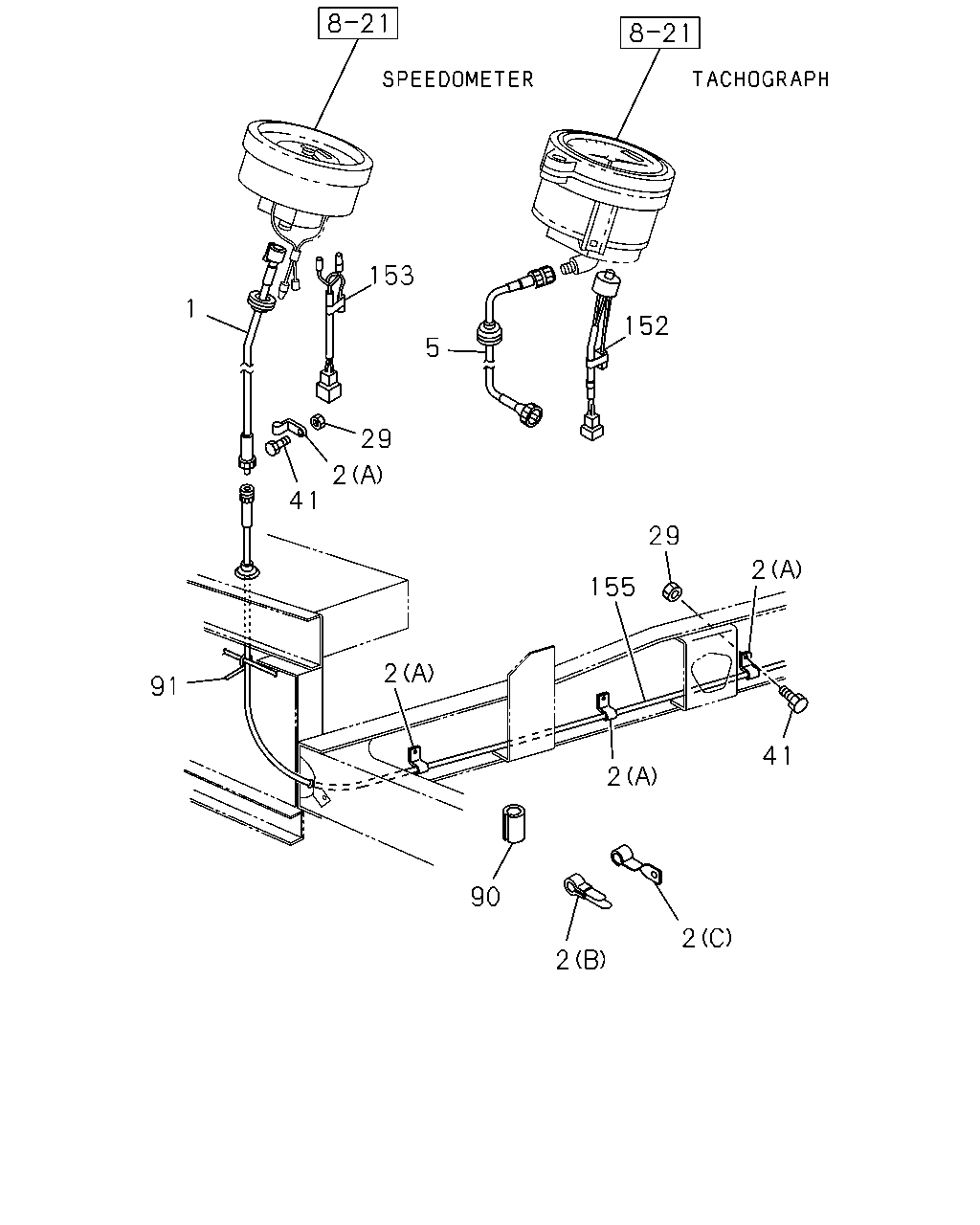

8-20 — METER CABLE (#9151) — 20 parça

153 1 152 5 29 2 41 29 2 155 2 91 41 2 90 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; FLEX,SPD TO CONN L=350	1-83123-258-1	01	1	9606-	●	●
2	CLIP; FLEX SHAFT (B) ID=11 L=41	1-09700-403-0	01	1	9606-	●	●
2	CLIP; FLEX SHAFT (A) ID=11 H=45 L=25	1-09700-866-0	03	1	9606-	●	●
2	CLIP; FLEX SHAFT (C) ID=13 L=70	1-09700-970-1	01	1	9606-	●	●
2	CLIP; FLEX SHAFT TACHOGRAPH 120KM/H(SM8),TACHOGRAPH MILES/HOUR(UC5) (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9606-	●	●
2	CLIP; FLEX SHAFT (B) ID=12 L=42	9-09917-426-0	02	1	9606-		●
5	SHAFT; FLEX,TACHOMETER TO ENG L=1100	1-83123-279-0	01	1	9606-	●
5	SHAFT; FLEX,TACHOMETER TO ENG L=700	1-83123-280-0	01	1	9606-	●	●
5	SHAFT; FLEX,TACHOMETER TO ENG L=2300	1-83123-410-0	01	1	9606-		●
29	NUT; CLIP,METER FLEX SHAFT M8	9-09110-408-0	04	1	9606-	●	●
29	NUT; CLIP,METER FLEX SHAFT TACHOGRAPH 120KM/H(SM8),TACHOGRAPH MILES/HOUR(UC5) M8	9-09110-408-0	01	1	9606-	●	●
41	BOLT; METER FLEX SHAFT M8X20 W/LK WASHER	0-50040-820-0	04	1	9606-	●	●
41	BOLT; METER FLEX SHAFT TACHOGRAPH 120KM/H(SM8),TACHOGRAPH MILES/HOUR(UC5) M8X20 W/LK WASHER	0-50040-820-0	01	1	9606-	●	●
90	SLEEVE ID=15 OD=19 L=20	1-09337-007-0	01	1	9606-	●	●
91	CLIP; BAND L=140	5-09707-031-1	02	1	9606-	●	●
91	CLIP; BAND L=140	5-09707-031-1	02	1	9606-	●	●
152	HARNESS; TACHOGRAPH TACHOGRAPH 120KM/H(SM8),TACHOGRAPH MILES/HOUR(UC5)	1-83118-222-1	01	1	9606-	●	●
153	HARNESS; SPEEDOMETER EXC. TACHOGRAPH 120KM/H(SM8),TACHOGRAPH MILES/HOUR(UC5)	1-83118-144-1	01	1	9606-	●	●
155	SHAFT; FLEX,CONN TO TRANS L=3750	1-83123-960-0	01	1	9606-	●
155	SHAFT; FLEX,CONN TO TRANS L=4550	1-83123-971-0	01	1	9606-		●
