◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MV ▶ 10857 - MV118 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#9150) — 73 parça

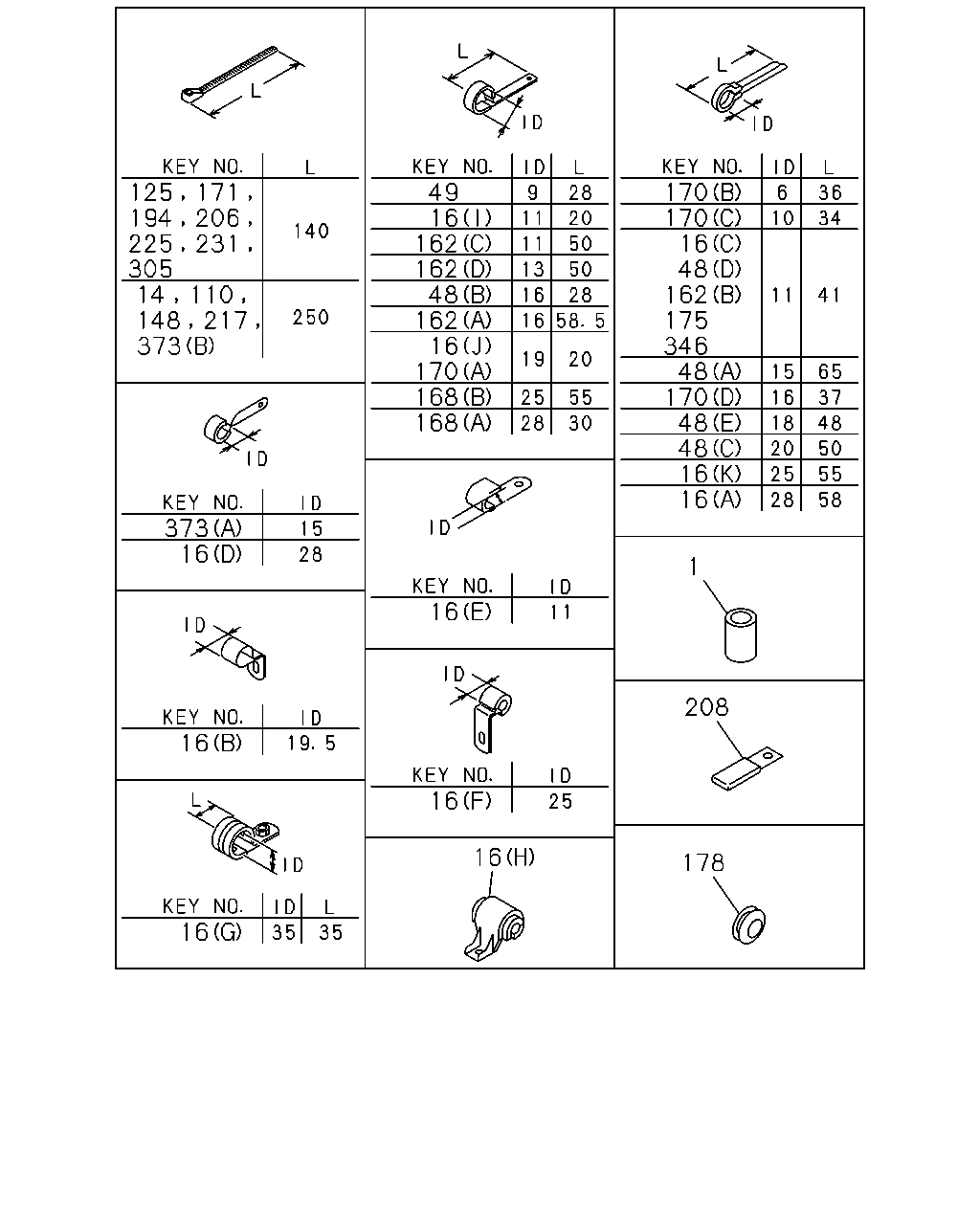

çizim 19239
49 16 162 162 48 162 16 170 168 168 170 170 16 48 162 175 346 48 170 48 48 16 16 125 171 305 373 373 16 1 16 208 16 16 16 178 16 194 206 225 231 14 110 148 217
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 03 1 9606- ● ●
14 CLIP; BAND,HARNESS
L=250 		5-09707-030-1 01 1 9906-9907 ● ●
14 CLIP; BAND,HARNESS
EXC. NIKKO<Y70> L=250 		5-09707-030-1 01 1 9908- ● ●
16 CLIP; HARNESS
(A) ID=28 L=58 		1-09700-400-0 01 1 9606- ●
16 CLIP; HARNESS
(B) ID=19.5 		1-09700-382-0 02 1 9606- ● ●
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 9606- ● ●
16 CLIP; HARNESS
(D) ID=28 L=60 ID=28 		1-09700-419-1 01 1 9606- ● ●
16 CLIP; HARNESS
(E) ID=11 L=30 		1-09700-453-0 02 1 9606- ● ●
16 CLIP; HARNESS
(F) ID=25 		1-09700-650-0 01 1 9606- ● ●
16 CLIP; HARNESS
(G) ID=35 L=35 		1-09700-895-0 02 1 9606- ● ●
16 CLIP; HARNESS
(H) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9606- ● ●
16 CLIP; HARNESS
(I) ID=11 L=20 		9-09525-032-0 03 1 9606- ● ●
16 CLIP; HARNESS
(J) ID=19 L=20 		9-09525-832-0 01 1 9606- ● ●
16 CLIP; HARNESS
(K) ID=25 L=55 		9-09917-573-0 04 1 9606- ● ●
16 CLIP; HARNESS
(A) ID=28 L=58 		1-09700-400-0 02 1 9606- ●
48 CLIP; FRAME HARNESS
(A) ID=15 L=65 		1-09700-466-0 03 1 9606- ● ●
48 CLIP; FRAME HARNESS
(B) L=28 ID=16 		9-09525-552-0 01 1 9606- ● ●
48 CLIP; FRAME HARNESS
(C) ID=20 L=50 		9-09917-430-0 43 1 9606- ● ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9606- ● ●
48 CLIP; FRAME HARNESS
(E) ID=18 L=48 		9-09917-429-0 05 1 9606- ● ●
49 CLIP; GEN HARNESS
ID=9 L=28 		9-09524-852-0 01 1 9606- ● ●
110 CLIP; BAND,DASH HARNESS
L=250 		5-09707-030-1 02 1 9606- ● ●
125 CLIP; BAND,STOP LAMP SW HARNESS
L=140 		5-09707-031-1 02 1 9606- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
L=250 		5-09707-030-1 04 1 9606- ● ●
162 CLIP; SW HARNESS
(A) L=58.5 ID=16 		1-09700-200-0 01 1 9606- ● ●
162 CLIP; SW HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 9606- ● ●
162 CLIP; SW HARNESS
(C) ID=11 L=50 ID=11 L=50 		9-09525-082-0 01 1 9606- ● ●
162 CLIP; SW HARNESS
(D) ID=13 L=50 		9-09525-283-0 01 1 9606- ● ●
168 CLIP; DASH HARNESS
(A) ID=28 L=30 		1-09700-607-1 03 1 9606- ●
168 CLIP; DASH HARNESS
(B) L=55 ID=25 		1-09700-724-1 01 1 9606- ● ●
170 CLIP; ELEC HARNESS
(A) ID=19 L=20 		9-09525-832-0 01 1 9606- ● ●
170 CLIP; ELEC HARNESS
(B) ID=6 L=36 		9-09917-423-0 01 1 9606- ● ●
170 CLIP; ELEC HARNESS
(C) L=34 ID=10 L=40 		9-09917-425-0 02 1 9606- ● ●
170 CLIP; ELEC HARNESS
(D) L=37 ID=16 L=46 		9-09917-428-0 04 1 9606- ● ●
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 02 1 9606- ● ●
175 CLIP; AIR TANK
ID=11 L=41 		1-09700-403-0 02 1 9606- ● ●
178 GROMMET; HARNESS
ID=15 OD=20 T=17.5 		9-09956-178-0 01 1 9606- ● ●
178 GROMMET; HARNESS
ID=15 OD=20 T=17.5 		9-09956-178-0 01 1 9606- ● ●
194 CLIP; BAND
L=140 		5-09707-031-1 05 1 9606- ● ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 9606- ● ●
208 CLIP; HARNESS,MAG VLV
L=60 		1-09700-304-0 01 1 9606- ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 04 1 9606- ● ●
225 CLIP; AIR TANK HARNESS
L=140 		5-09707-031-1 03 1 9606- ● ●
231 CLIP; BAND,OIL PRESS
L=140 		5-09707-031-1 01 1 9606- ● ●
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 02 1 9606- ● ●
346 CLIP; BAND FRAME HARNESS
ID=11 L=41 		1-09700-403-0 05 1 9606- ● ●
373 CLIP; BAND,GEN HARNESS
(A) ID=15 L=50 		1-09700-804-0 01 1 9606- ● ●
373 CLIP; BAND,GEN HARNESS
(B) L=250 		5-09707-030-1 01 1 9906-9907 ● ●
373 CLIP; BAND,GEN HARNESS
EXC. NIKKO<Y70> (B) L=250 		5-09707-030-1 01 1 9908- ● ●
çizim 72656
38 38 38 38 169 38 38 38 173 371 47 219 47 219 219 38 386 43 423 520
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(G) M10X25 W/LK WASHER 		0-50041-025-0 03 1 9606- ●
38 BOLT; CLIP,HARNESS
(A) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9606- ● ●
38 BOLT; CLIP,HARNESS
(B) M6X14 W/LK WASHER 		0-50040-614-0 03 1 9606- ● ●
38 BOLT; CLIP,HARNESS
(D) M6X25 W/LK WASHER 		0-50040-625-0 03 1 9606- ● ●
38 BOLT; CLIP,HARNESS
(D) M6X25 W/LK WASHER 		0-50040-625-0 05 1 9606- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9606- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9606- ● ●
38 BOLT; CLIP,HARNESS
(F) M10X20 W/LK WASHER 		0-50041-020-0 02 1 9606- ● ●
38 BOLT; CLIP,HARNESS
(C) M6X20 W/LK&PL WASHER 		0-50140-620-0 03 1 9606- ● ●
38 BOLT; CLIP,HARNESS
(H) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9606- ● ●
43 WASHER; LK,HARNESS
ID=5.1 		9-09150-505-0 01 1 9606- ● ●
47 NUT; GEN TERMINAL
(A) M6 		9-09110-406-0 01 1 9606- ● ●
47 NUT; GEN TERMINAL
(B) M8 		9-09110-408-0 01 1 9606- ● ●
169 BOLT; ELEC HARNESS
M6X25 W/LK WASHER 		0-50040-625-0 01 1 9606- ● ●
173 BOLT; STARTER EARTH
M12X30 W/LK WASHER 		0-50041-230-0 01 1 9606- ● ●
219 NUT
(C) M10 		9-09110-510-0 03 1 9606- ●
219 NUT
(A) M6 		9-09110-406-0 06 1 9606- ● ●
219 NUT
(A) M6 		9-09110-406-0 08 1 9606- ● ●
219 NUT
(B) M8 		9-09110-408-0 01 1 9606- ● ●
219 NUT
(B) M8 		9-09110-408-0 02 1 9606- ● ●
371 BOLT; GEN HARNESS
M5X10 		0-20800-510-0 01 1 9606- ● ●
386 BOLT; GRAND HARNESS
M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 9606- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 9606- ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9606- ● ●
